Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLS-080

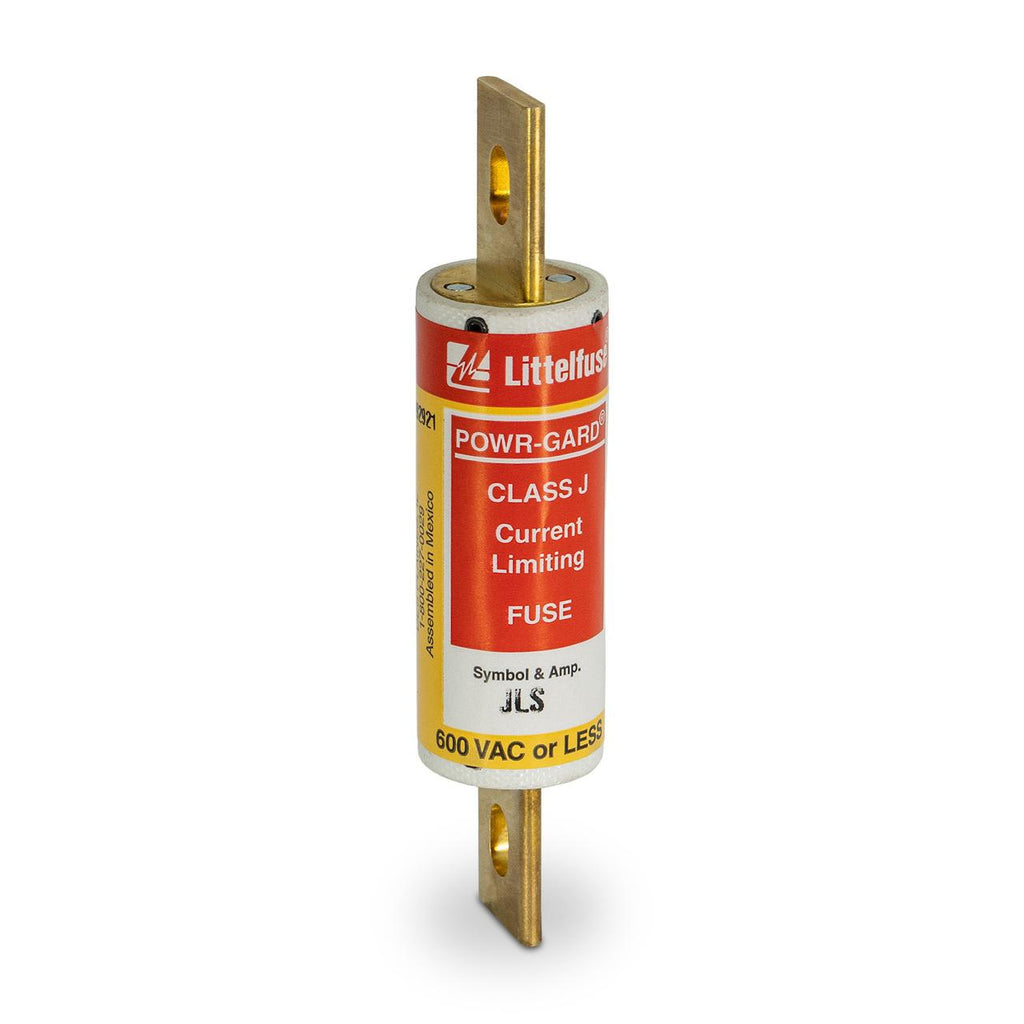

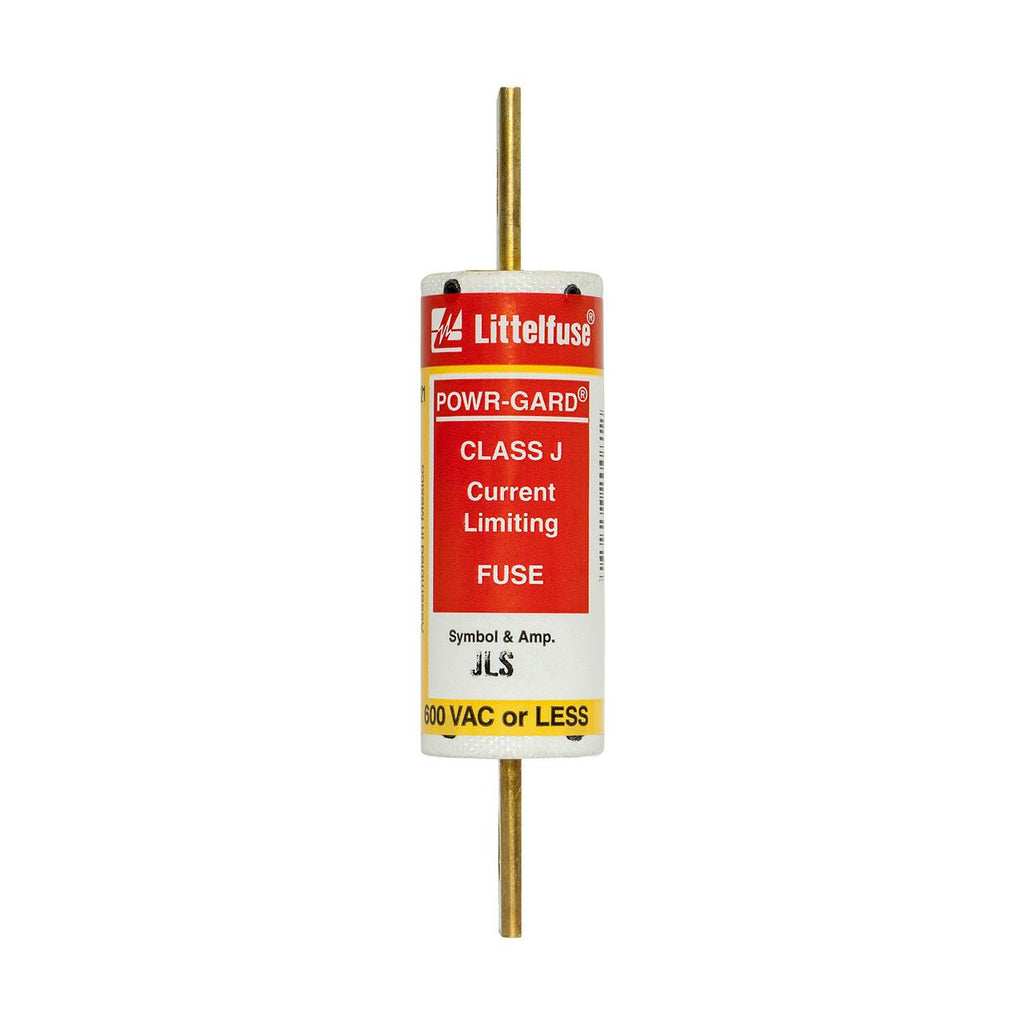

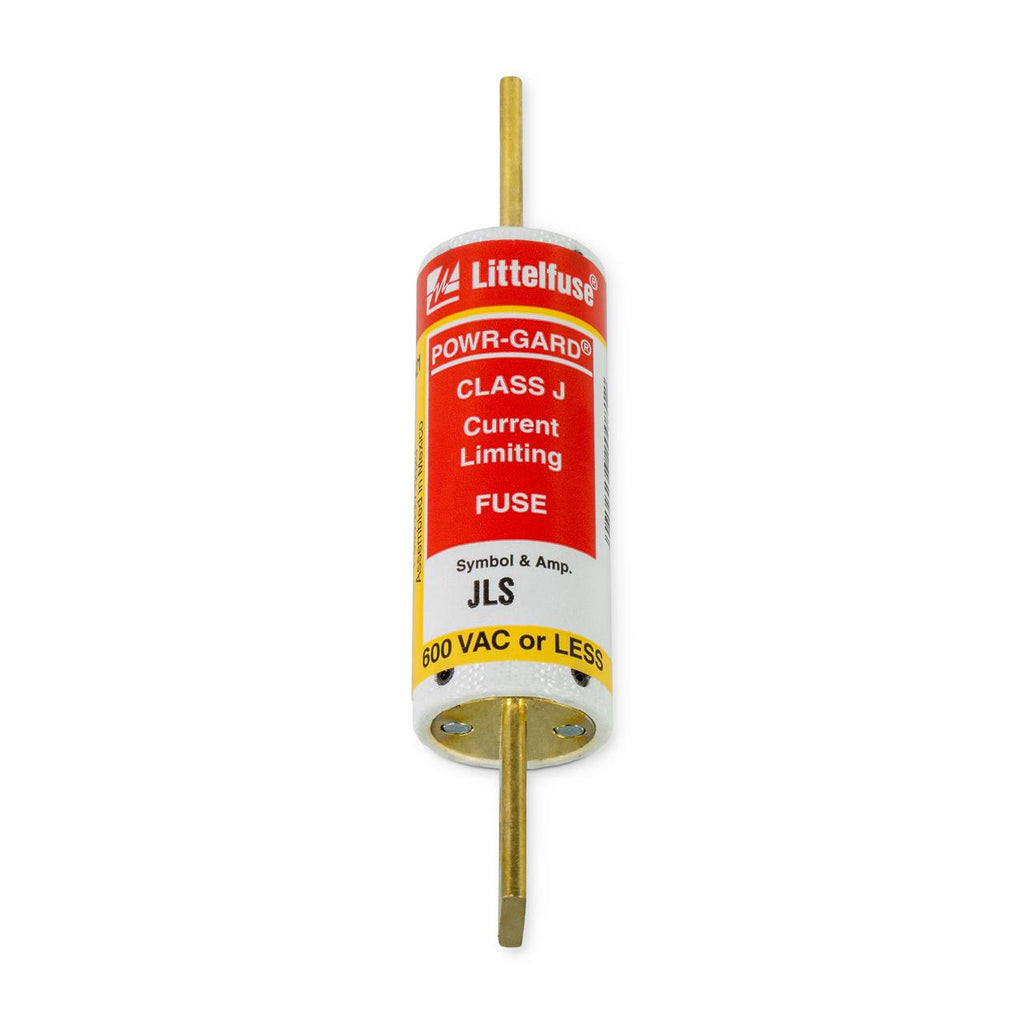

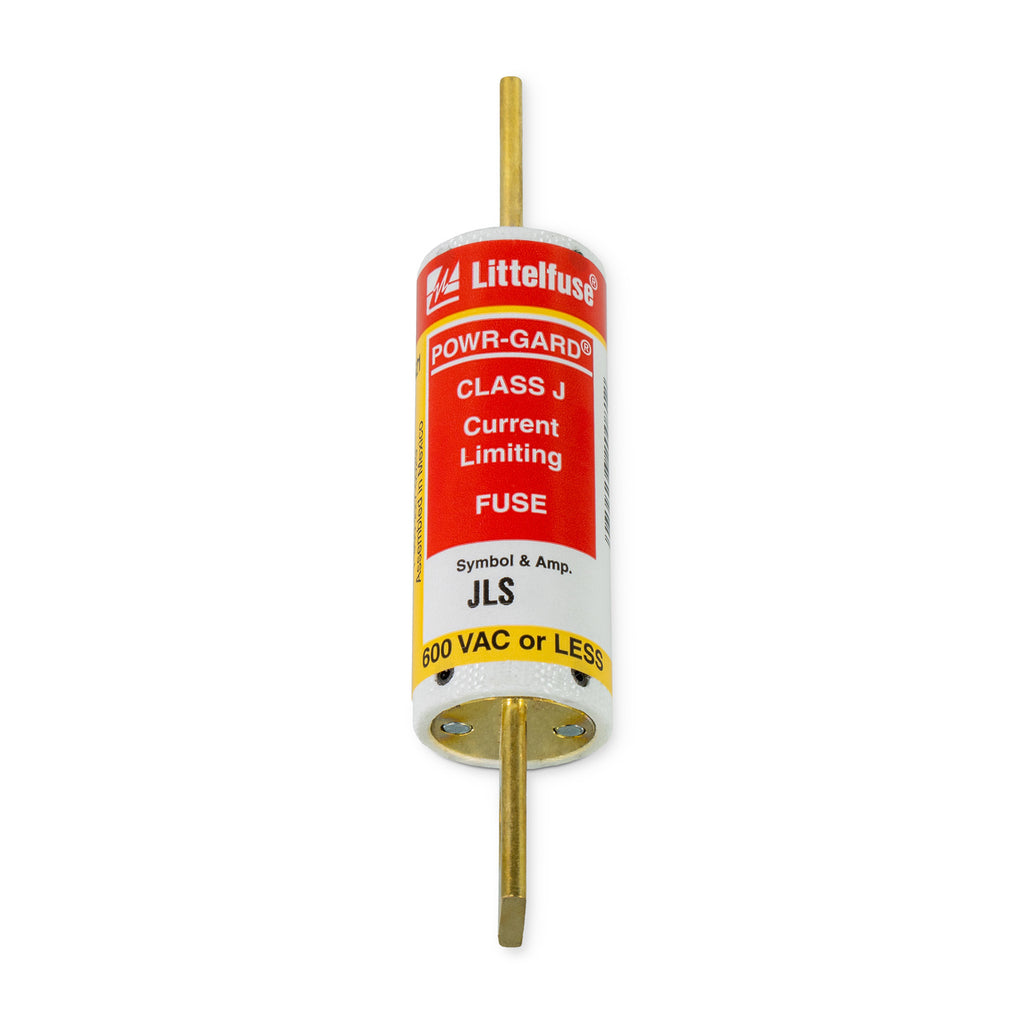

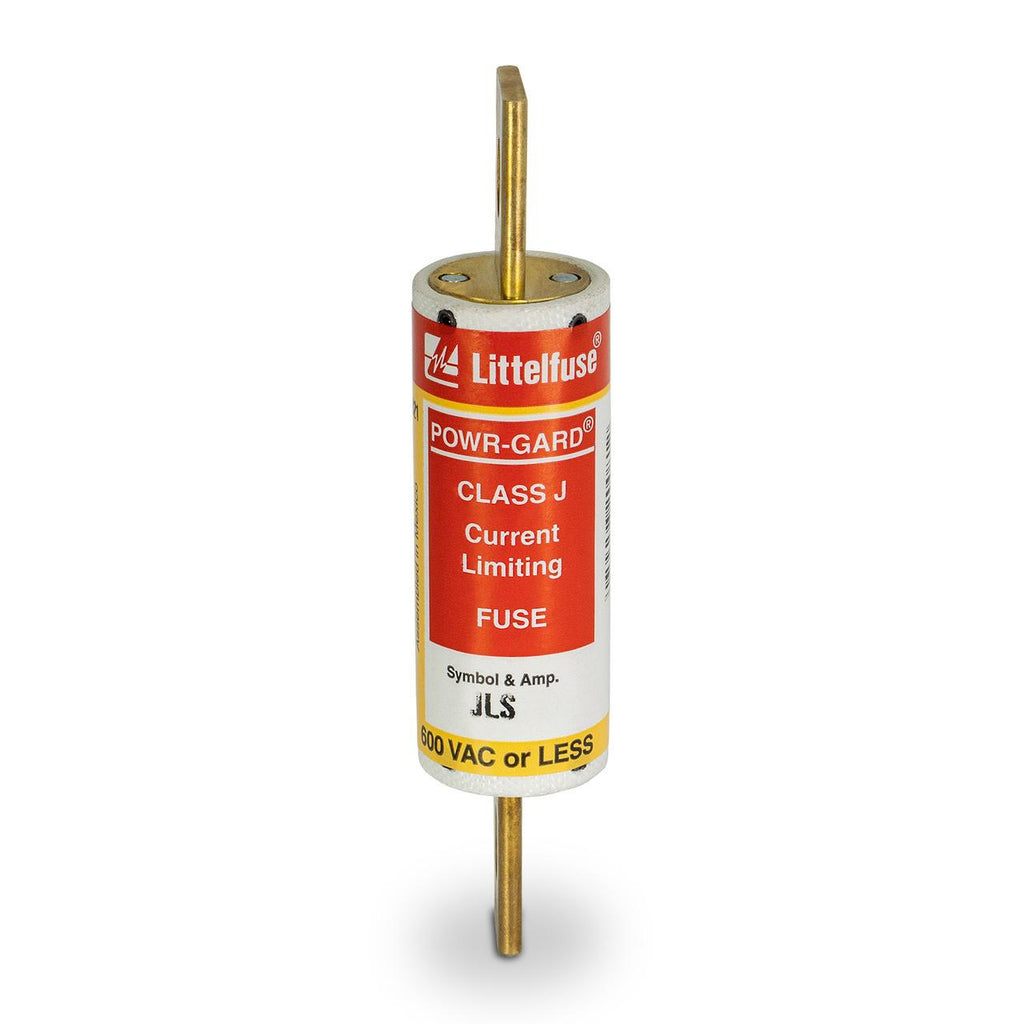

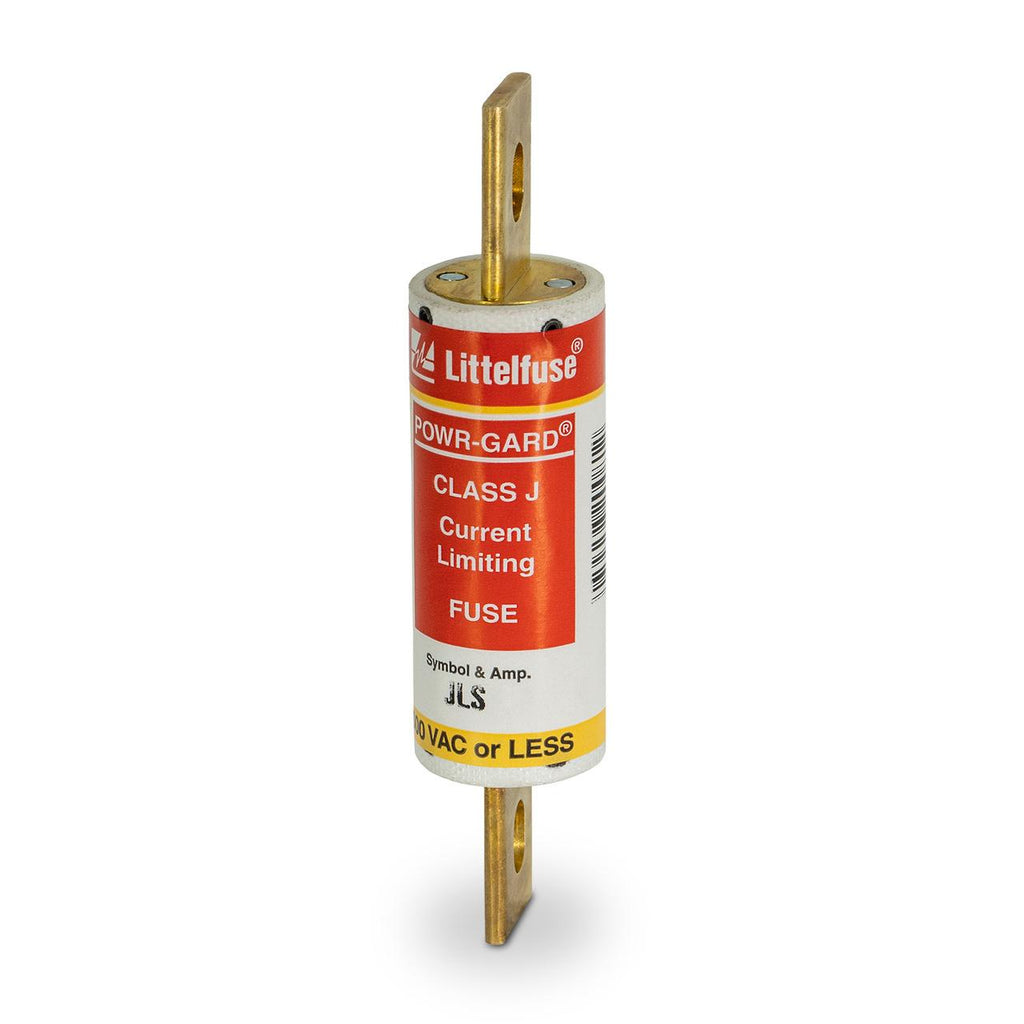

JLS-080 is an 80 Amp, 600 Volt AC, Class J fast acting fuse from Littelfuse designed for reliable overcurrent protection.This Littelfuse JLS-080 fuse features fast-acting, current-limiting technology with a high interrupting rating of 200,000 amperes at 600 VAC. It is compact with dimensions of 1 1/8 inch diameter by 4 5/8 inches length, suitable for general purpose circuits including resistive loads and surge-sensitive devices. The fuse is UL listed, CSA certified, and meets Federal Specification WF-1814 standards.
- Key Specifications
- Amperage: 80 Amps
- Voltage Rating: 600 VAC
- Fuse Type: Class J
- Speed: Fast Acting
- Interrupting Rating: 200,000 AIC at 600 VAC
- Dimensions: 1 1/8" diameter x 4 5/8" length
- Mounting Type: Knife-blade / Bolt Mount
- Certifications: UL Listed (E81895), CSA Certified (LR29862), Federal Spec WF-1814
- Current Limiting: Yes
- Applications: General purpose, resistive loads, surge-sensitive equipment
- Part Number: JLS-080
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 1.5
- Class Rating : J
- Barrels : 1
- UPC : 7945820080
- GTIN : 00079458200805
- Weight : 0.3
