Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description

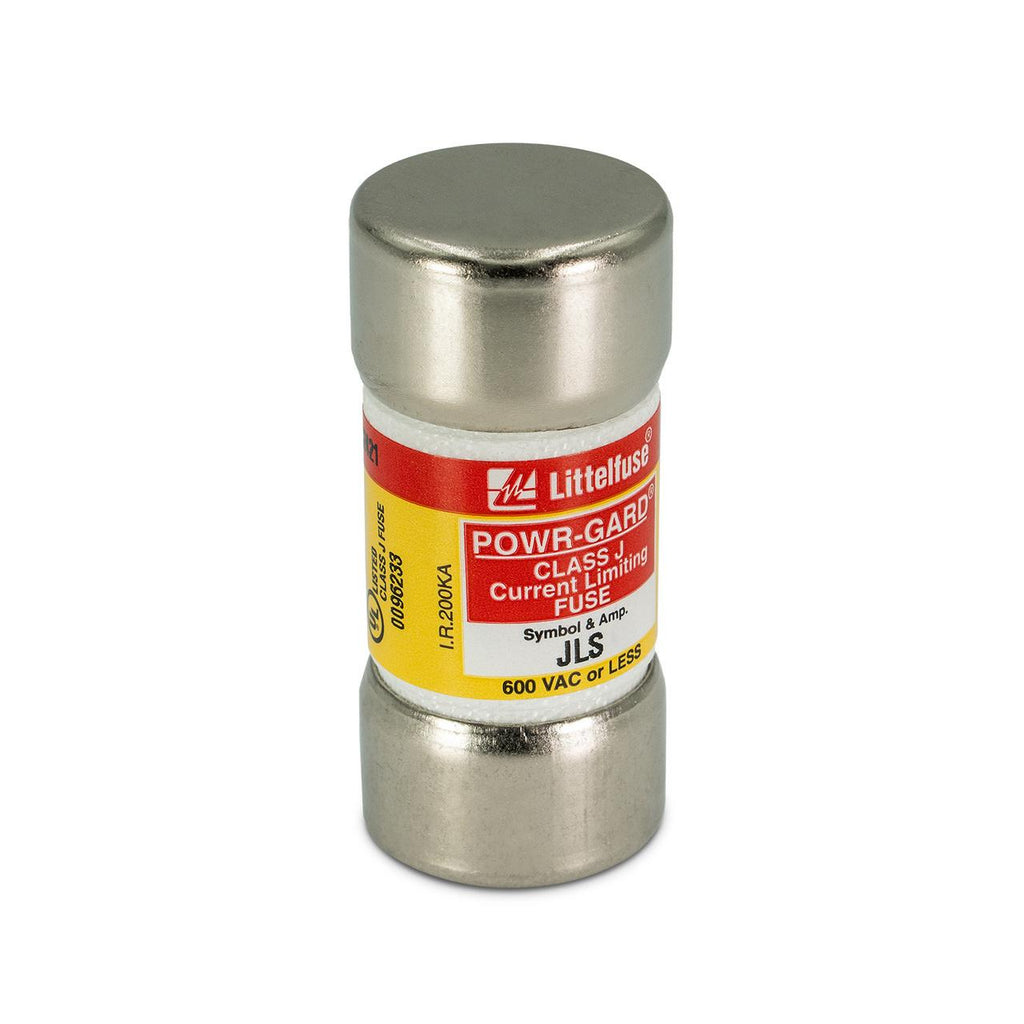

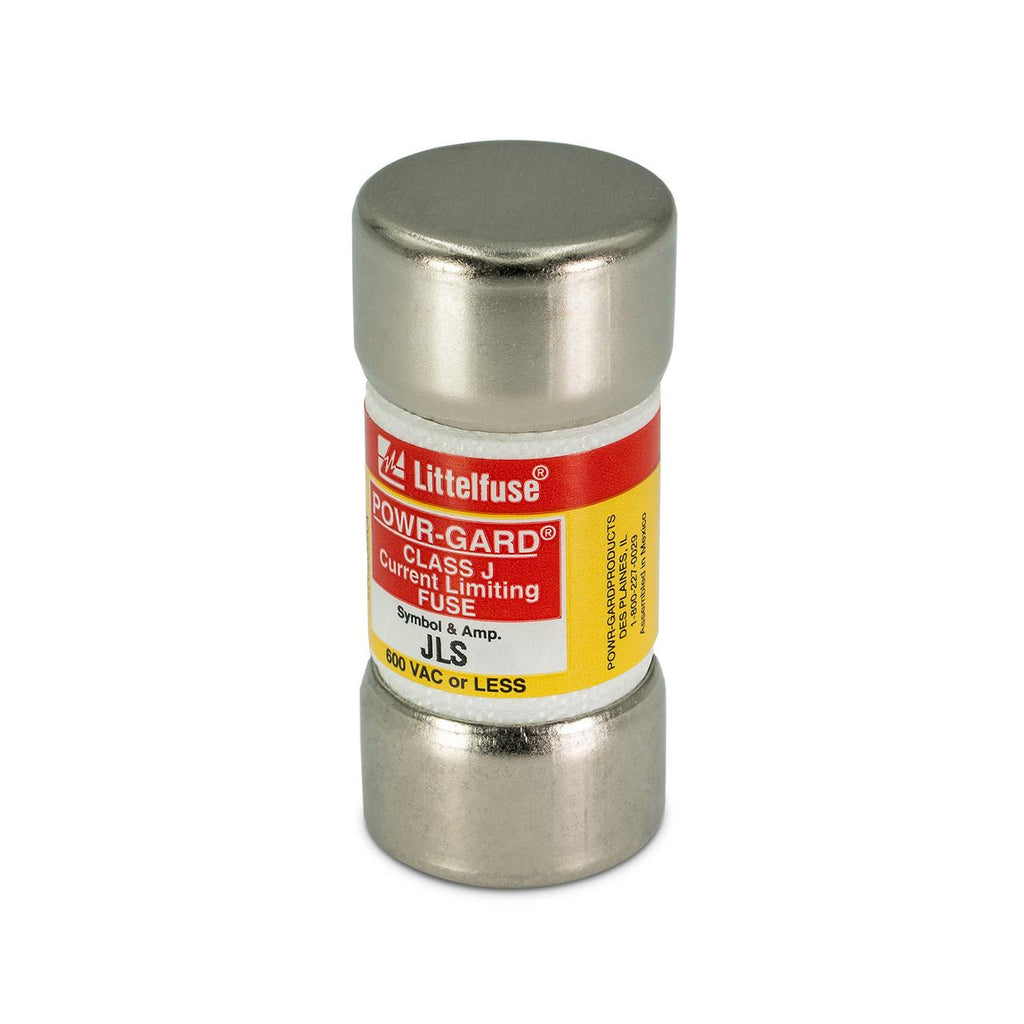

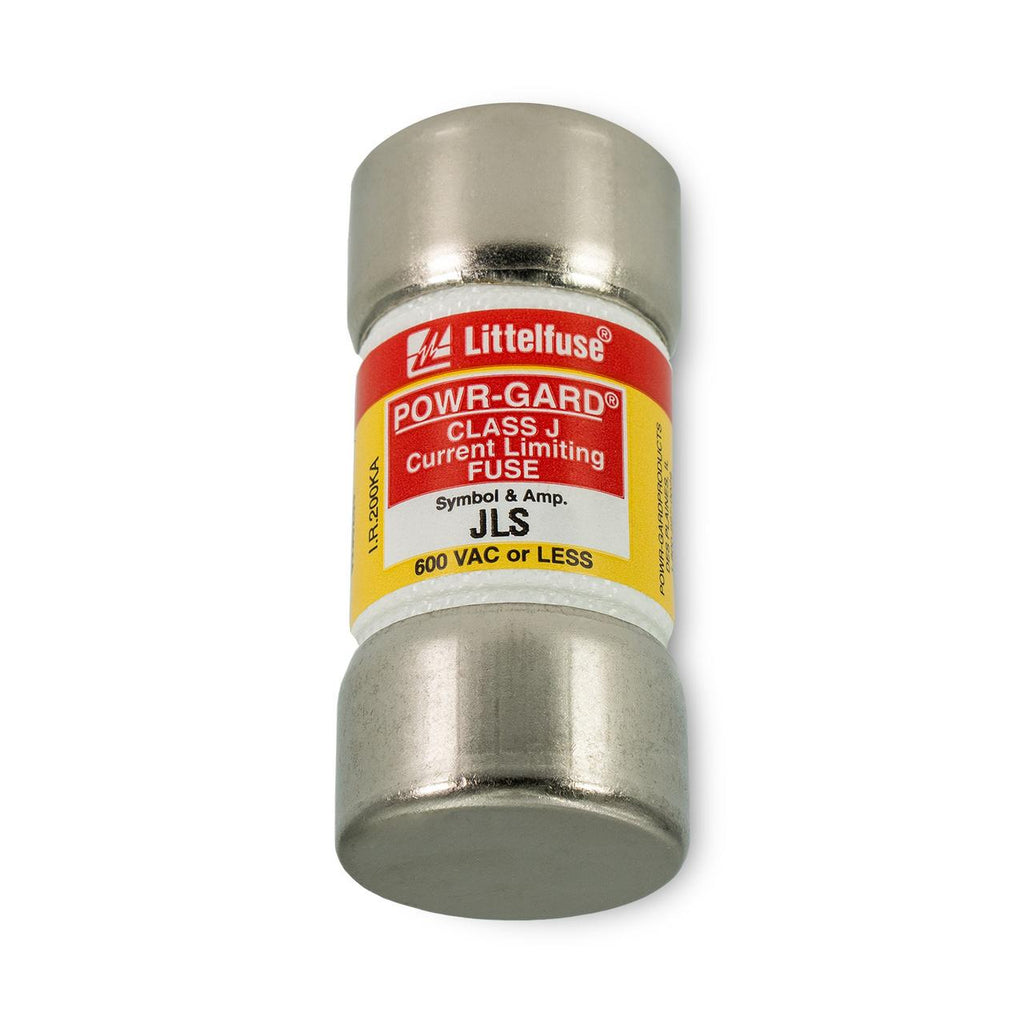

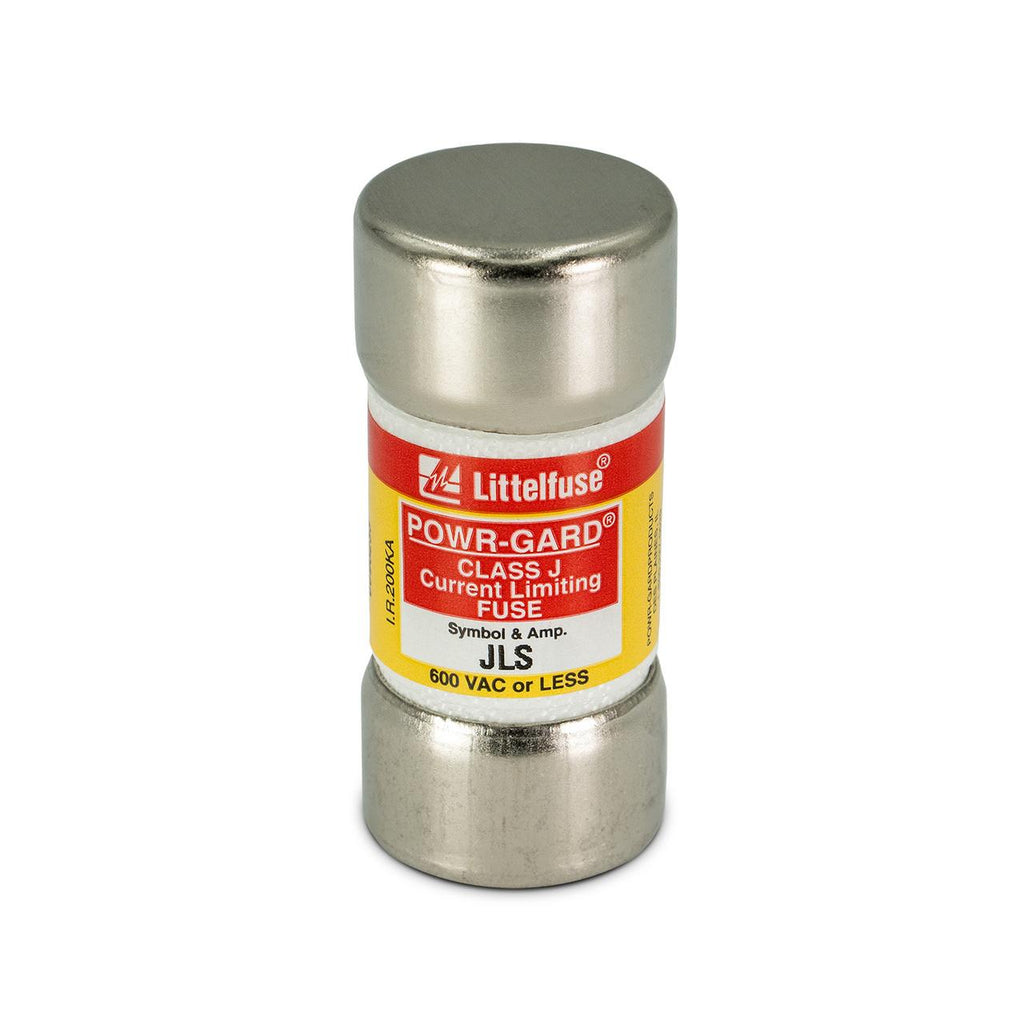

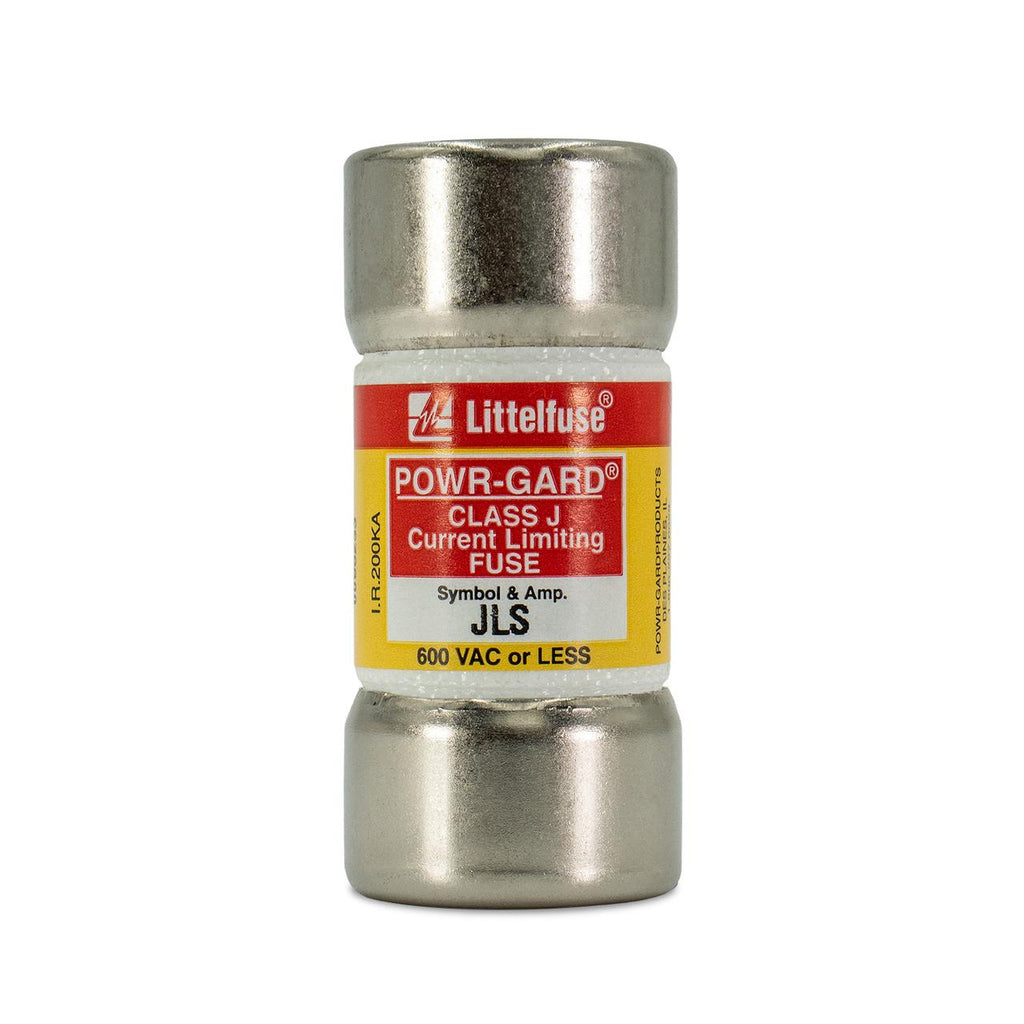

JLS-060
JLS-060 is a Littelfuse Class J fast-acting cartridge fuse providing 60 amps continuous current rating and 600 volts AC voltage rating.This fuse features fast-acting, current-limiting protection designed for industrial and power conversion applications. It offers a high interrupting rating of 200,000 amps RMS symmetrical to protect sensitive equipment from overloads and short circuits. The compact cartridge design measures approximately 2.37 inches in length by 1.06 inches in diameter and complies with UL 248-8, CSA, CE, and QPL standards.
- Key Specifications
- Current Rating: 60 Amps
- Voltage Rating: 600 VAC
- Interrupting Rating: 200,000 Amps RMS Symmetrical
- Fuse Class: Class J
- Speed: Fast-Acting
- Construction: Cartridge Style
- Dimensions: 2.37" Length x 1.06" Diameter
- Standards: UL 248-8, CSA, CE, QPL
- Mounting Type: Compatible with LFJ Fuse Blocks
- Body Material: Melamine
Specifications
- Part Number: JLS-060
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458200782
- GTIN : 0079458200782
- Weight : 0.15
