Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLS-025

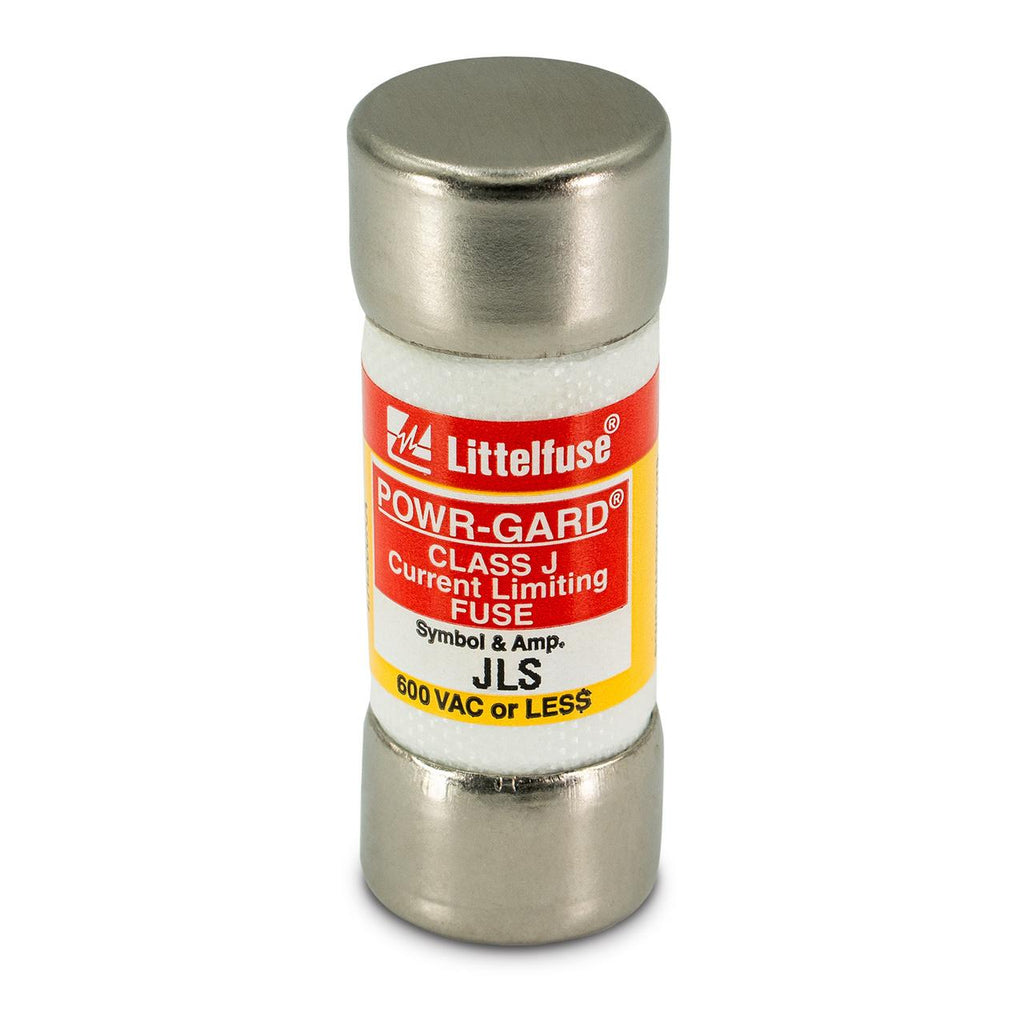

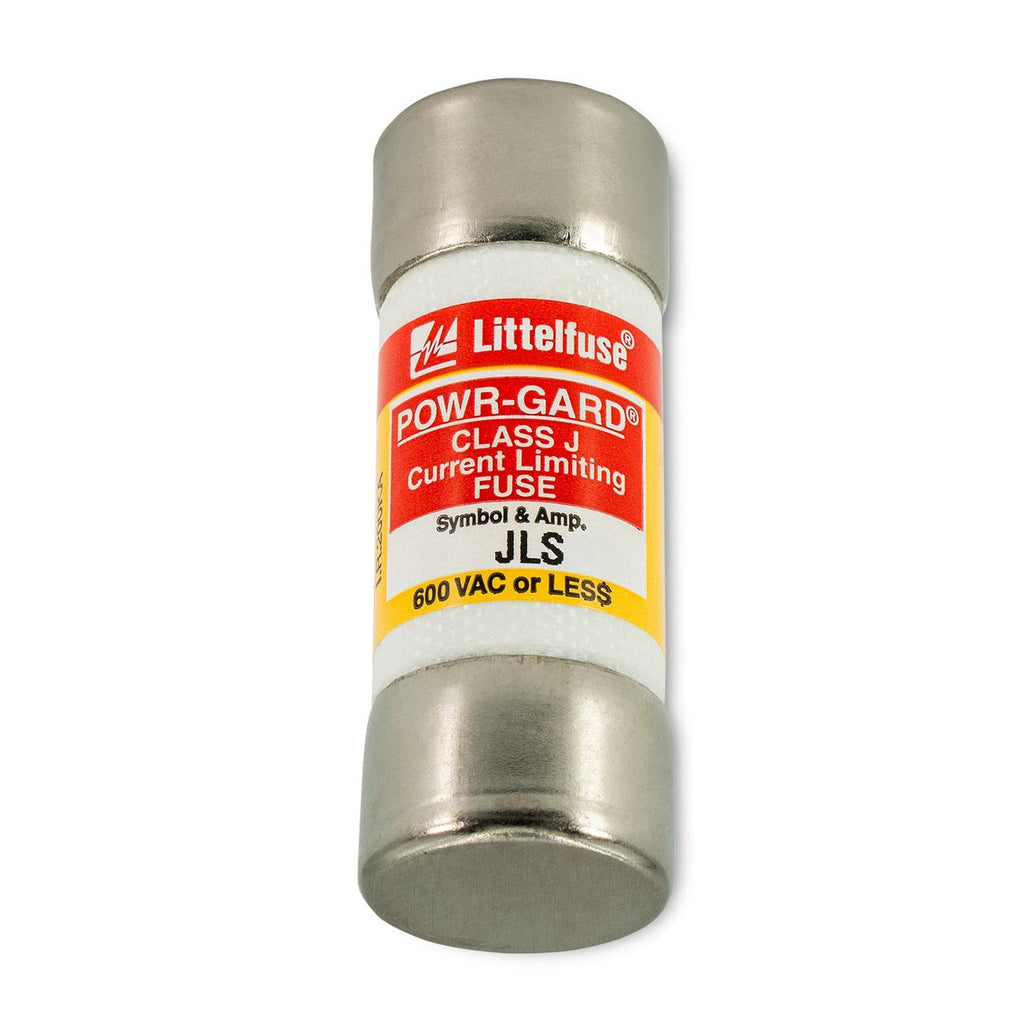

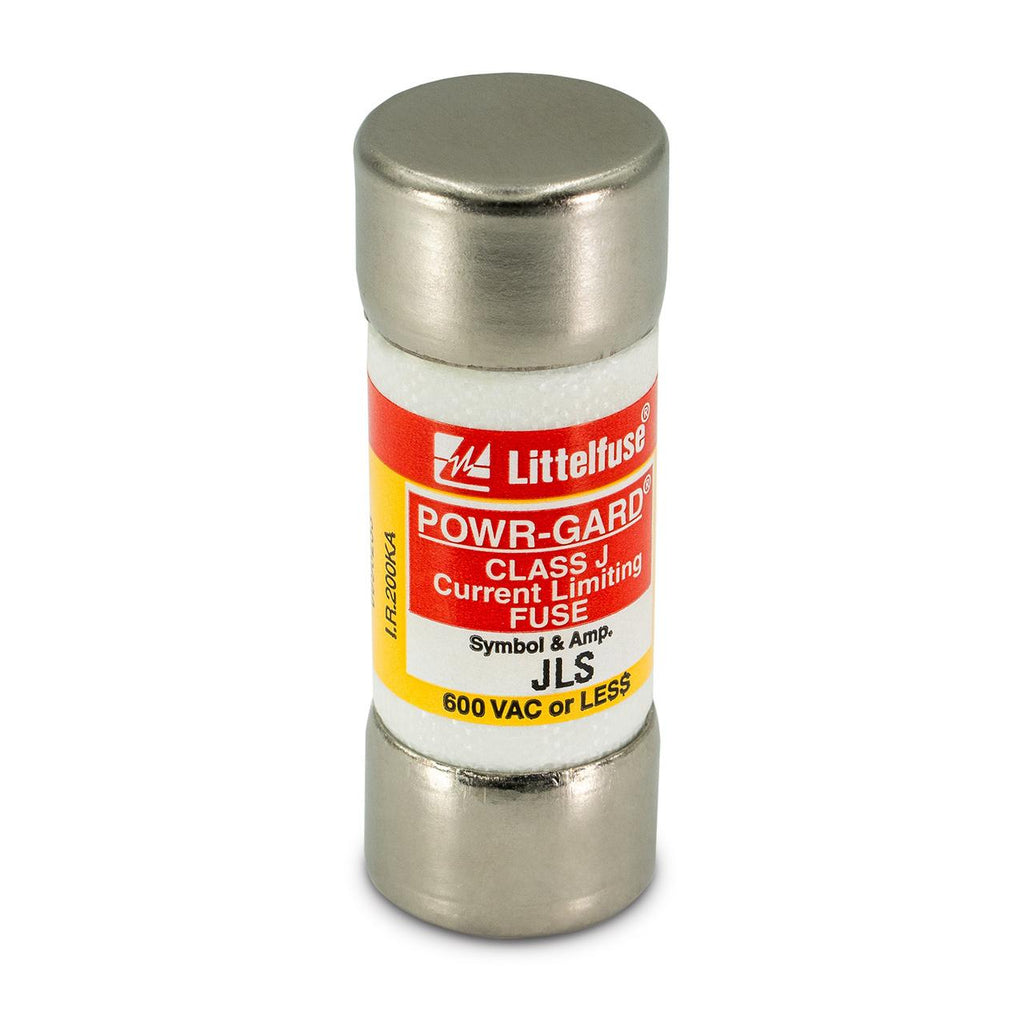

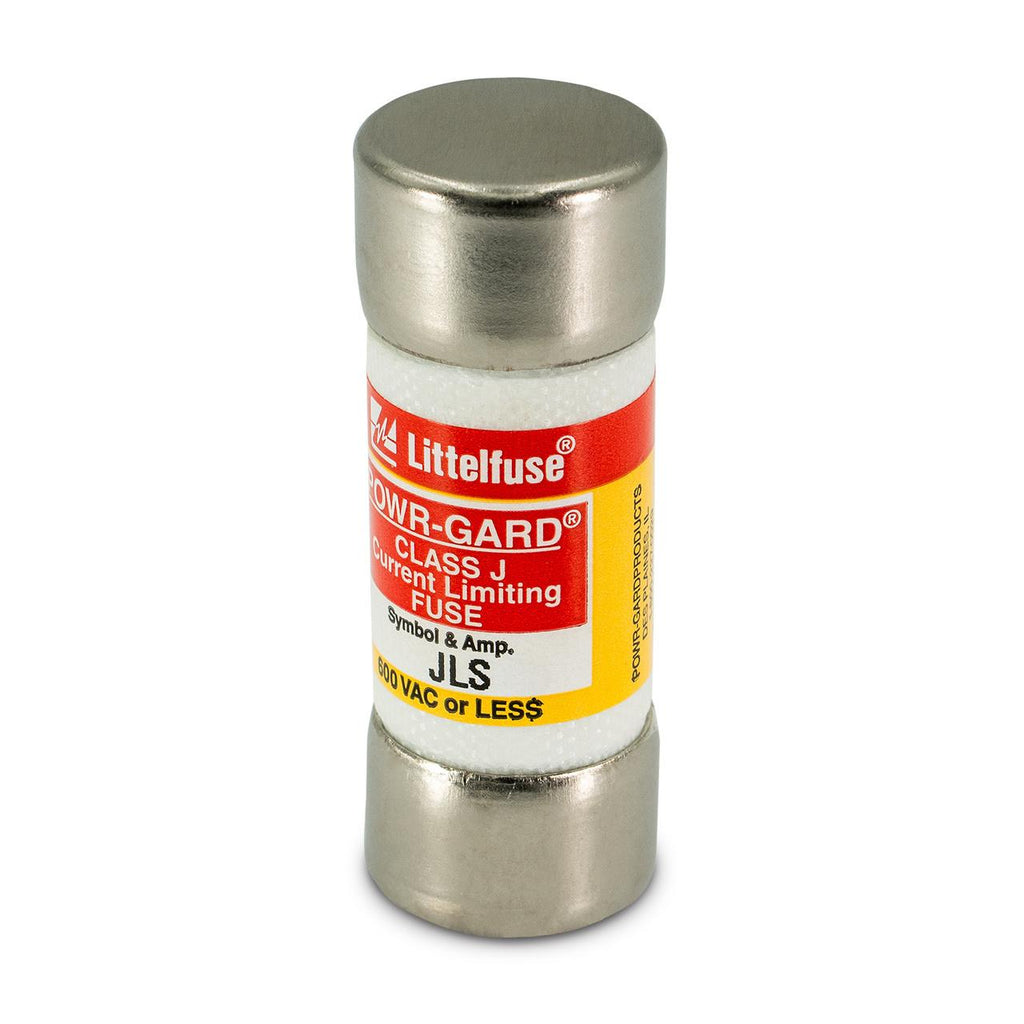

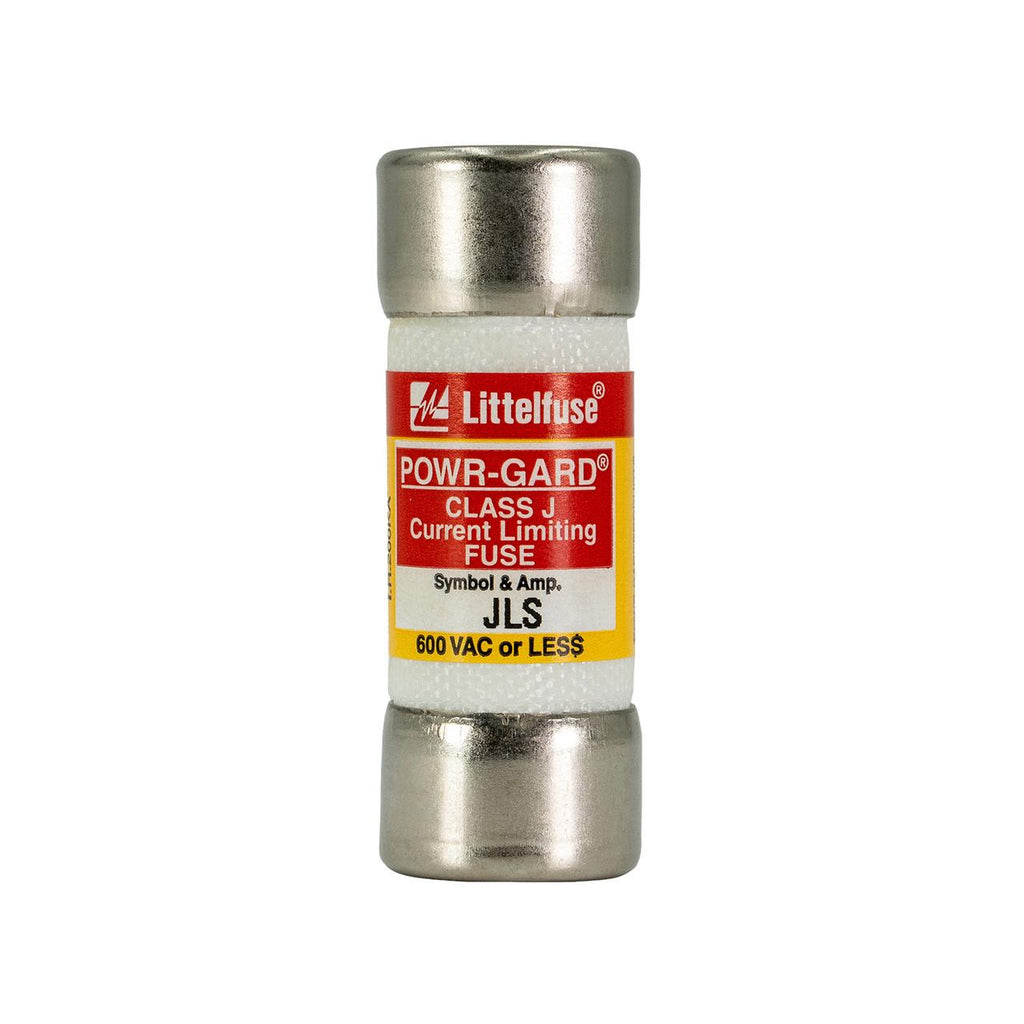

JLS-025 is a Littelfuse 25 Amp, 600 Volt Class J fast acting fuse designed for reliable overload and short-circuit protection.This fuse features a compact cylindrical body measuring 13/16" diameter by 2 1/4" length, providing space-saving current limiting protection for general purpose circuits with little or no motor load, resistive loads, and surge-sensitive devices. It is UL Class J rated with a 200,000 A interrupting rating at 600 VAC, fast acting to protect equipment requiring quick overload response, and CSA certified.
- Amperage: 25 Amps
- Voltage Rating: 600 Volts AC
- Fuse Type: Class J
- Fast Acting
- Interrupting Rating: 200,000 AIC @ 600 VAC
- Physical Size: 13/16" diameter x 2 1/4" length
- Current Limiting
- UL Listed (File No. E81895)
- CSA Certified (File No. LR29862)
- General Purpose and Resistive Loads
- Non-Indicating
Specifications
- Part Number: JLS-025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 079458200720
- GTIN : 079458200720
- Weight : 5.19
