Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
JLS-020

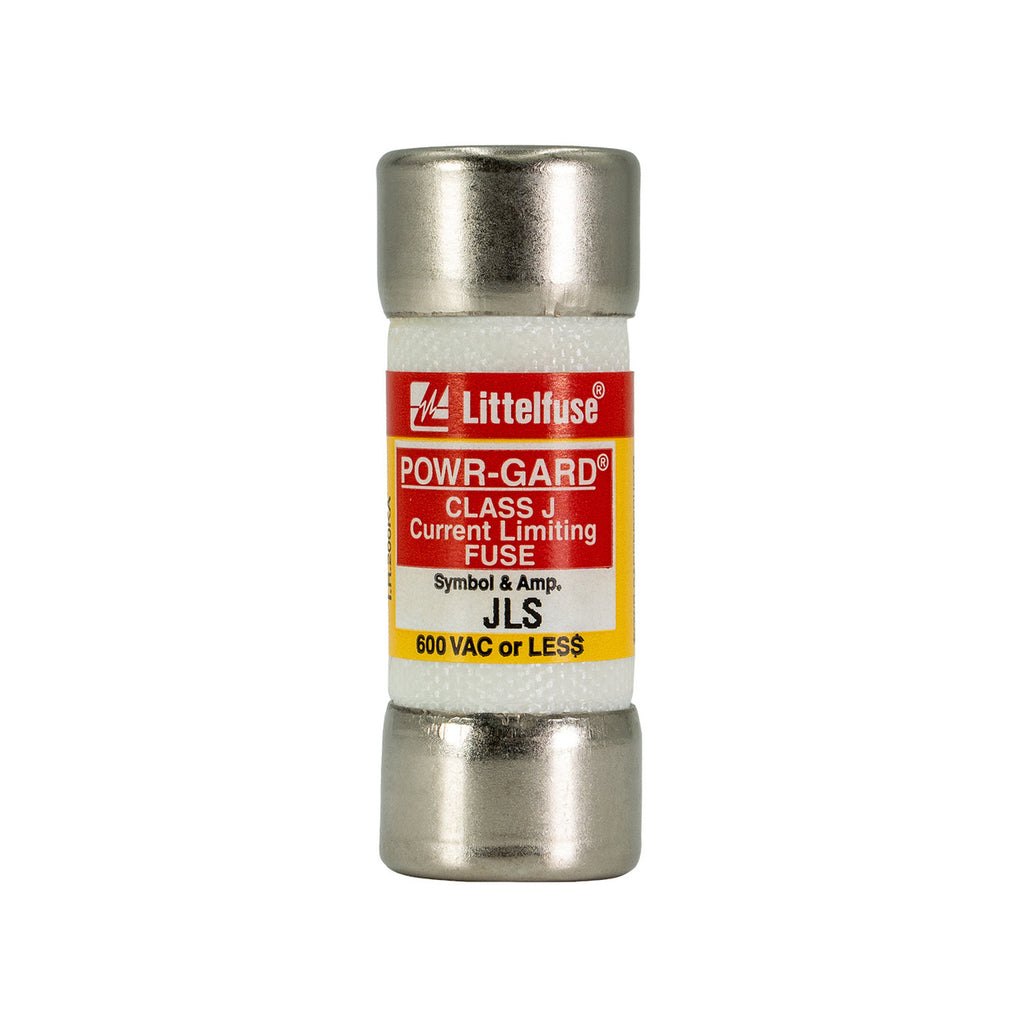

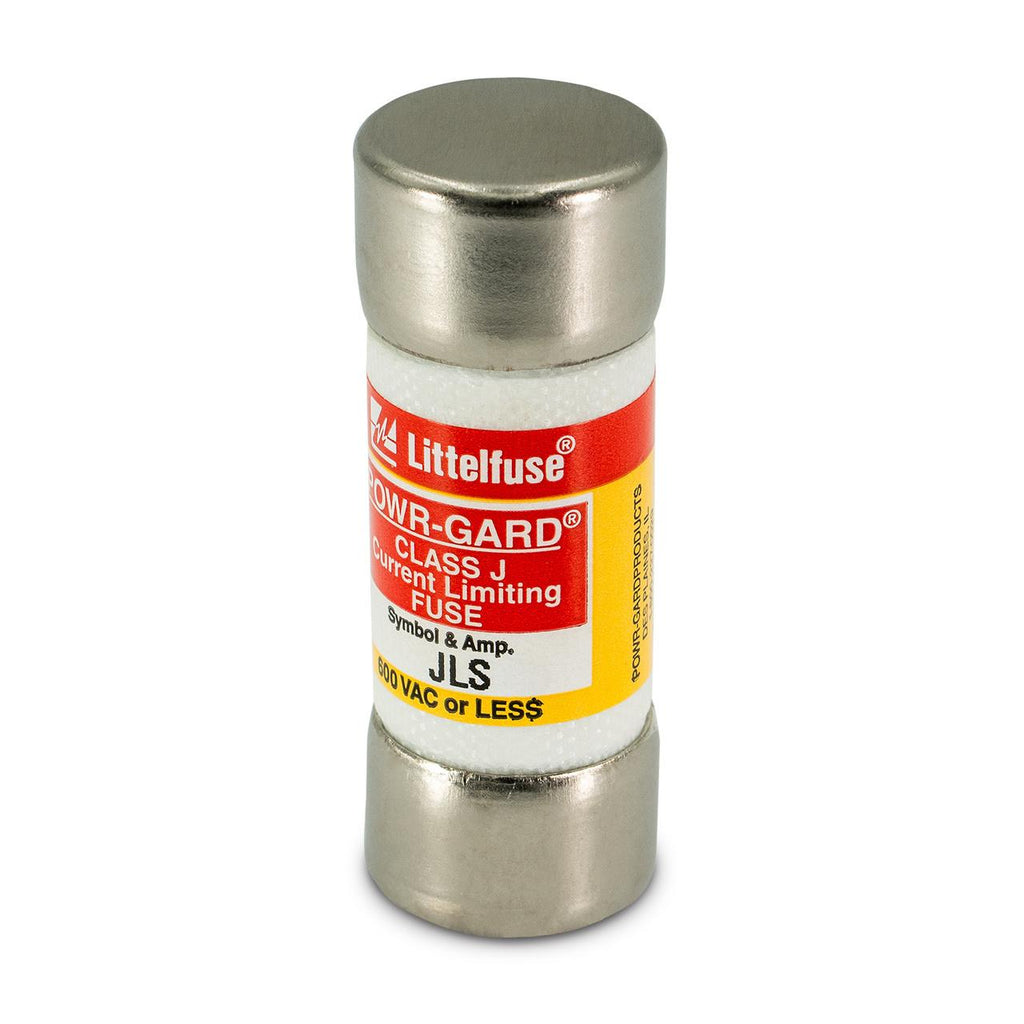

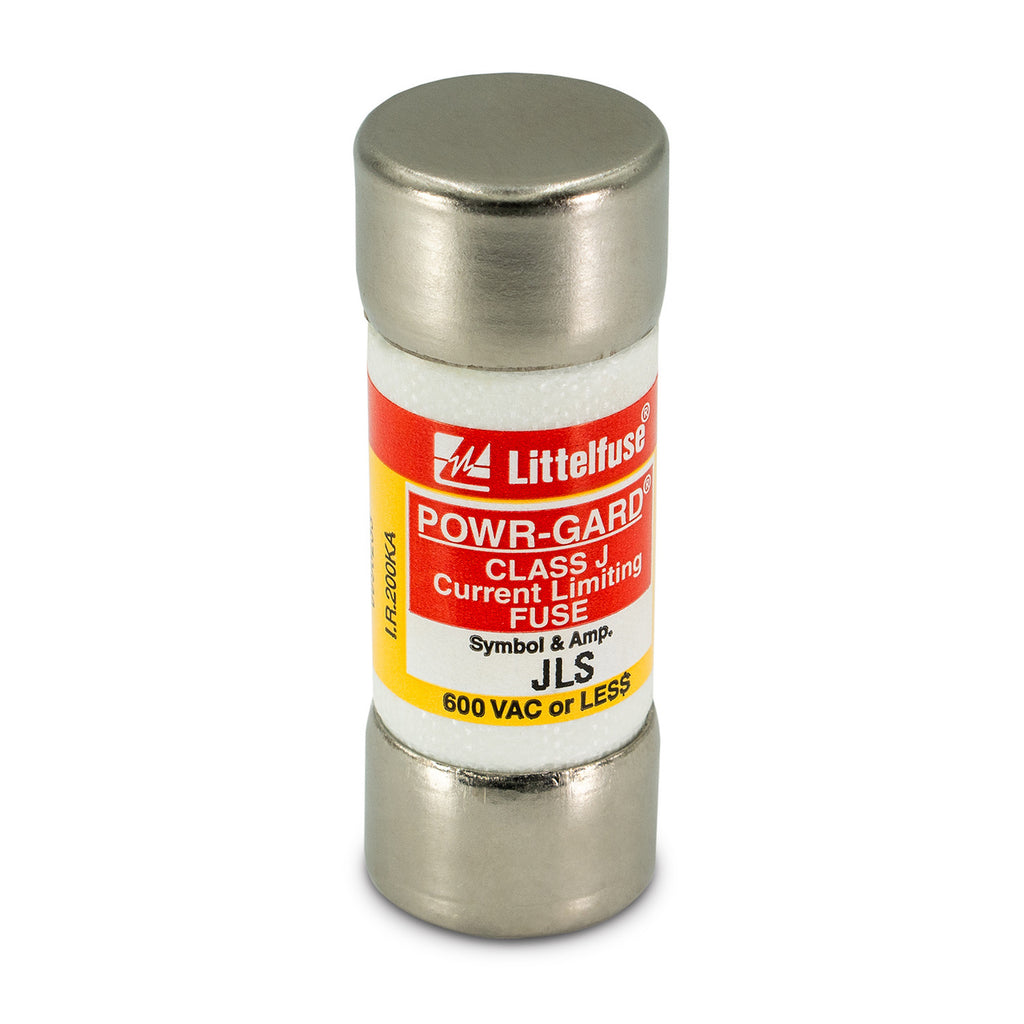

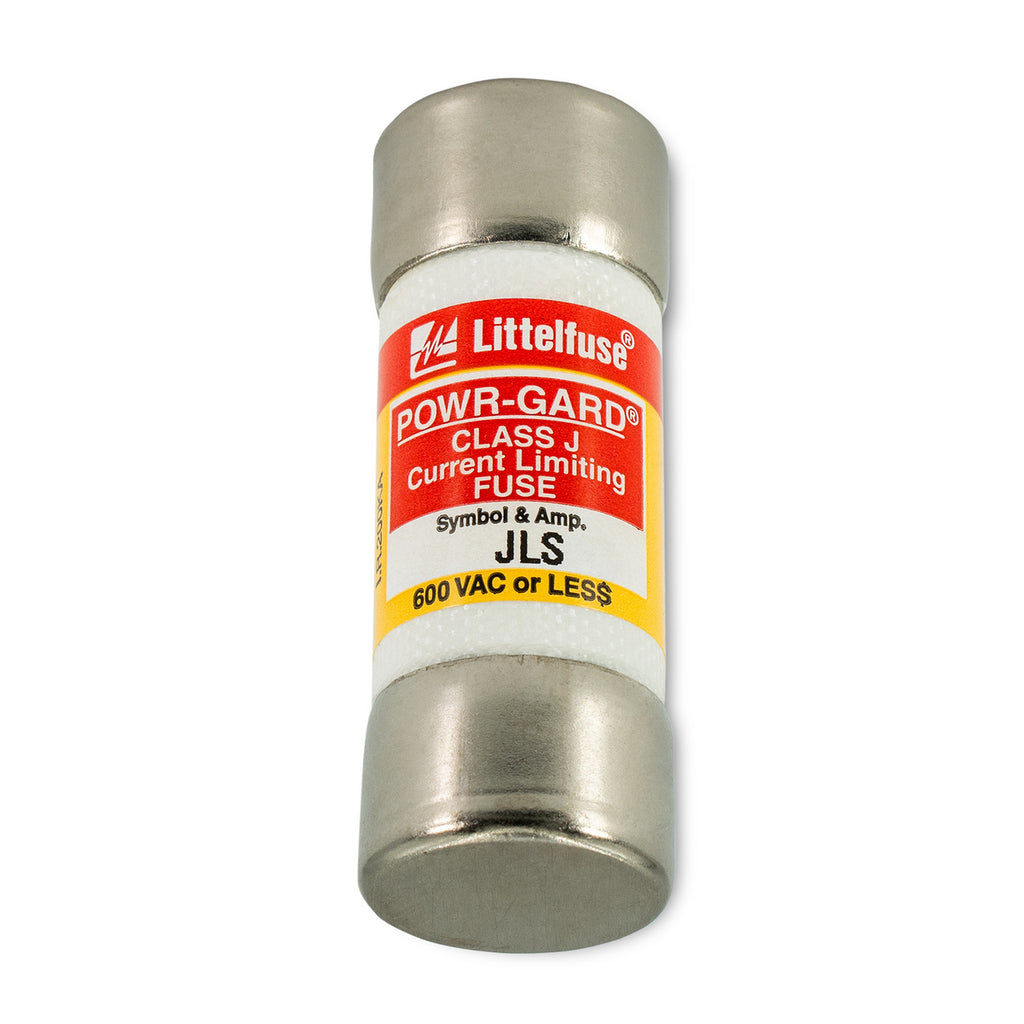

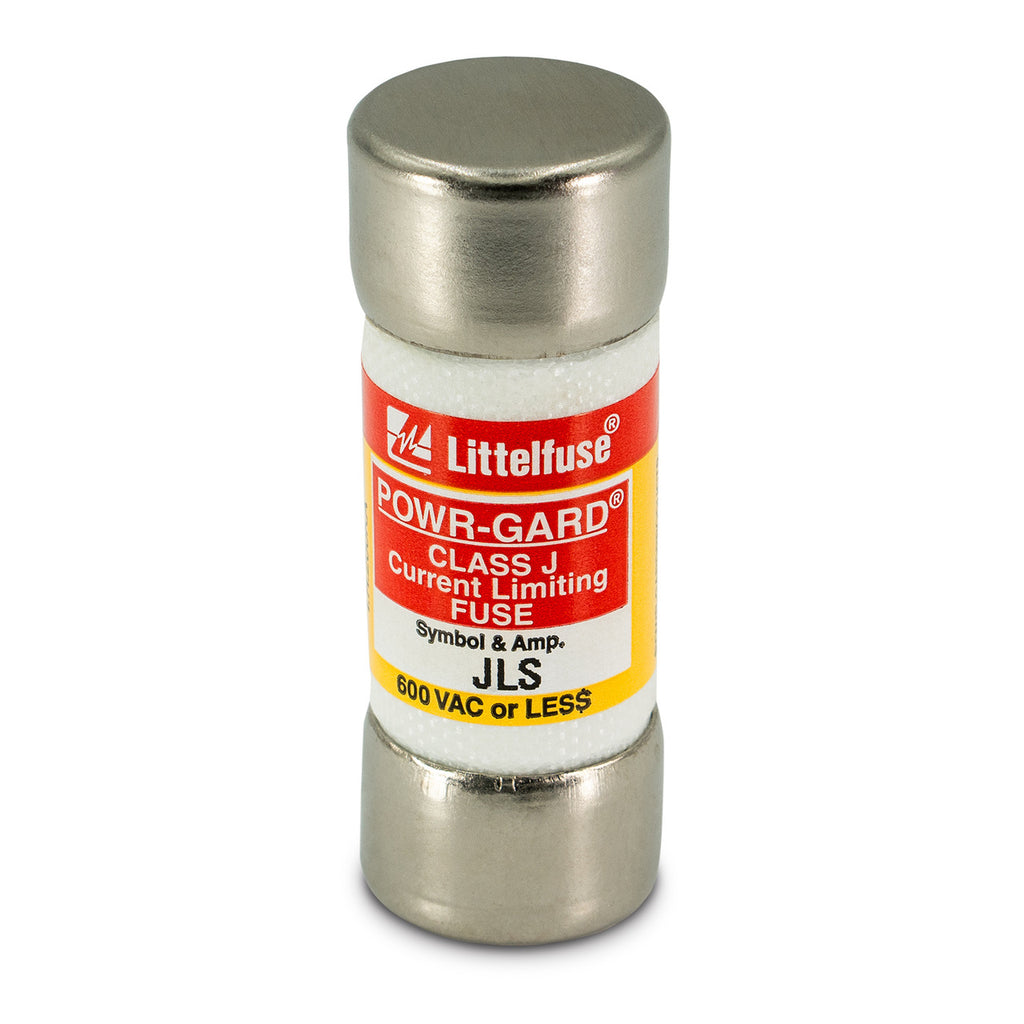

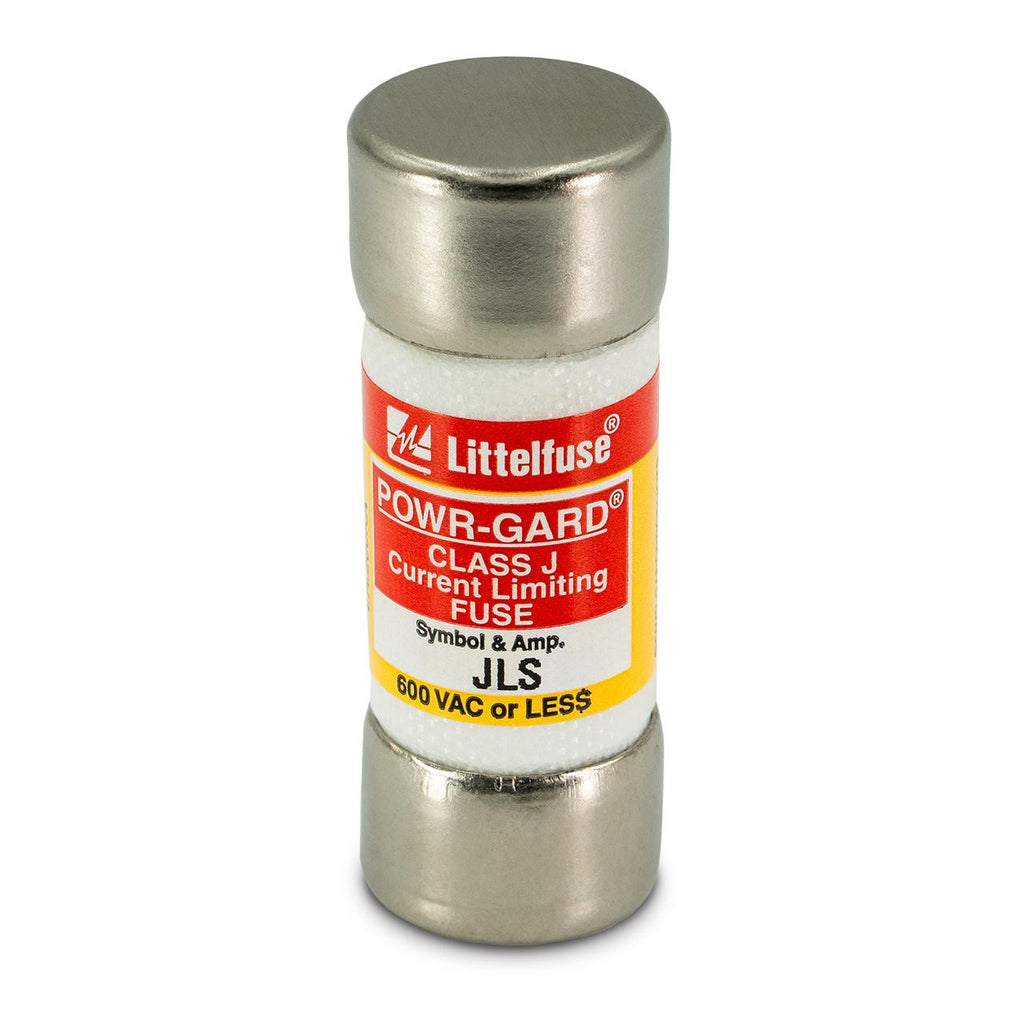

JLS-020 is a Littelfuse Class J fast acting cartridge fuse rated for 20 amps and 600 volts AC, designed for reliable overcurrent protection.This fuse features a compact industrial cartridge style with a current limiting design and a high interrupting rating of 200,000 amperes at 600 volts AC. It is fast-acting, providing quick response to overloads and short circuits, suitable for general purpose circuits with little or no motor load, resistive loads, and surge-sensitive devices. The fuse mounts in fuse blocks or clips and complies with UL 248-8, CSA, and CE certifications.
- Amperage: 20 Amps
- Voltage Rating: 600 VAC
- Fuse Class: Class J
- Interrupting Rating: 200,000 AIC @ 600 VAC
- Fast Acting (F) Opening
- Current Limiting
- Mounting Method: Fuse Block / Clip / Holder
- Physical Size: 13/16" diameter x 2 1/4" length
- Body Material: Melamine
- Certifications: UL Listed (E81895), CSA Certified (LR29862), CE Approved
- Series: JLS
Specifications
- Part Number: JLS-020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458200710
- Weight : 5.19
