Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLS-003

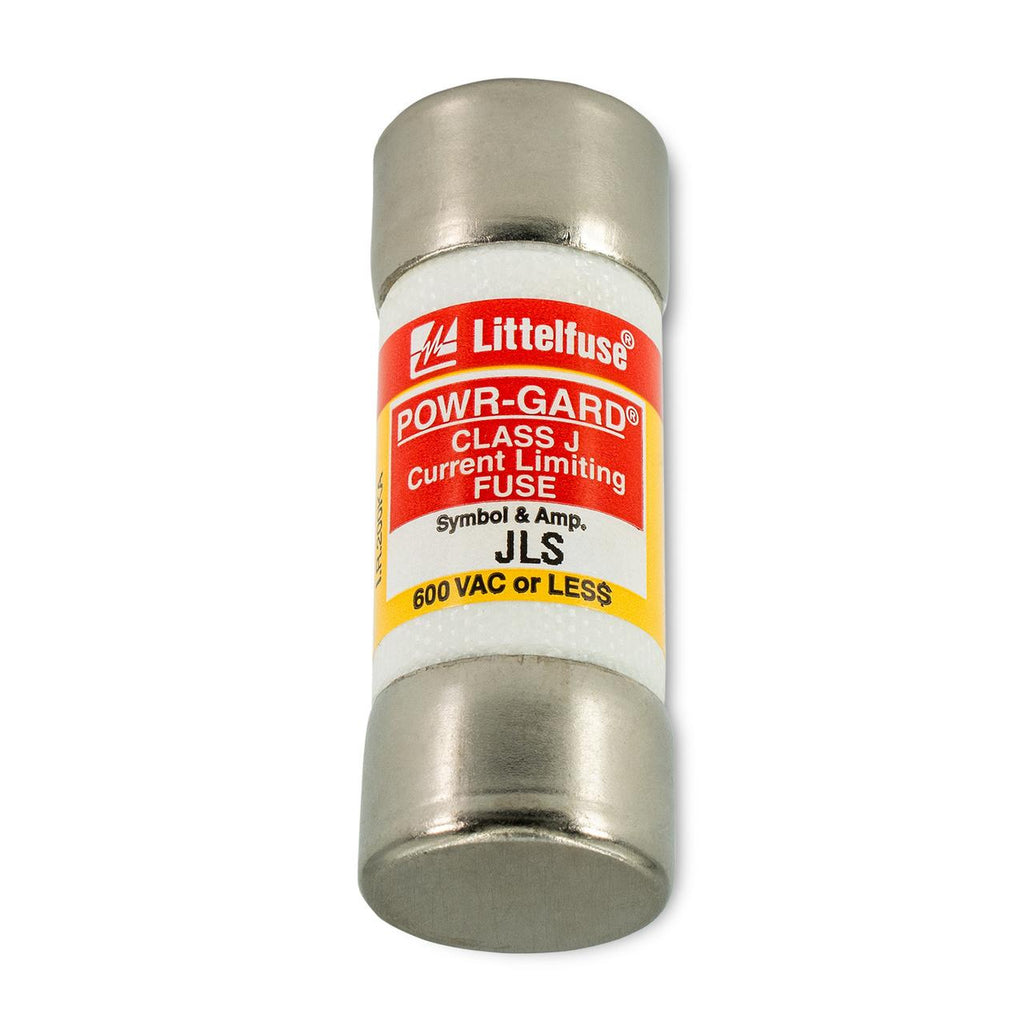

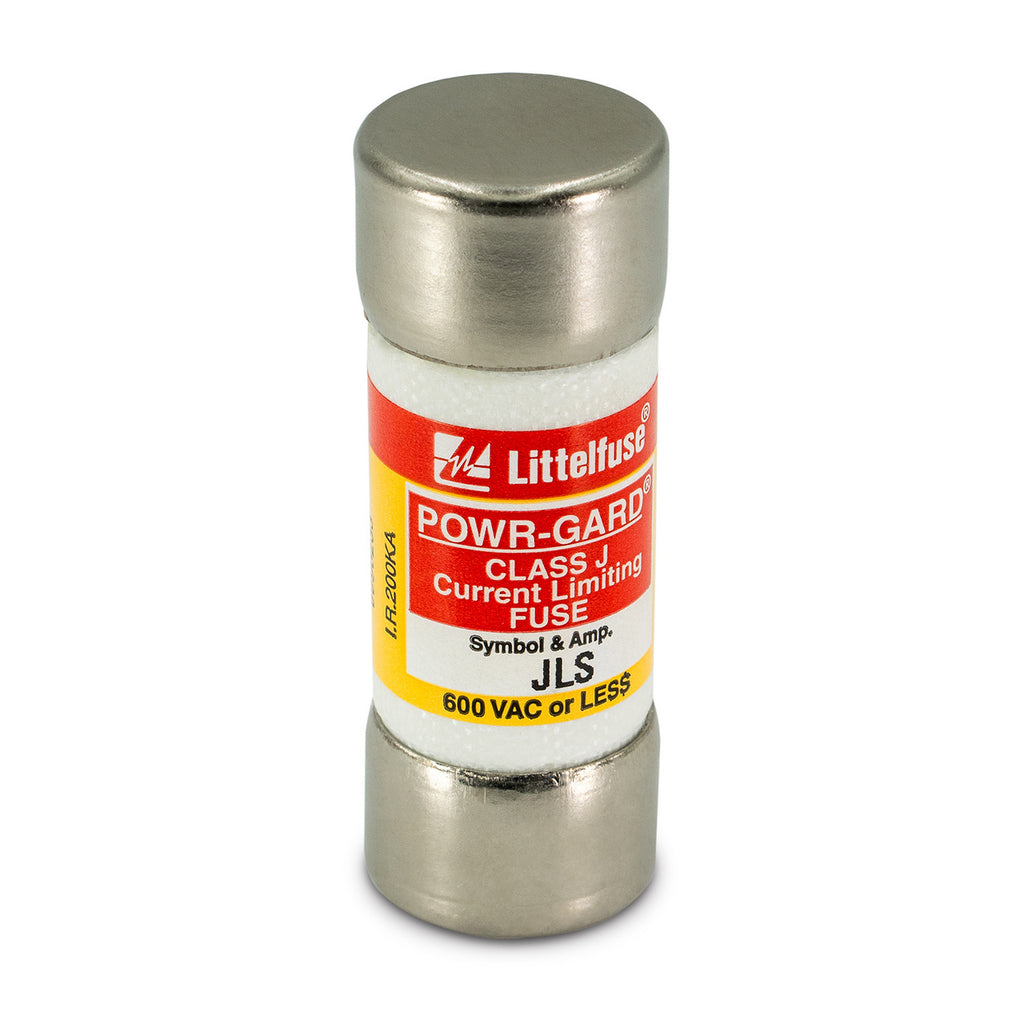

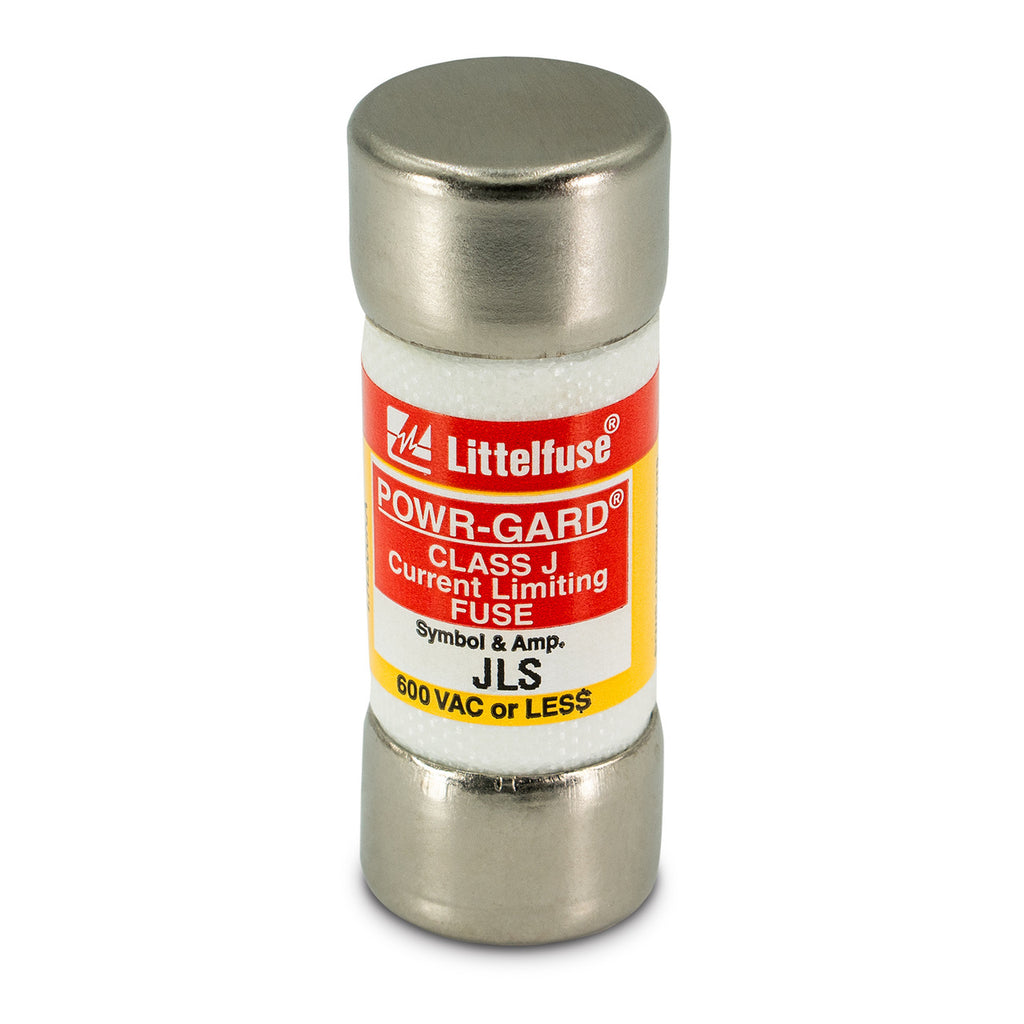

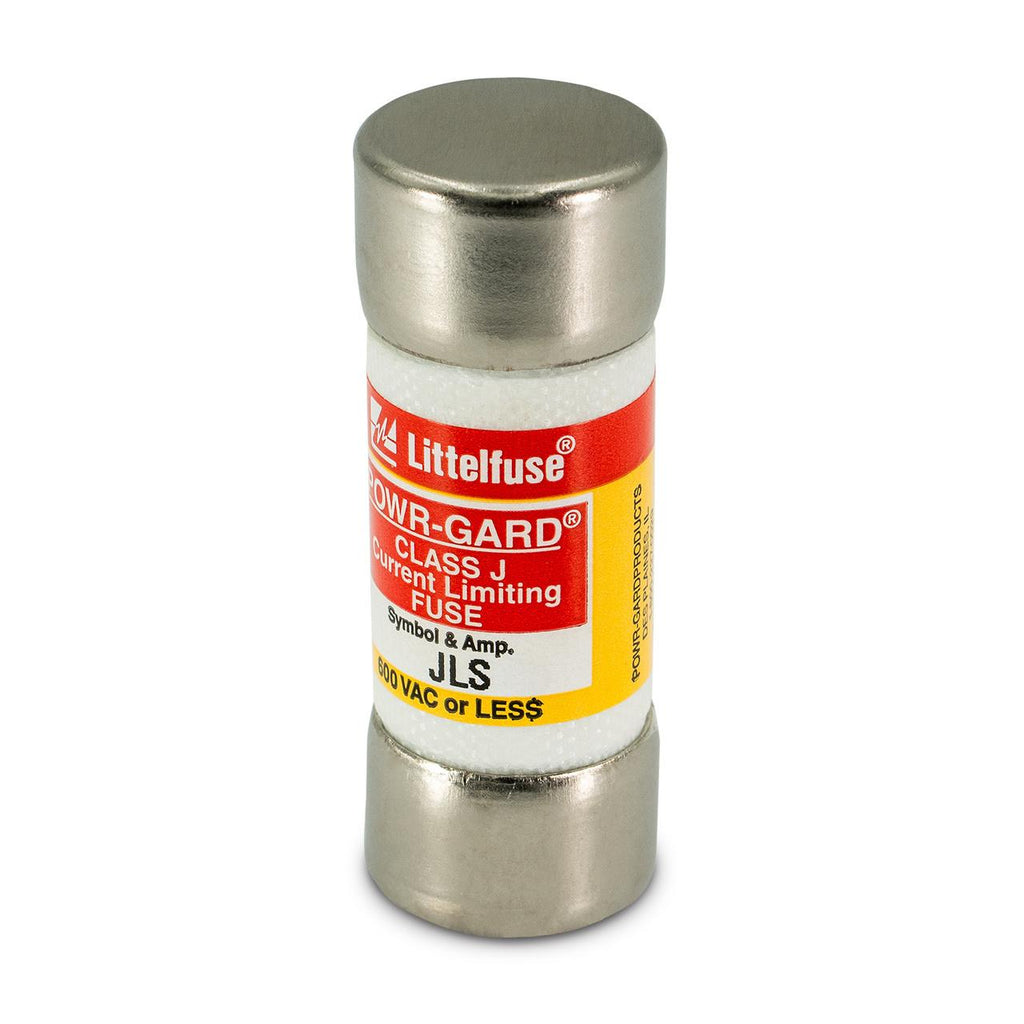

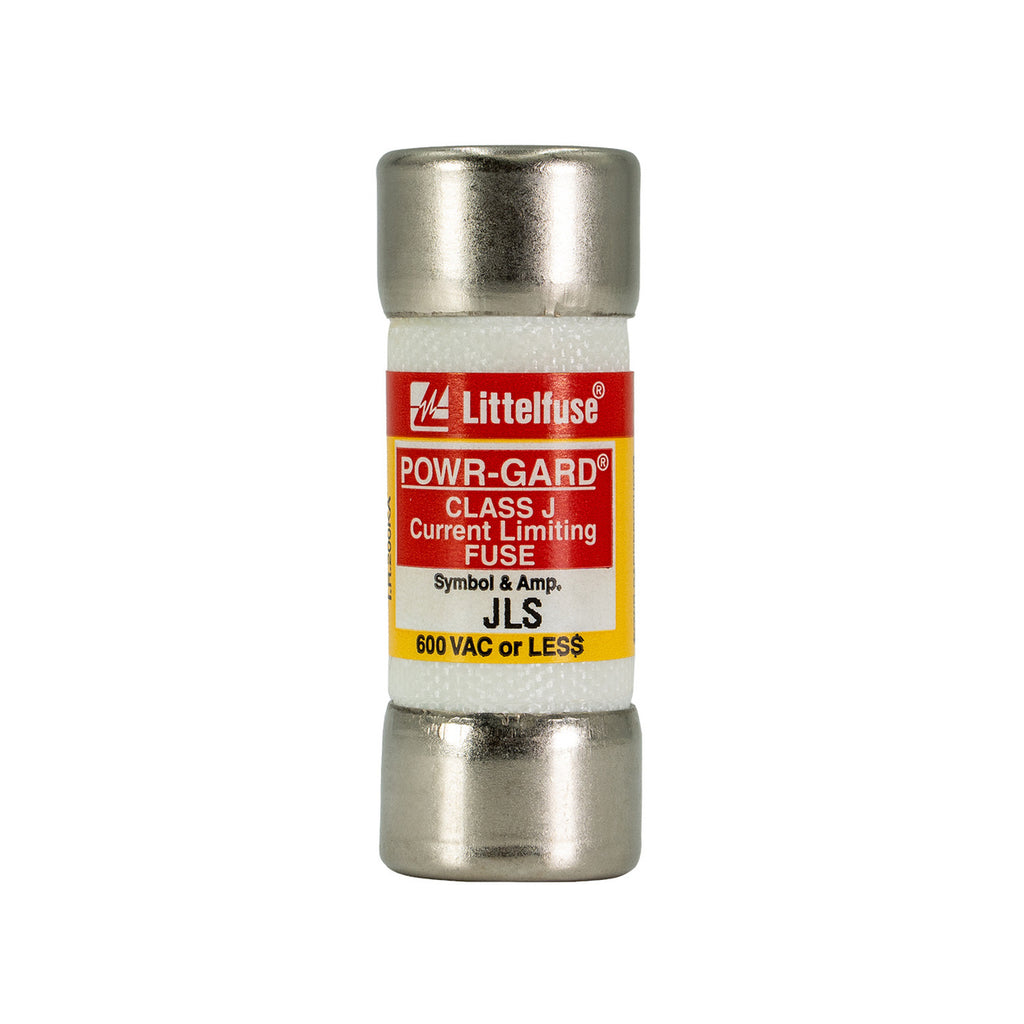

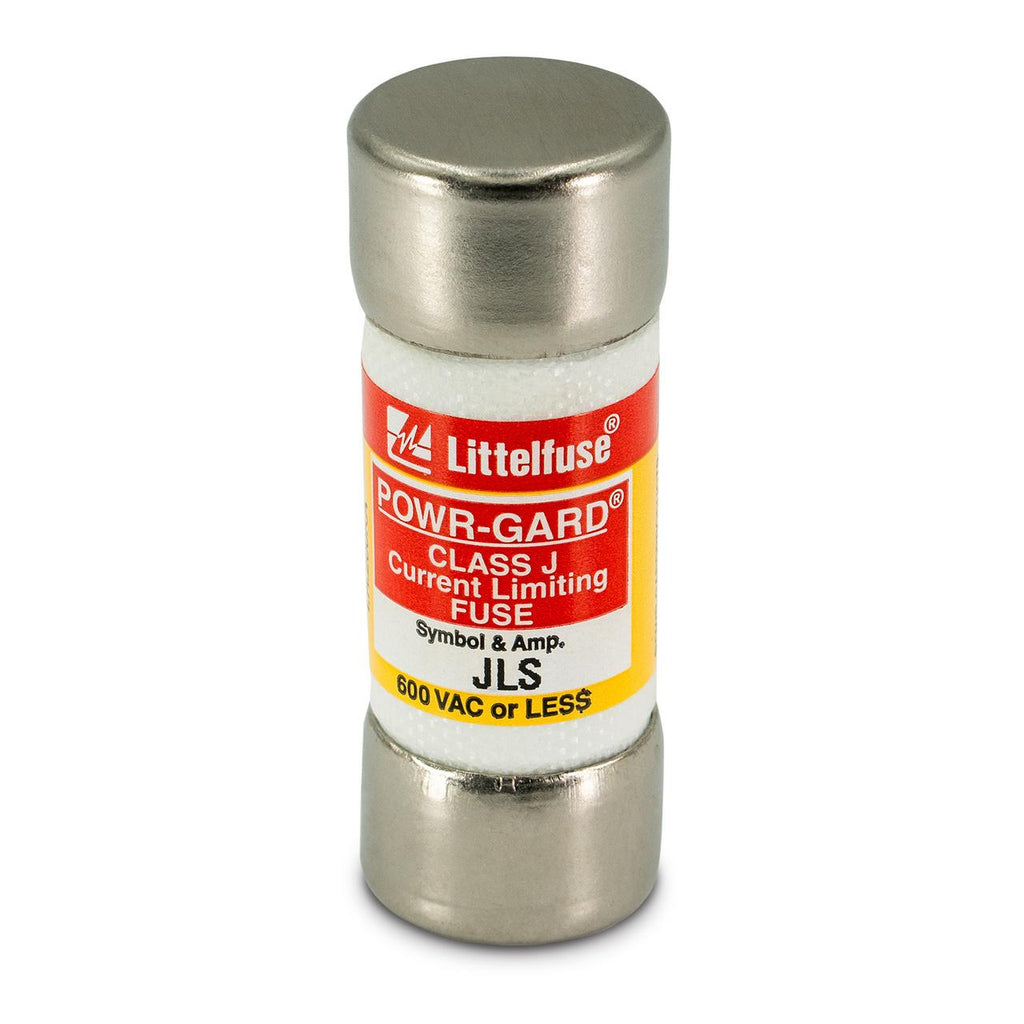

JLS-003 is a Littelfuse Class J fast-acting fuse designed for low voltage circuit protection.
This 3 amp, 600 volt AC fuse features a single pole and a compact melamine body with a diameter of 13/16 inch and length of 2-1/4 inches. It offers a high interrupting rating of 200,000 amps, providing reliable current-limiting protection for industrial and power conversion applications. The JLS series fuse complies with UL 248-8, CSA, and QPL-WF-1814 standards and is suitable for protecting sensitive equipment from overloads and short circuits.
- Key Specifications
- Amperage: 3 A
- Voltage Rating: 600 V AC
- Poles: 1
- Mounting Type: Fuse holder compatible (LFJ series)
- Interrupting Rating: 200,000 A
- Series: JLS POWR-GARD®
- Fuse Type: Fast-Acting, Current Limiting
- Body Material: Melamine
- Dimensions: 13/16 inch diameter, 2-1/4 inch length
- Certifications: UL Listed, CSA Certified, QPL-WF-1814, CE Approved
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLS-003
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
Product Data
- UPC : 079458200478
- Weight : 5.19
