Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS100

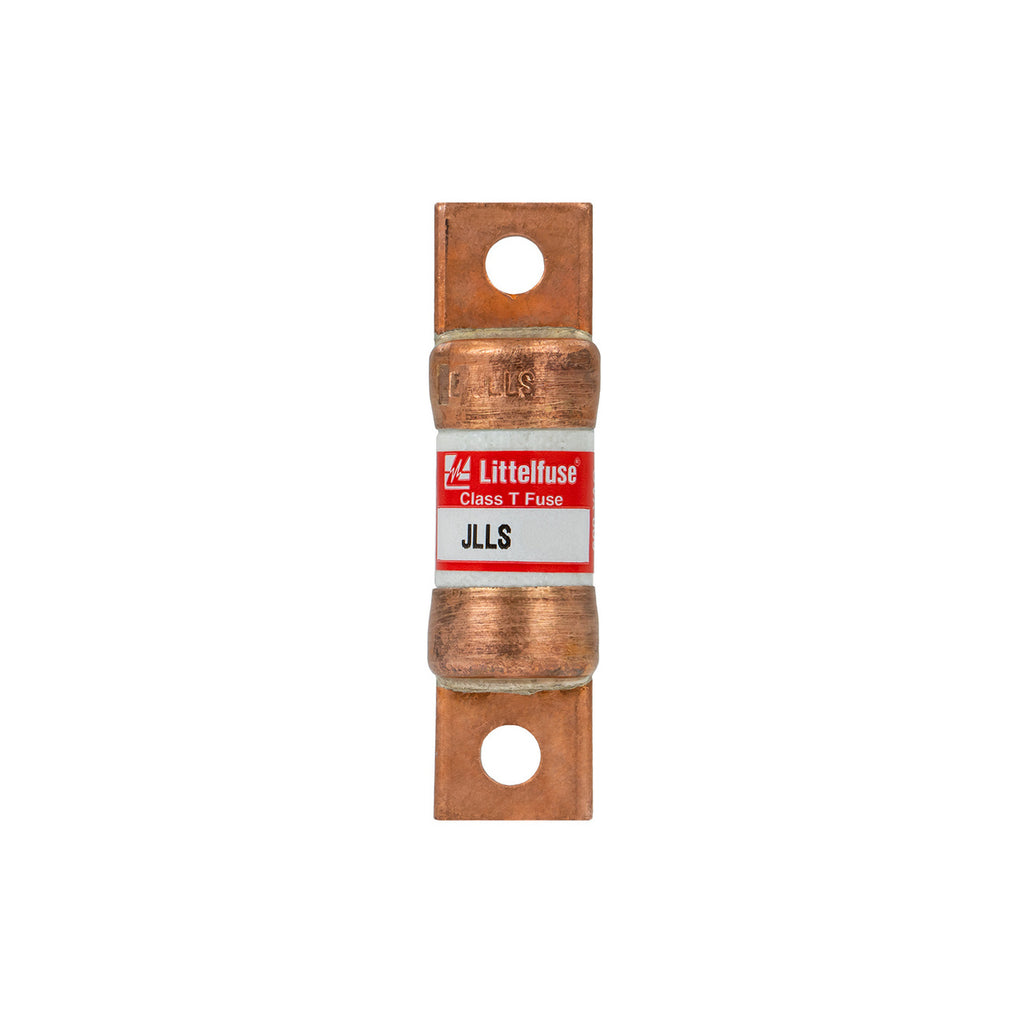

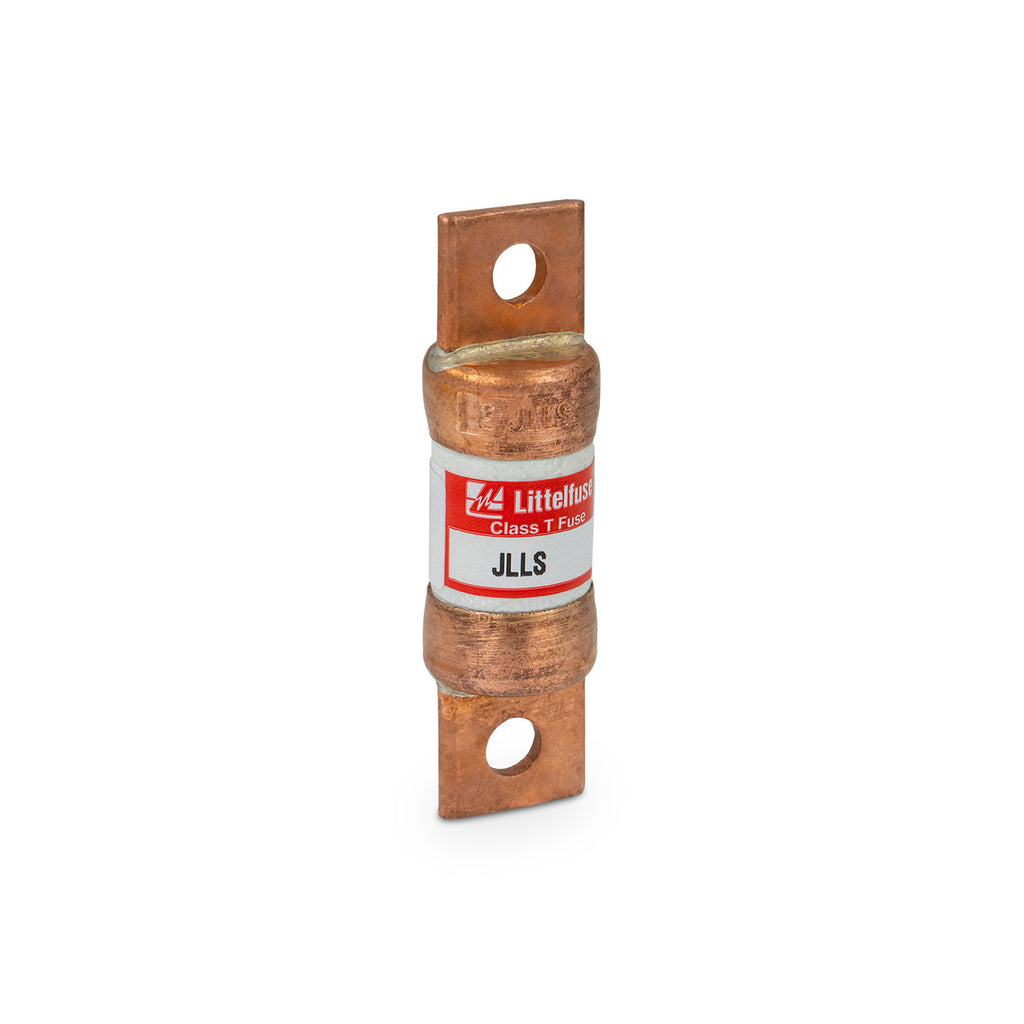

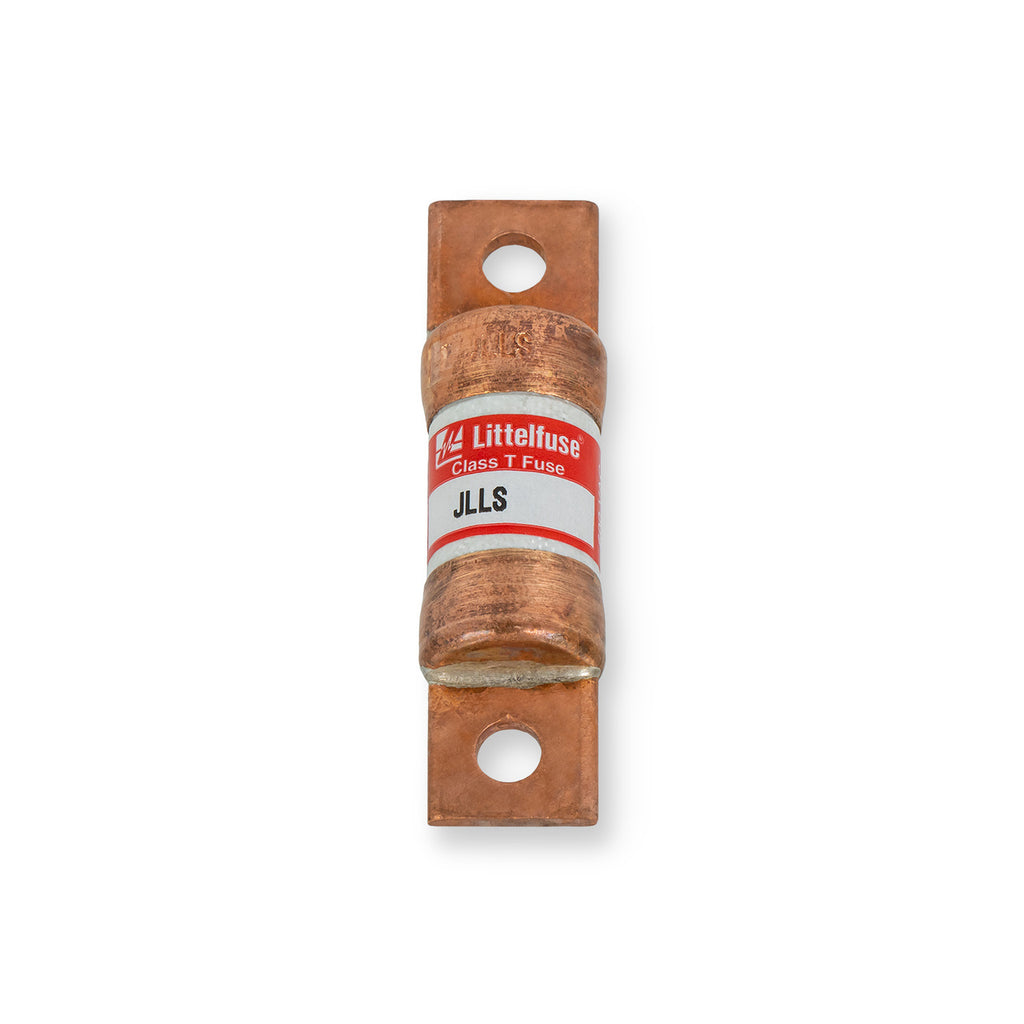

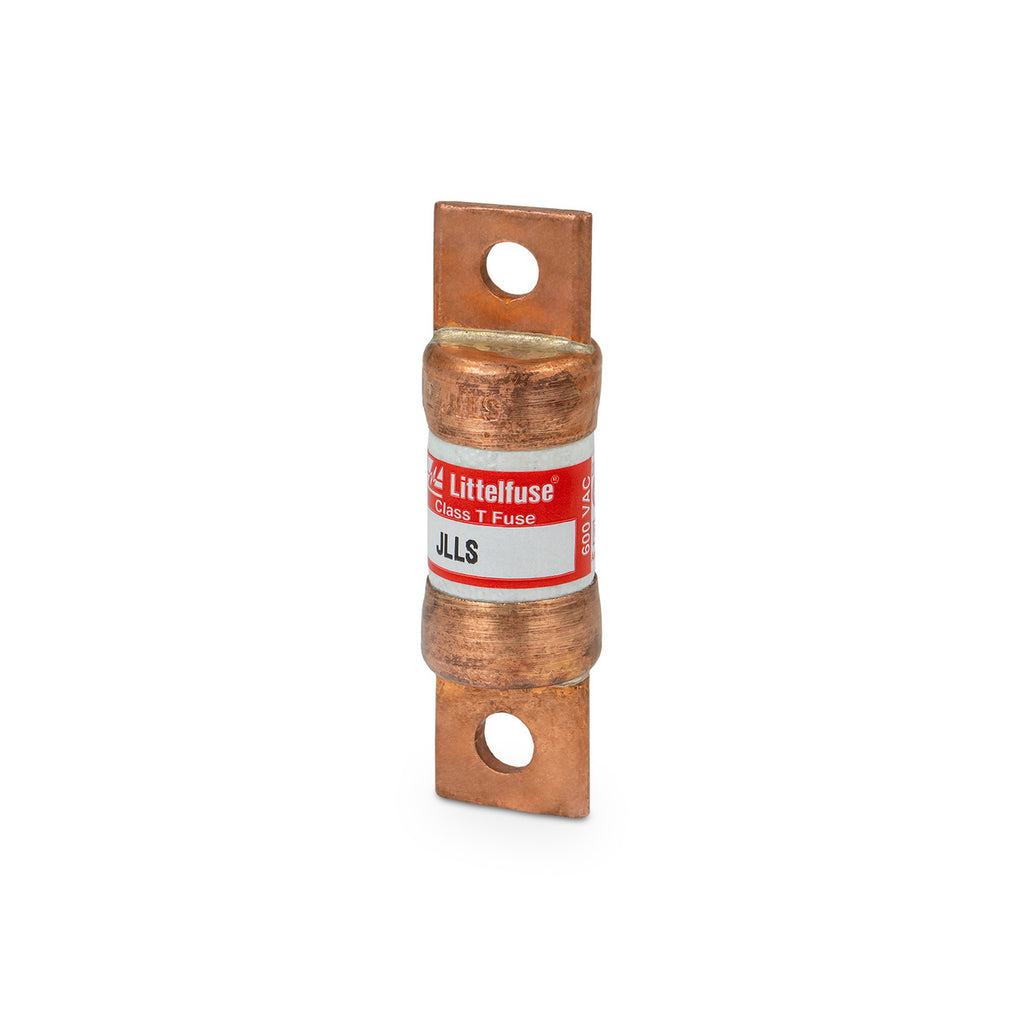

JLLS100 is a Littelfuse Class T fast acting fuse designed for reliable overcurrent protection in electrical circuits.This fuse features a 100 ampere current rating with a maximum voltage rating of 600 VAC and 300 VDC. It has a fast-acting characteristic and a high interrupting rating of 200,000 amperes symmetrical at AC and 20,000 amperes at DC. The fuse uses a cartridge body with blade terminals for mounting and is UL 248-15, CSA, and CE certified. It is part of the Powr-Gard JLLS series and is RoHS compliant.
- Key Specifications
- Current Rating: 100 Amperes
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Class: Class T
- Fuse Speed: Fast Acting
- Mounting Type: Blade Terminal
- Series: JLLS
- Certifications: UL 248-15, CSA, CE
- Body Material: Melamine with copper caps
- Diameter: 13/16 Inch
- Length: Approximately 2.95 Inch
- RoHS Compliant
- Part Number: JLLS100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLLS
- Type : JLLS
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600Vac
- Connection : Bolt-In
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
- Velocity : FA - Fast Action
- UPC : 07945819082
- GTIN : 00079458190823
- Country of Origin : Mexico
- Dimensions : x 2-61/64 in x
- Weight : 0.11
- Certification : CE, UL 248-15 Class T, UL Listed, CSA Certified, RoHS
