Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-600

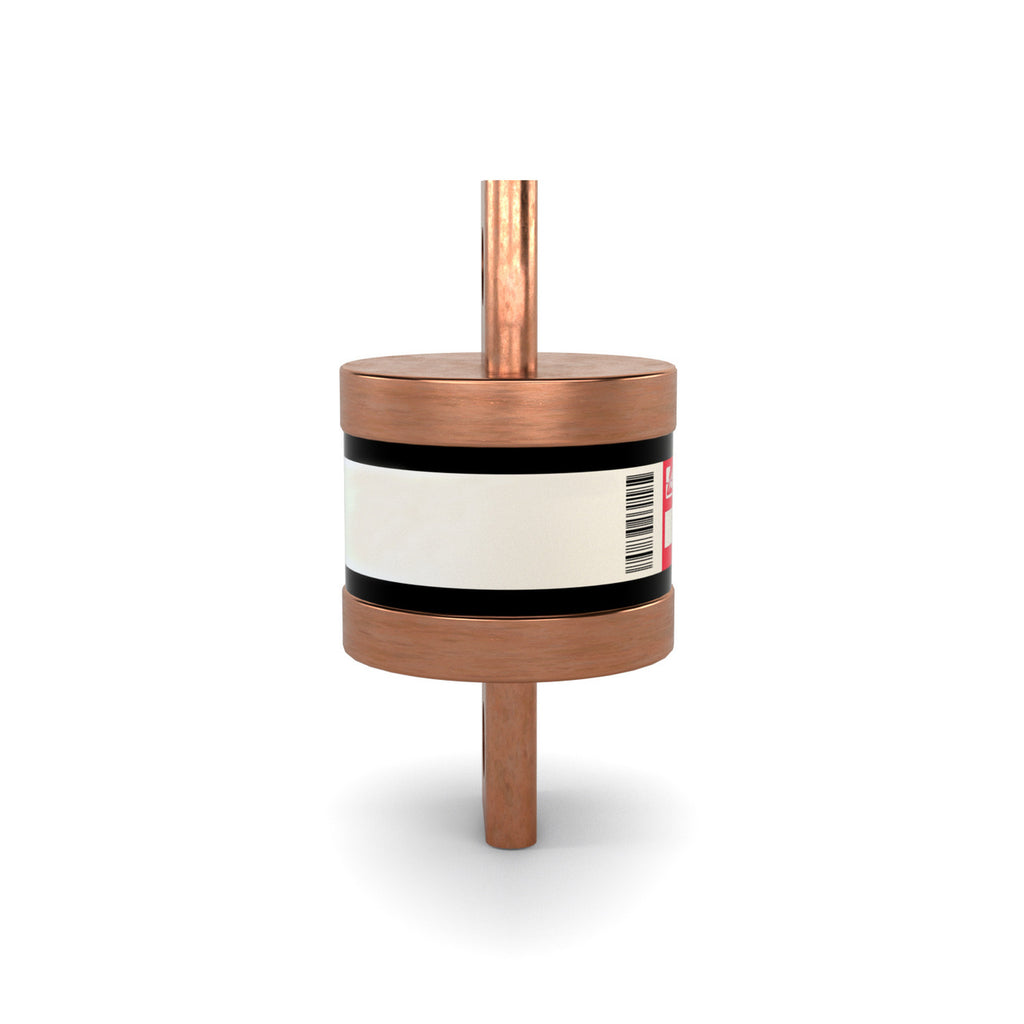

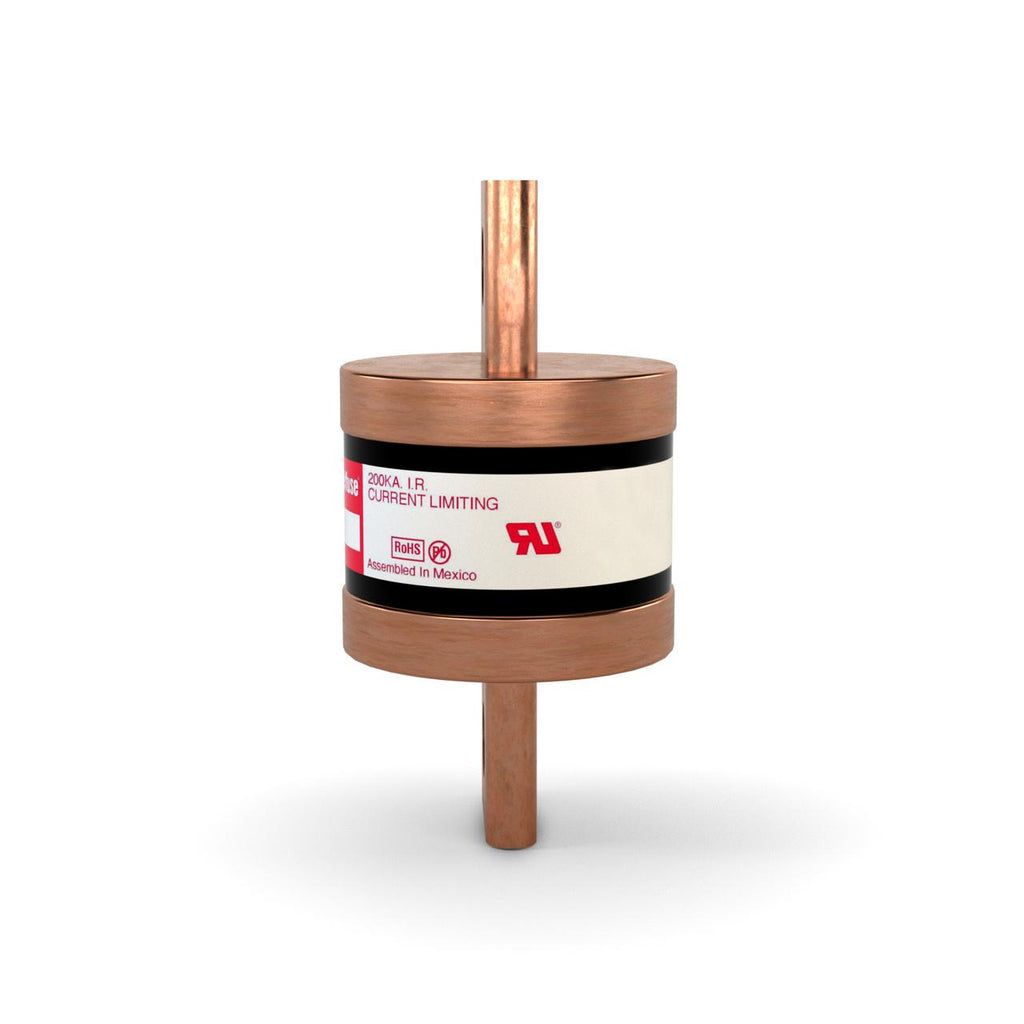

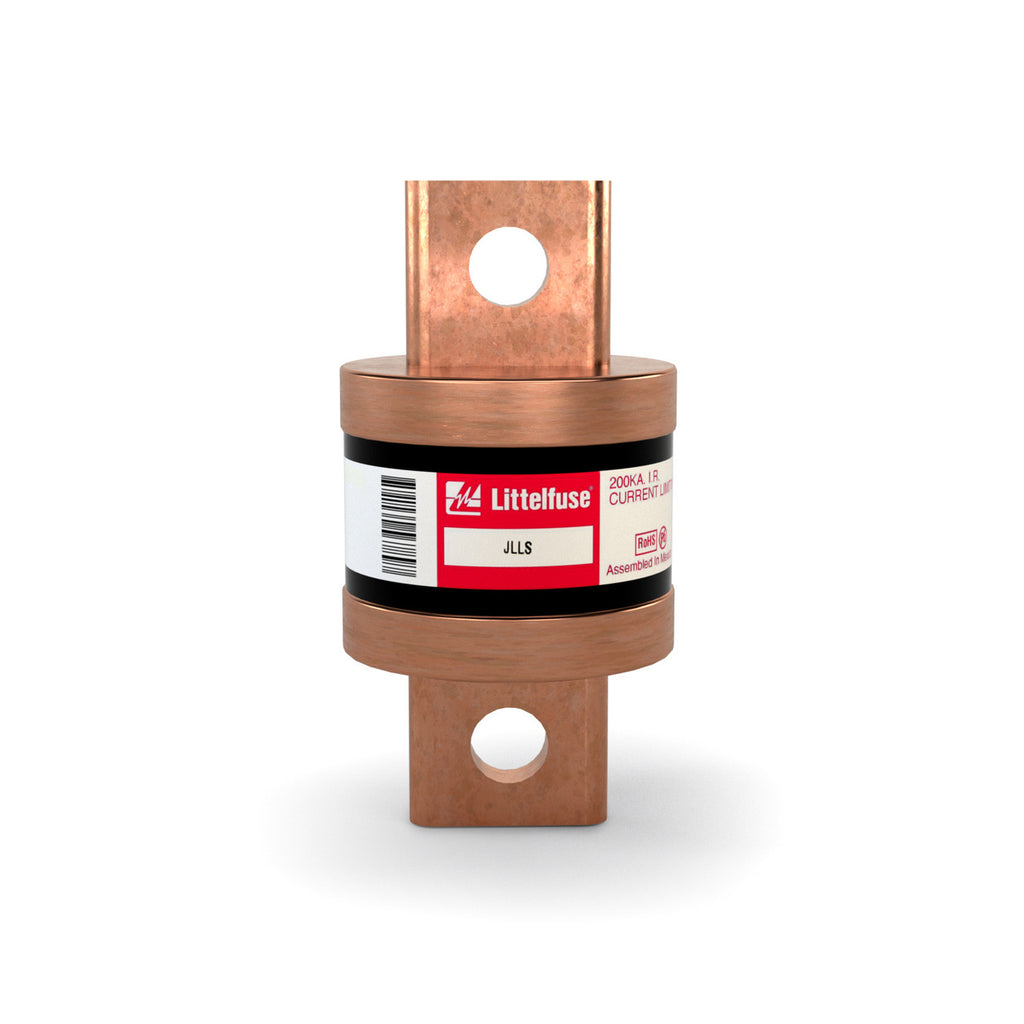

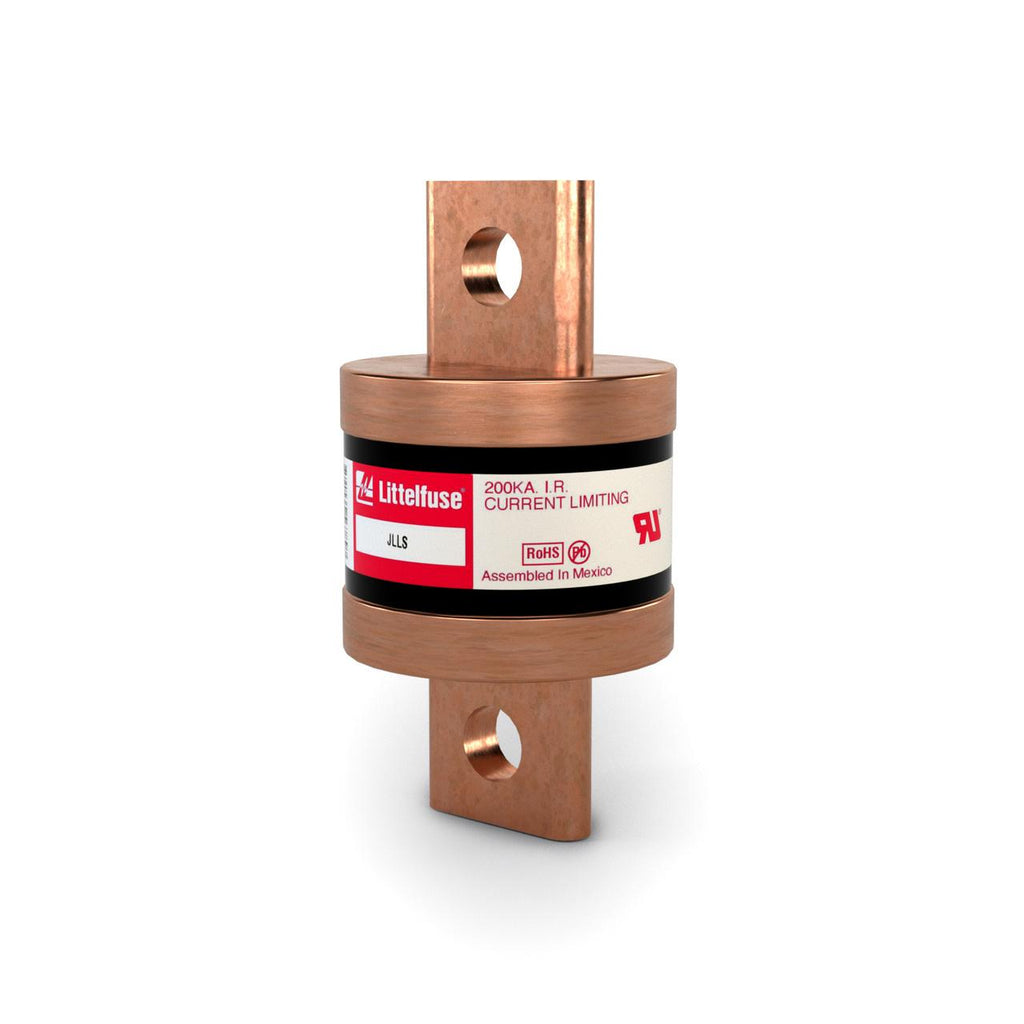

JLLS-600 is a Littelfuse Class T fast acting fuse rated for 600 Amps and 600 Volts AC, designed for compact and reliable overcurrent protection.This fuse features a very fast acting, current limiting design ideal for protecting variable speed drives and individual electric services. It has a compact melamine body with copper caps, measures approximately 2 1/16" x 3 63/64", and offers an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The JLLS-600 is UL Listed, CSA Certified, RoHS compliant, and meets UL 248-15 Class T standards.
- Key Specifications
- Amperage: 600 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class T
- Fuse Type: Fast Acting (Very Fast)
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Body Material: Melamine with copper caps
- Physical Size: 2 1/16" diameter x 3 63/64" length
- Mounting Type: Cartridge
- Certifications: UL Listed (E81895), CSA Certified (LR29862), RoHS Compliant
- Application: Variable speed drive and individual electric service protection
- Part Number: JLLS-600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.06
- Class Rating : T
- Barrels : 1
- UPC : 007945819098
- GTIN : 00079458190984
- Weight : 7
