JLLS-500 - Littelfuse 500 Amp 600 Volt AC Class T Fast Acting Fuse

JLLS-500

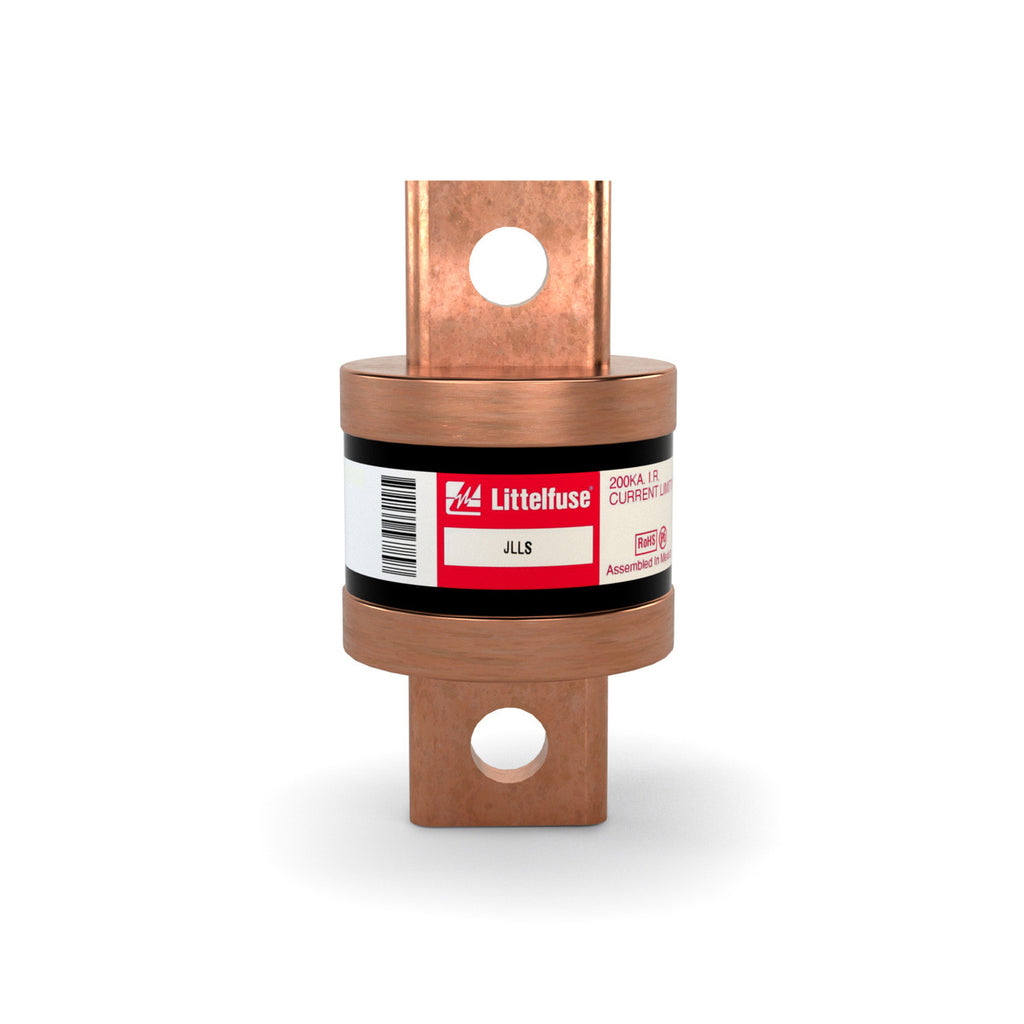

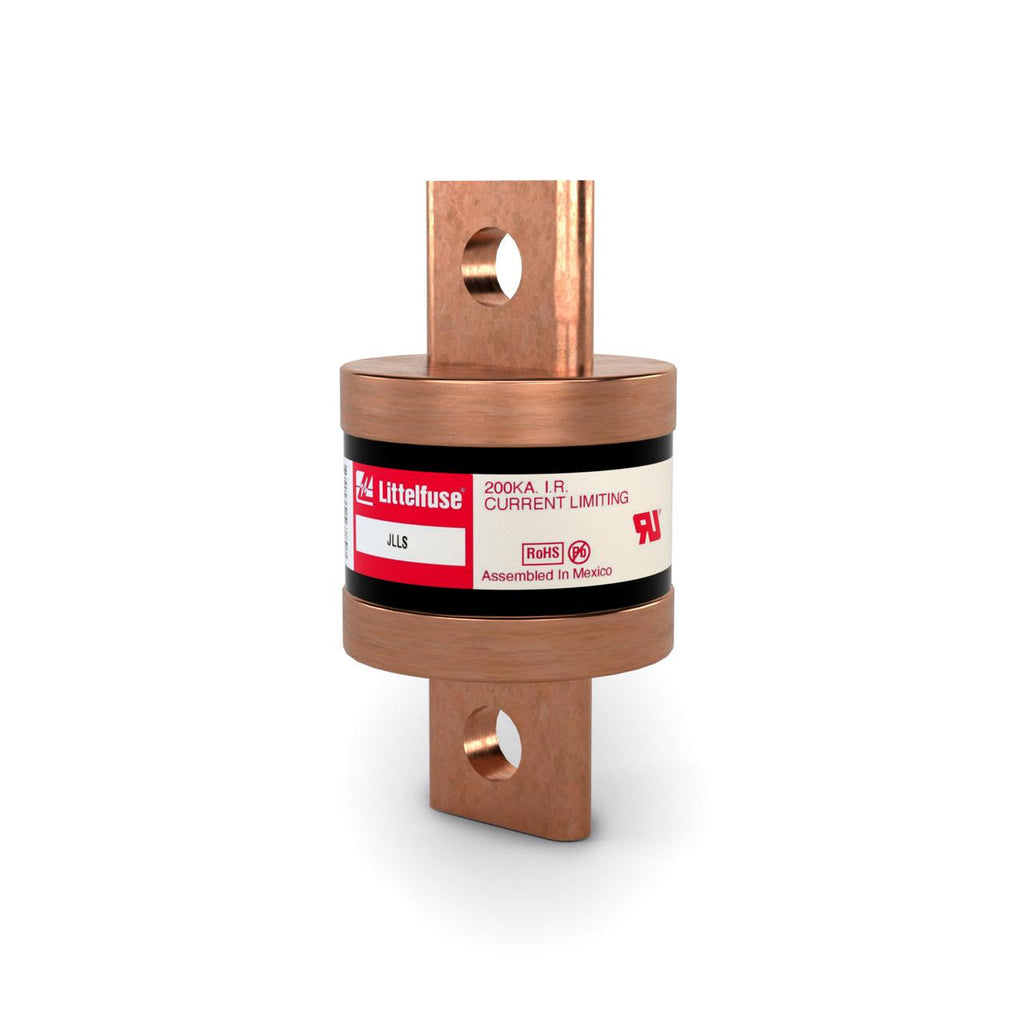

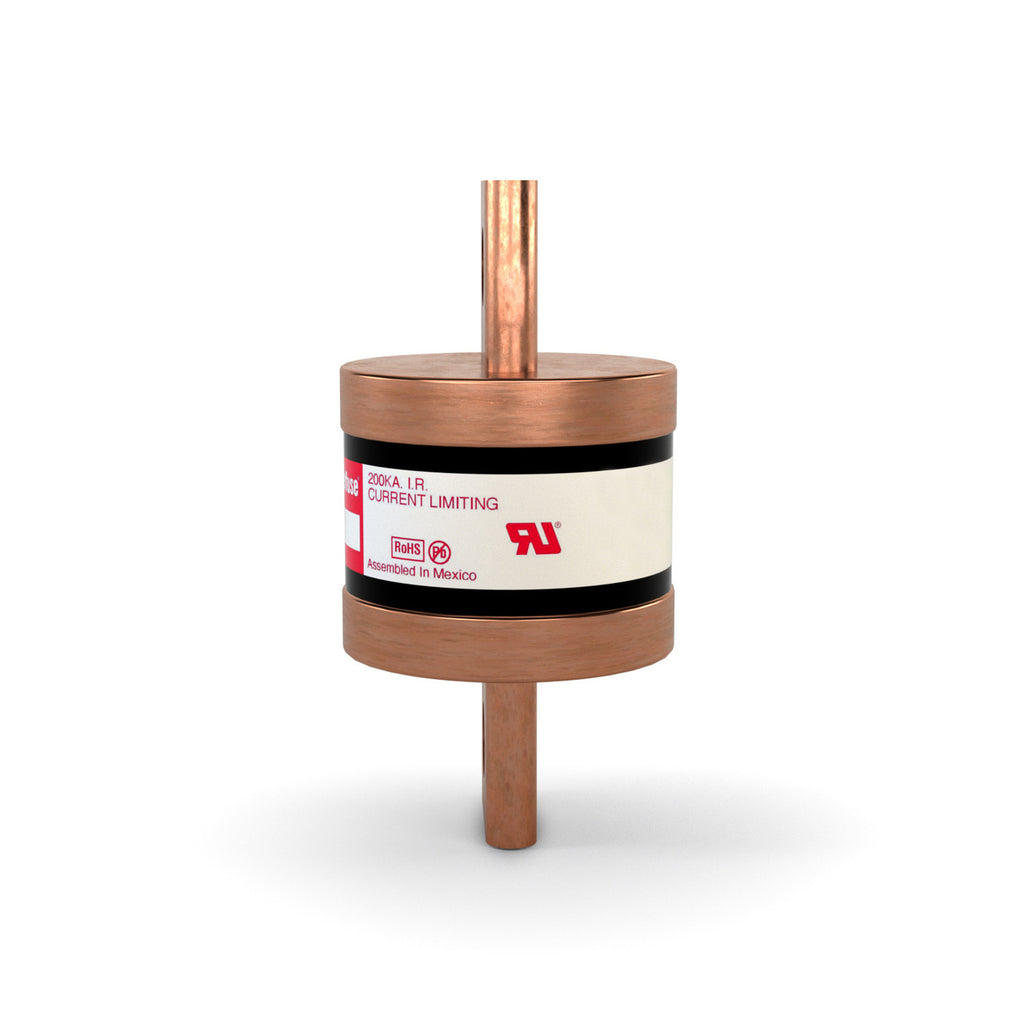

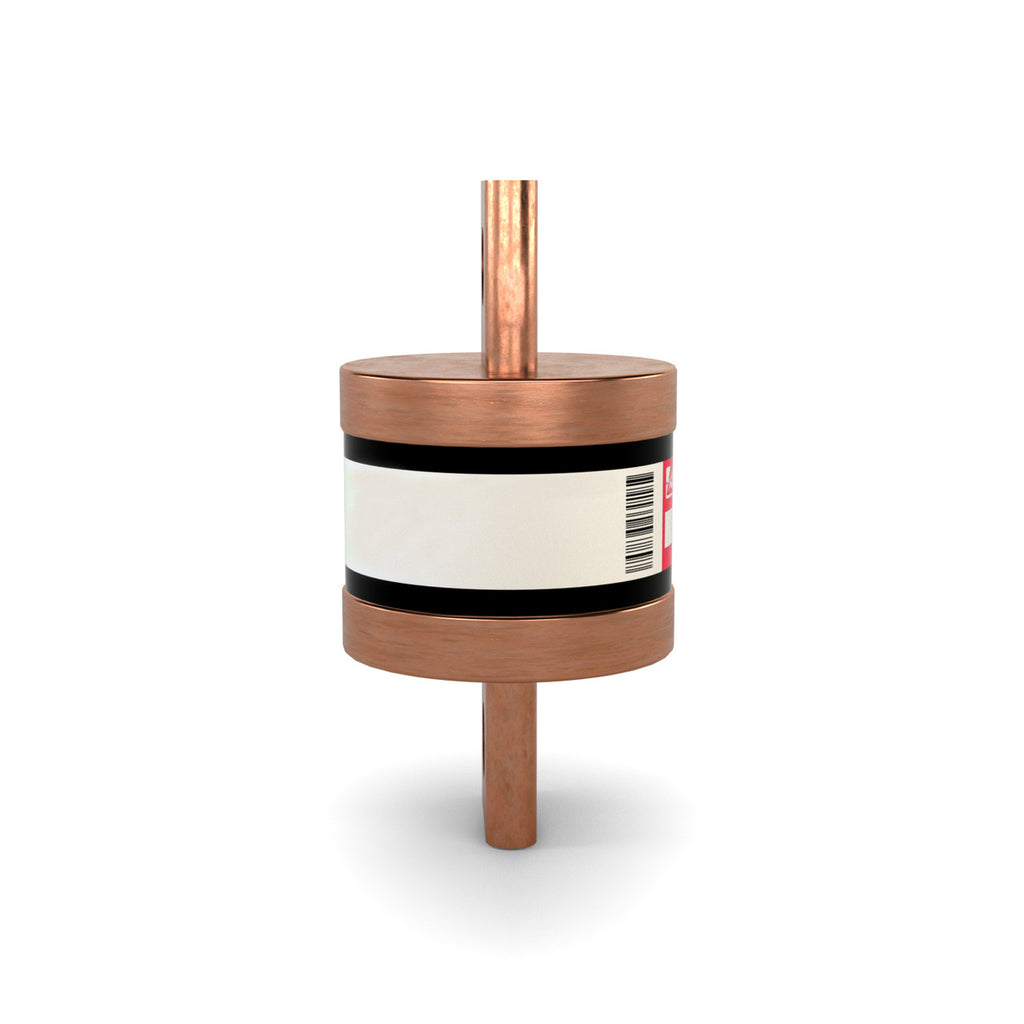

JLLS-500 is a Littelfuse Class T fast acting fuse rated for 500 amps and 600 volts AC, designed for reliable overcurrent protection.JLLS-500 features a compact, current-limiting design with a 200,000 AIC interrupt rating at 600 VAC and 20,000 AIC at 300 VDC. It is UL Listed, CSA Certified, and RoHS compliant, suitable for variable speed drives and power conversion applications. The fuse has a blade terminal connection and measures approximately 2 1/16 inches in diameter by 3 63/64 inches in length.

• Amperage: 500 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Type: Class T, Fast Acting
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Connection: Blade Terminal
• Dimensions: 2.06 in diameter x 3.98 in length
• Current Limiting
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
• Compact Design
• Application: Variable Speed Drive Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLLS-500
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLS
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 2.06
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 079458190960
• GTIN : 00079458190960
• Weight : 7
