Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-450

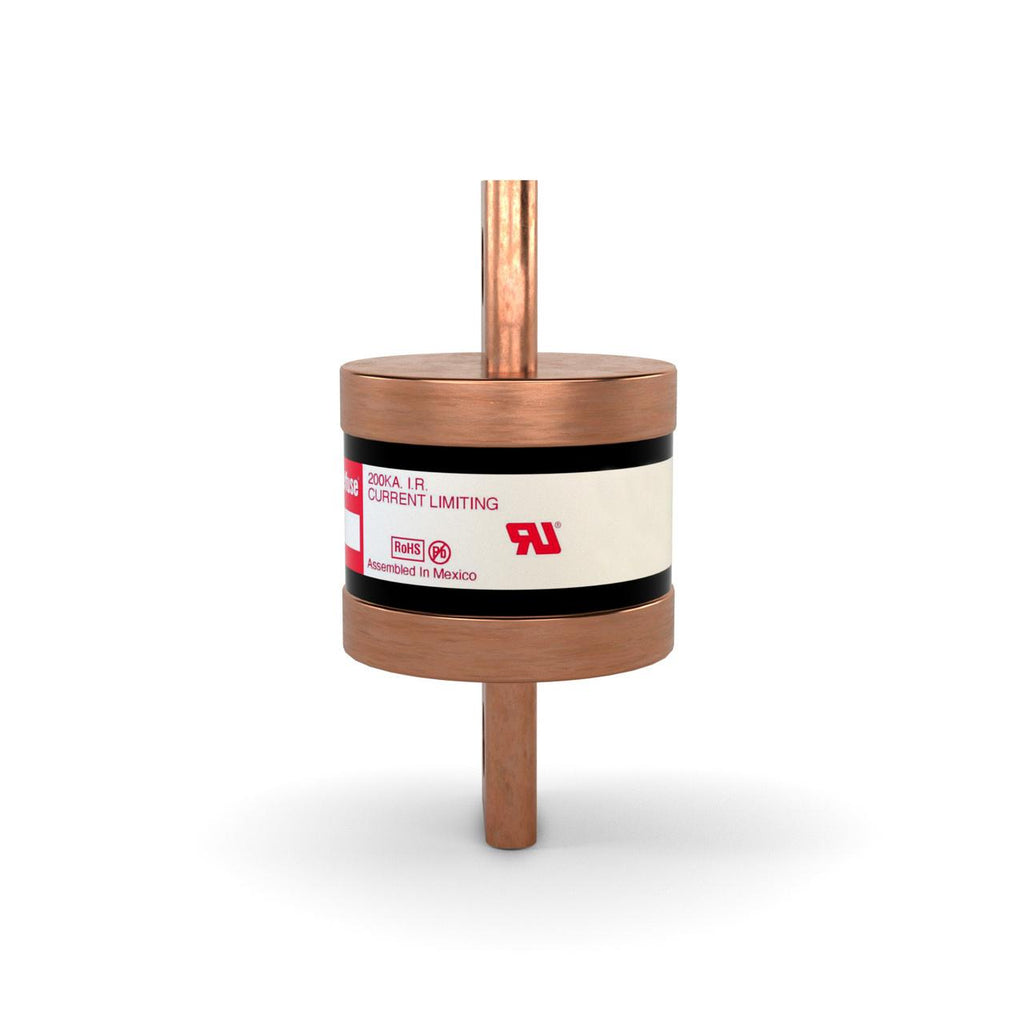

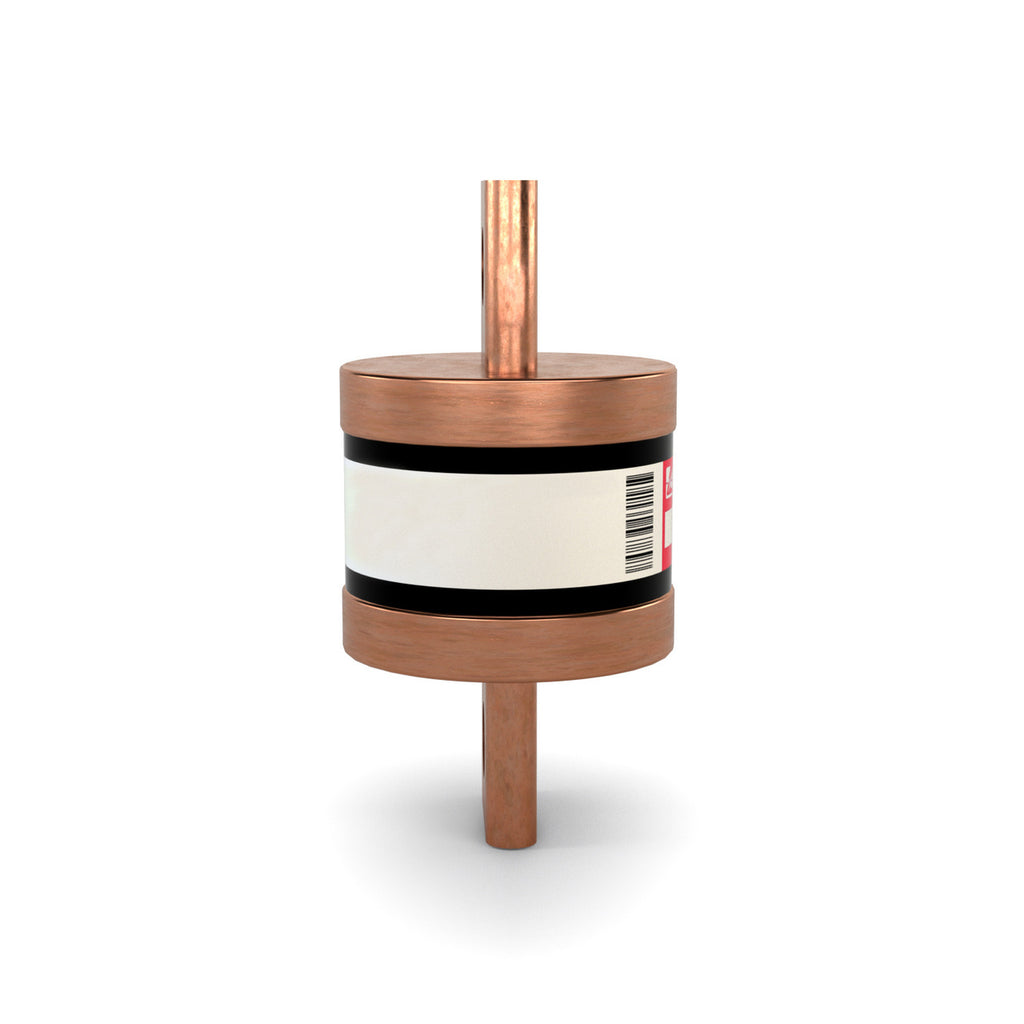

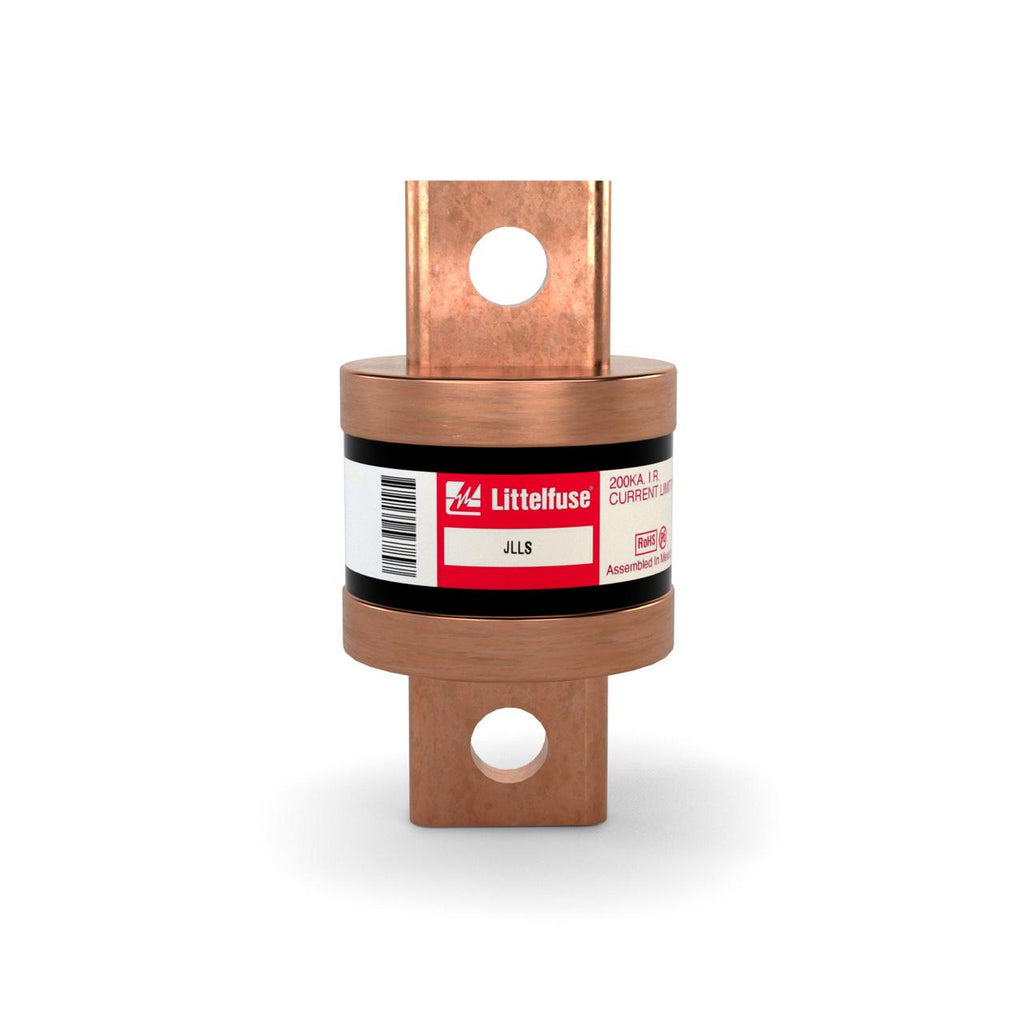

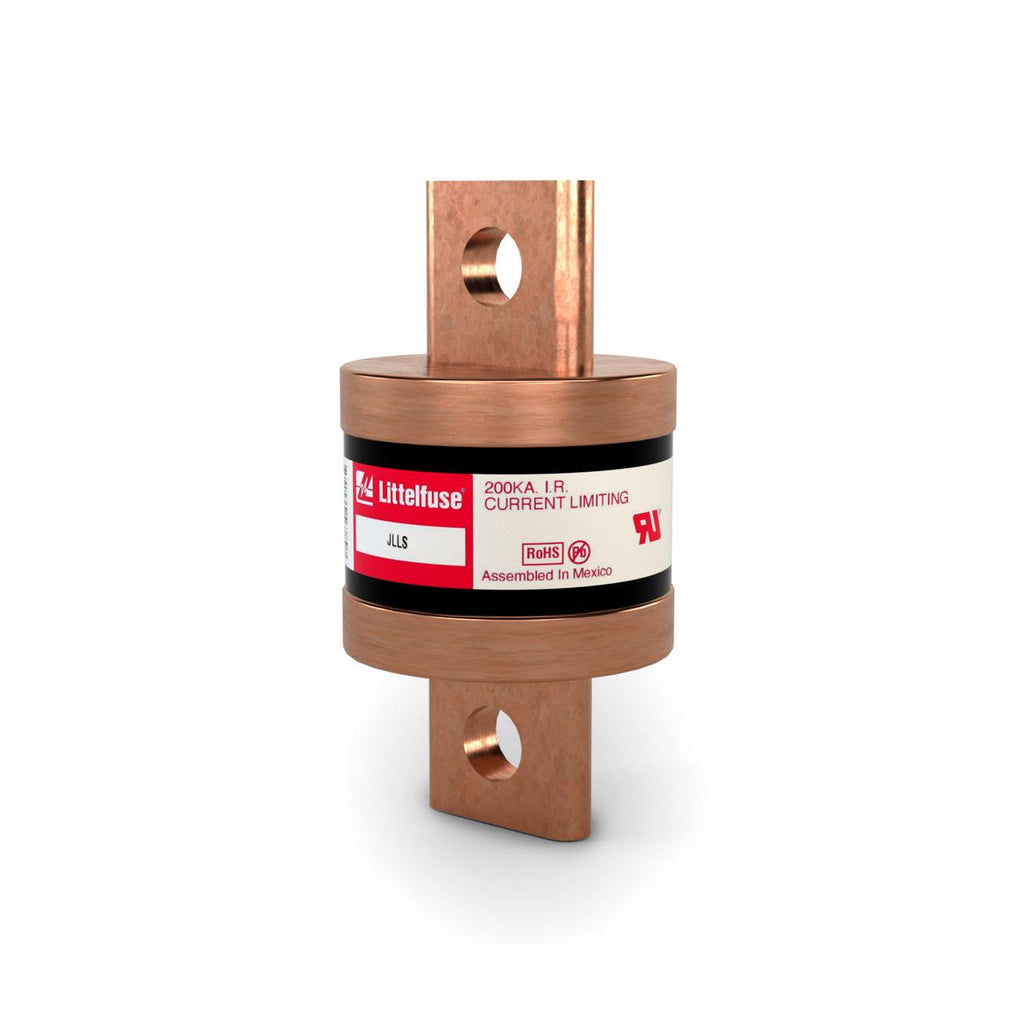

JLLS-450 is a Littelfuse Class T fast-acting fuse designed for robust industrial power protection.
This compact, current-limiting fuse offers very fast response to short-circuit conditions, making it ideal for variable speed drive and other demanding applications. It features a melamine body with copper caps, is UL 248-15, CSA, and CE certified, and is RoHS compliant for environmental safety.
-
Key Specifications
- Amperage: 450A
- Voltage: 600V AC / 300V DC
- Poles: 1
- Mounting Type: Cartridge (leaded)
- Interrupt Rating: 200kA at 600V AC, 20kA at 300V DC
- Series/Frame: JLLS (Class T)
- Trip Unit: Not applicable (fuse)
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), CE, RoHS 2
- Physical Size: 2 1/16" diameter x 3 63/64" length
- Speed: Fast acting (very fast blow)
- Body Material: Melamine with copper caps
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLLS-450
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.06
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945882188
- Weight : 7
