Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

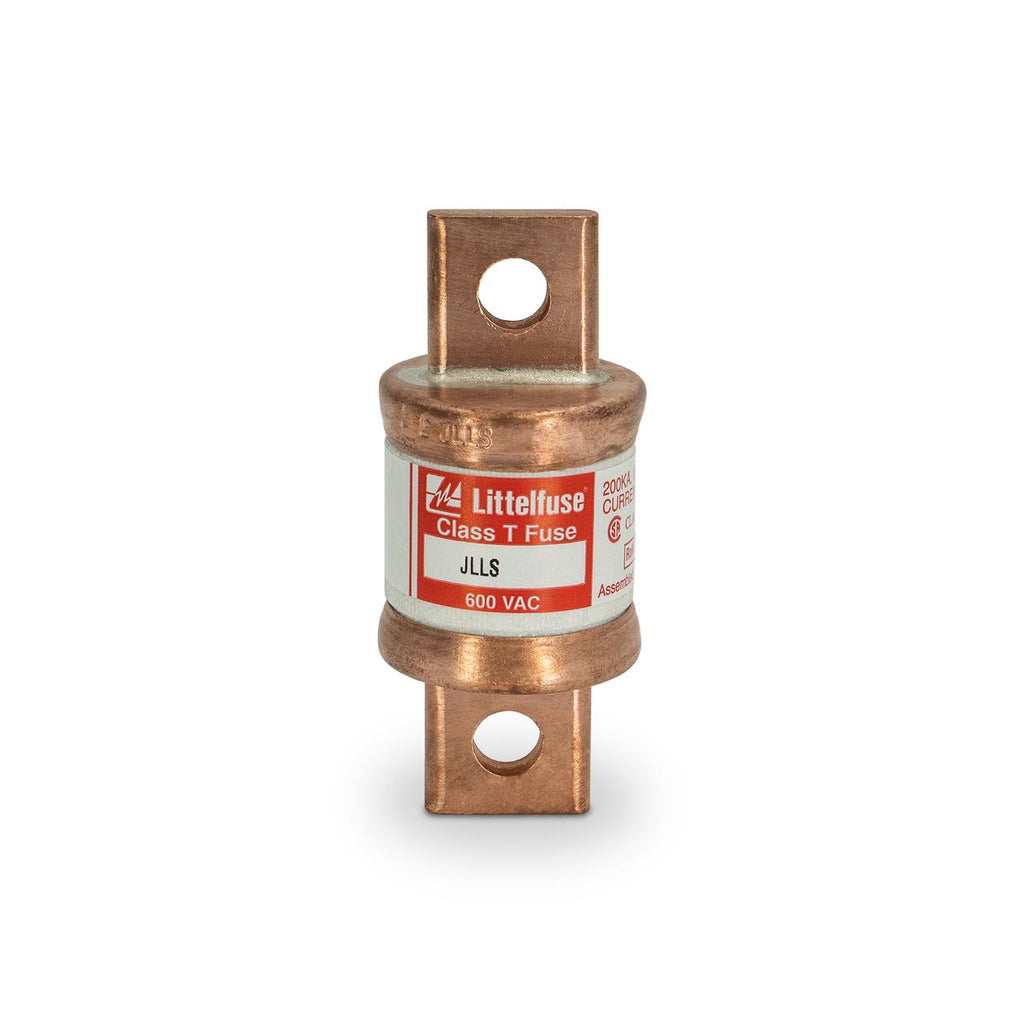

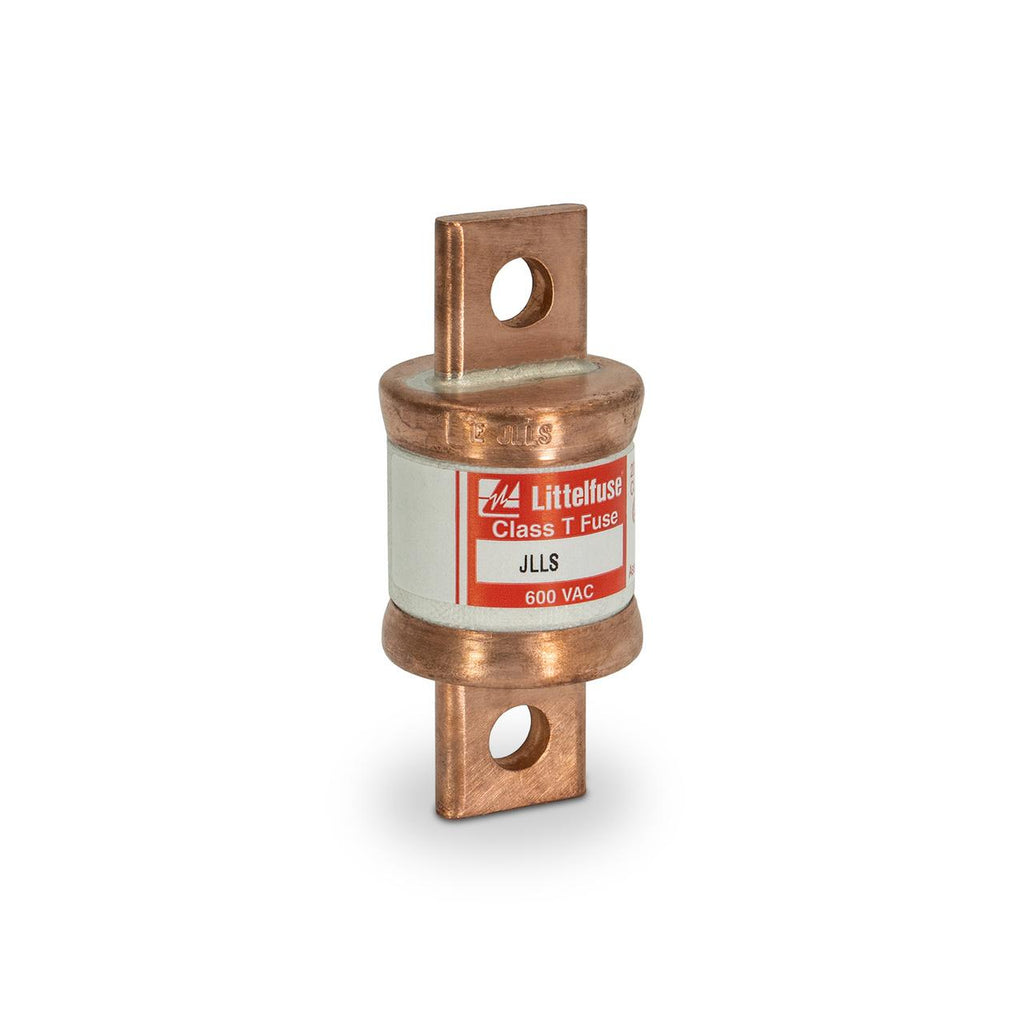

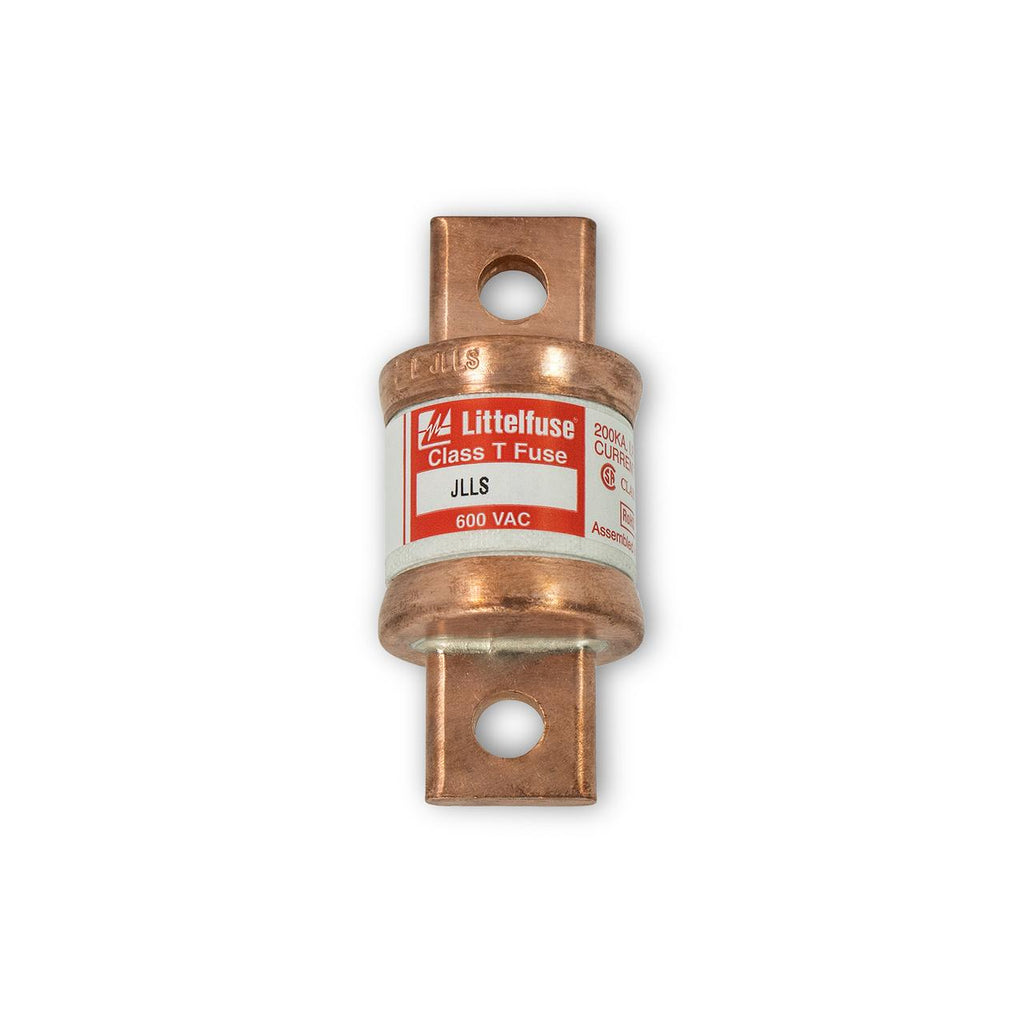

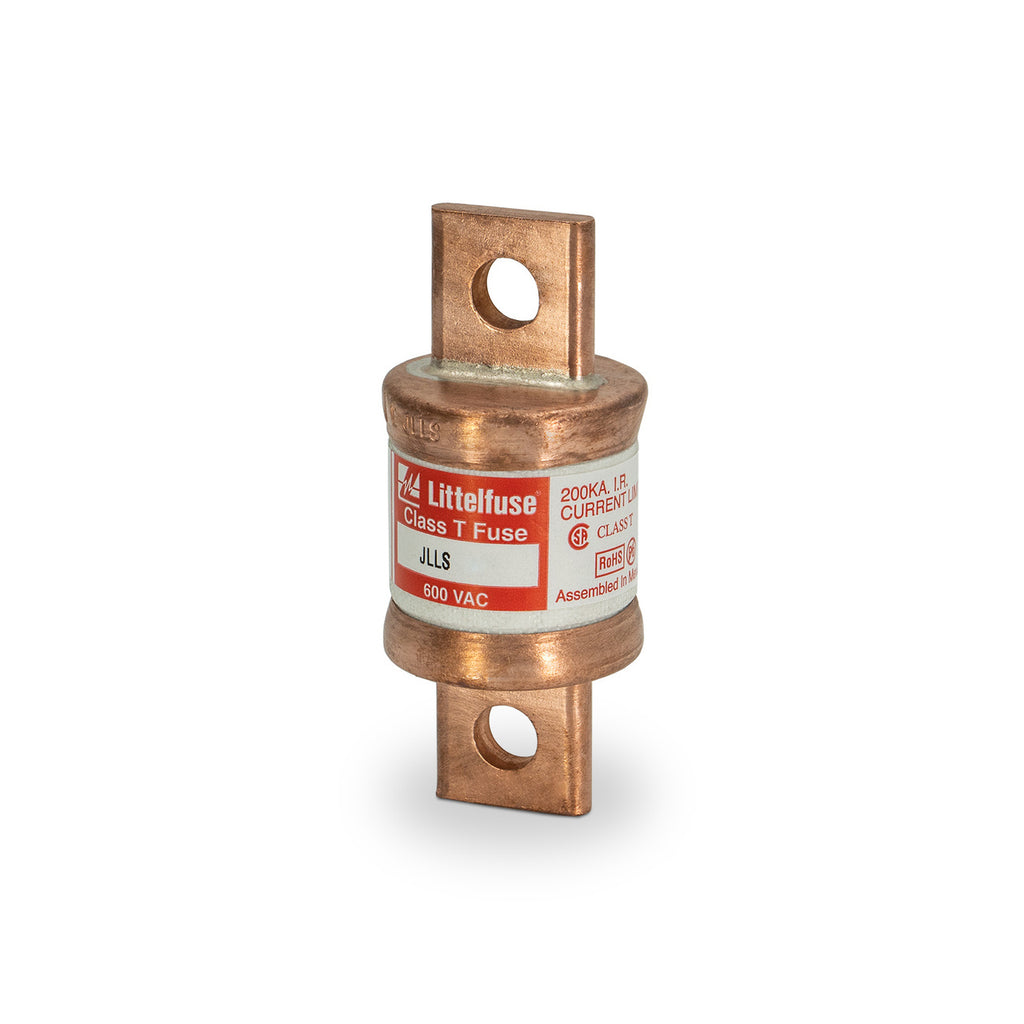

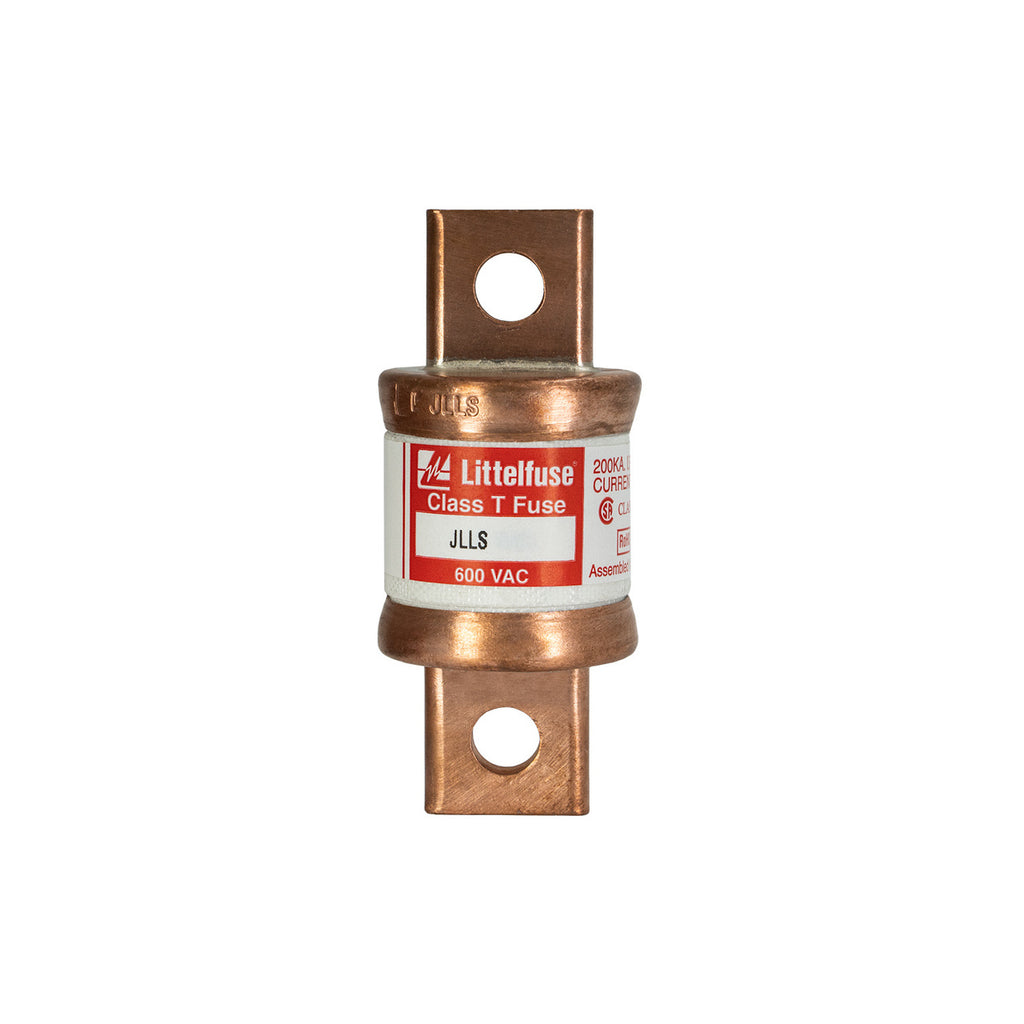

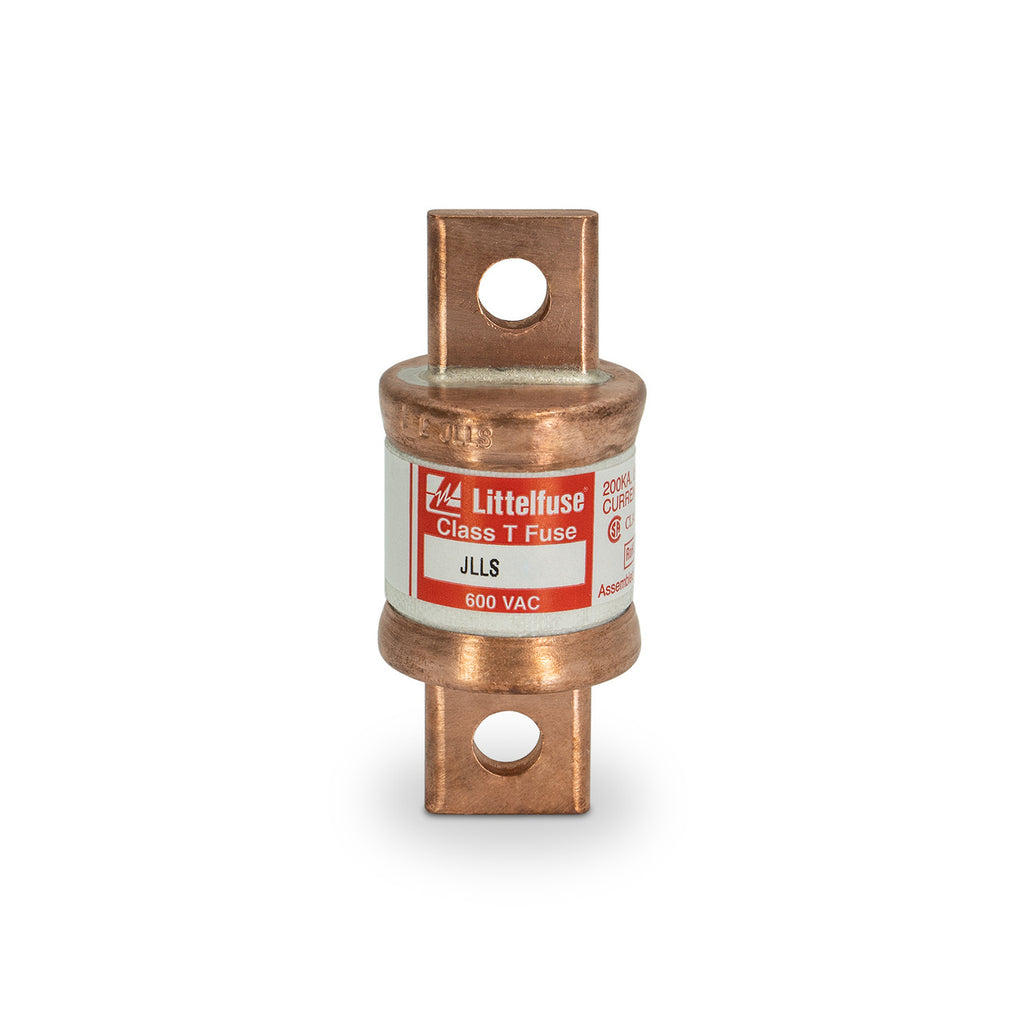

JLLS-400
JLLS-400 is a Littelfuse Class T fast acting fuse rated for 400 amperes and 600 volts AC/300 volts DC. It provides compact, high-interrupting capacity protection for electrical circuits.This fuse features a fast-acting opening characteristic, a compact cartridge design less than one-third the size of comparable Class R fuses, and a high interrupting rating of 200 kA at 600 VAC and 20 kA at 300 VDC. It is UL listed, CSA certified, RoHS compliant, and designed for use in variable speed drive protection and other industrial applications.
- Key Specifications
- Amperage: 400 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class T
- Opening Speed: Fast Acting
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Shape: Cartridge
- Certification: UL Listed, CSA Certified, RoHS Compliant
- Country of Origin: Mexico
- Compact Size: Less than one-third size of Class R fuses
- Application: Variable Speed Drive Protection
Specifications
- Part Number: JLLS-400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819093
- GTIN : 00079458190939
- Weight : 5.19
