Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

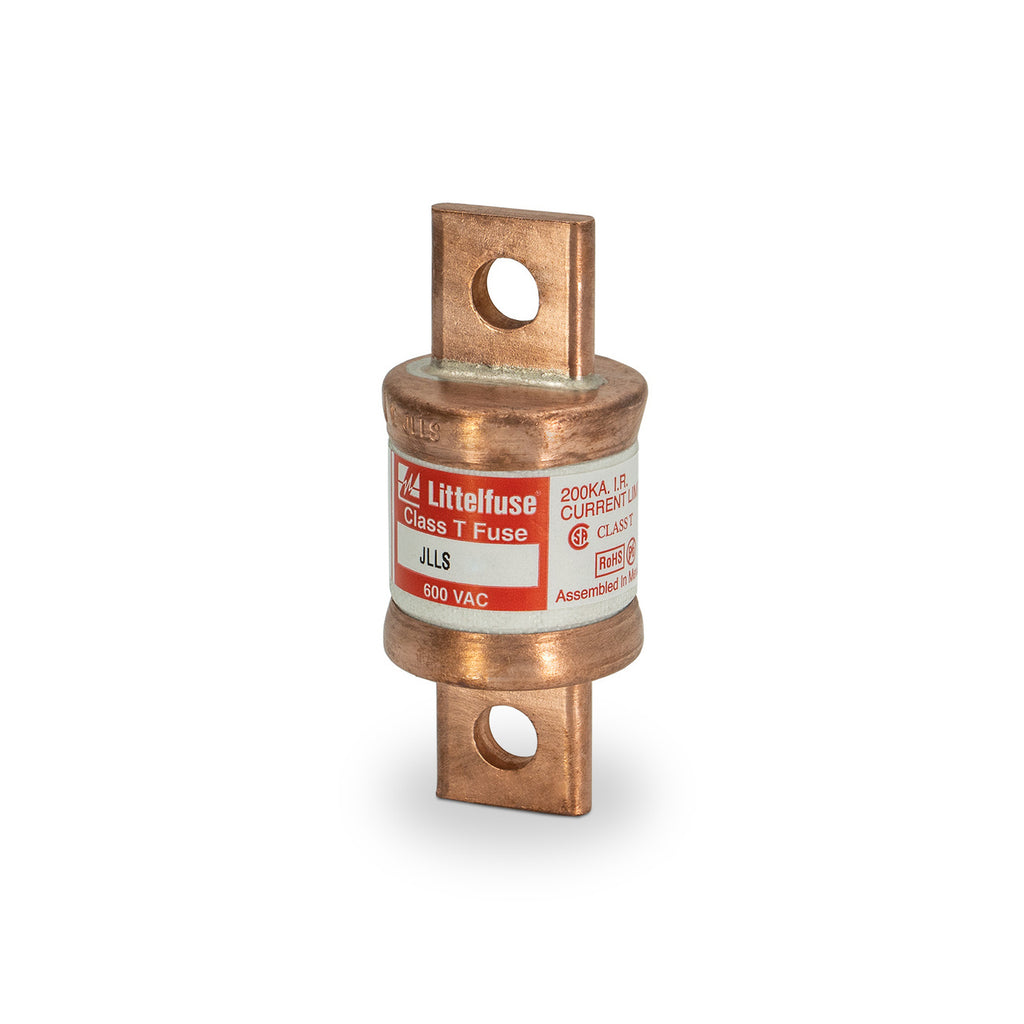

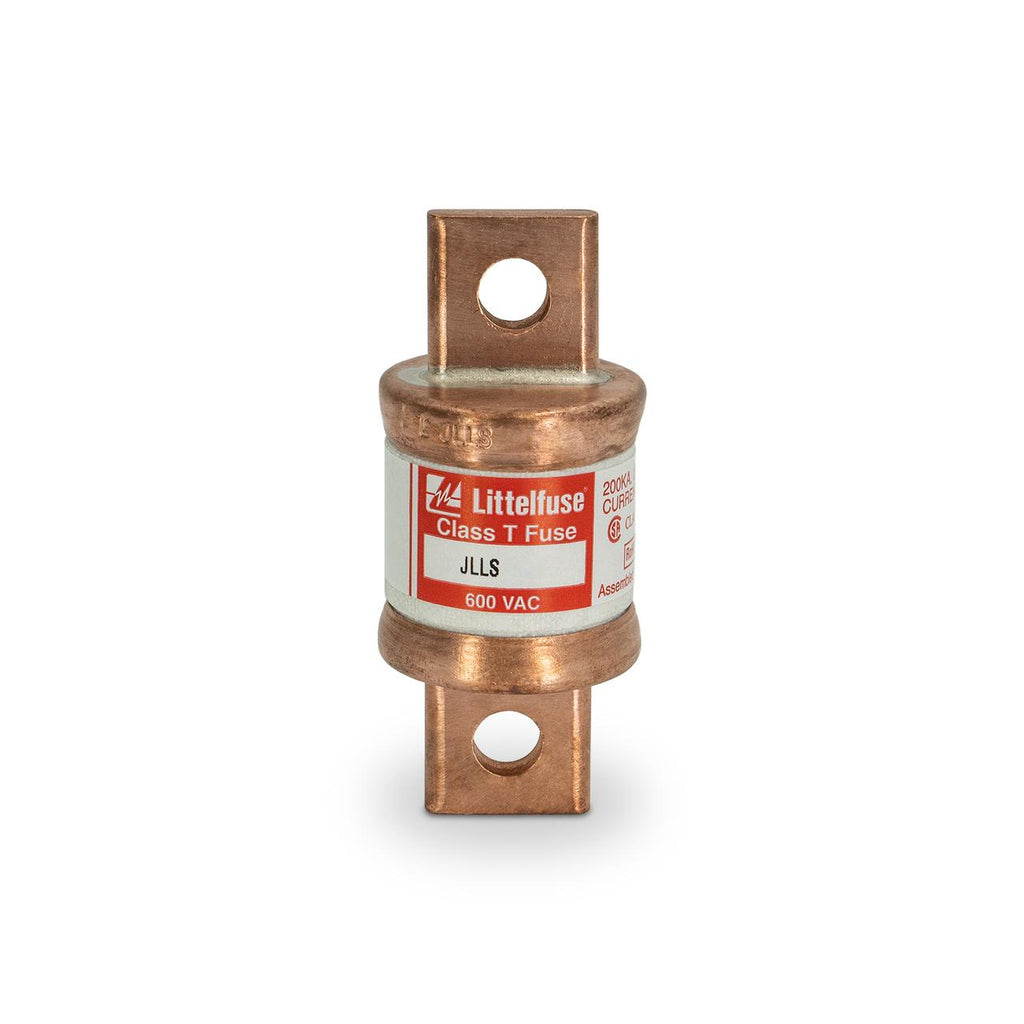

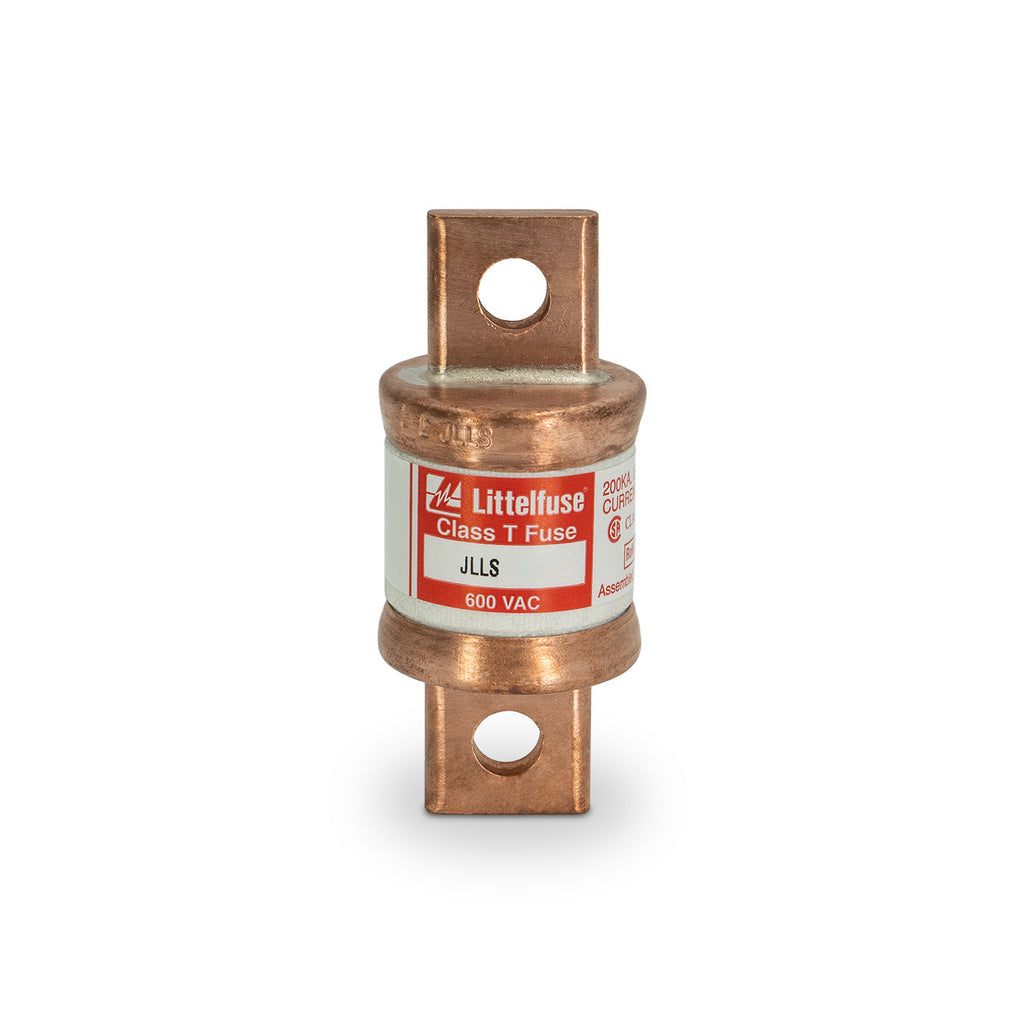

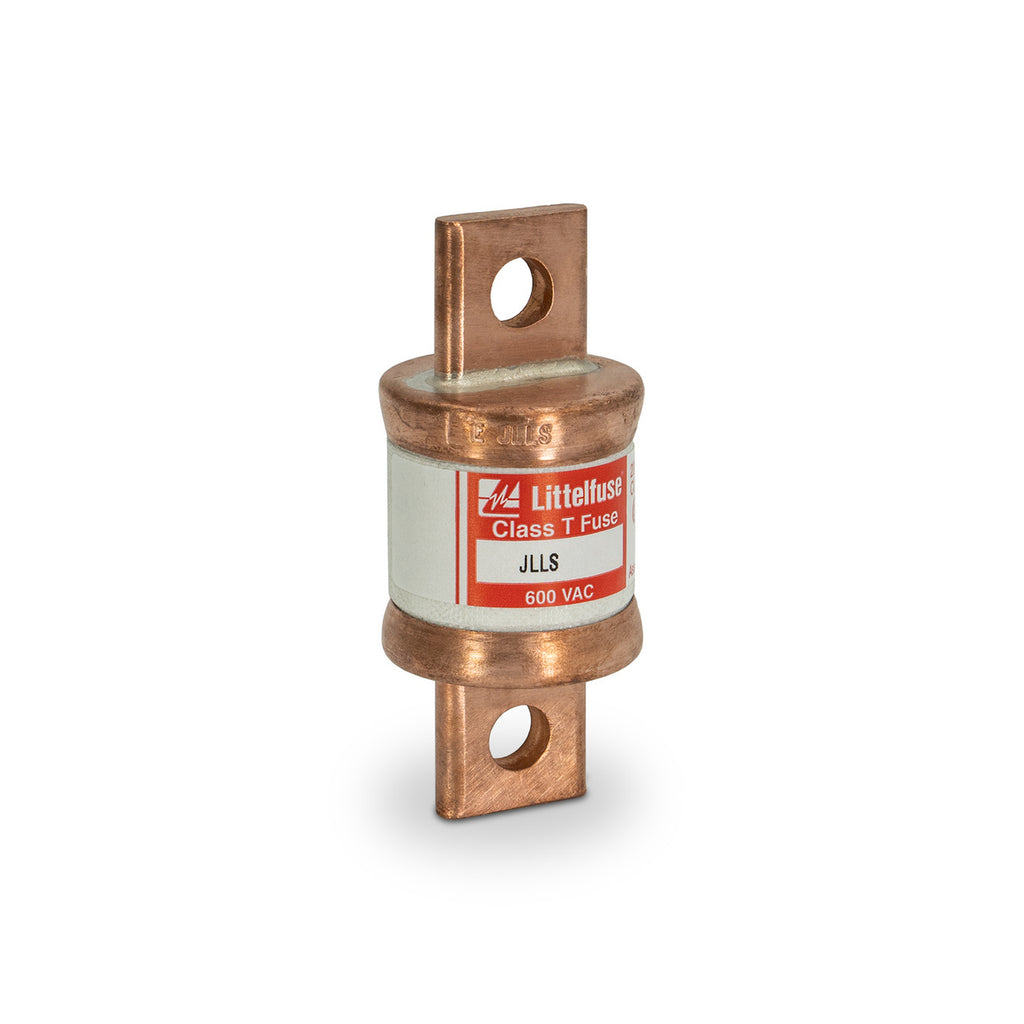

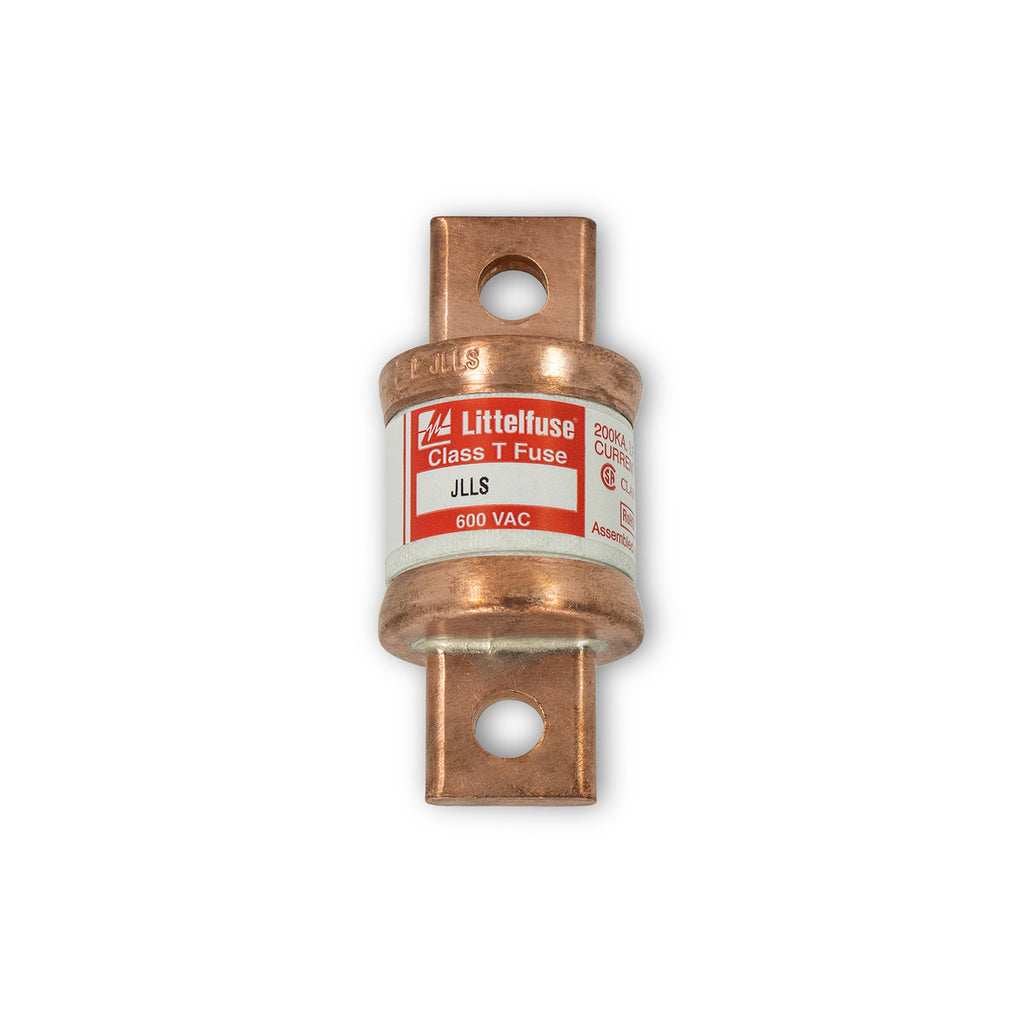

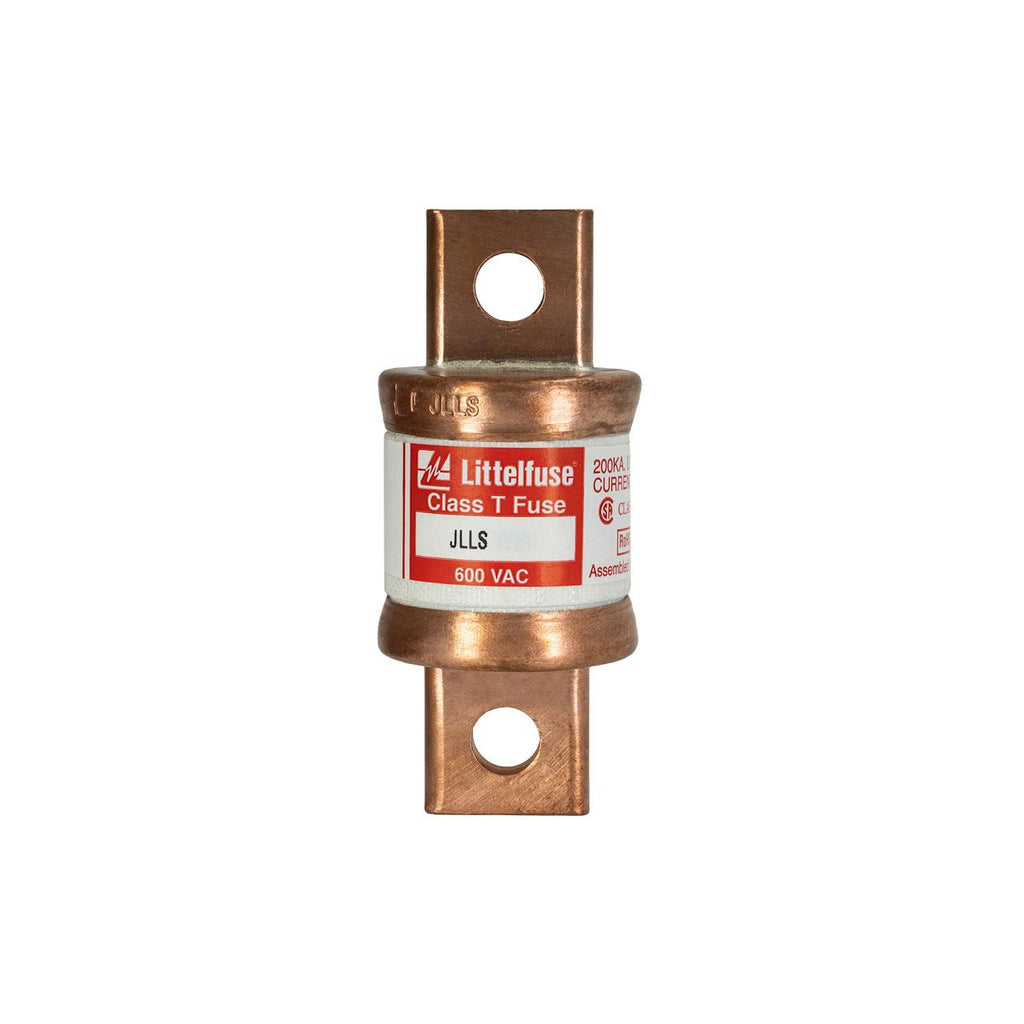

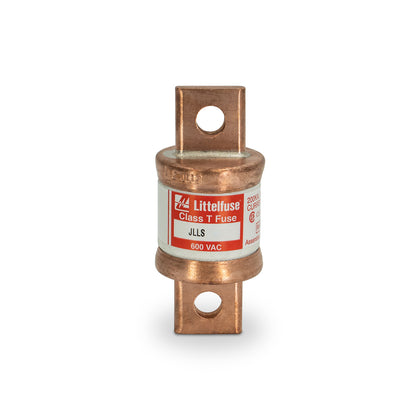

JLLS-350
JLLS-350 is a Littelfuse Class T fast-acting, current-limiting fuse designed for reliable protection in demanding power distribution applications.
This compact, bolt-in cartridge fuse offers superior current-limiting performance and fast-acting overload protection, making it ideal for variable speed drives, power conversion, and industrial equipment. It is UL, CSA, and CE certified for global compliance and safety.
-
Key Specifications
- Amperage: 350A
- Voltage: 600V AC / 300V DC
- Poles: Single
- Mounting Type: Bolt-in
- Interrupt Rating: 200,000A AC (200kA), 20,000A DC
- Series/Frame: JLLS Series, Class T
- Trip Unit: Fast-acting (current-limiting)
- Certifications: UL Listed (UL 248-15), CSA Certified, CE Marked, RoHS Compliant
- Physical Size: 3 5/8" L x 1 19/32" Dia
- Connection: Blade (bolt-in)
- Material: Melamine body, copper caps
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLLS-350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819092
- GTIN : 00079458190922
- Weight : 1.2
- Certification : Ul Listed Csa Certified
