Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-300

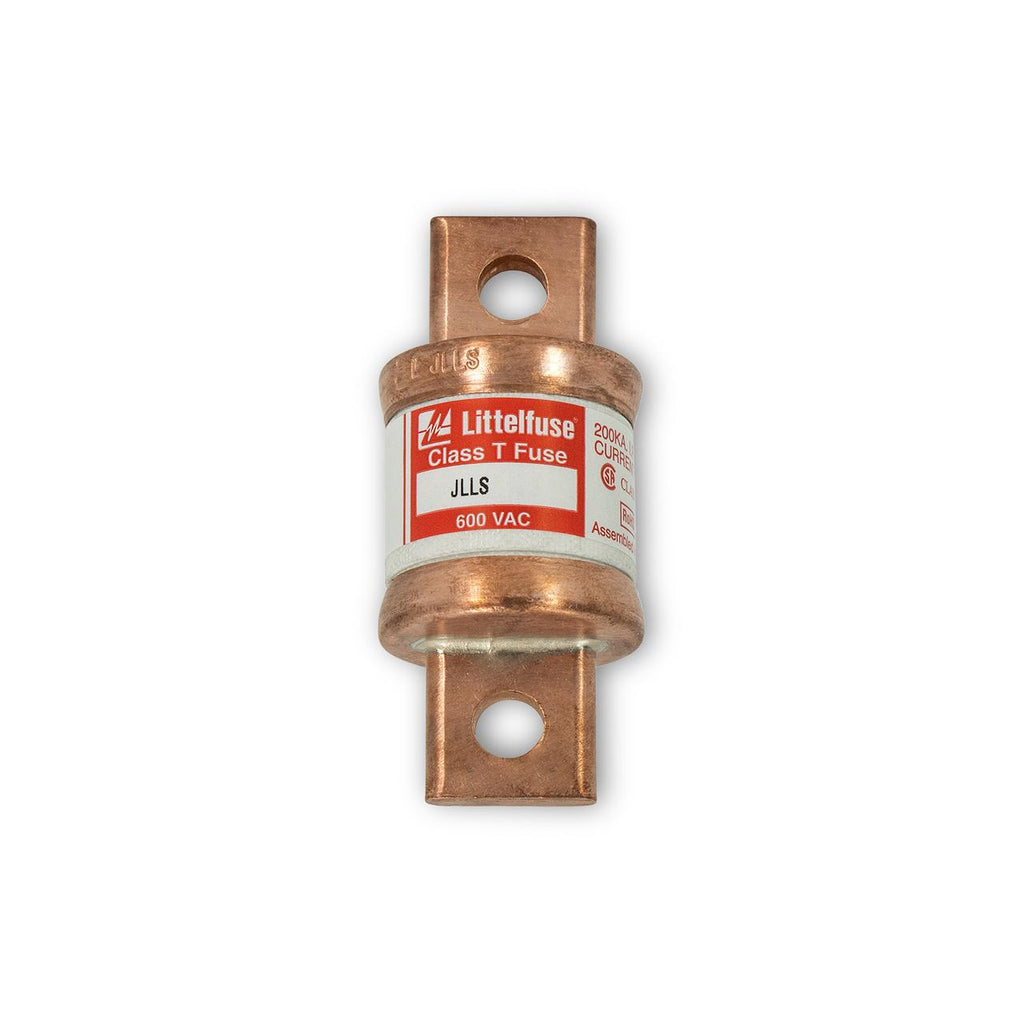

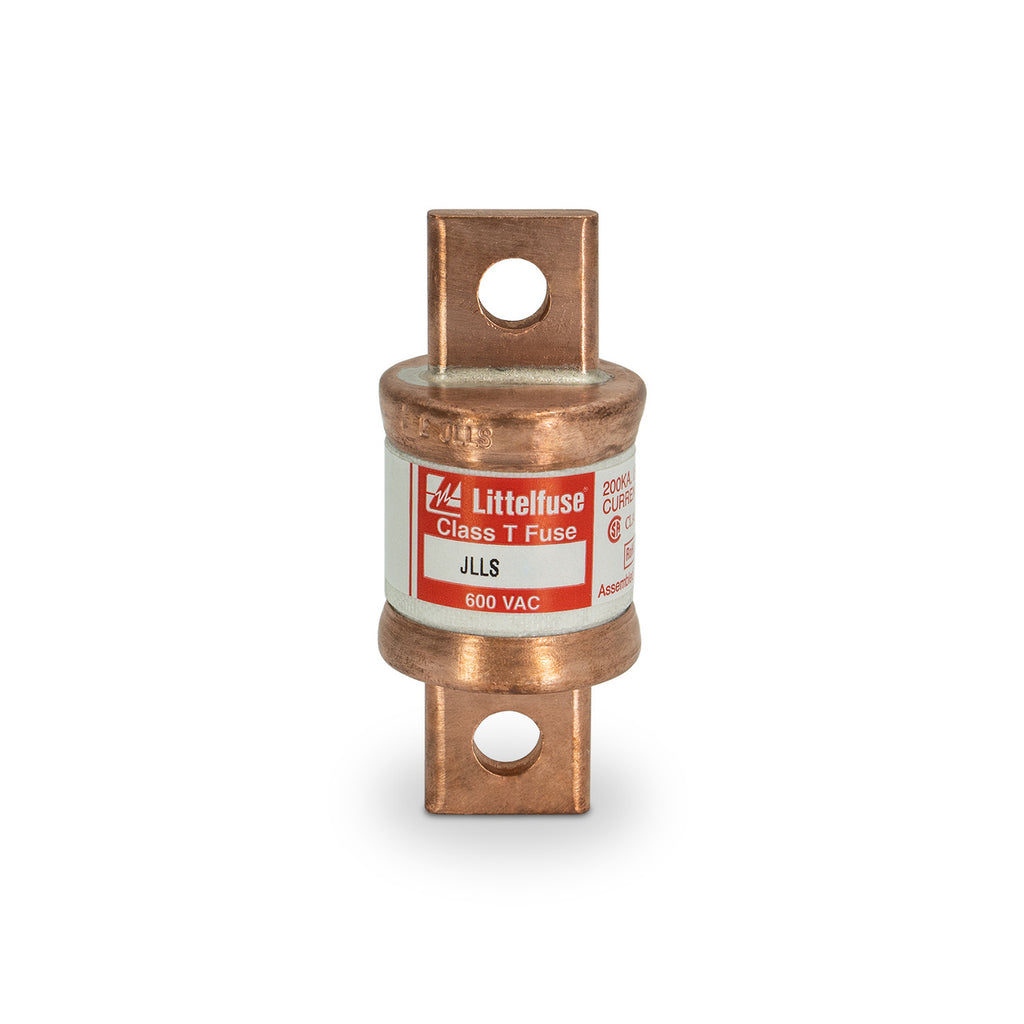

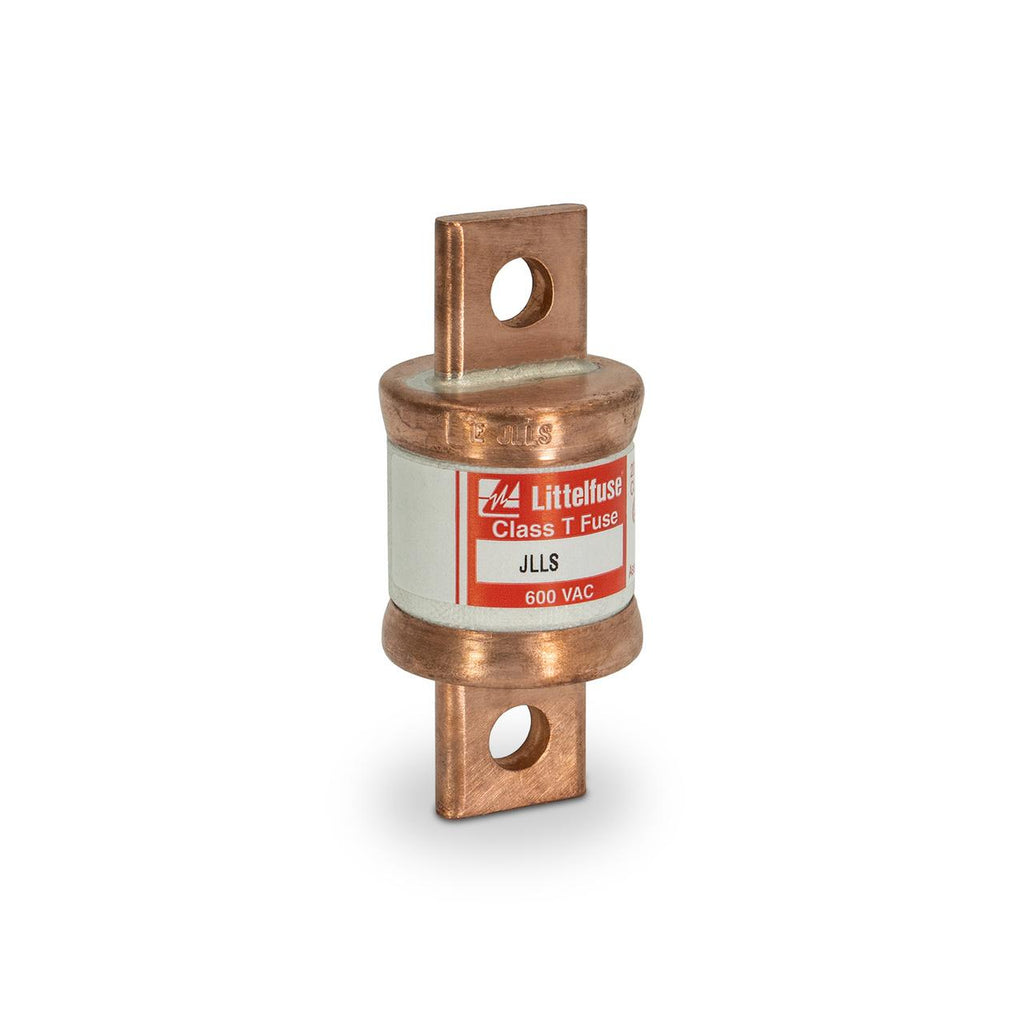

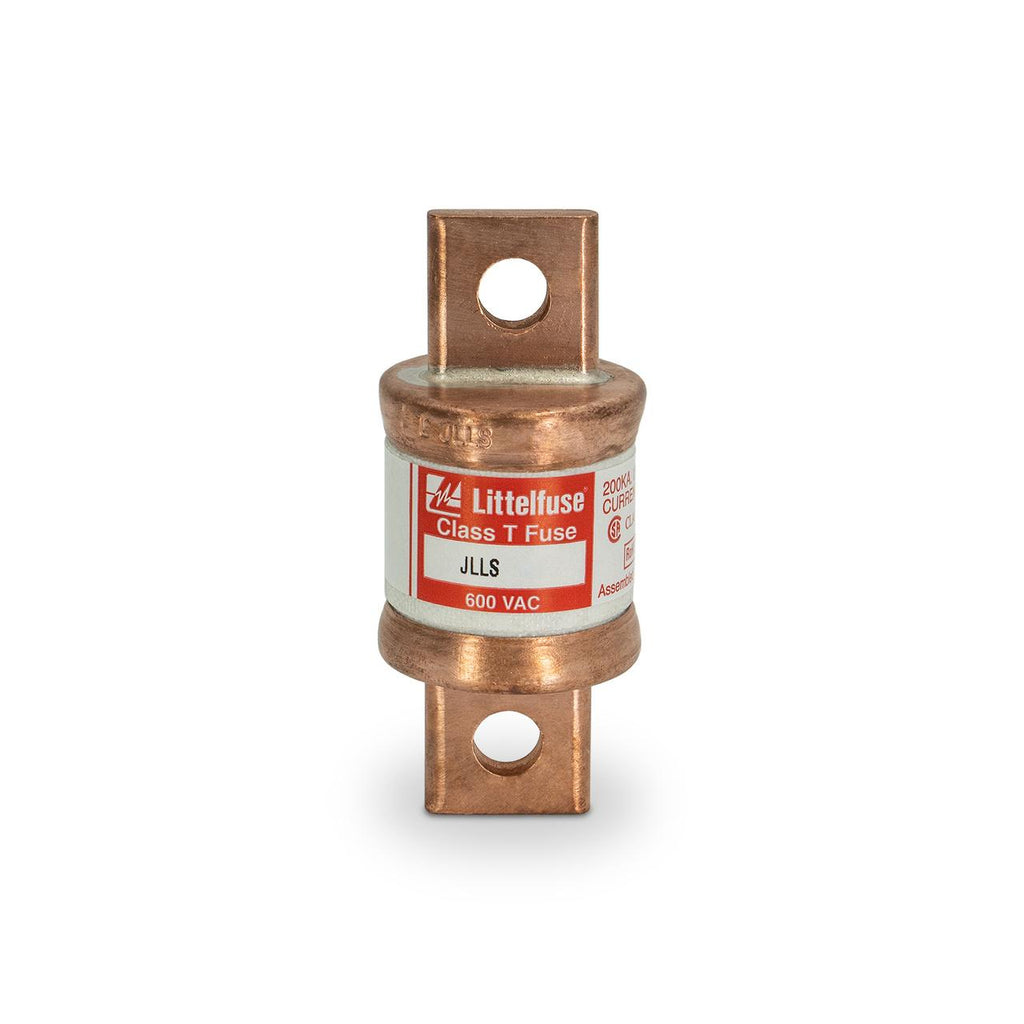

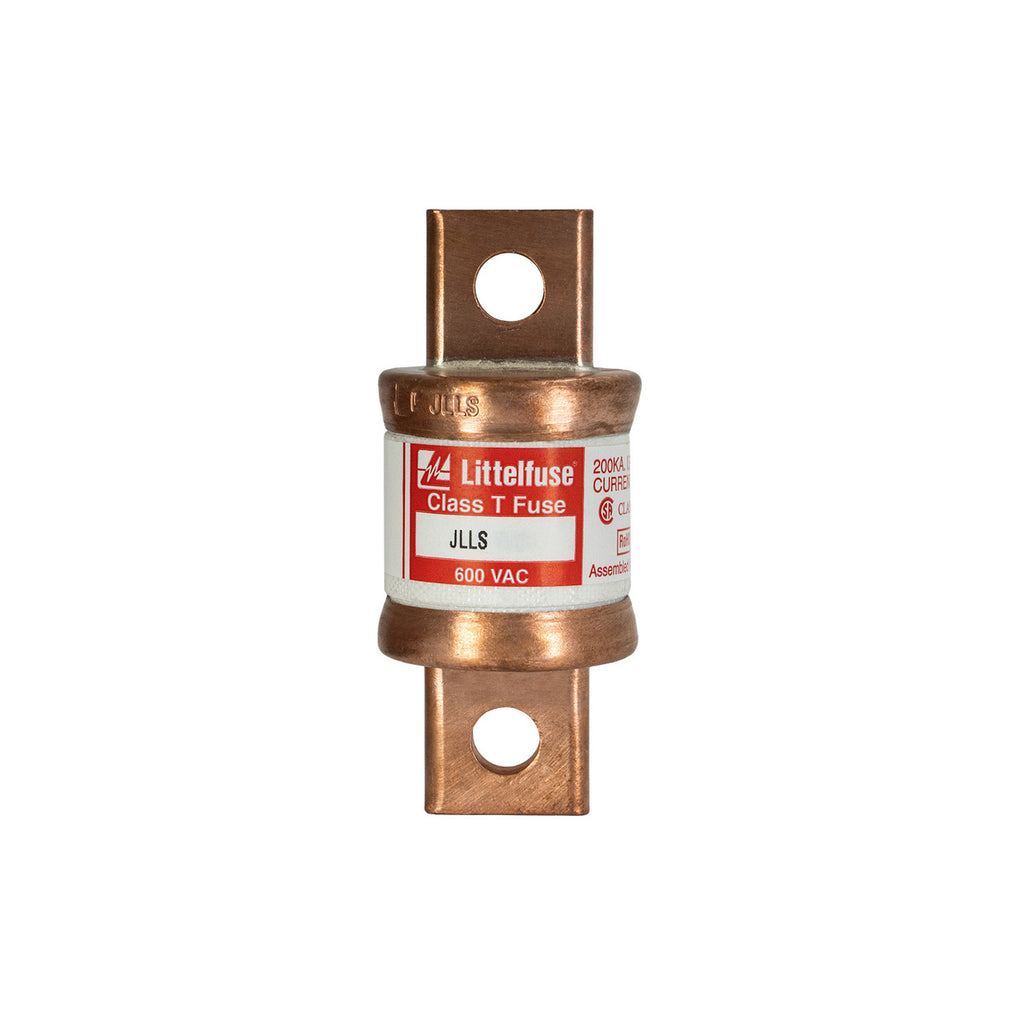

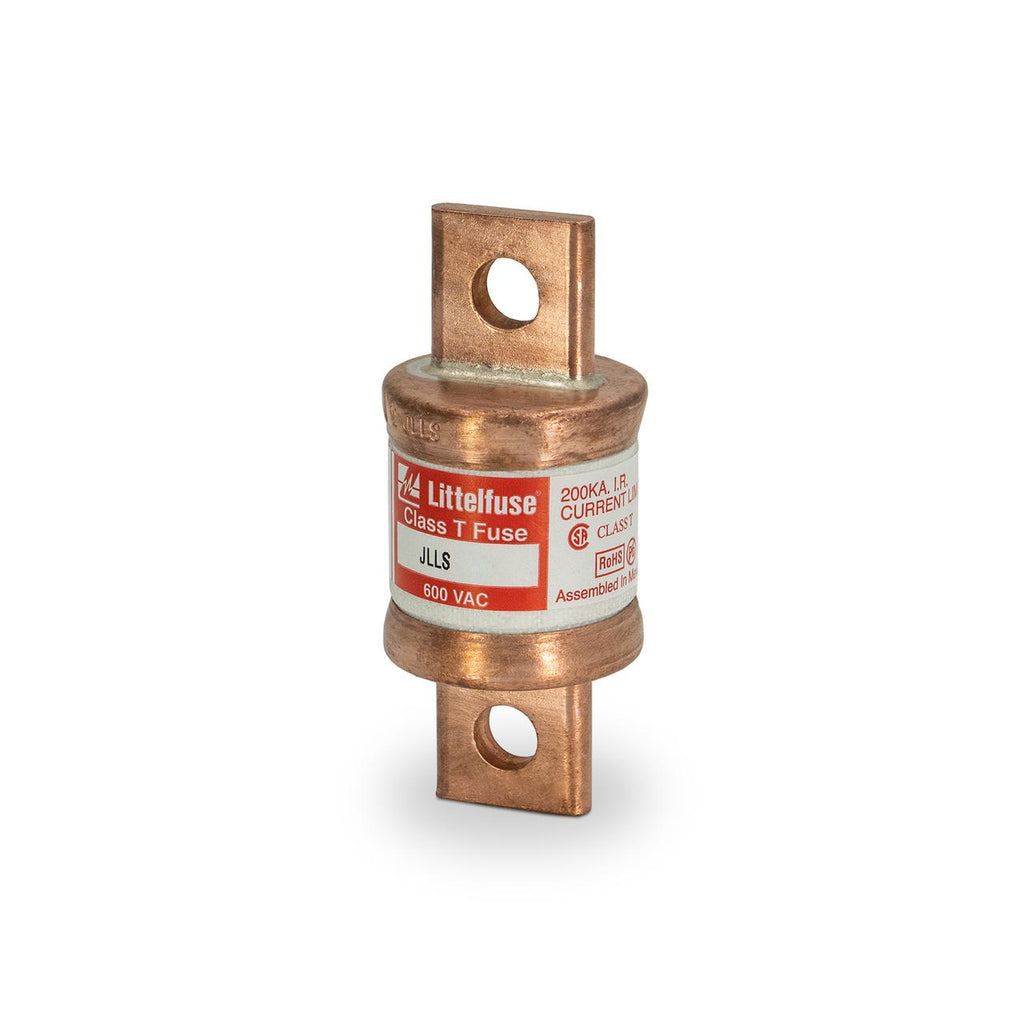

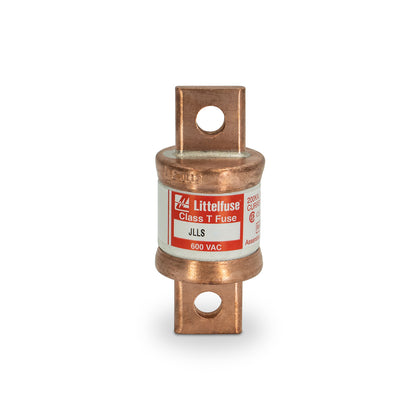

JLLS-300 is a Littelfuse Class T, fast-acting, current-limiting fuse designed for robust circuit protection in demanding applications.
This cartridge-style fuse features a compact, knife-blade construction and is engineered for very fast response to overcurrent conditions, making it ideal for protecting variable speed drives and other sensitive equipment. It is UL Listed, CSA Certified, and CE compliant, ensuring reliable performance and safety across a wide range of industrial environments.
-
Key Specifications
- Amperage: 300A
- Voltage: 600V AC / 300V DC
- Poles: 1
- Mounting Type: Cartridge (knife-blade)
- Interrupt Rating: 200,000A @ 600V AC; 20,000A @ 300V DC
- Series/Frame: JLLS Series, Class T
- Trip Unit: Not applicable (fuse)
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), CE, RoHS Compliant
- Body Size: 1 19/32" x 3 5/8"
- Speed: Very fast-acting
- Current Limiting: Yes
- Environmental: RoHS 2 Directive 2011/65/EU; Directive (EU) 2015/863
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLLS-300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819091
- GTIN : 00079458190915
- Weight : 1.2
