Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-250

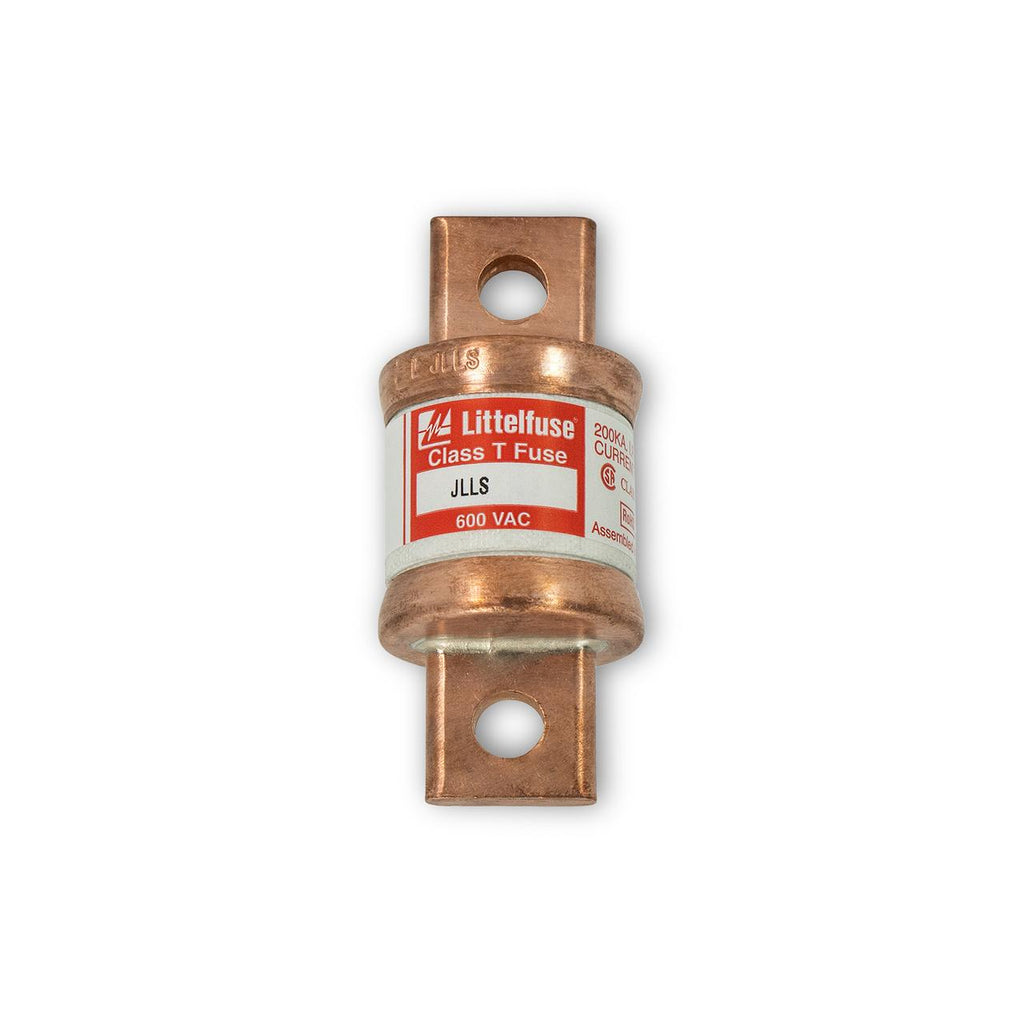

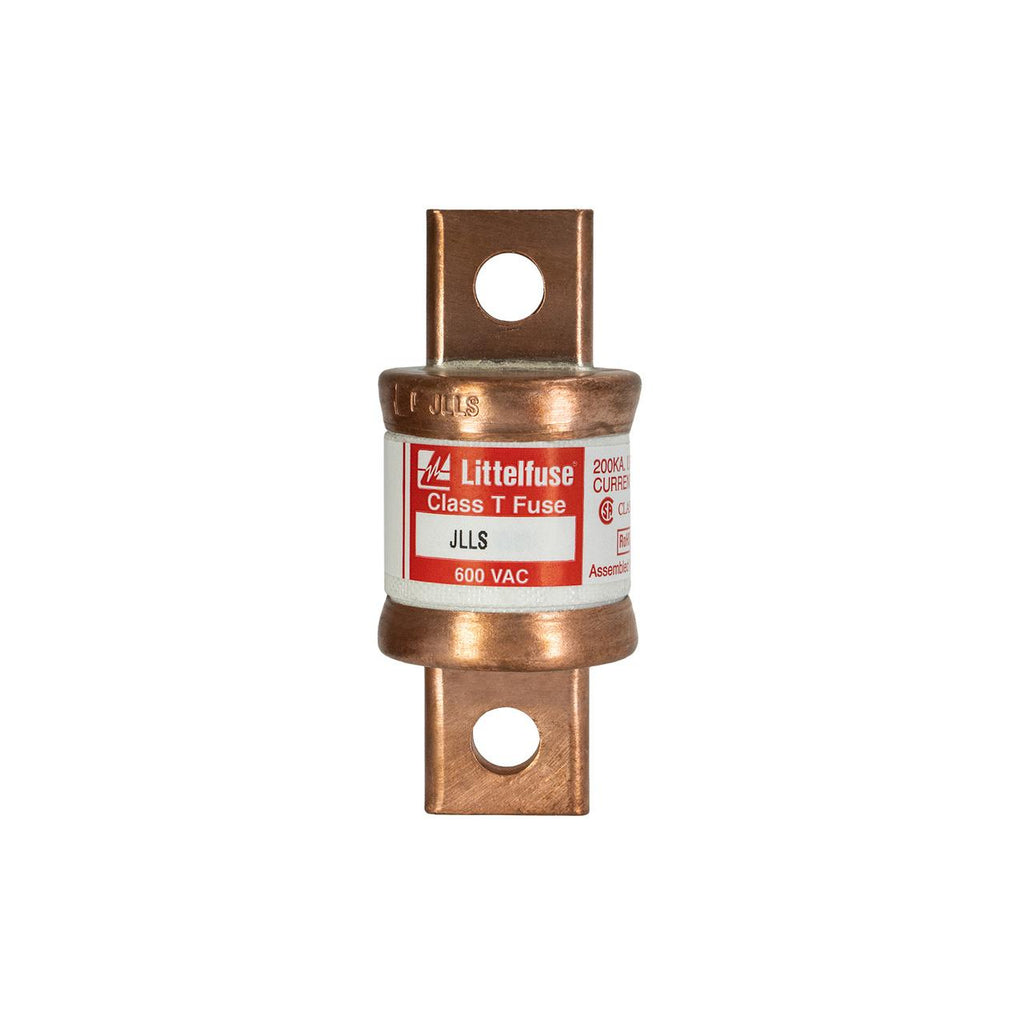

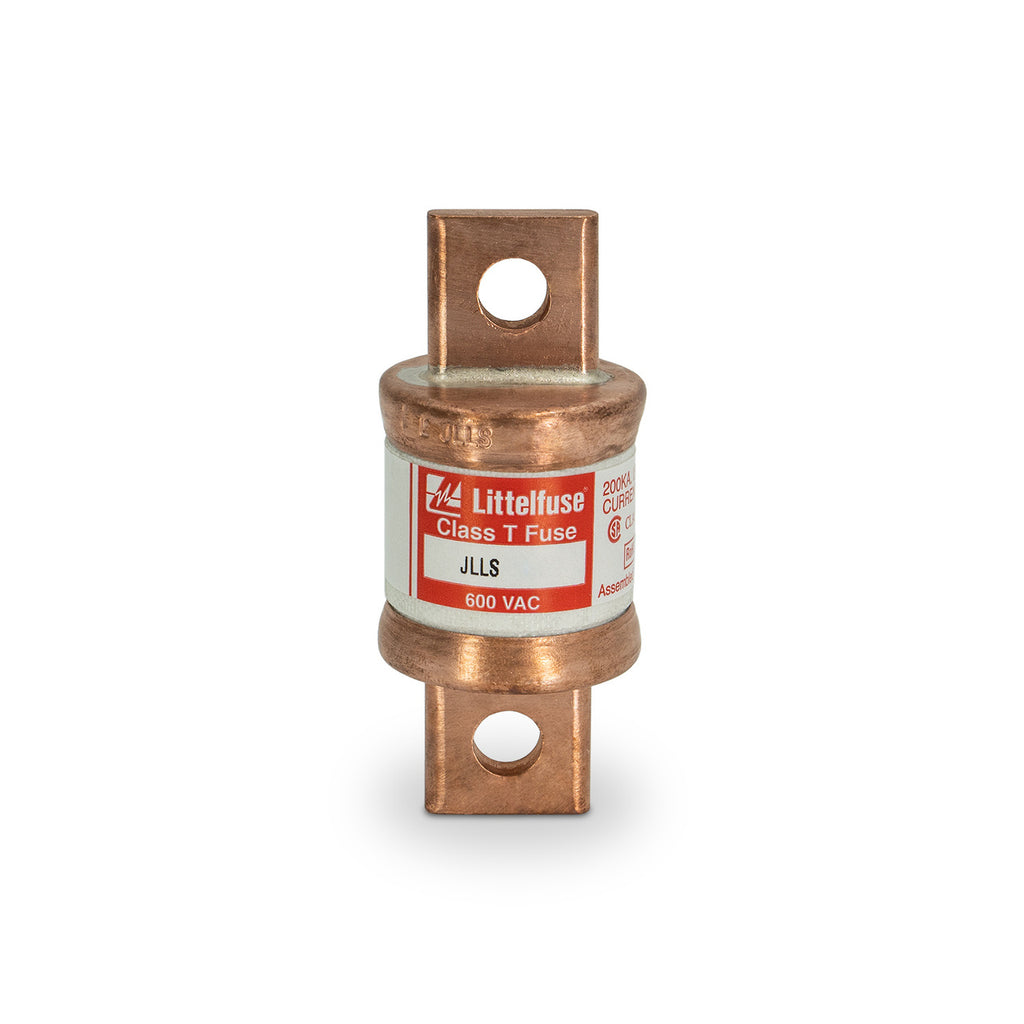

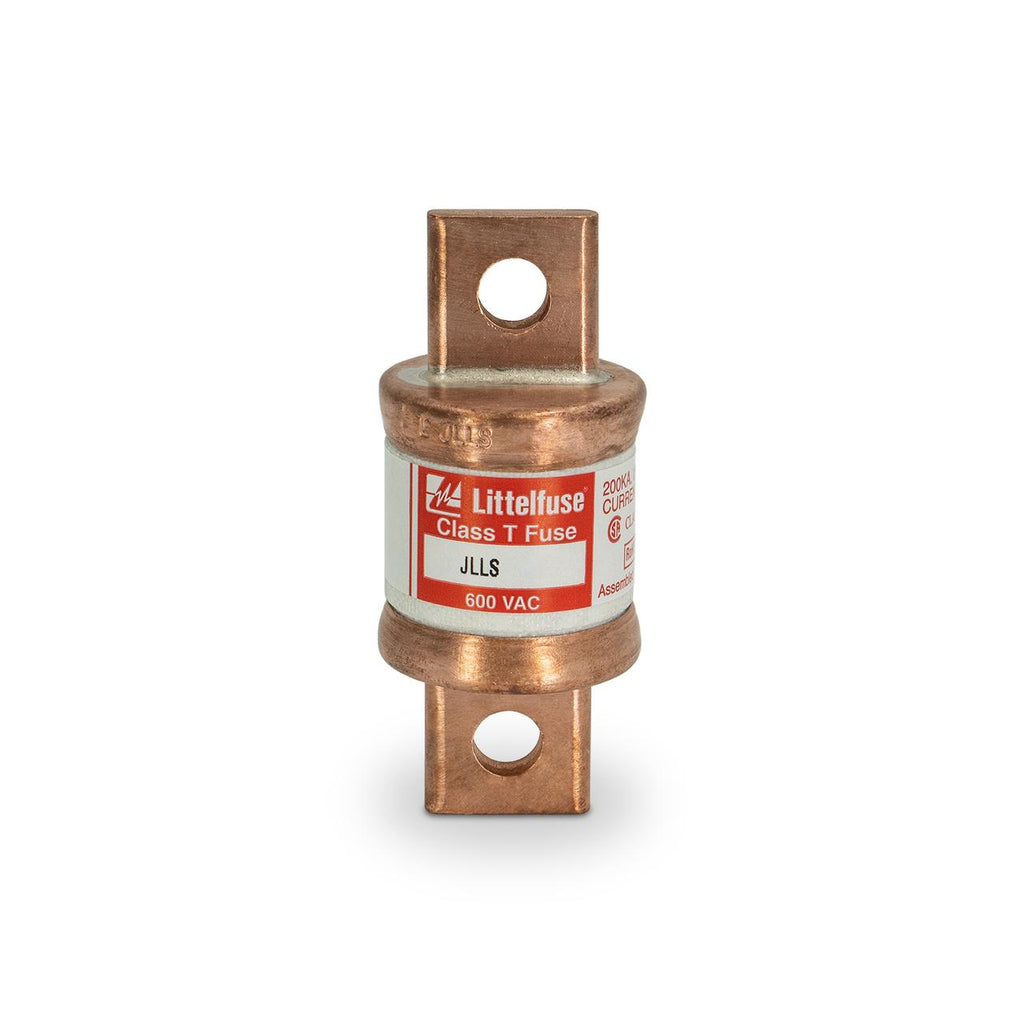

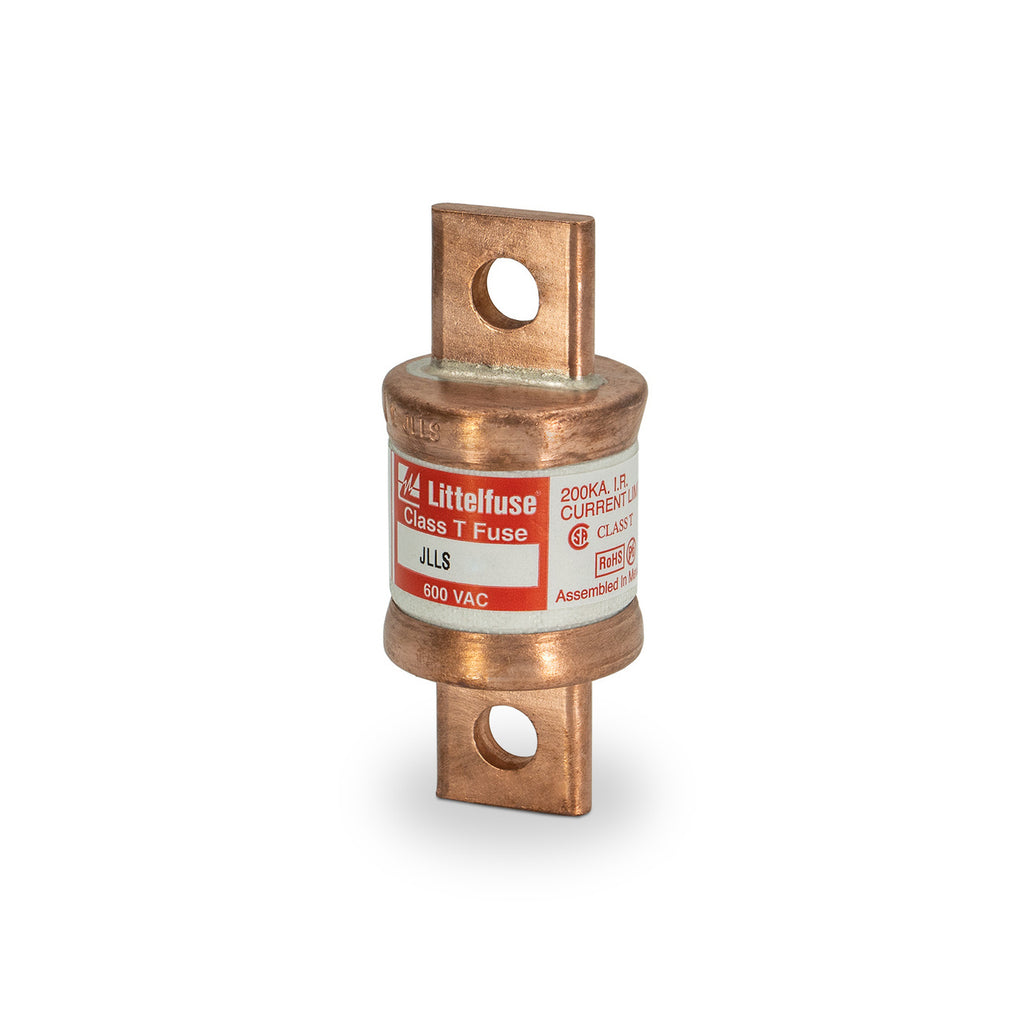

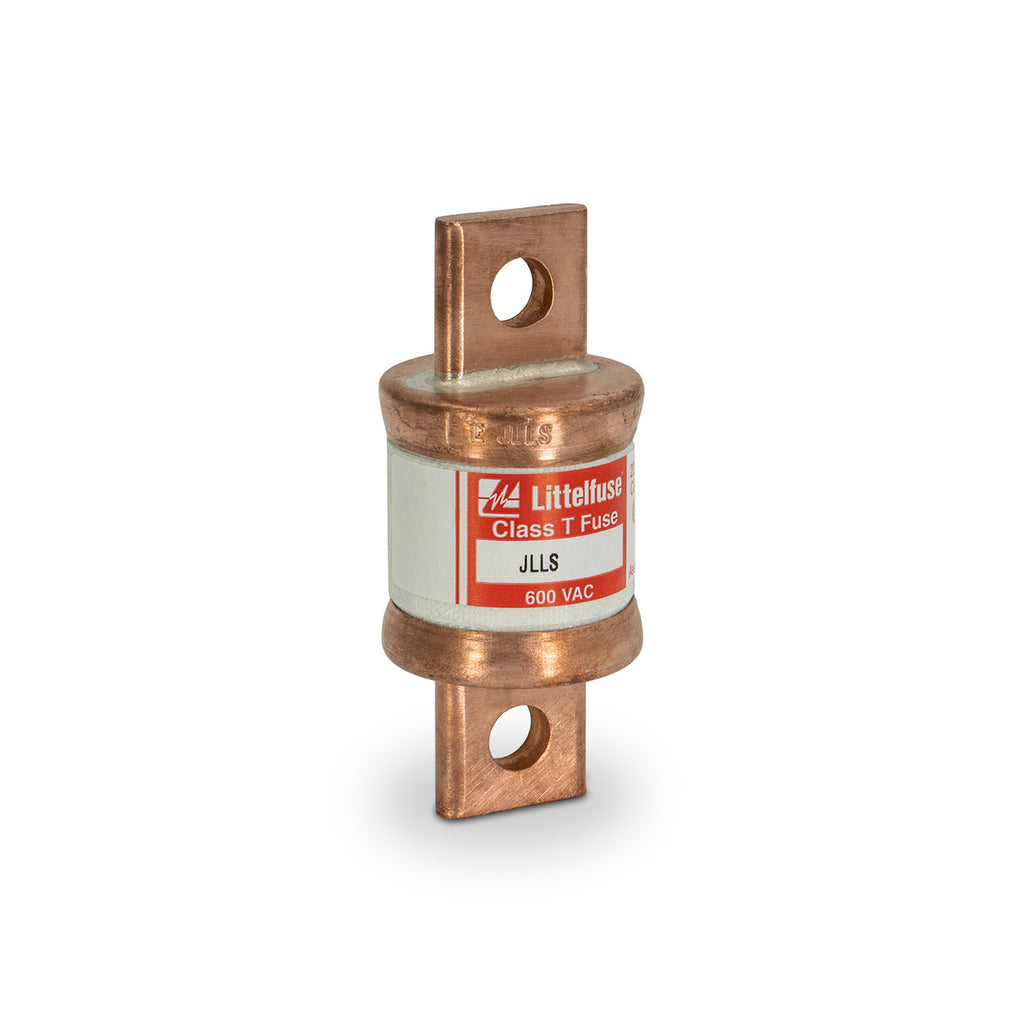

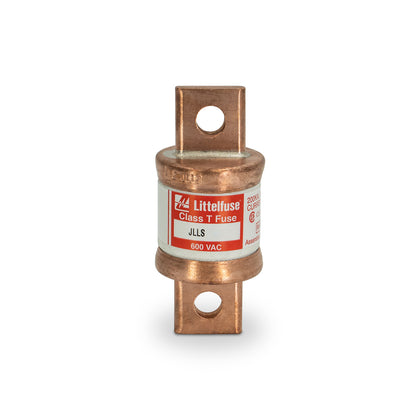

JLLS-250 is a Littelfuse Class T fast-acting fuse rated for 250 amps and 600 volts AC, designed for compact, high-performance circuit protection.This JLLS-250 fuse features a very fast-acting response time with a compact size of approximately 1.59 inch diameter by 3.62 inch length. It is UL Listed, CSA Certified, and RoHS compliant, suitable for variable speed drive protection and other demanding applications. The fuse has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, with a bolt-in mounting style for secure installation.
- Amperage Rating: 250 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Class T, RK5
- Response Time: Very Fast Acting
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
- Mounting Type: Bolt-In
- Dimensions: 1.59 in diameter x 3.62 in length
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Compact Design for Space Saving
- Application: Variable Speed Drive Protection
Specifications
- Part Number: JLLS-250
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819090
- GTIN : 00079458190908
- Weight : 1.2
- Certification : UL, CSA
