JLLS-200 - Littelfuse 200 Amp 600 Volt AC Class T Fast Acting Fuse

JLLS-200

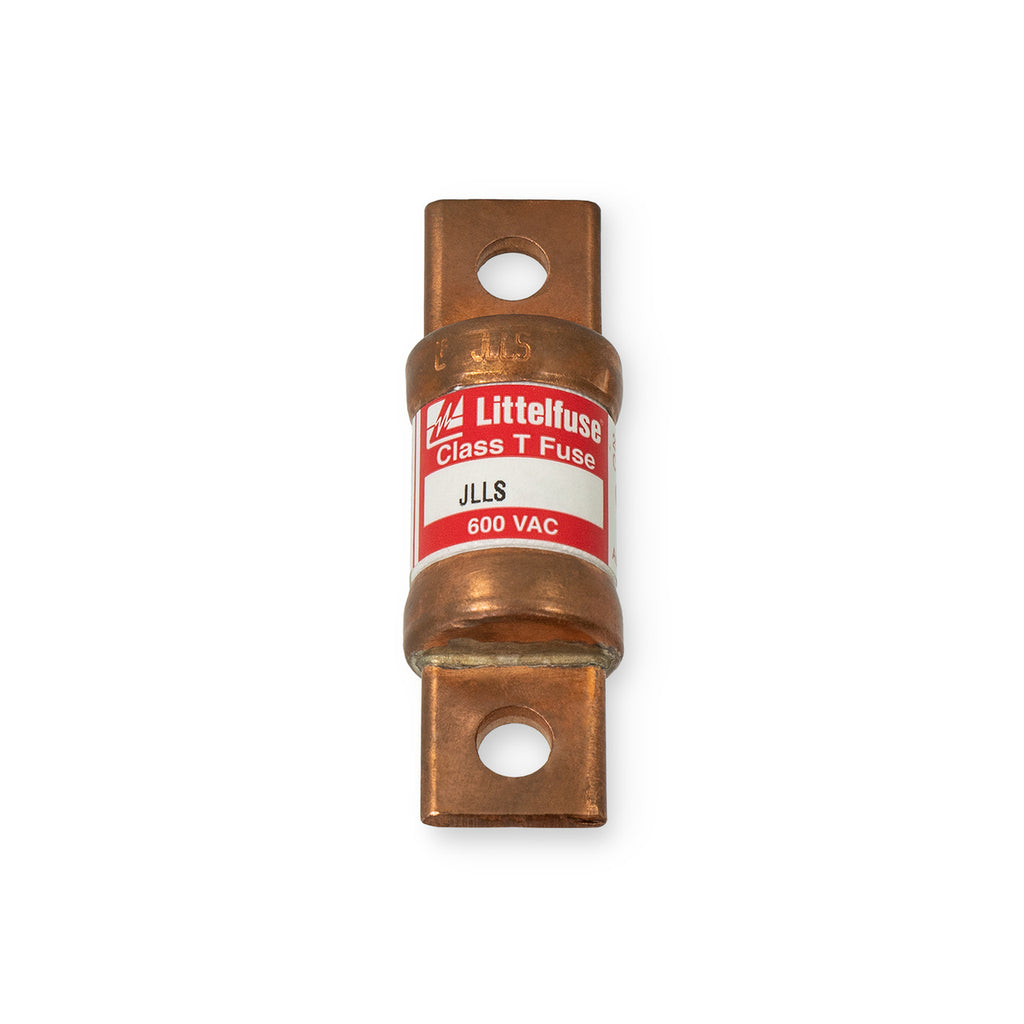

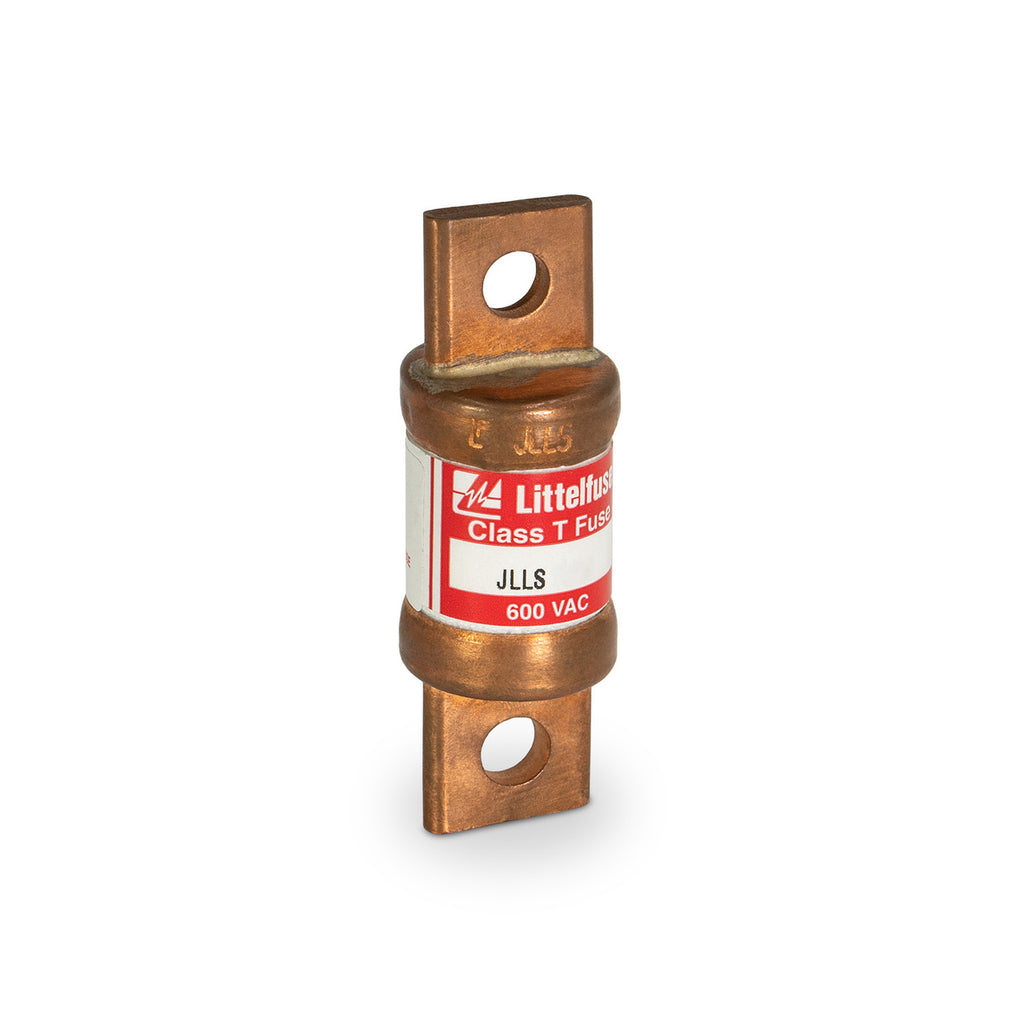

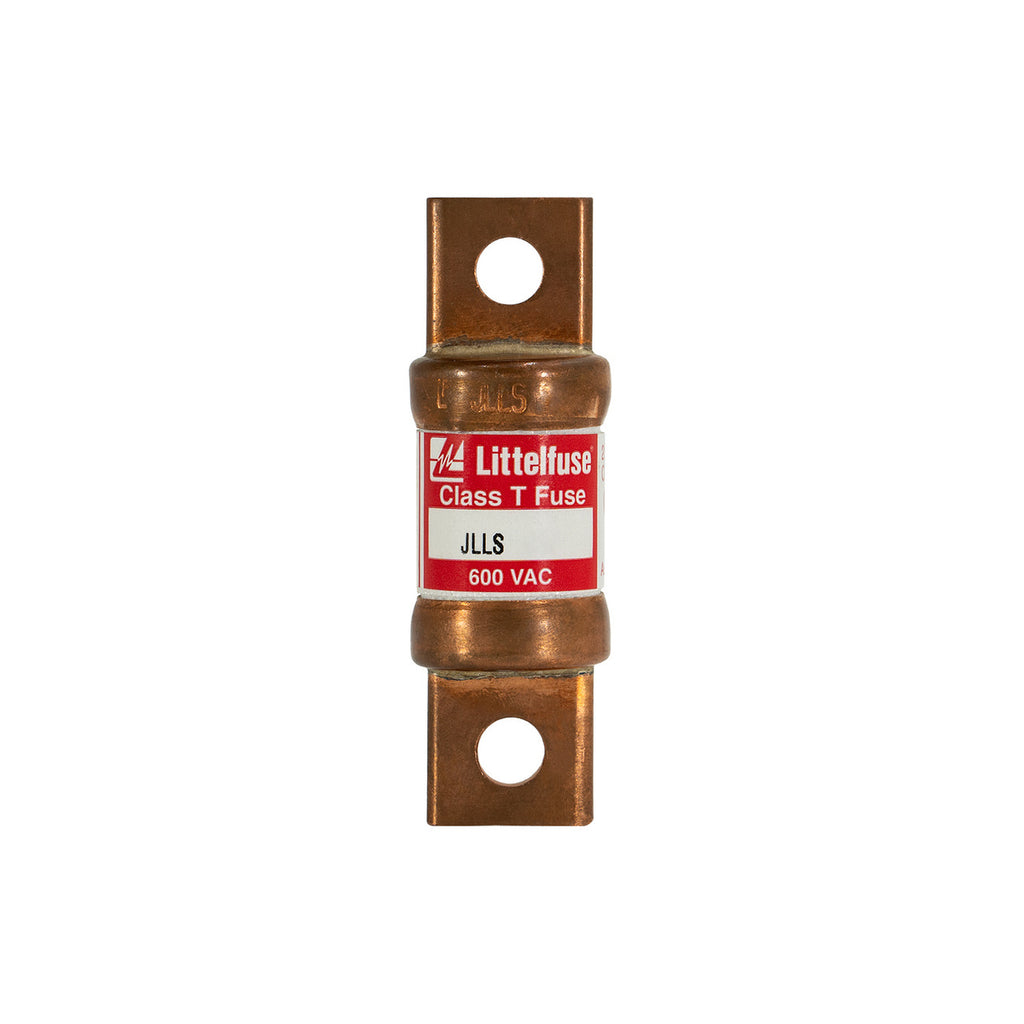

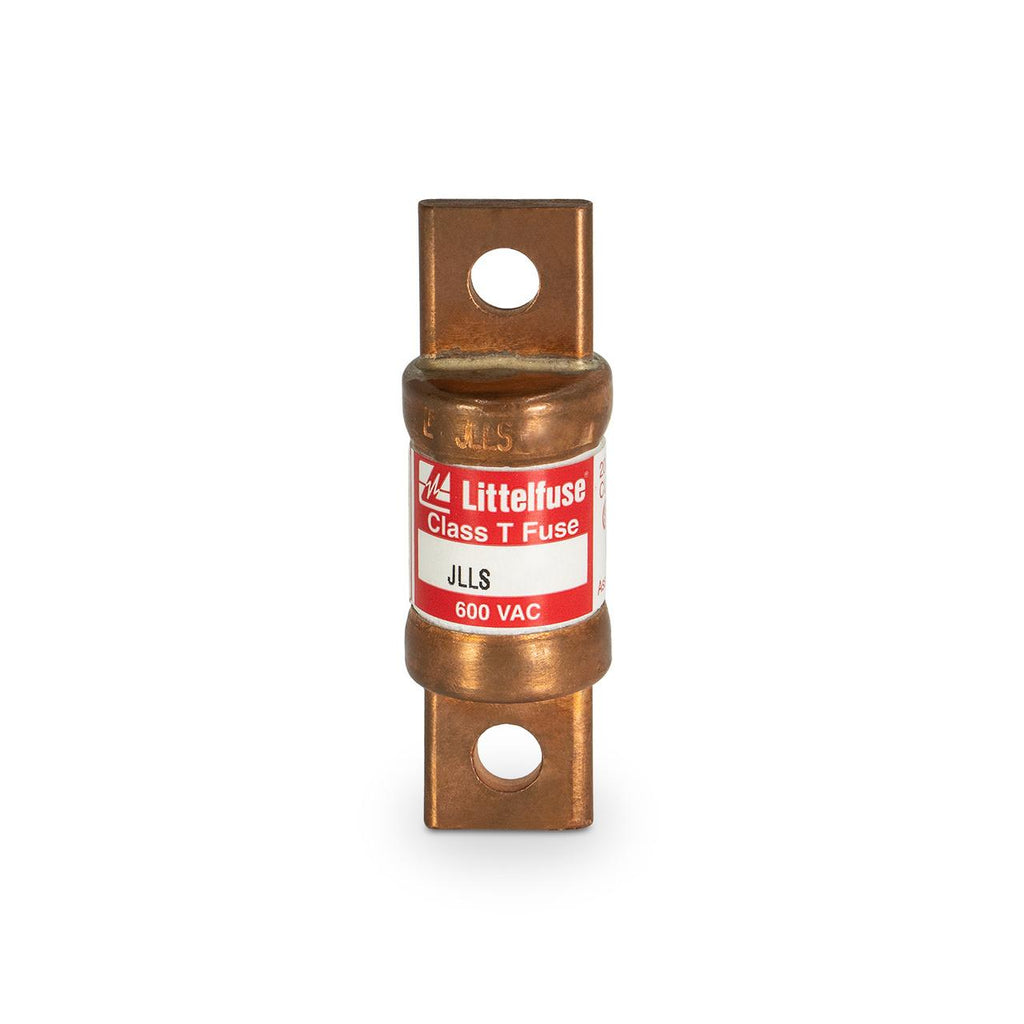

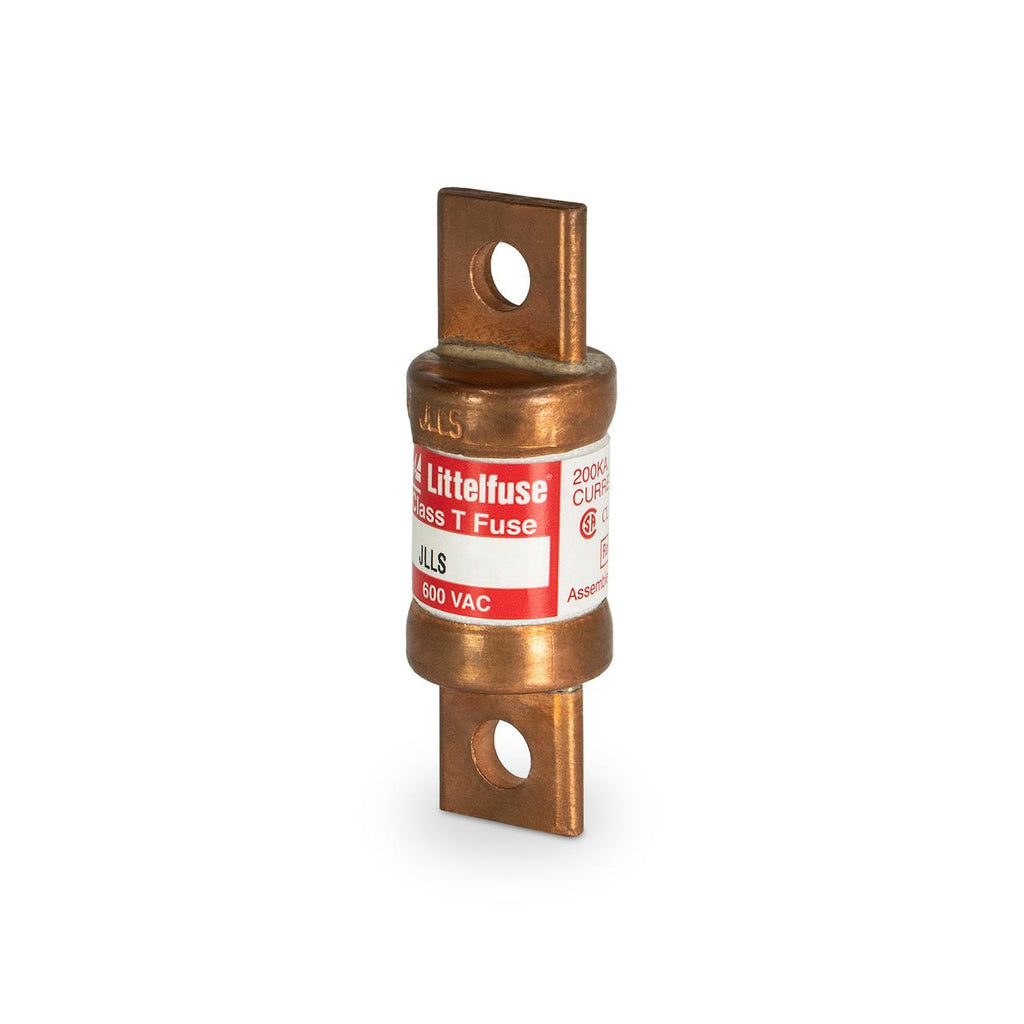

JLLS-200 is a Littelfuse 200 Amp, 600 Volt AC Class T fast acting fuse designed for compact and reliable overcurrent protection.This fuse features a very fast acting, current limiting design ideal for protecting variable speed drives and other sensitive equipment. It has a compact cartridge body measuring approximately 1 1/16" x 3 1/4" and is rated for 600 VAC and 300 VDC. The interrupting rating is 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. It is UL Listed, CSA Certified, CE compliant, and RoHS compliant, ensuring high safety and environmental standards.

Key Specifications
• Amperage: 200 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class T
• Fuse Type: Fast Acting (Very Fast)
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Physical Size: 1 1/16" diameter x 3 1/4" length
• Mounting Type: Cartridge Body
• Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862), CE Compliant
• RoHS Compliant
• Current Limiting
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLLS-200
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLS
• Voltage : 600
• Amperage : 200
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.08
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 07945819088
• GTIN : 00079458190885
• Weight : 5.19
• Certification : Ul Listed Csa Certified
