Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-175

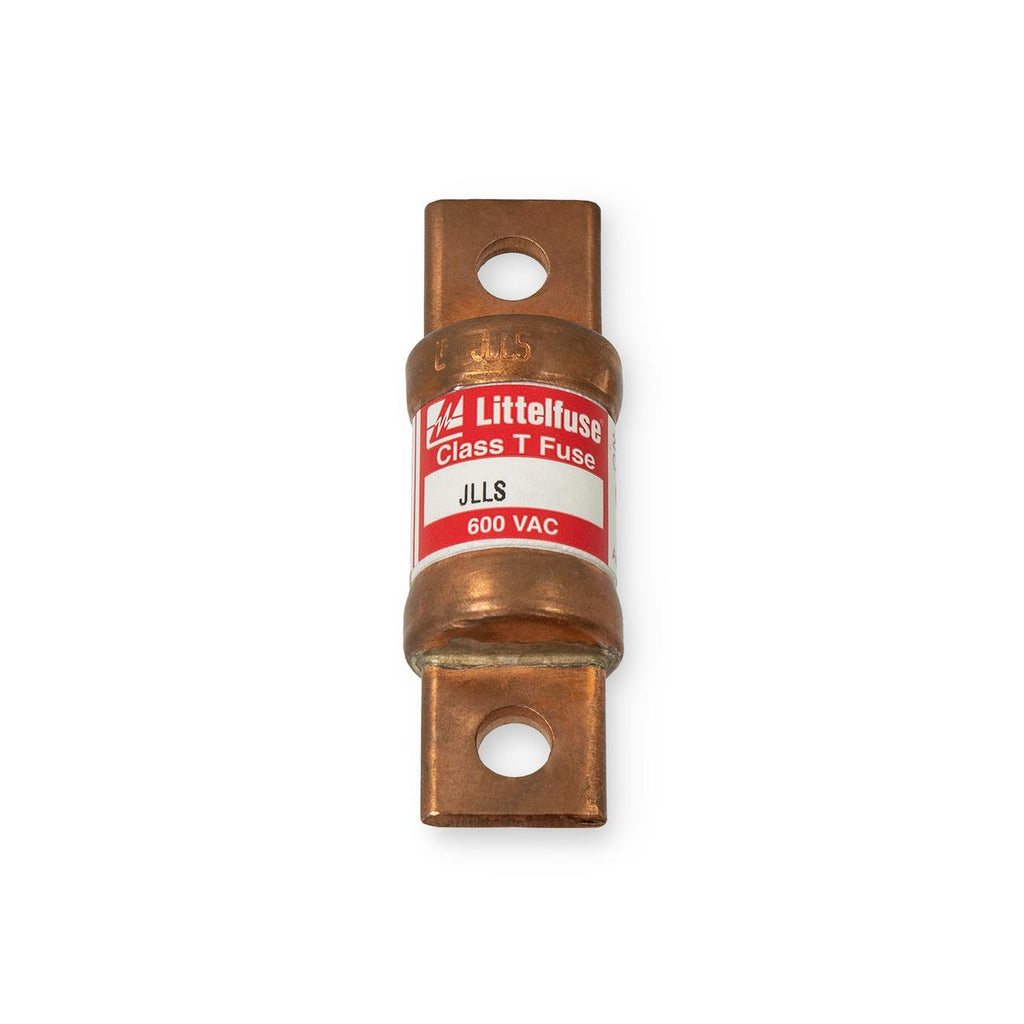

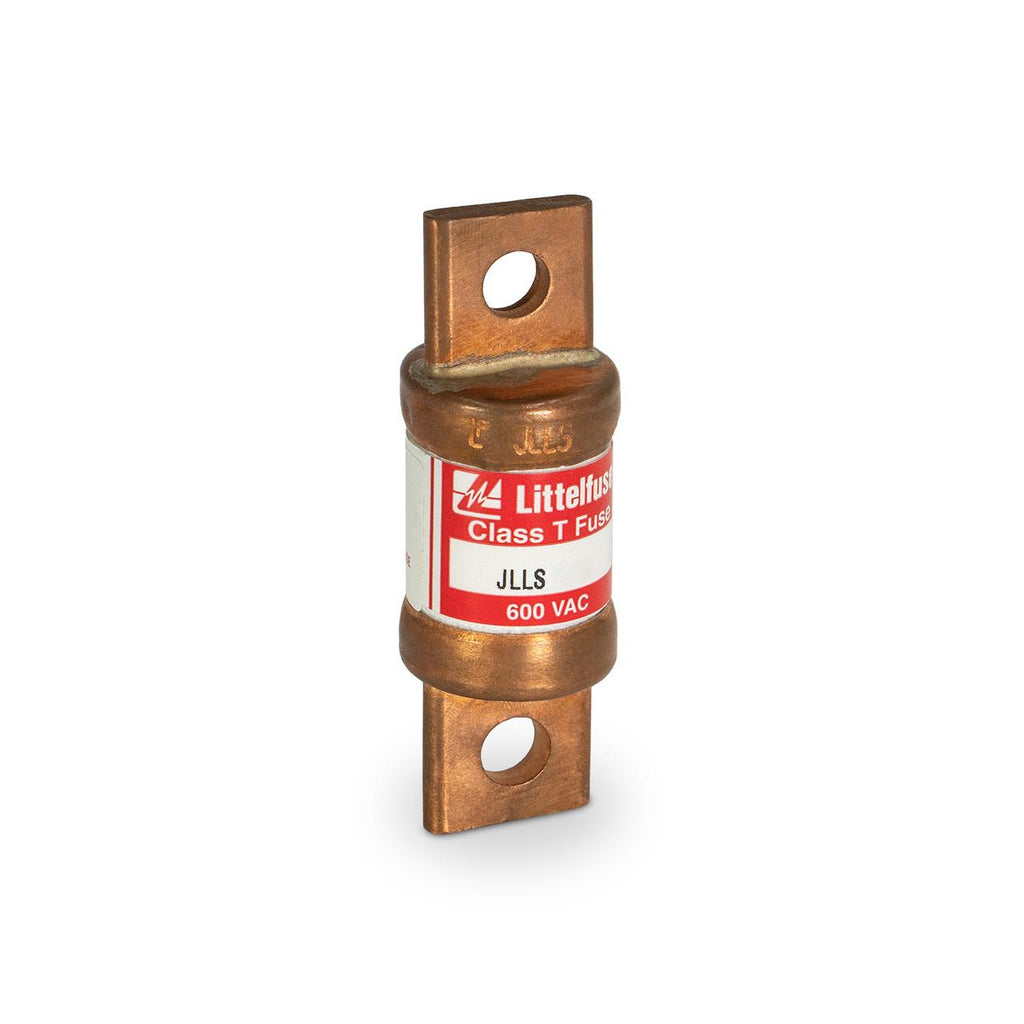

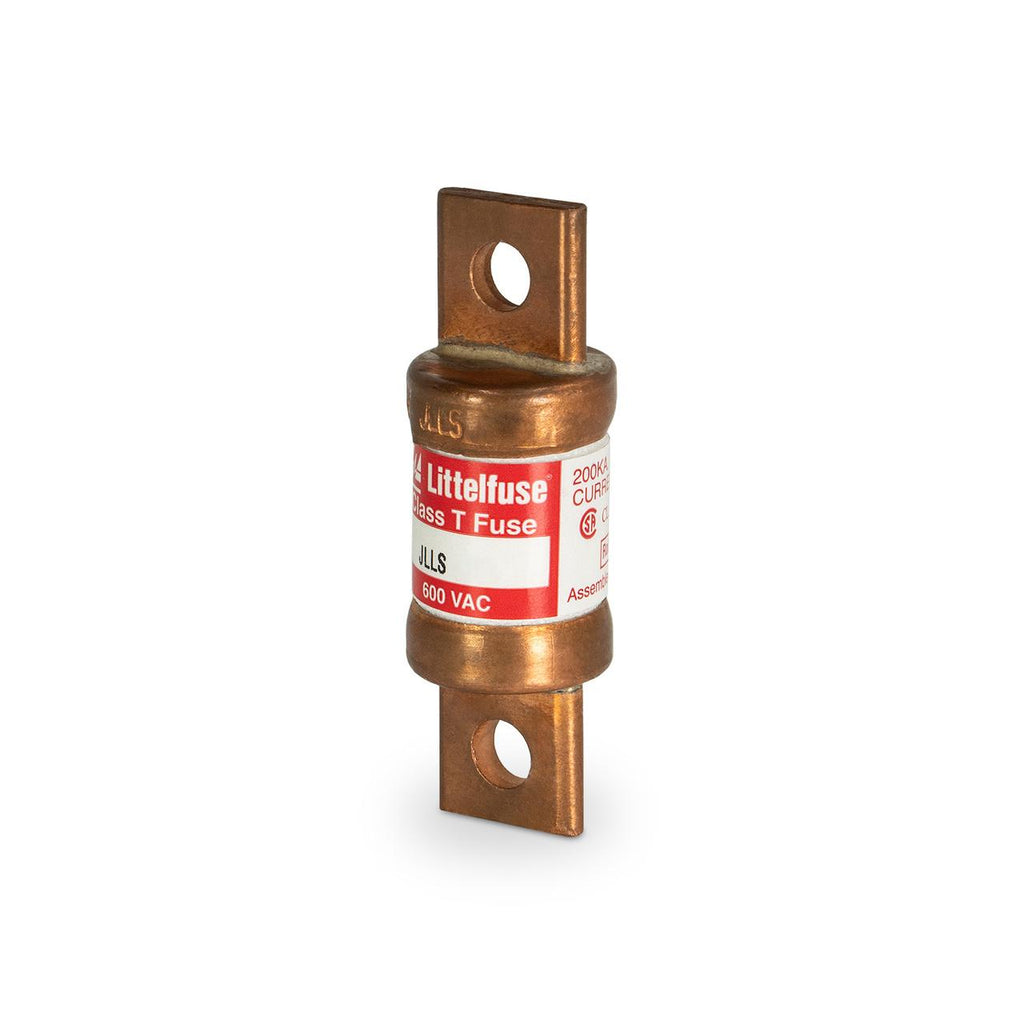

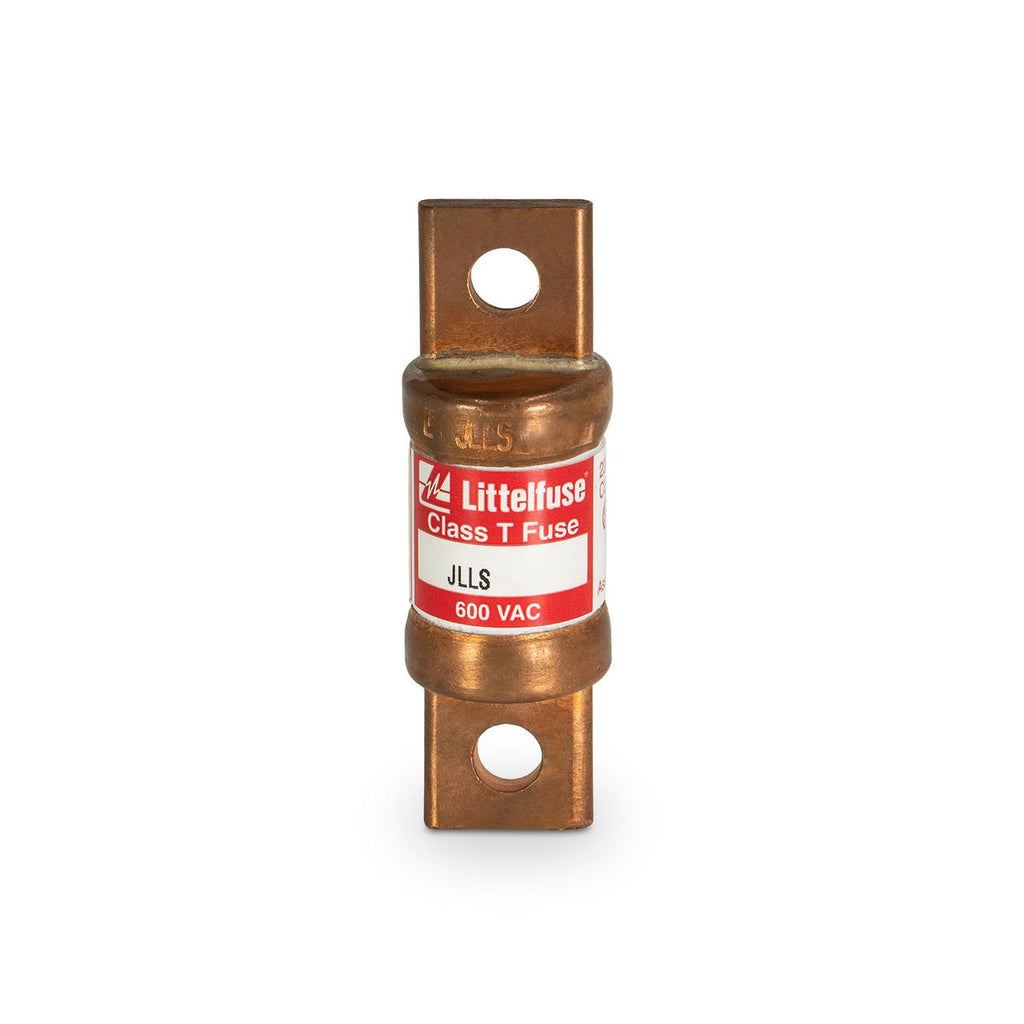

JLLS-175 is a Littelfuse JLLS Series Class T fast-acting fuse rated for 175 amps and 600 volts AC or 300 volts DC. This compact cartridge fuse provides reliable overcurrent protection for industrial and commercial applications. The JLLS-175 is designed for high interrupting capacity and fast response, making it ideal for use in variable speed drives, motor circuits, and power distribution systems. It features a melamine body with copper caps and is UL Listed, CSA Certified, and RoHS compliant.
- Part Number: JLLS-175
- Manufacturer: Littelfuse
- Series: JLLS
- Class: T
- Current Rating: 175 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Response Time: Fast-Acting
- Body Type: Cartridge
- Mounting Type: Fuse Holder Compatible
- Certifications: UL, CSA, CE, RoHS
- Standards: UL 248-15
Specifications
- Part Number: JLLS-175
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.08
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819087
- GTIN : 00079458190878
- Weight : 0.6
