Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-125

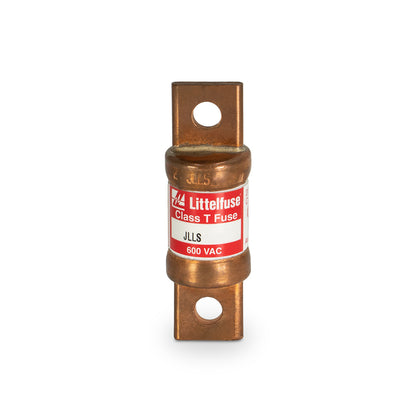

JLLS-125 is a Littelfuse Class T fast acting fuse rated for 125 amps and 600 volts AC, designed for compact and reliable circuit protection.This Littelfuse JLLS series fuse features a knife-blade terminal and a melamine cartridge body measuring 1.078 inches in diameter by 3.25 inches in length. It provides fast-acting, current-limiting protection with an interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC. The fuse is UL 248-15, CSA, and CE certified, RoHS compliant, and ideal for variable speed drive and non-inductive circuit applications.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600 VAC / 300 VDC
- Class: T
- Series: JLLS
- Interrupt Rating: 200 kA AC / 20 kA DC
- Mounting Type: Knife Blade Terminal
- Body Material: Melamine
- Dimensions: 1.078 in diameter x 3.25 in length
- Poles: 1
- Certifications: UL Listed, CSA Certified, CE Compliant
- RoHS Compliant
Specifications
- Part Number: JLLS-125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.08
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819084
- GTIN : 00079458190847
- Weight : 0.6
