Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-1200

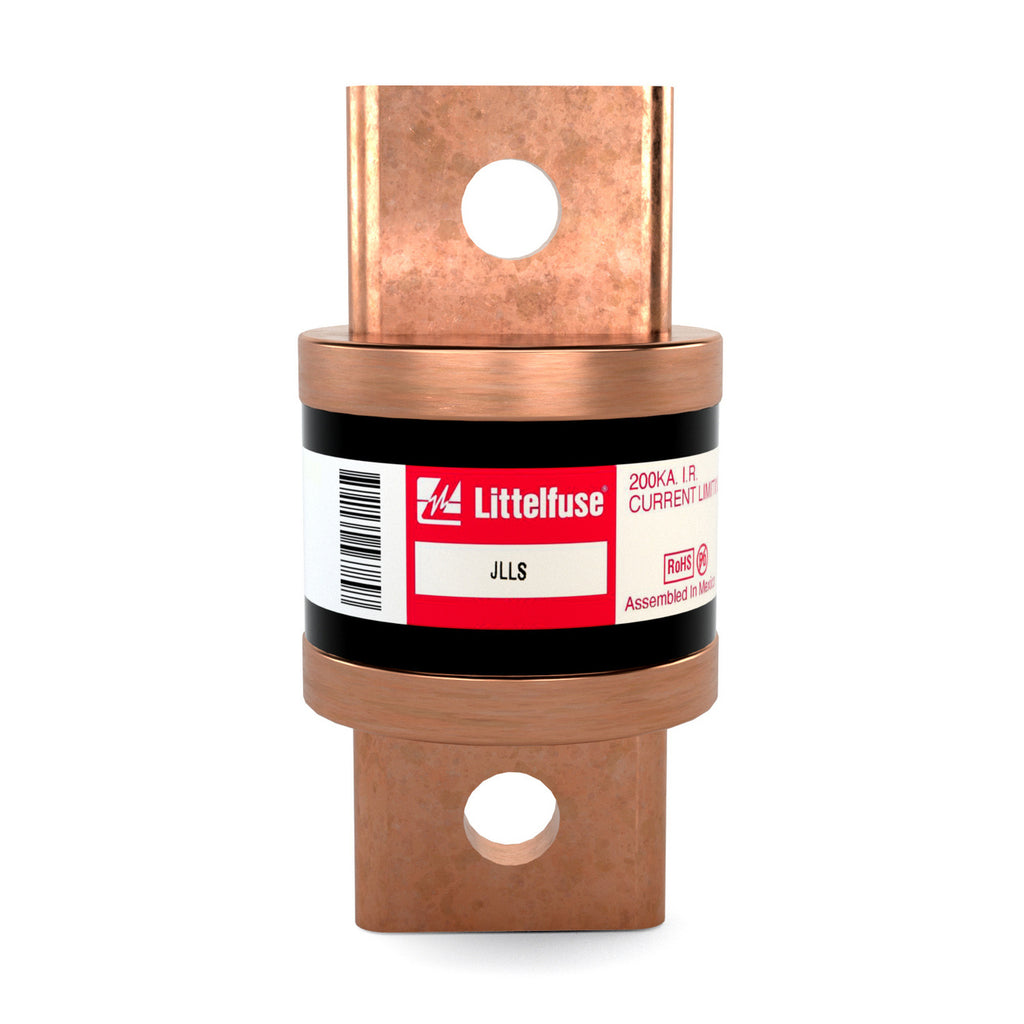

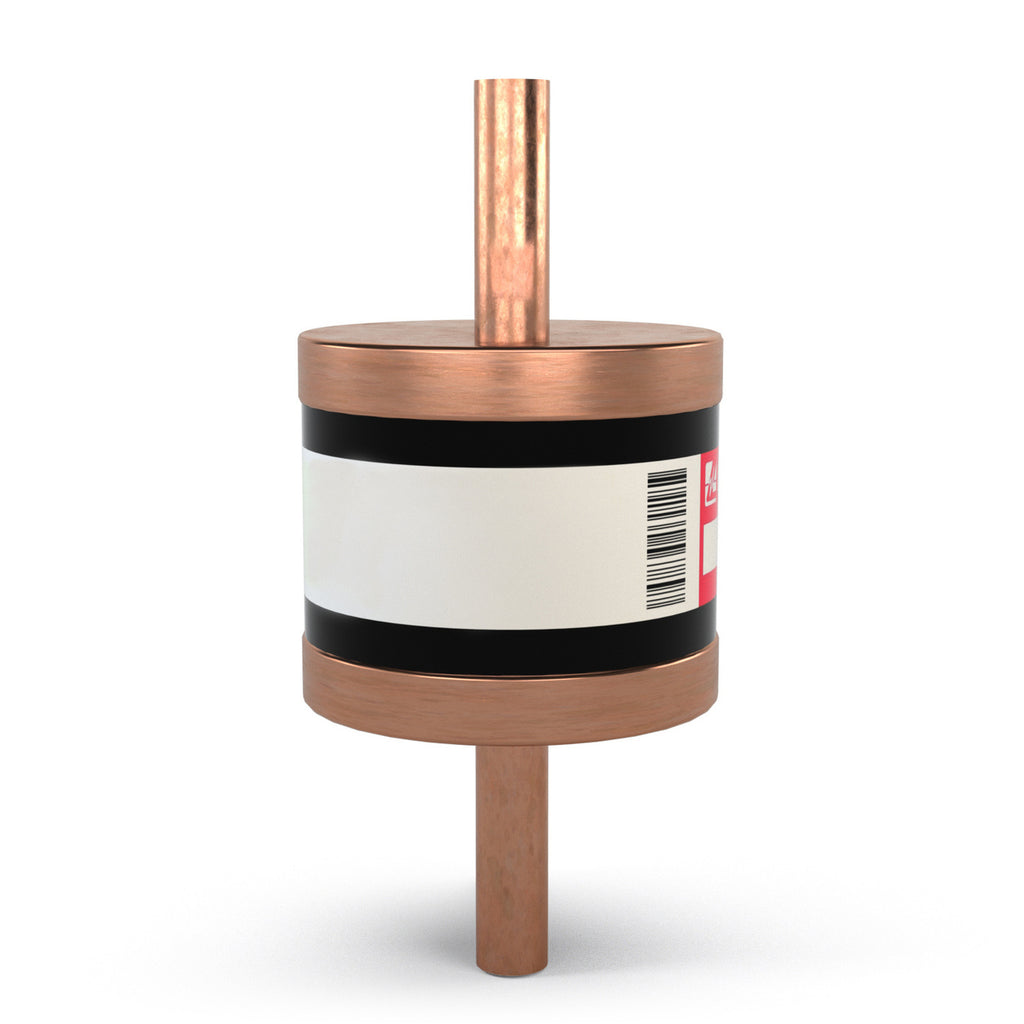

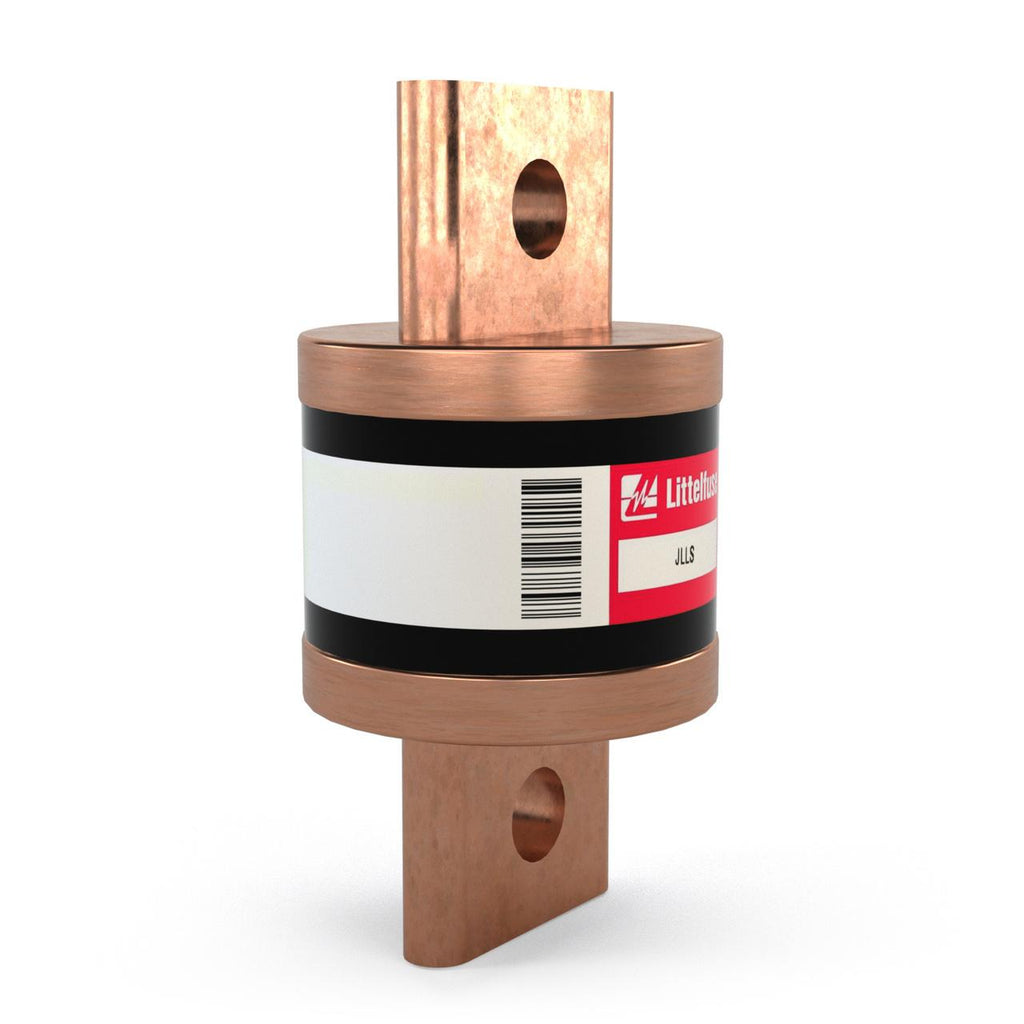

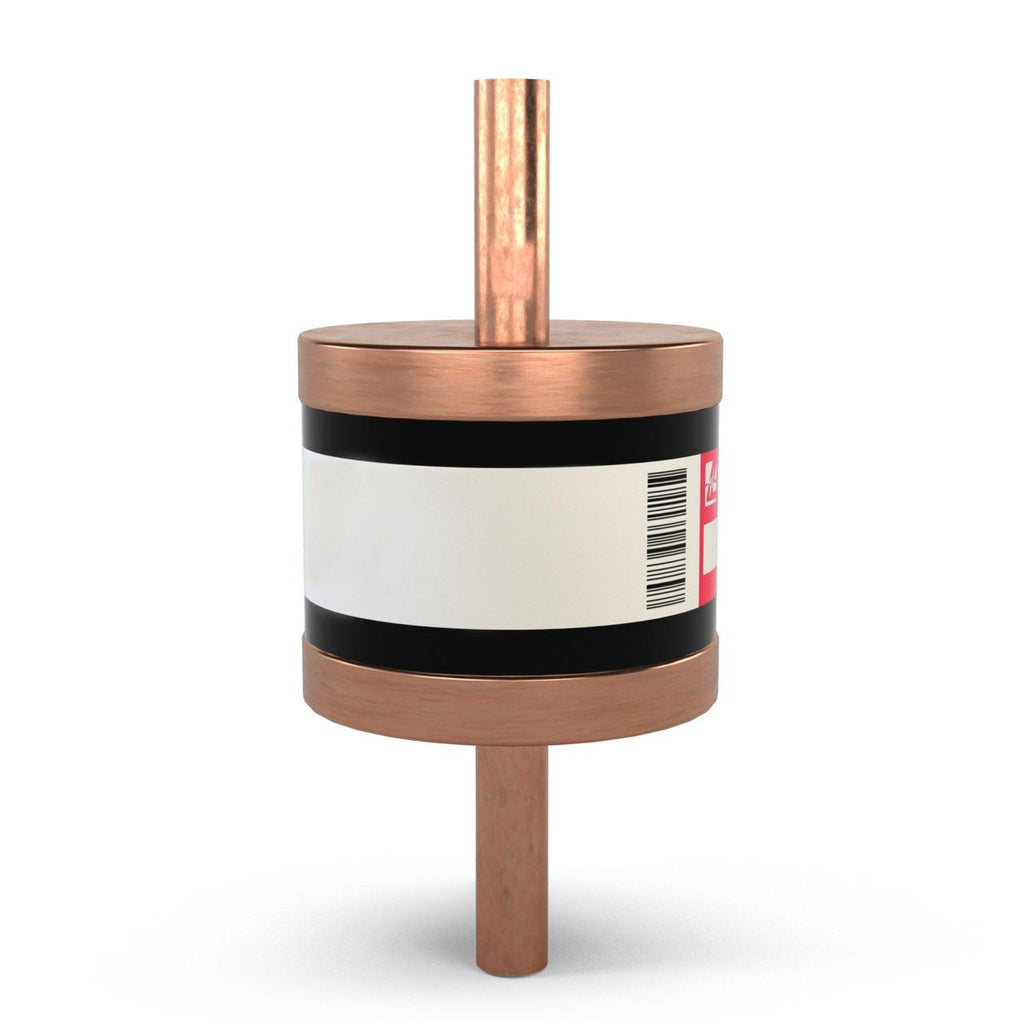

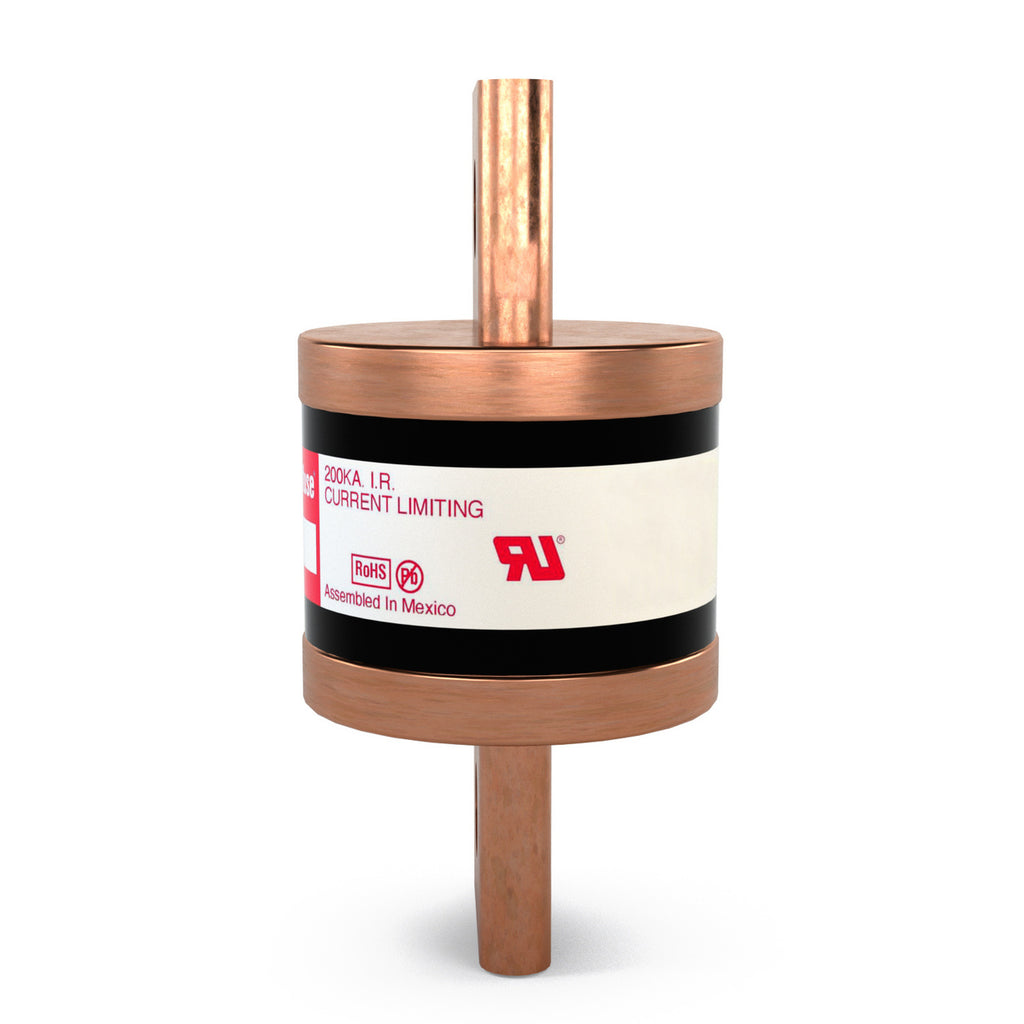

JLLS-1200 is a Class T, fast-acting, current-limiting fuse designed for low-voltage power distribution systems requiring high interrupt capacity and compact size. This Littelfuse Powr-Gard fuse features a knife-blade bolt-in mounting style and is ideal for applications demanding reliable overcurrent protection. The JLLS-1200 fuse is constructed with a melamine body and copper caps, providing durability and efficient current handling. It is engineered for use in systems up to 600V AC and 300V DC, with a high interrupt rating for maximum safety and equipment protection. Its compact design allows for efficient use of panel space, making it suitable for modern electrical installations.
- Amperage Rating: 1200A
- Voltage Rating: 600V AC, 300V DC
- Mounting Type: Knife-Blade Bolt-In
- Interrupt Rating: 200,000A AC, 20,000A DC
- Series: JLLS
- Class: Class T
- Response Time: Fast-Acting
- Construction: Melamine Body, Copper Caps
- Standards: UL 248-15, CSA, CE
- Physical Size: 2.63" Diameter, 5.27" Length
Specifications
- Part Number: JLLS-1200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 1200
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2.63
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 079458010626
- GTIN : 00079458010626
- Weight : 7
