Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-110

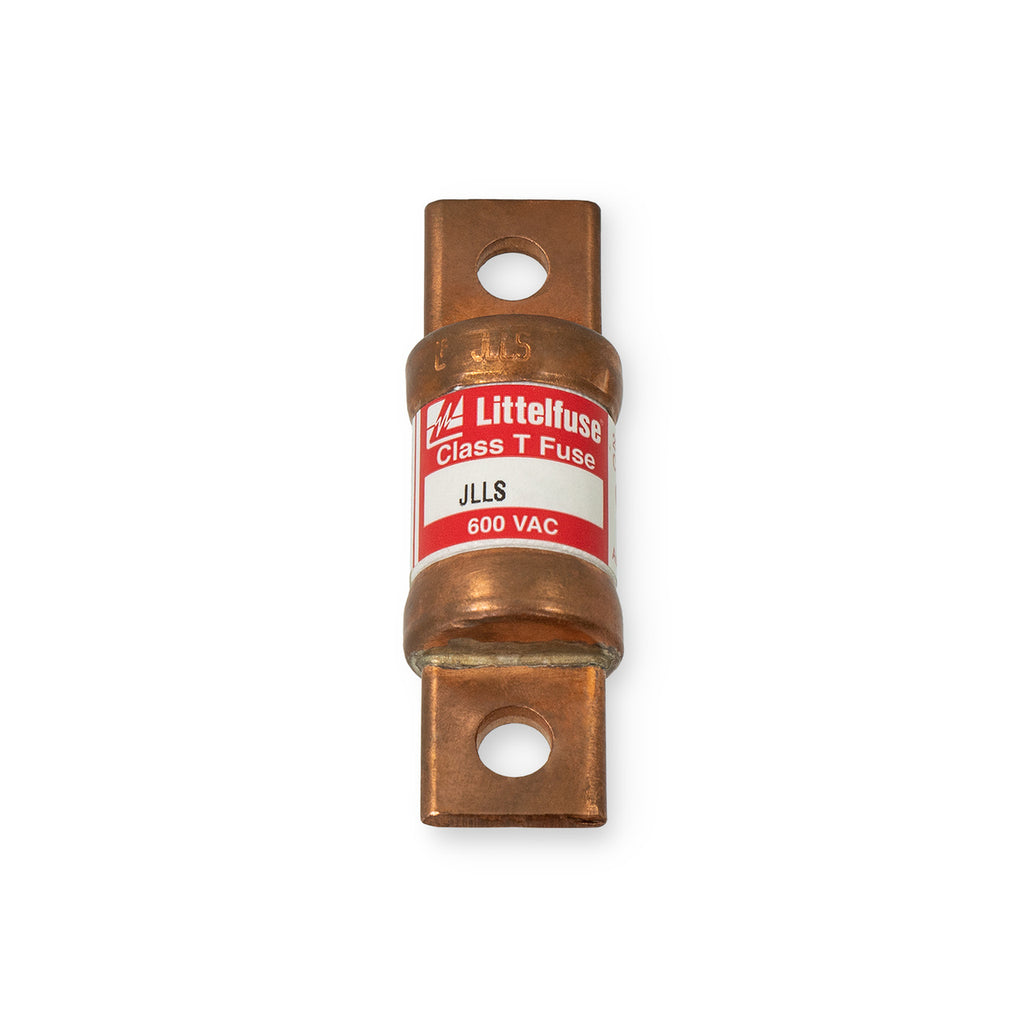

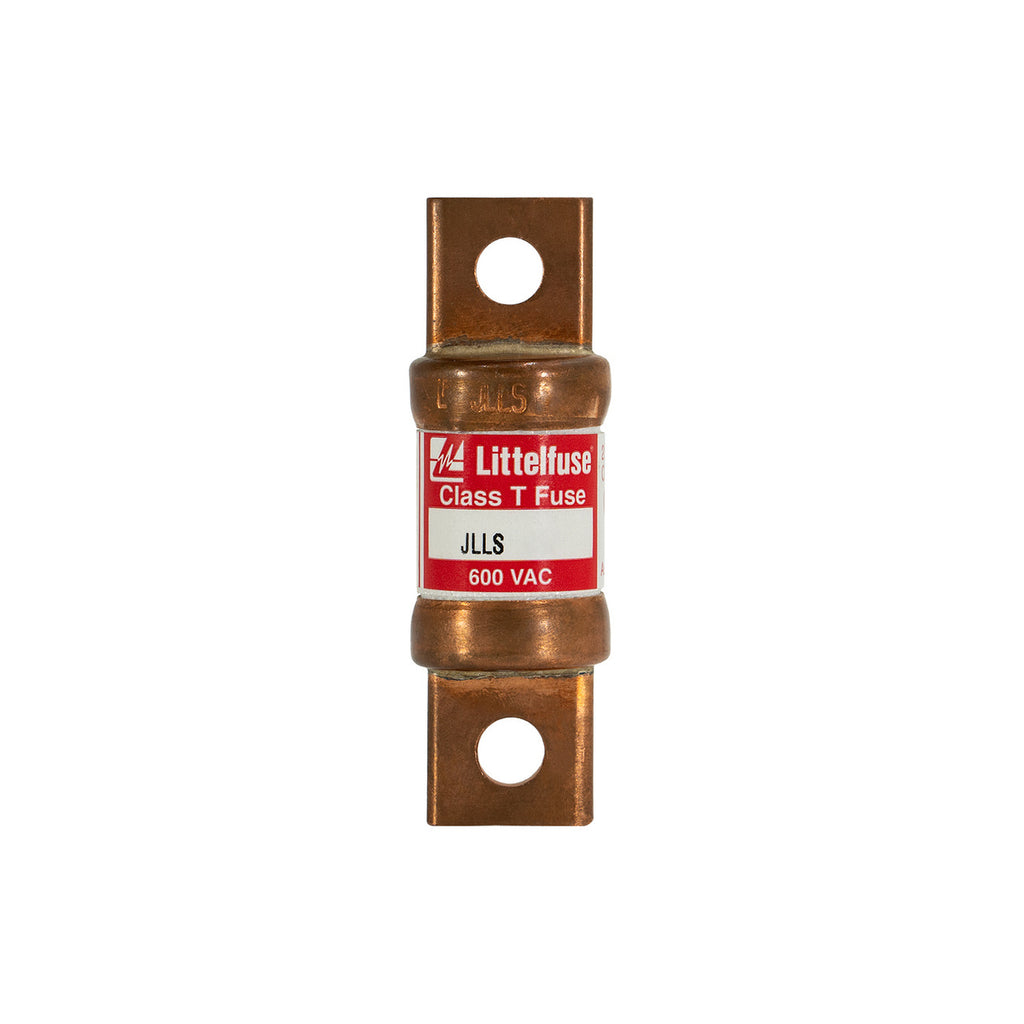

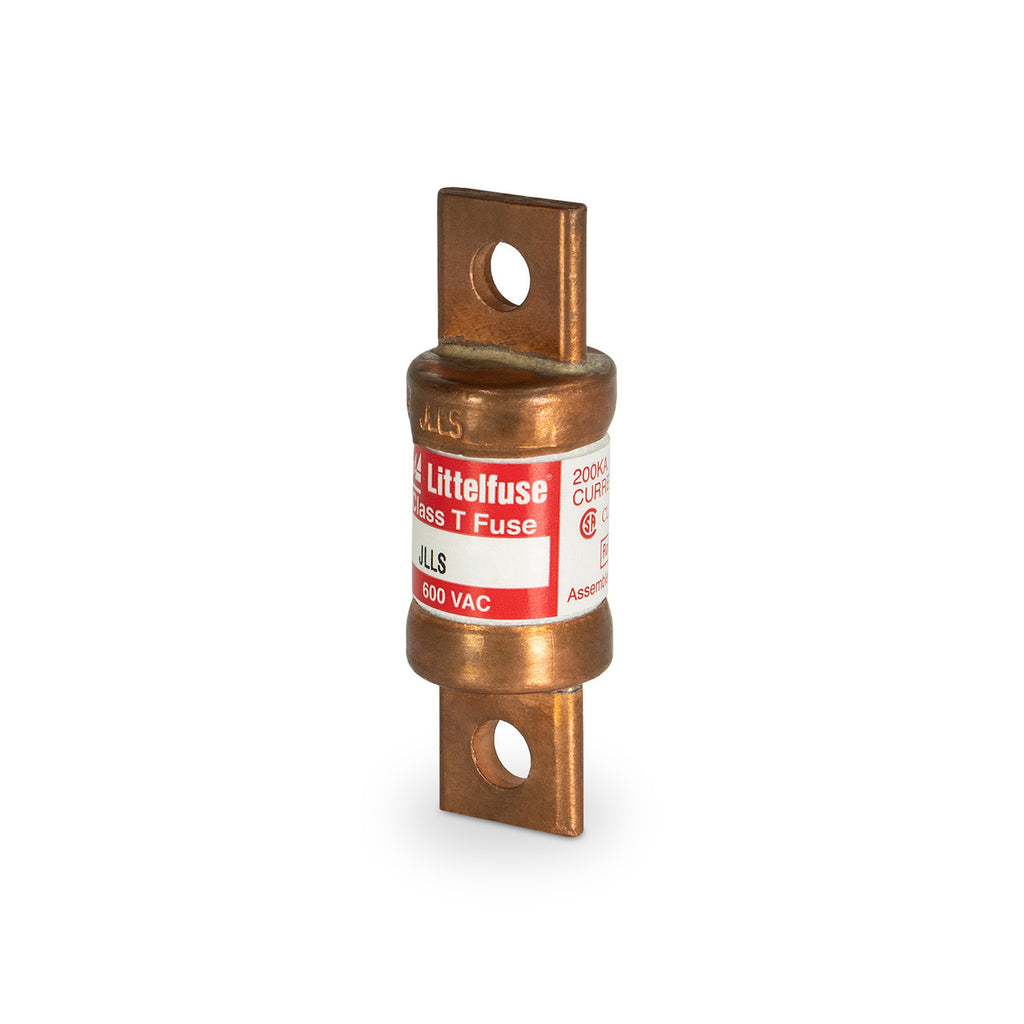

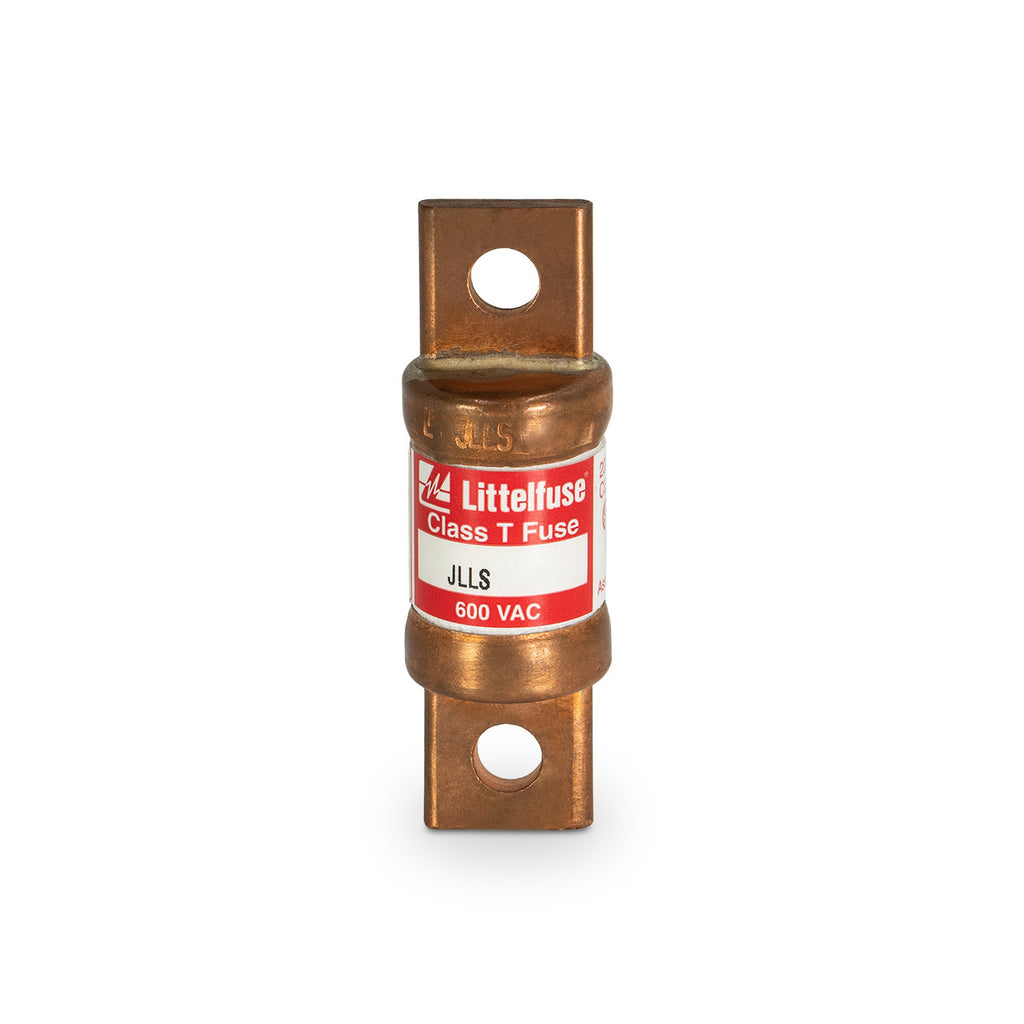

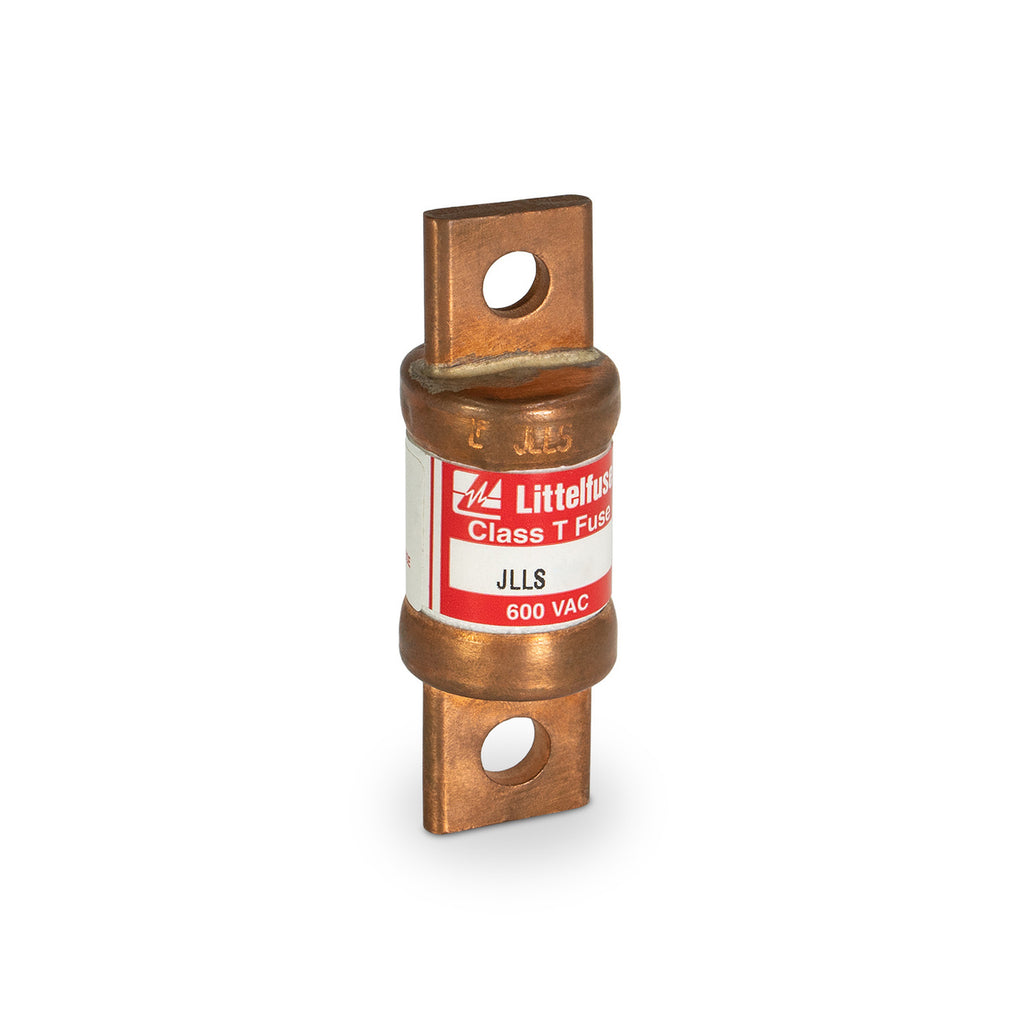

JLLS-110 is a Littelfuse Class T, 110A, 600V AC fast-acting current limiting fuse designed for reliable short-circuit protection in industrial and commercial power distribution systems. This compact, knife-blade style fuse features a melamine body and copper caps, with a 200,000A interrupting rating at 600V AC and 20,000A at 300V DC. It is UL Listed, CSA Certified, CE marked, and RoHS compliant, making it suitable for a wide range of applications including variable speed drives and motor protection.
- Part Number: JLLS-110
- Manufacturer: Littelfuse
- Amperage: 110A
- Voltage Rating: 600V AC / 300V DC
- Fuse Class: Class T
- Interrupt Rating: 200,000A @ 600V AC, 20,000A @ 300V DC
- Mounting Type: Knife-Blade / Bolt-In
- Response Time: Fast-Acting
- Body Material: Melamine
- Certifications: UL Listed, CSA Certified, CE, RoHS
- Series: JLLS
- Standards: UL 248-15, CSA 22.2 No. 170
Specifications
- Part Number: JLLS-110
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 110
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.08
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819083
- GTIN : 00079458190830
- Weight : 0.6
- Certification : Ul Listed
