Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-080

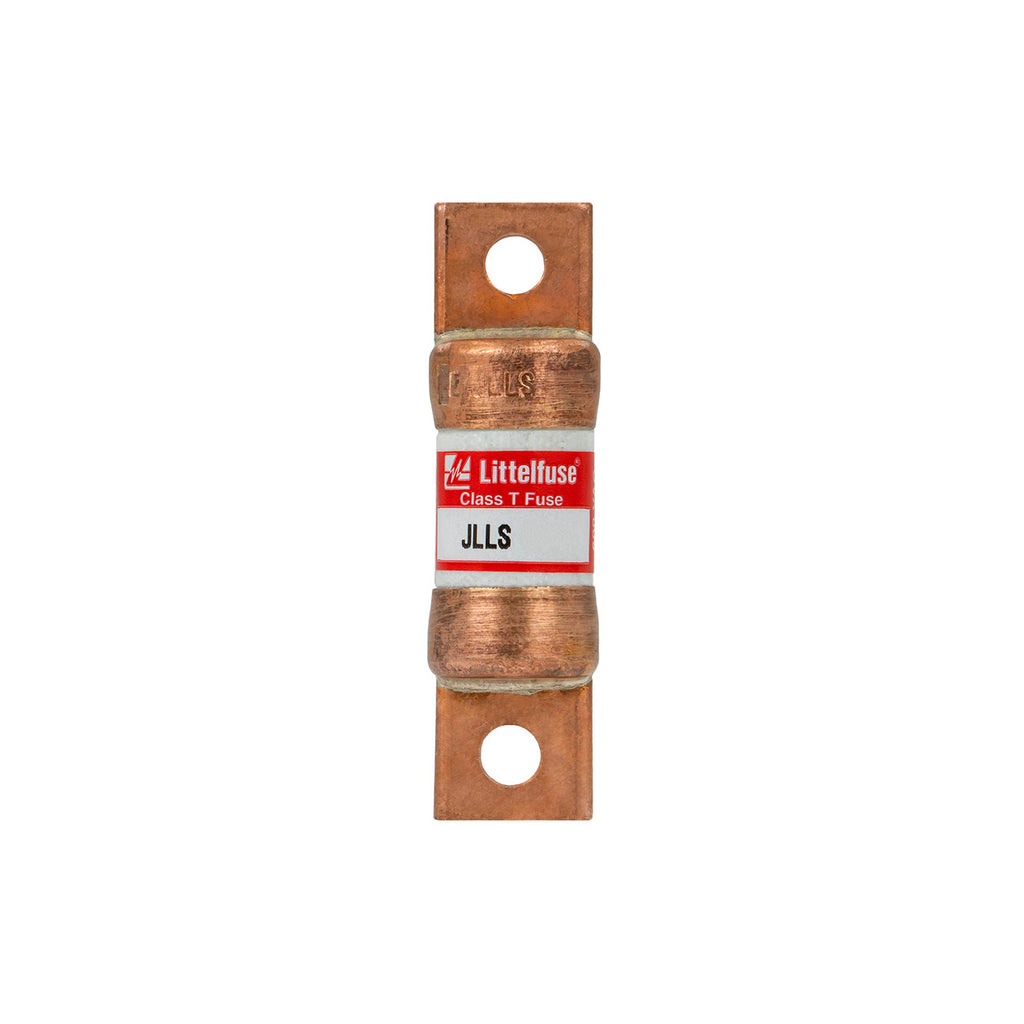

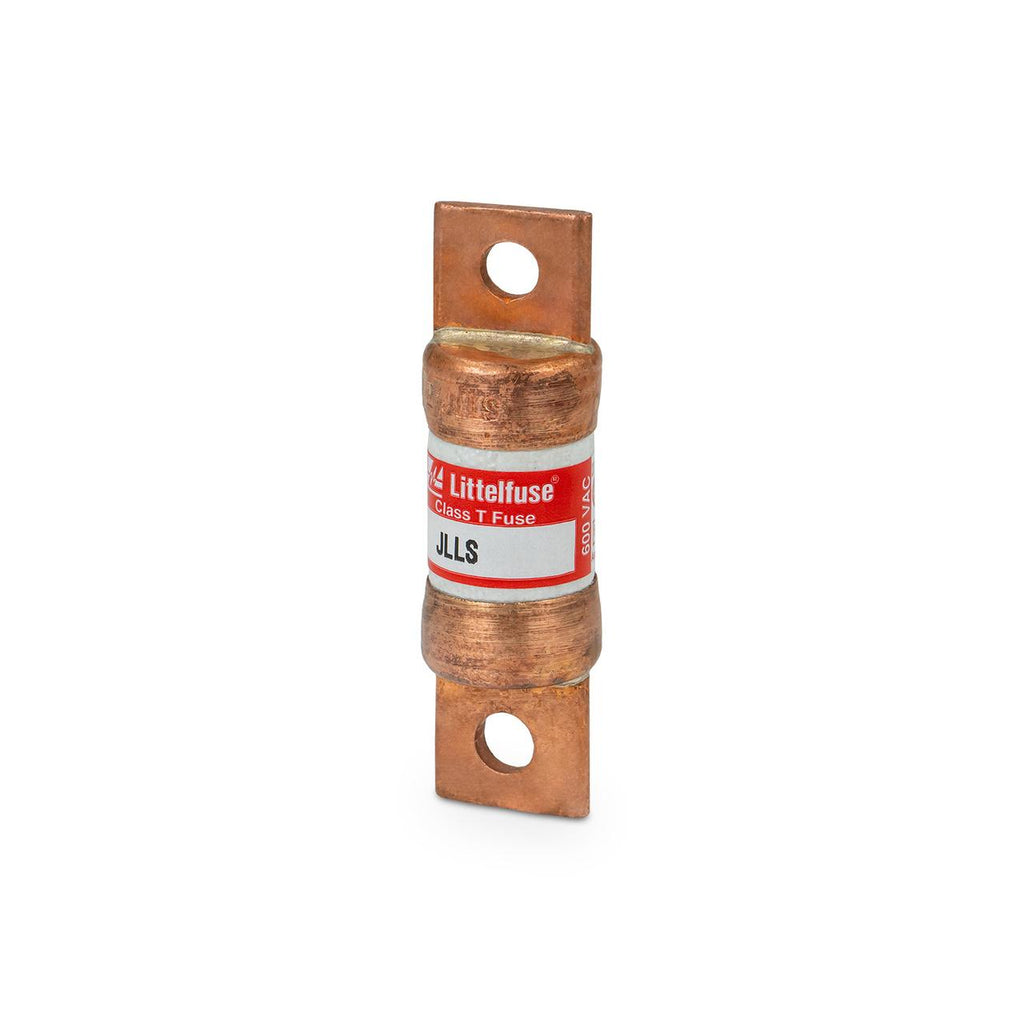

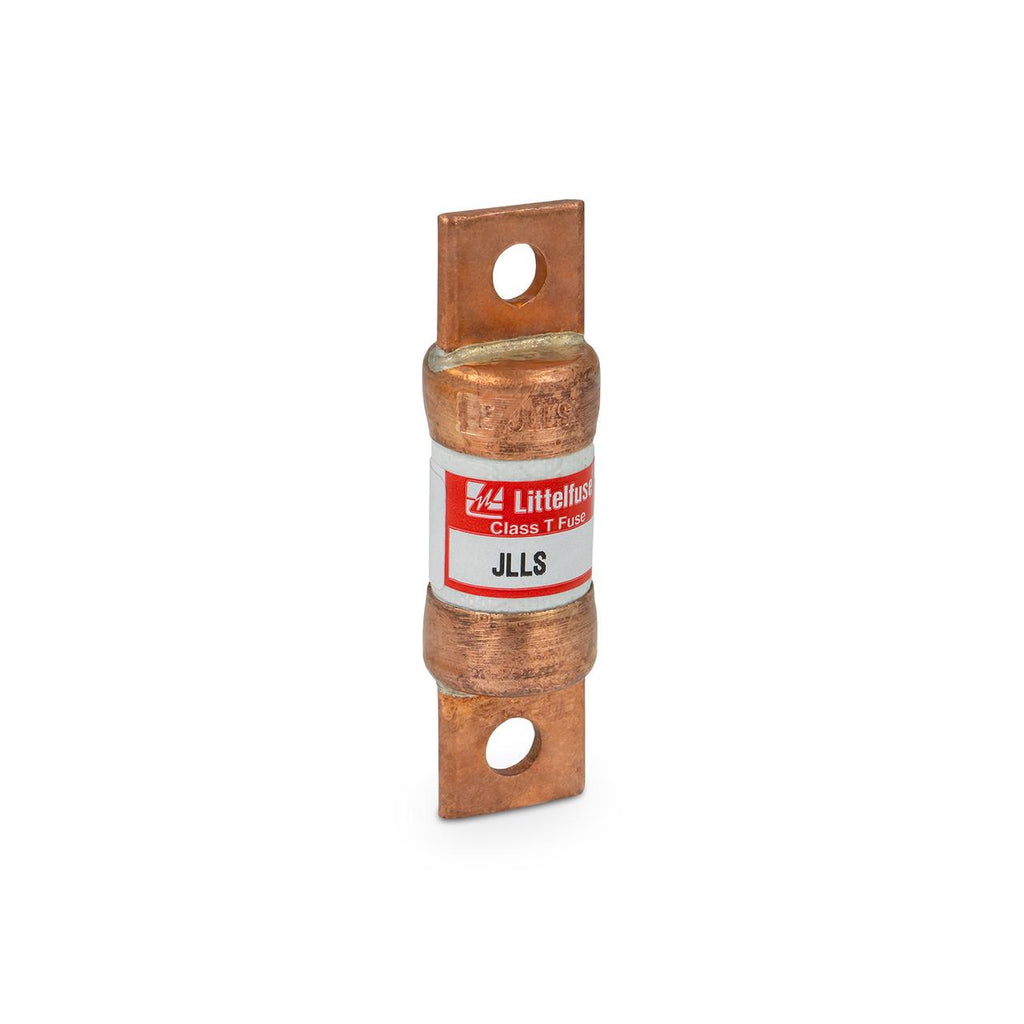

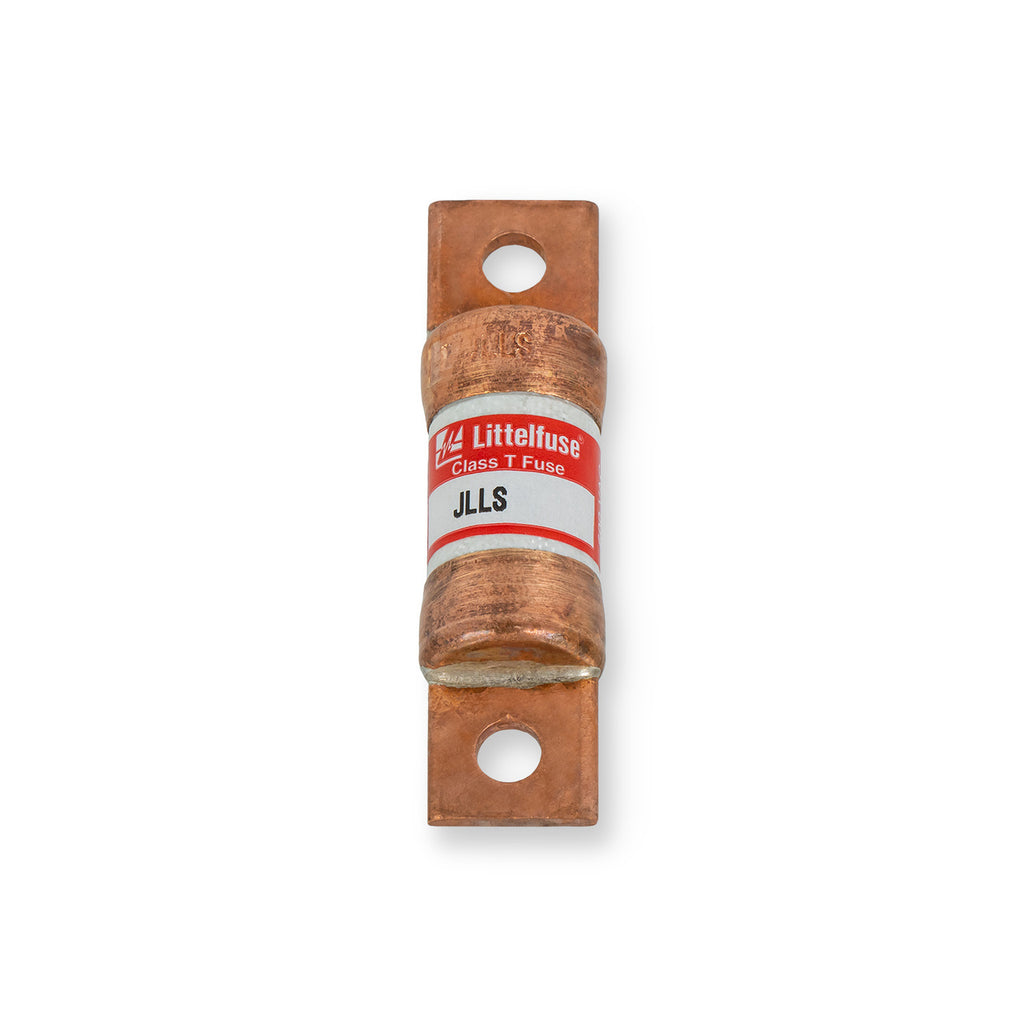

JLLS-080 is an 80 amp, 600 volt Class T fast acting fuse designed for short-circuit protection in sensitive electrical components.This Littelfuse JLLS-080 fuse features a compact cartridge design with a melamine body and copper caps, rated for 600 VAC and 300 VDC operation. It offers a high interrupting rating of 200,000 amps AC and 20,000 amps DC, meeting UL 248-15, CSA, and CE certifications for reliable and safe performance in industrial applications.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Type: Class T
- Fuse Operation: Fast Acting
- Mounting Type: Cartridge Holder
- Body Material: Melamine with Copper Caps
- Standards: UL 248-15, CSA Certified, CE Compliant
- Dimensions: Approx. 0.828 inch diameter x 2.953 inch length
- Application: Short-circuit protection for drives and surge-sensitive equipment
- RoHS Compliant
Specifications
- Part Number: JLLS-080
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819080
- GTIN : 00079458190809
- Weight : 0.3
