Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

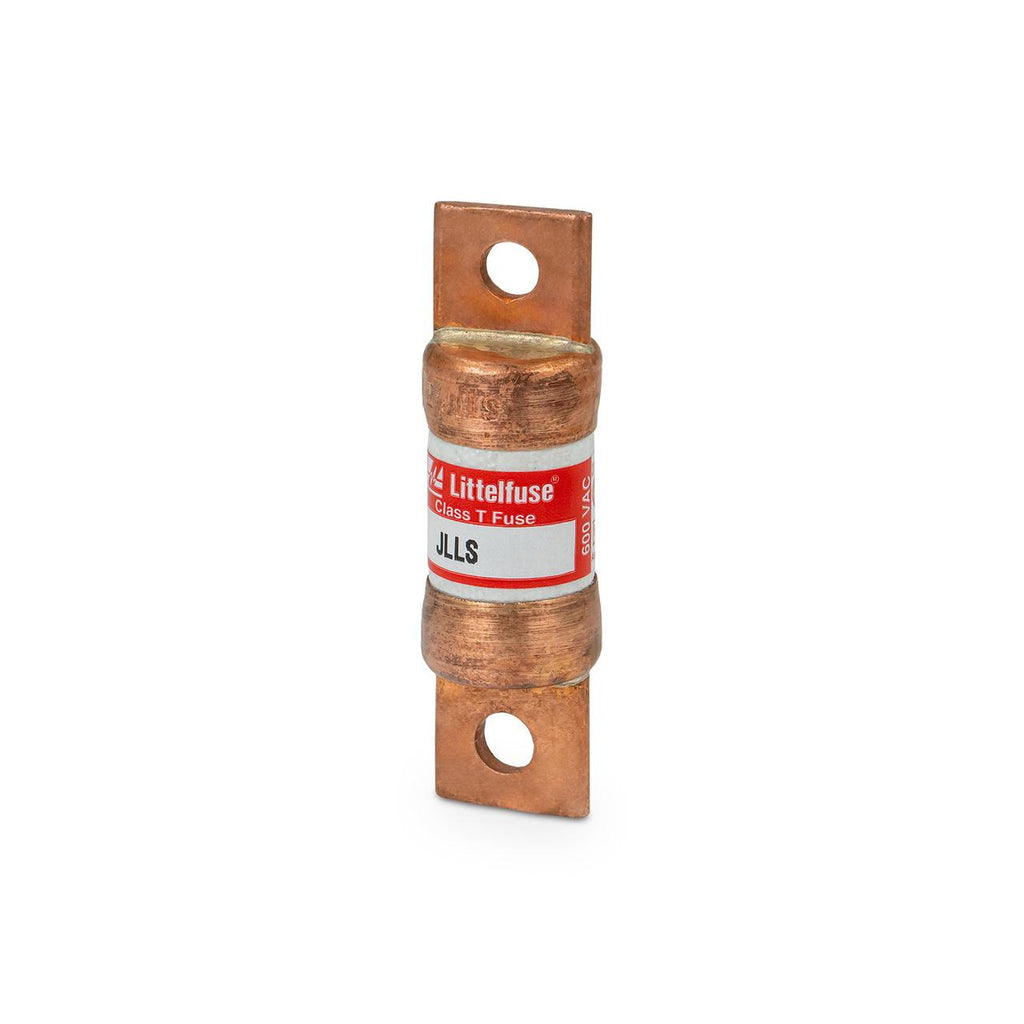

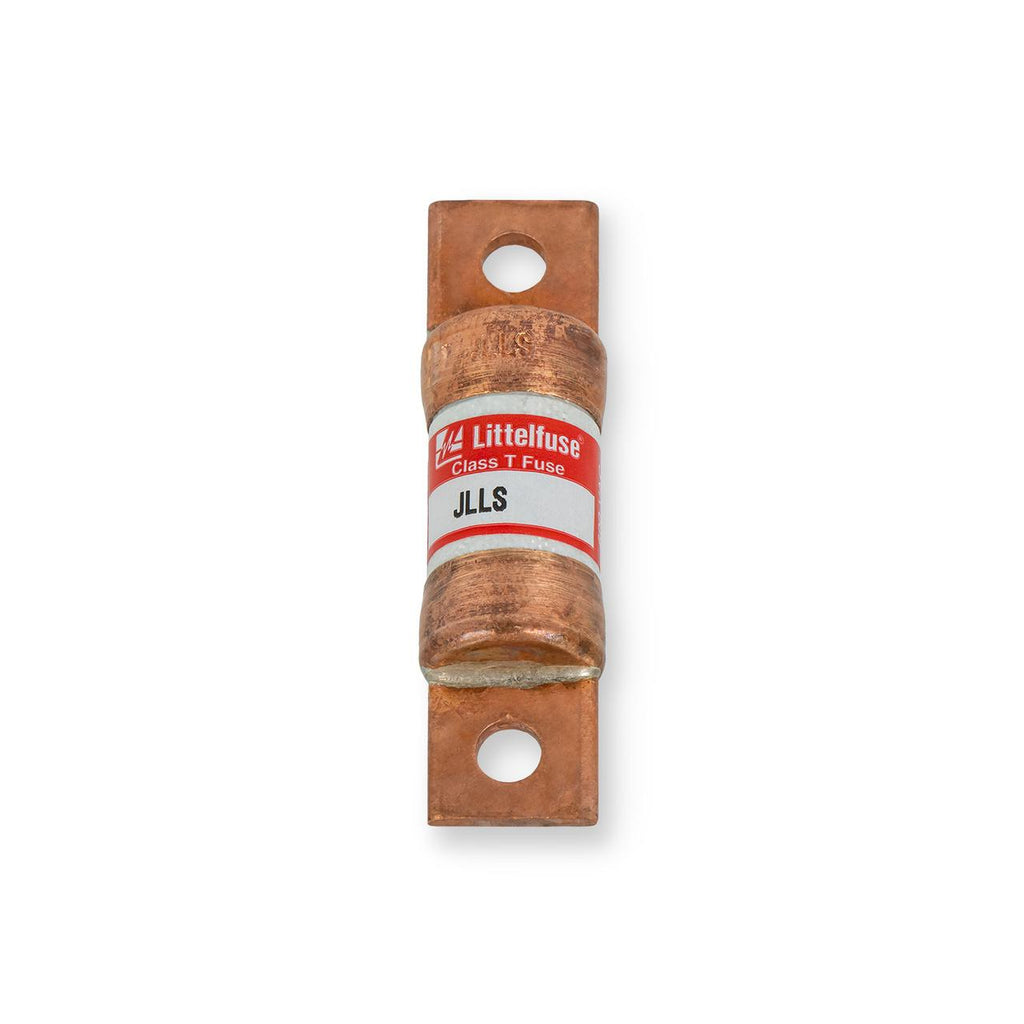

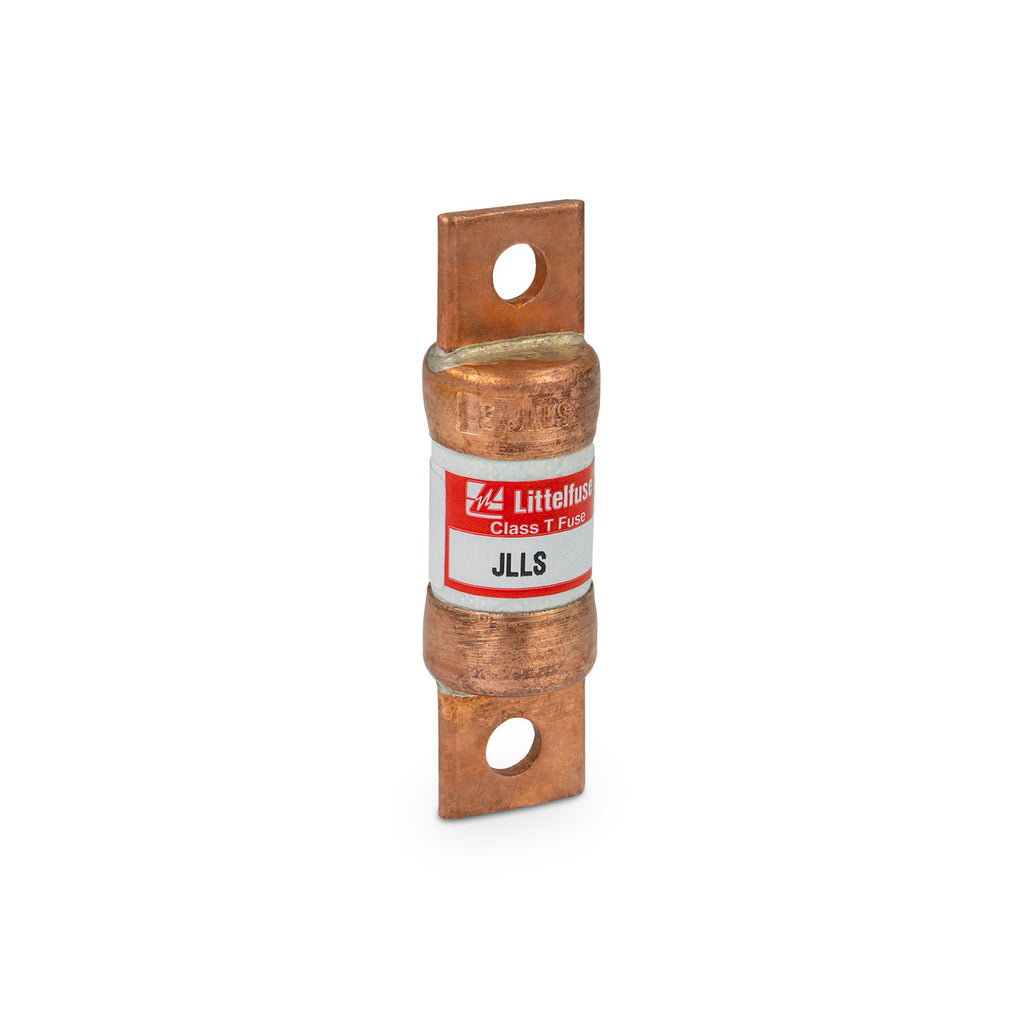

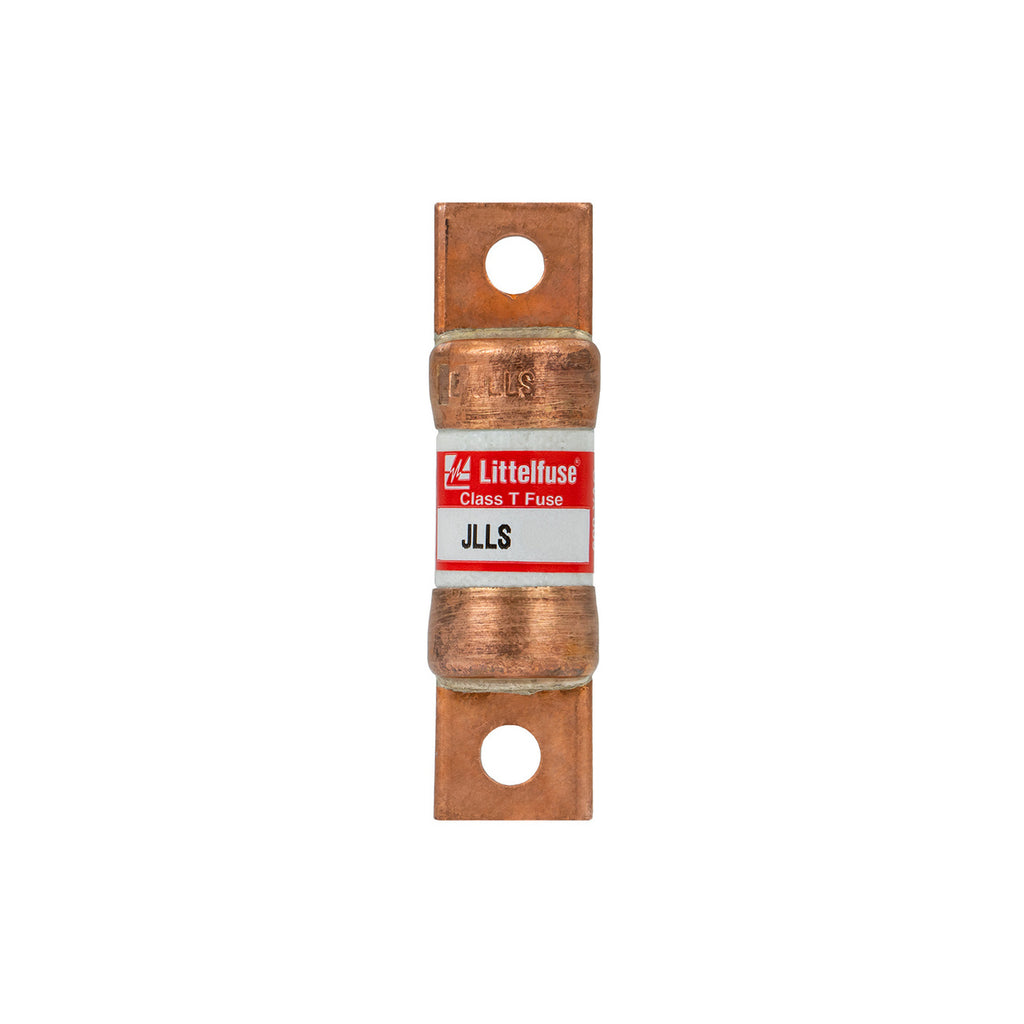

JLLS-070
JLLS-070 is a 70 Amp, 600 Volt AC Class T fast acting fuse designed for compact, current limiting protection.This Littelfuse JLLS-070 fuse features a very fast acting characteristic with a 200,000 AIC interrupting rating at 600 VAC and 20,000 AIC at 300 VDC. It has a cartridge body measuring 13/16" diameter by 2 61/64" length, suitable for variable speed drive protection and other industrial applications. The fuse is UL Listed, CSA Certified, RoHS compliant, and meets UL 248-15 standards.
- Amperage: 70 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class T
- Speed: Very Fast Acting
- Interrupting Rating: 200,000 AIC at 600 VAC, 20,000 AIC at 300 VDC
- Physical Size: 13/16" diameter x 2 61/64" length
- Mounting Type: Cartridge Fuse
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
- Current Limiting
- Application: Variable Speed Drive Protection
Specifications
- Part Number: JLLS-070
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819079
- GTIN : 00079458190793
- Weight : 0.3
