- Manufacturer:Littelfuse
Description
JLLS-060P

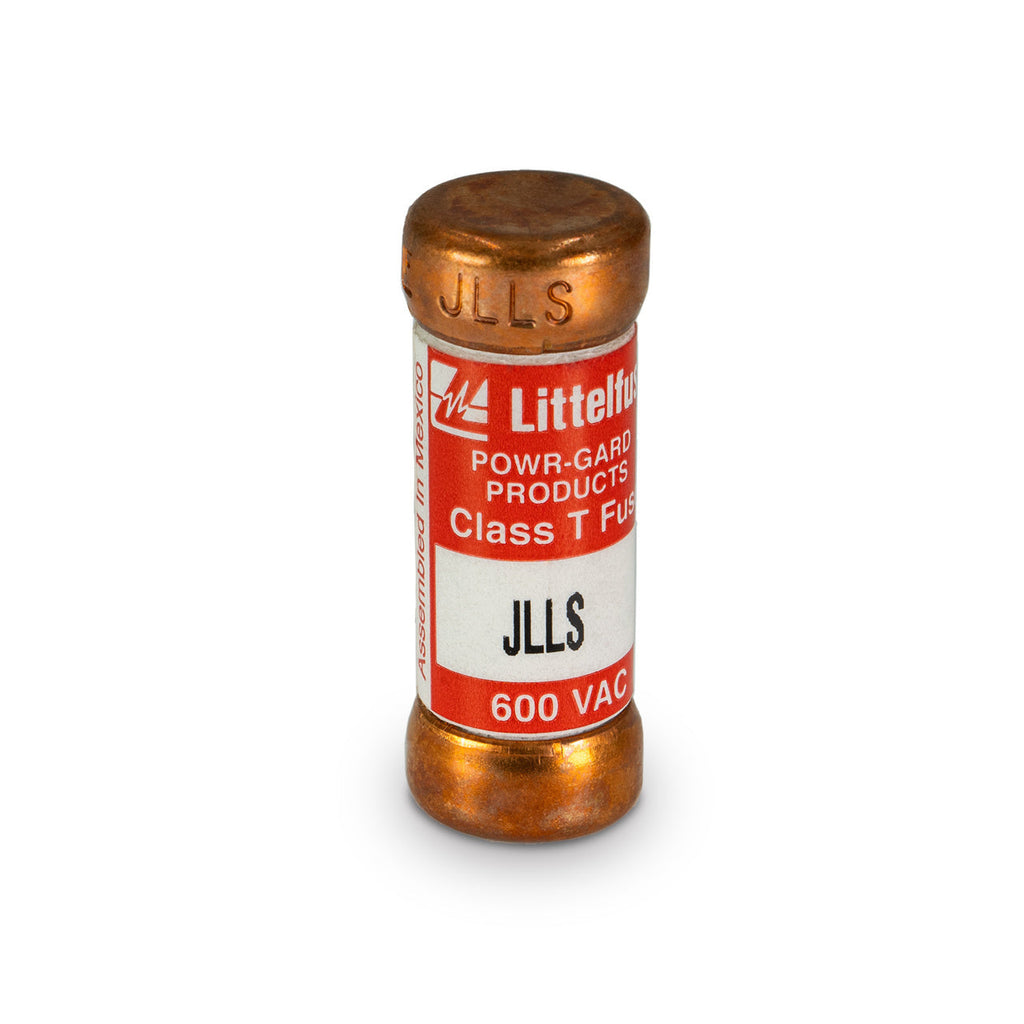

JLLS-060P is a Littelfuse 60 Amp fast-acting Class T fuse designed for compact overcurrent protection.This fuse features a 600 VAC and 300 VDC voltage rating with a 20 kA interrupting rating at 300 VDC. It has a melamine body with bronze caps for durability and is UL Listed and CSA Certified. The JLLS series is known for its compact size, less than one-third the size of comparable Class R fuses, making it ideal for space-constrained applications.
- Amperage: 60 Amp
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Fast-Acting, Class T
- Interrupting Rating: 20 kA @ 300 VDC
- Body Material: Melamine
- Cap Material: Bronze
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Compact Size: 1" x 1 9/16" approx.
- Application: Overcurrent protection for variable speed drives and industrial equipment
Specifications
- Part Number: JLLS-060P
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
Product Data
- Weight : 0.15
