Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-060

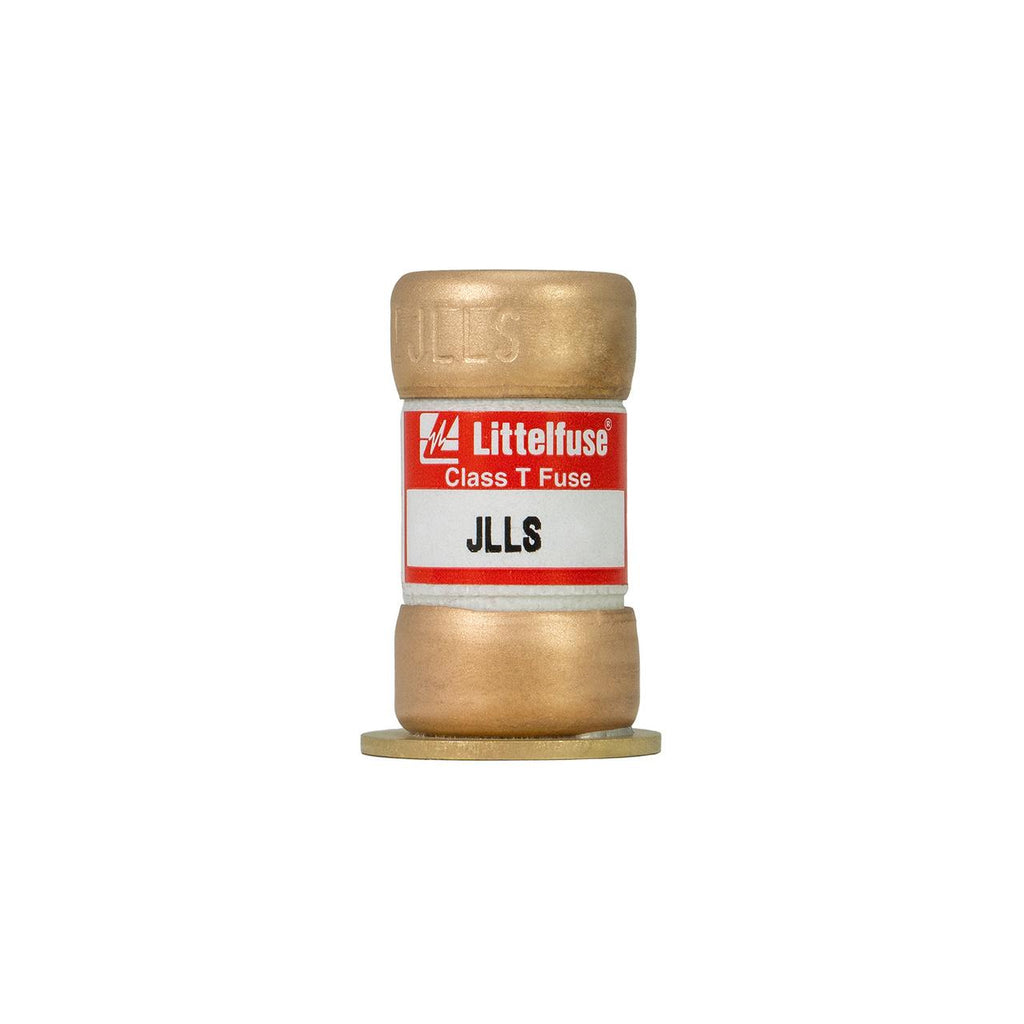

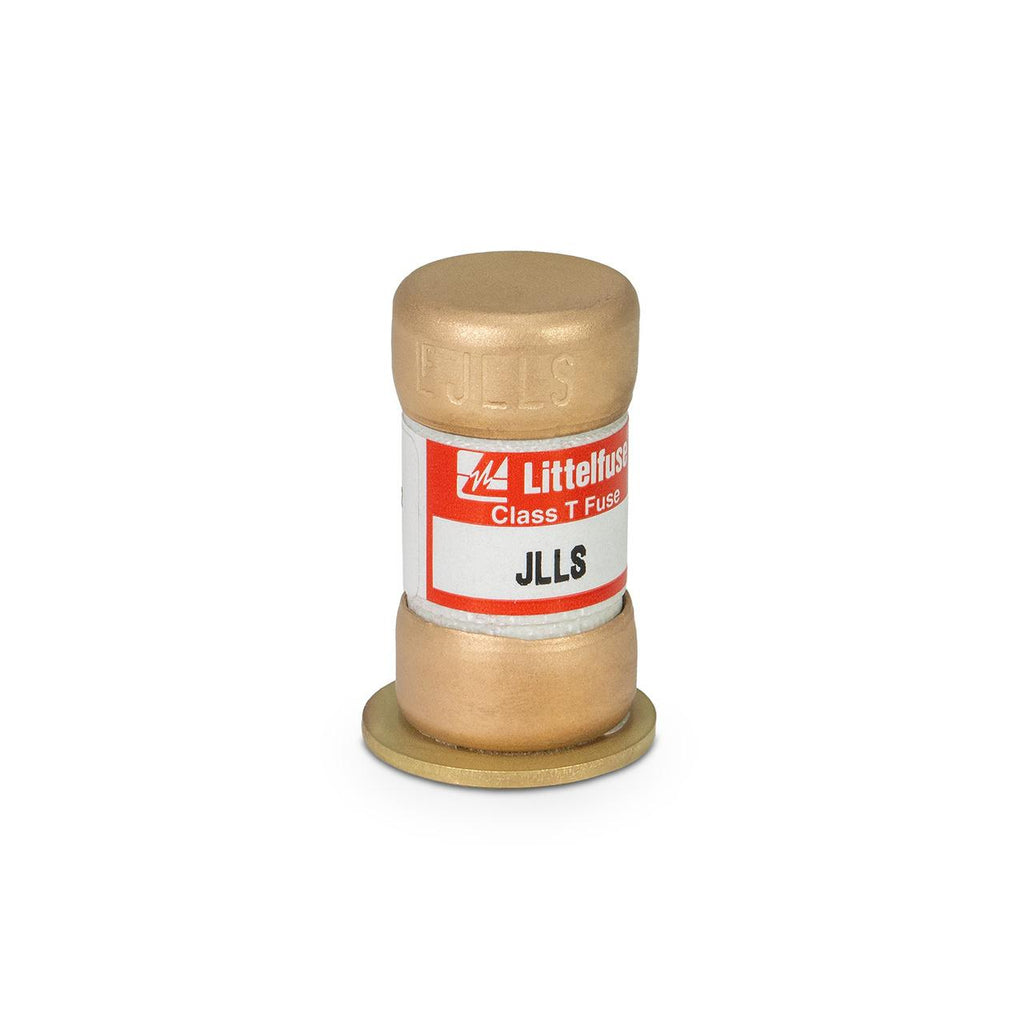

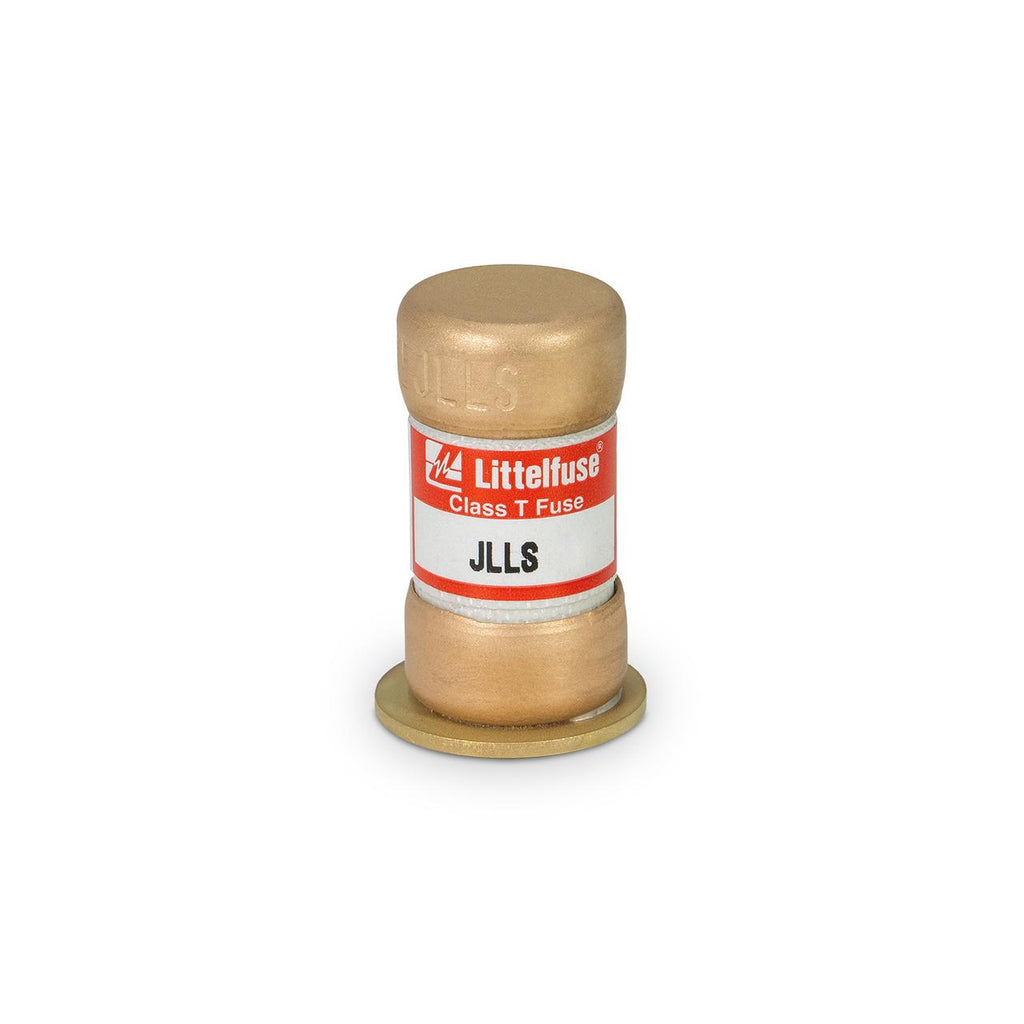

JLLS-060 is a Littelfuse Class T fast acting fuse rated for 60 amps and 600 volts AC. It provides compact, current-limiting protection for variable speed drives and other electrical equipment.JLLS-060 features a very fast acting response time with a current limiting design that reduces damage from short circuit currents. It has a physical size of approximately 1 inch diameter by 1 9/16 inch length, bronze caps for 35–60 amp ratings, and a ferrule terminal type. The fuse is UL Listed (File: E81895), CSA Certified (File: LR29862), and RoHS compliant. It has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC.
- Key Specifications
- Amperage: 60 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: UL Class T
- Response Time: Very Fast Acting
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Physical Size: 1 inch diameter x 1 9/16 inch length
- Mounting Type: Ferrule Terminal
- Material: Melamine body with bronze caps
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Series: JLLS
Specifications
- Part Number: JLLS-060
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819078
- GTIN : 00079458190786
- Weight : 0.15
