Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-035

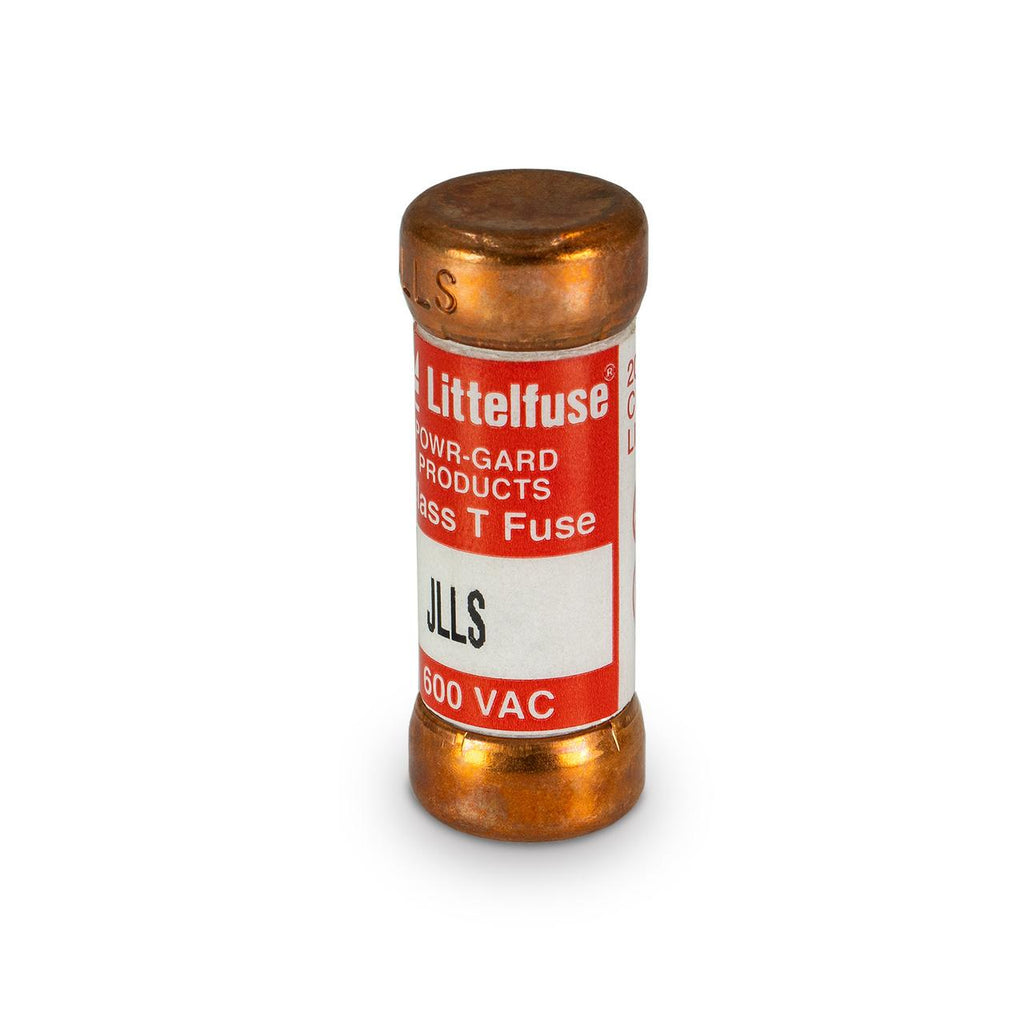

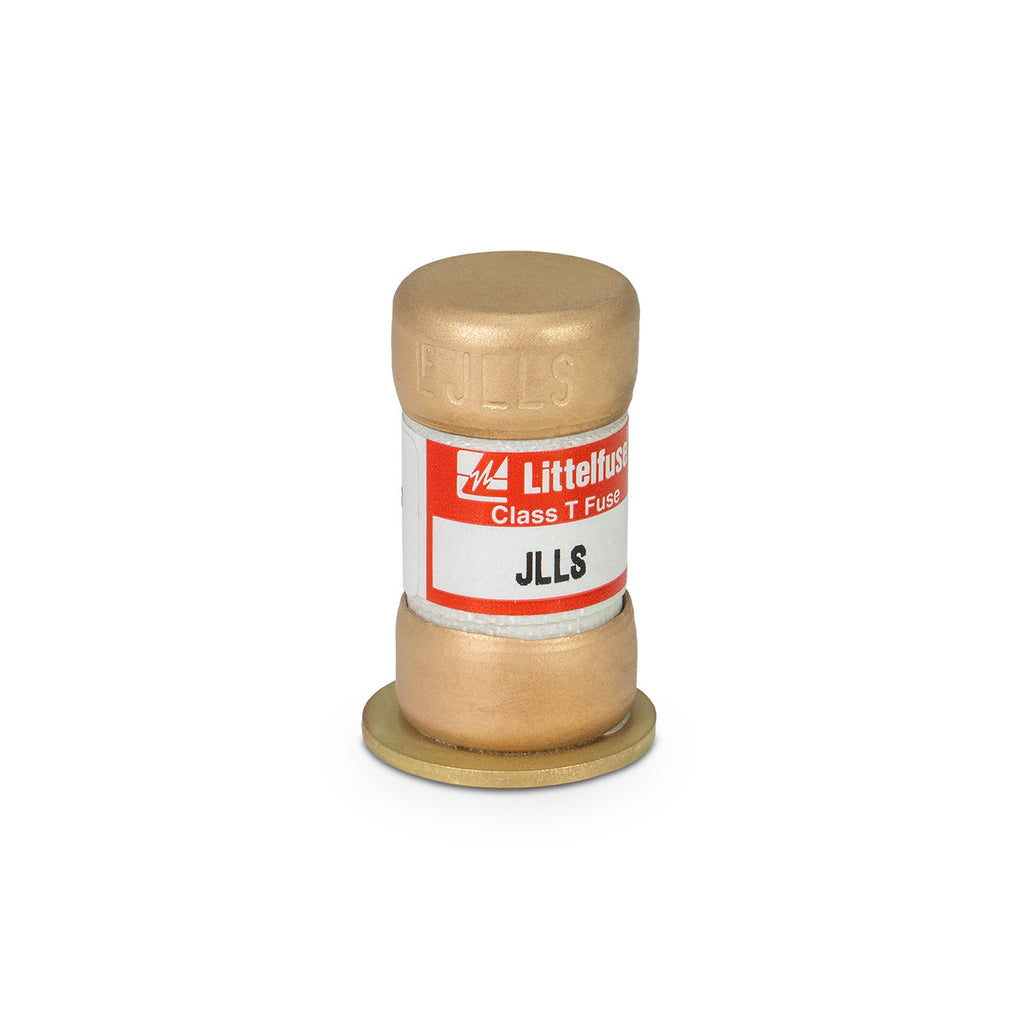

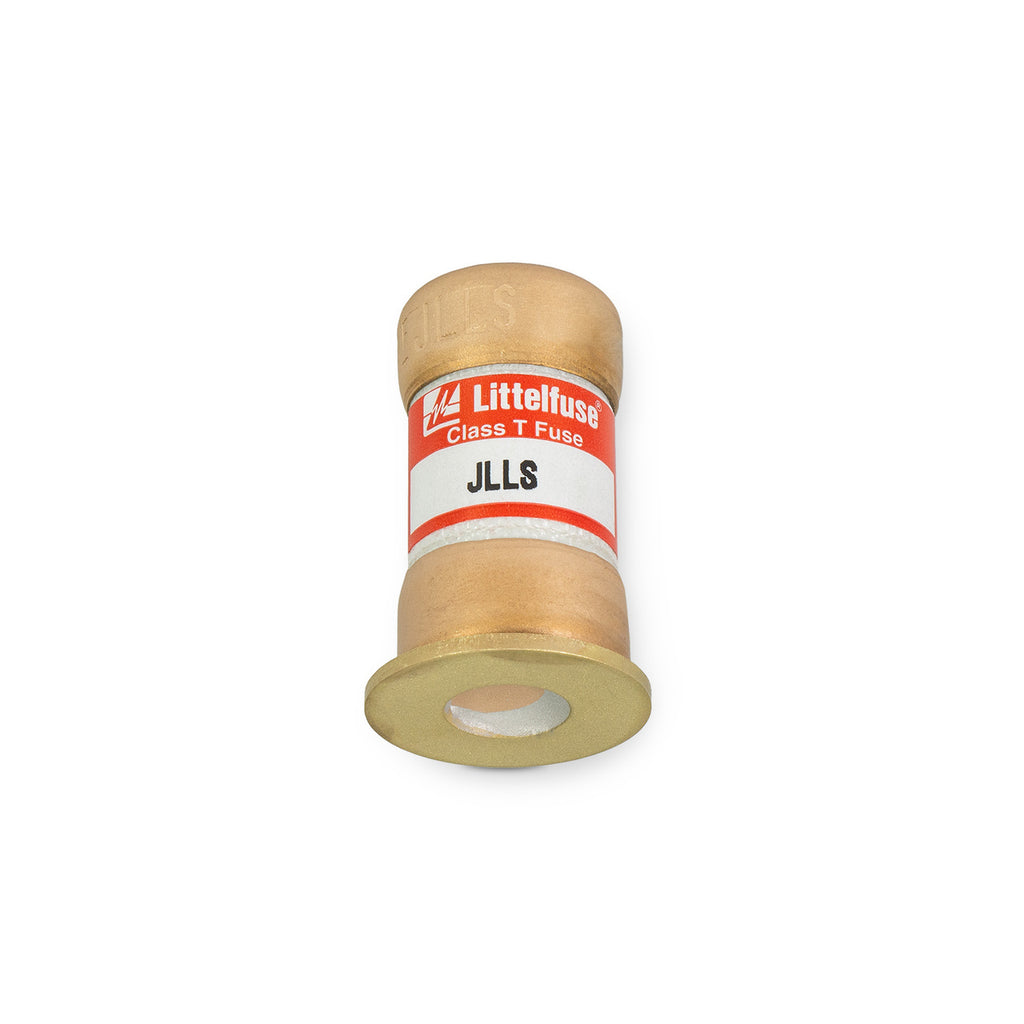

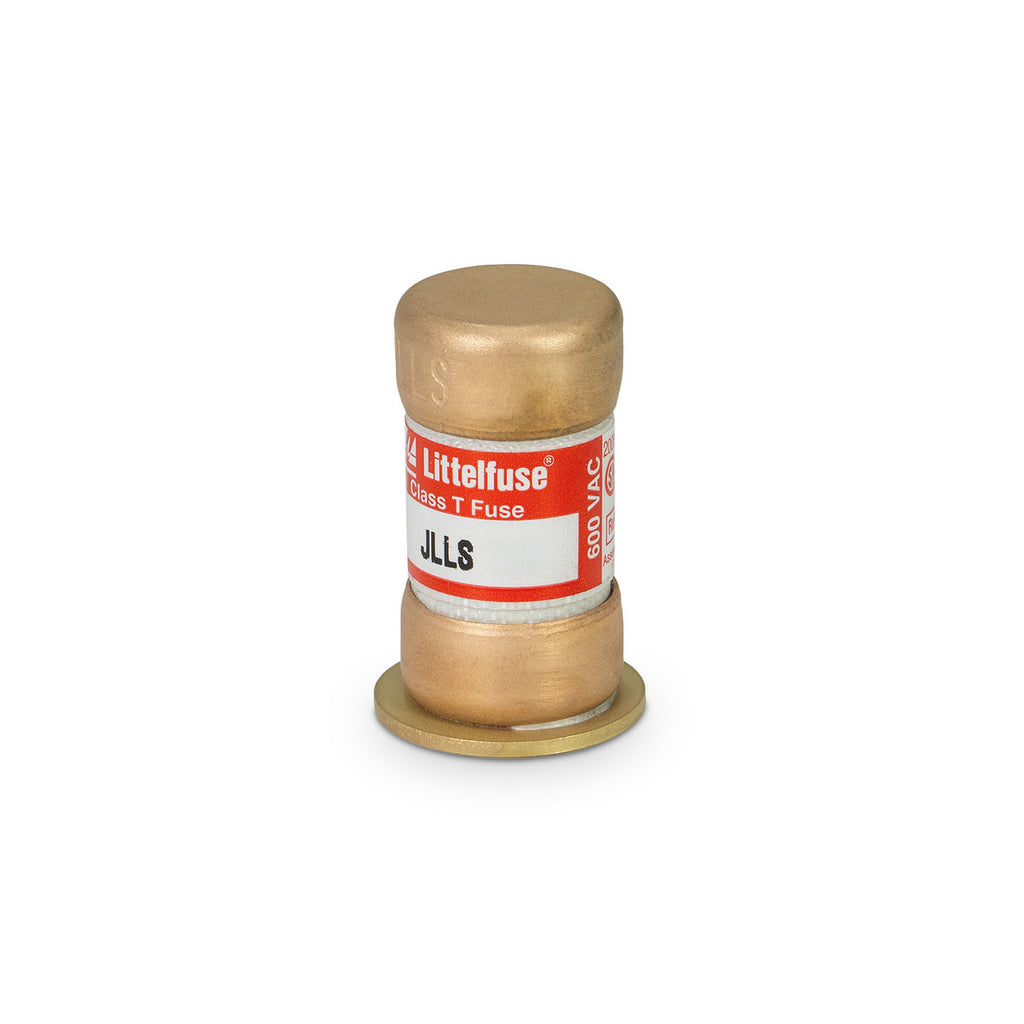

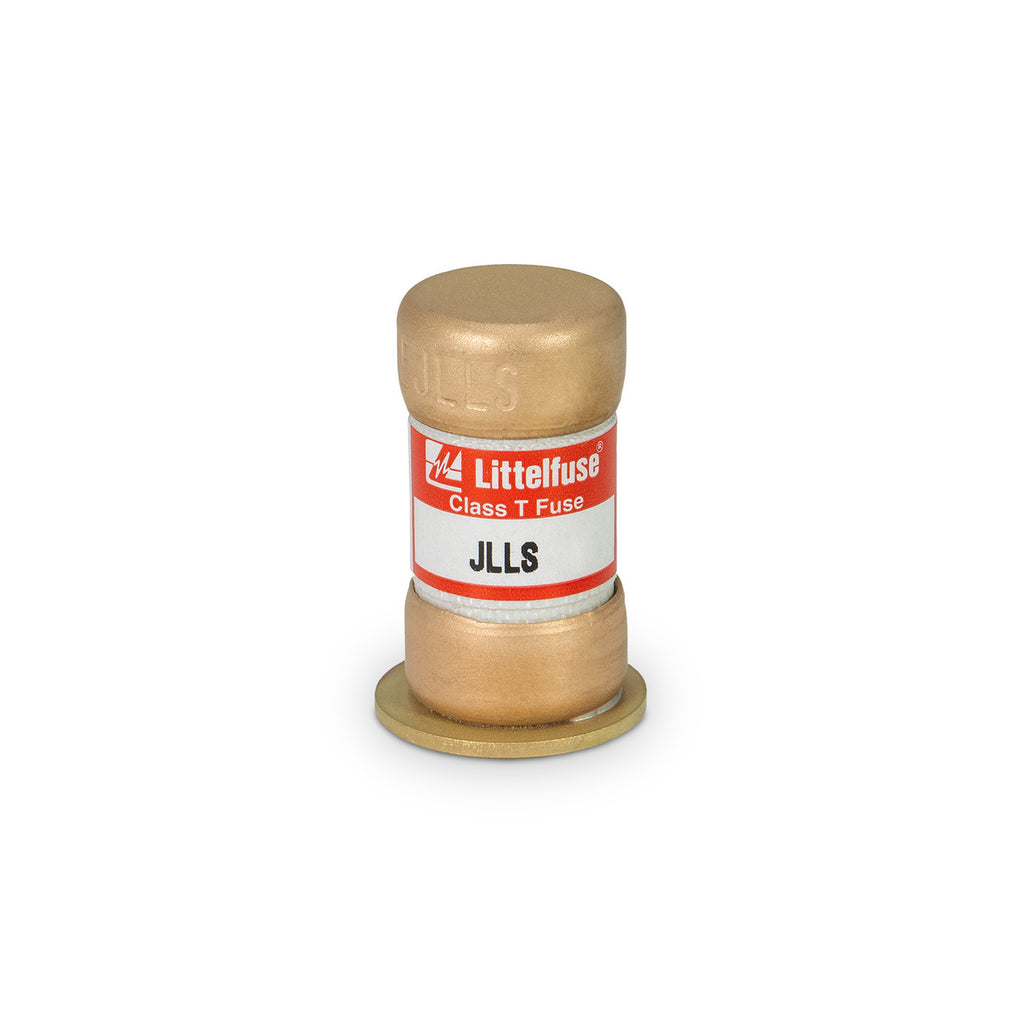

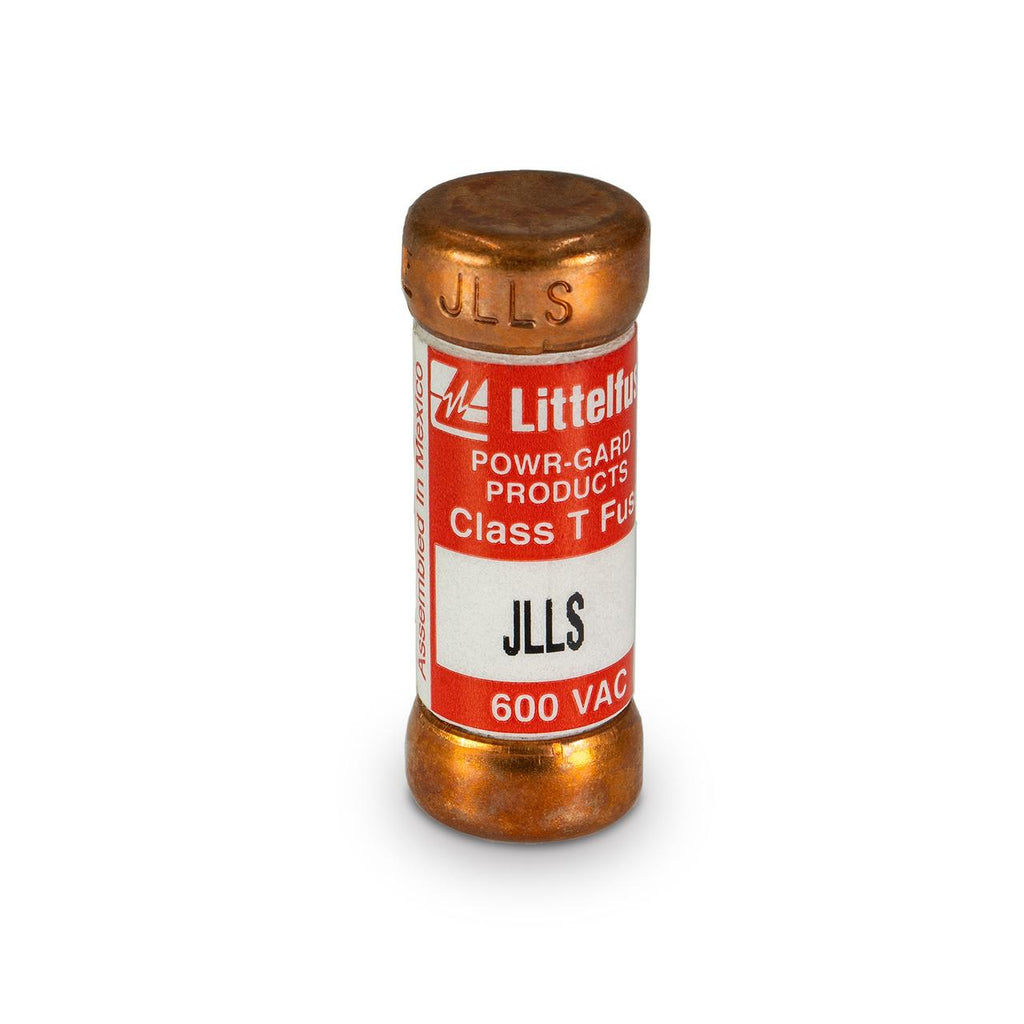

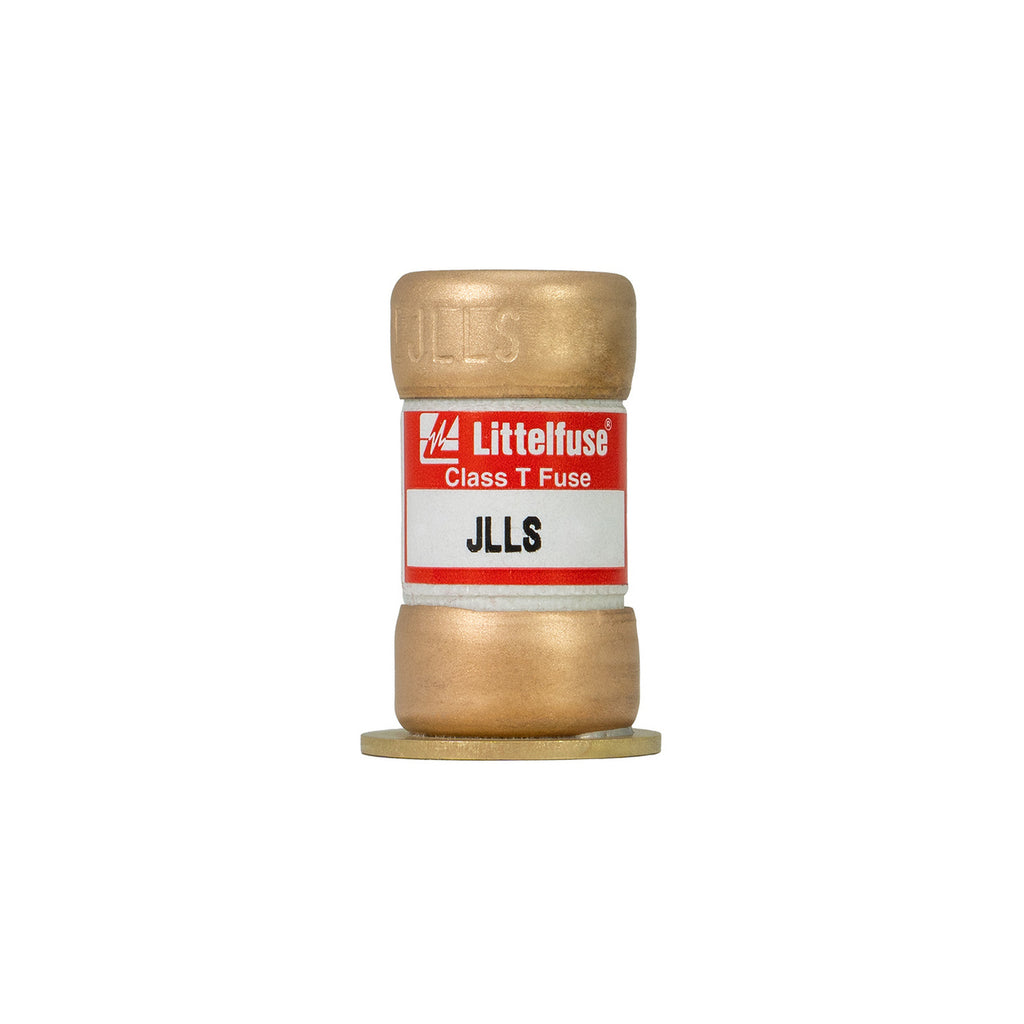

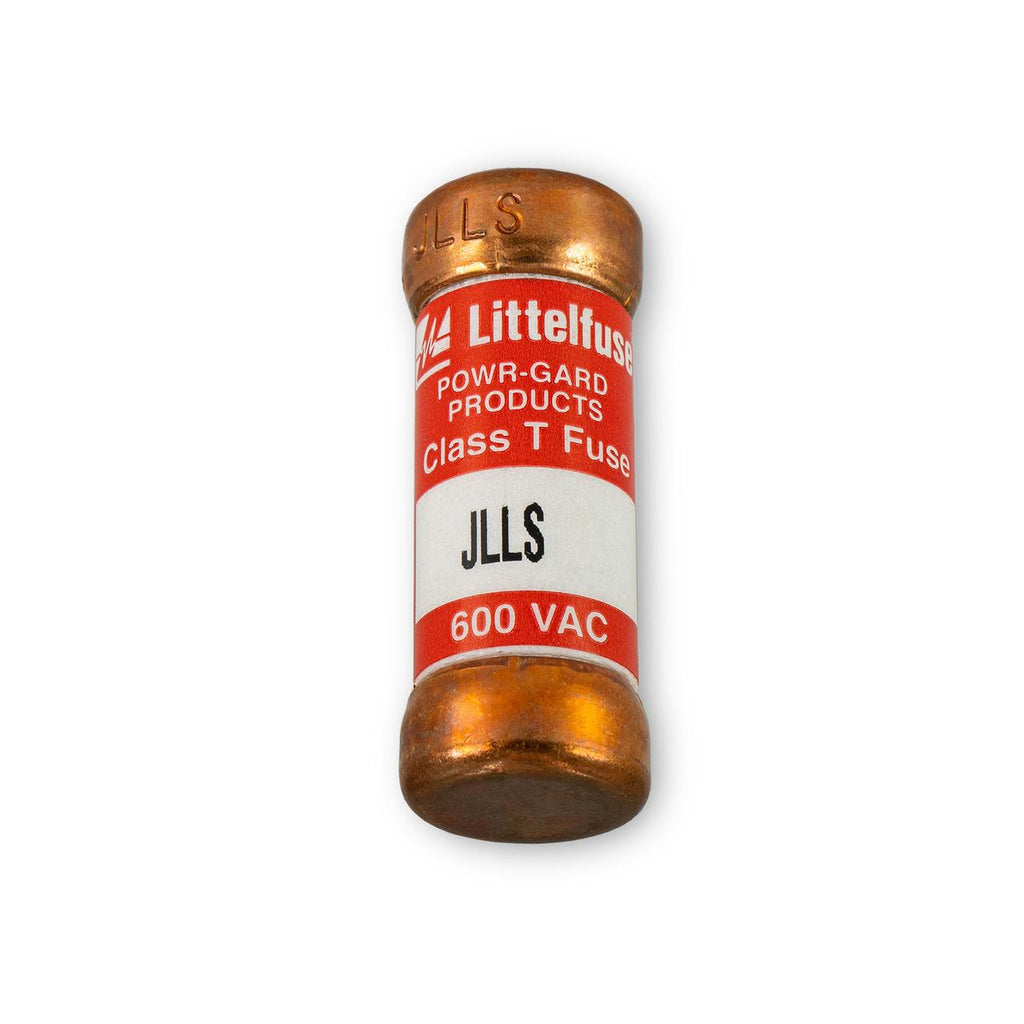

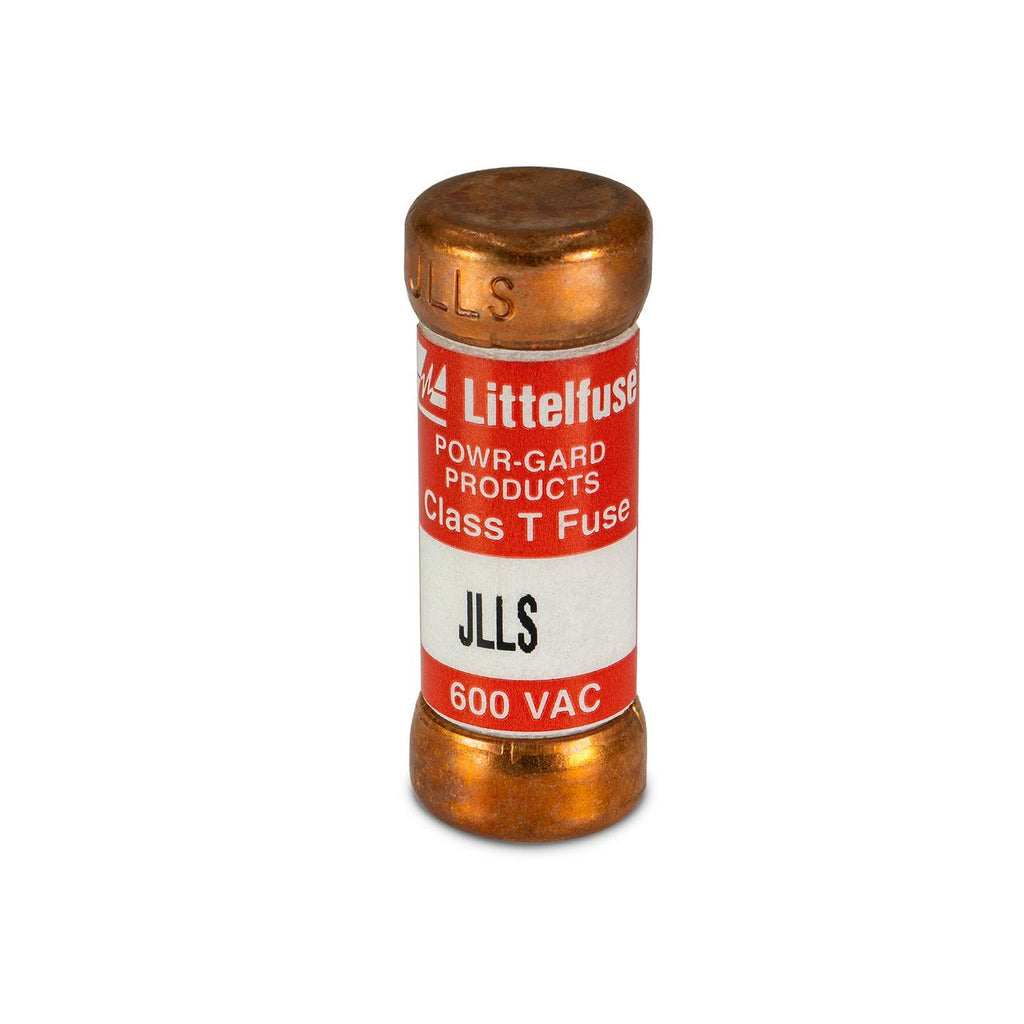

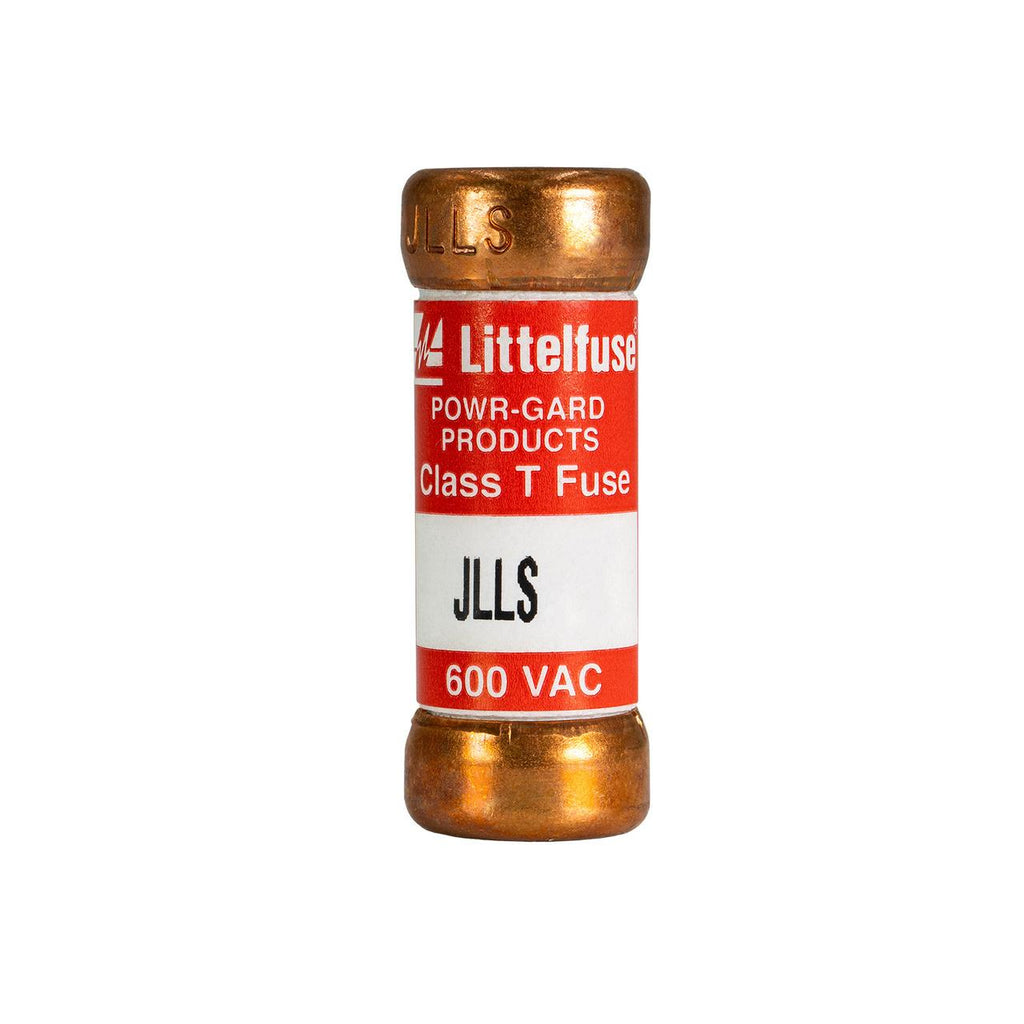

JLLS-035 is a Littelfuse Class T fuse rated for 35 amps and 600 volts AC, designed for very fast acting current limiting protection.This compact fuse measures approximately 1 inch by 1 9/16 inches and features a melamine body with bronze caps. It provides high interrupting ratings of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, making it suitable for variable speed drive protection and other demanding applications. The JLLS-035 is UL listed, CSA certified, RoHS compliant, and meets UL 248-15 Class T standards.
- Amperage: 35 Amps
- Voltage Rating: 600 VAC, 300 VDC
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Fuse Type: Class T, Very Fast Acting
- Dimensions: 1" x 1 9/16"
- Mounting Type: Fuse Block / Clip / Holder
- Body Material: Melamine with bronze caps
- Certifications: UL Listed (E81895), CSA Certified (LR29862), RoHS Compliant
- Application: Variable Speed Drive Protection
Specifications
- Part Number: JLLS-035
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 35
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 1
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819074
- GTIN : 00079458190748
- Weight : 0.15
- Certification : Ul Listed Csa Certified
