Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-030

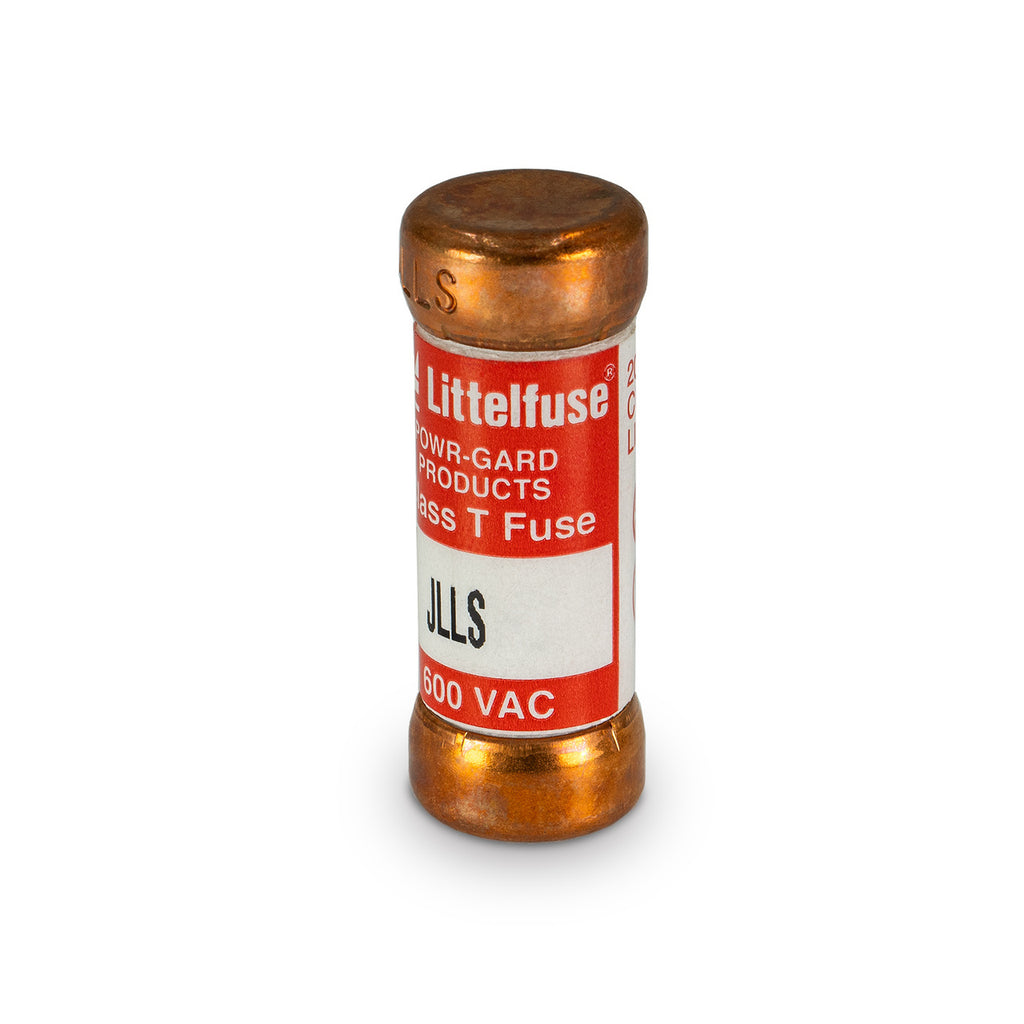

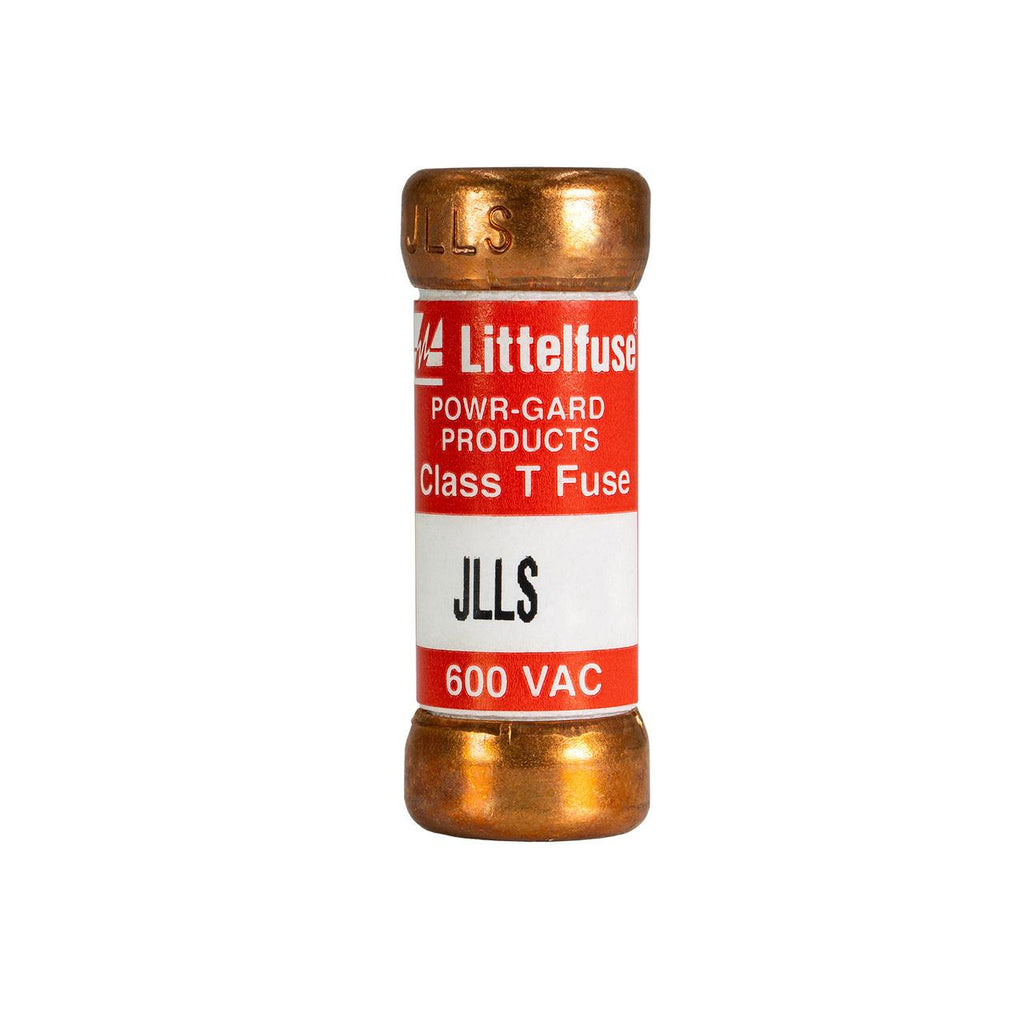

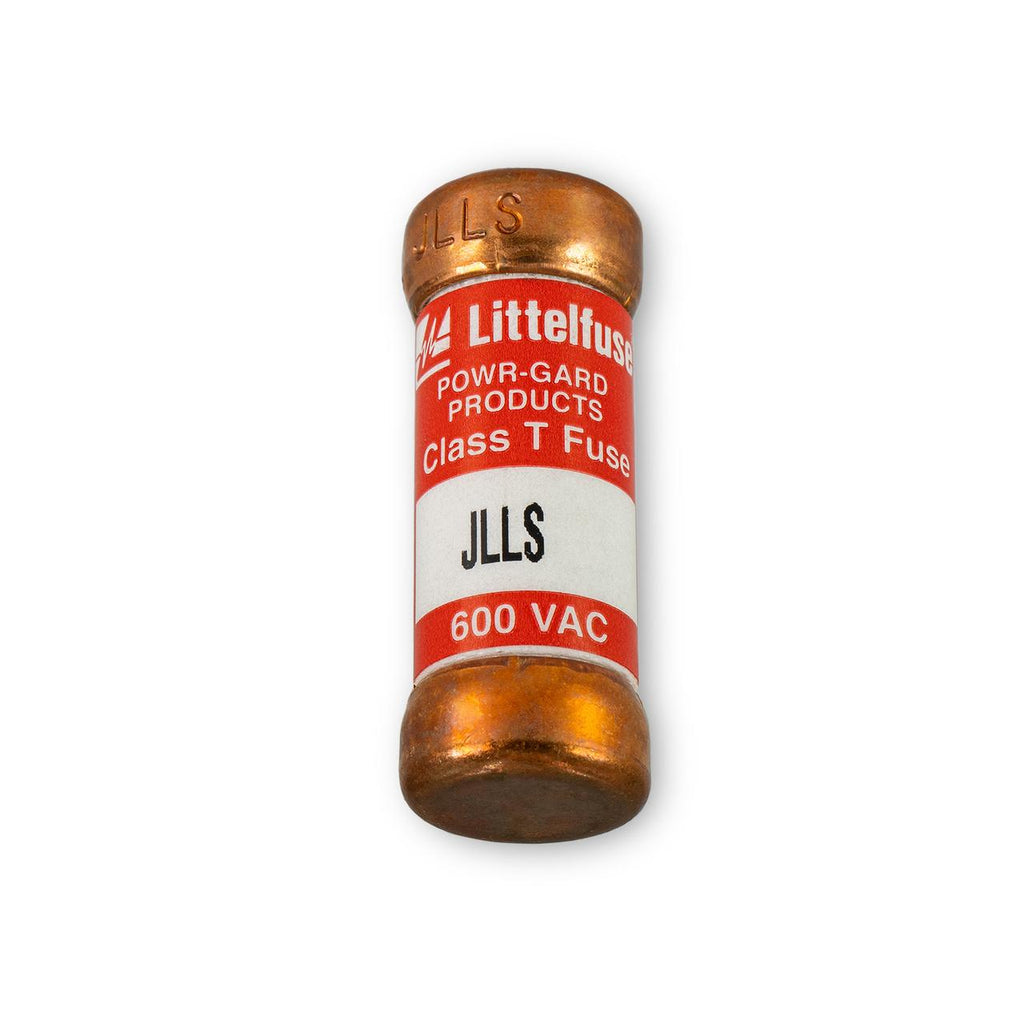

JLLS-030 is a Littelfuse Class T fuse rated for 30 Amps and 600 Volts AC, designed for very fast acting current limiting protection.This compact fuse features a melamine body with copper end caps, measures 9/16" x 1 1/2", and provides an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. It is UL Listed, CSA Certified, RoHS compliant, and ideal for variable speed drive protection and other industrial applications.
- Amperage: 30 A
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Class: T (UL 248-15)
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Very Fast Acting
- Size: 9/16" diameter x 1 1/2" length
- Material: Melamine body, copper caps
- Certifications: UL Listed (E81895), CSA Certified (LR29862), RoHS Compliant
- Mounting Type: Cartridge
- Current Limiting
Specifications
- Part Number: JLLS-030
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.28
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819073
- GTIN : 00079458190731
- Weight : 0.08
