Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLS-020

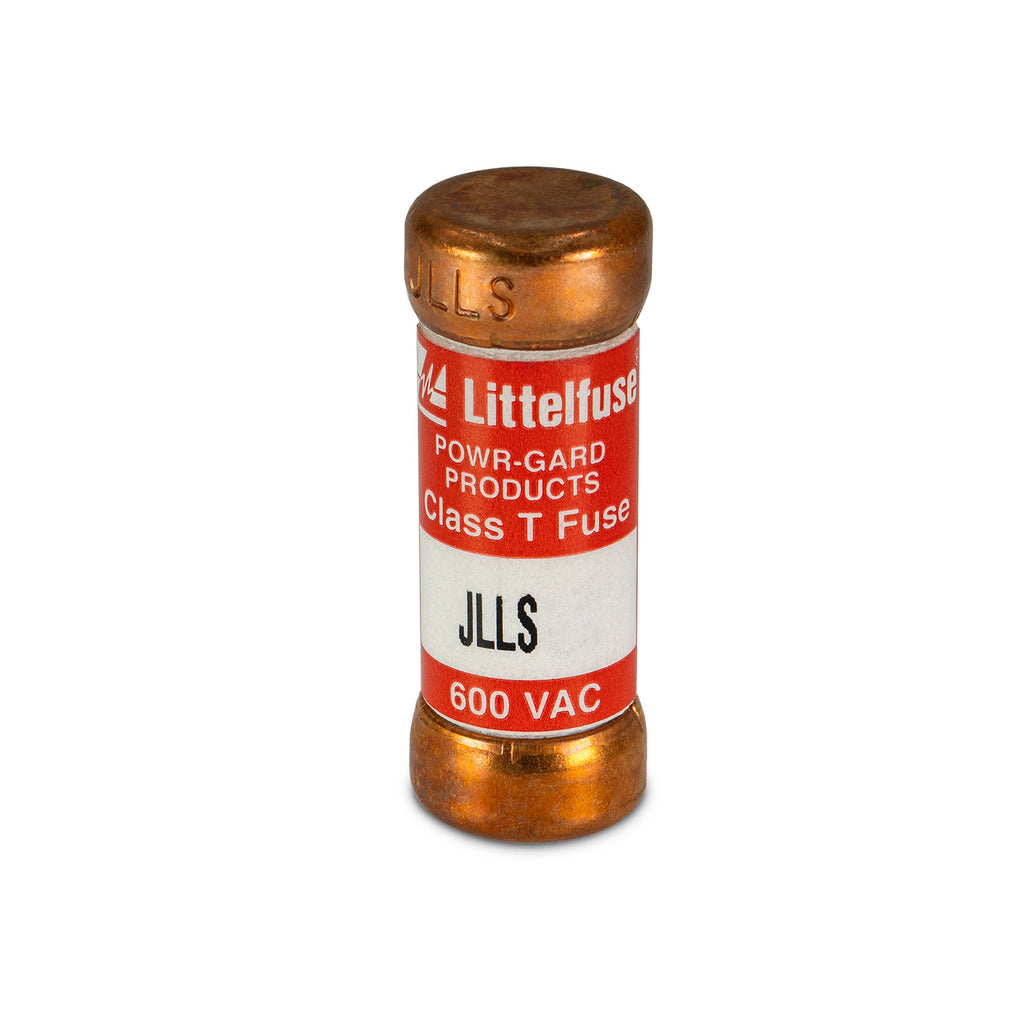

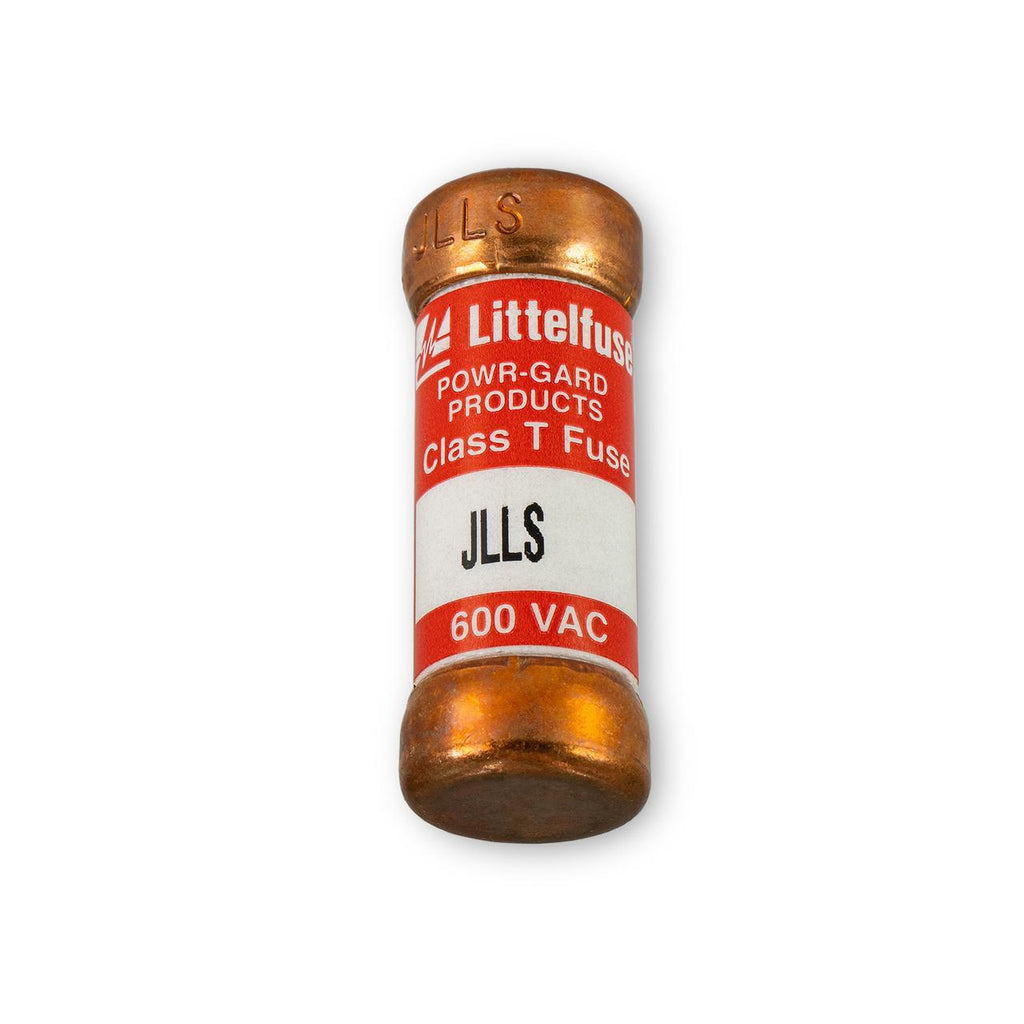

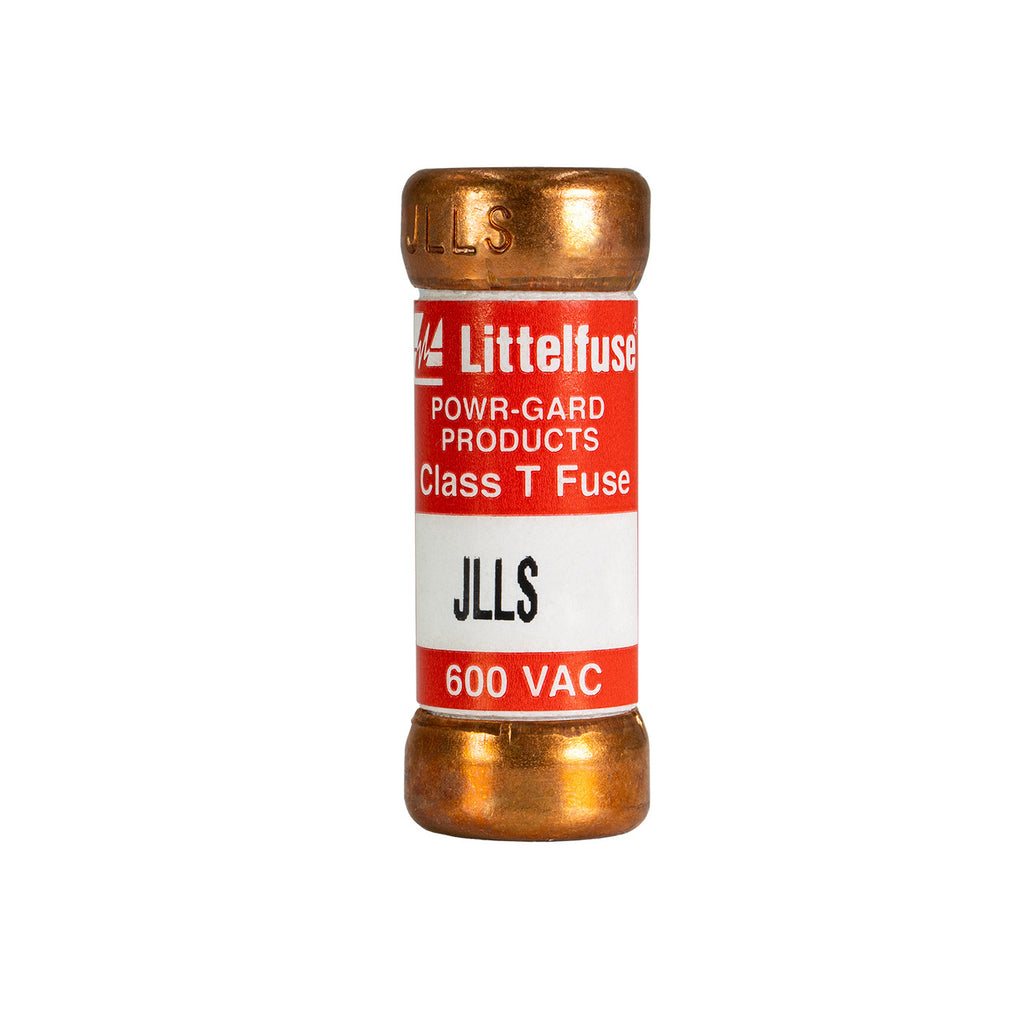

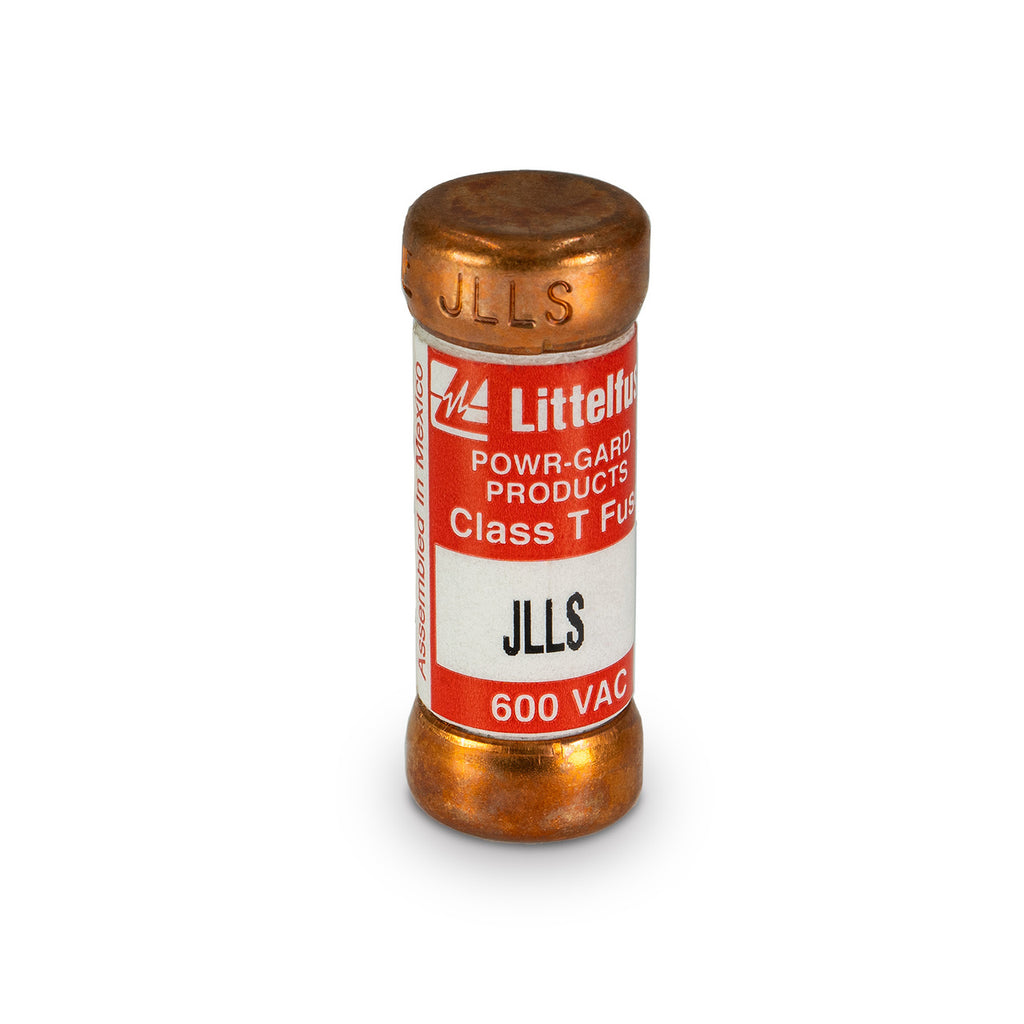

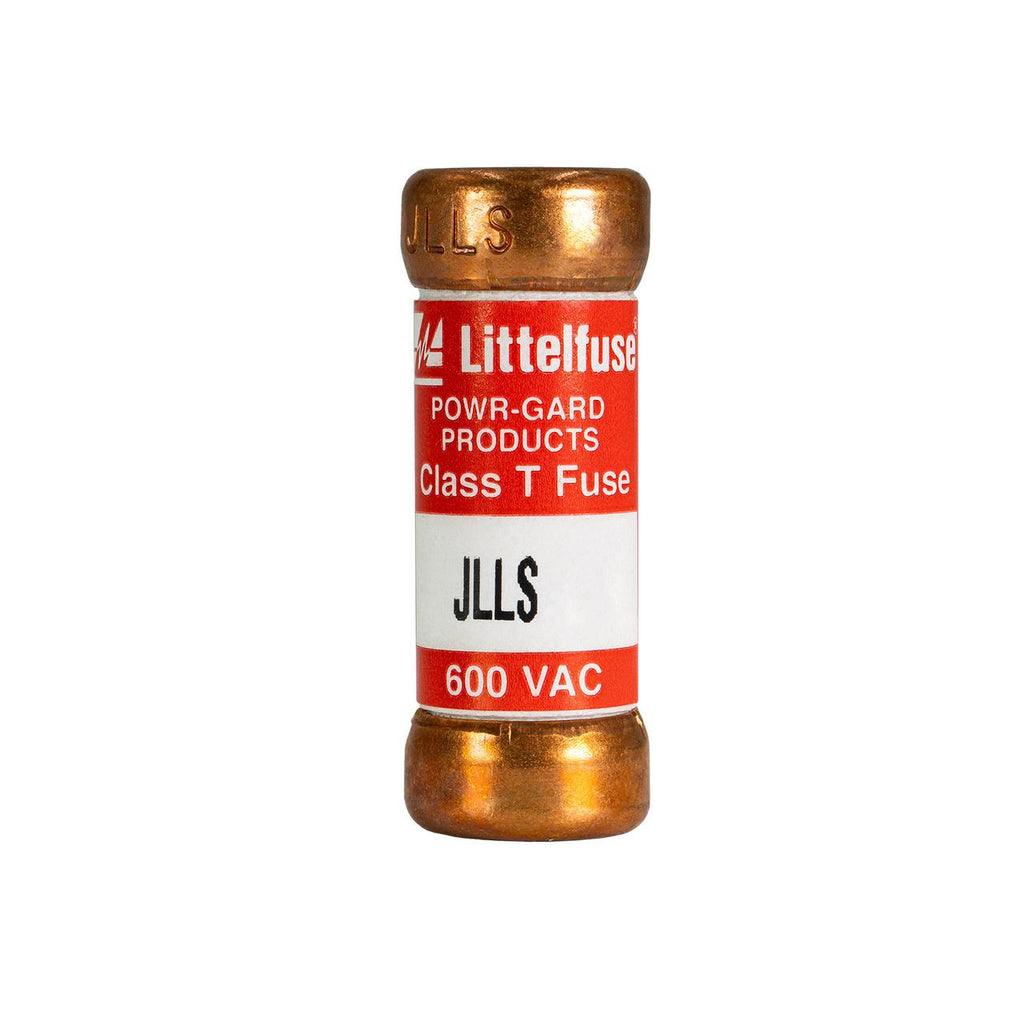

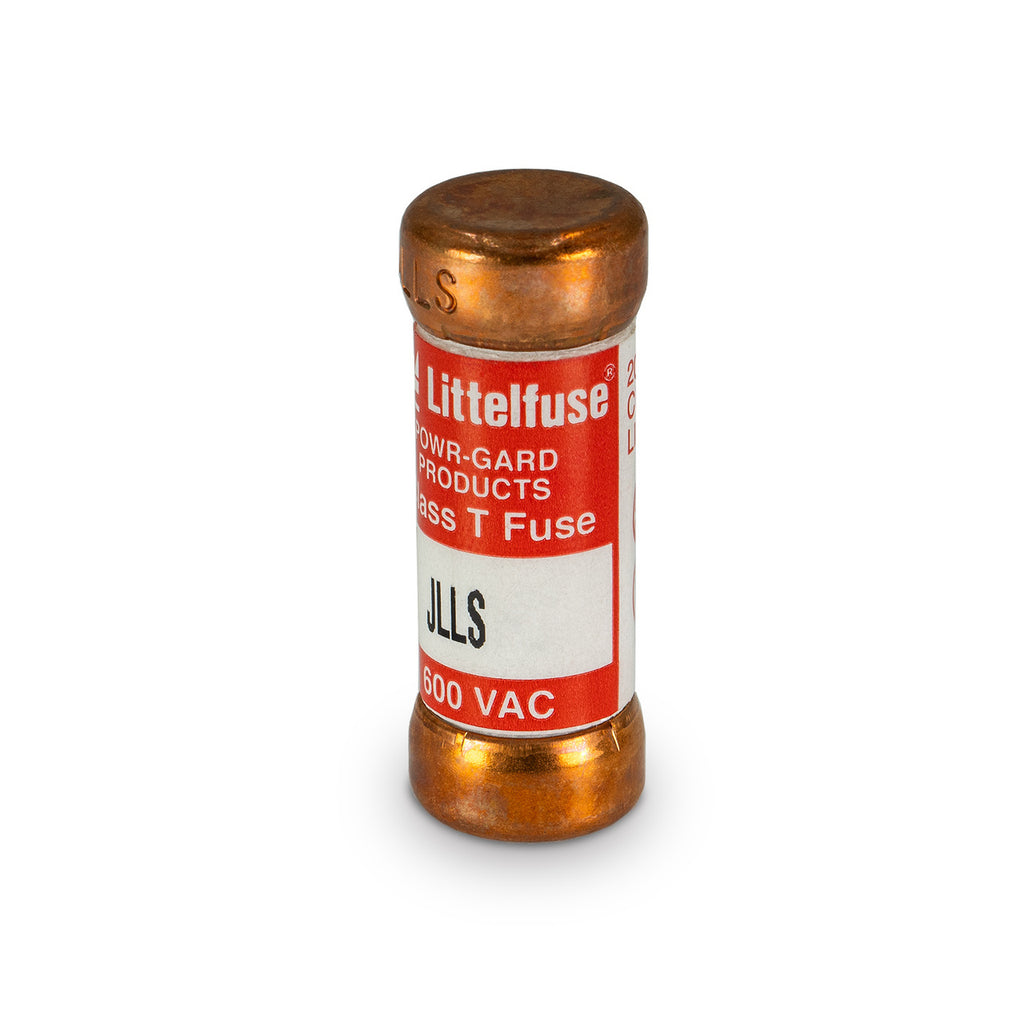

JLLS-020 is a Littelfuse Class T fast-acting fuse designed for reliable overcurrent protection in electrical circuits.This 20 amp, 600 volt AC fuse features a compact cylindrical cartridge body measuring 1.5 inches in length and 9/16 inch in diameter. It provides fast-acting current limiting protection with an interrupt rating of 200,000 amps AC rms symmetrical and 20,000 amps DC, suitable for variable speed drives and sensitive equipment. The fuse is UL 248-15, CSA, and CE certified, RoHS compliant, and constructed with copper end caps and a melamine body.
- Class T fuse, Series JLLS
- 20 amp continuous current rating
- 600 VAC / 300 VDC voltage rating
- Fast-acting opening characteristic
- Interrupt rating: 200 kA AC, 20 kA DC
- 1.5 inch length, 9/16 inch diameter cartridge
- Copper end caps, melamine body
- UL 248-15, CSA, CE certified
- RoHS compliant
- Designed for compact protection of drives and sensitive components
Specifications
- Part Number: JLLS-020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 20
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.28
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819071
- GTIN : 00079458190717
- Weight : 5.19
