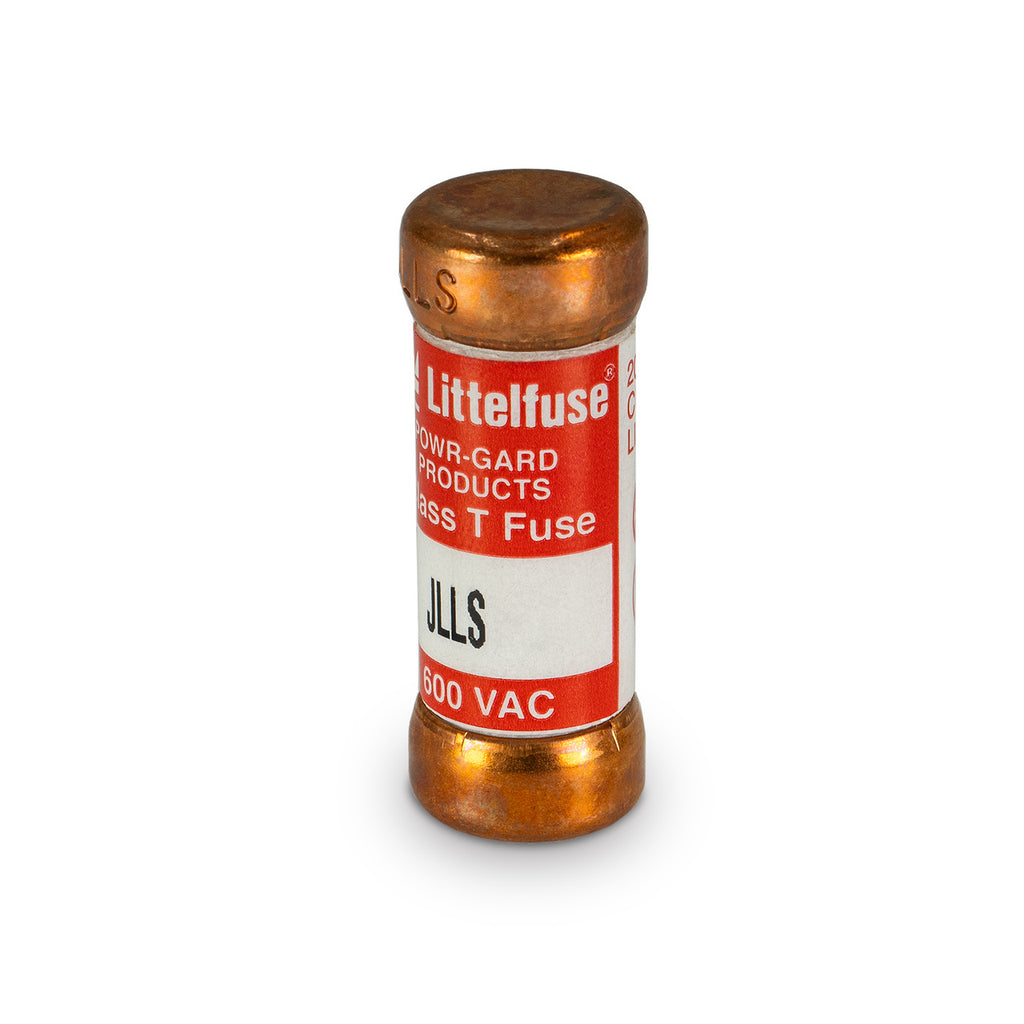

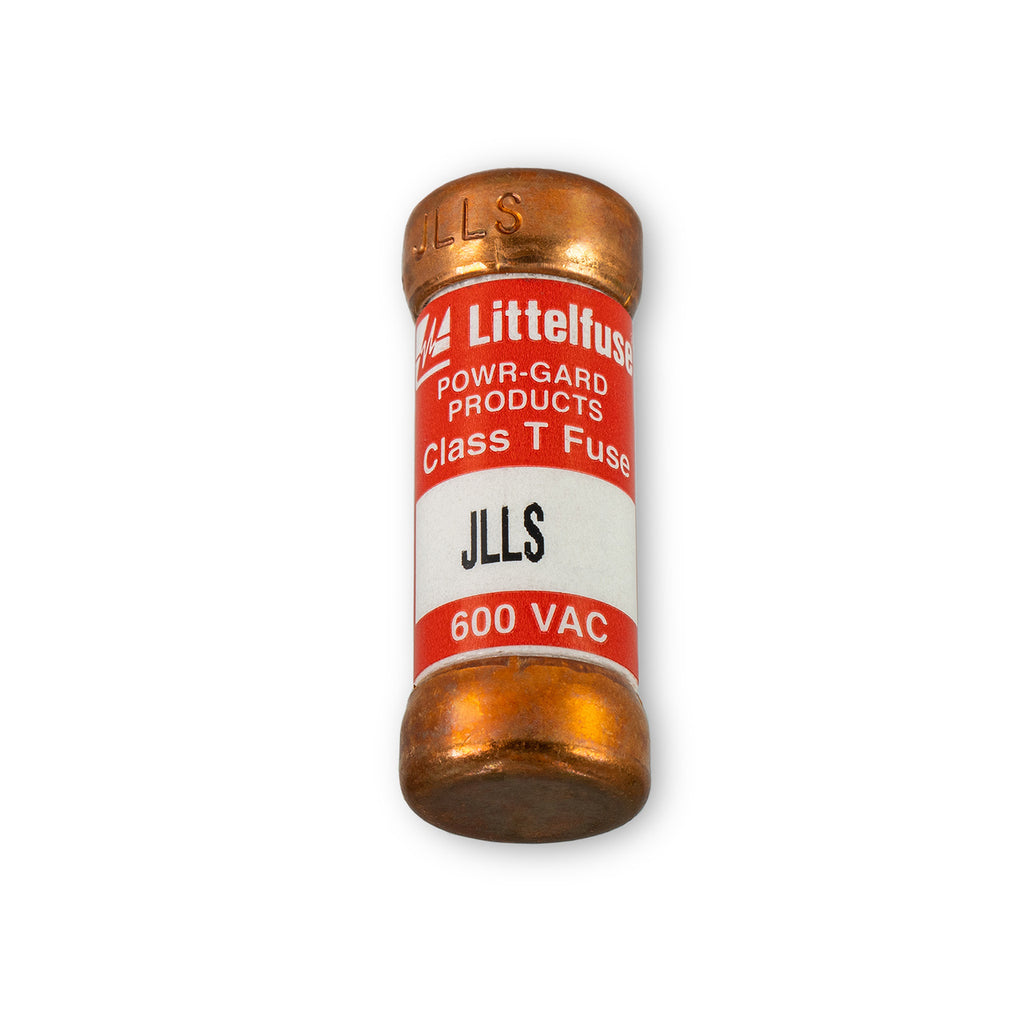

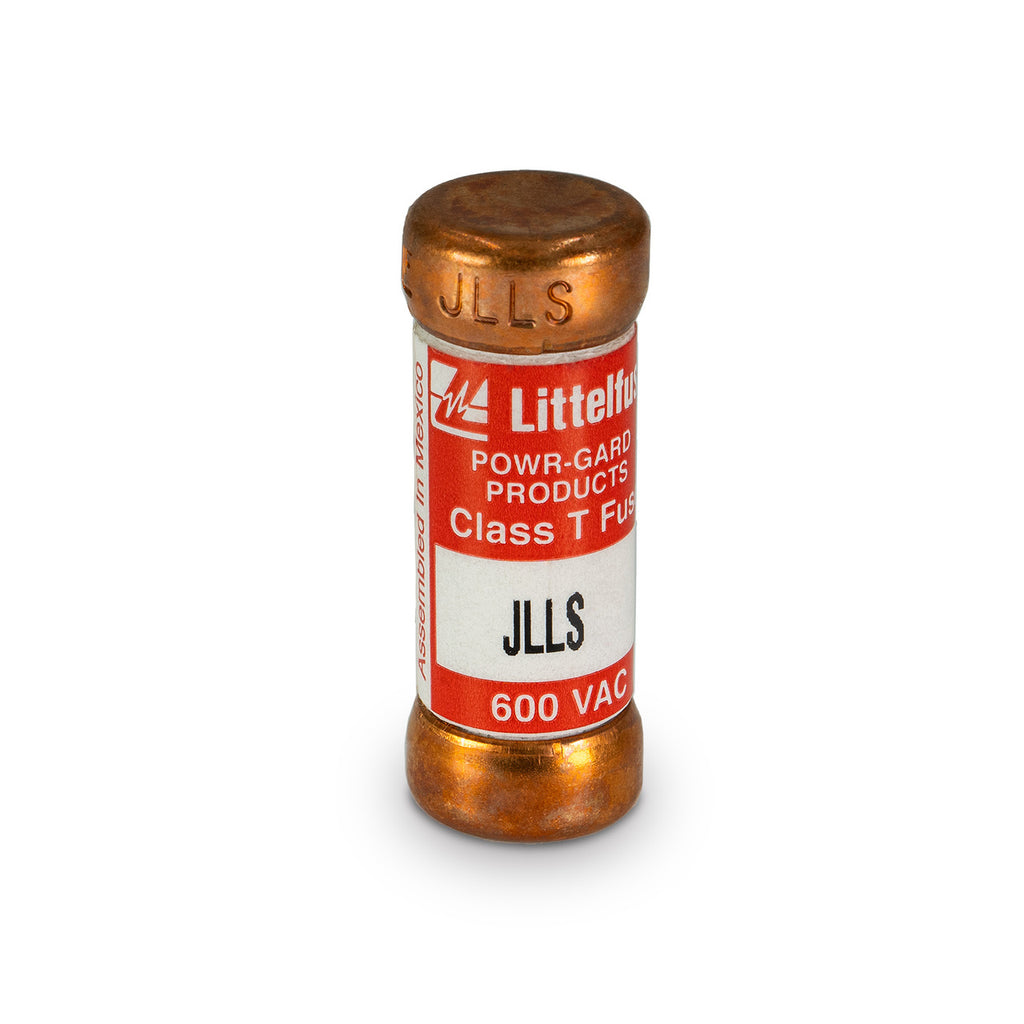

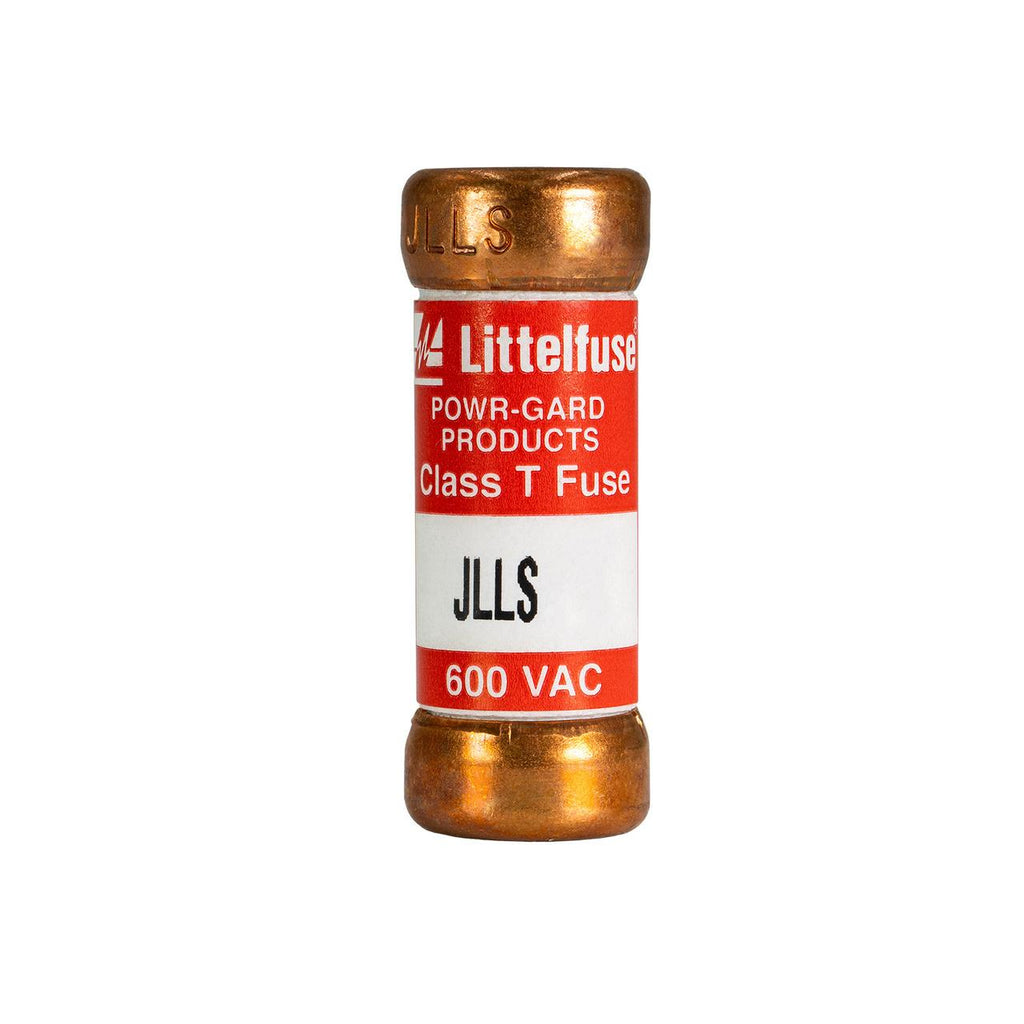

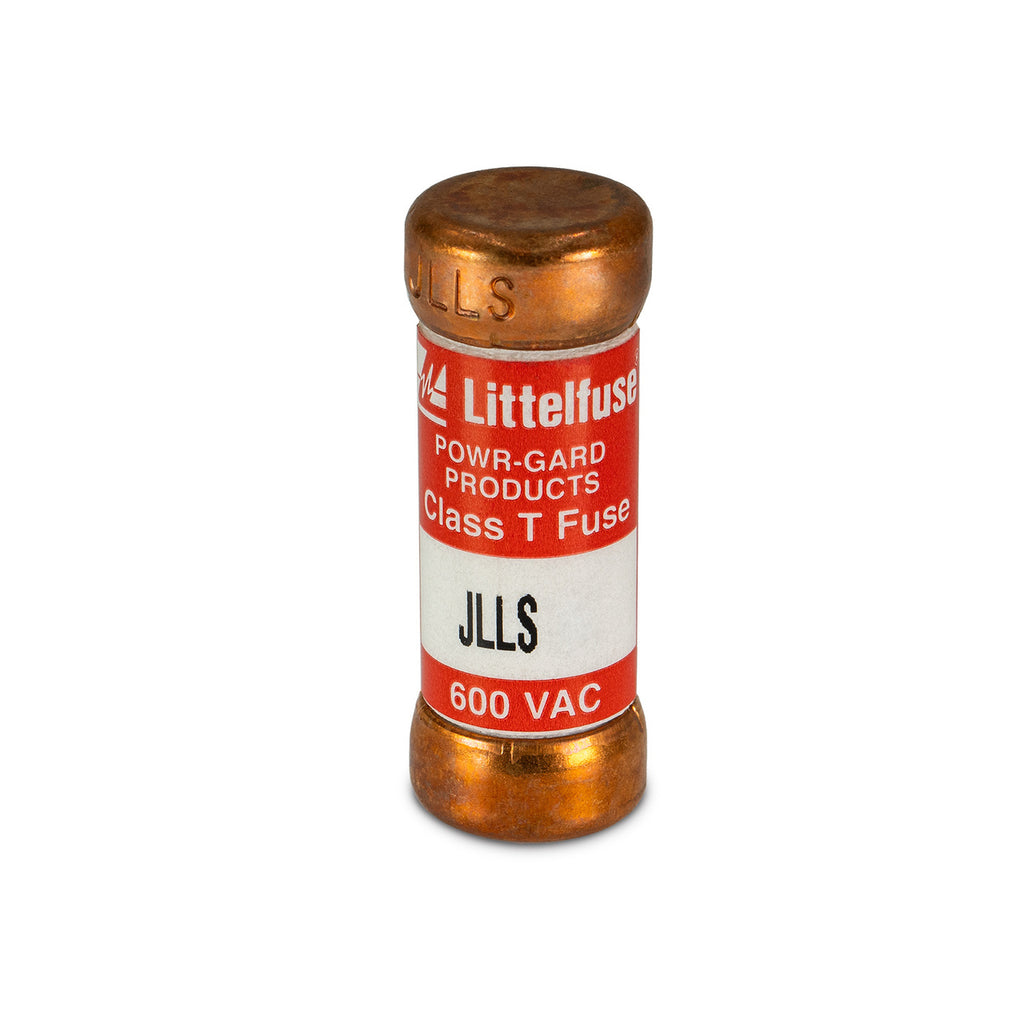

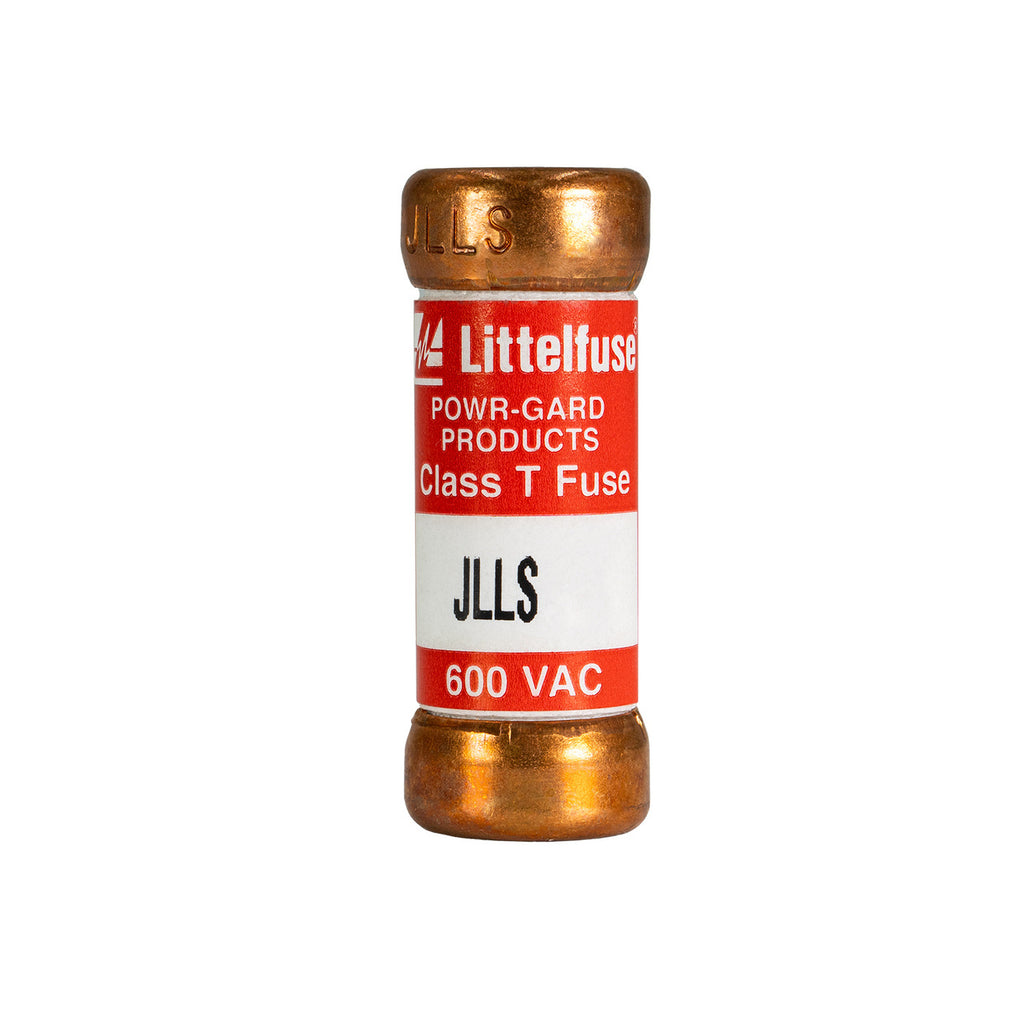

JLLS-010 - Littelfuse 10 Amp 600 Volt AC Class T Fast Acting Fuse

JLLS-010

JLLS-010 is a Littelfuse Class T fast-acting fuse rated for 10 amps and 600 volts AC, designed for compact and reliable overcurrent protection.This fuse features a very fast acting, current limiting design ideal for protecting variable speed drives and surge-sensitive components. It has a compact cartridge size of 9/16" diameter by 1 1/2" length, with an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The JLLS-010 is UL Listed, CSA Certified, RoHS compliant, and suitable for industrial applications requiring high interrupt ratings and fast response.

• Amperage: 10 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Class: Class T
• Speed: Very Fast Acting
• Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Physical Size: 9/16" diameter x 1 1/2" length
• Mounting Type: Cartridge style
• Certifications: UL Listed (E81895), CSA Certified (LR29862), RoHS Compliant
• Application: Variable speed drive protection, surge-sensitive devices

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLLS-010
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLS
• Voltage : 600
• Amperage : 10
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.28
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 07945819065
• GTIN : 00079458190656
• Weight : 5.19
