Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

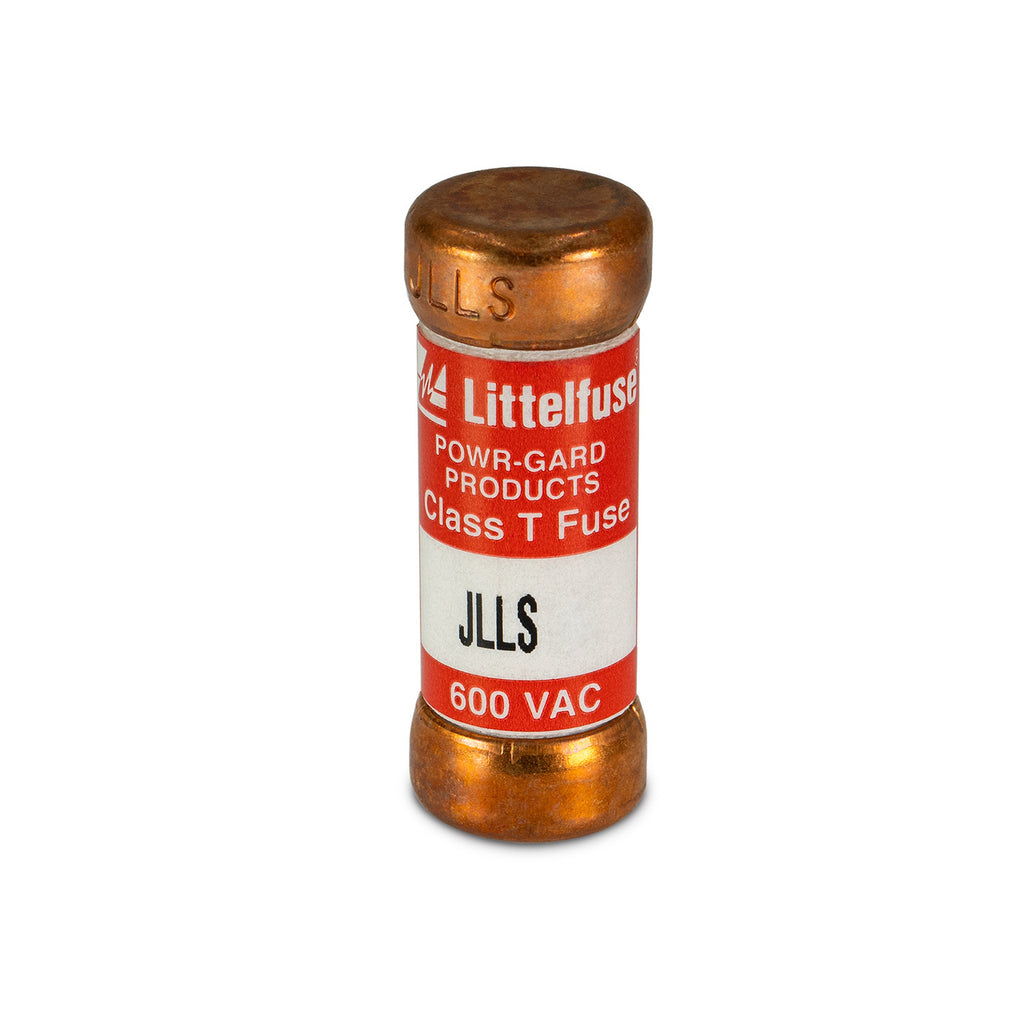

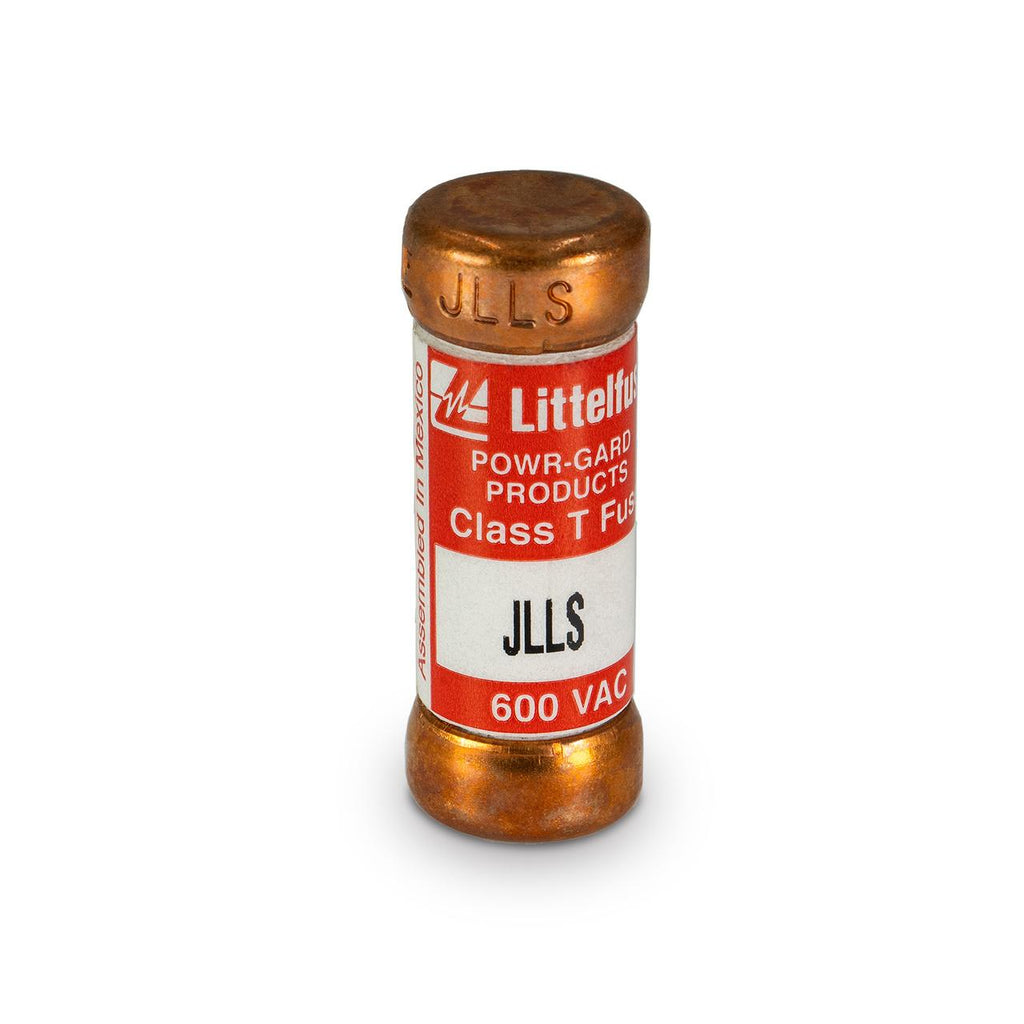

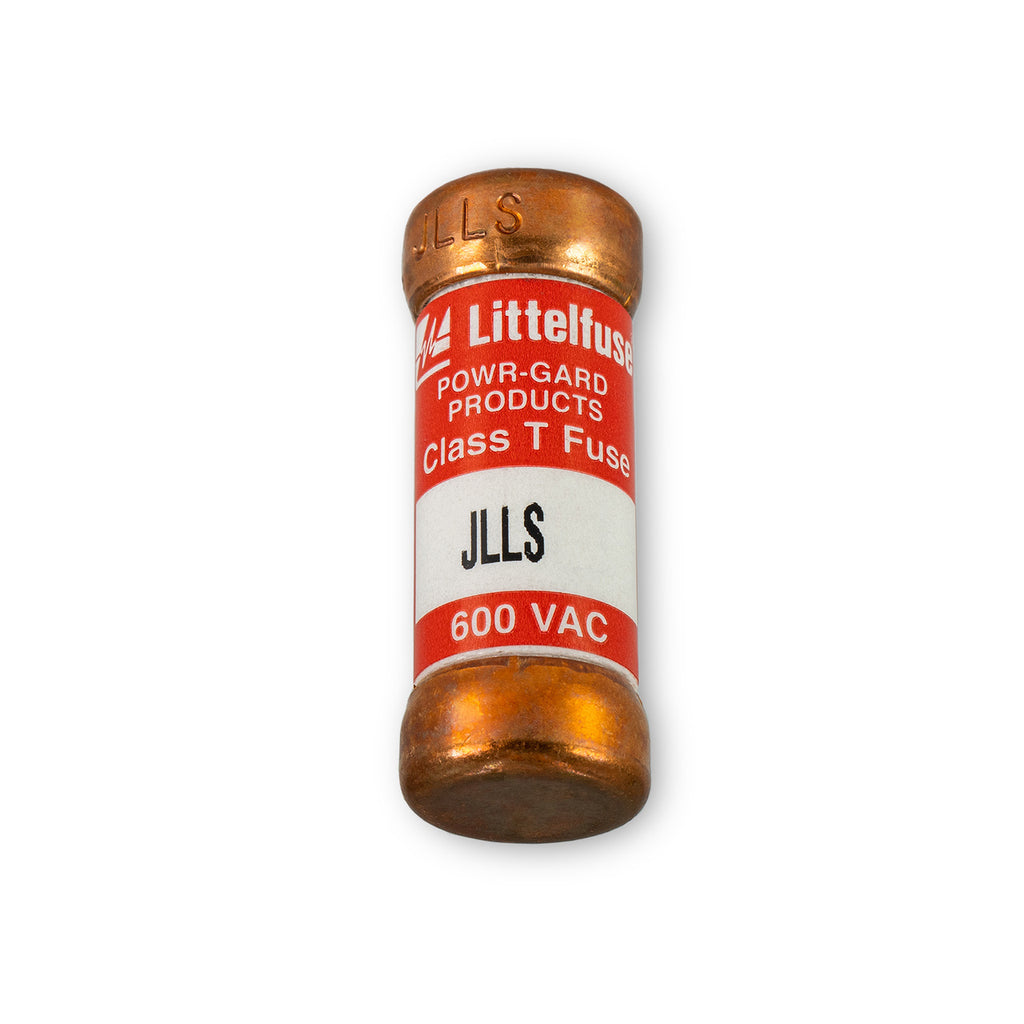

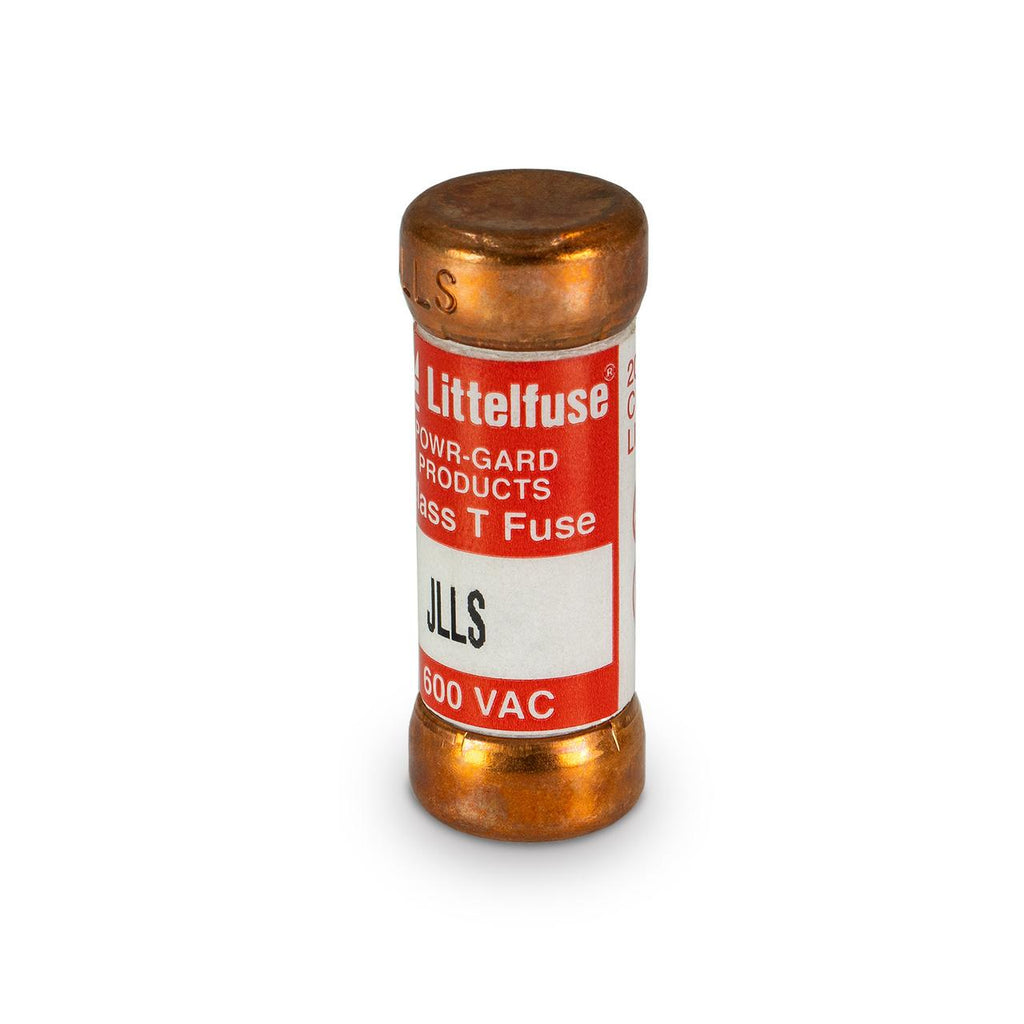

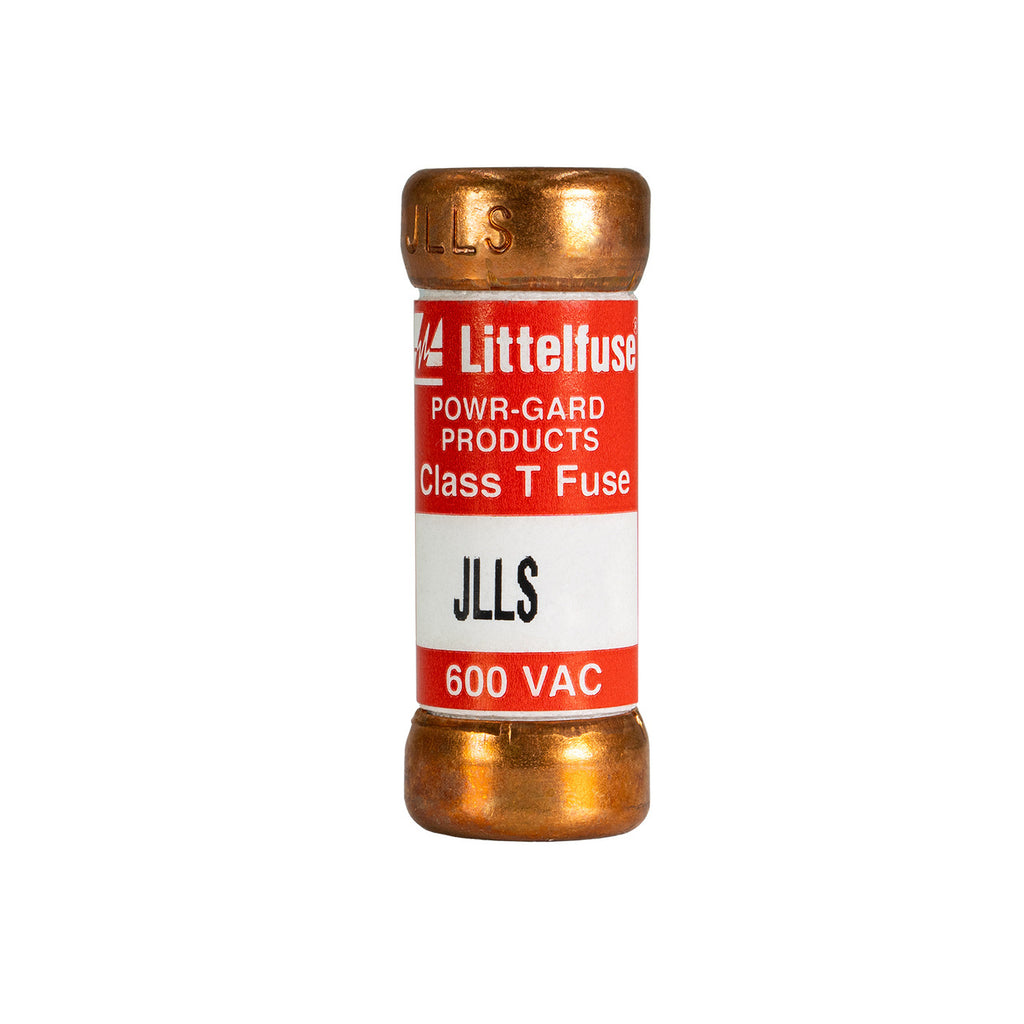

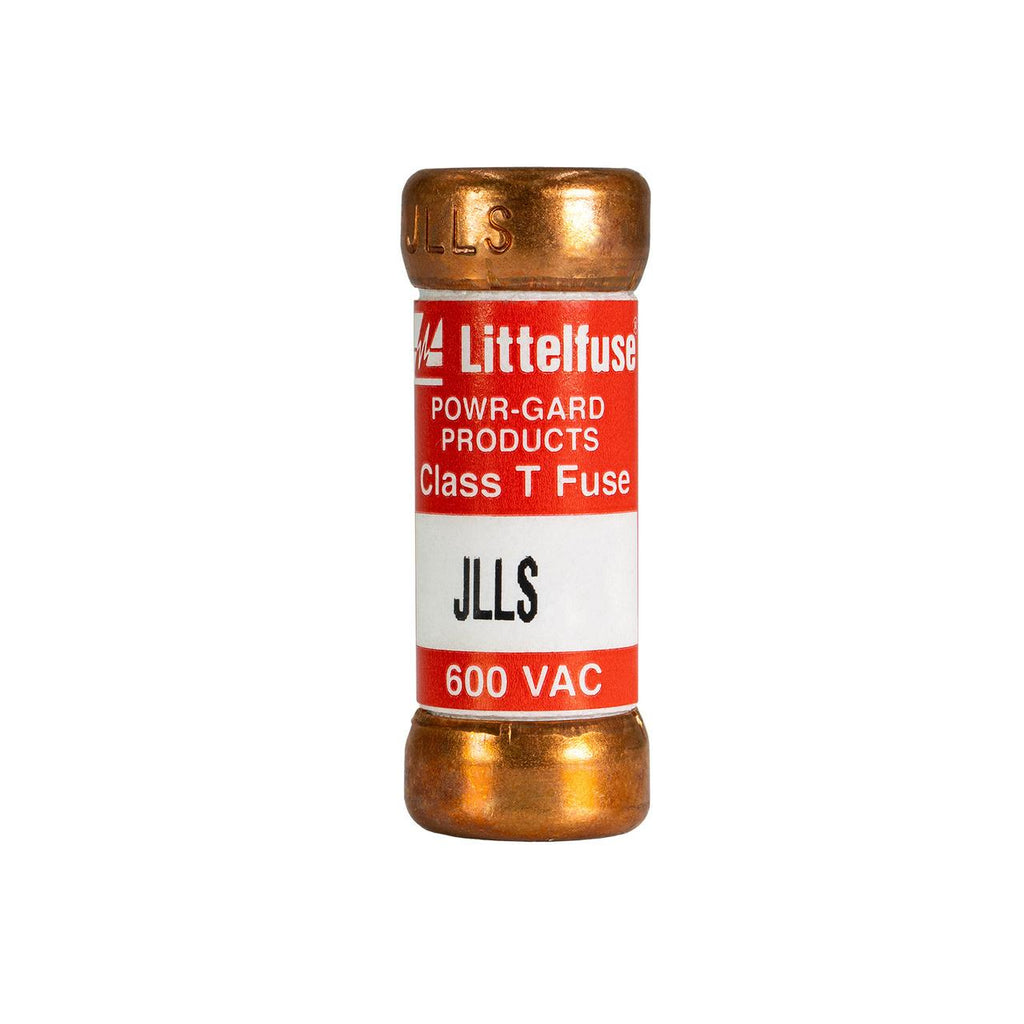

JLLS-003
JLLS-003 is a Littelfuse Class T fast-acting fuse rated for 3 amps and 600 volts AC, designed for compact and reliable overcurrent protection.This fuse features a melamine body with copper caps, providing very fast-acting, current-limiting protection suitable for variable speed drives and other sensitive equipment. It complies with UL 248-15, CSA, and CE standards, and offers a high interrupting rating of 200,000 amps rms symmetrical at 600 volts AC. The compact design makes it ideal for applications where space is limited.
- Amperage: 3 A
- Voltage Rating: 600 V AC / 300 V DC
- Fuse Type: Class T
- Interrupting Rating: 200 kA rms symmetrical
- Body Material: Melamine
- Cap Material: Copper
- Fuse Response: Very Fast Acting
- Standards: UL 248-15, CSA Certified, CE Compliant
- Dimensions: Approximately 0.562 inch diameter x 1.5 inch length
- Application: Variable speed drives, sensitive electronic equipment
- Country of Origin: Mexico
Specifications
- Part Number: JLLS-003
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLS
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.28
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945819047
- GTIN : 00079458190472
- Weight : 5.19
- Certification : Ul Listed Csa Certified
