JLLS-002 - Littelfuse 2 Amp 600V AC Class T Fast Acting Fuse Compact Design

JLLS-002

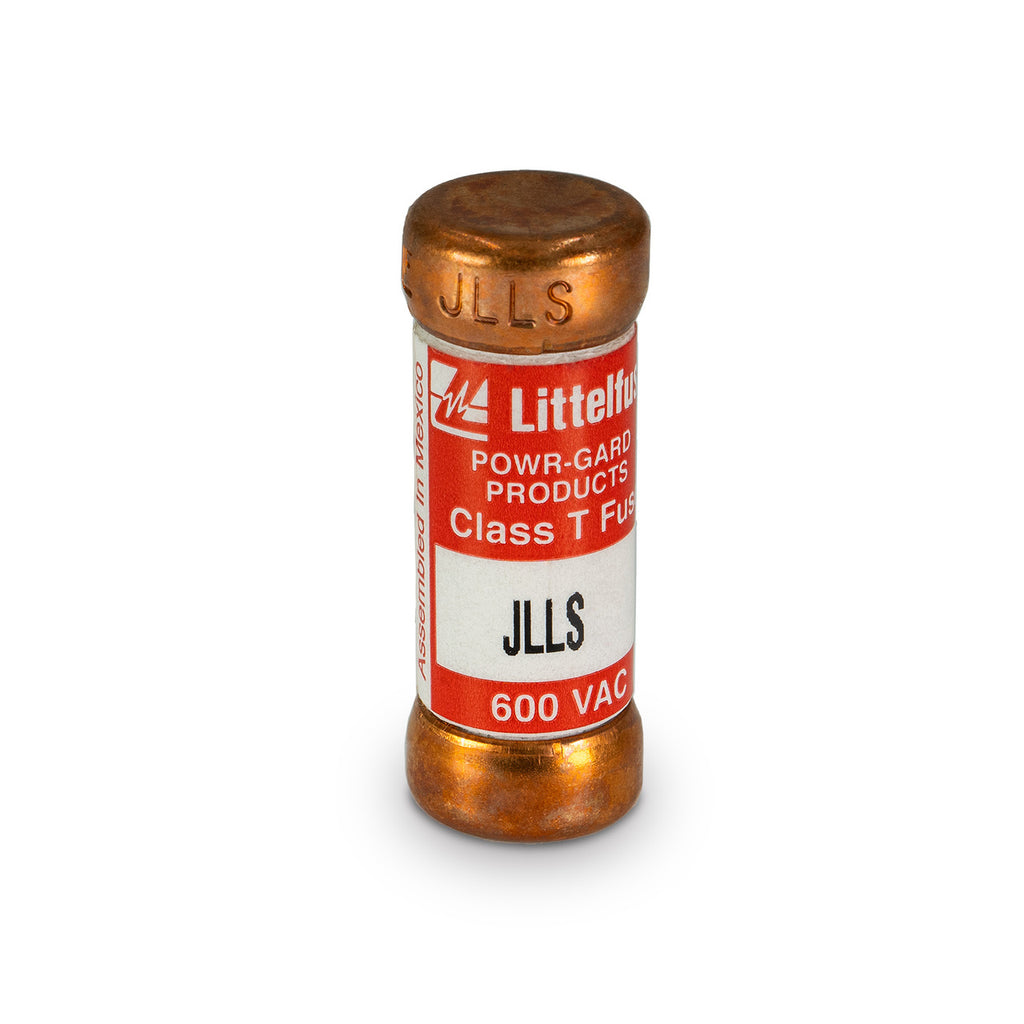

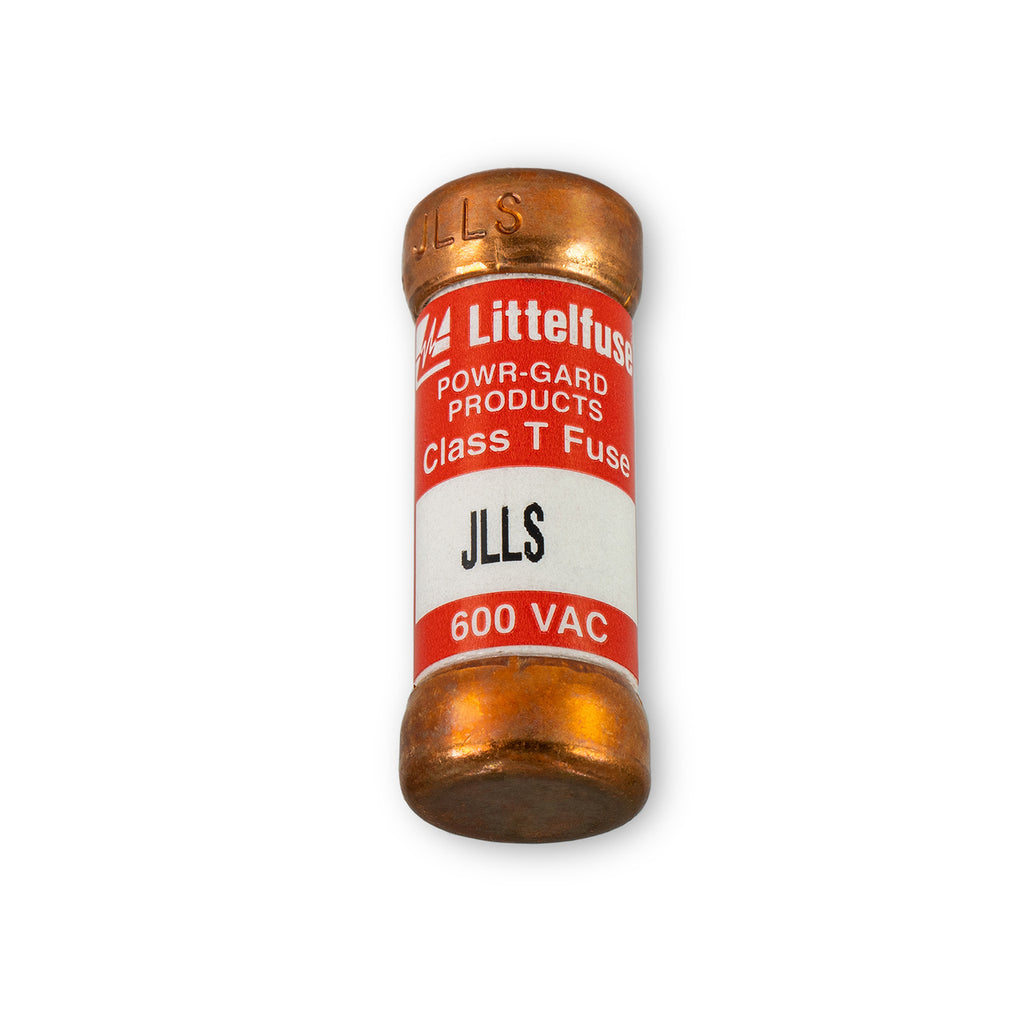

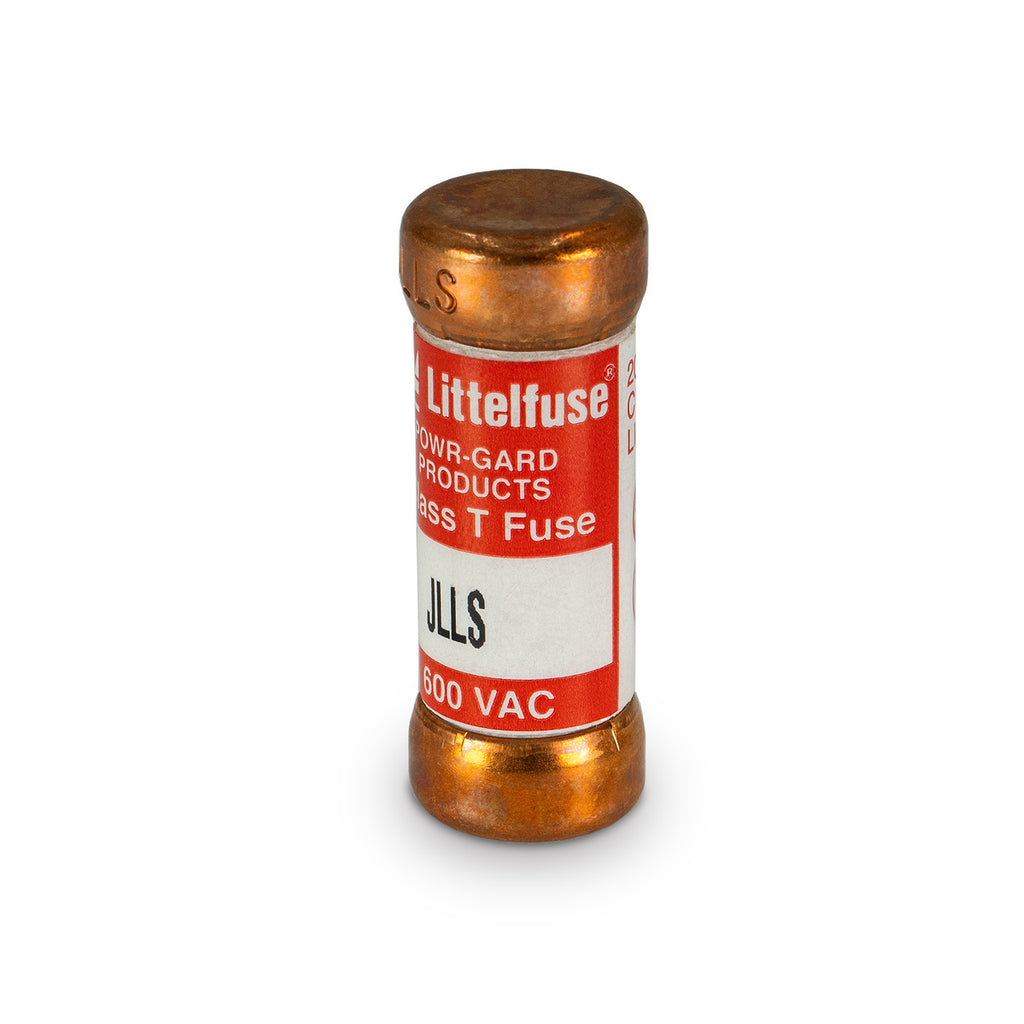

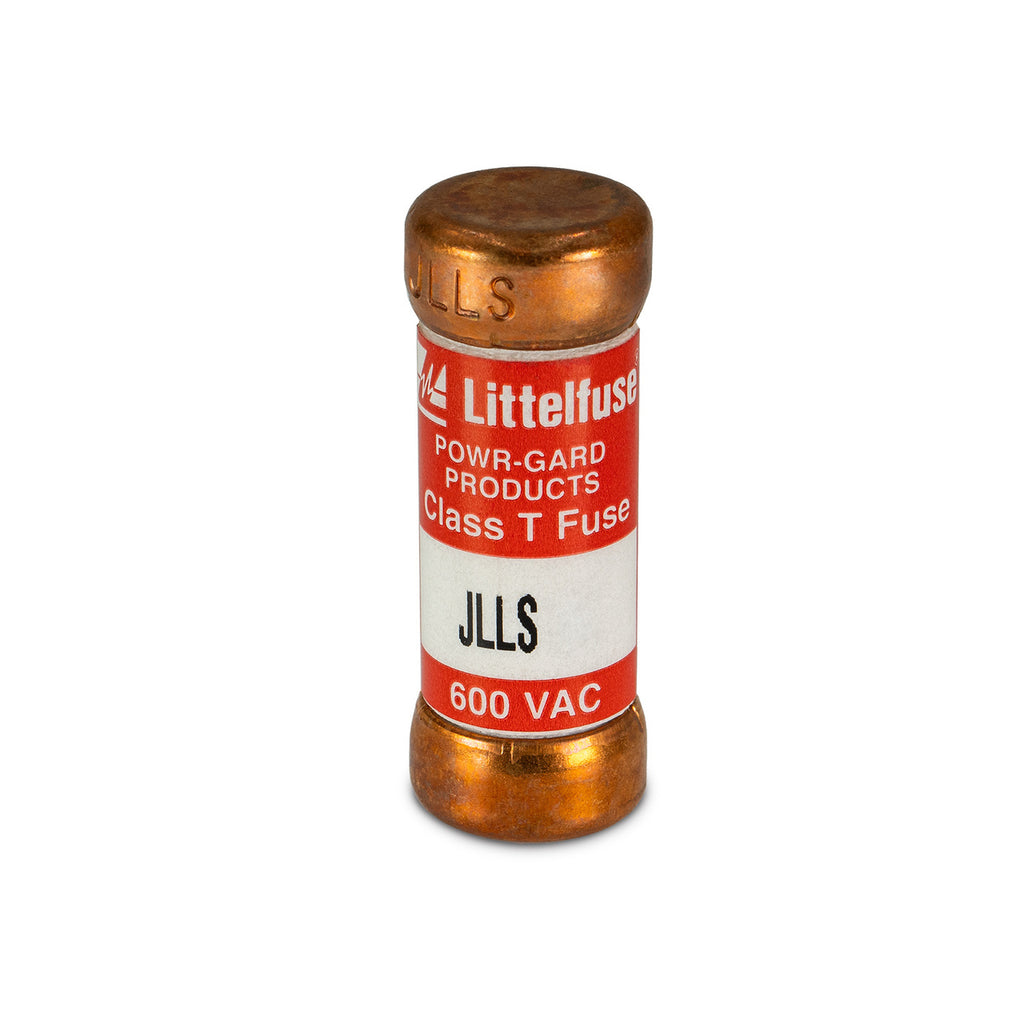

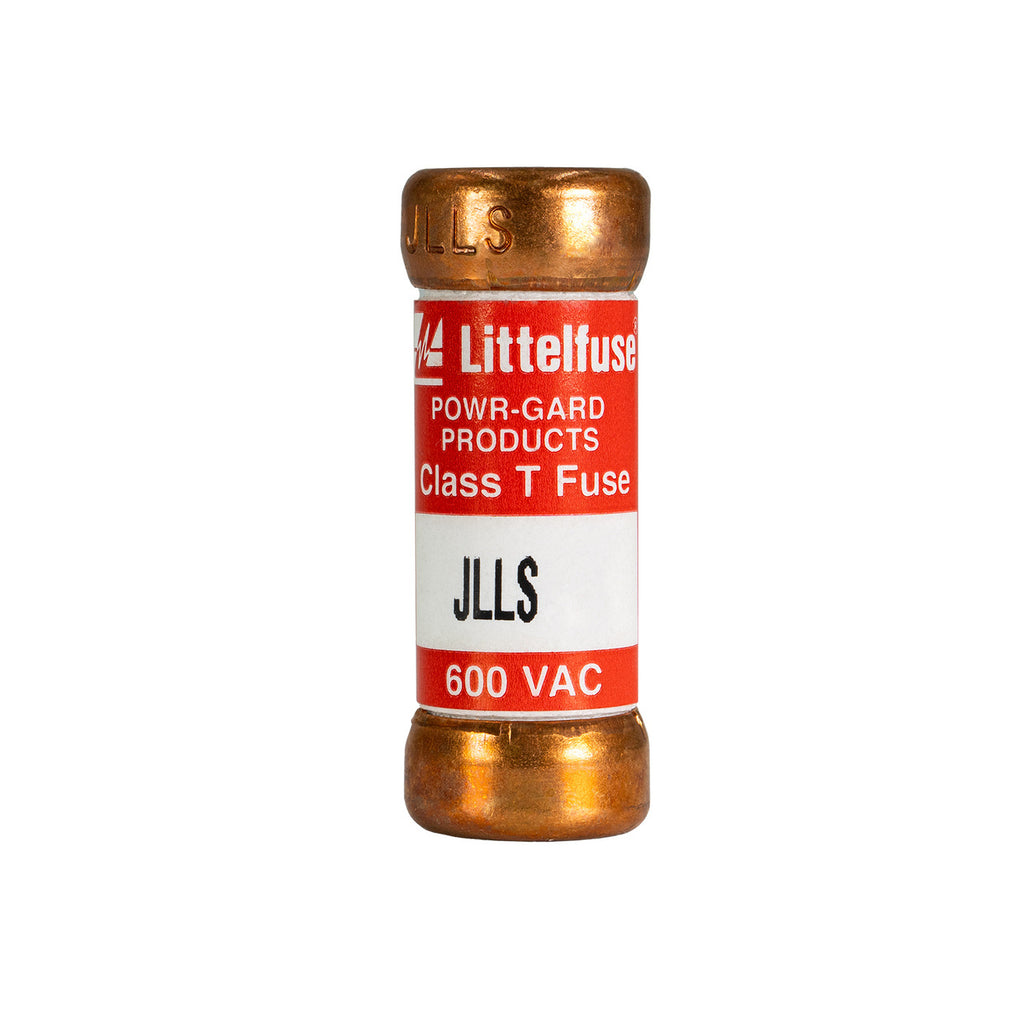

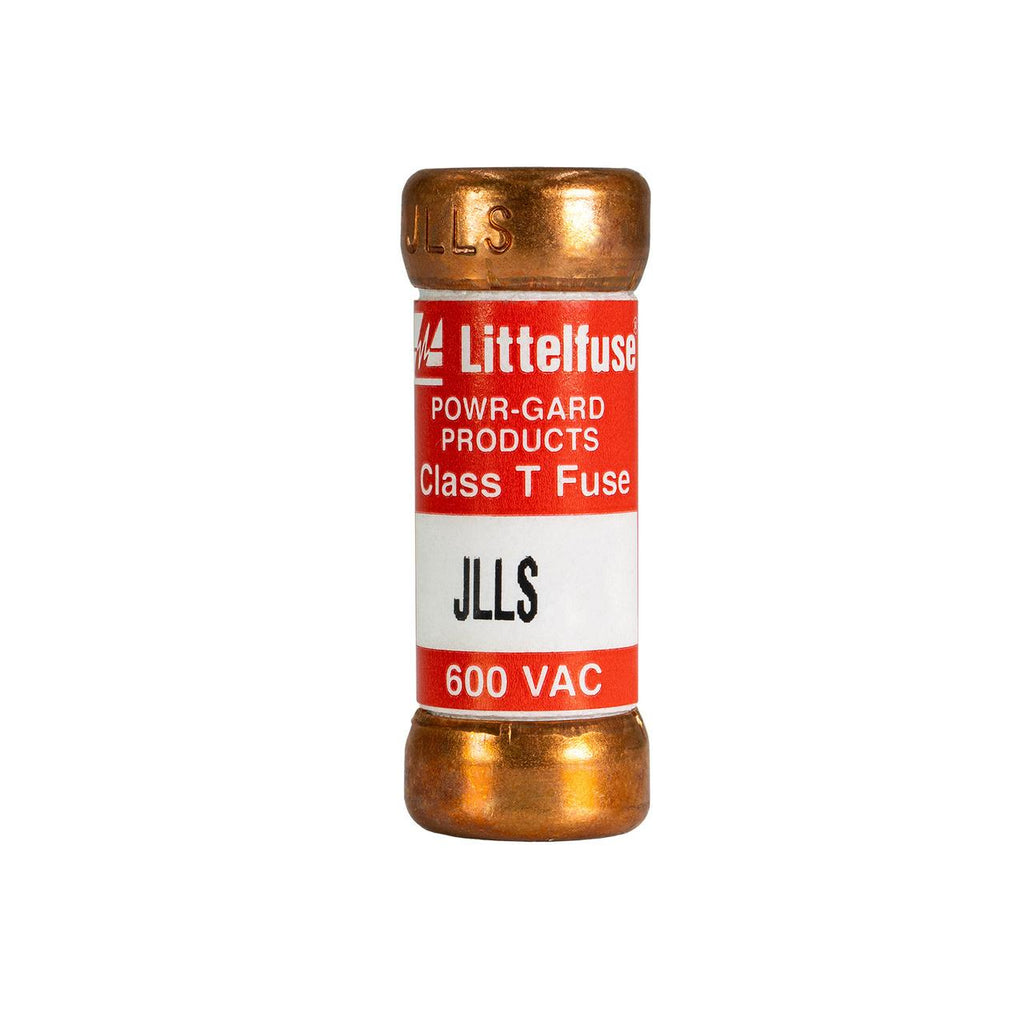

JLLS-002 is a Littelfuse 2 Amp, 600 Volt AC Class T fast acting fuse designed for compact and reliable circuit protection.This fuse features a very fast acting, current limiting design ideal for variable speed drive protection and other industrial applications. It has a compact cylindrical body measuring 9/16" diameter by 1 1/2" length, rated for 600 VAC and 300 VDC, with an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The JLLS-002 is UL Listed, CSA Certified, RoHS compliant, and meets UL 248-15 Class T standards.

Key Specifications
• Amperage: 2 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class T
• Fuse Type: Very Fast Acting, Current Limiting
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Physical Size: 9/16" diameter x 1 1/2" length
• Mounting Type: Cartridge Fuse
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
• Compact design for variable speed drive protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLLS-002
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLS
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.28
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 07945819041
• GTIN : 00079458190410
• Weight : 0.08
