Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN500

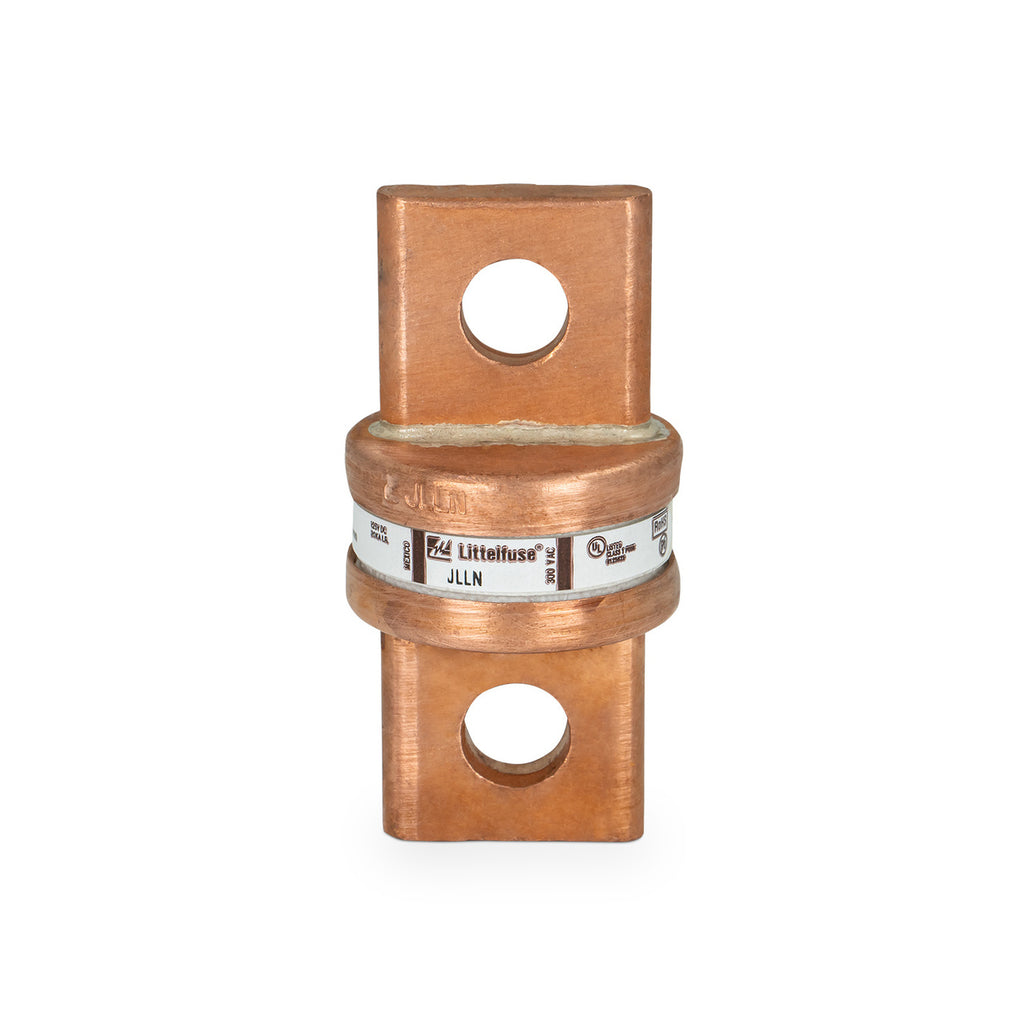

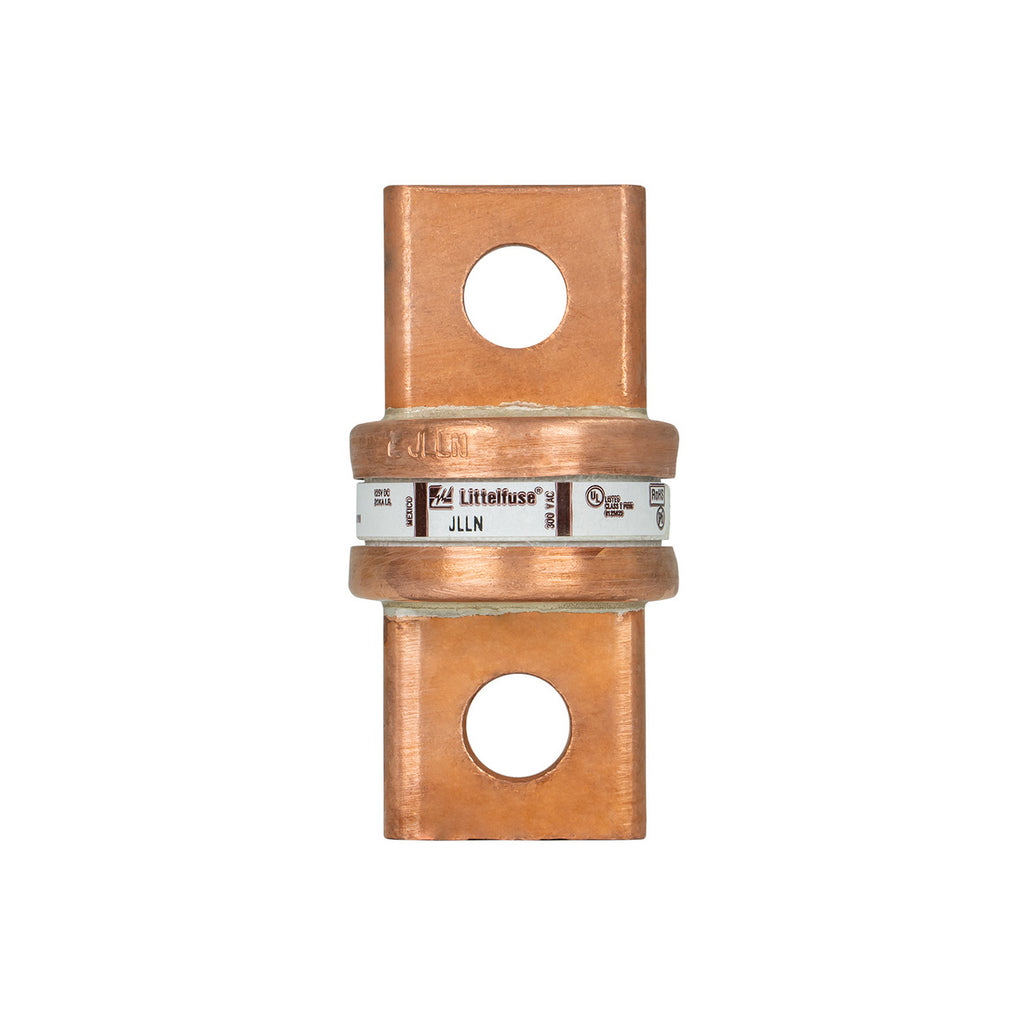

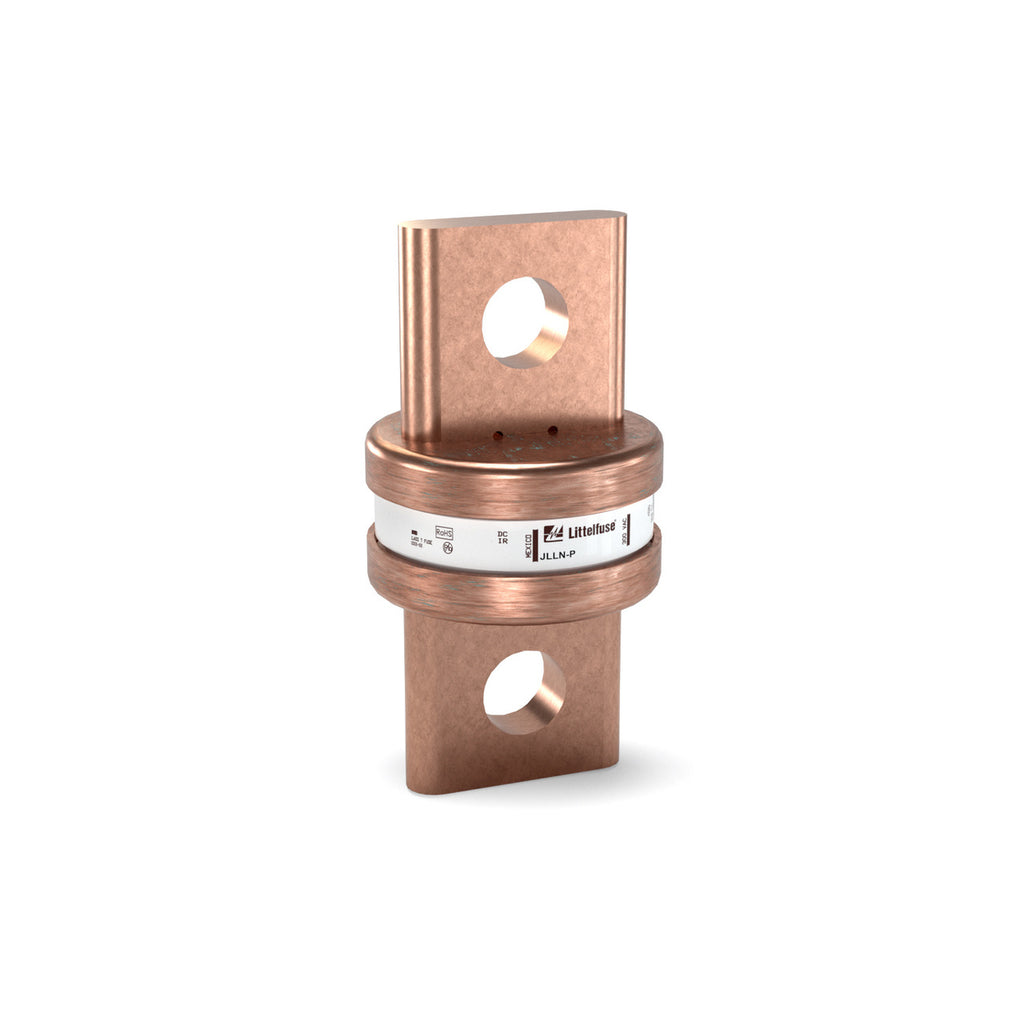

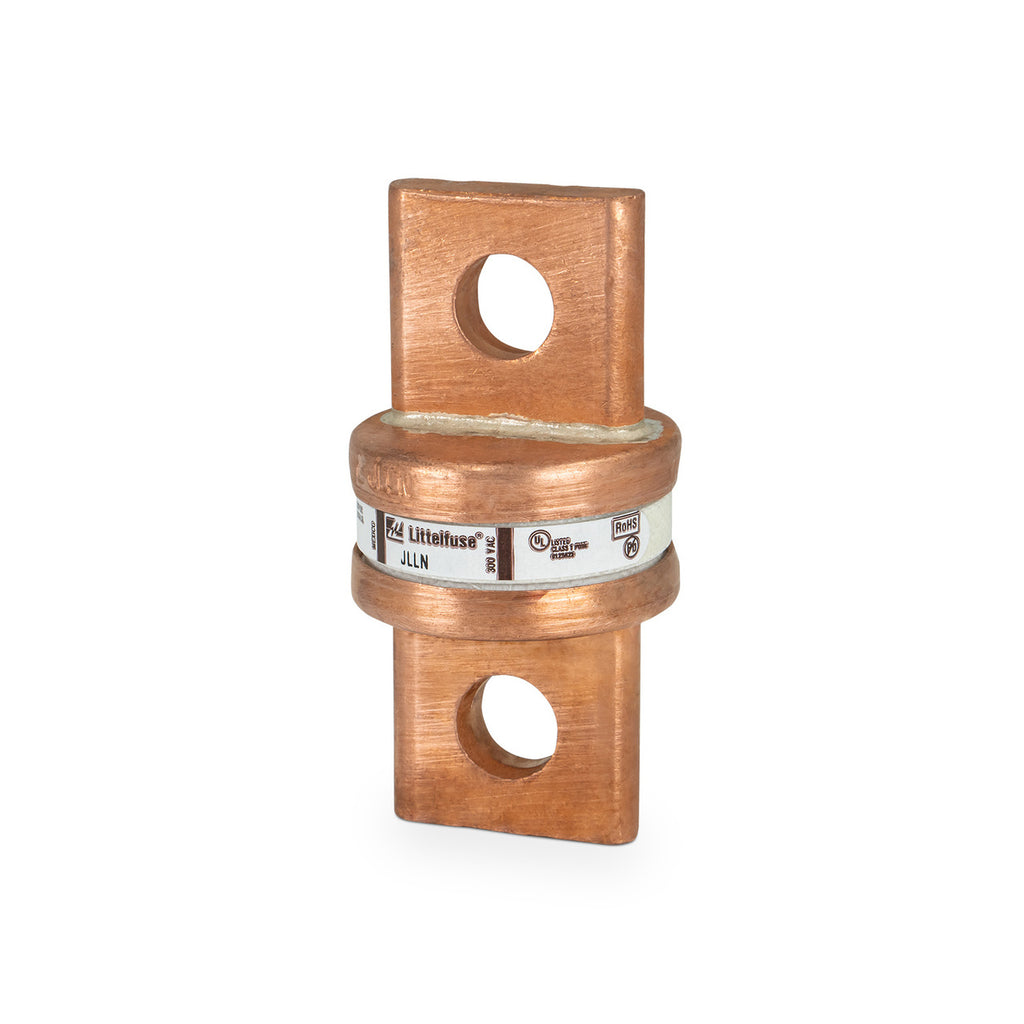

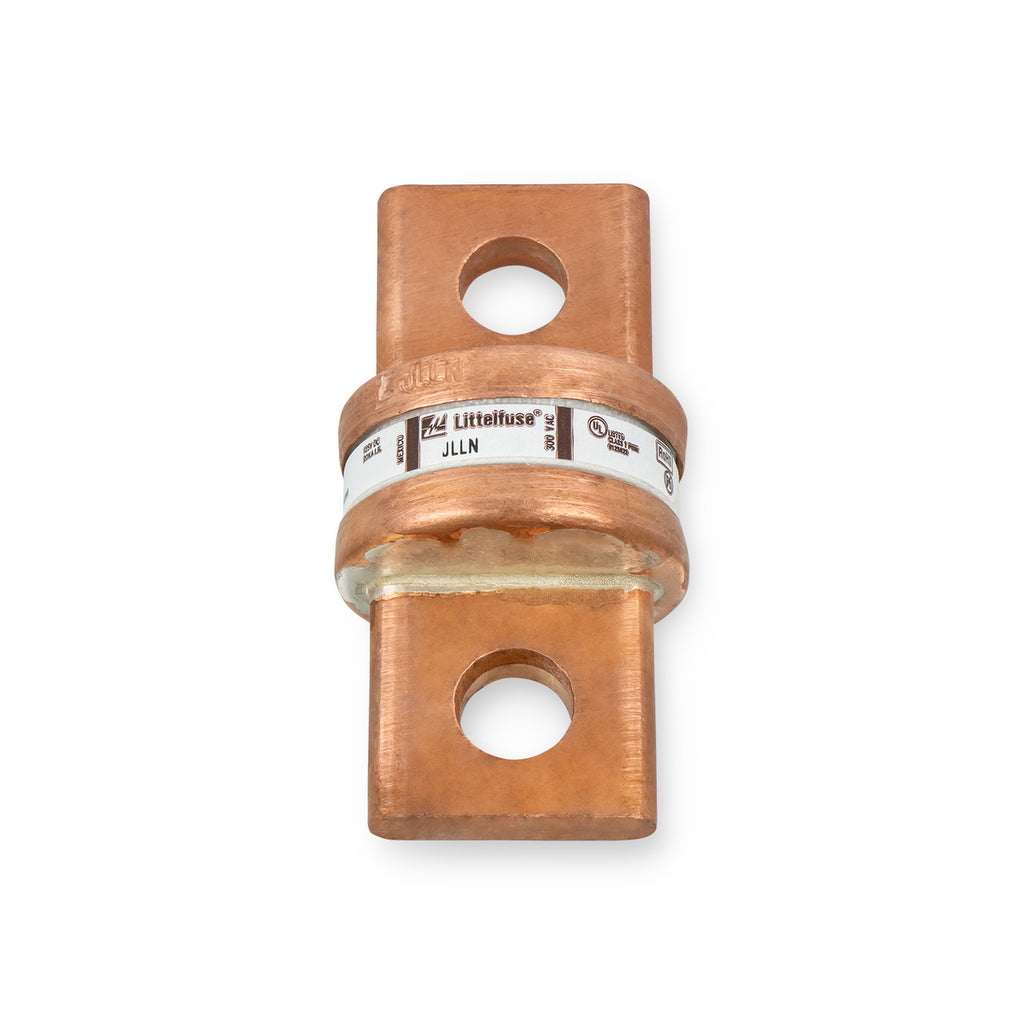

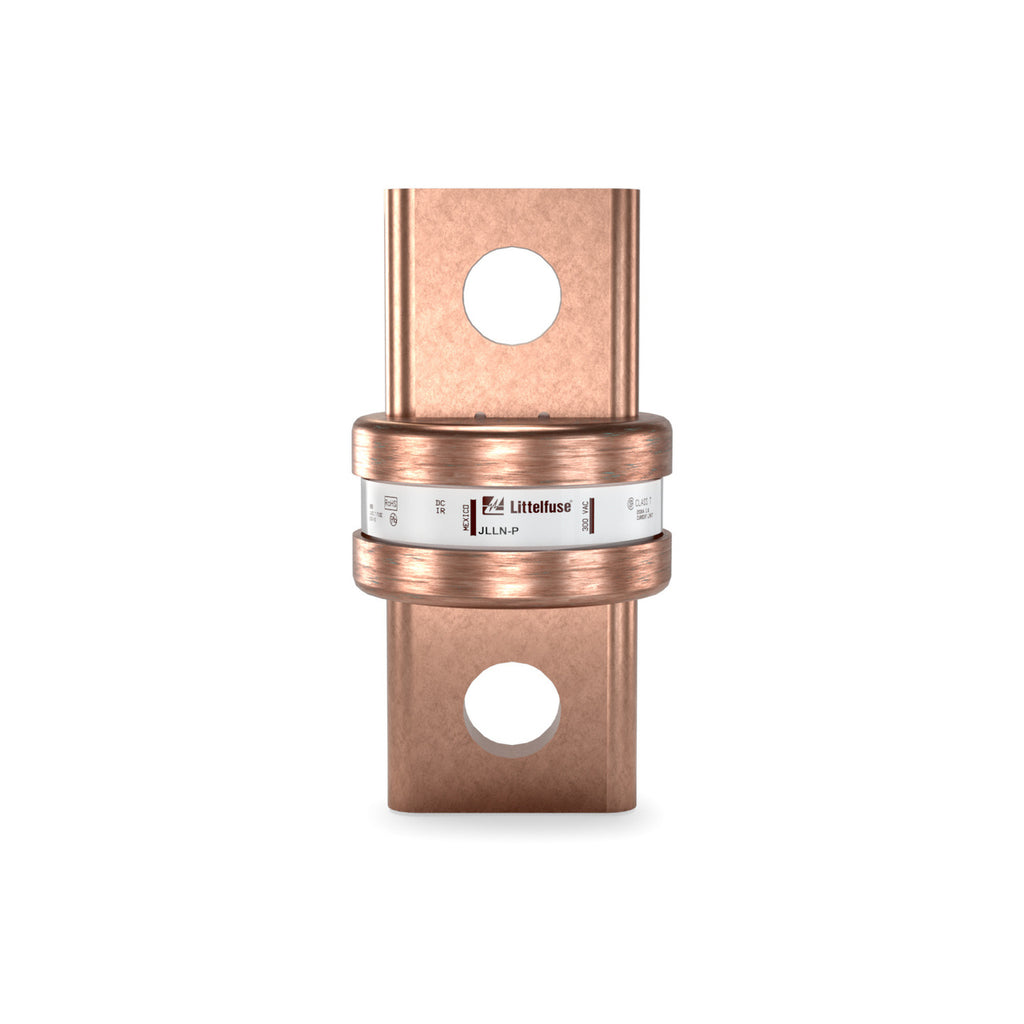

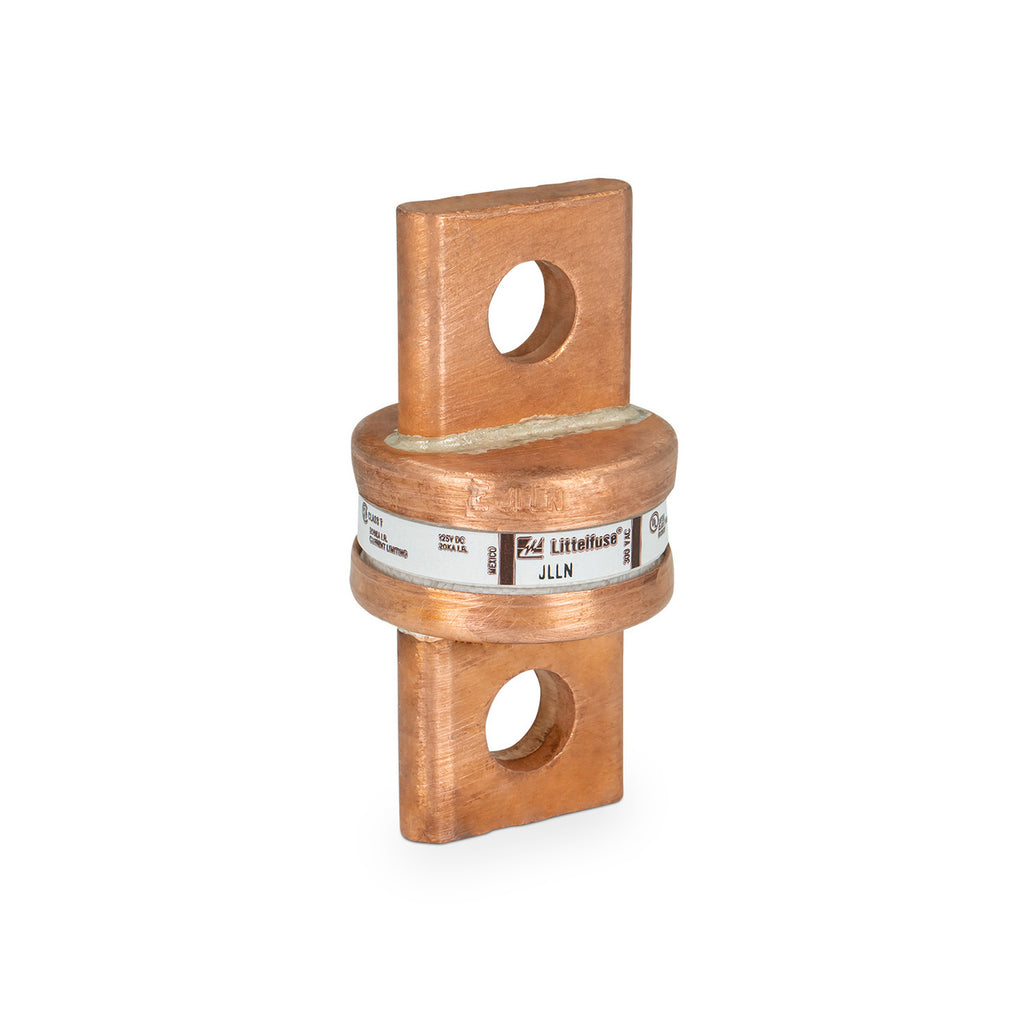

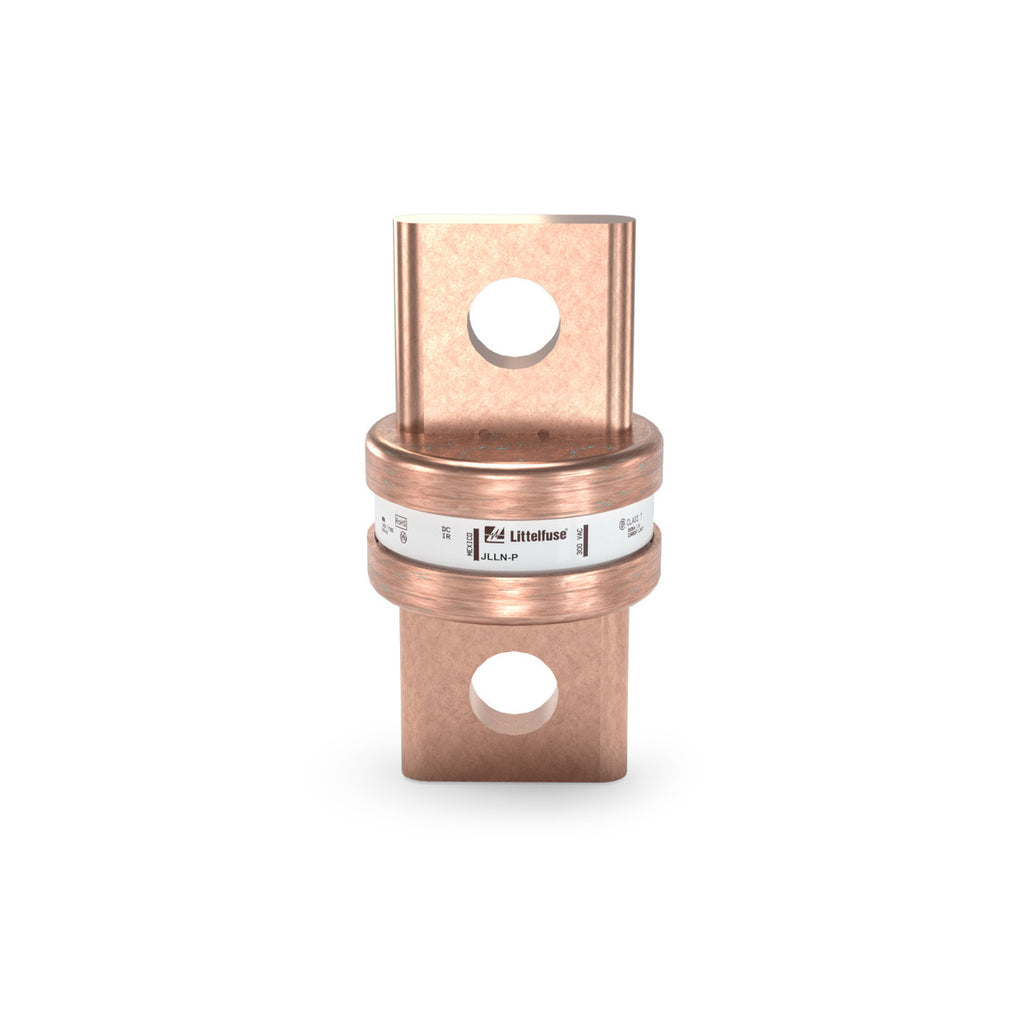

JLLN500 is a Littelfuse Class T fast-acting cartridge fuse rated for 500 amperes at 300 volts AC and 125 volts DC, designed for compact short-circuit protection in variable speed drives and power conversion applications. This current-limiting fuse delivers extremely compact protection with less than one-third the size of comparable Class R fuses, making it ideal for meter stacks, power supplies, and surge-sensitive components. The JLLN500 features a knife blade terminal configuration with melamine body construction and copper caps for reliable performance and durability.
- Amperage Rating: 500 A
- Voltage Rating: 300 V AC / 125 V DC
- Class: T
- Interrupt Rating: 200 kA AC rms symmetrical, 20 kA DC
- Body Type: Cartridge
- Terminal Type: Knife Blade
- Mounting Type: Holder
- Response Time: Fast Acting
- Current Limiting: Yes
- Material: Melamine body with copper caps
- Certifications: UL 248-15, CSA, CE
- Physical Dimensions: 1.593 in Dia x 3.062 in L
Specifications
- Part Number: JLLN500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLLN
- Type : JLLN
- Voltage : 300
- Amperage : 500
- AIC rating : 200kA@300Vac
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
- Velocity : FA - Fast Action
Product Data
- UPC : 007945818096
- GTIN : 00079458180961
- Weight : 0.42
