Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN450

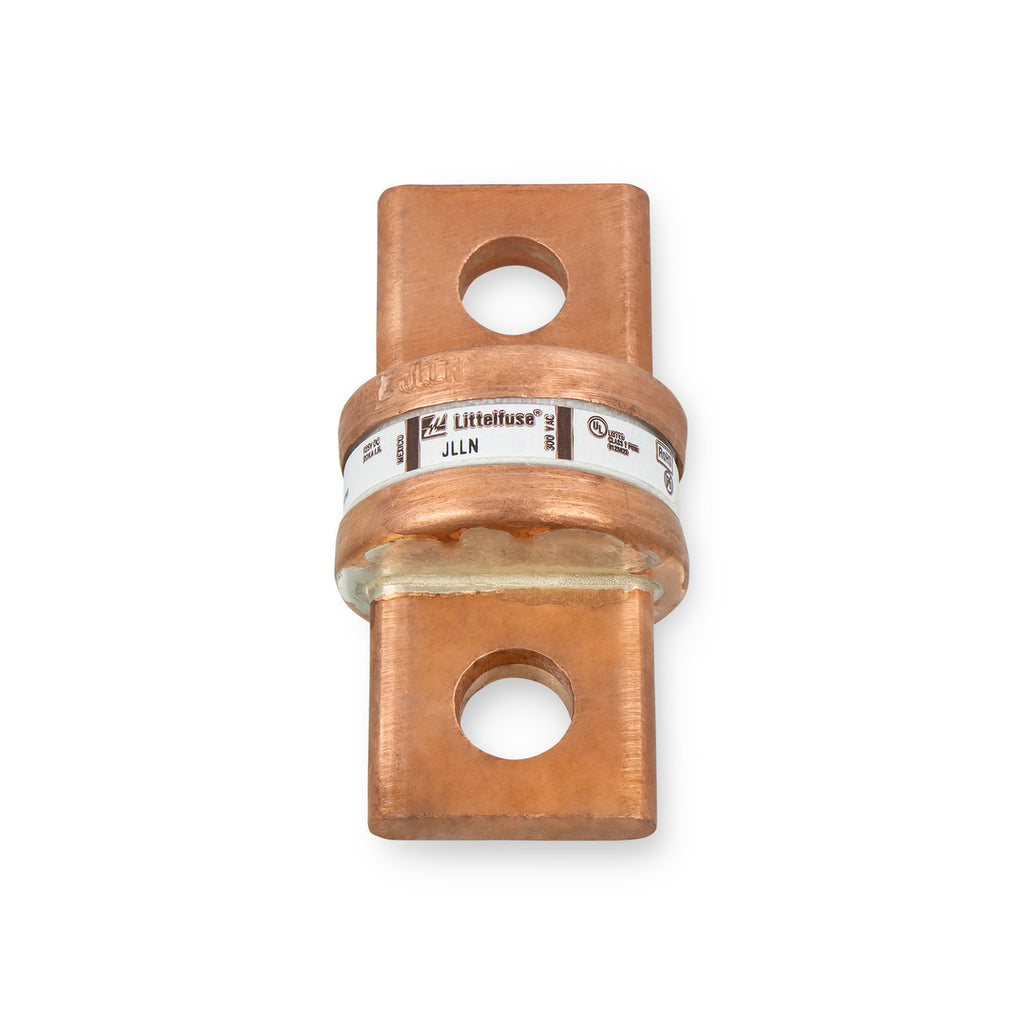

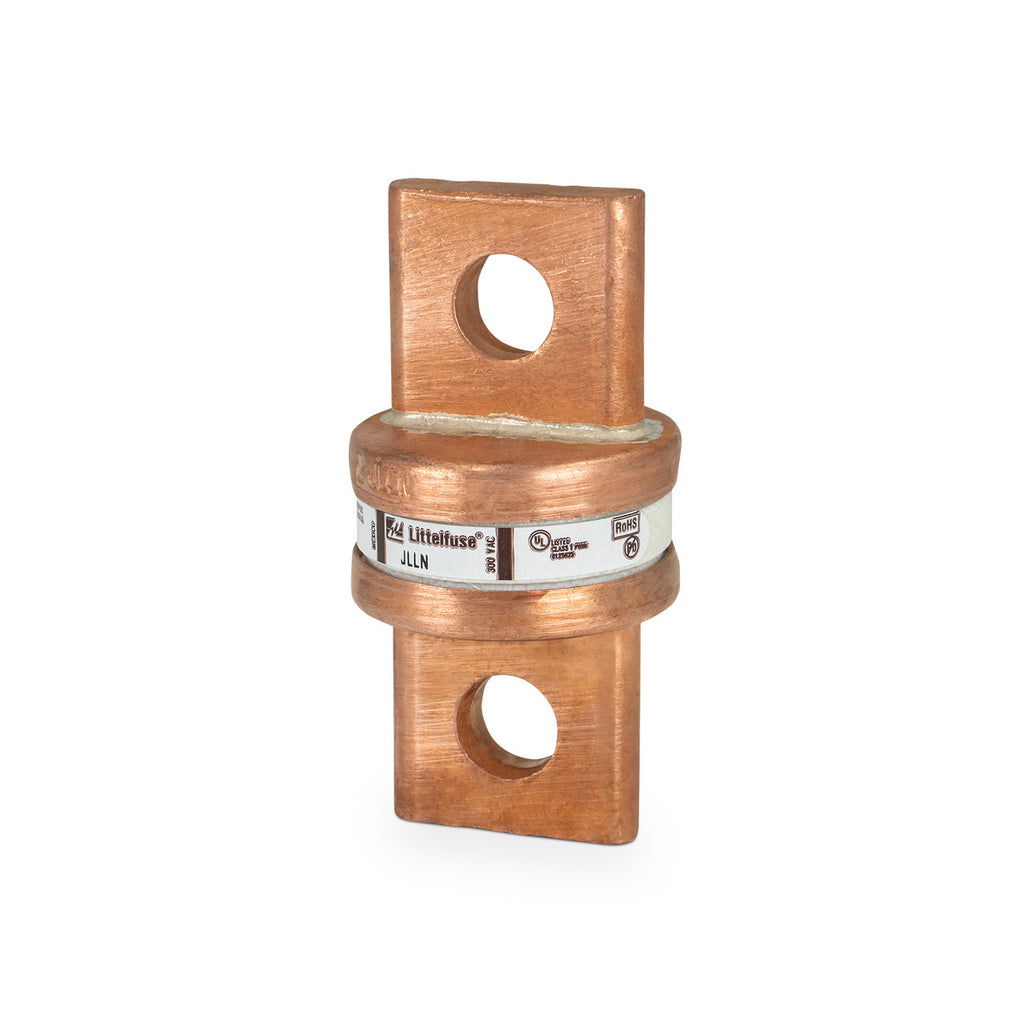

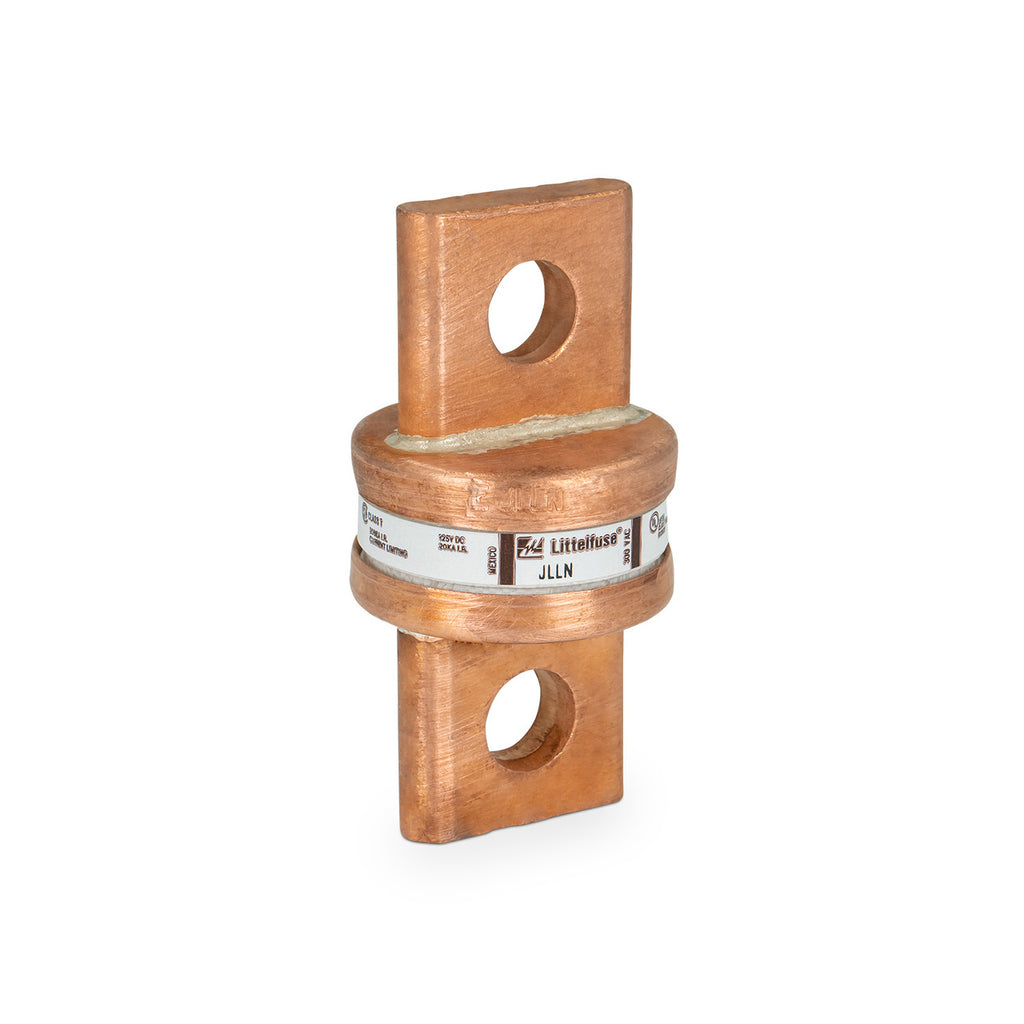

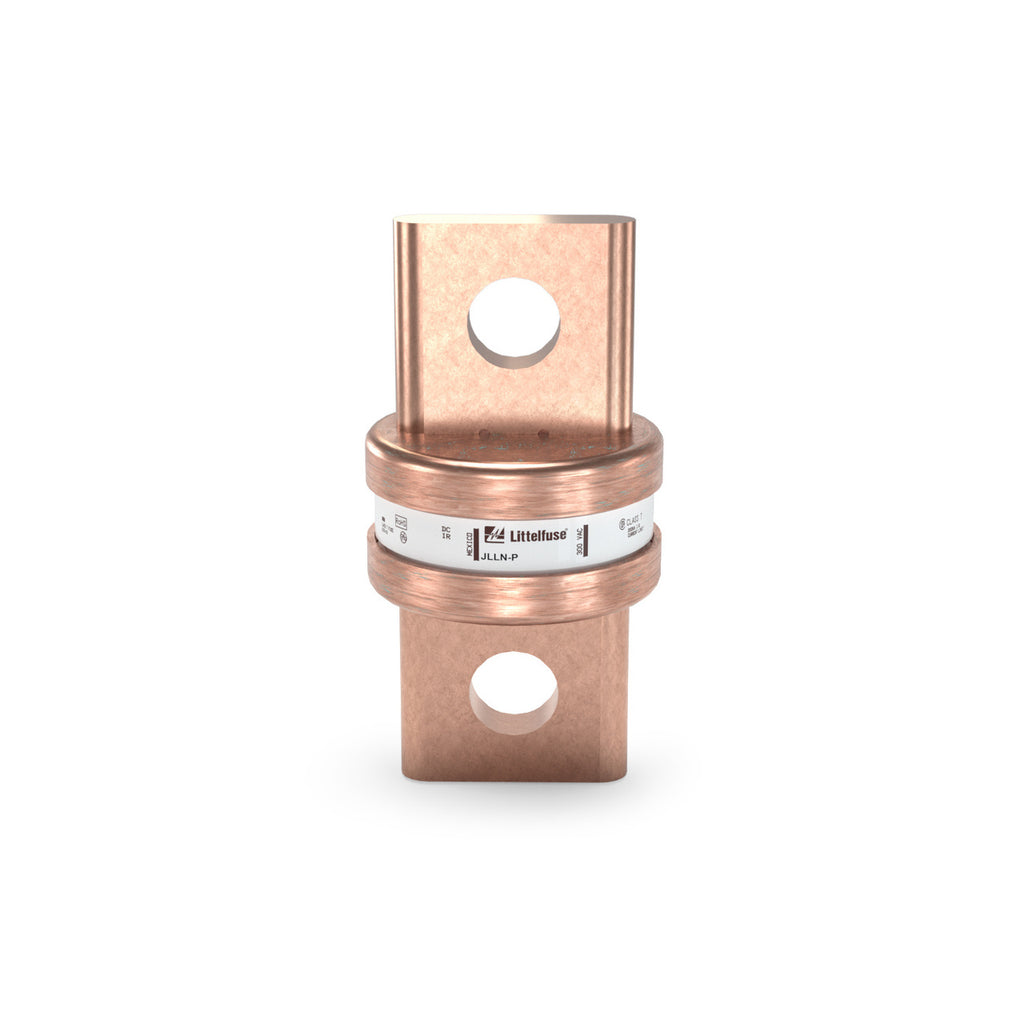

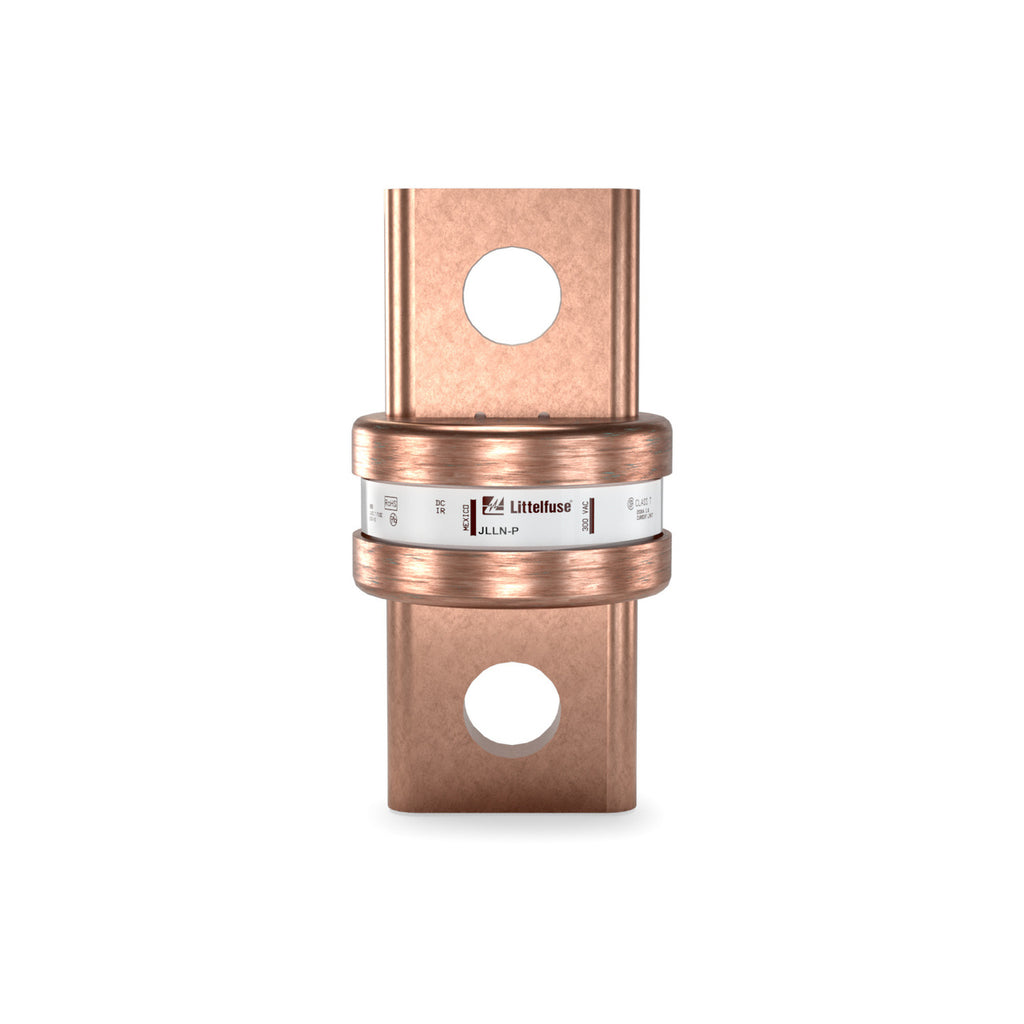

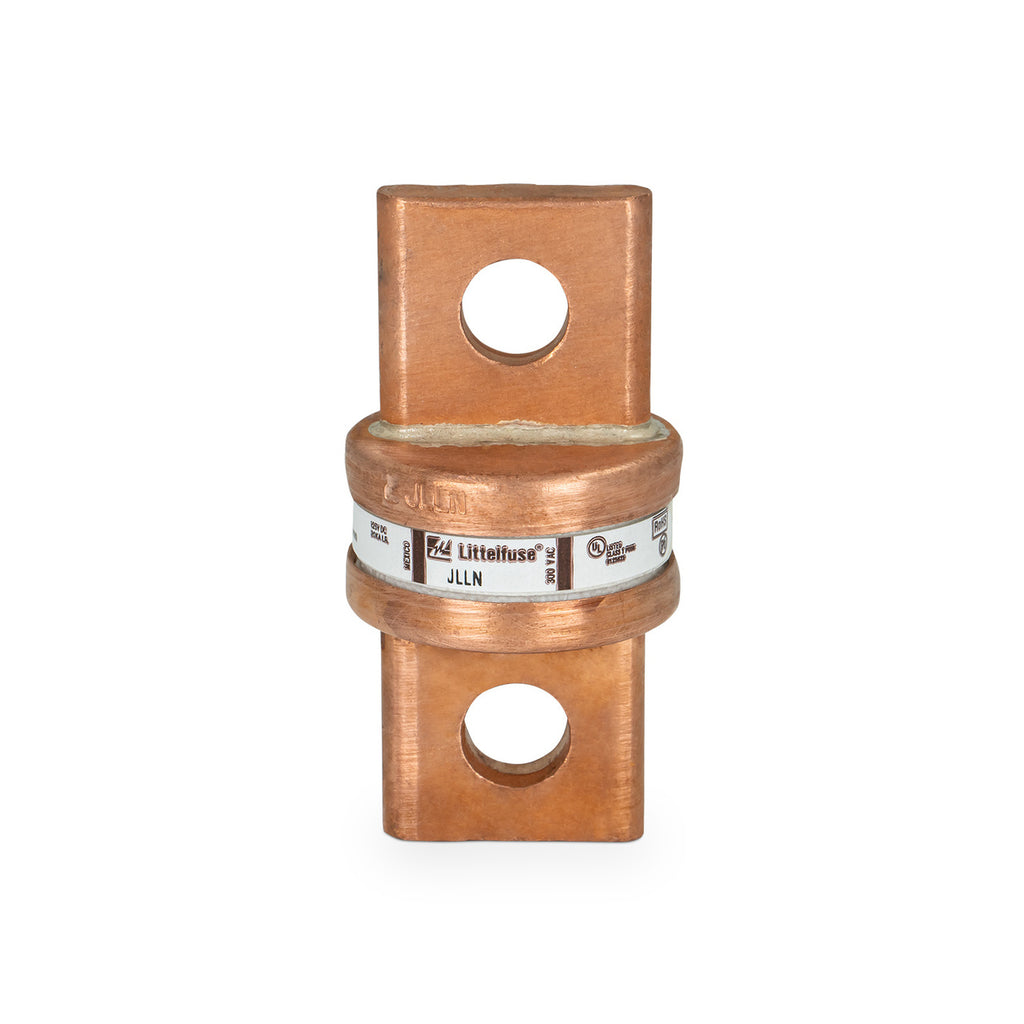

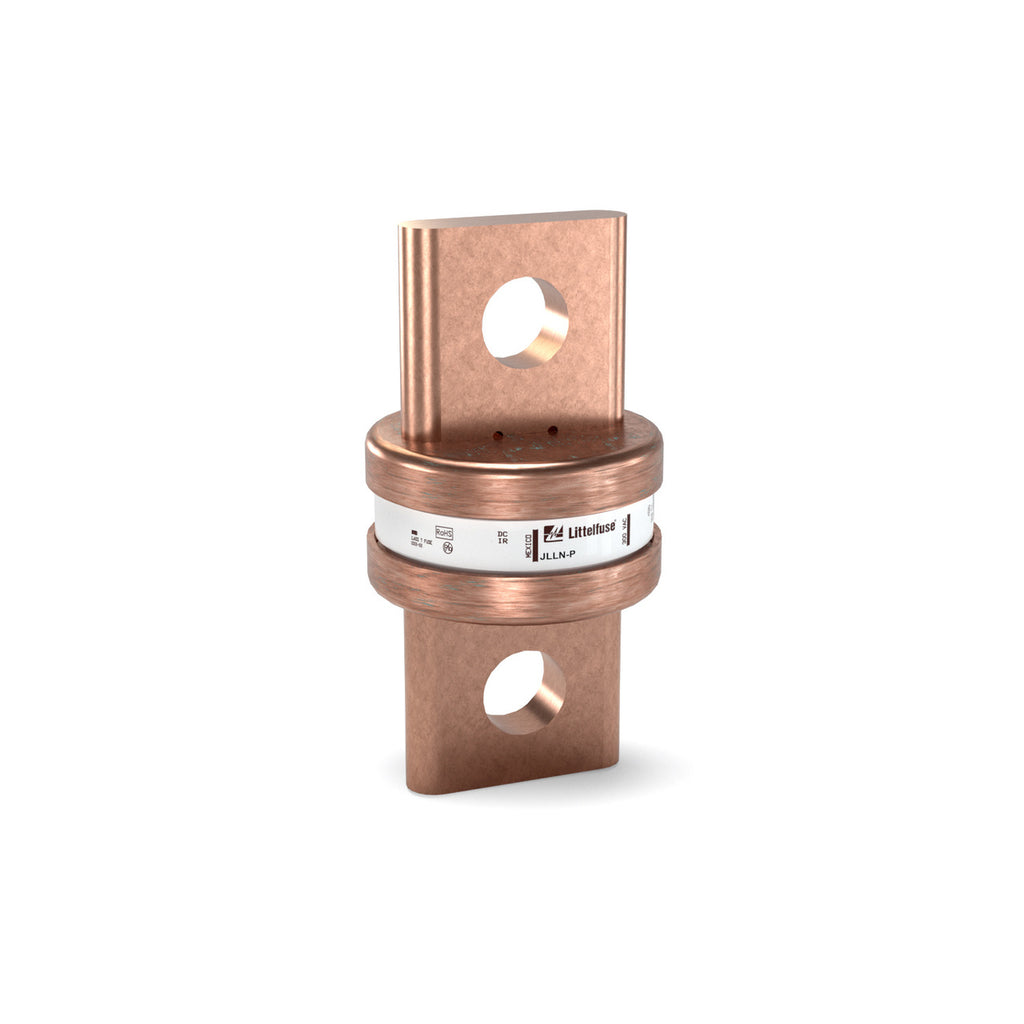

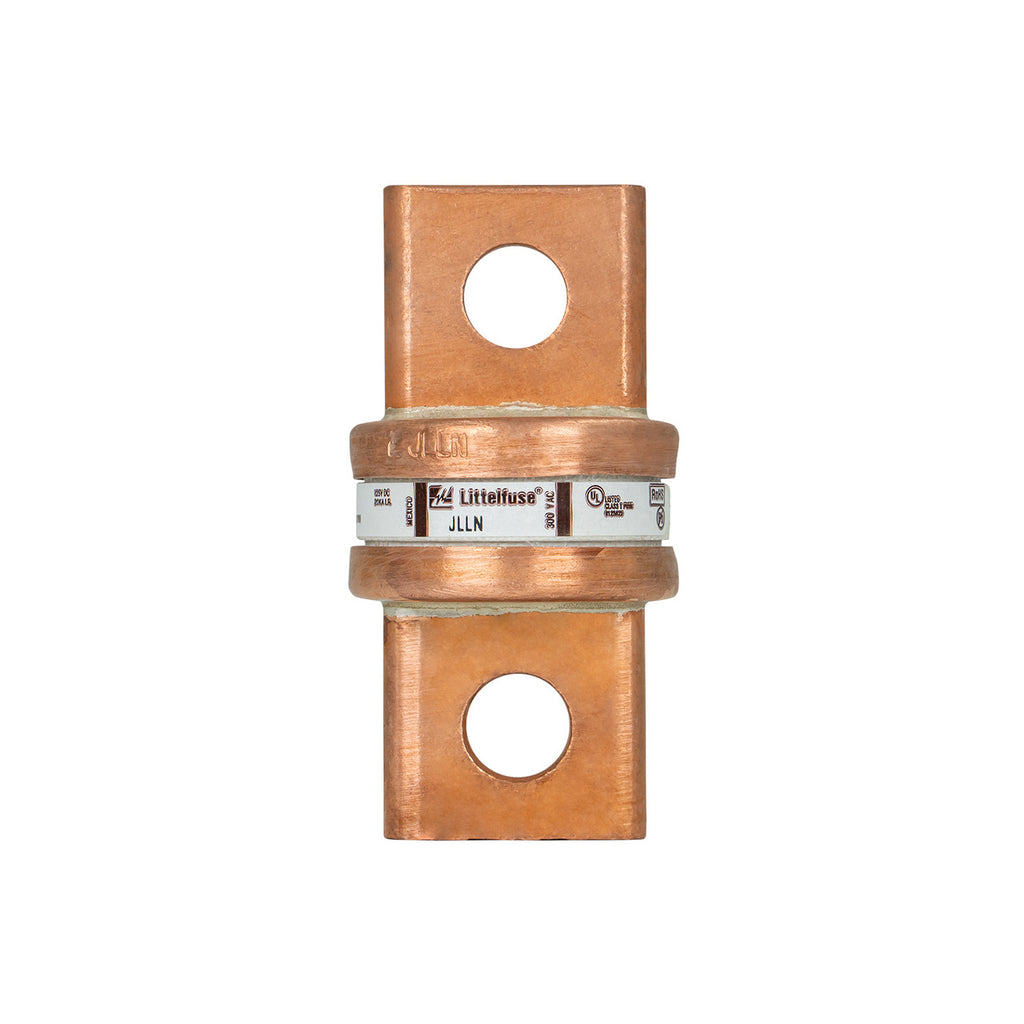

JLLN450 is a Littelfuse Class T fast acting cartridge fuse rated for 450 amps and 300 volts AC. It provides compact, high-performance circuit protection for sensitive electronic equipment.
The JLLN450 fuse features very fast acting, current limiting characteristics designed for short-circuit and overload protection in non-inductive circuits. It is suitable for use in variable speed drives, power conversion devices, and compact main switches. The fuse has a bolt mount cartridge design with a compact size of approximately 1.6 inches diameter by 3.06 inches length. It is UL listed, CSA certified, and RoHS compliant with an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 125 VDC.
- Key Specifications
- Current Rating: 450 Amps
- Voltage Rating: 300 VAC / 125 VDC
- Fuse Type: Fast Acting, Class T
- Mounting Type: Bolt Mount Cartridge
- Interrupting Rating: 200,000 AIC @ 300 VAC
- DC Interrupting Rating: 20,000 AIC @ 125 VDC
- Dimensions: Approx. 1.6 inch diameter x 3.06 inch length
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Compact design for space-saving installation
- Application: Variable speed drives, power conversion, surge-sensitive components
- Part Number: JLLN450
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLLN
- Type : JLLN
- Voltage : 300
- Amperage : 450
- AIC rating : 200kA@300Vac
- Connection : Bolt-In
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
- Velocity : FA - Fast Action
- UPC : 079458180954
- GTIN : 00079458180954
- Weight : 3
