Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
JLLN350

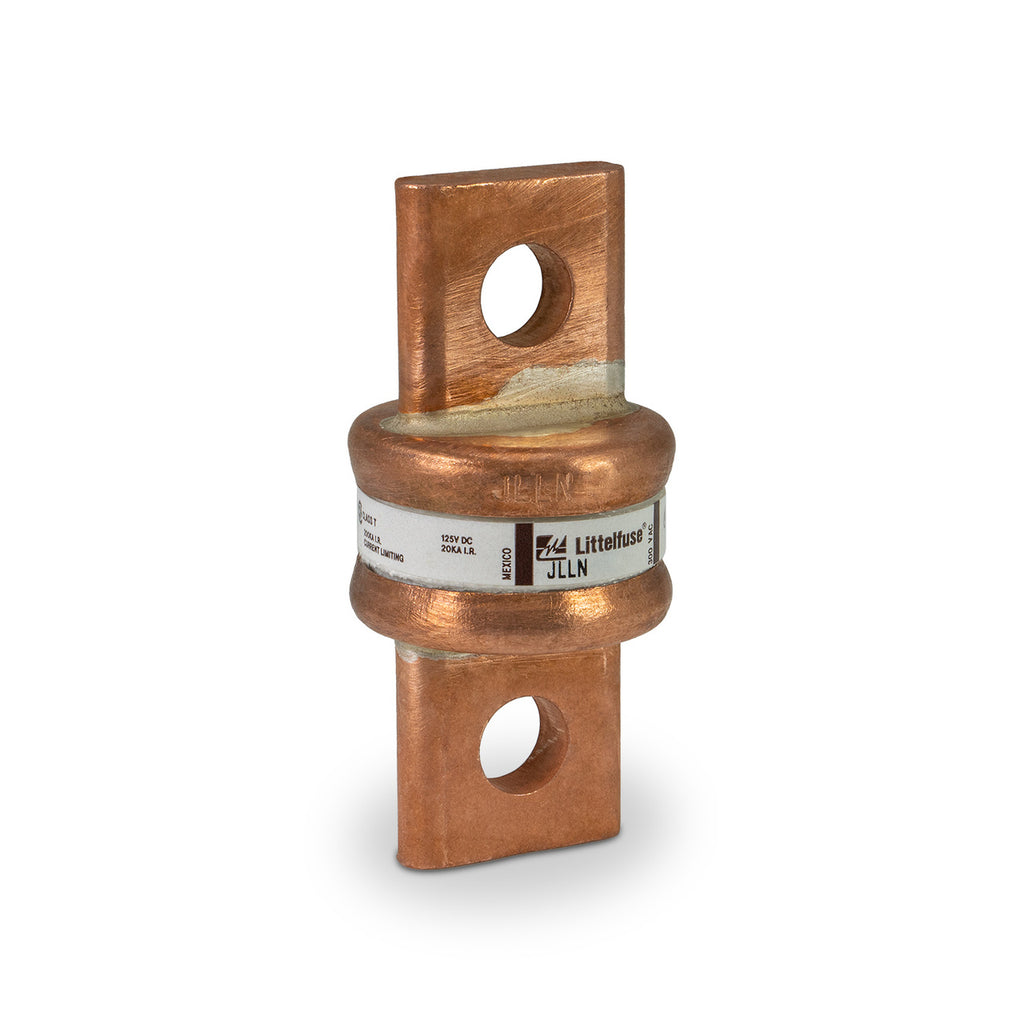

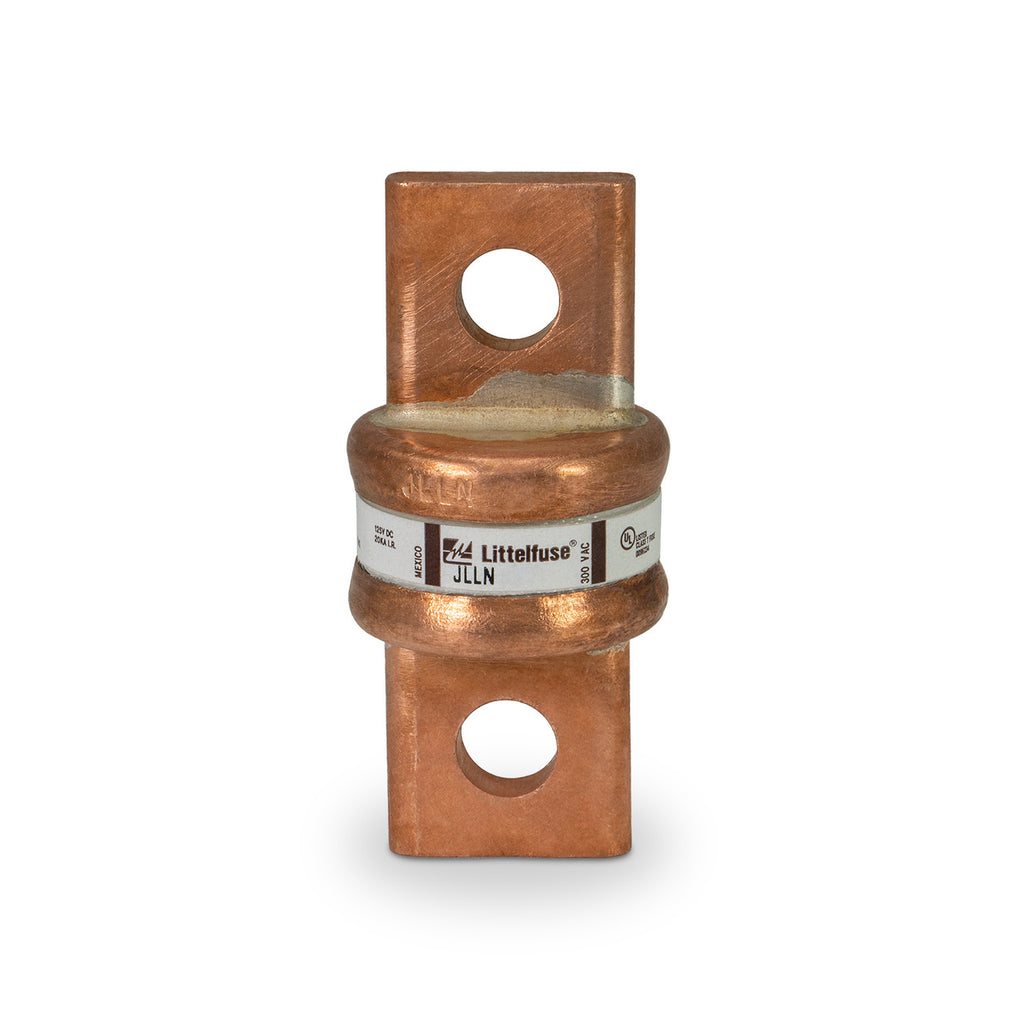

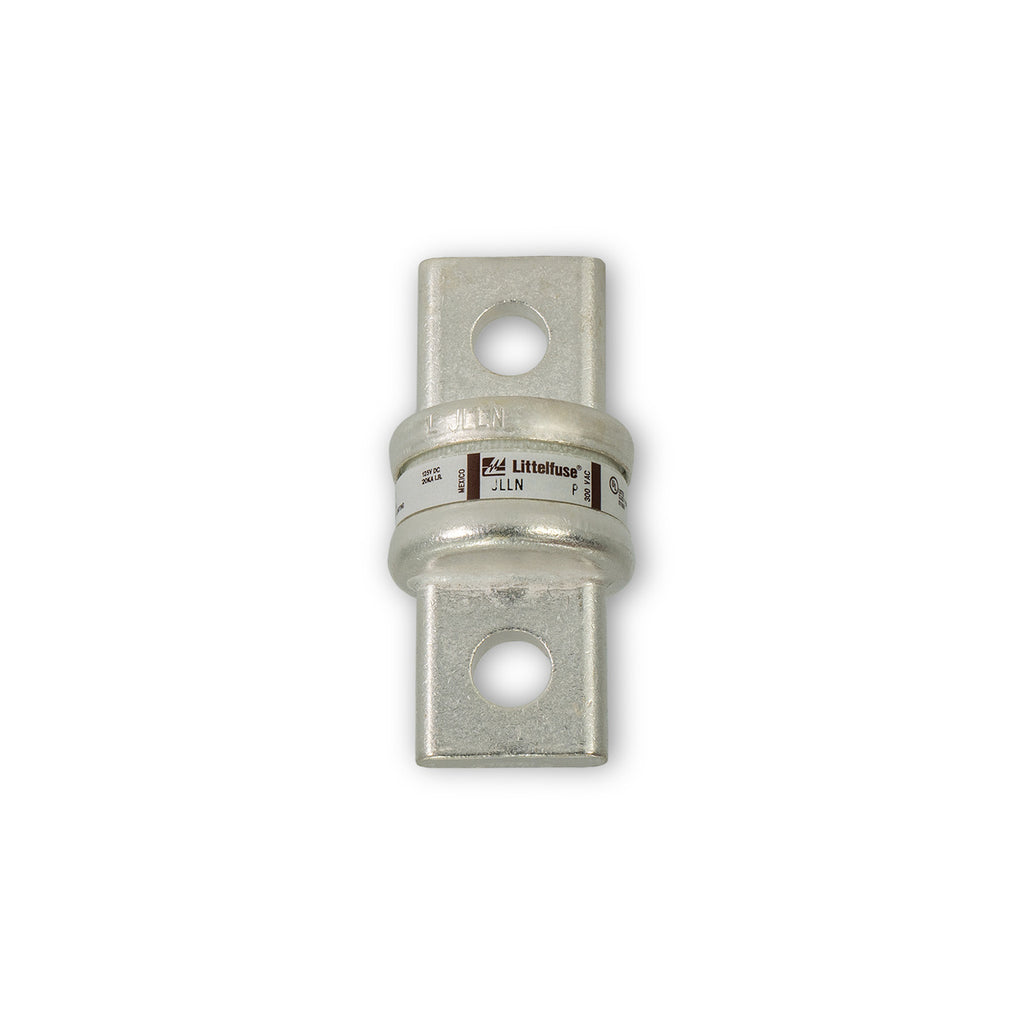

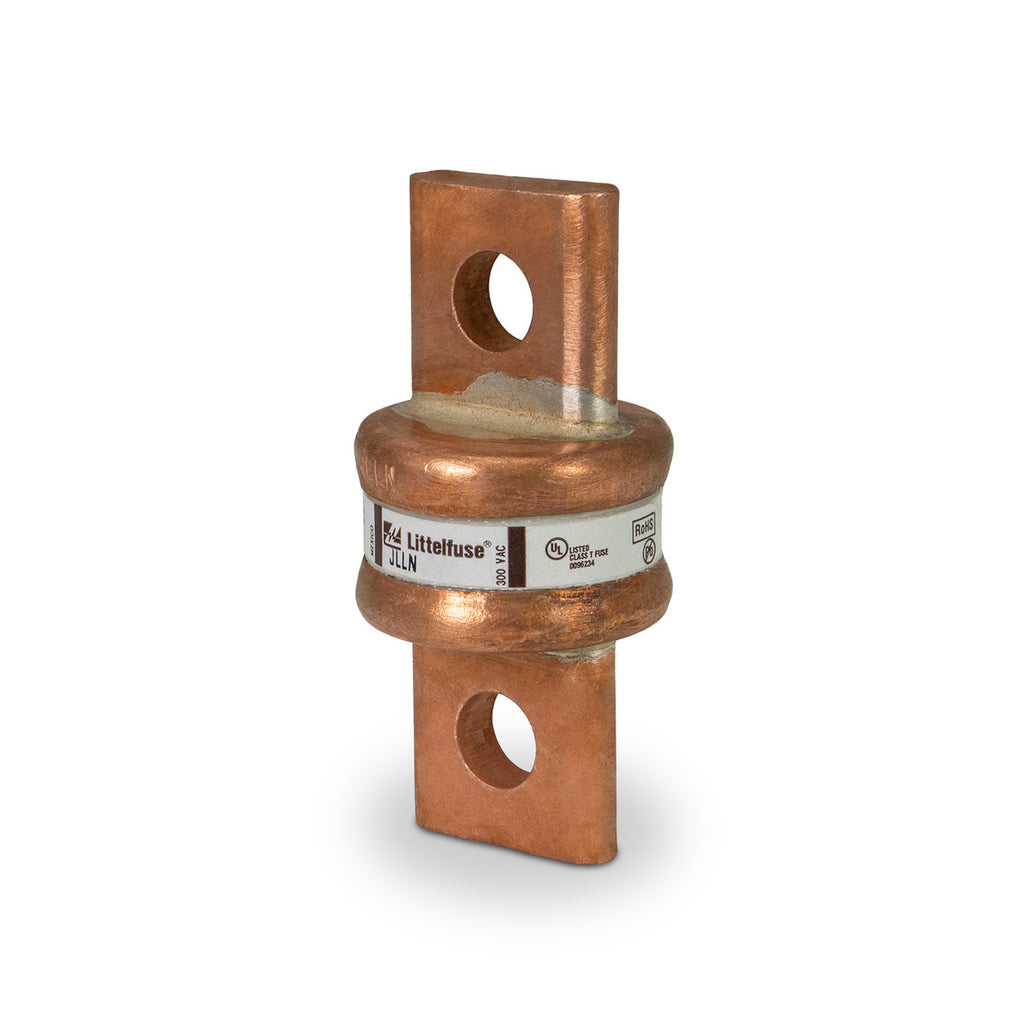

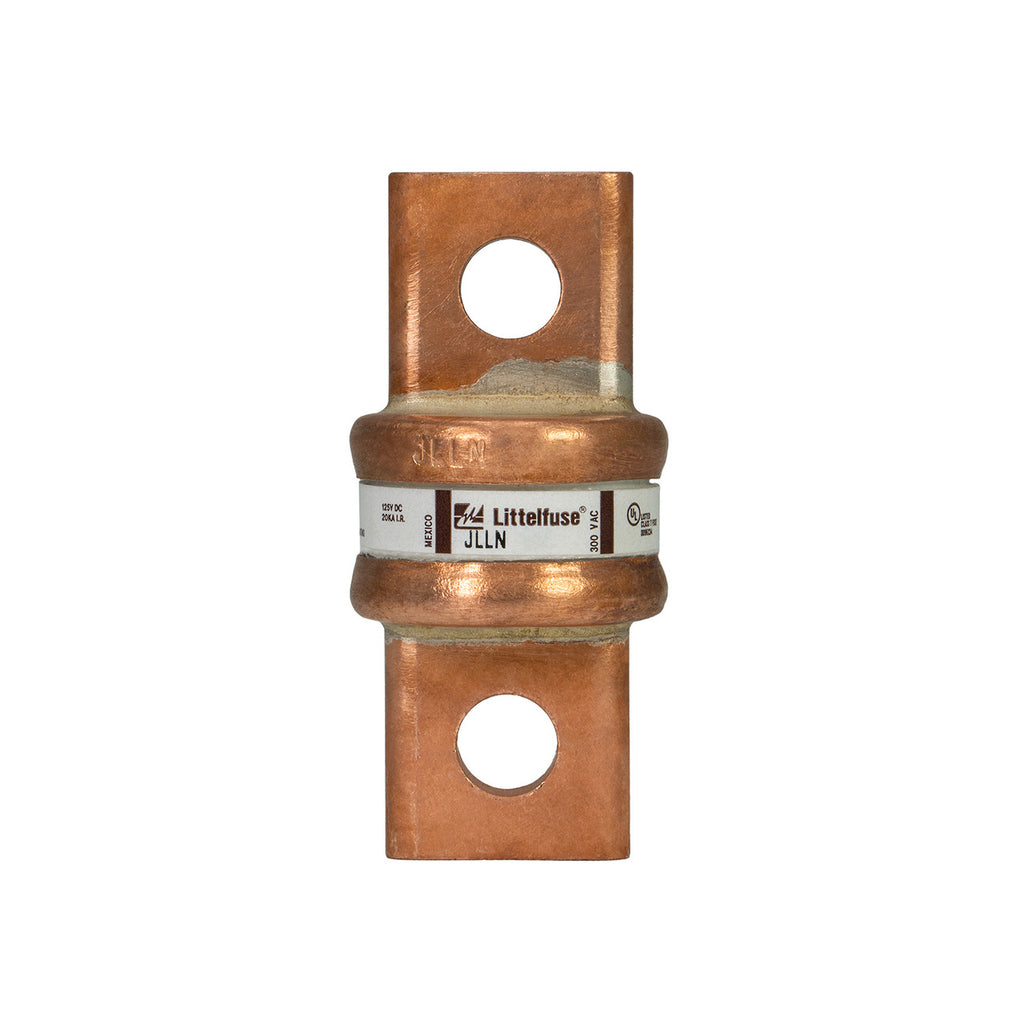

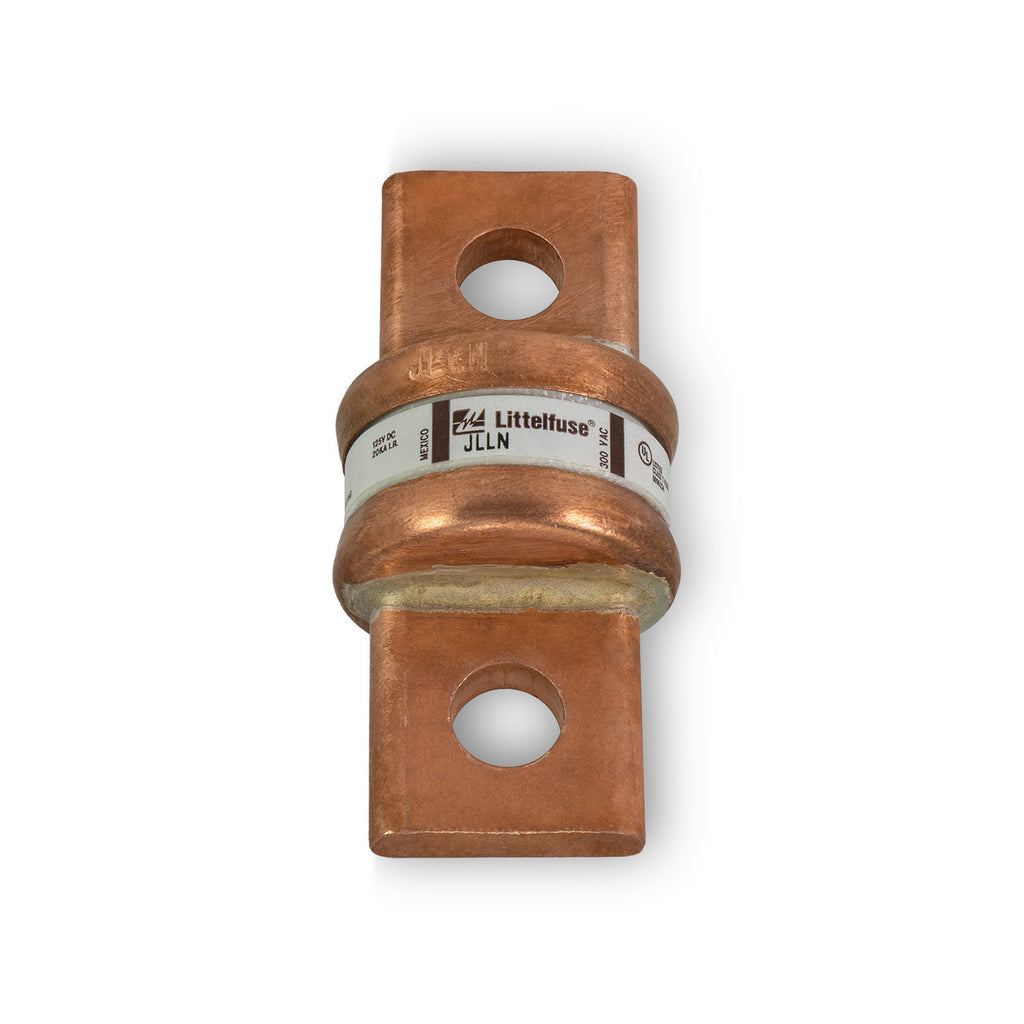

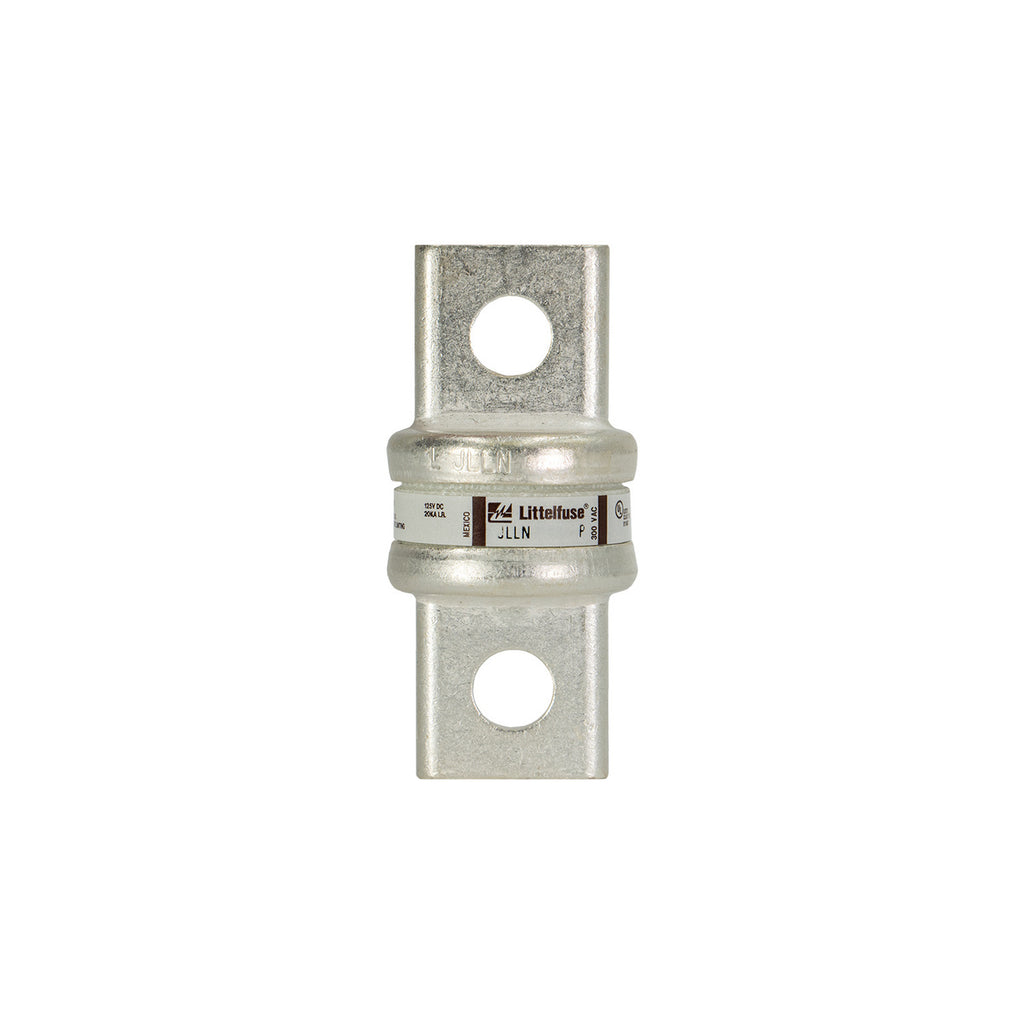

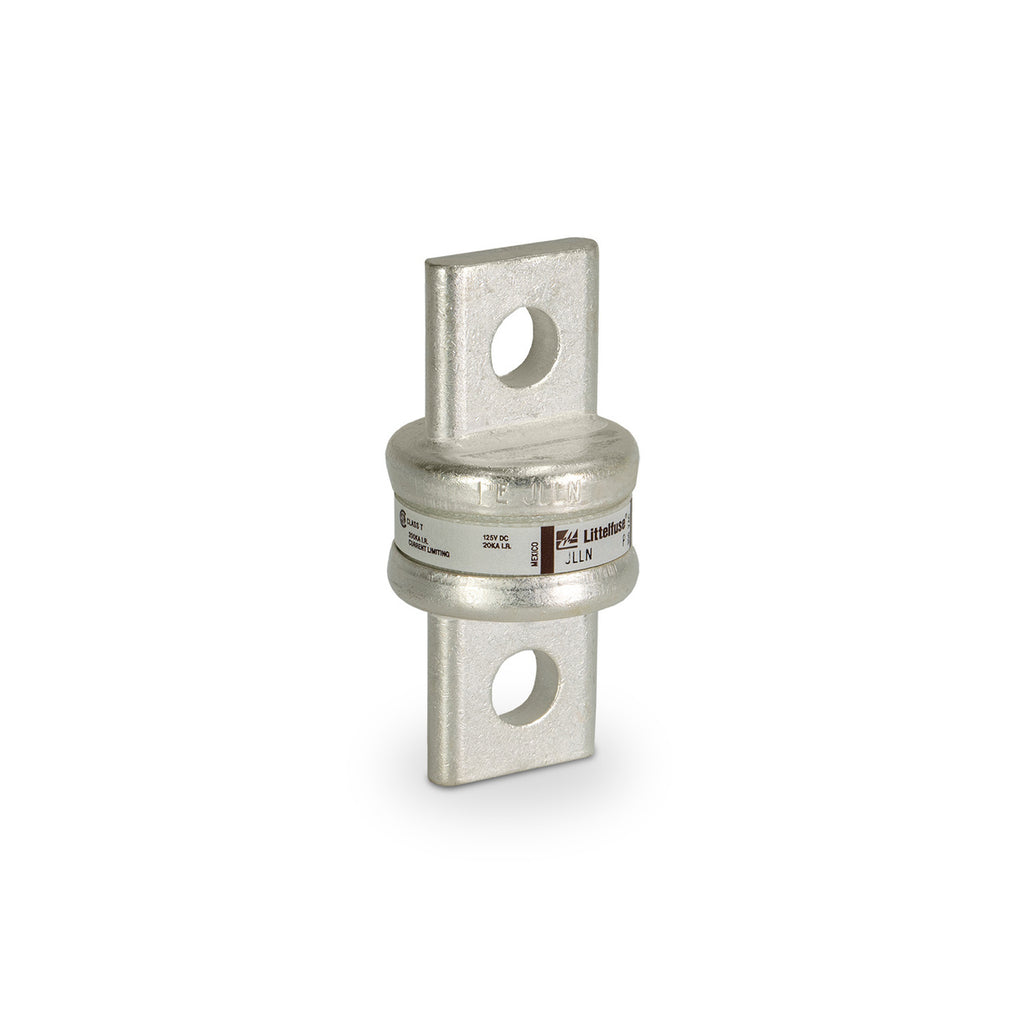

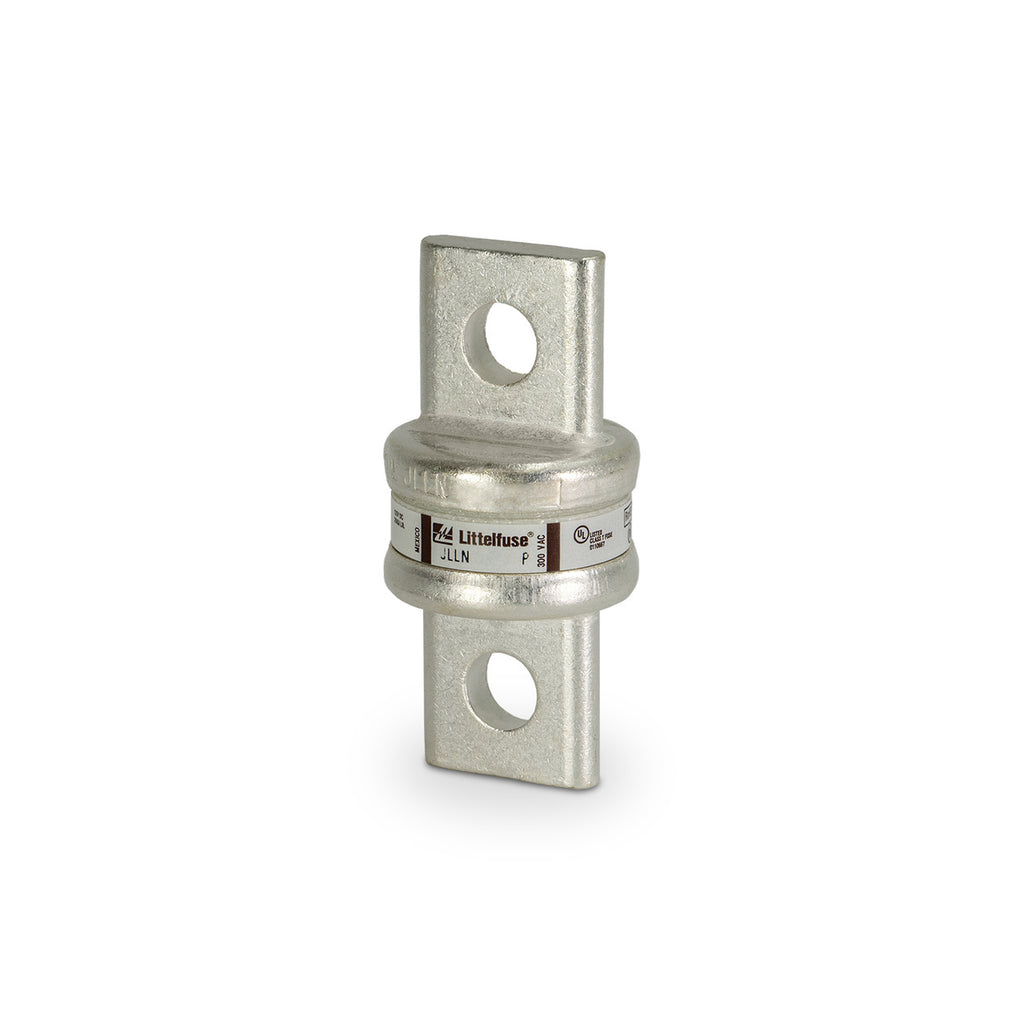

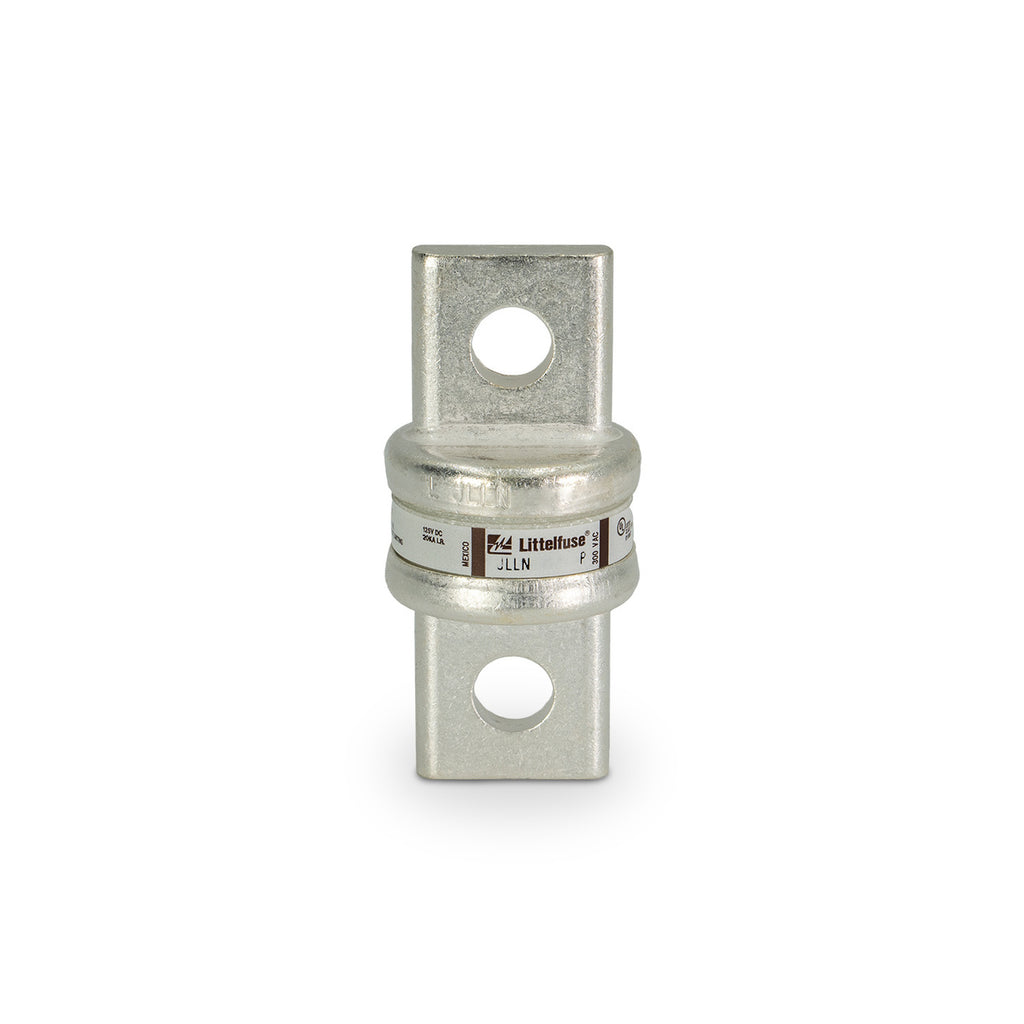

JLLN350 is a Littelfuse Class T fast-acting fuse designed for high-performance circuit protection in industrial and commercial applications. This compact, current-limiting fuse offers reliable protection for variable speed drives and other demanding electrical systems. The JLLN350 features a knife-blade style construction for secure mounting in compatible fuse blocks or holders. It is rated for 350 amperes continuous current and provides a maximum AC voltage rating of 300 volts and a DC voltage rating of 125 volts. The fuse is fast-acting, ensuring rapid response to overcurrent conditions, and is current-limiting to minimize fault energy.
- 350A continuous current rating
- 300VAC maximum AC voltage
- 125VDC maximum DC voltage
- Class T fuse type
- Fast-acting response
- Current-limiting design
- Knife-blade mounting style
- Interrupting rating: 200,000AIC @ 300VAC
- Interrupting rating: 20,000AIC @ 125VDC
- UL Listed
- CSA Certified
- RoHS compliant
Specifications
- Part Number: JLLN350
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 350
- AIC rating : 200kA
Product Data
- UPC : 79458180923
- GTIN : 00079458180923
- Country of Origin : Mexico
- Dimensions : x 3-1/16 in x
- Weight : 3
- Certification : CE, UL 248-15 Class T, UL Listed, CSA Certified, RoHS
