Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN010

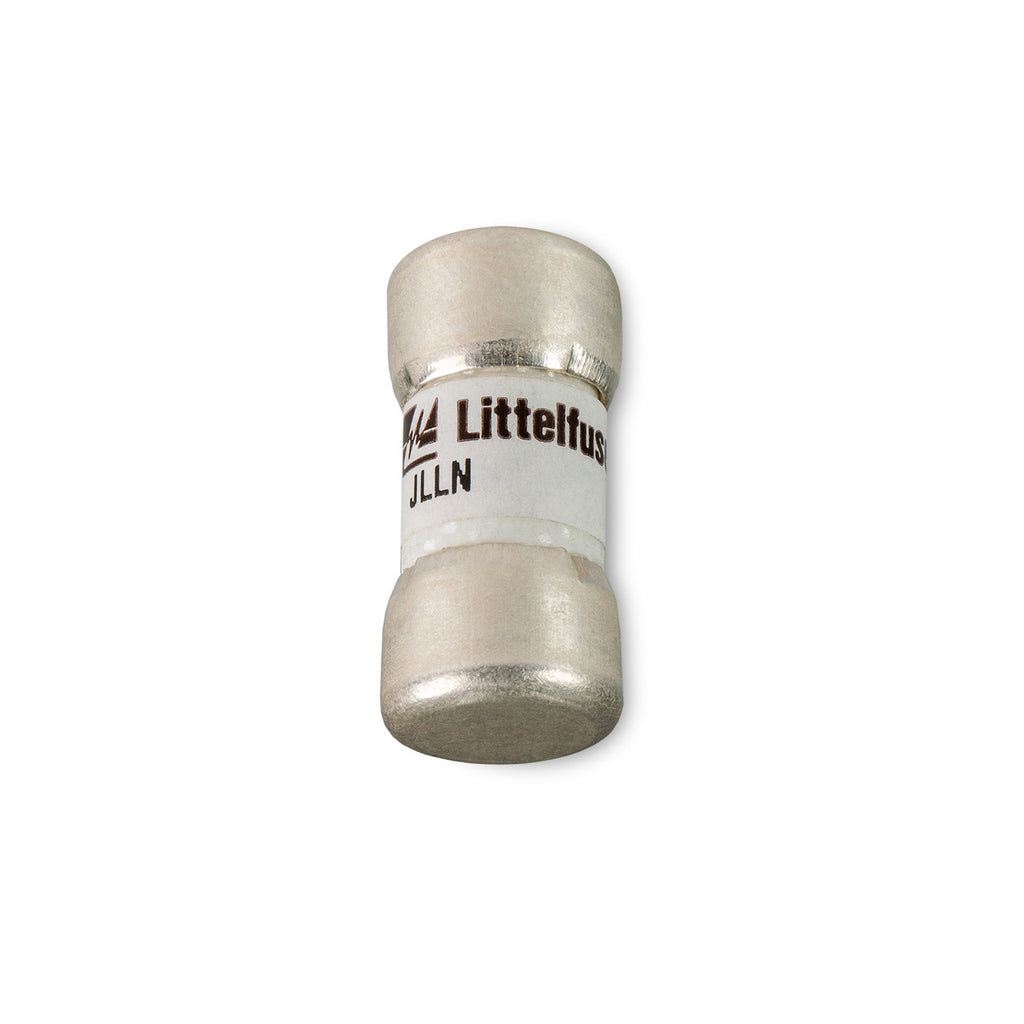

JLLN010 is a Littelfuse Class T fast acting fuse rated for 10 amps and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a current limiting design with very fast acting characteristics, suitable for protecting variable speed drives and other sensitive equipment. It has a cartridge body with a diameter of approximately 0.4 inches and a length of 7/8 inch. The fuse is UL listed and CSA certified, with an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 160 VDC. It is RoHS compliant and built to meet UL 248-15 standards.
- Amperage: 10 A
- Voltage Rating: 300 VAC, 160 VDC
- Fuse Class: T
- Interrupting Rating: 200,000 AIC @ 300 VAC, 20,000 AIC @ 160 VDC
- Fast Acting, Current Limiting
- Cartridge Style, 1 Pole
- Compact Size: 13/32" x 7/8" (approx.)
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- RoHS Compliant
Specifications
- Part Number: JLLN010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JLLN
- Type : JLLN
- Voltage : 300
- Amperage : 10
- AIC rating : 200kA@300Vac
- Connection : Ferrule
- Diameter : 0.4
- Class Rating : T
- Barrels : 1
- Velocity : FA - Fast Action
Product Data
- UPC : 079458180657
- GTIN : 00079458180657
- Country of Origin : Mexico
- Dimensions : x 7/8 in x
- Weight : 0.01
- Certification : CE, UL 248-15 Class T, UL Listed, CSA Certified, RoHS
