Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-600

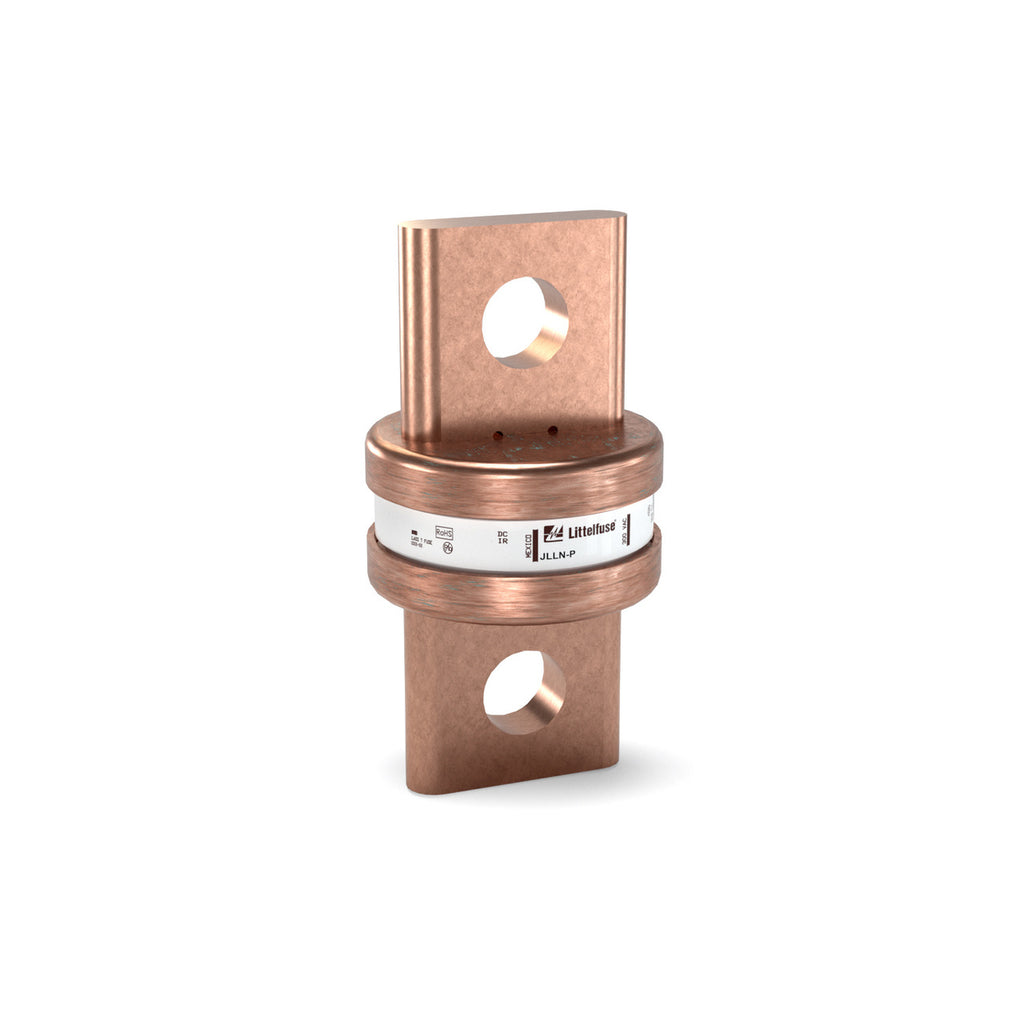

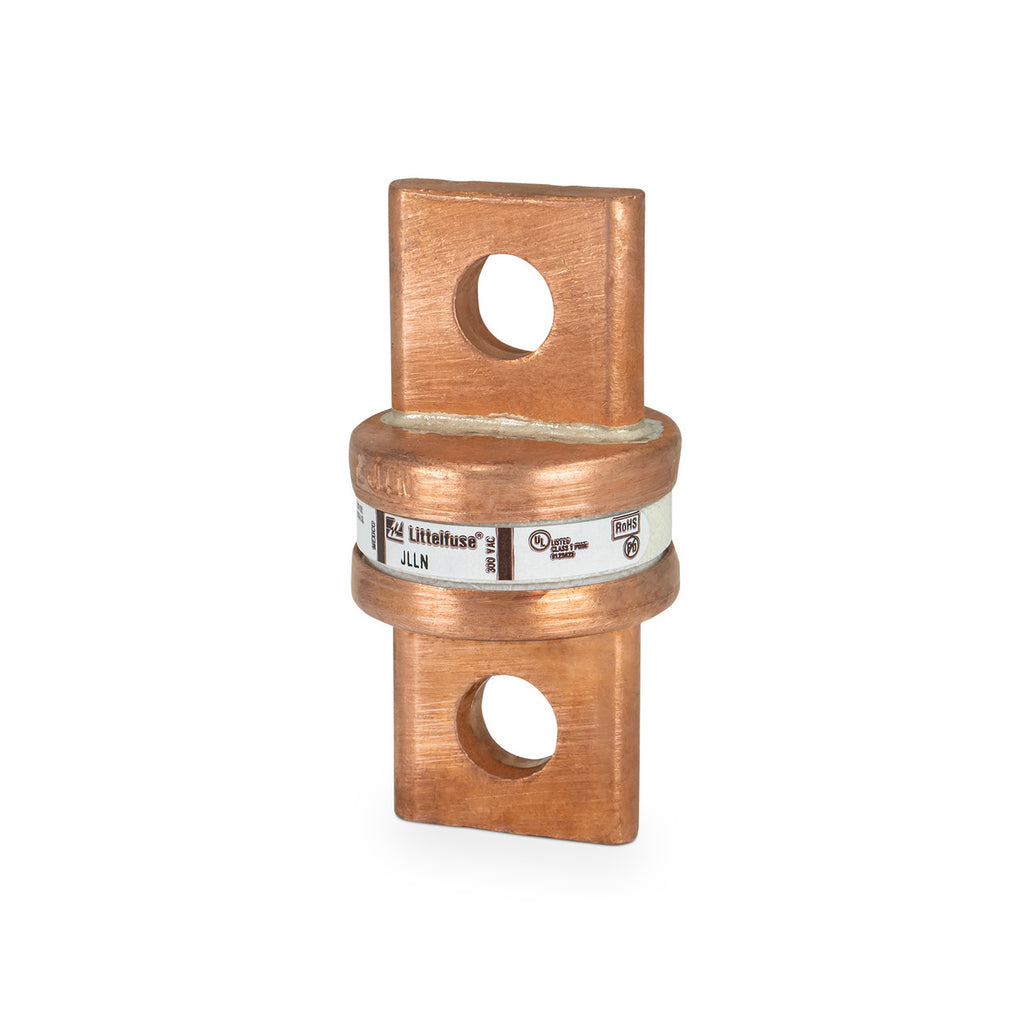

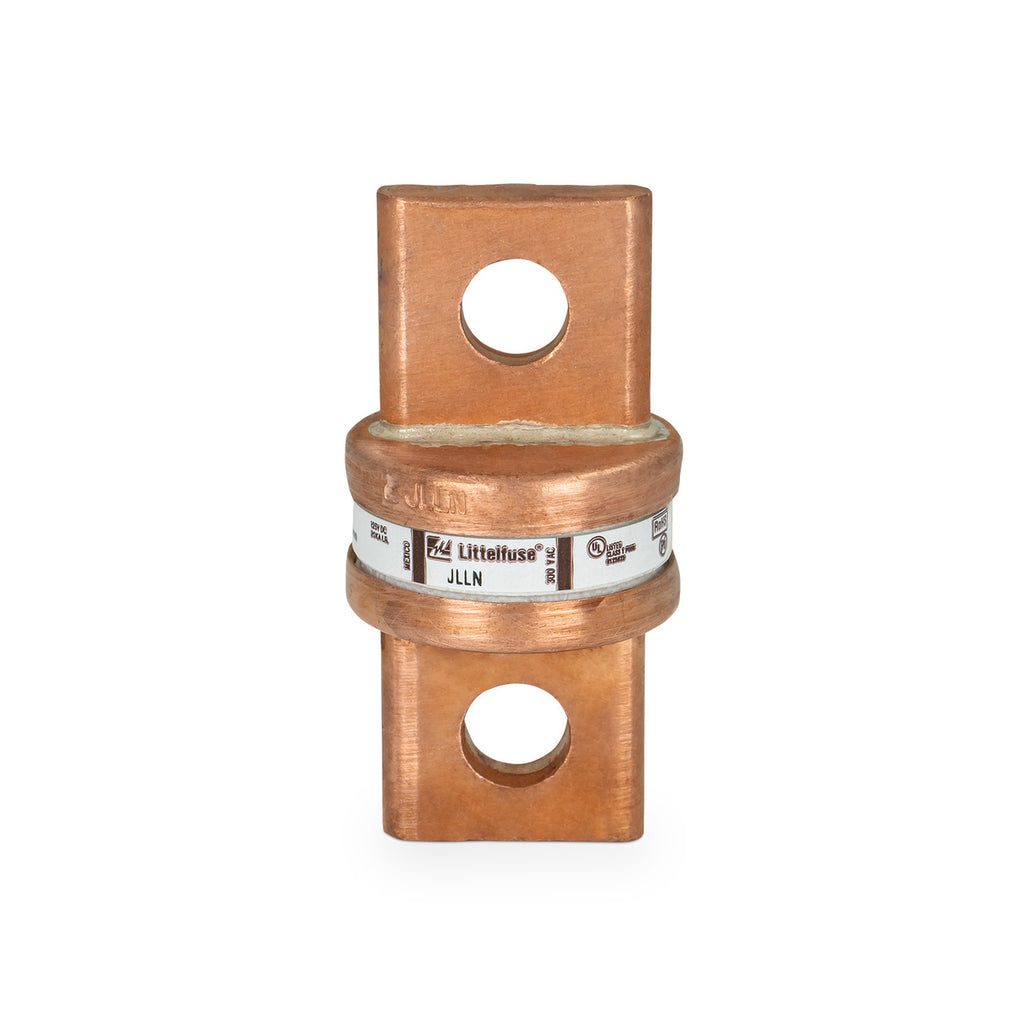

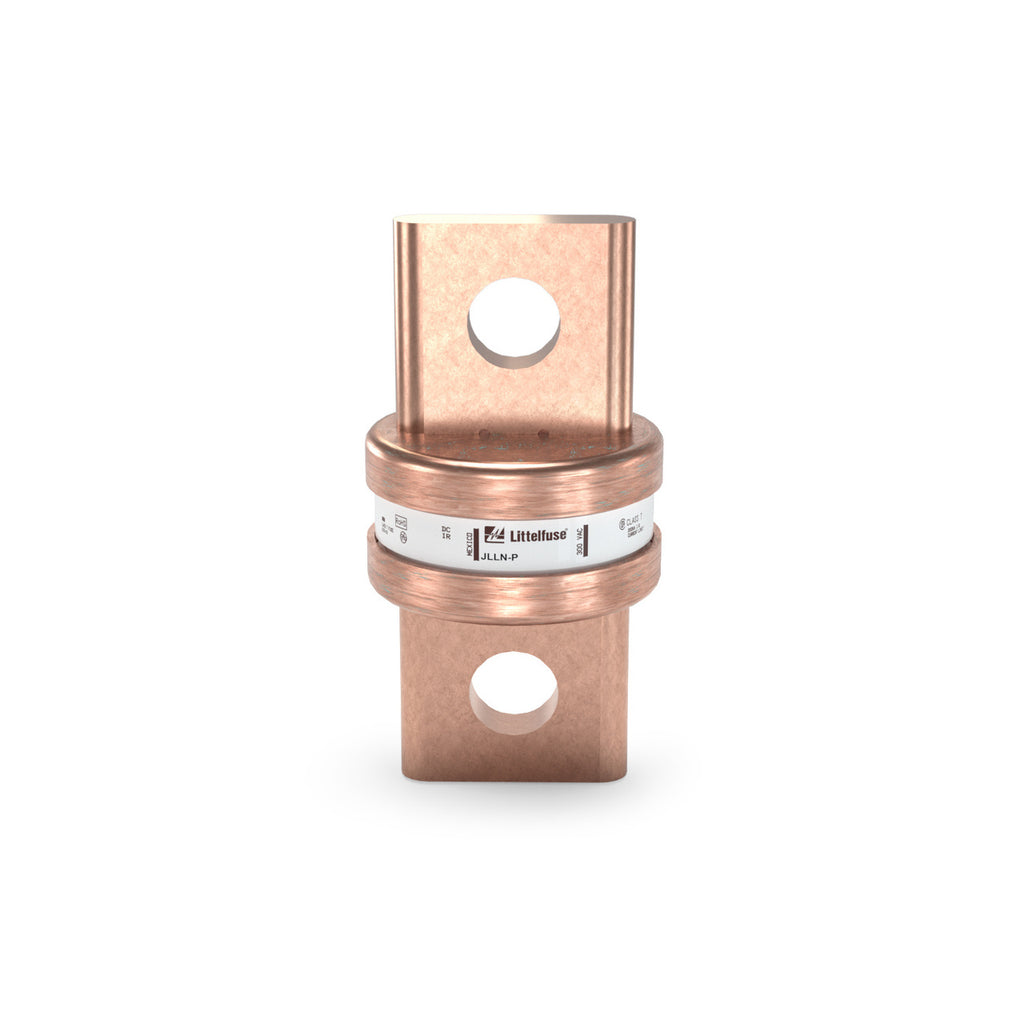

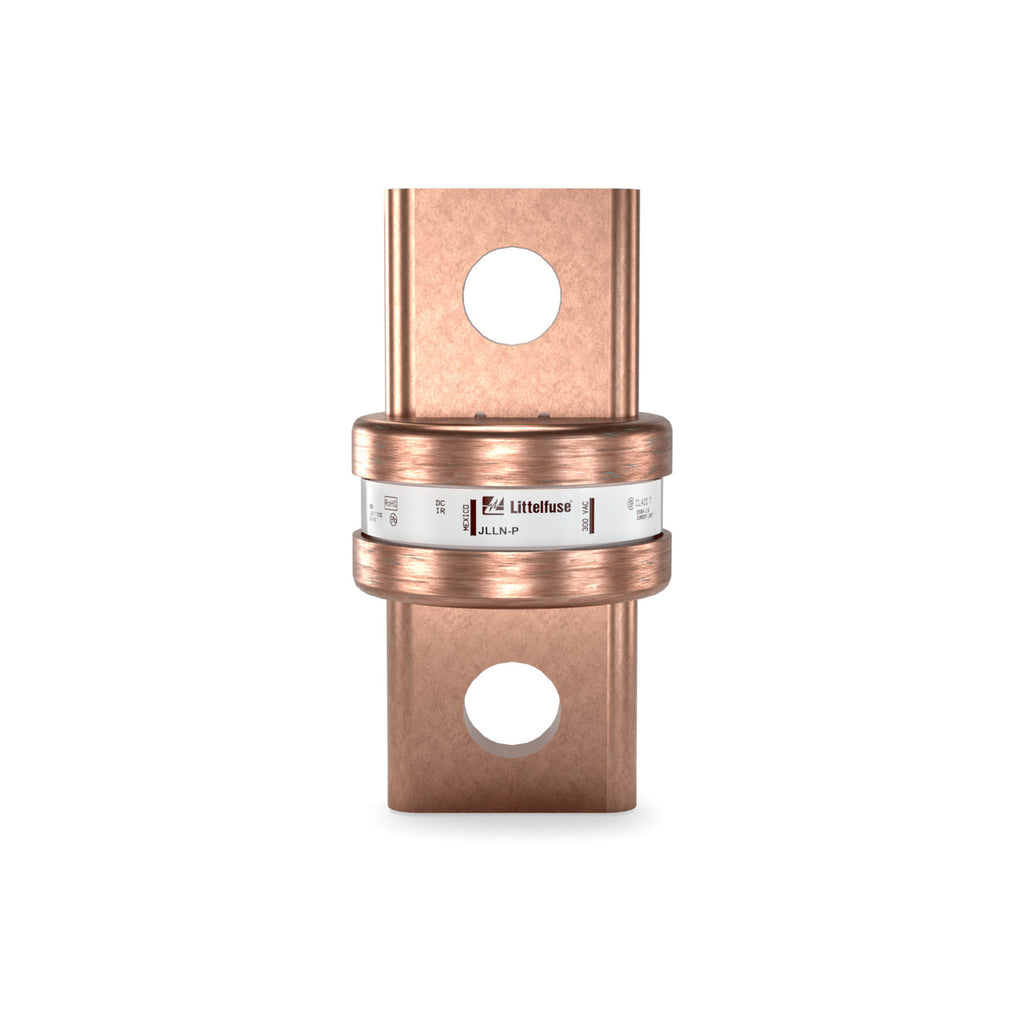

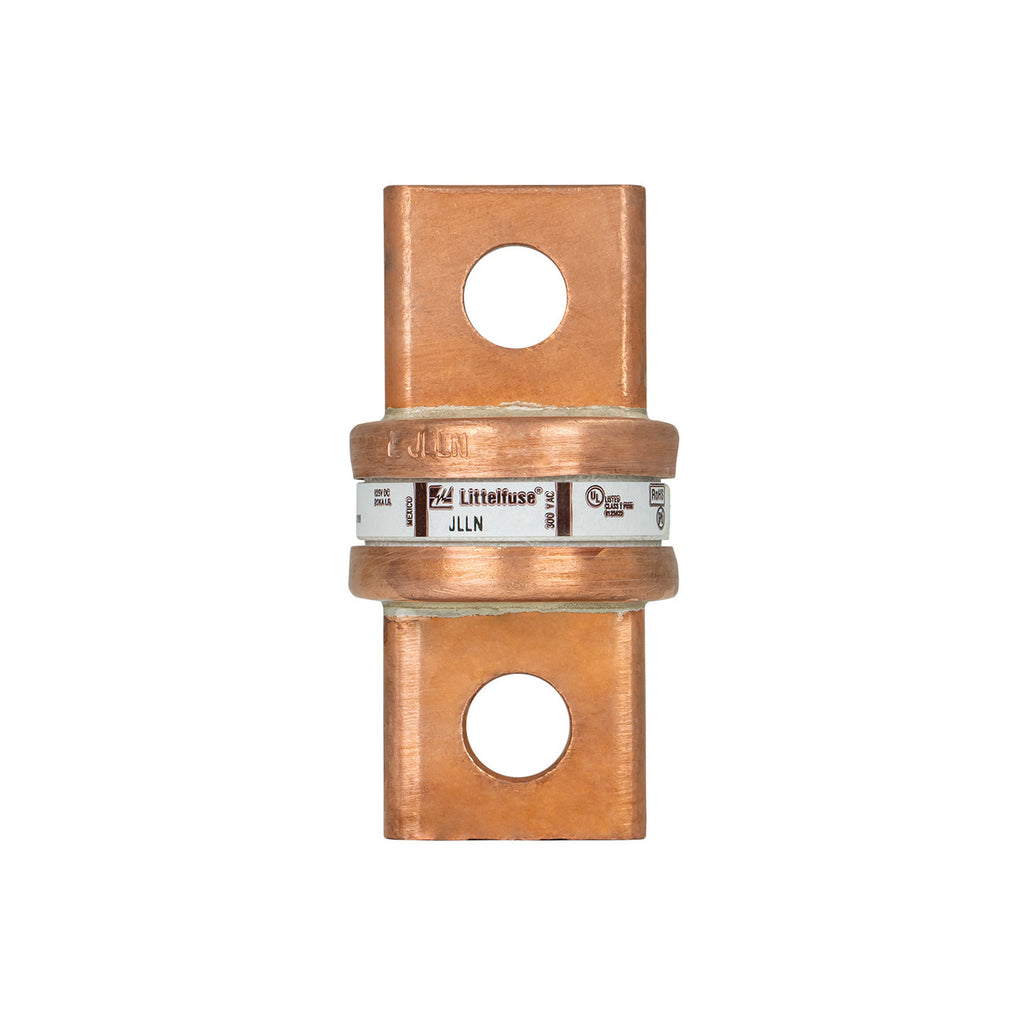

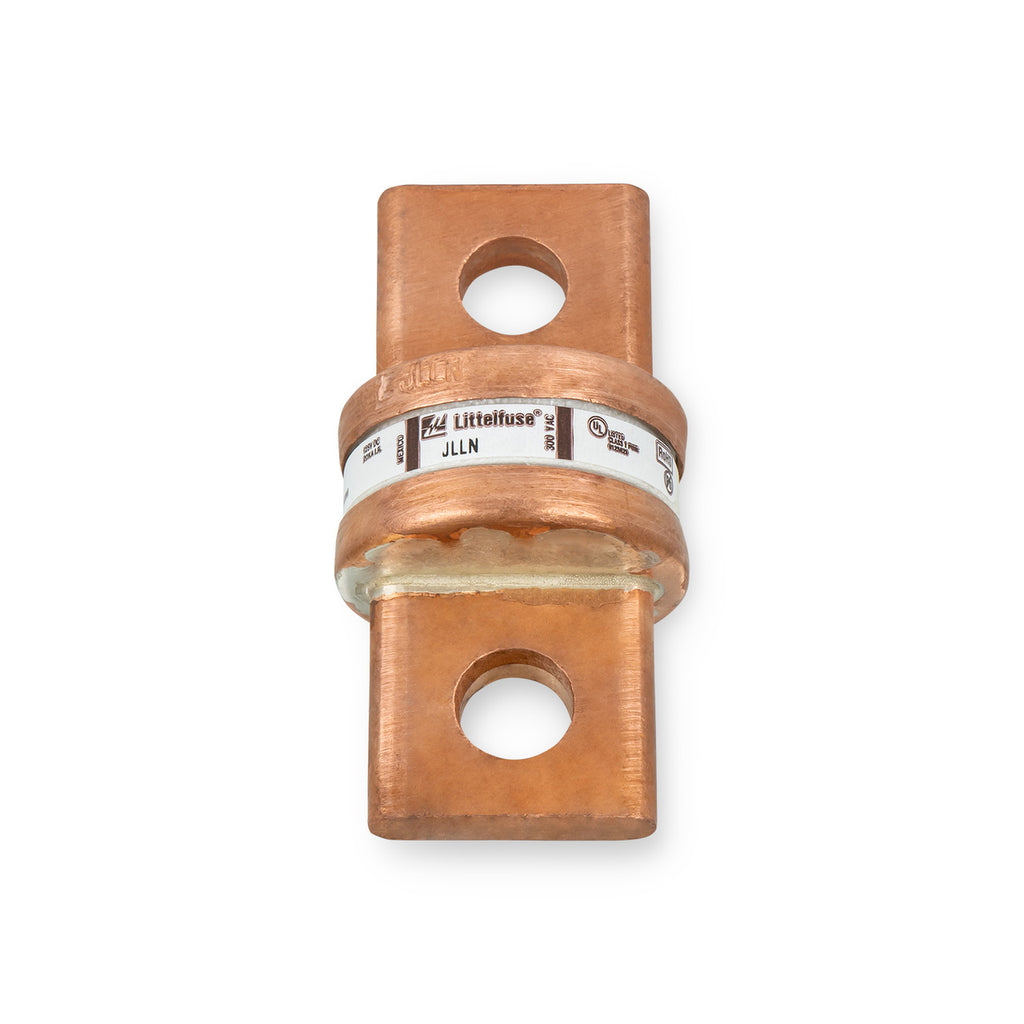

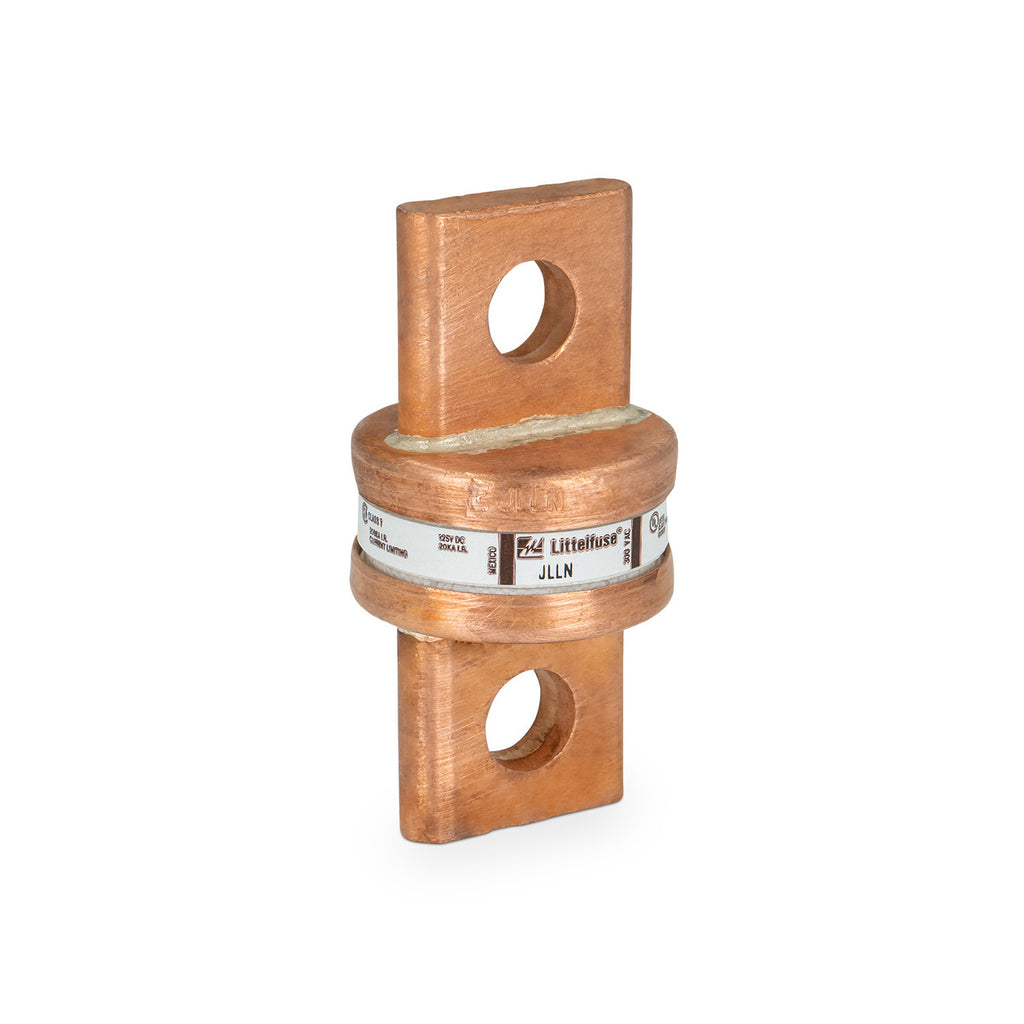

JLLN-600 is a Littelfuse Class T fast acting fuse rated for 600 amps and 300 volts AC, designed for compact and reliable overcurrent protection.This fuse features a very fast acting, current limiting design ideal for protecting variable speed drives and other sensitive equipment. It has a compact melamine body with copper caps, measures approximately 1.593 inches in diameter by 3.062 inches in length, and is UL Listed, CSA Certified, and RoHS compliant. The fuse supports an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 125 VDC.
- Key Specifications
- Amperage: 600 A
- Voltage Rating AC: 300 V
- Voltage Rating DC: 125 V
- Fuse Type: Class T, Fast Acting
- Interrupting Rating AC: 200,000 AIC @ 300 VAC
- Interrupting Rating DC: 20,000 AIC @ 125 VDC
- Dimensions: 1.593 in diameter x 3.062 in length
- Mounting Type: Blade terminals
- Material: Melamine body with copper caps
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
- Part Number: JLLN-600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 600
- AIC rating : 200kA@300V
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
- UPC : 07945818098
- GTIN : 00079458180985
- Weight : 2
