Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-500

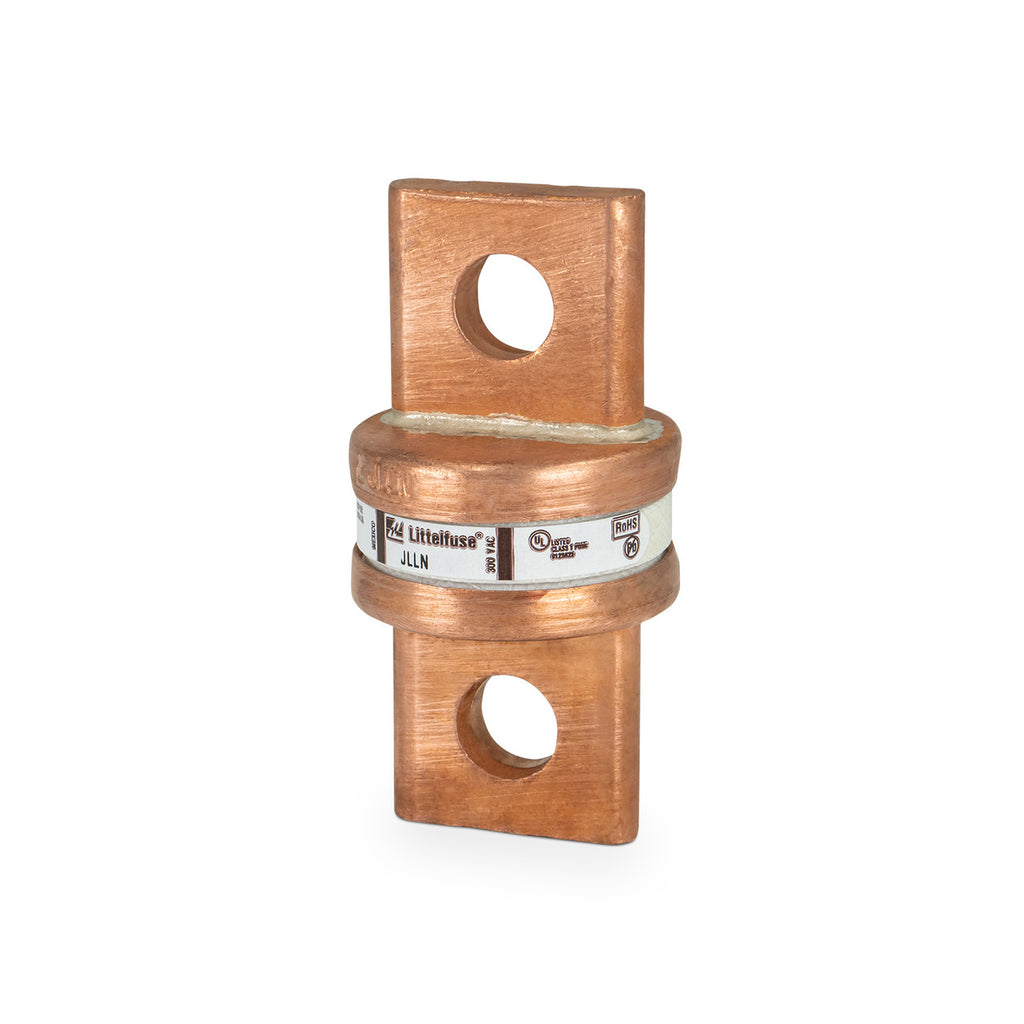

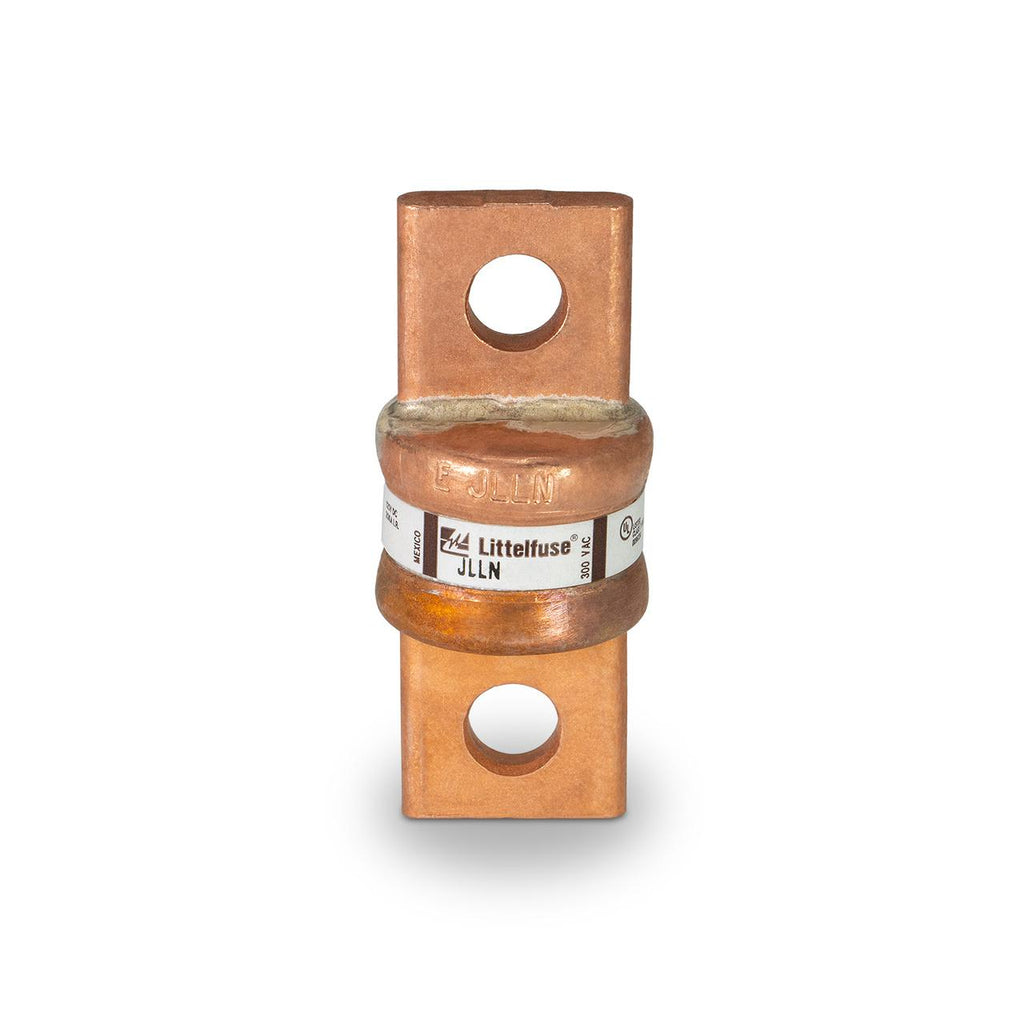

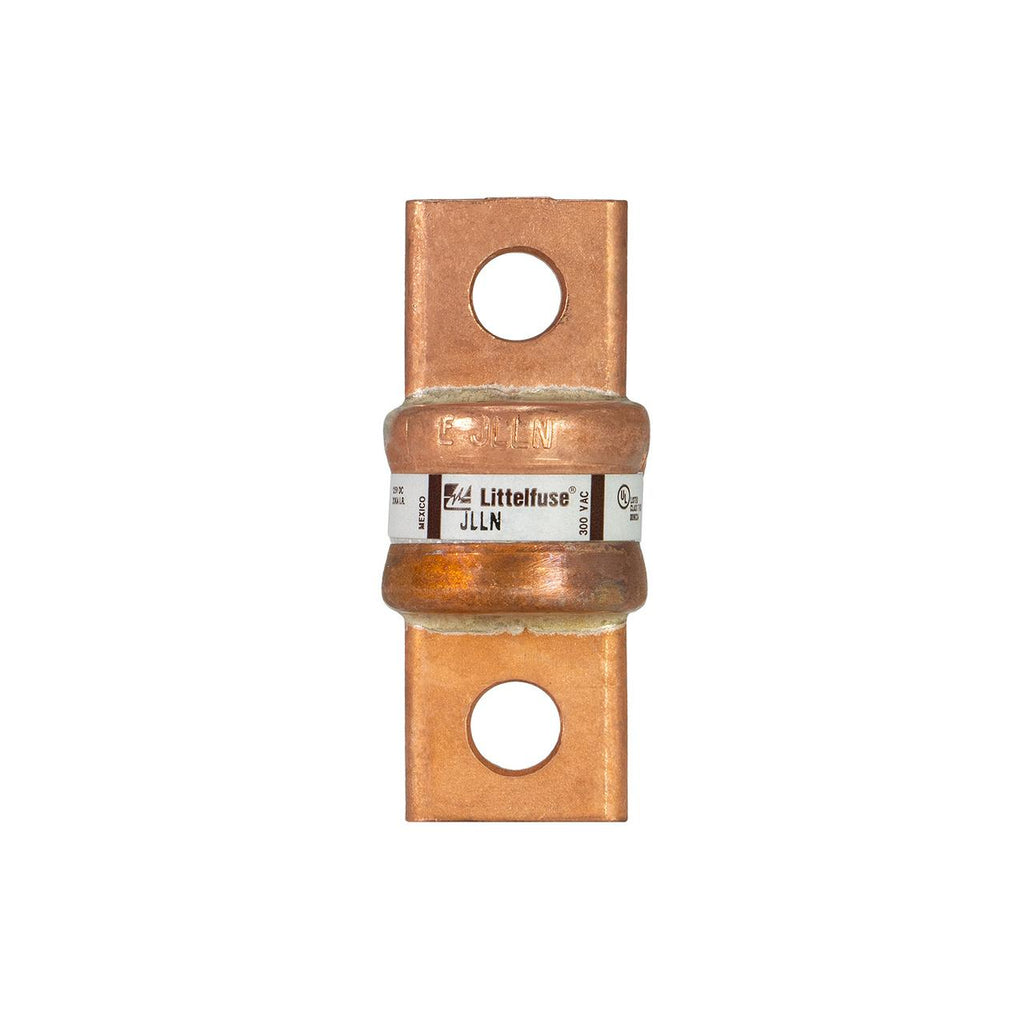

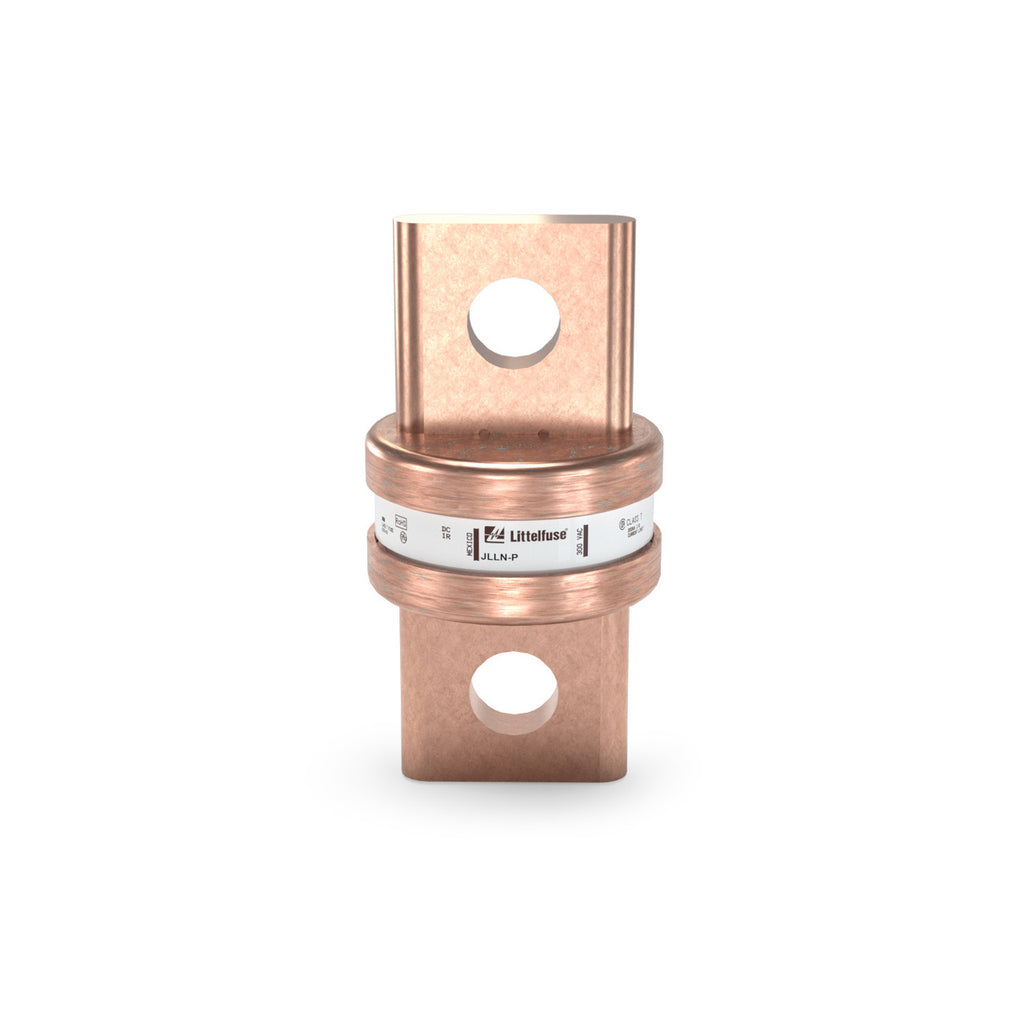

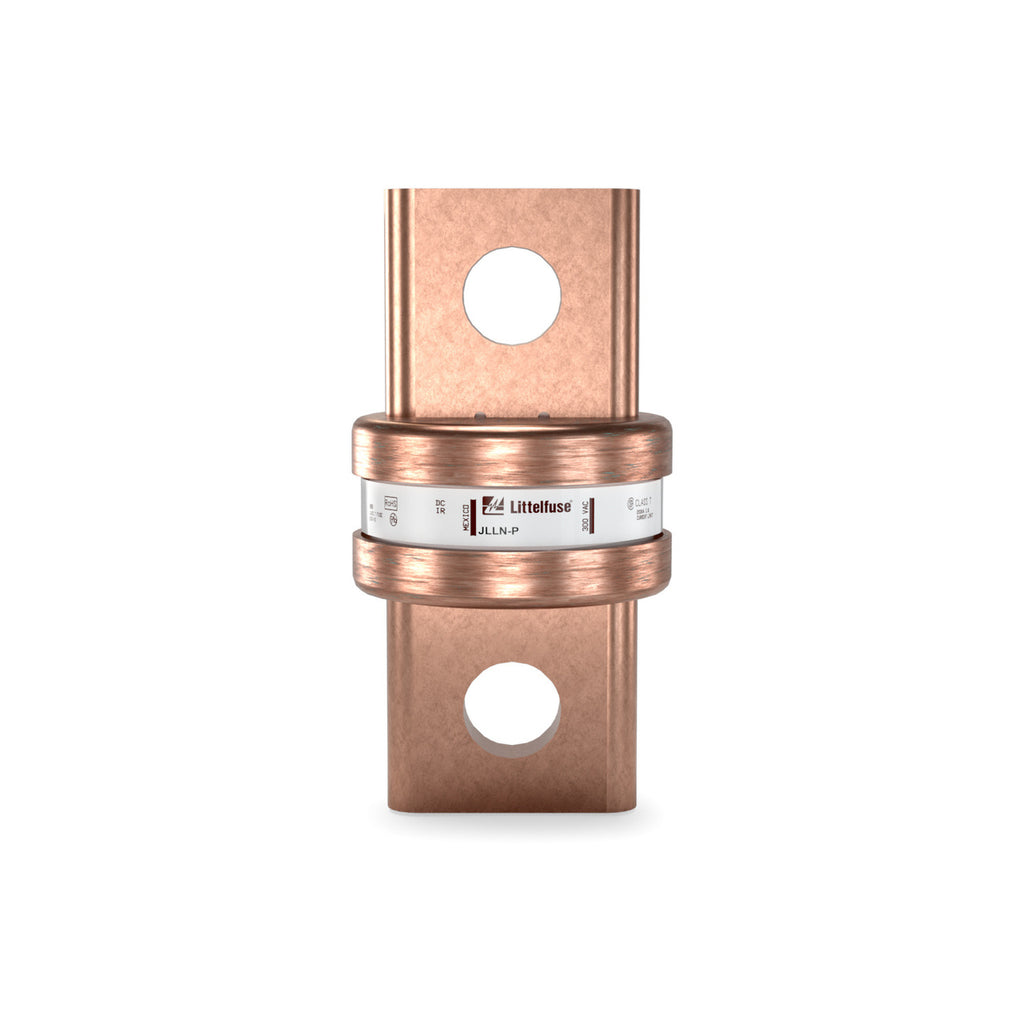

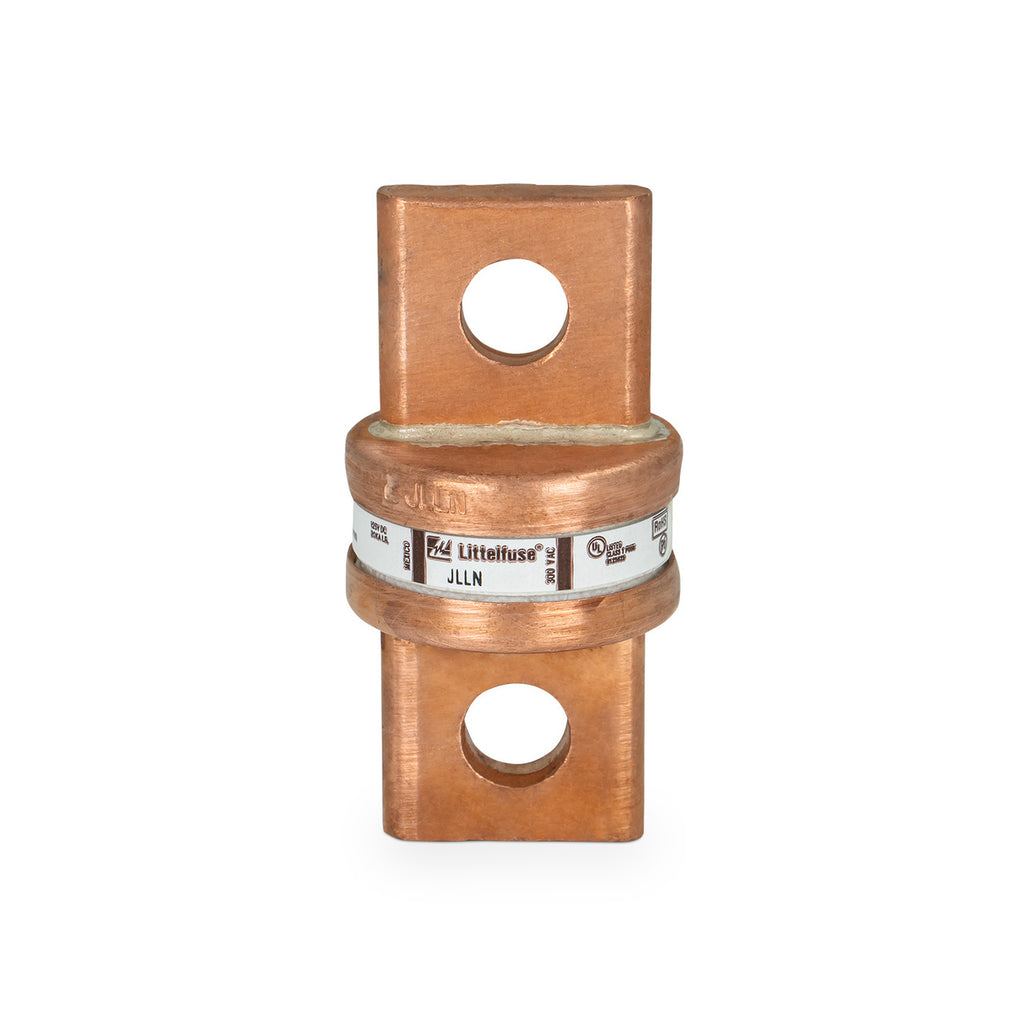

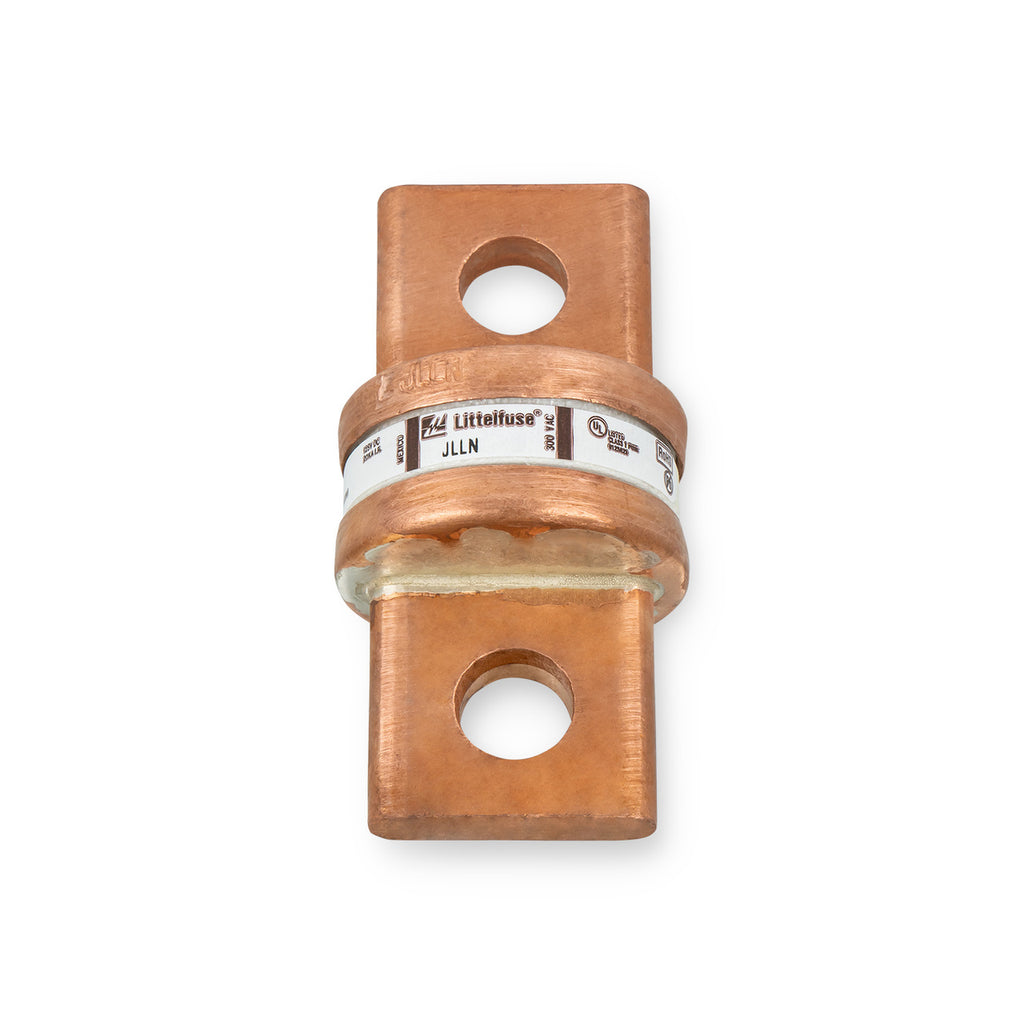

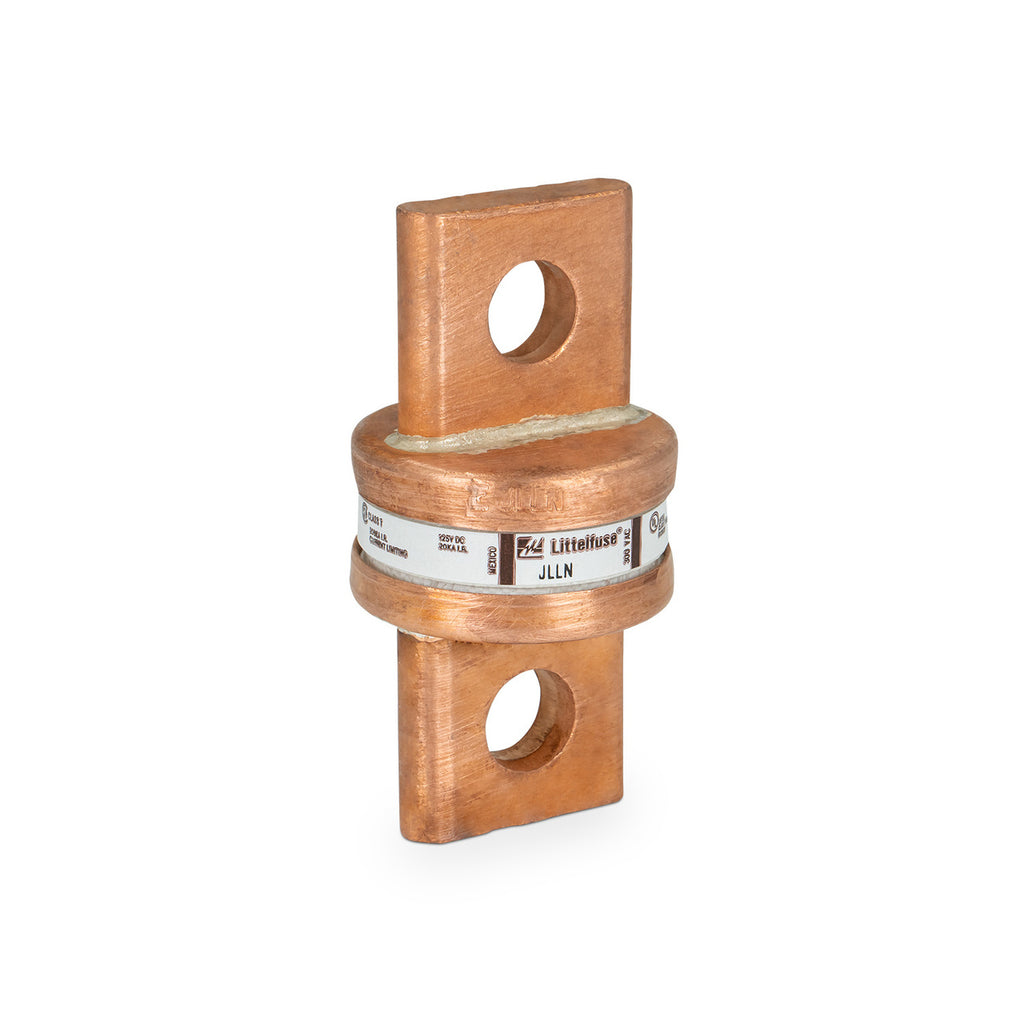

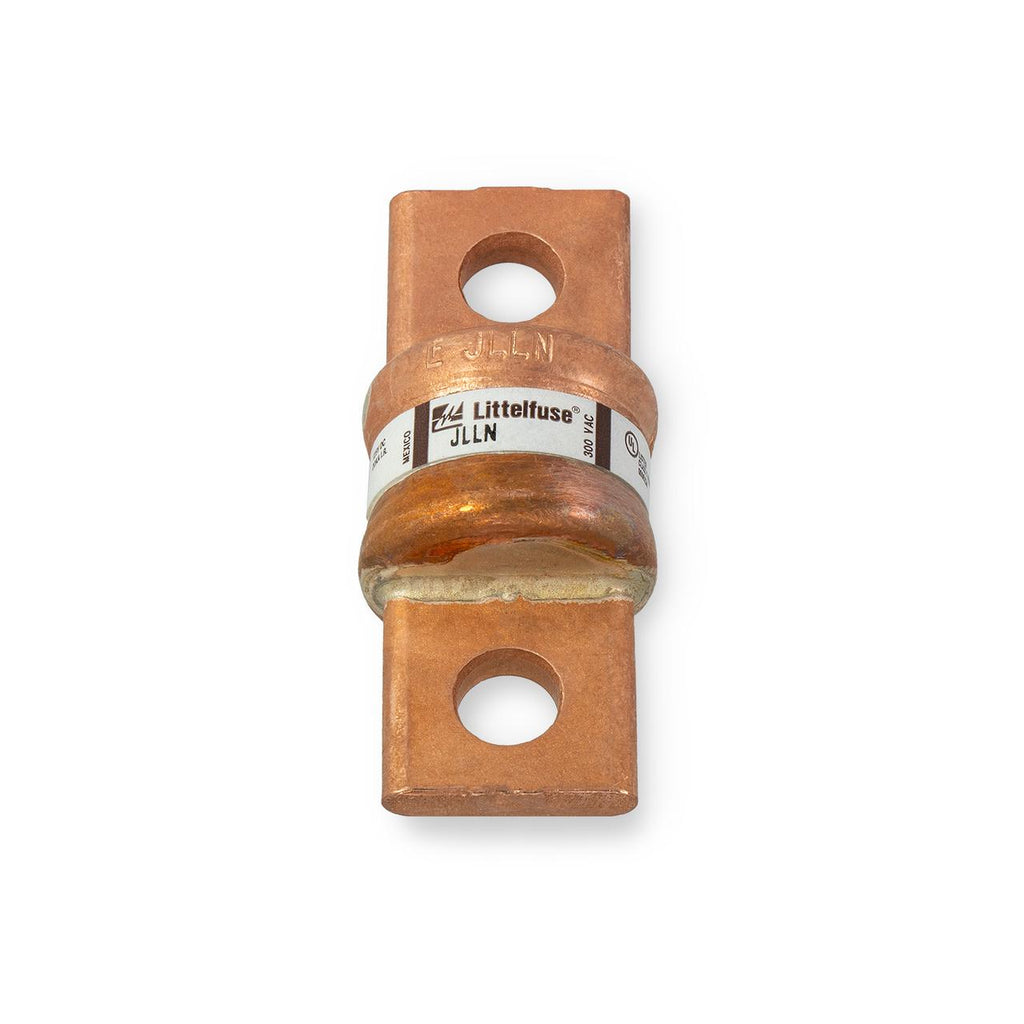

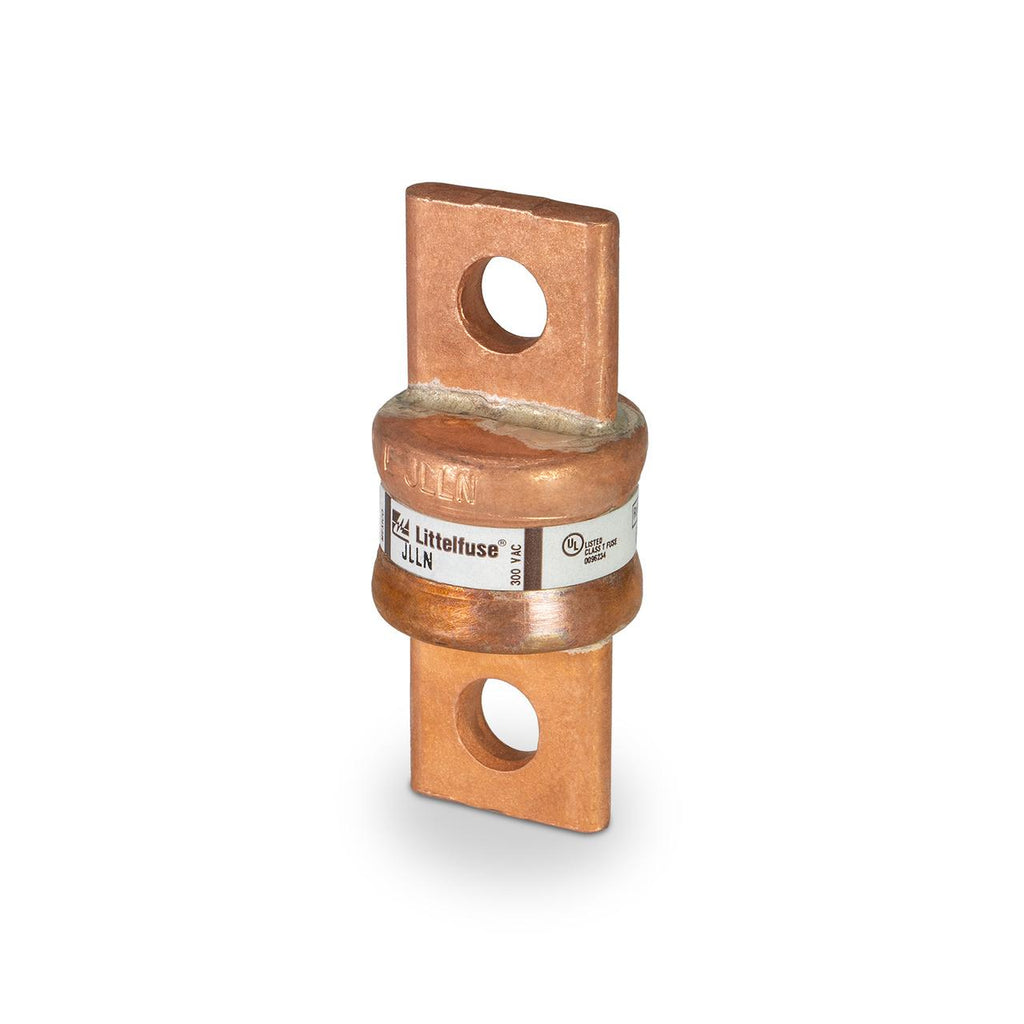

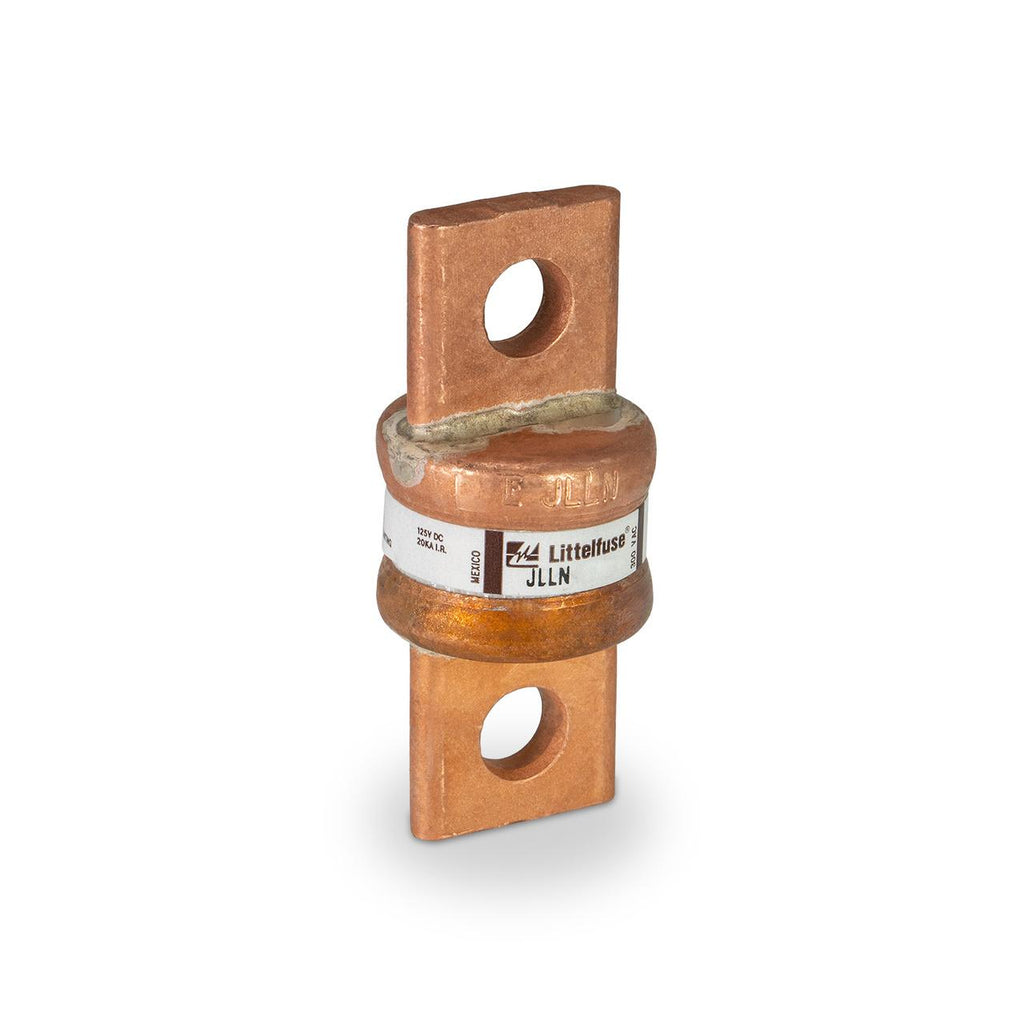

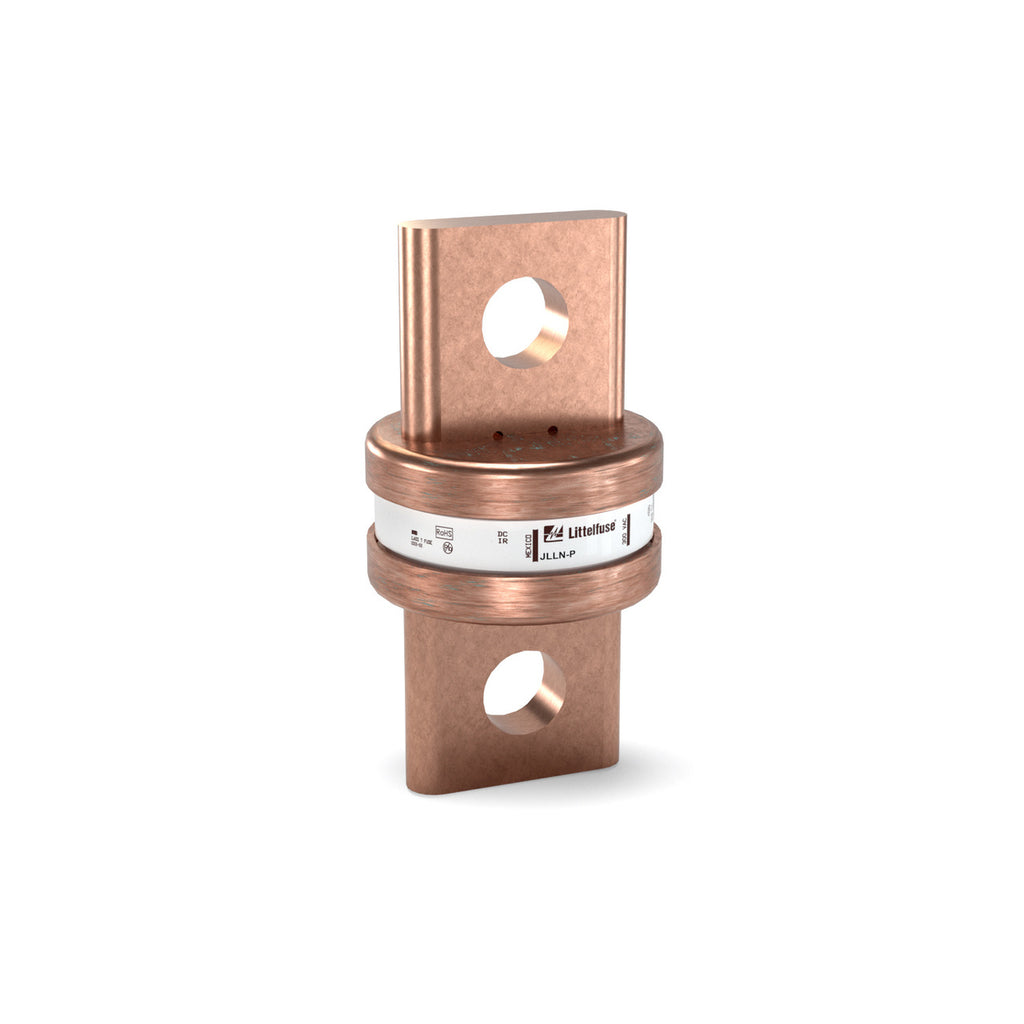

JLLN-500 is a Littelfuse Class T, very fast acting, current limiting fuse designed for robust circuit protection in demanding applications.
This compact, knife-blade-style cartridge fuse offers high interrupting capacity and is ideal for protecting variable speed drives and other sensitive equipment. It features a melamine body with copper end caps for durability and reliable performance under high fault conditions.
-
Key Specifications
- Amperage: 500 A
- Voltage: 300 V AC / 125 V DC
- Poles: Single
- Mounting Type: Cartridge, knife-blade
- Interrupt Rating: 200,000 AIC @ 300V AC; 20,000 AIC @ 125V DC
- Series/Frame: JLLN Series
- Trip Unit: Very fast acting, current limiting
- Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862), CE, RoHS Compliant
- Physical Size: 1 19/32" x 3 1/16"
- Application: Variable speed drive protection, general purpose
- Body Material: Melamine with copper caps
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLLN-500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 500
- AIC rating : 200kA@300V
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818096
- GTIN : 00079458180961
- Weight : 2
