2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-450

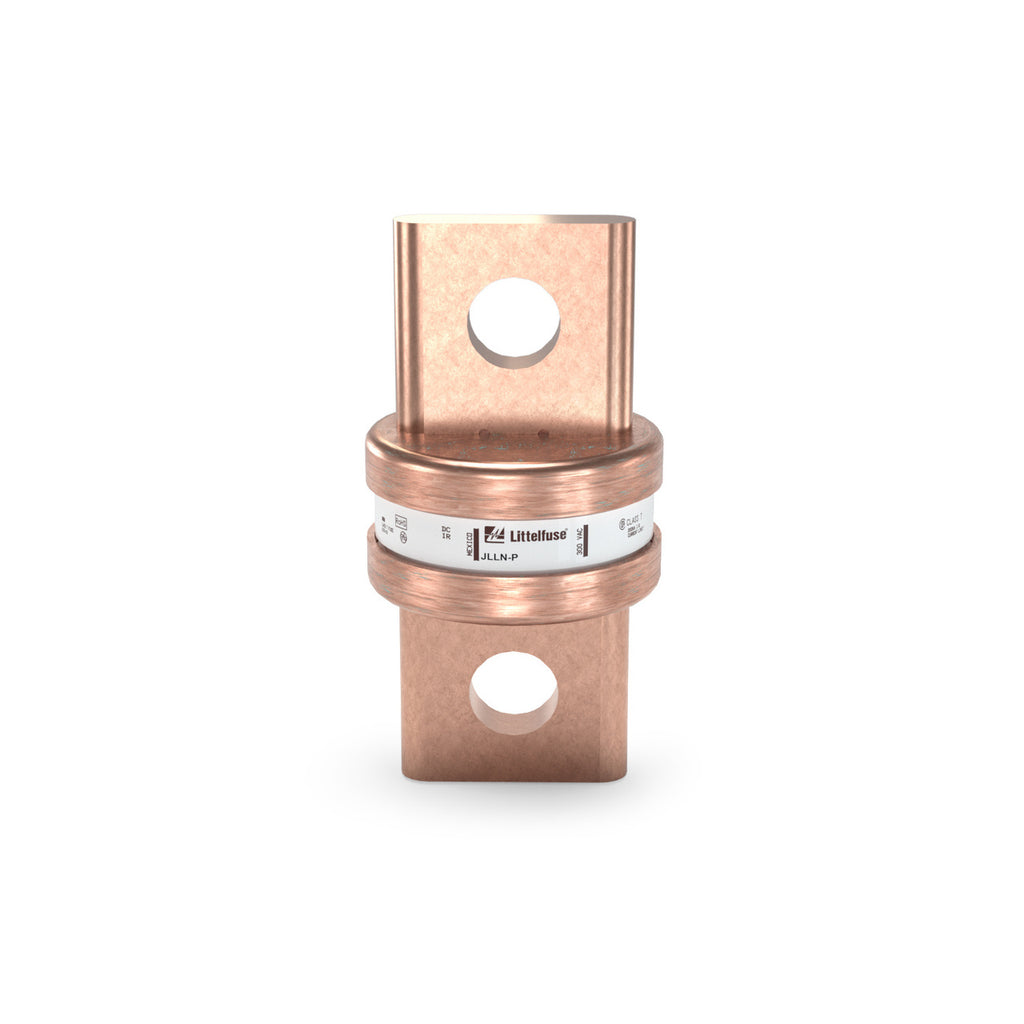

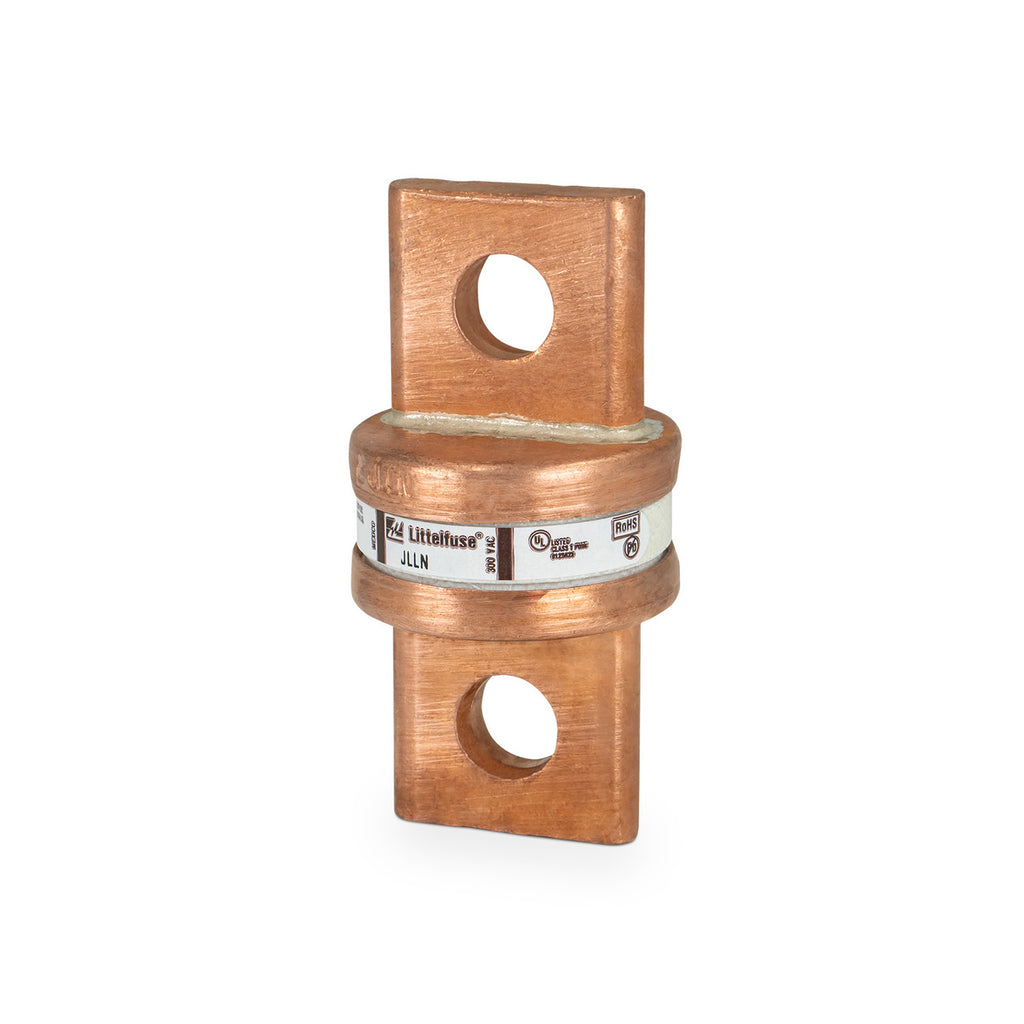

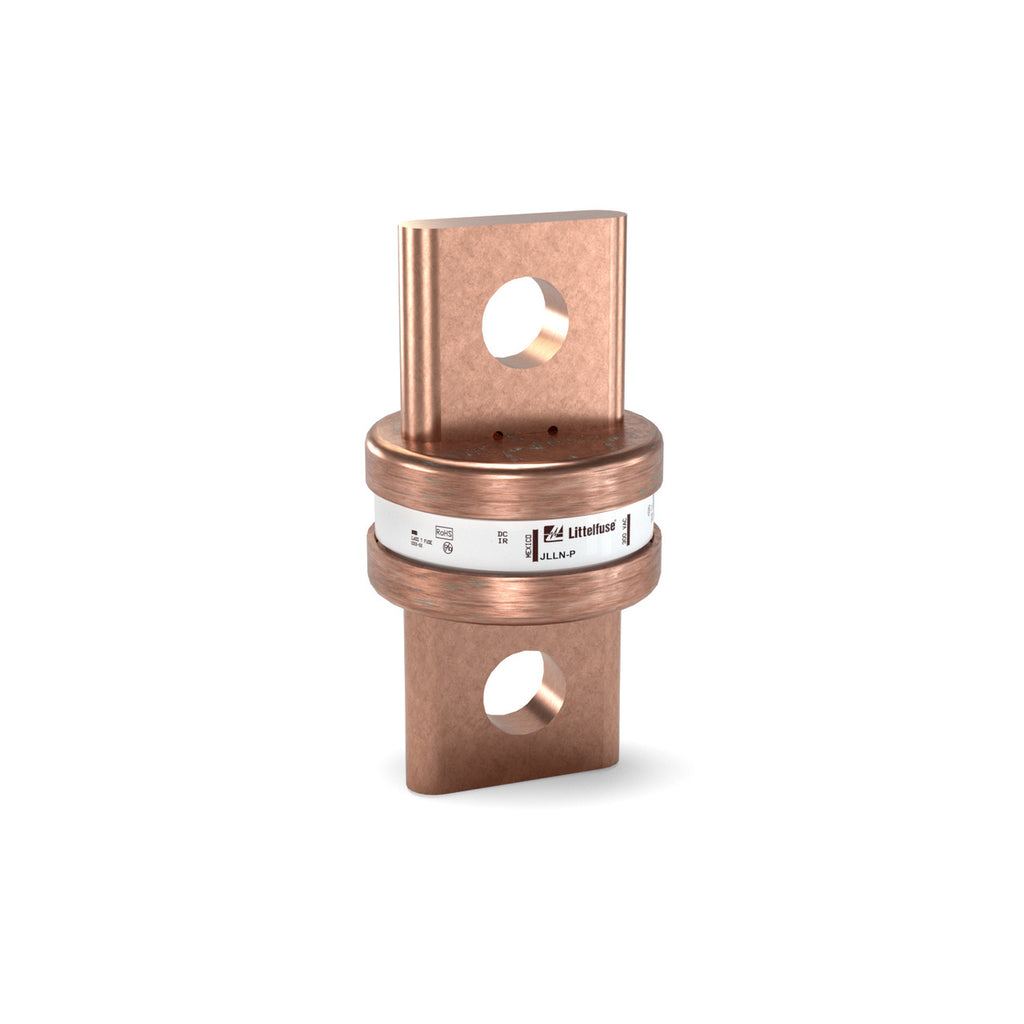

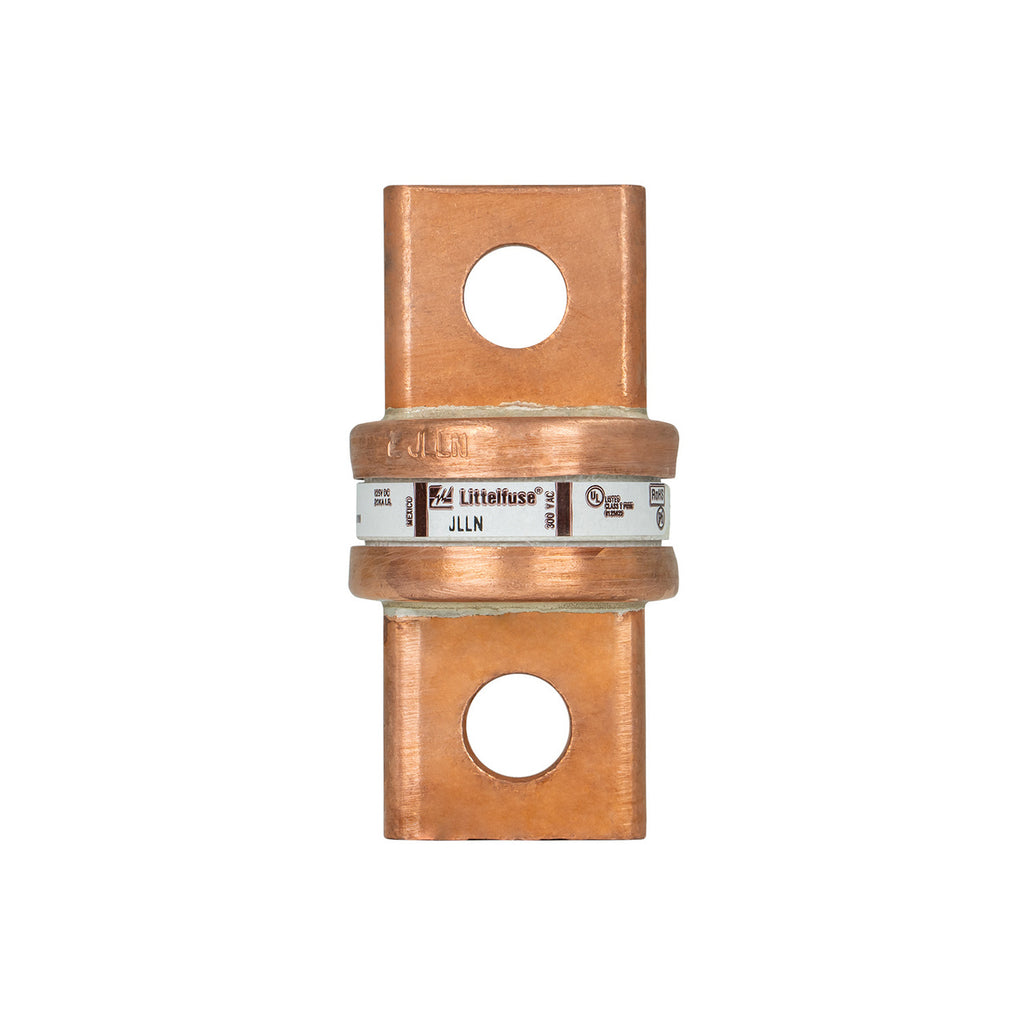

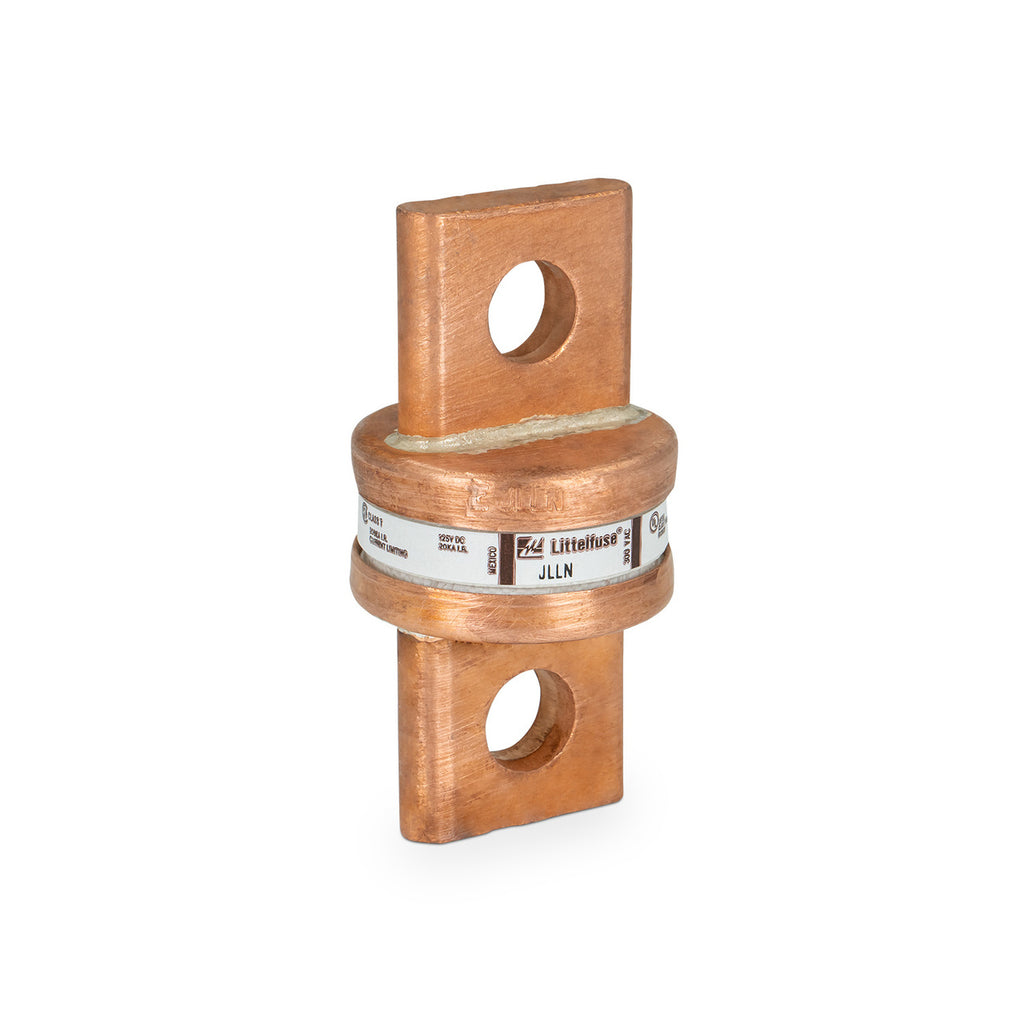

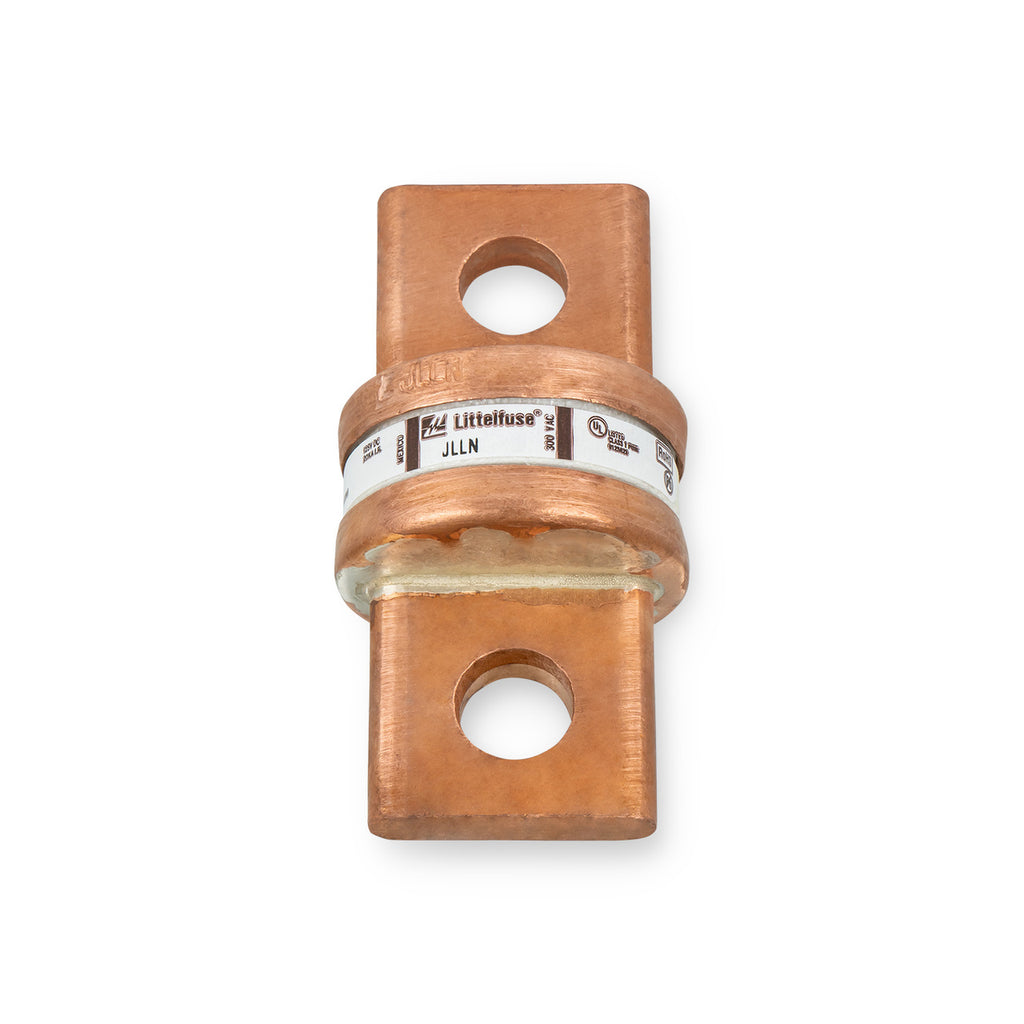

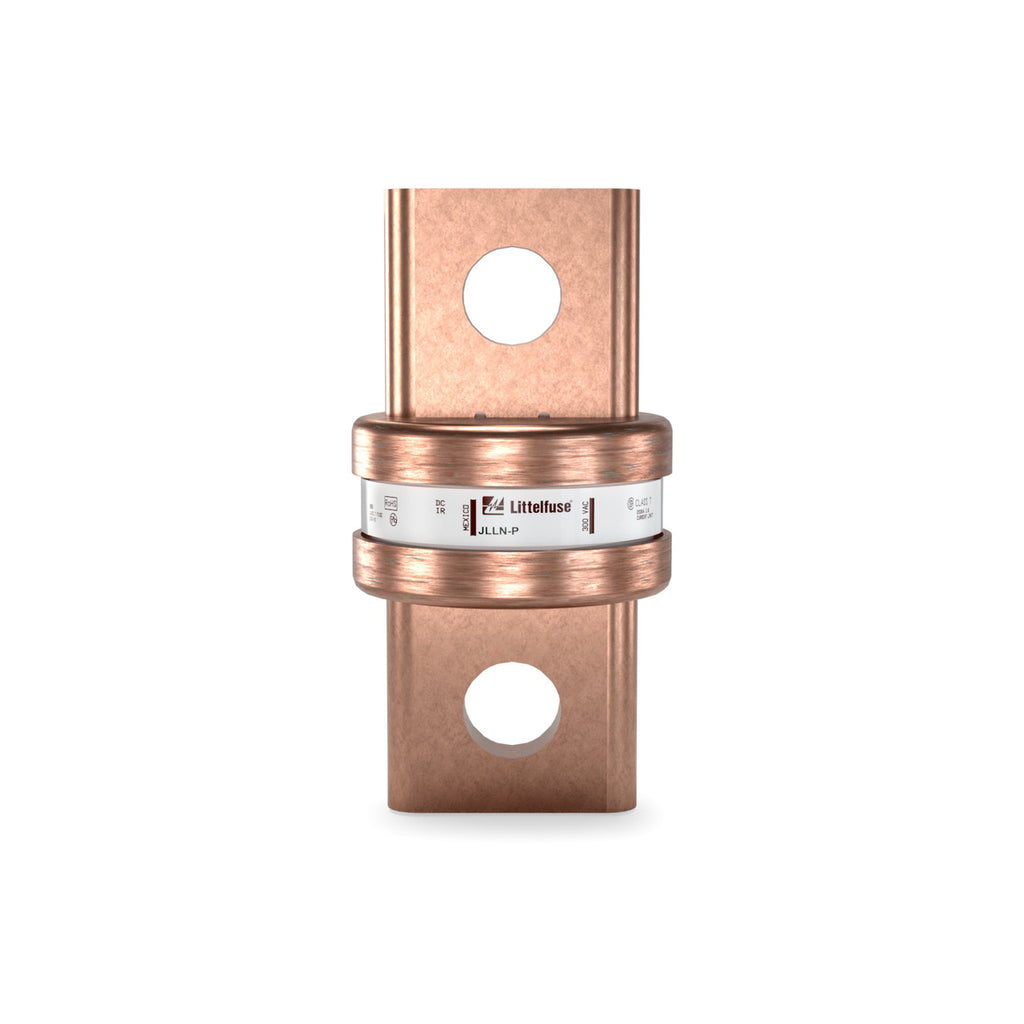

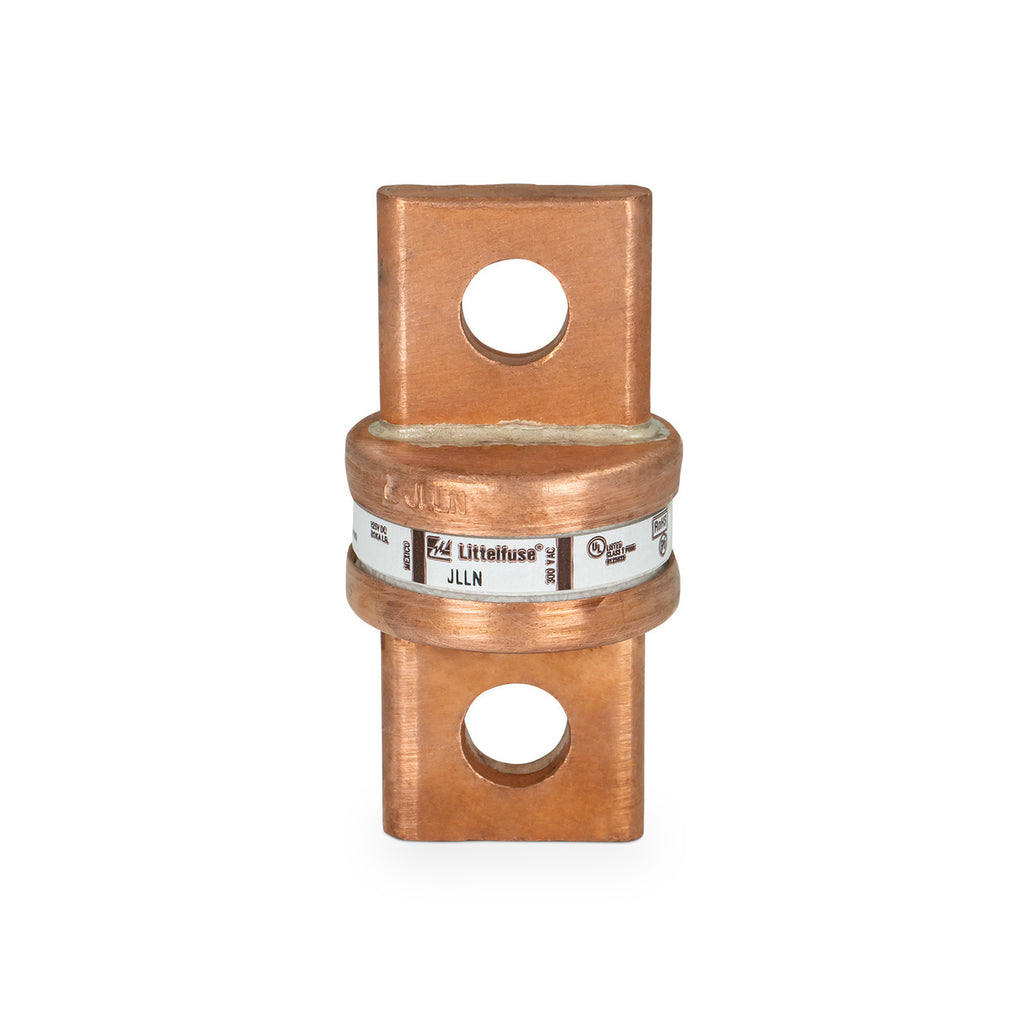

JLLN-450 is a Littelfuse Class T fast-acting fuse rated for 450 amperes and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a bolt mount cartridge design with a fast-acting trip unit, suitable for low voltage power distribution applications. It has a 20 kA interrupting rating at 125 VDC and complies with UL 248-15, CSA, and CE standards. The fuse body is melamine with copper caps, ensuring durability and safety. It is RoHS compliant and manufactured in Mexico.
- Current Rating: 450 Amps
- Voltage Rating: 300 VAC / 125 VDC
- Fuse Type: Fast-Acting (Class T)
- Mounting Type: Bolt Mount
- Interrupting Rating: 20 kA @ 125 VDC
- Material: Melamine body, copper caps
- Standards: UL 248-15, CSA Certified, CE Compliant
- Dimensions: Approx. 1.6 inch diameter, 3.06 inch length
- RoHS Compliant
- Country of Origin: Mexico
Specifications
- Part Number: JLLN-450
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 450
- AIC rating : 200kA@300V
- Diameter : 1.6
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818095
- GTIN : 00079458180954
- Weight : 2
