Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

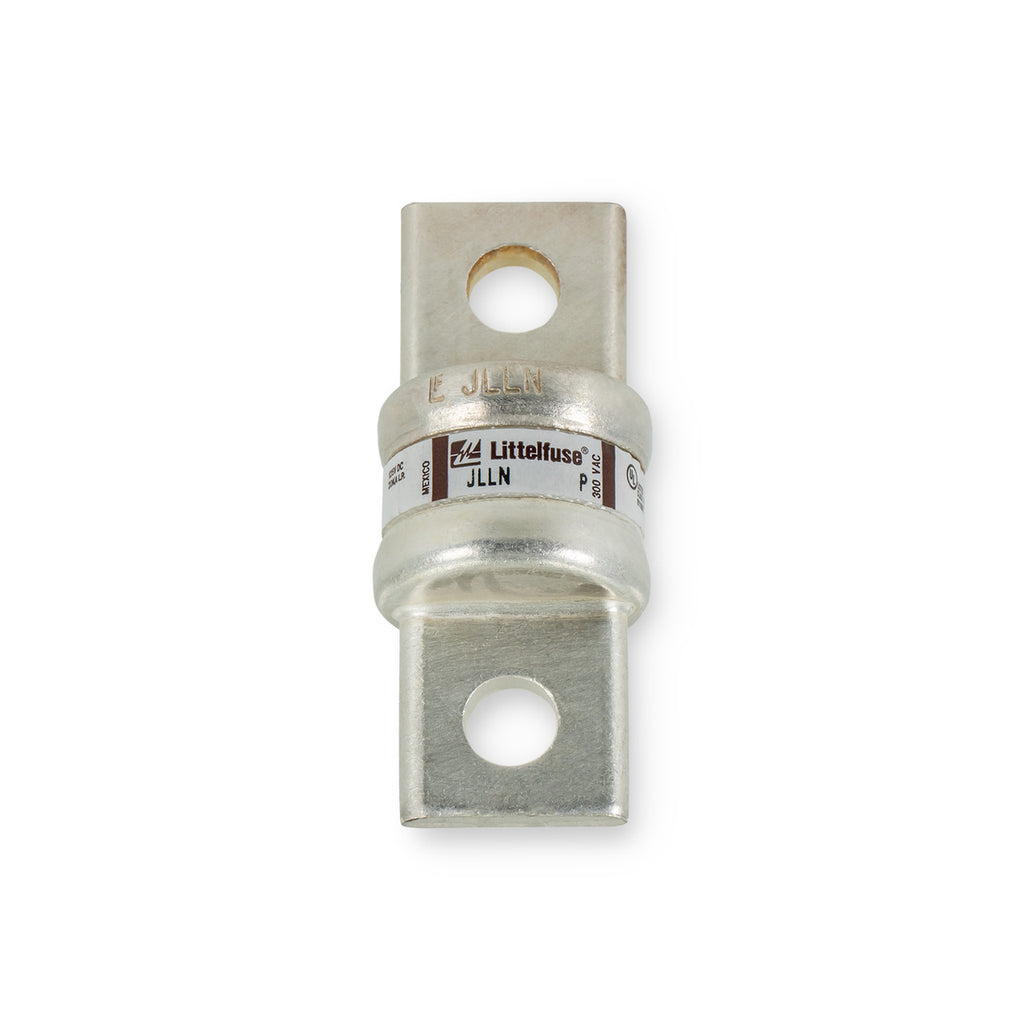

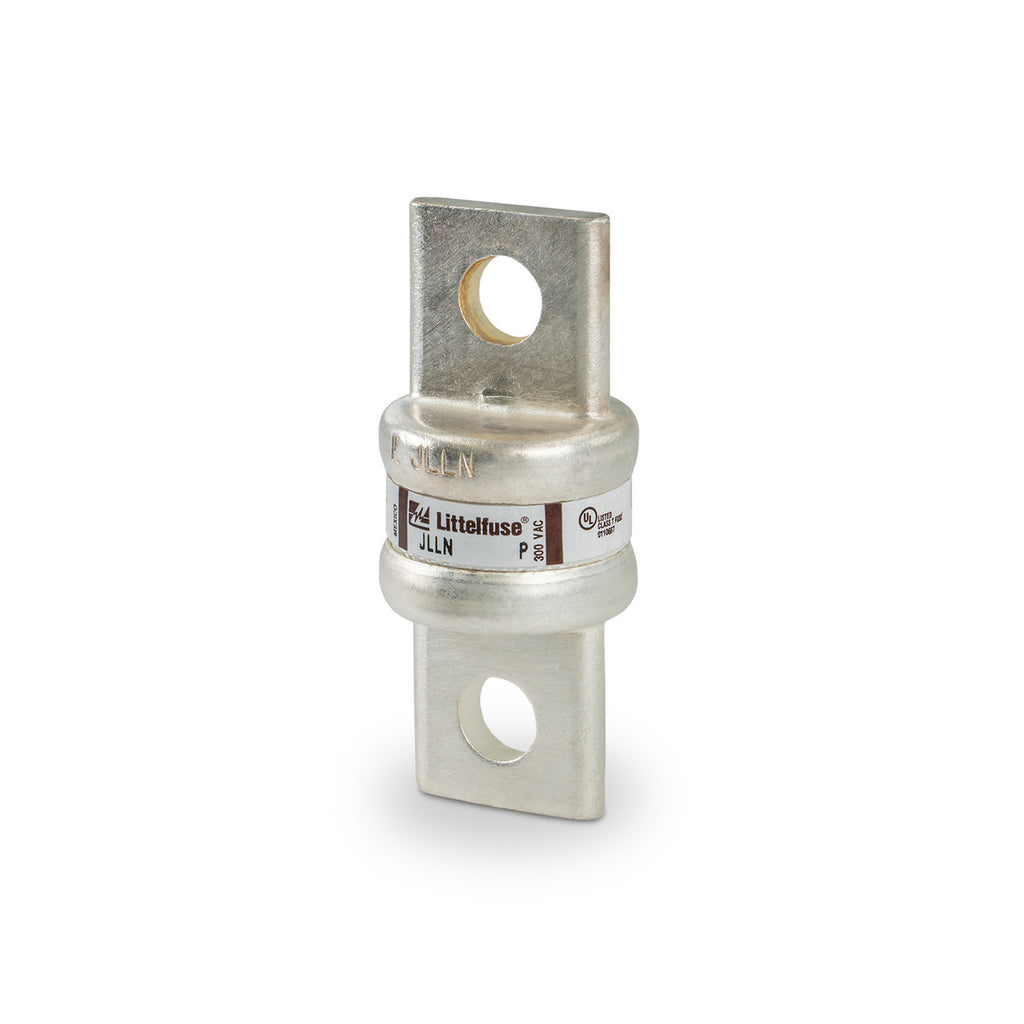

JLLN-200

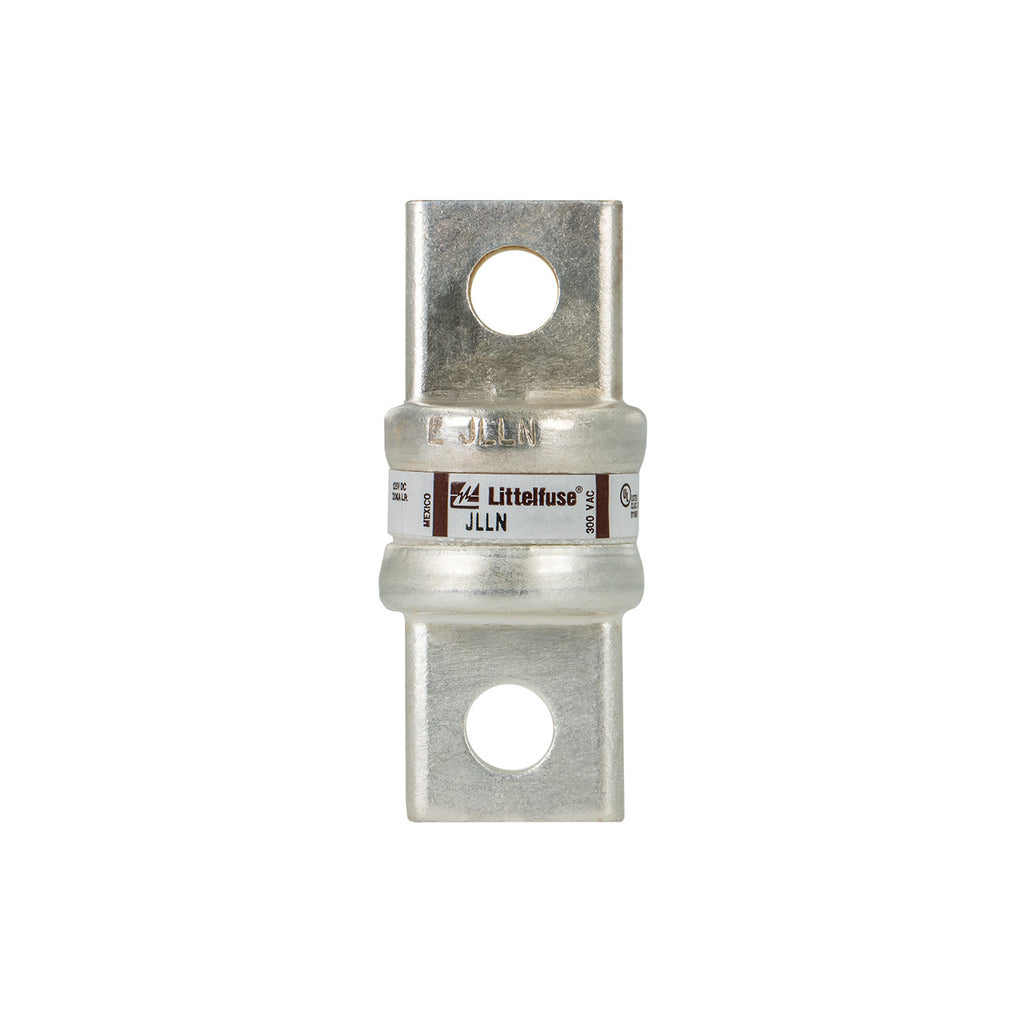

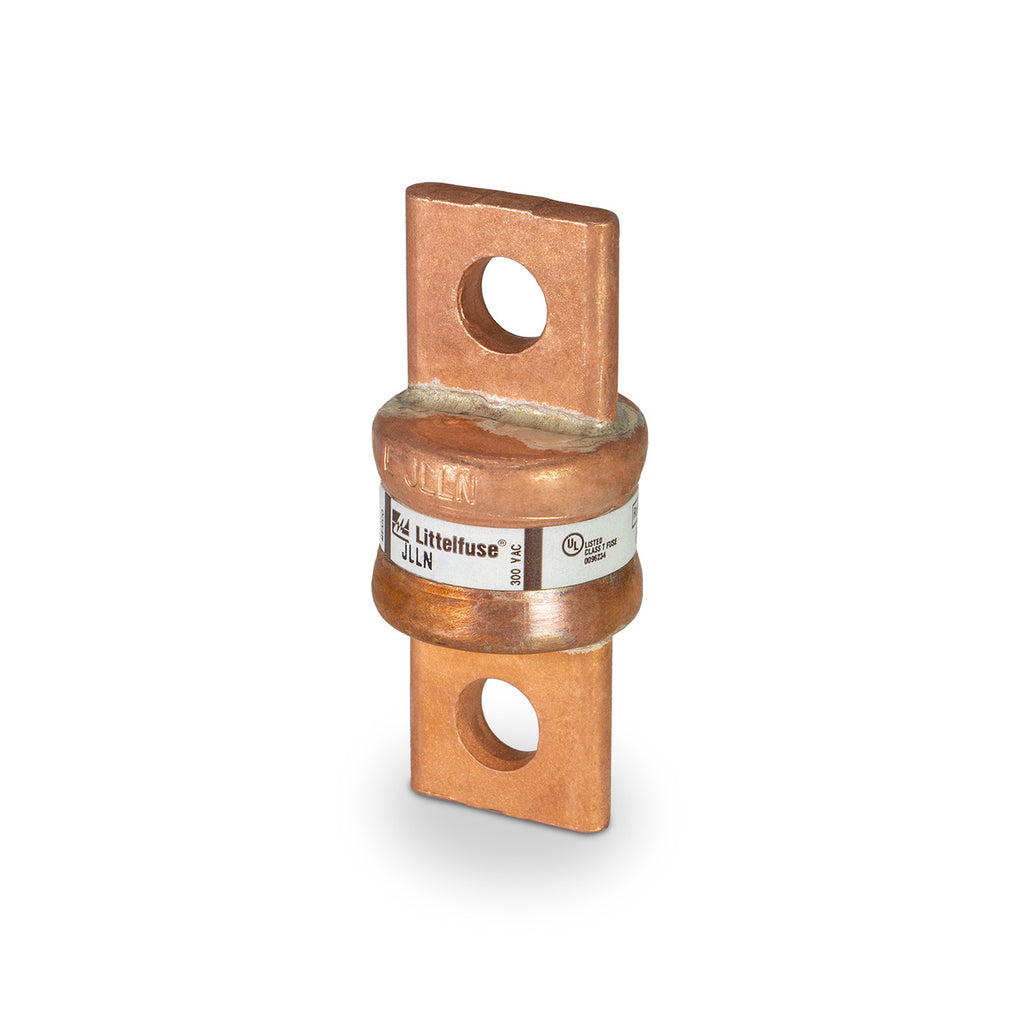

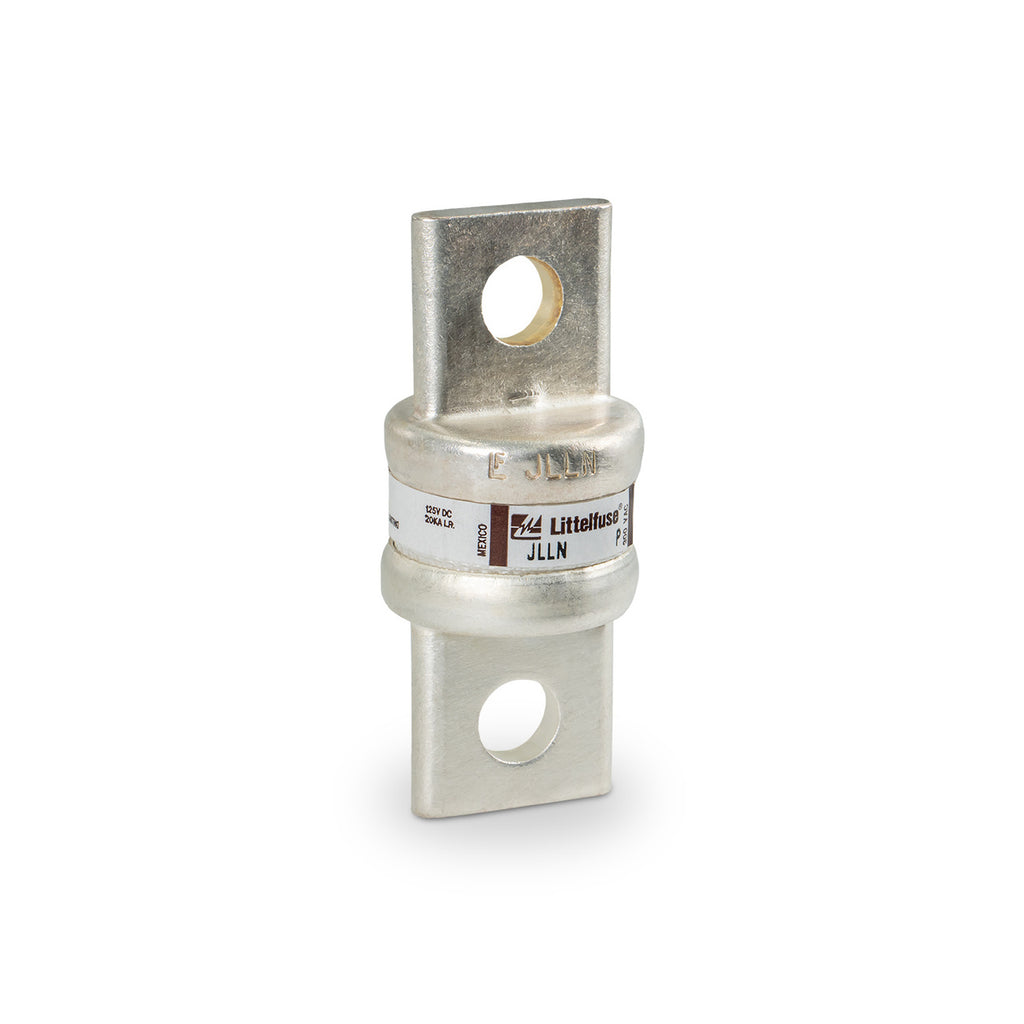

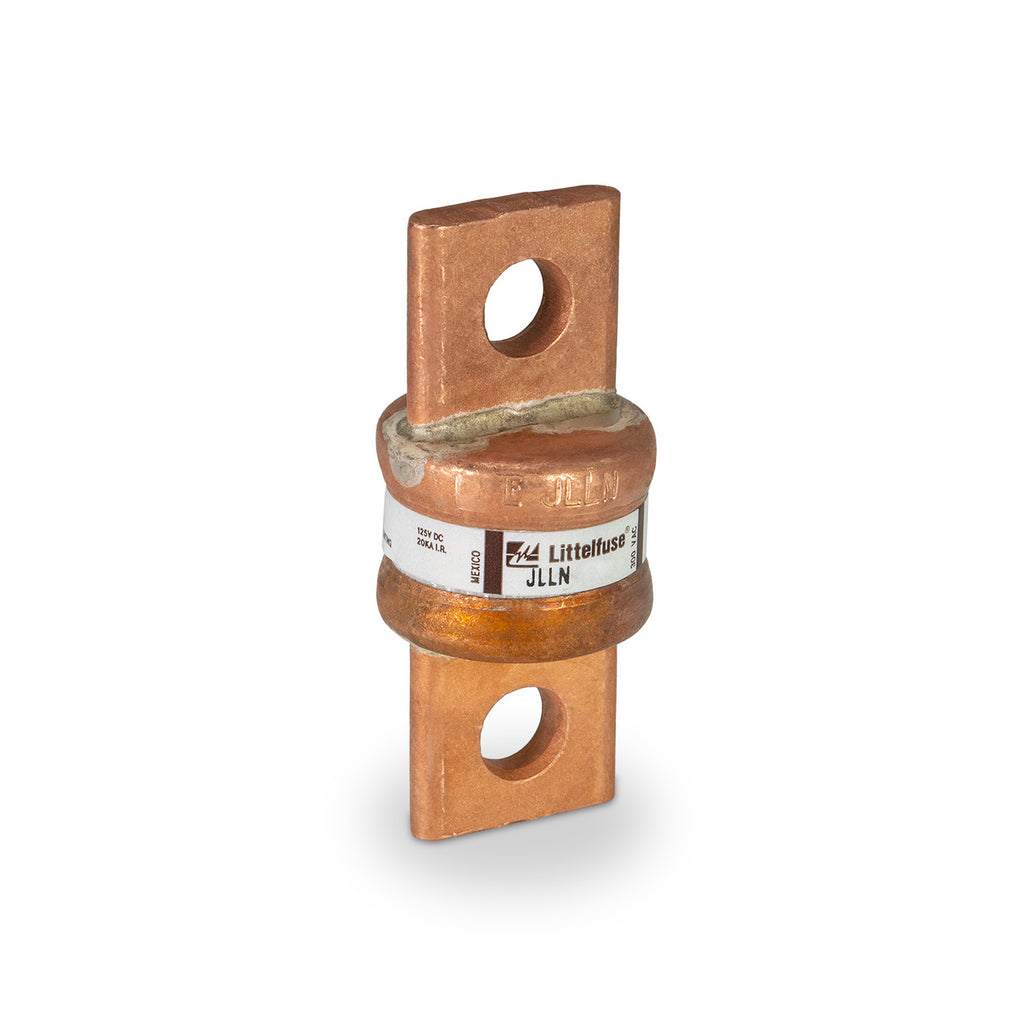

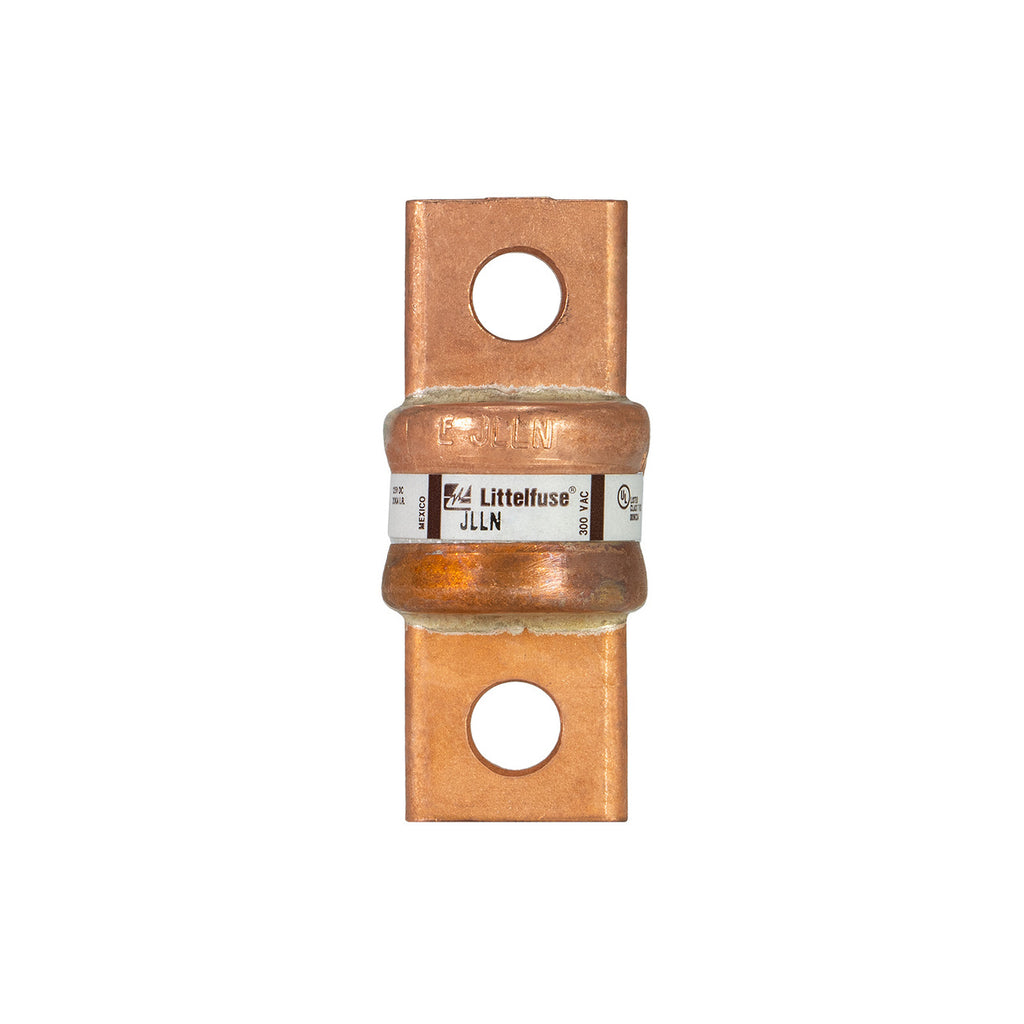

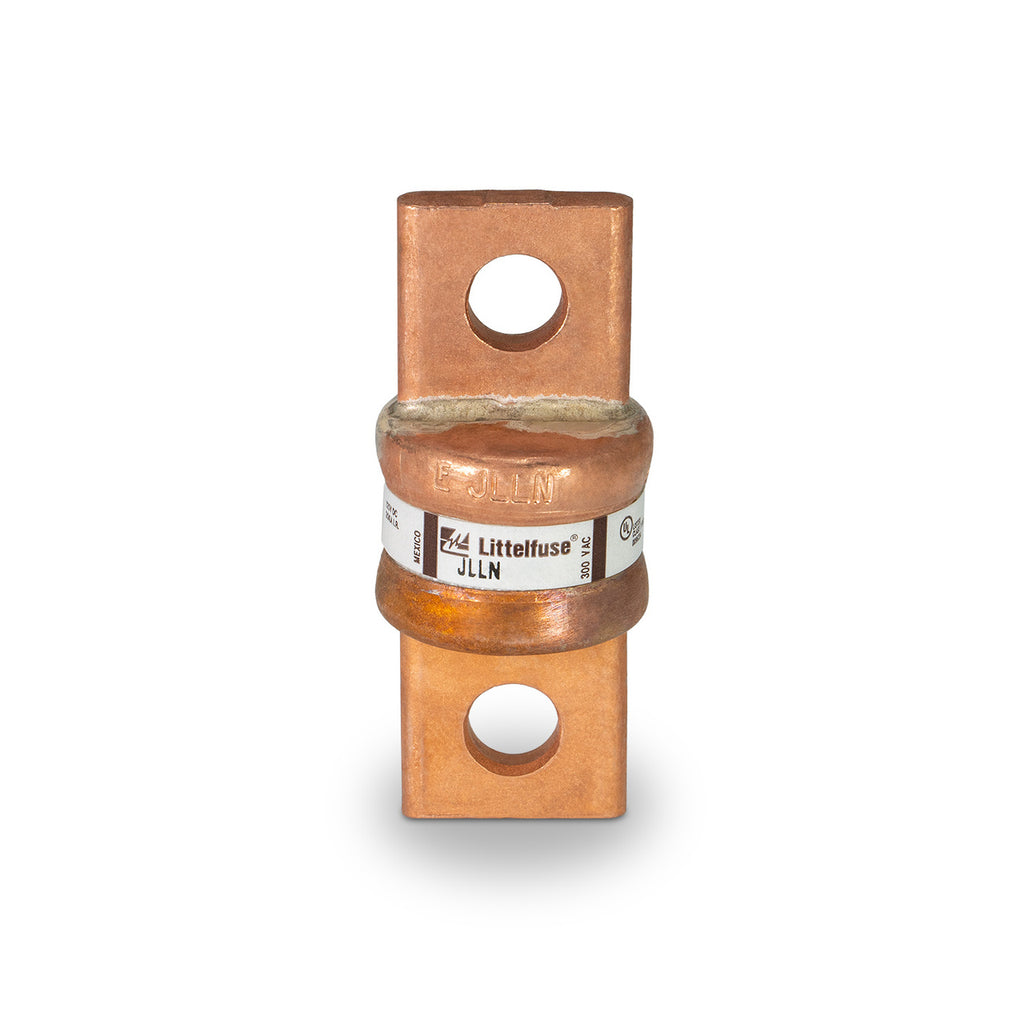

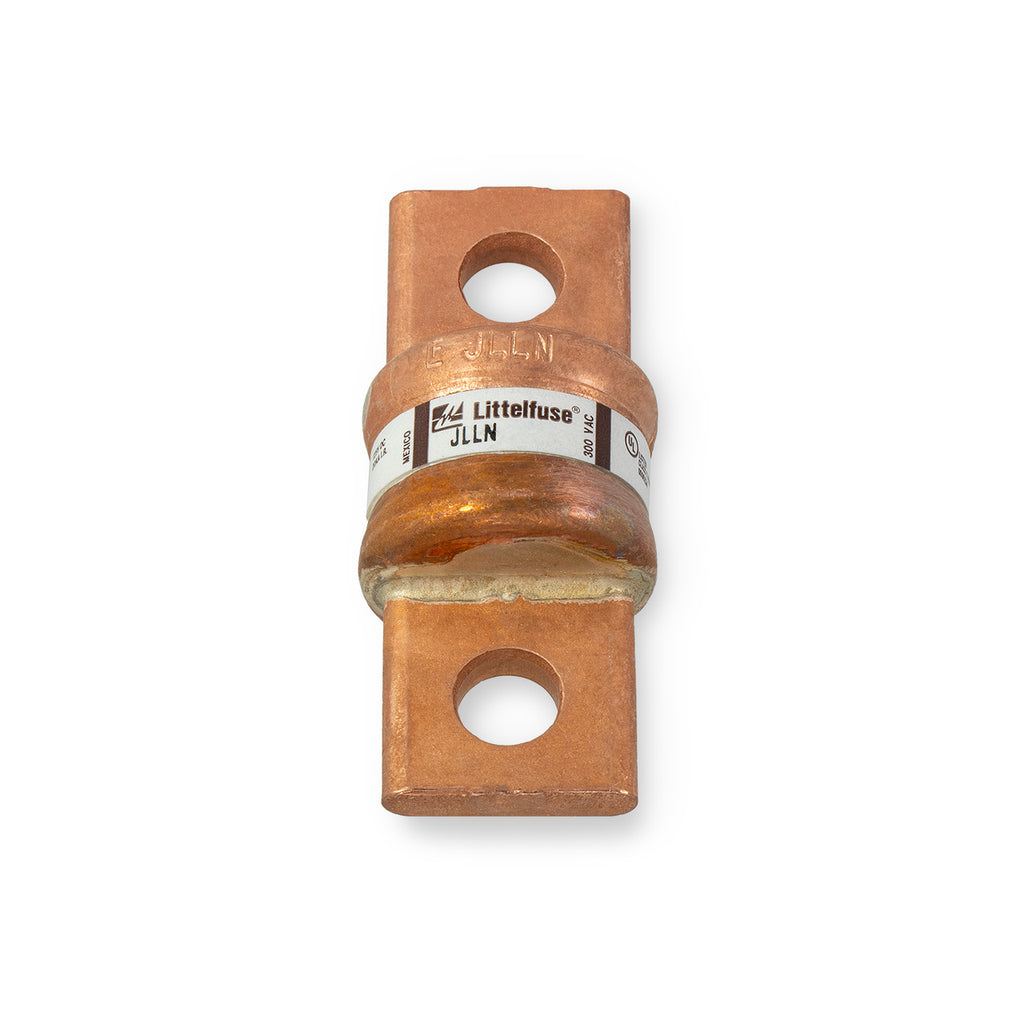

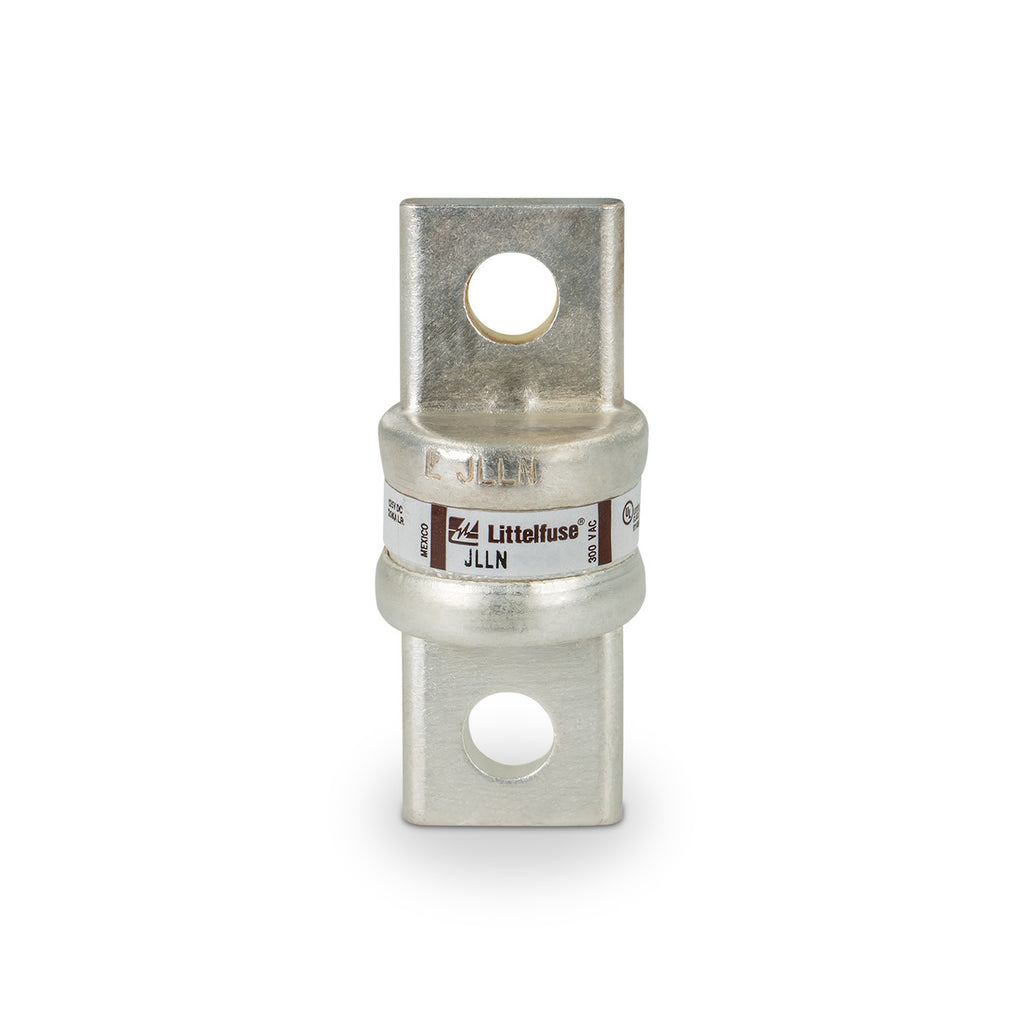

JLLN-200 is a Littelfuse 200 Amp, 300 Volt AC Class T fast acting fuse designed for compact and reliable overcurrent protection.This fuse features a very fast acting, current limiting design ideal for protecting variable speed drives and other sensitive equipment. It has a compact size of 1 1/16" diameter by 2 7/16" length, with an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 125 VDC. The JLLN-200 is UL Listed, CSA Certified, RoHS compliant, and meets UL 248-15 Class T standards.
- Key Specifications
- Amperage: 200 Amps
- Voltage Rating AC: 300 Volts
- Voltage Rating DC: 125 Volts
- Fuse Type: Class T, Fast Acting
- Interrupting Rating AC: 200,000 AIC @ 300 VAC
- Interrupting Rating DC: 20,000 AIC @ 125 VDC
- Dimensions: 1 1/16" diameter x 2 7/16" length
- Mounting Type: Cartridge Fuse
- Certifications: UL Listed (E81895), CSA Certified (LR29862), RoHS Compliant
- Application: Variable Speed Drive Protection
- Part Number: JLLN-200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 200
- AIC rating : 200kA@300V
- Diameter : 1.06
- Class Rating : T
- Barrels : 1
- UPC : 07945818088
- GTIN : 00079458180886
- Weight : 0.6
