Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-175

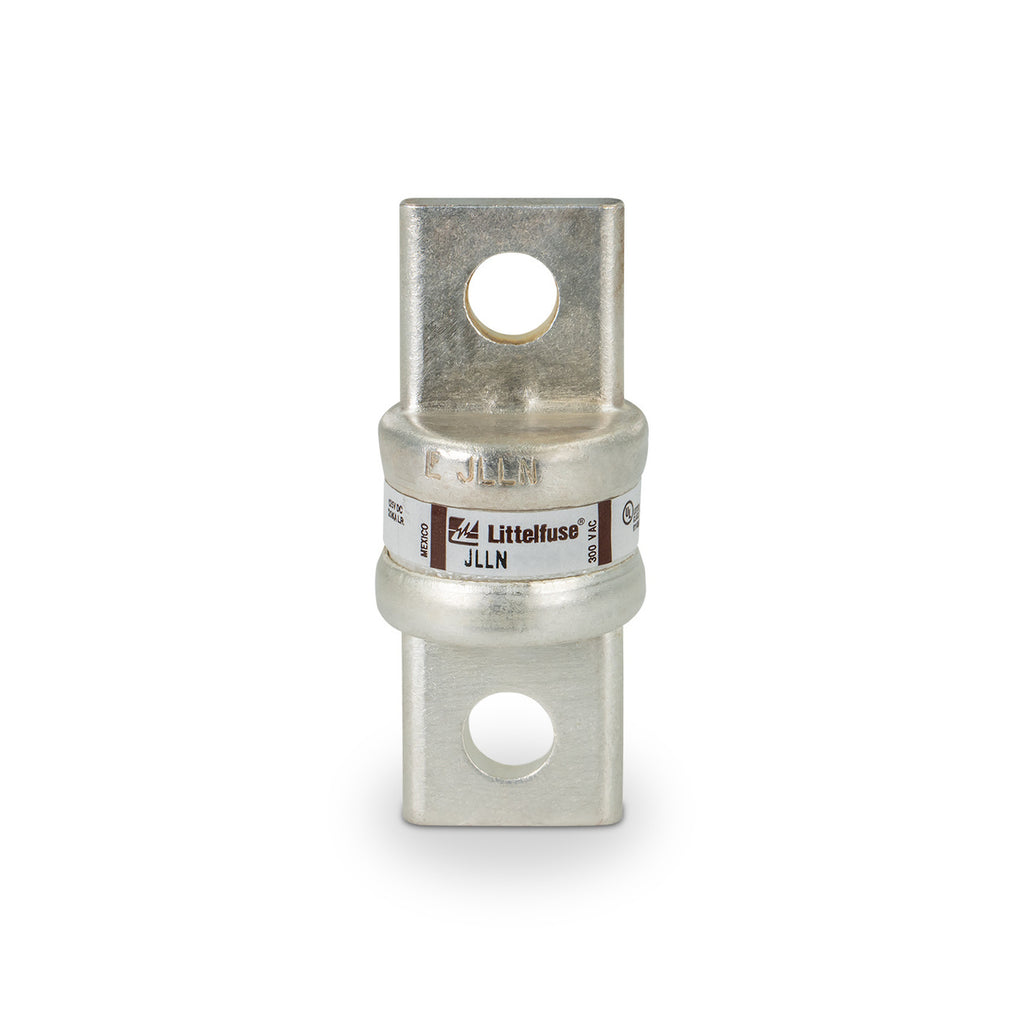

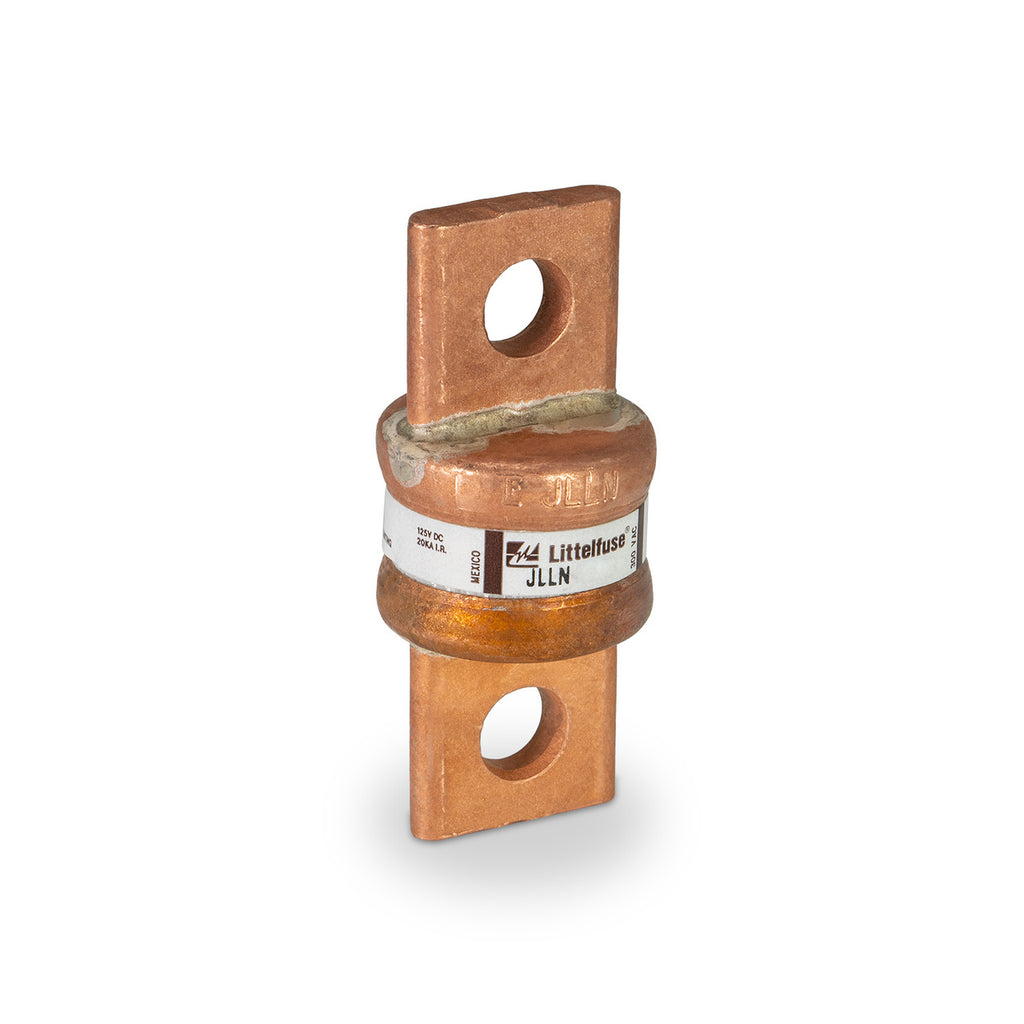

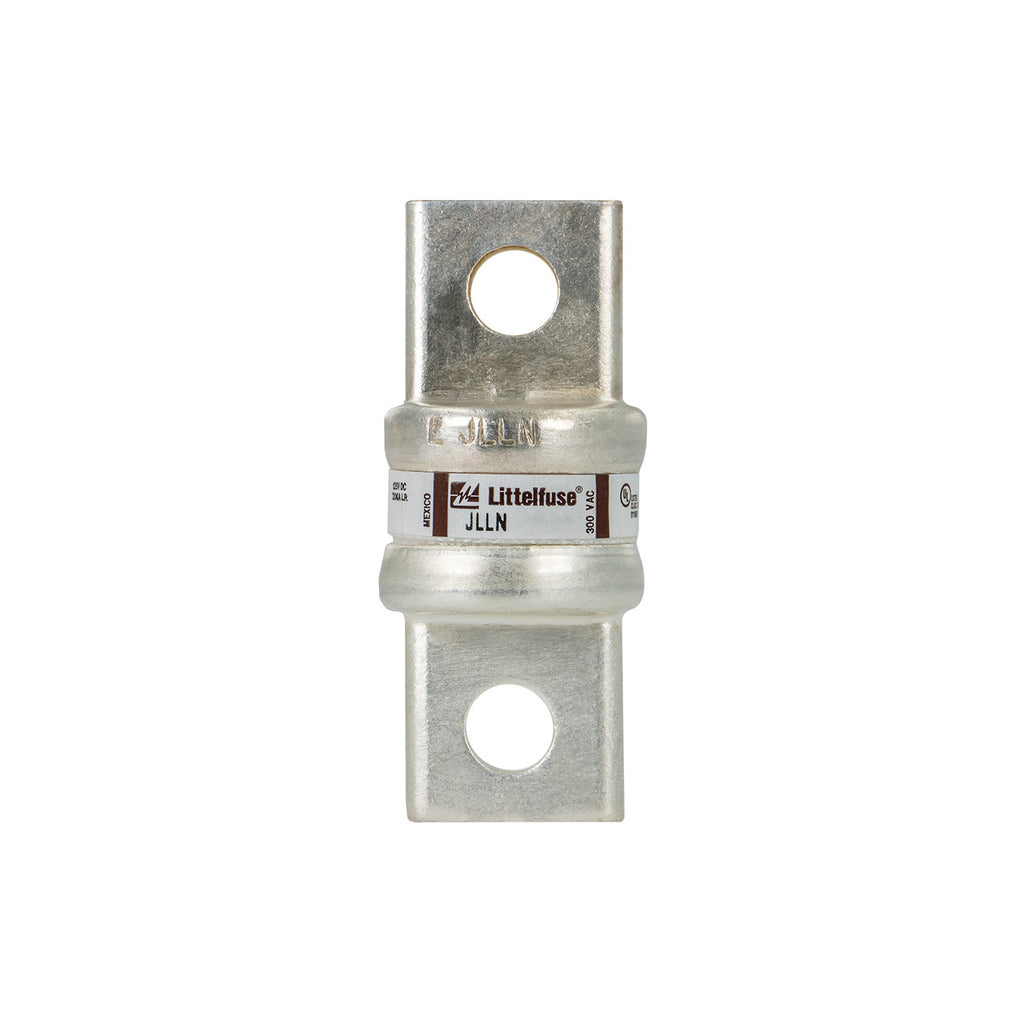

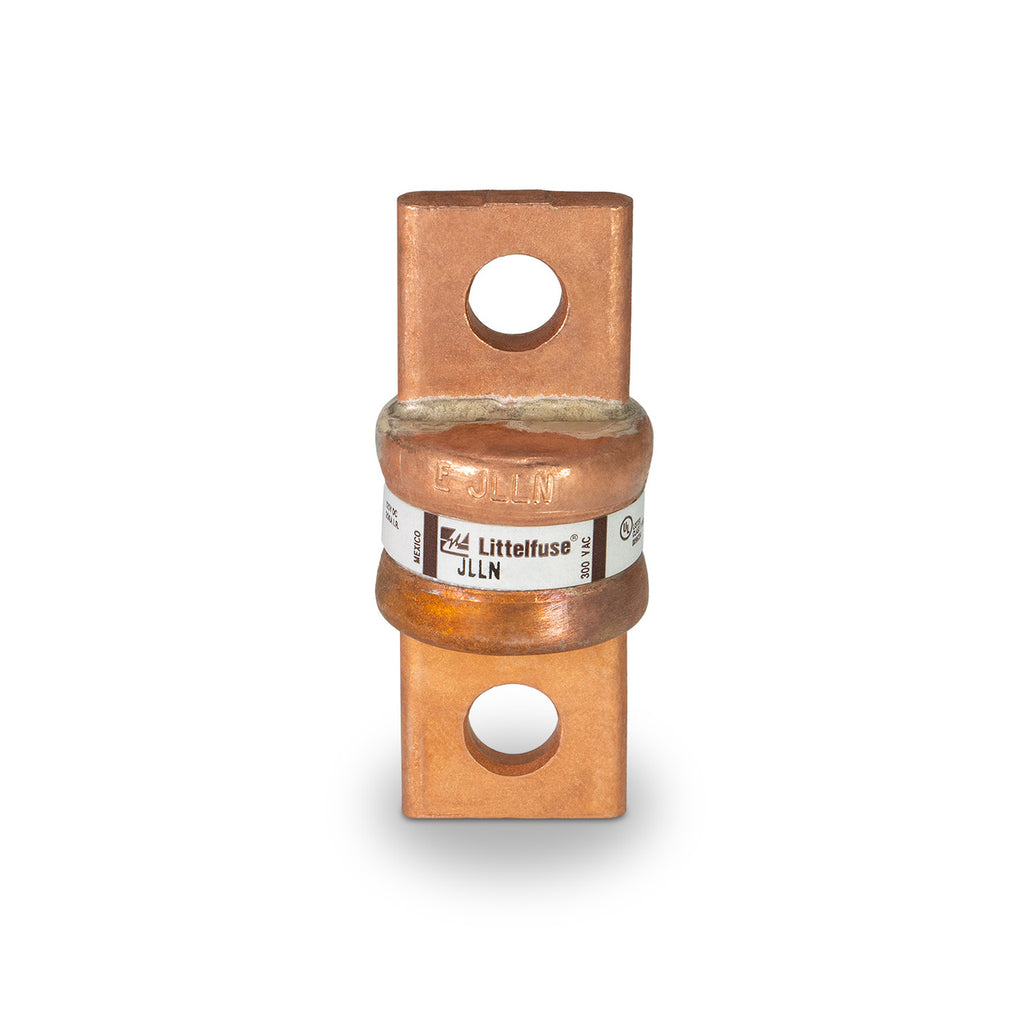

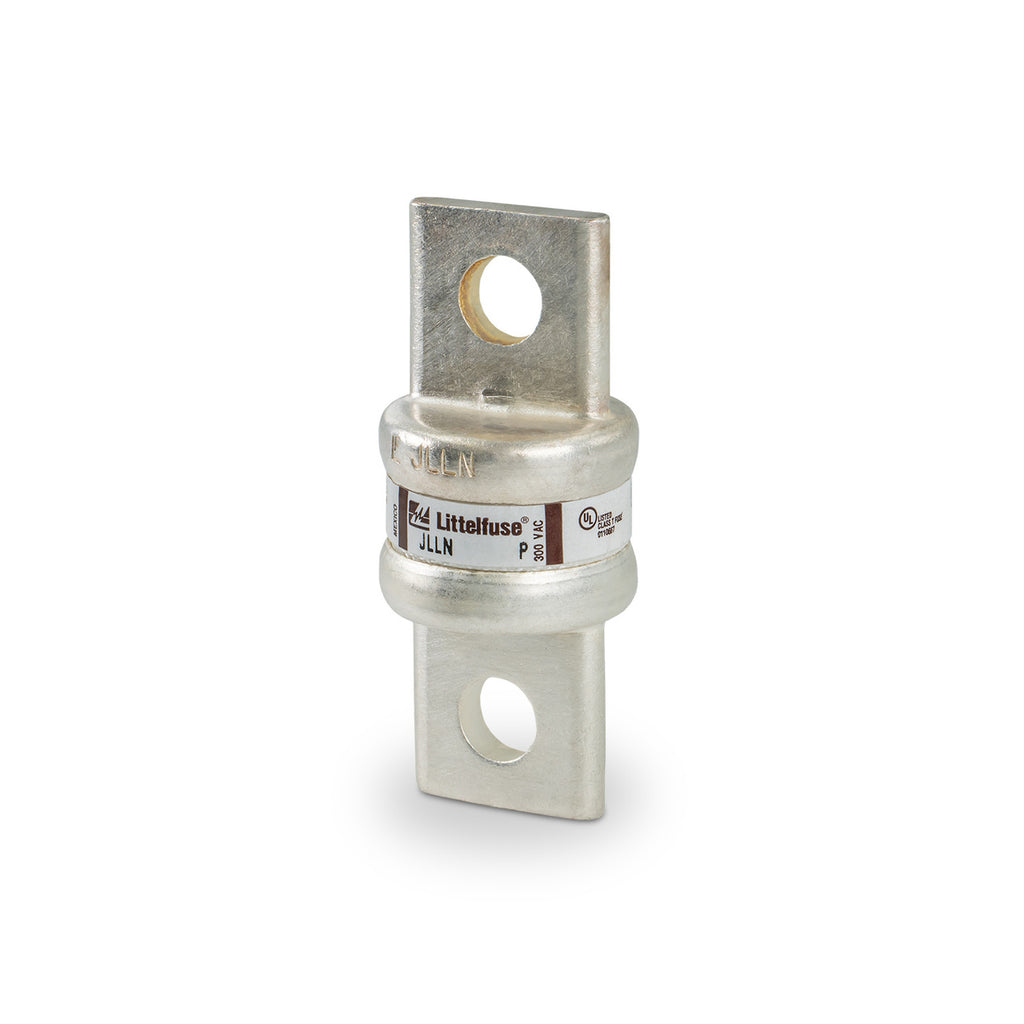

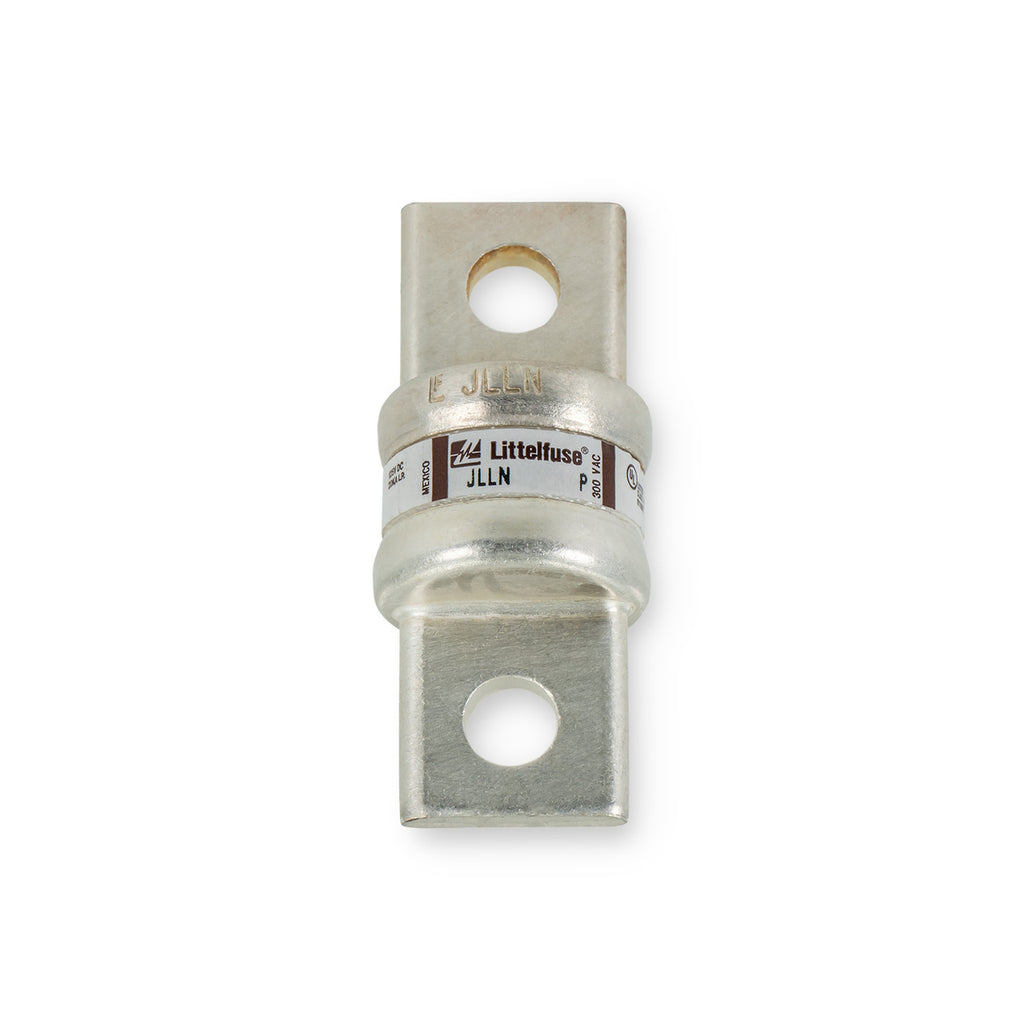

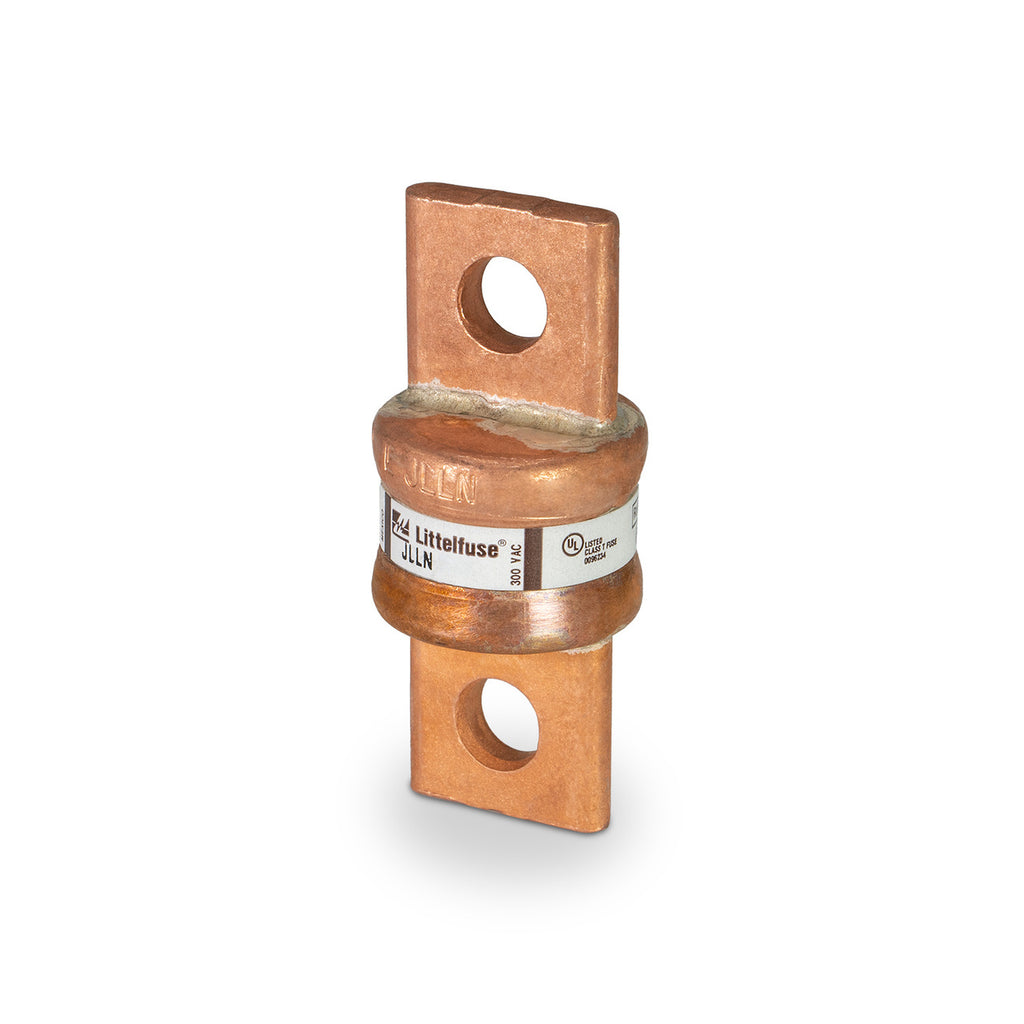

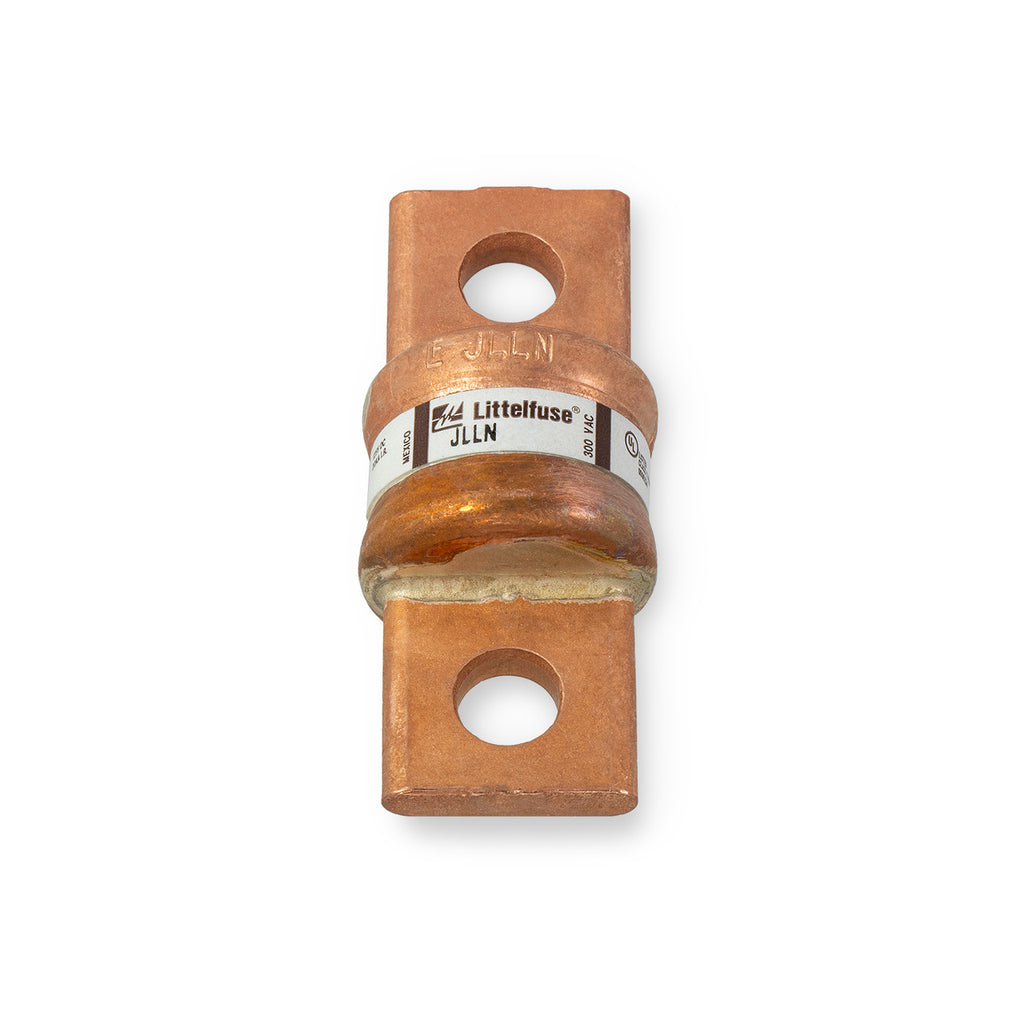

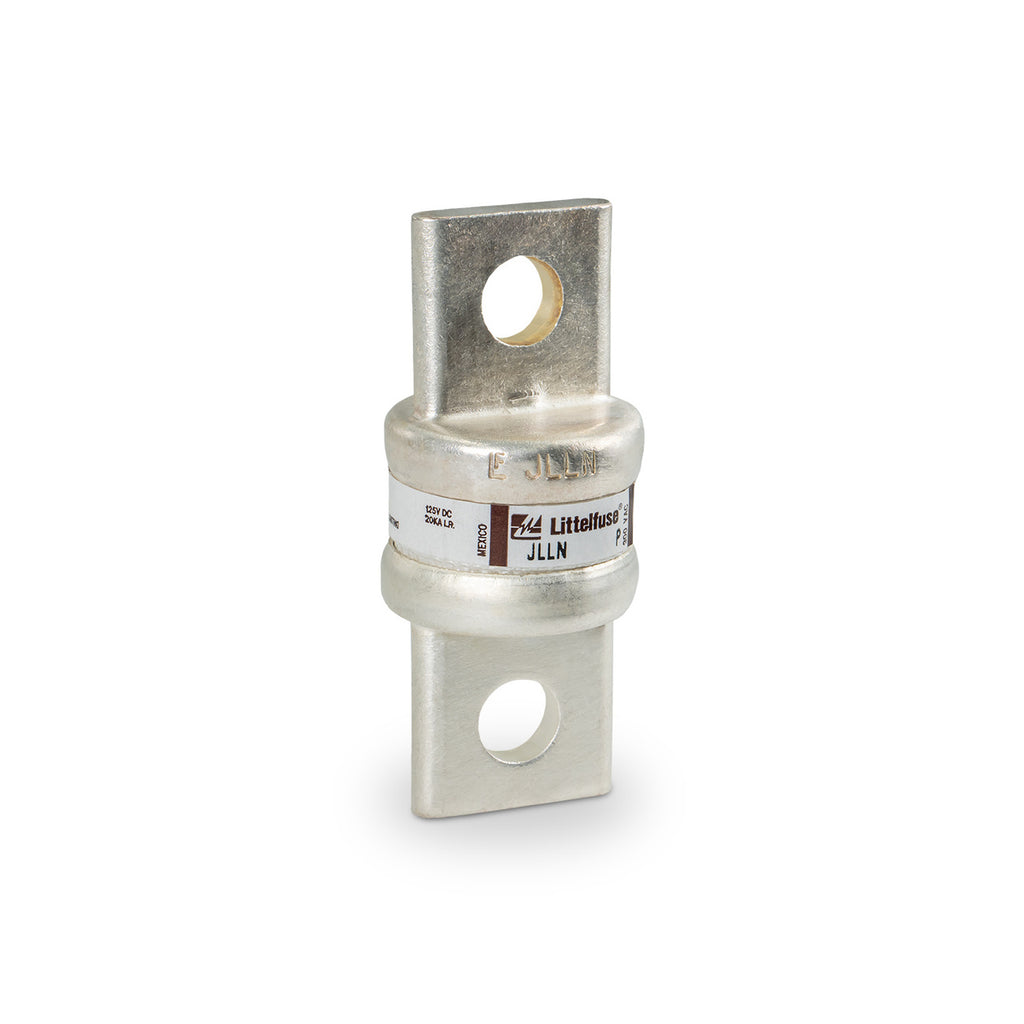

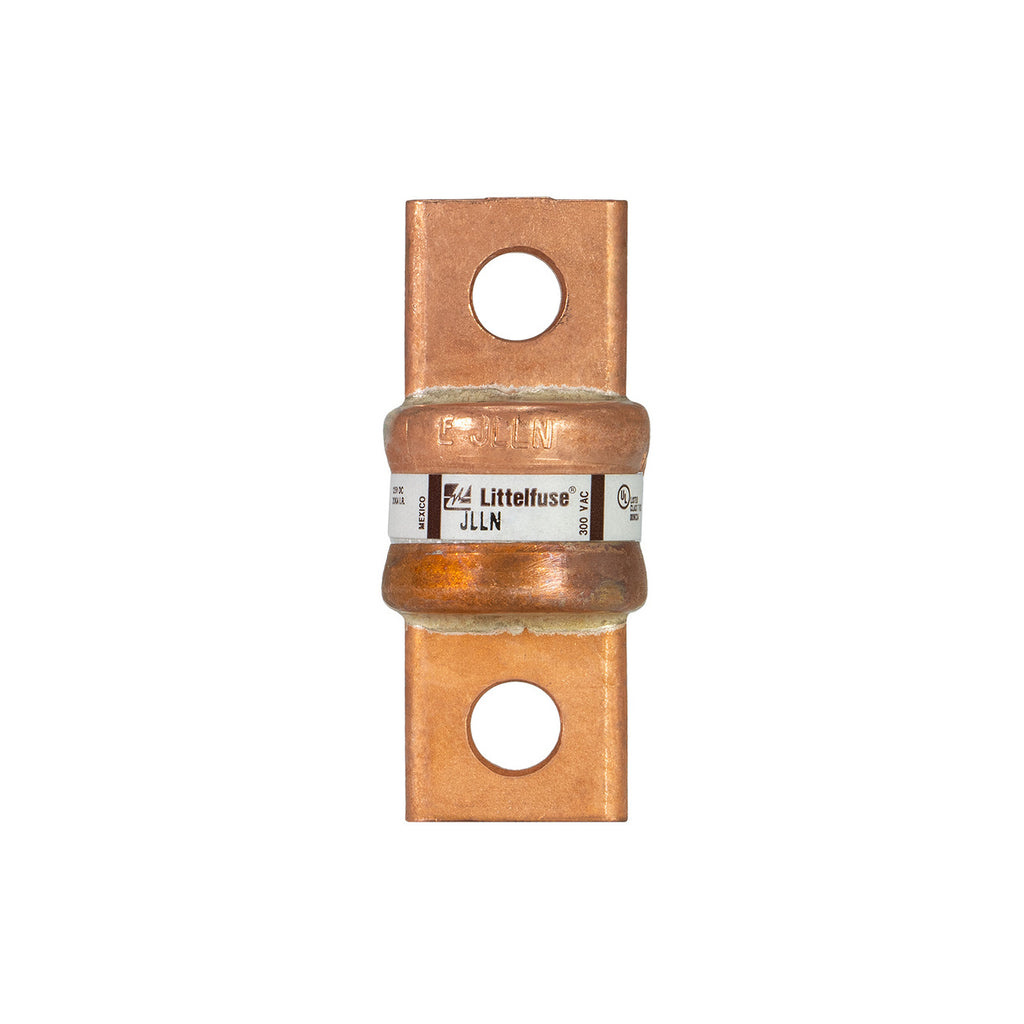

JLLN-175 is a Littelfuse Class T fast acting fuse rated for 175 amperes and 300 volts AC/125 volts DC.This fuse features fast acting characteristics, a current limiting design, and a high interrupting rating suitable for protecting variable speed drives and industrial equipment.
- Amperage: 175 A
- Voltage Rating: 300 Vac / 125 Vdc
- Fuse Type: Class T, Fast Acting
- Interrupting Rating: 200,000 A AC rms symmetrical, 20,000 A DC
- Mounting Type: Blade Terminal
- Dimensions: 1-1/16 inch diameter, 2-7/16 inch length
- Material: Melamine body with copper caps
- Certifications: UL 248-15, CSA, CE
- Series: JLLN
- Current Limiting
Specifications
- Part Number: JLLN-175
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 175
- AIC rating : 200kA@300V
- Diameter : 1.06
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818087
- Weight : 0.6
