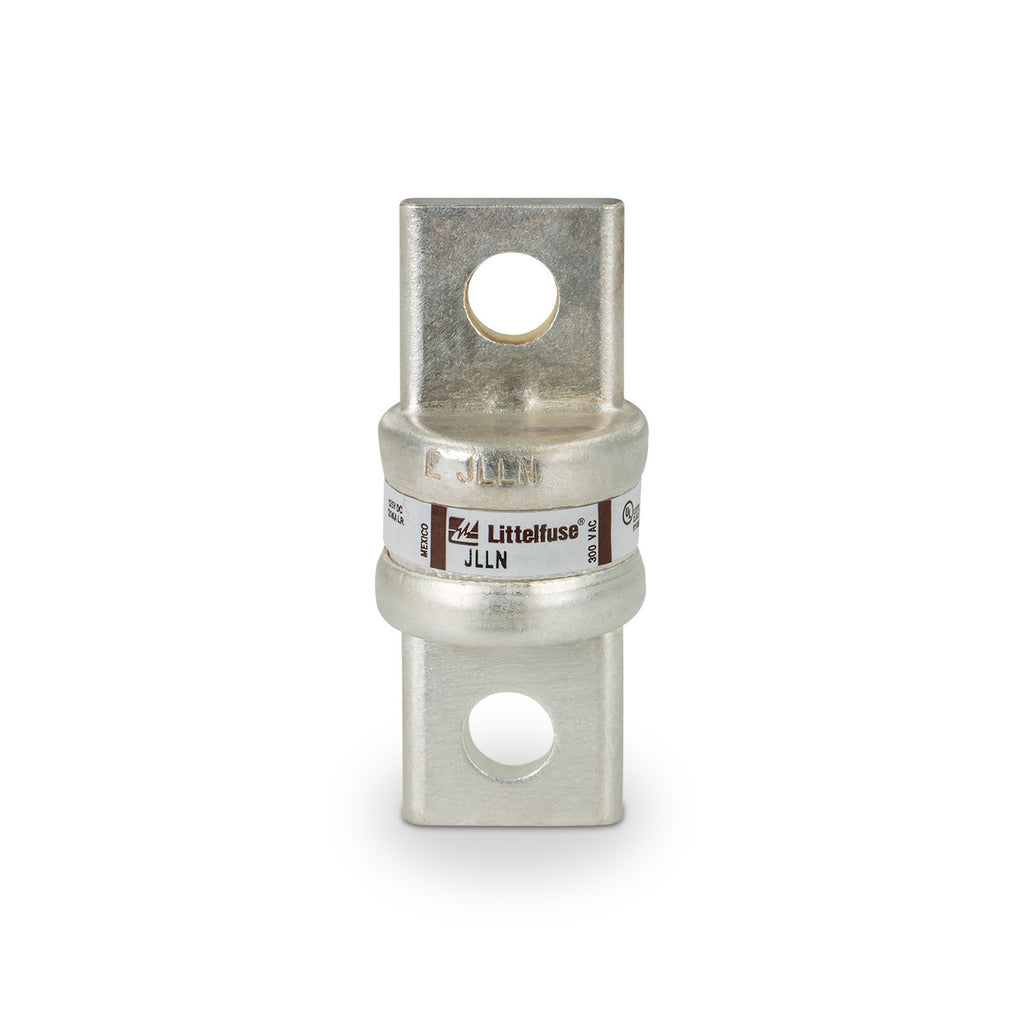

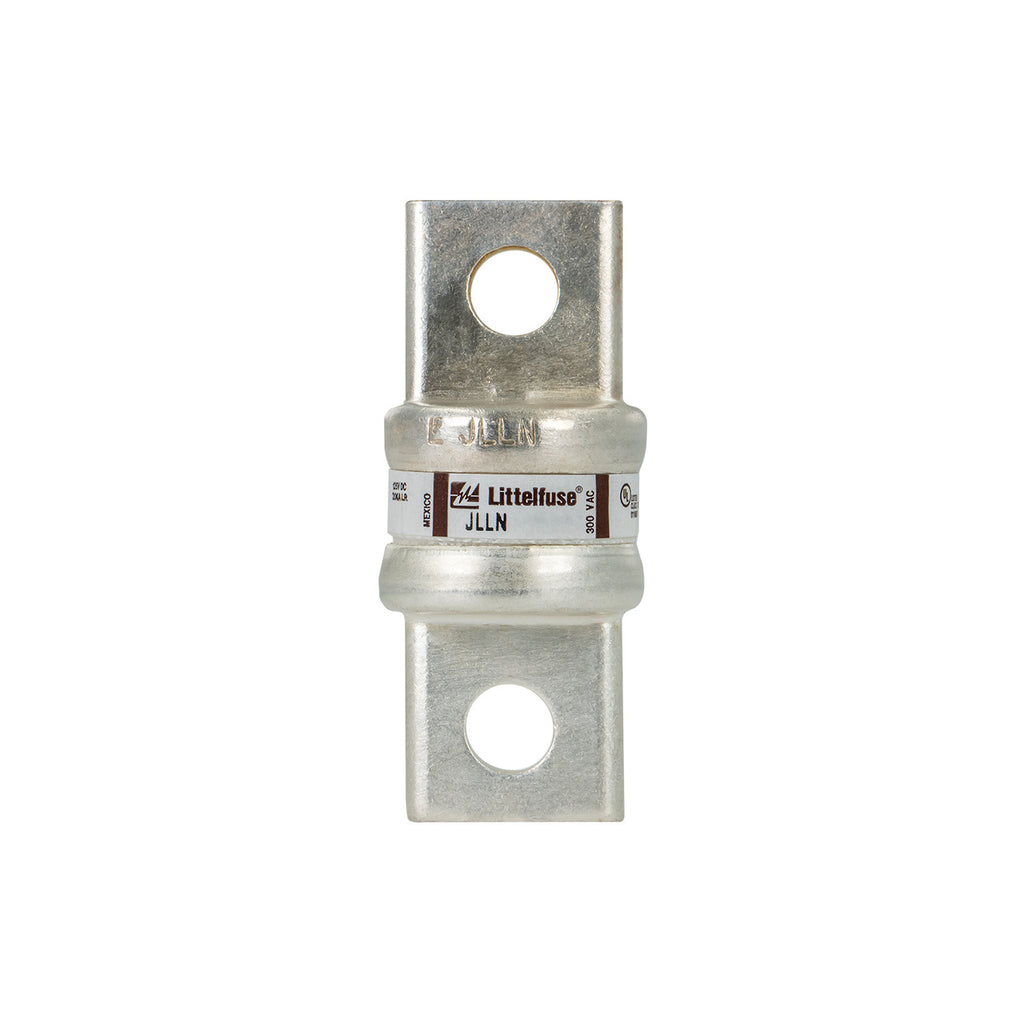

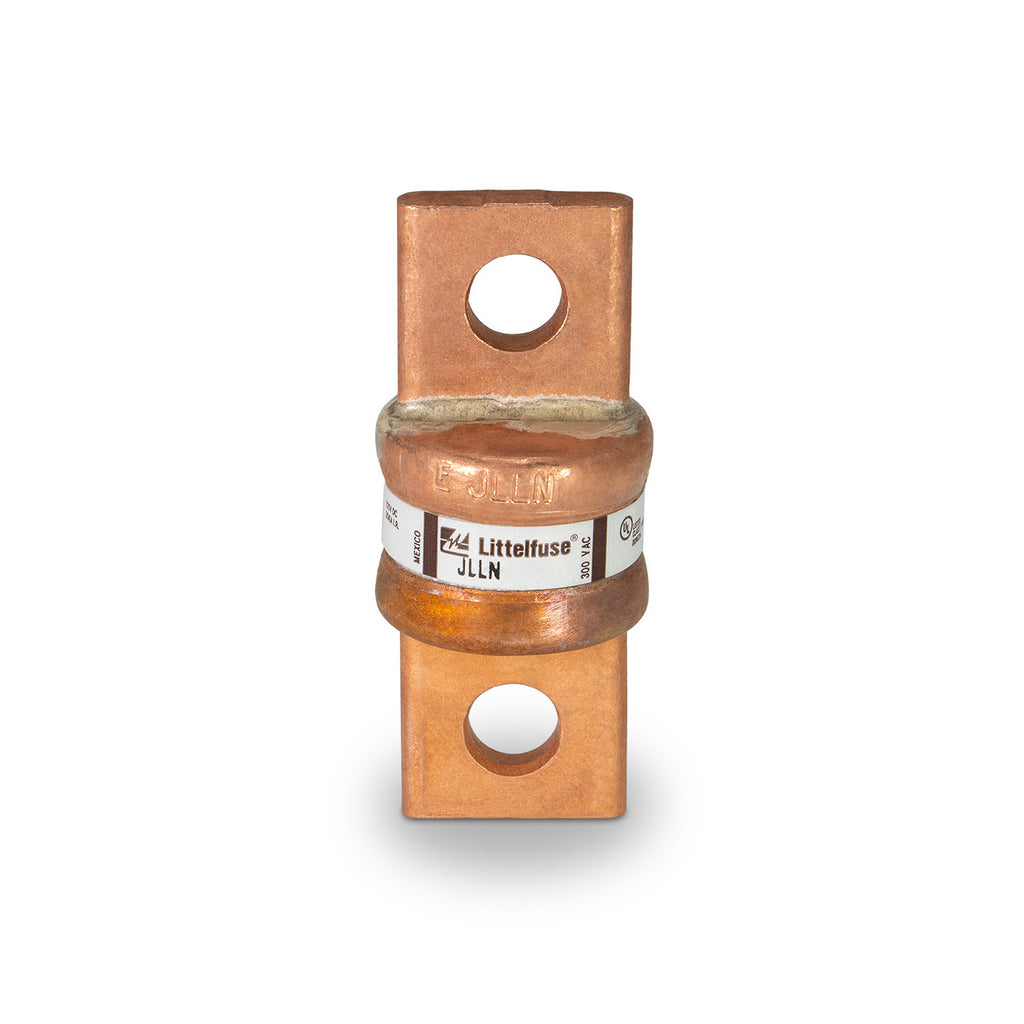

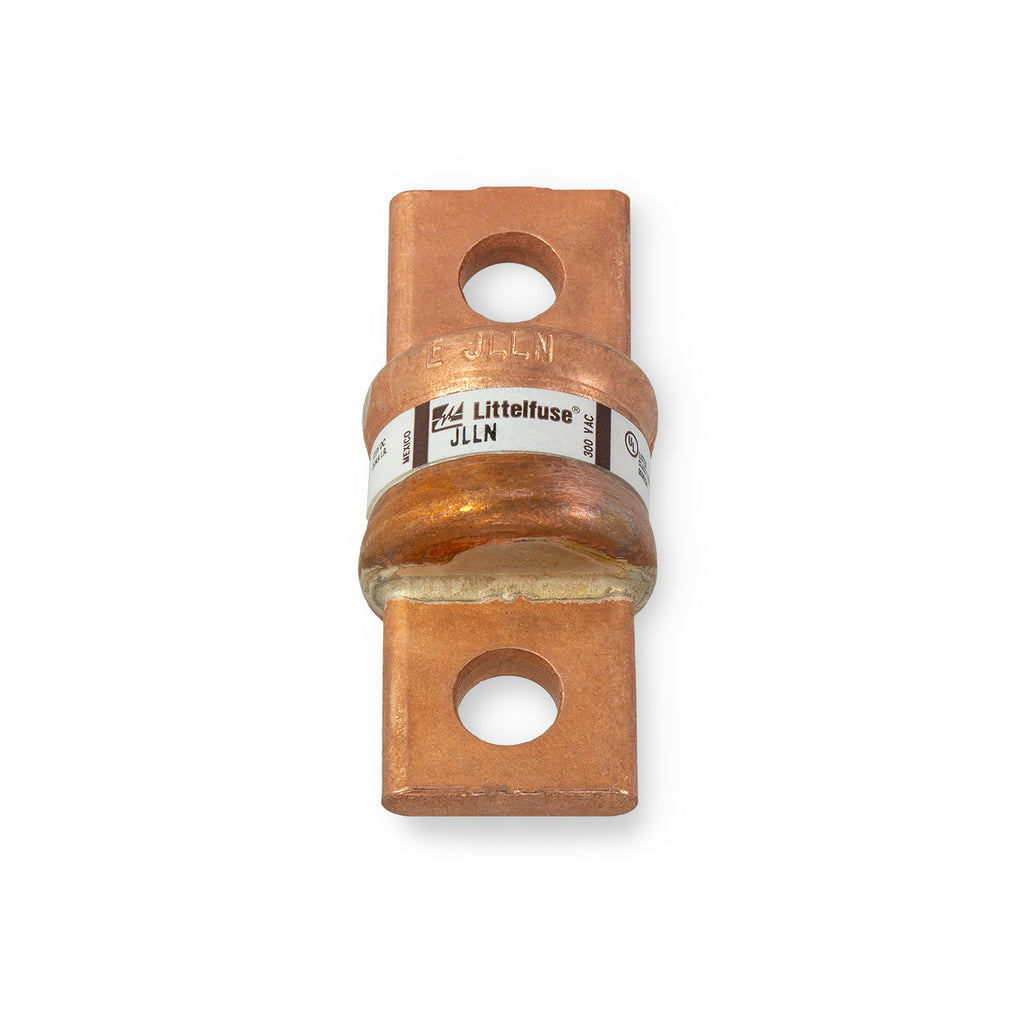

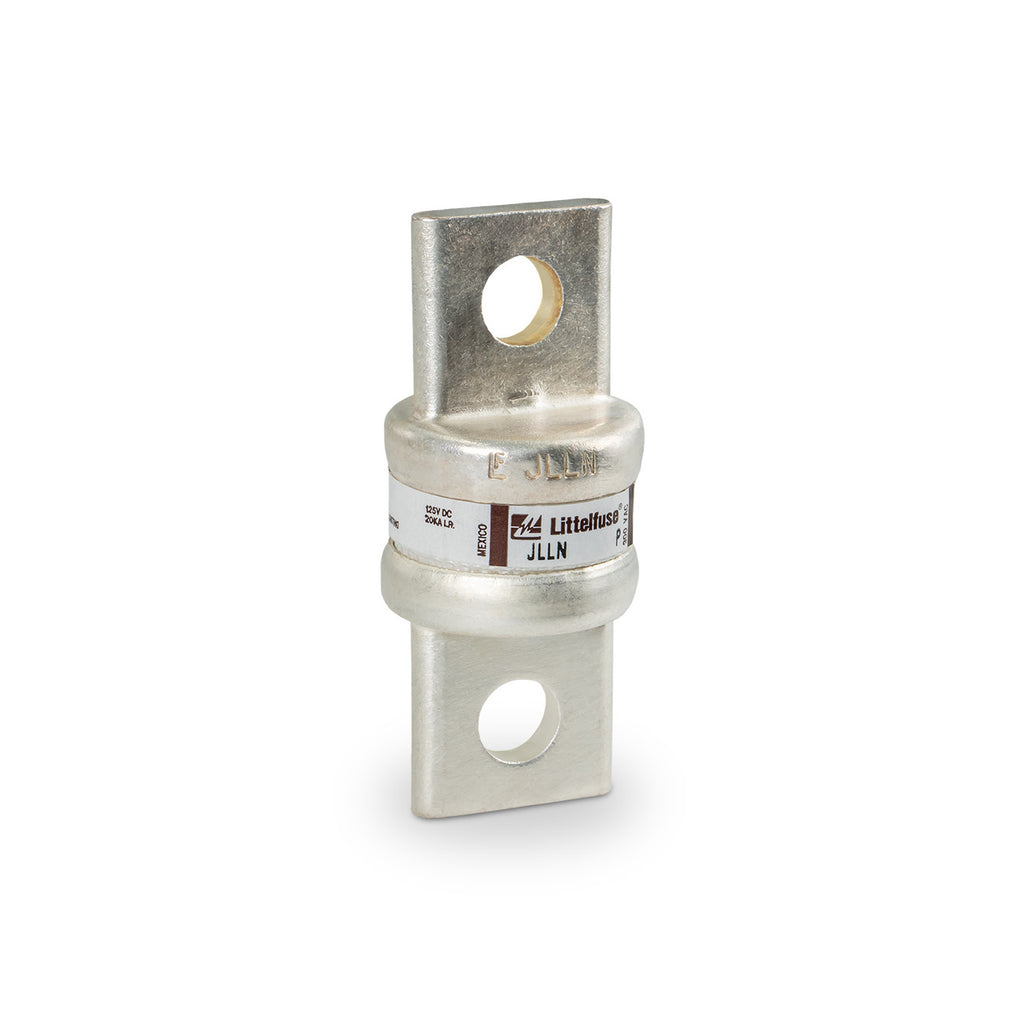

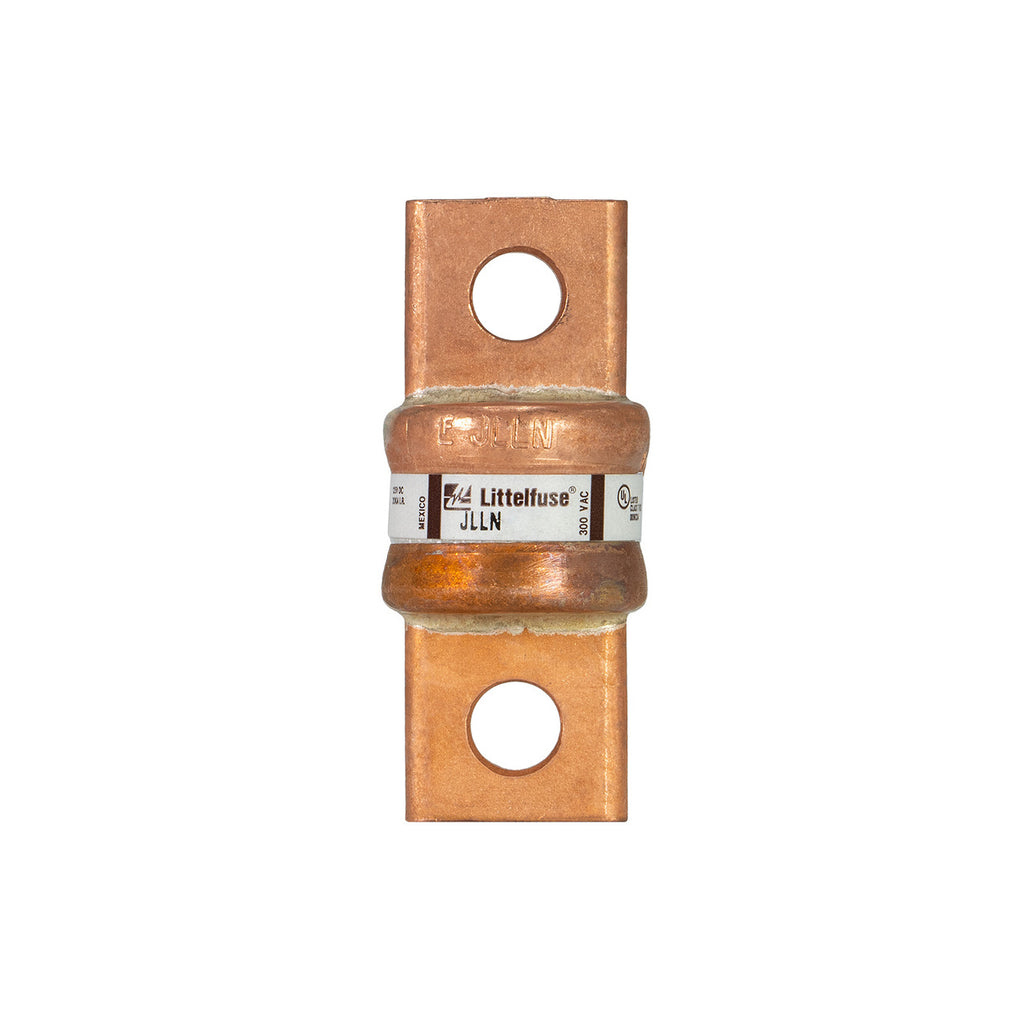

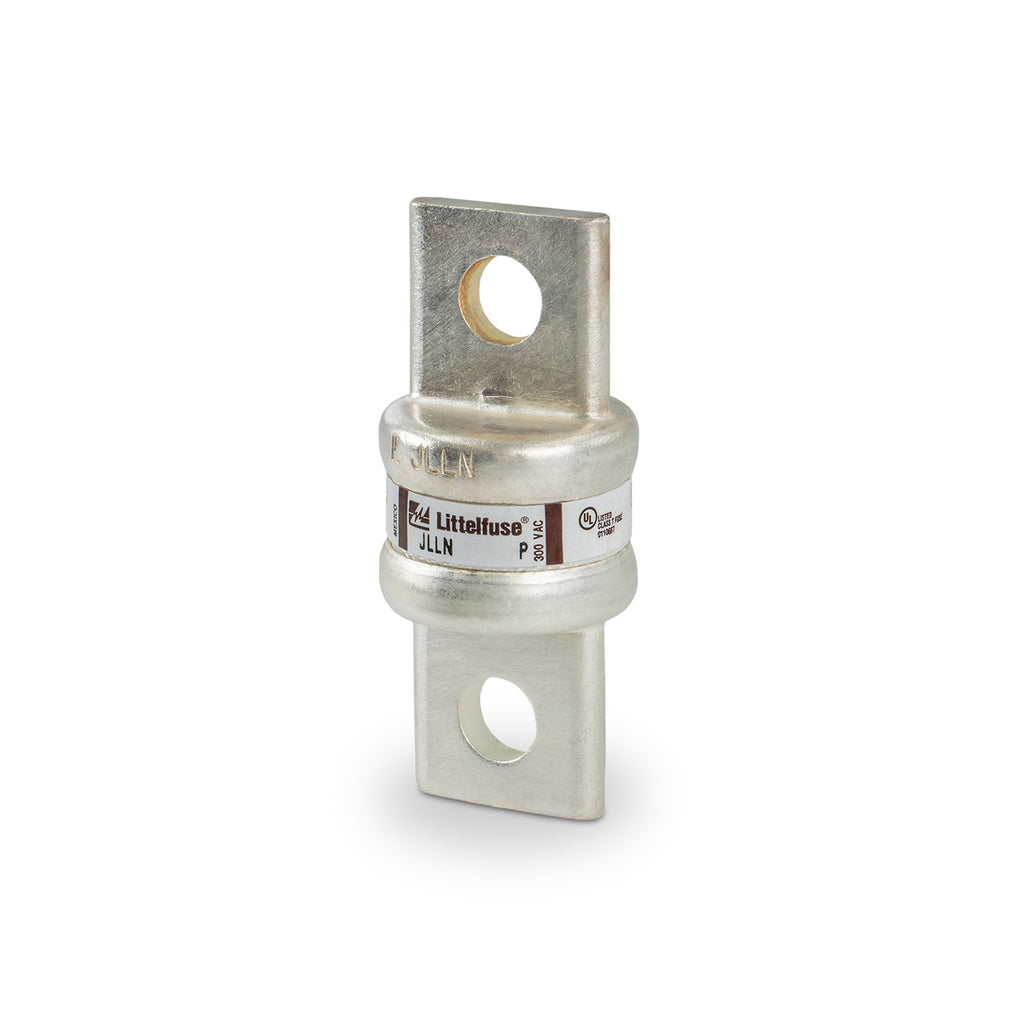

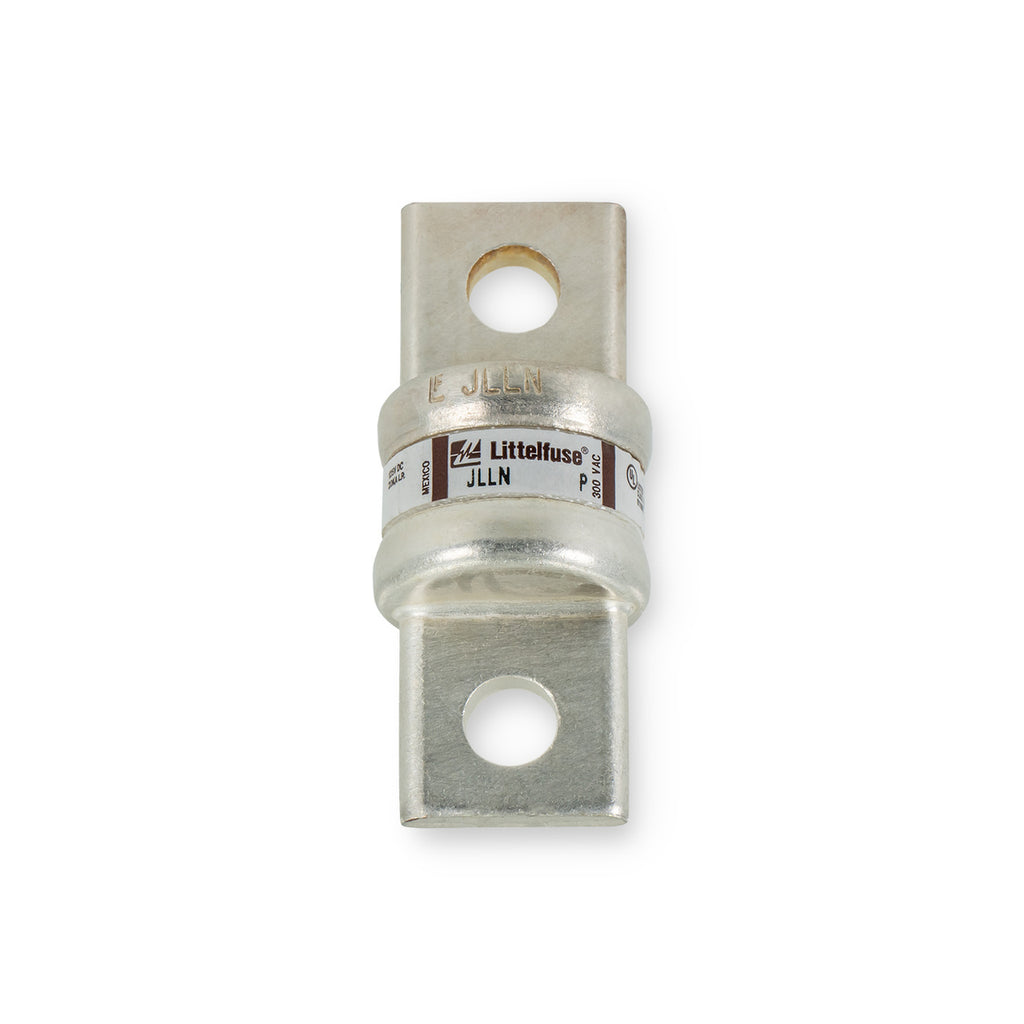

JLLN-150 - Littelfuse 150 Amp 300 Volt AC Class T Fast Acting Fuse

JLLN-150

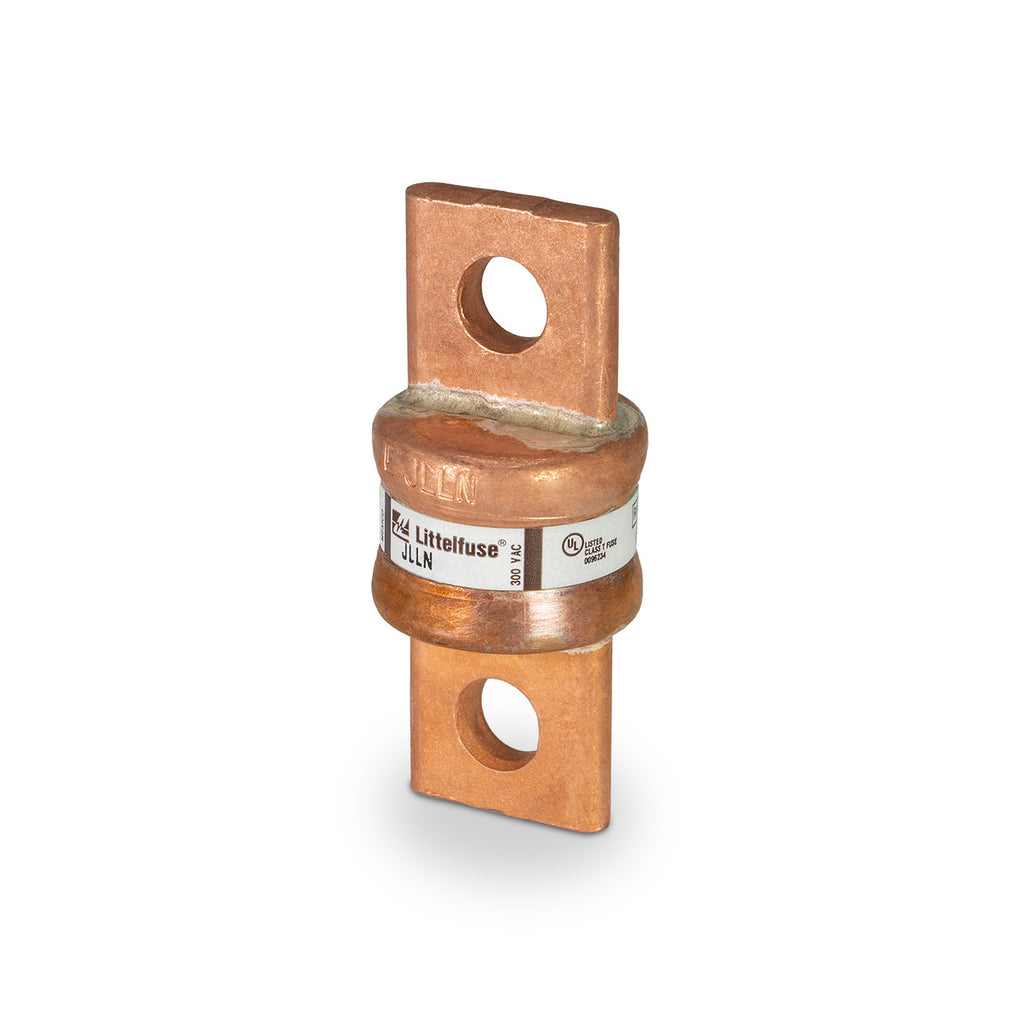

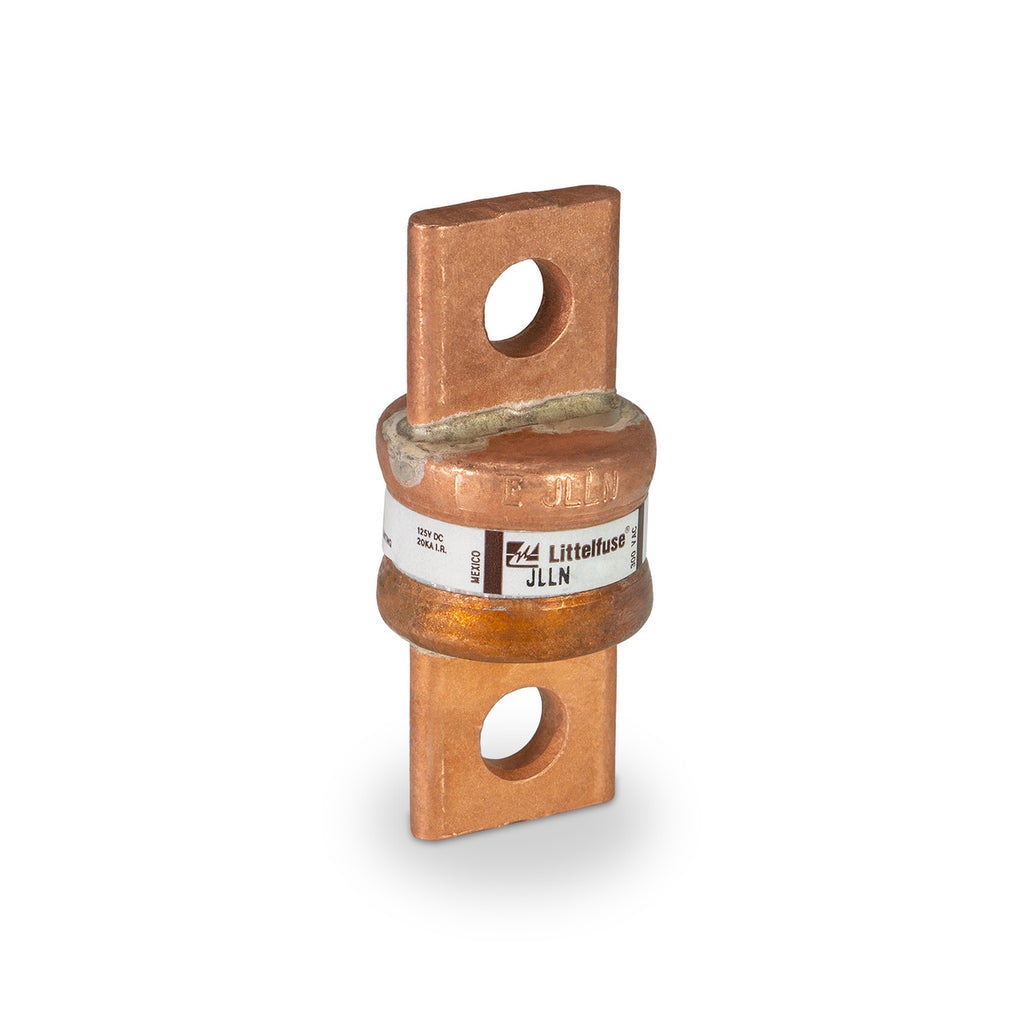

JLLN-150 is a Littelfuse Class T fast acting fuse rated for 150 amps and 300 volts AC, designed for compact and reliable circuit protection.JLLN-150 features a very fast acting, current limiting design suitable for variable speed drive protection and other industrial applications. It has an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 125 VDC, with a compact size of 1 1/16" x 2 7/16". This fuse is UL Listed, CSA Certified, and RoHS compliant, ensuring high safety and environmental standards.

Key Specifications
• Amperage: 150 A
• Voltage Rating AC: 300 V
• Voltage Rating DC: 125 V
• Fuse Type: Fast Acting (Very Fast Acting)
• Interrupting Rating AC: 200,000 AIC @ 300 VAC
• Interrupting Rating DC: 20,000 AIC @ 125 VDC
• Fuse Class: UL Class T
• Mounting Type: Bolt On
• Dimensions: 1 1/16" x 2 7/16"
• Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862), RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLLN-150
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLN
• Voltage : 300
• Amperage : 150
• AIC rating : 200kA@300V
• Diameter : 1.06
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 07945818086
• GTIN : 00079458180862
• Weight : 0.6
