Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

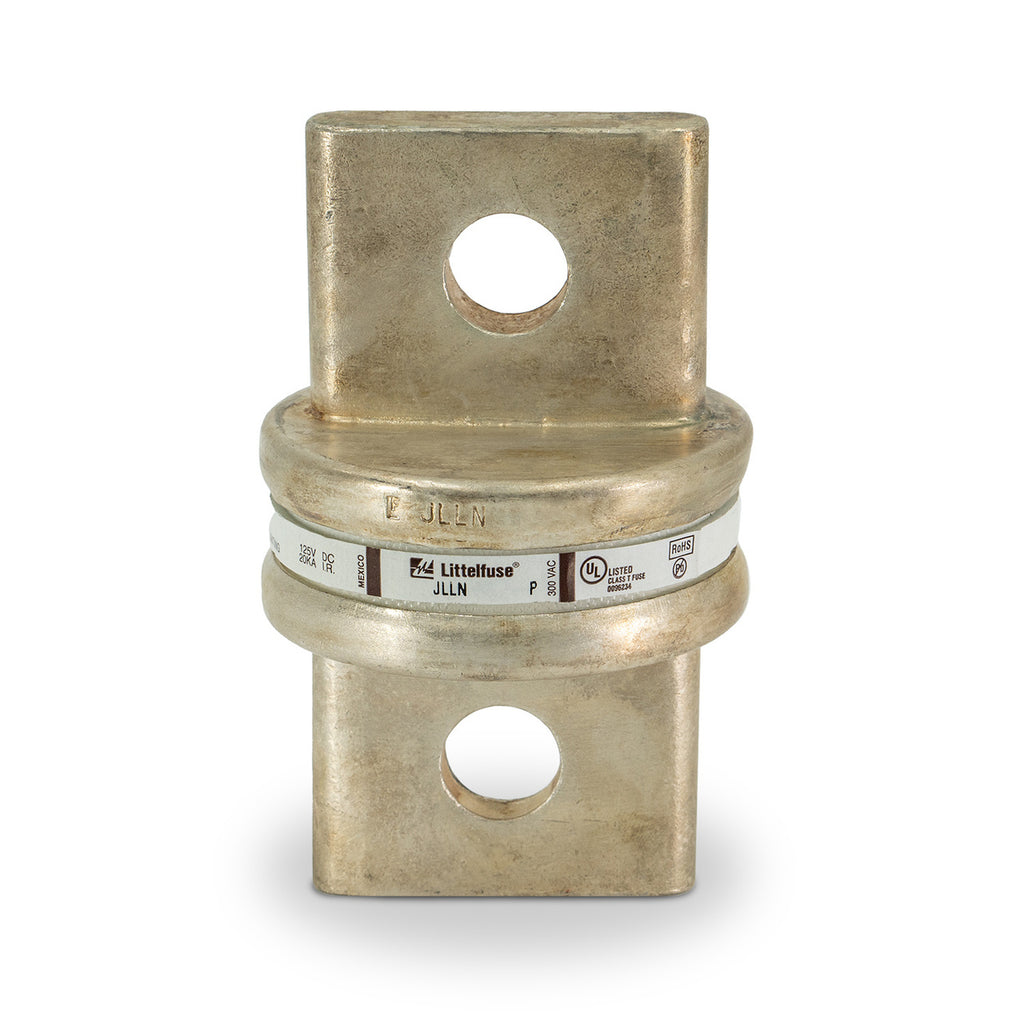

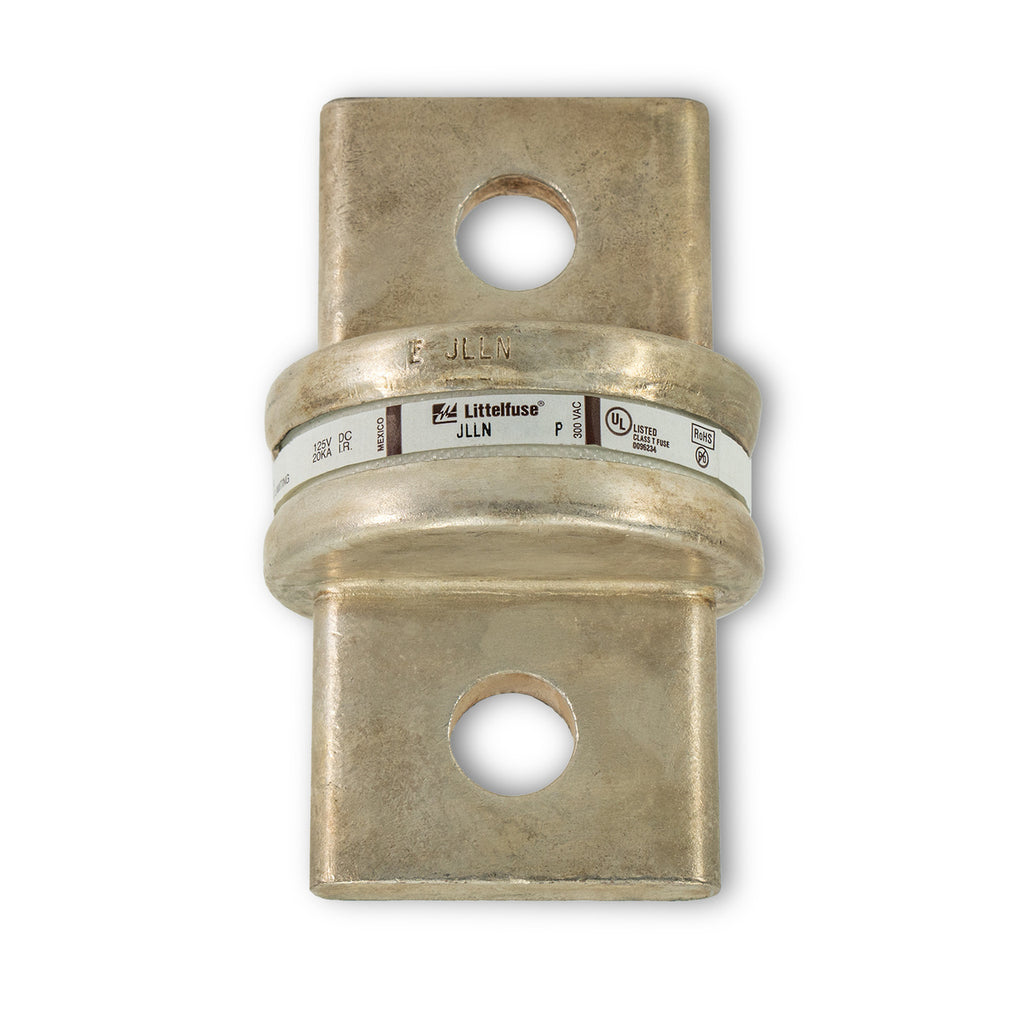

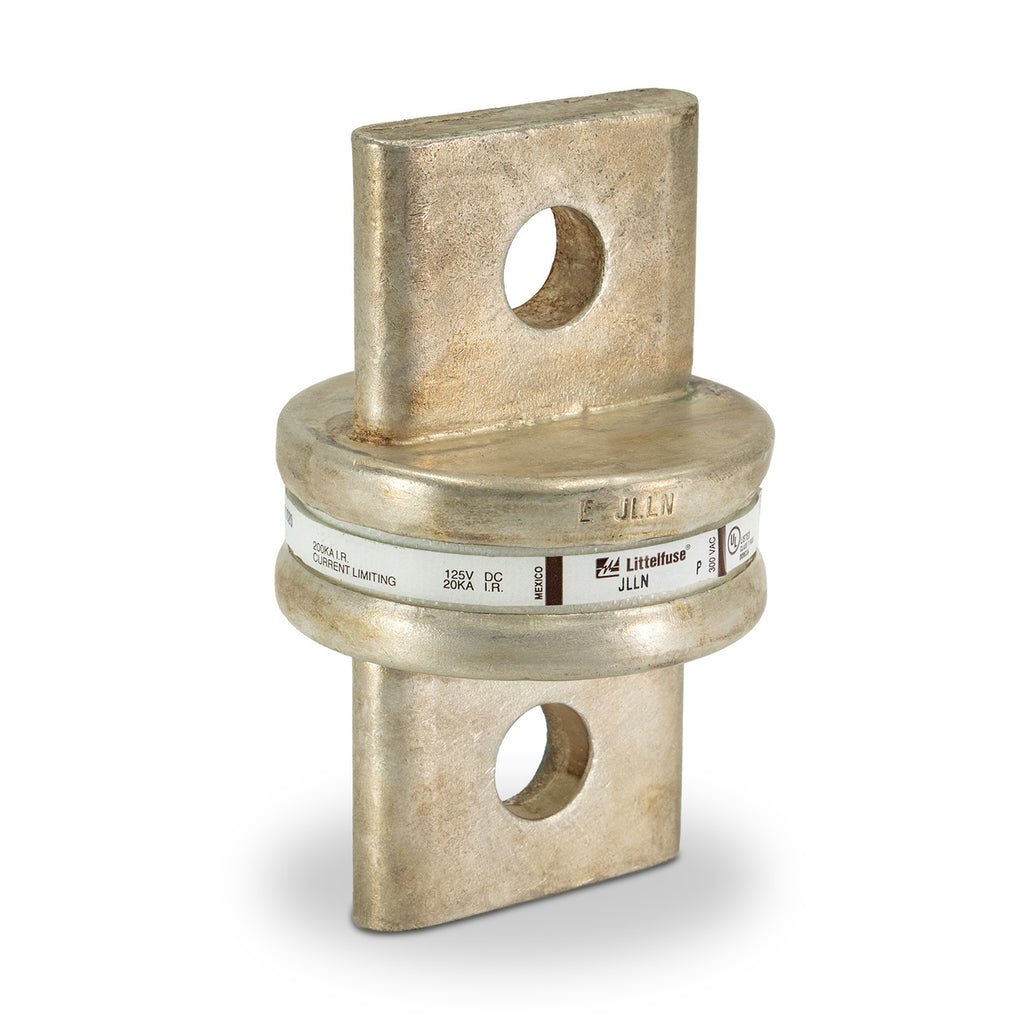

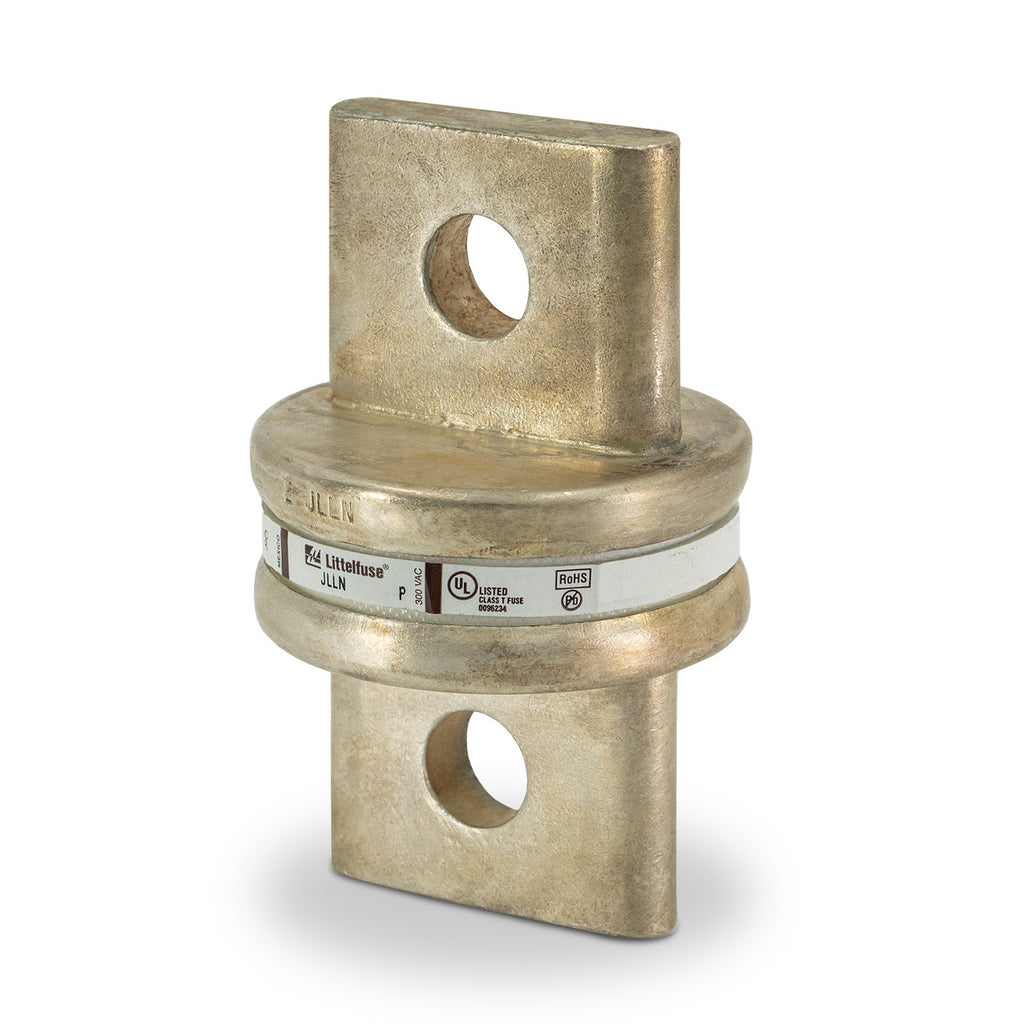

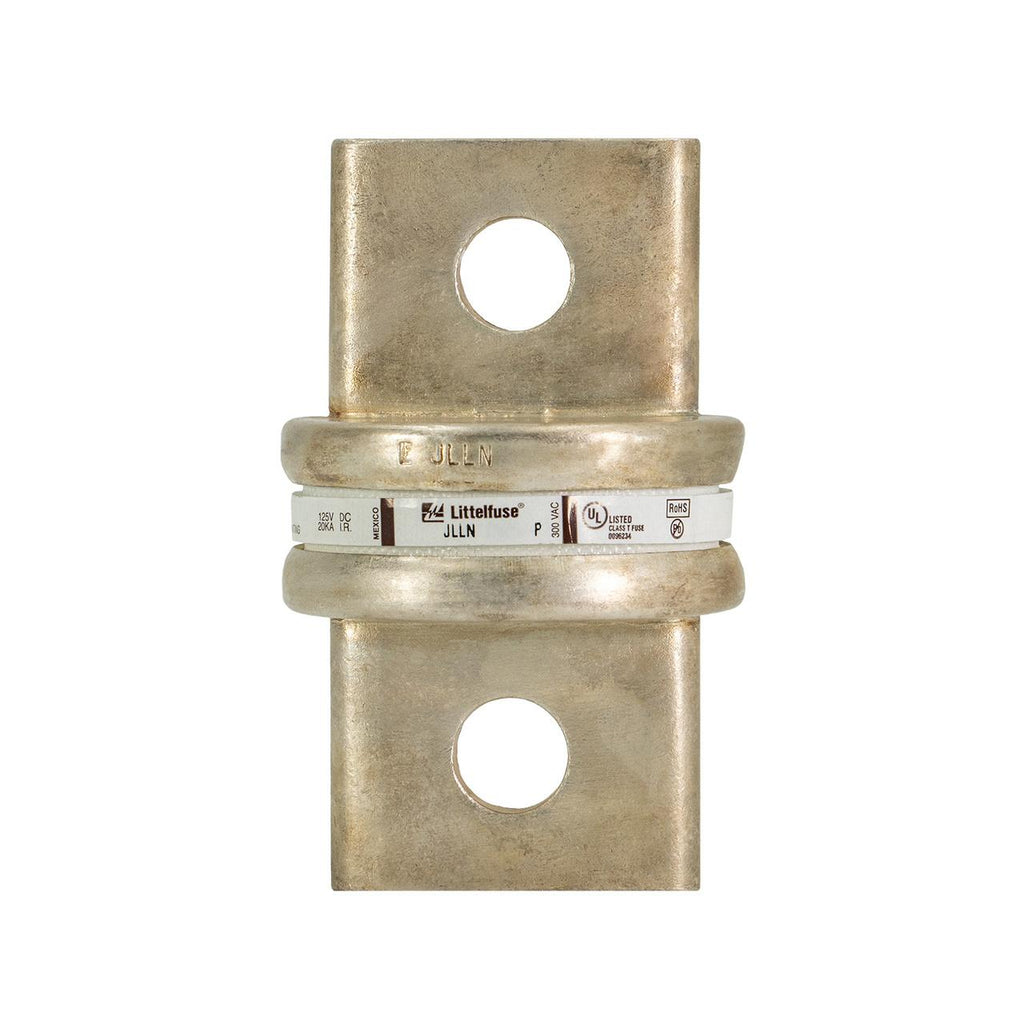

JLLN-1200
JLLN-1200 is a Littelfuse Class T fast-acting fuse rated for 1200 amps and 300 volts AC, designed for compact and reliable overcurrent protection.This fuse features a melamine body with copper caps, providing a high interrupting rating of 200kA at 300 VAC and 20kA at 125 VDC. It complies with UL 248-15, CSA, and CE certifications, ensuring safety and performance in industrial applications. The JLLN series is known for its compact size, less than one-third the size of comparable fuses above 30 amps, making it ideal for space-constrained installations.
- Key Specifications
- Amperage: 1200 A
- Voltage Rating: 300 VAC / 125 VDC
- Fuse Type: UL Class T
- Interrupting Rating: 200 kA AC, 20 kA DC
- Response Time: Fast-Acting
- Material: Melamine body, copper caps
- Certifications: UL Listed, CSA Certified, CE Compliant
- Dimensions: Approximately 2.5 in diameter x 4 in length
- Mounting Type: Knife-blade style
- RoHS Compliant
Specifications
- Part Number: JLLN-1200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 1200
- AIC rating : 200kA@300V
- Diameter : 2.5
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 079458181067
- GTIN : 00079458181067
- Weight : 7
