2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-110

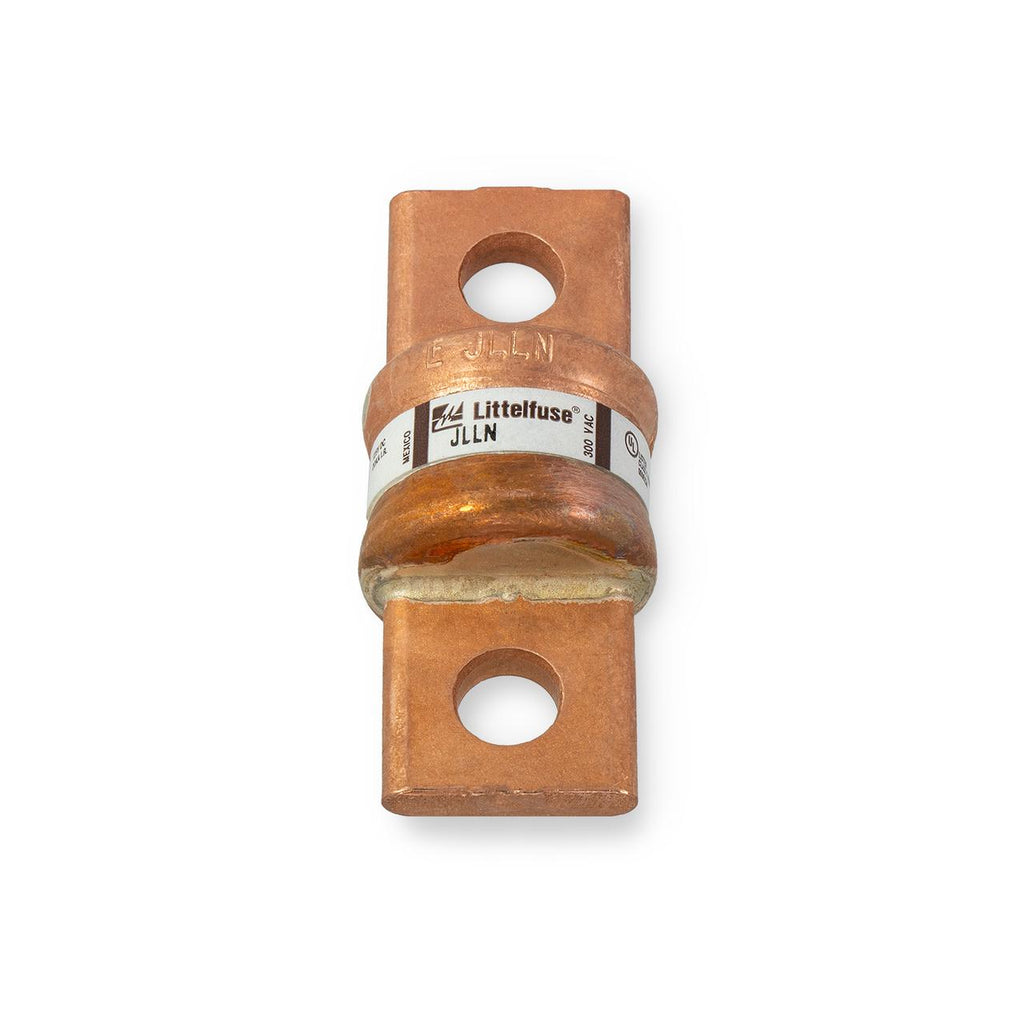

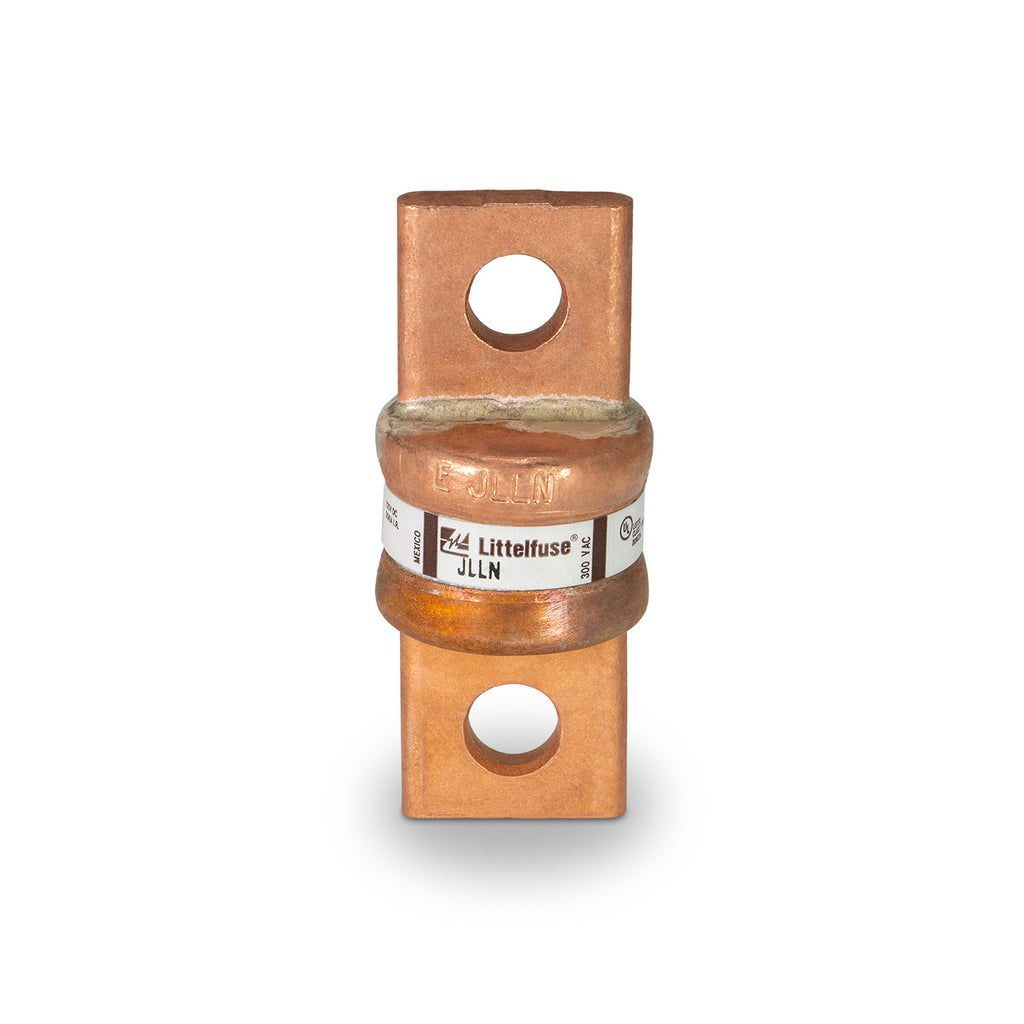

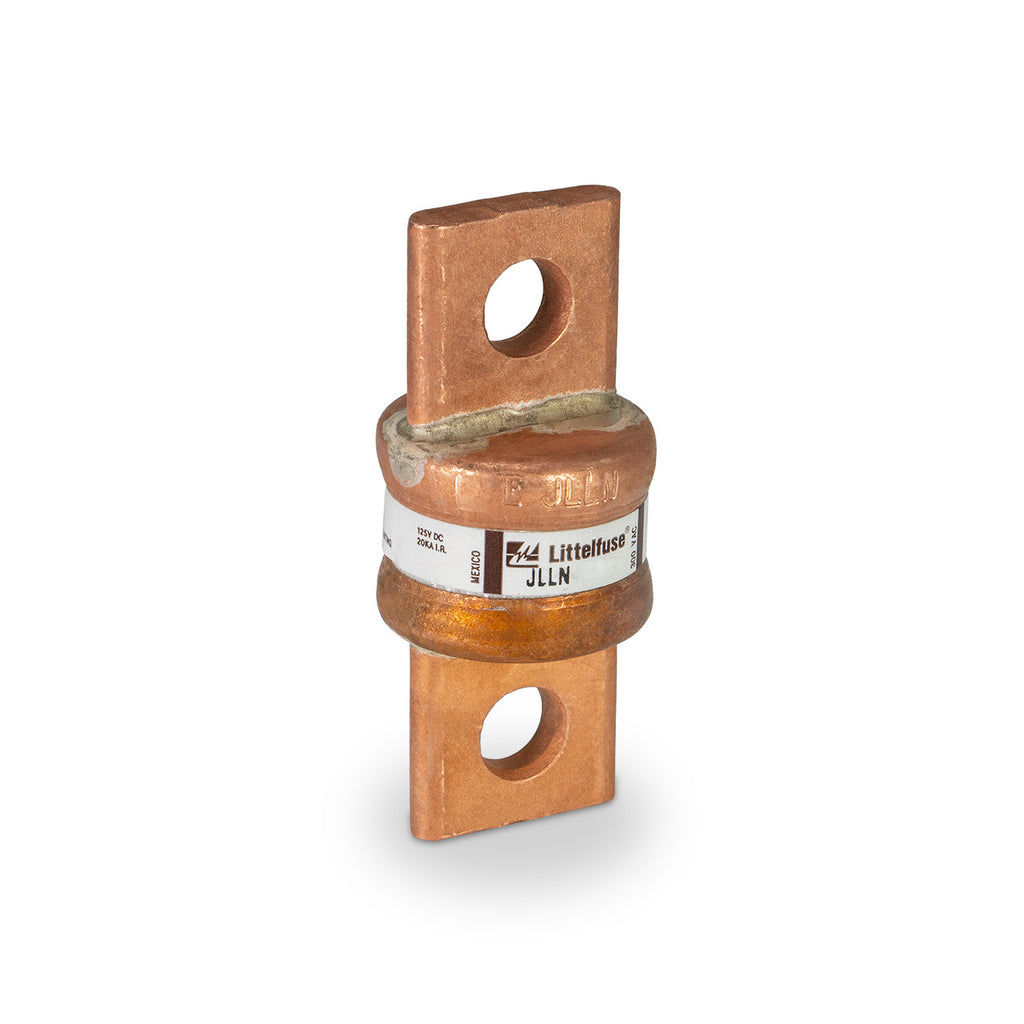

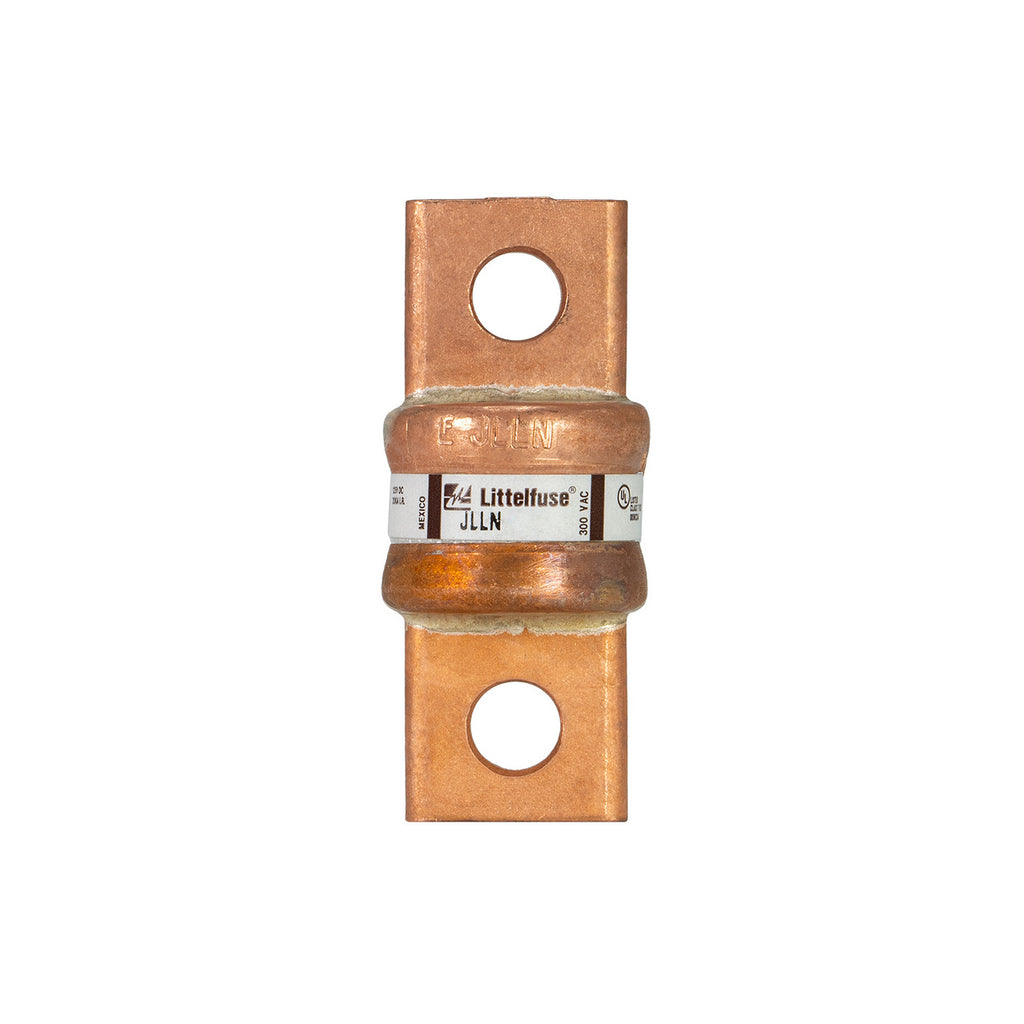

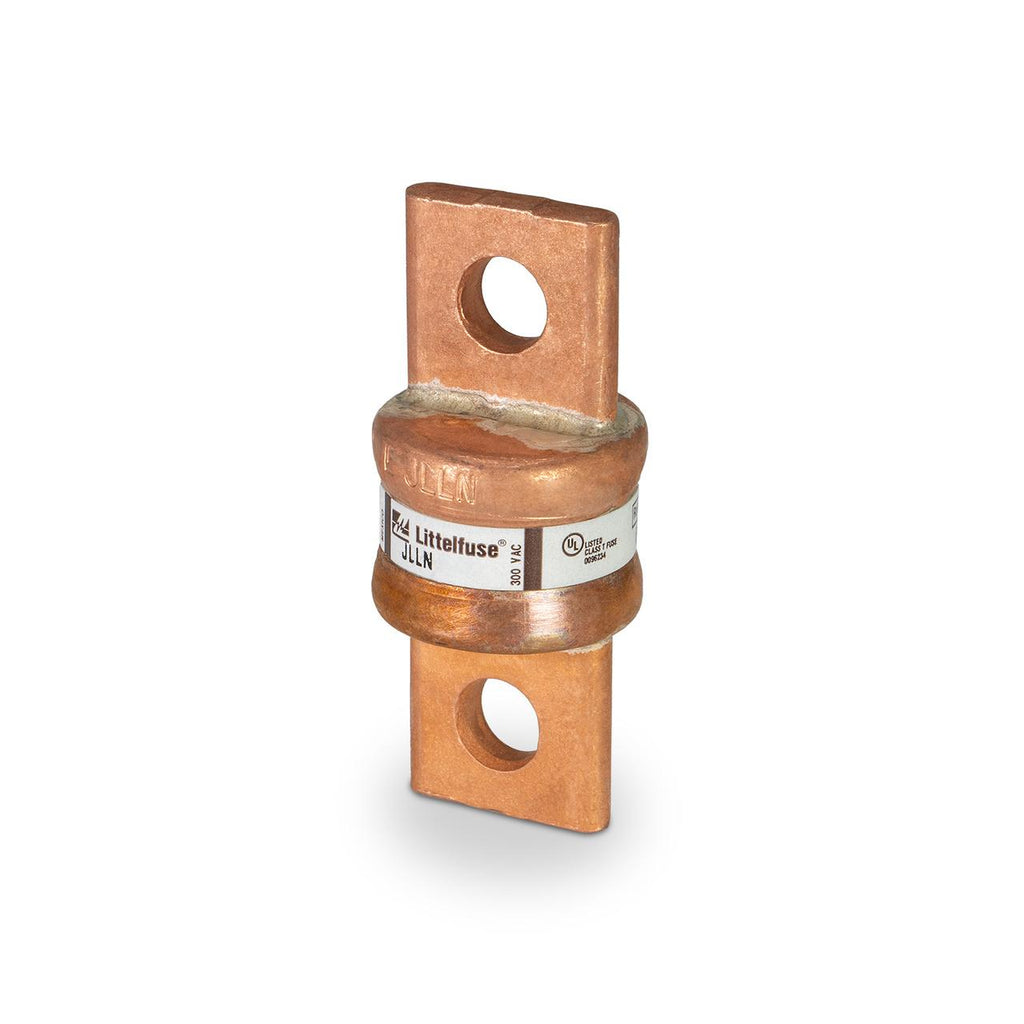

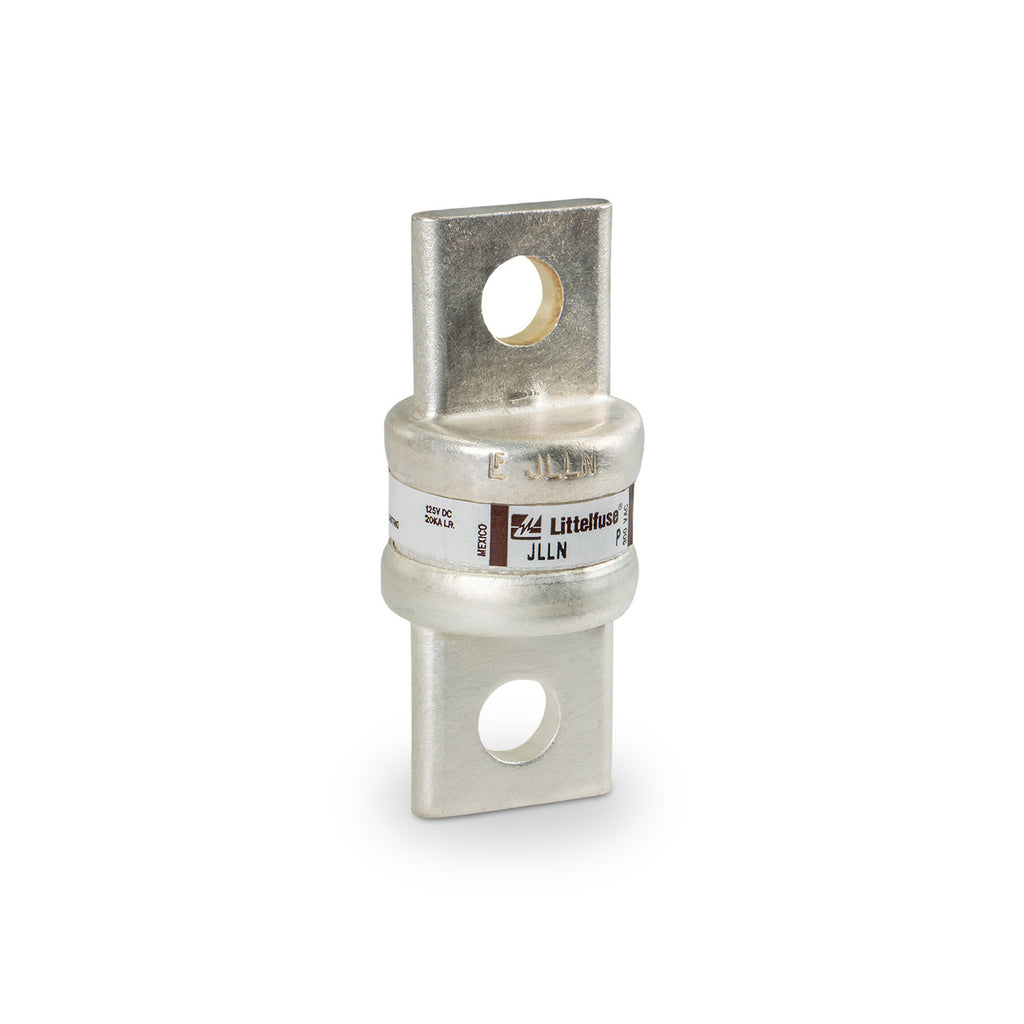

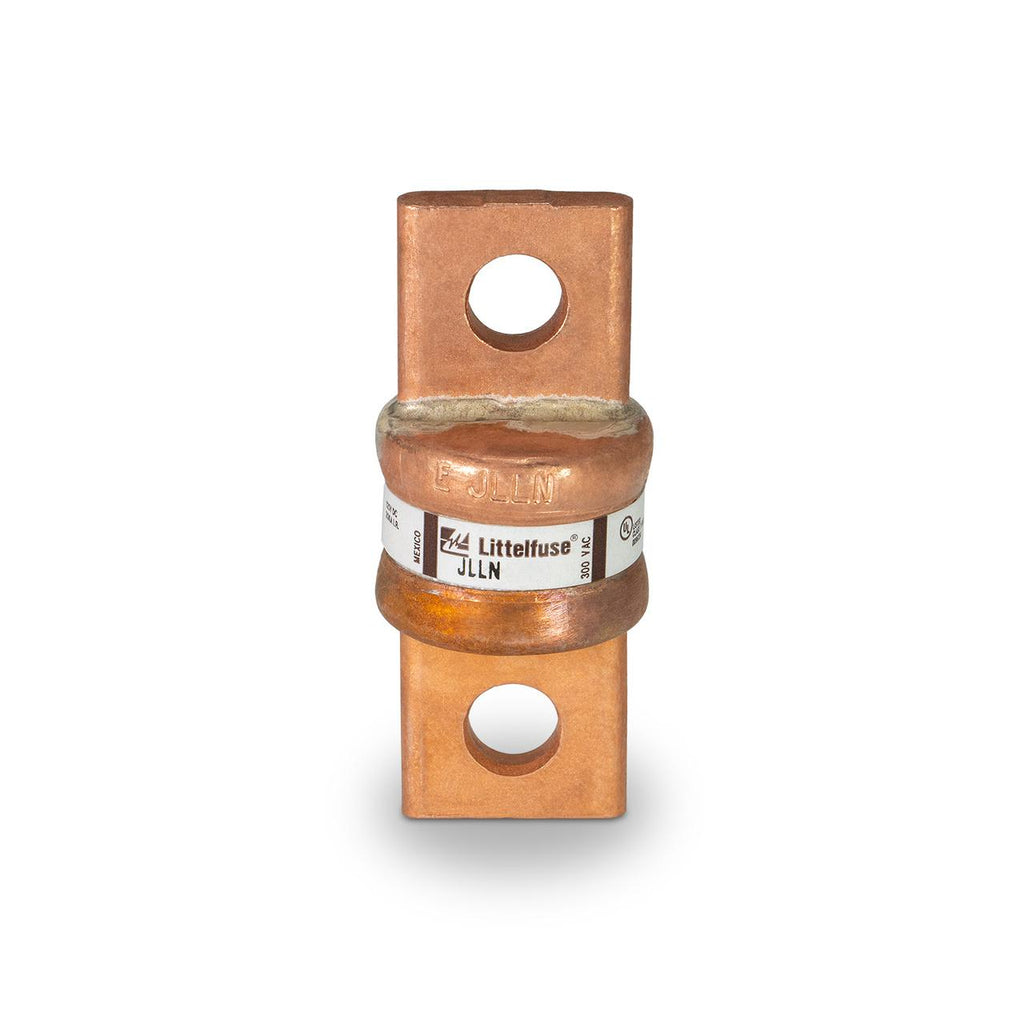

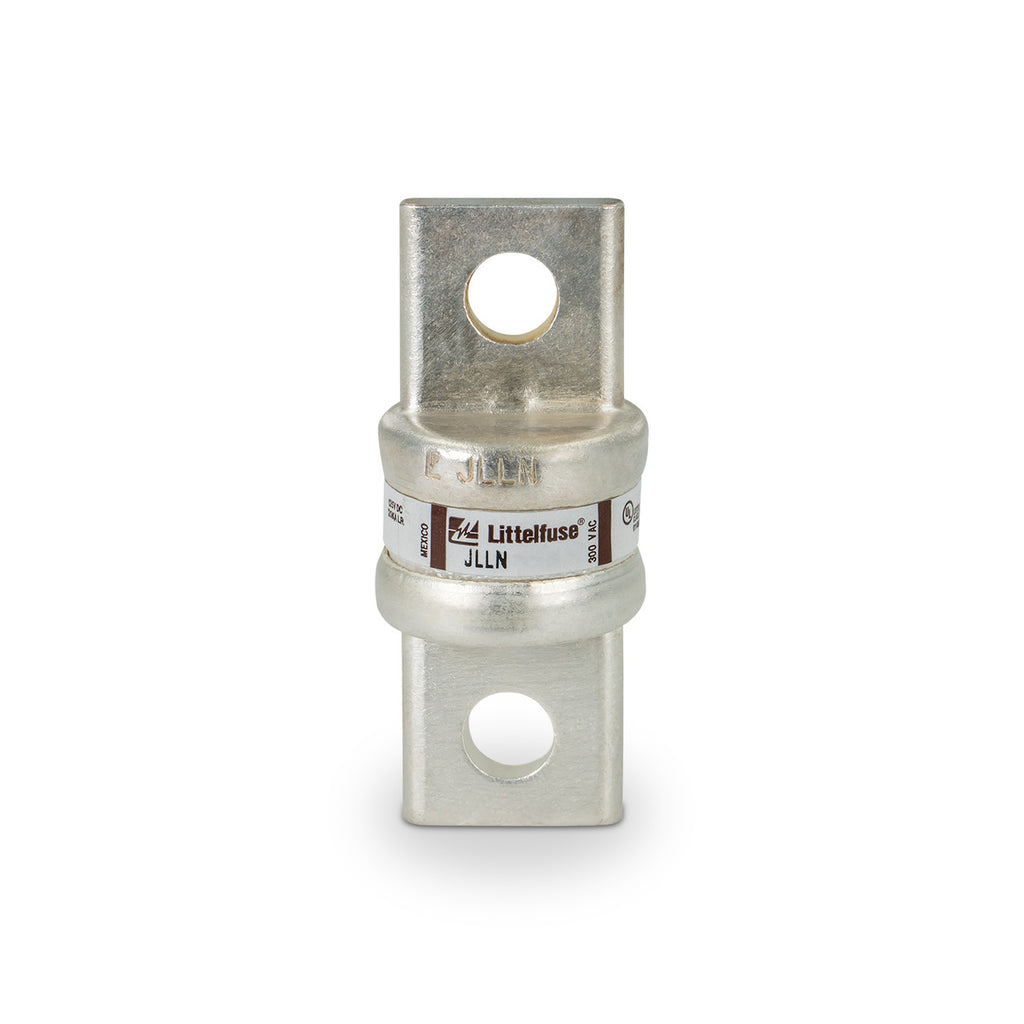

JLLN-110 is a Littelfuse Class T fast-acting fuse rated for 110 amperes and 300 volts AC, designed for compact and reliable overcurrent protection.This fuse features a melamine body with copper end caps, providing a high interrupting rating of 200kA at 300 VAC and 20kA at 125 VDC. It is UL listed, CSA certified, and RoHS compliant, suitable for use in industrial applications including variable speed drives, solar and wind power systems. The JLLN-110 fuse has a compact size of approximately 2.44 inches in length and 1.06 inches in diameter, making it one of the smallest fuses in its amperage range.
- Key Specifications
- Amperage: 110 A
- Voltage Rating: 300 V AC / 125 V DC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Class: Class T
- Speed: Fast Acting
- Body Material: Melamine
- End Caps: Copper
- Dimensions: 2.44 in length x 1.06 in diameter
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Mounting Type: Knife Blade
- Part Number: JLLN-110
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 110
- AIC rating : 200kA@300V
- Diameter : 1.06
- Class Rating : T
- Barrels : 1
- UPC : 07945818083
- GTIN : 00079458180831
- Weight : 0.6
