Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-1000

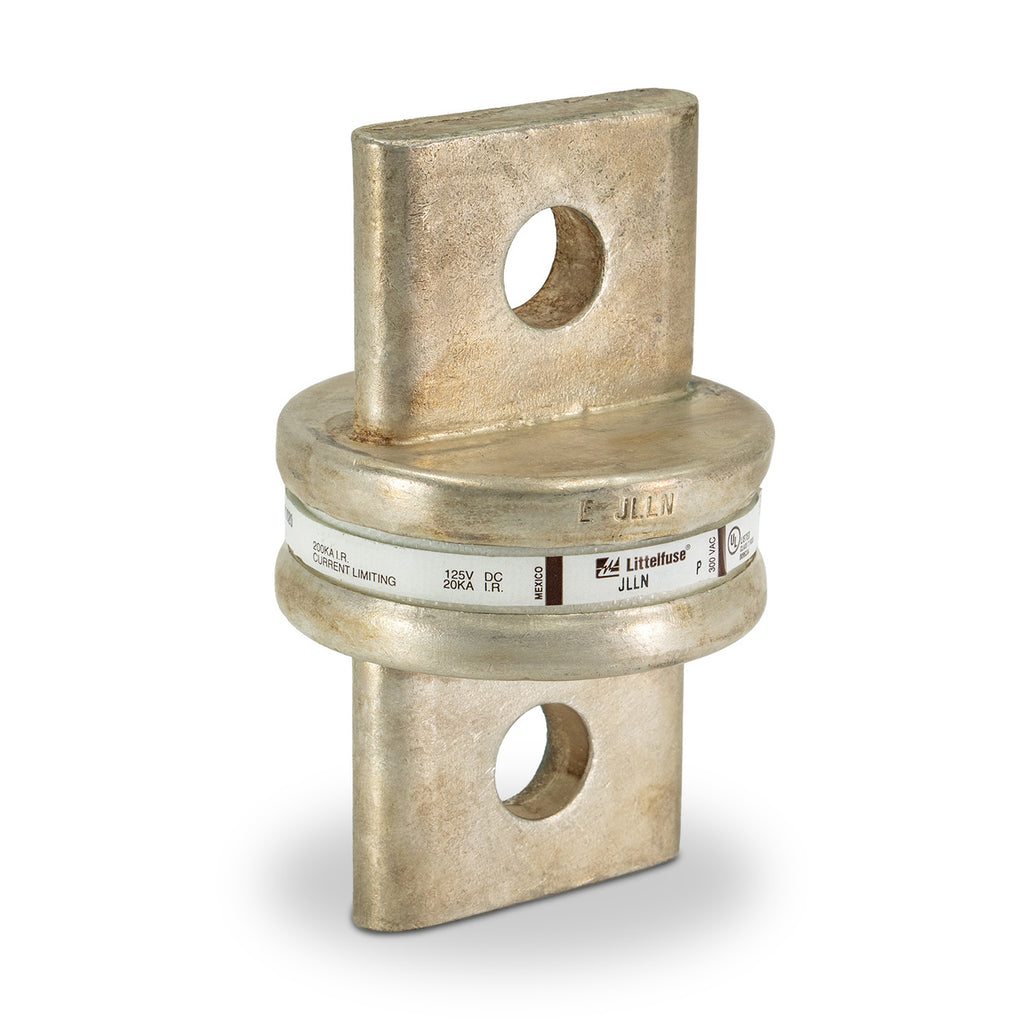

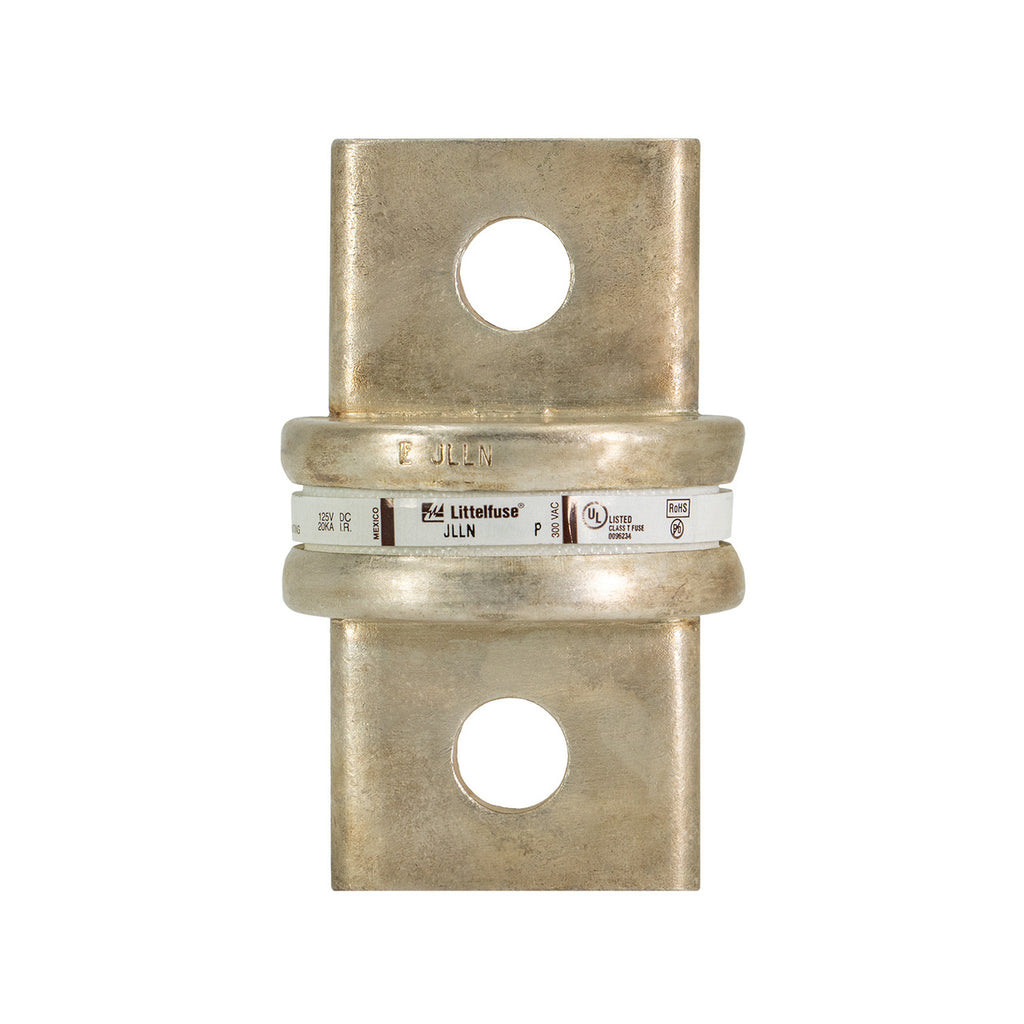

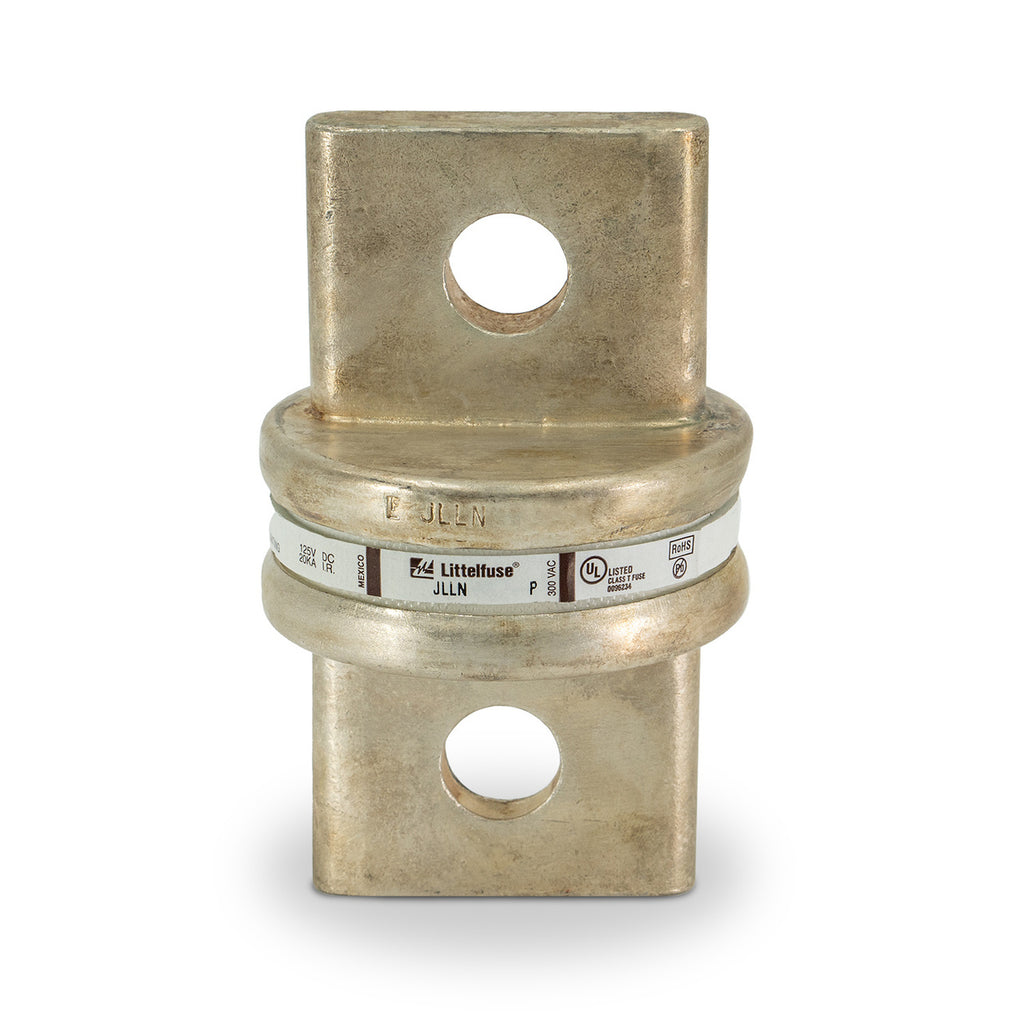

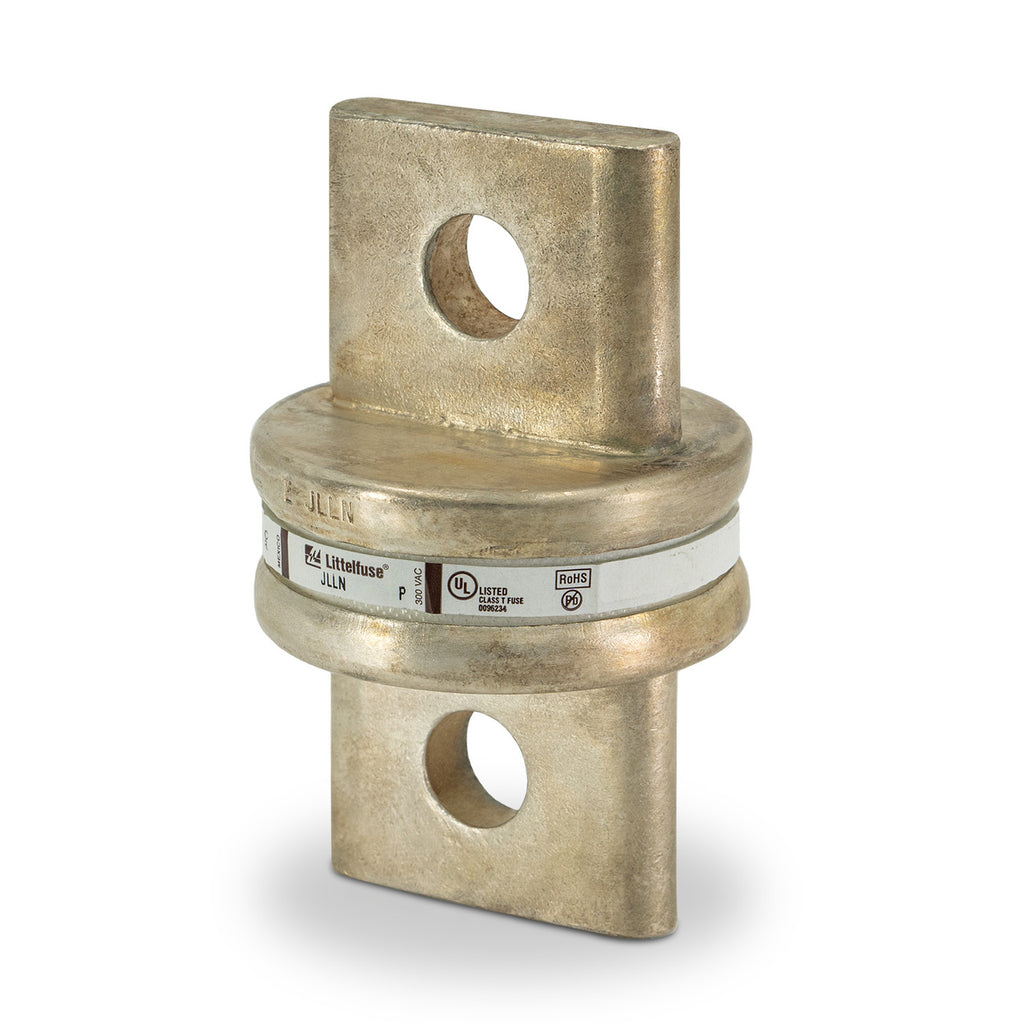

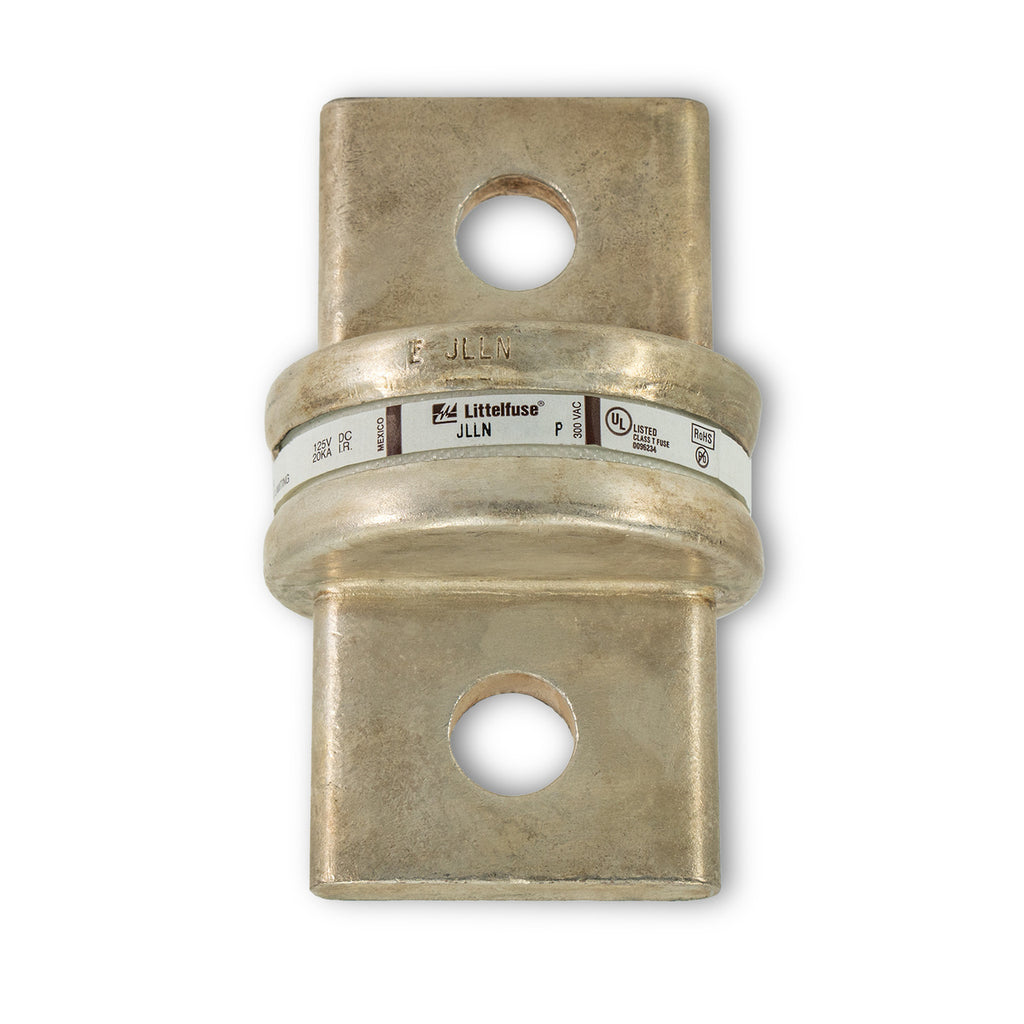

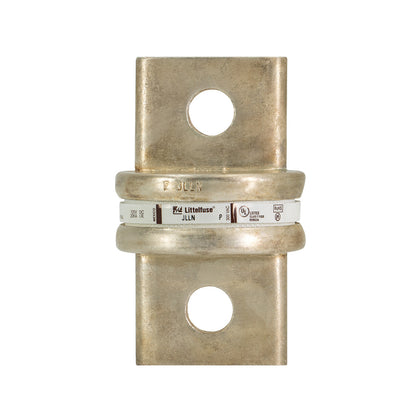

JLLN-1000 is a Littelfuse Class T fast-acting fuse rated at 1000 amperes and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a melamine body with copper caps and knife blade terminals for easy mounting. It offers a high interrupting rating of 200,000 amps AC and 20,000 amps DC, ensuring safe interruption of fault currents. The JLLN series is UL, CSA, and CE certified, compliant with UL 248-15 standards, and RoHS compliant. It is ideal for protecting variable speed drives and other sensitive equipment.
- Key Specifications
- Amperage: 1000 A
- Voltage Rating: 300 V AC / 125 V DC
- Fuse Type: Class T, Fast-Acting
- Interrupting Rating: 200 kA AC / 20 kA DC
- Mounting Type: Knife Blade Terminals
- Material: Melamine body, copper caps
- Certifications: UL Listed, CSA Certified, CE Compliant
- Standards: UL 248-15
- RoHS Compliant
- Country of Origin: Mexico
- Part Number: JLLN-1000
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 1000
- AIC rating : 200kA@300V
- Diameter : 2.5
- Class Rating : T
- Barrels : 1
- UPC : 07945818105
- GTIN : 00079458181050
- Weight : 7
- Certification : Ul Listed
