Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-090

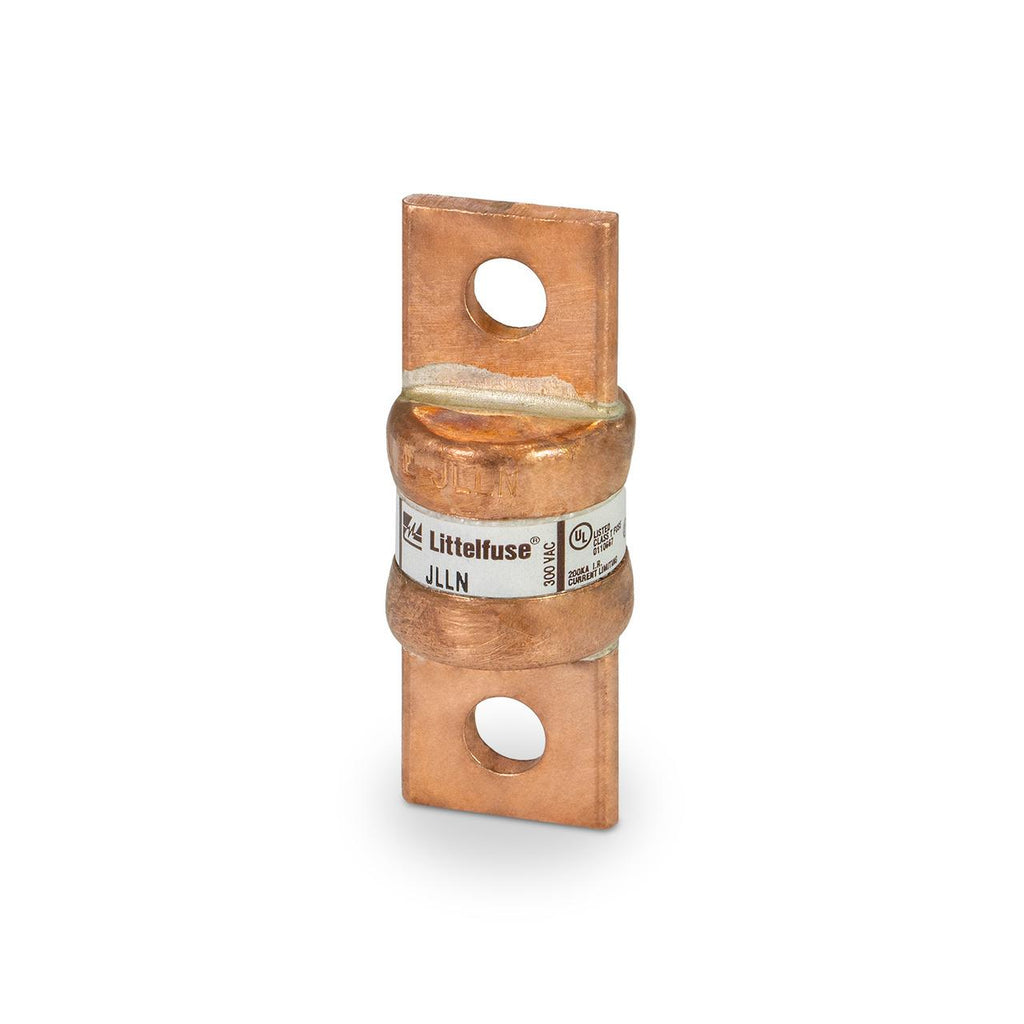

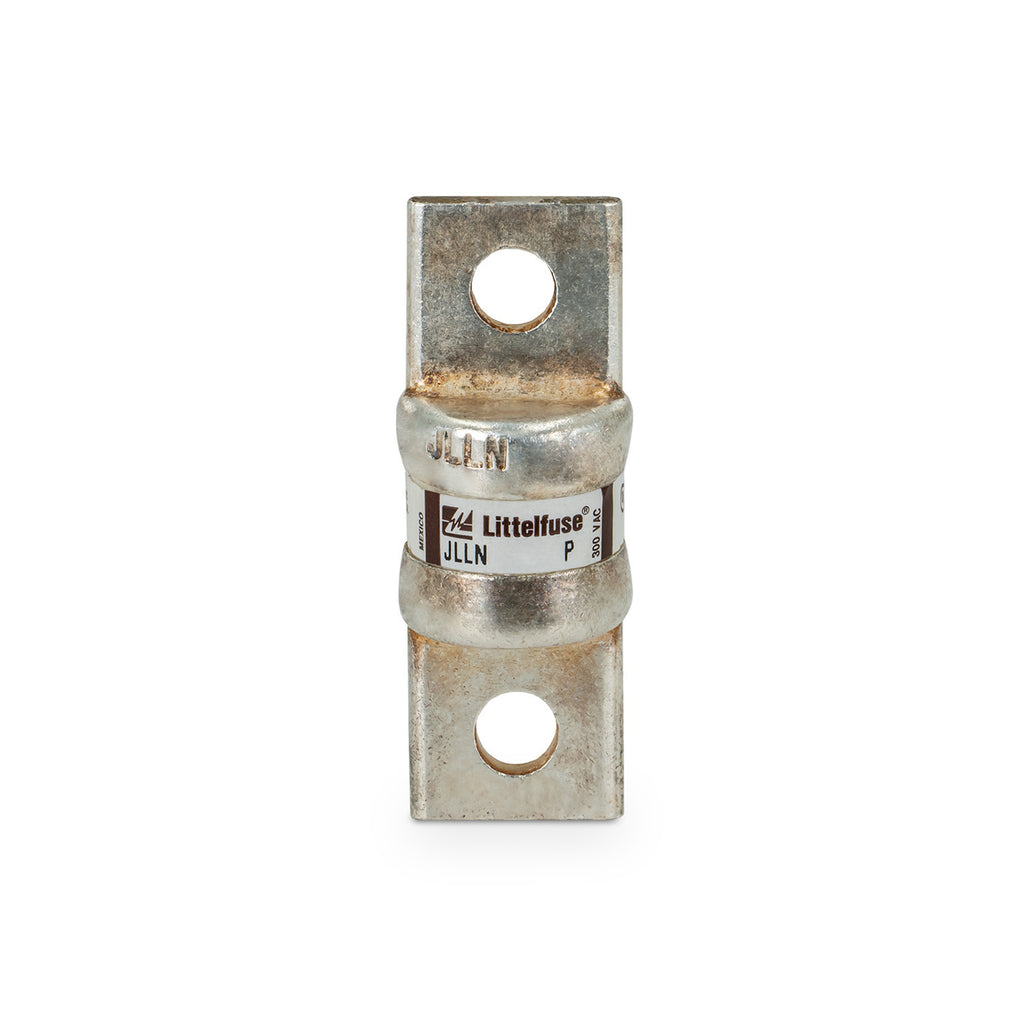

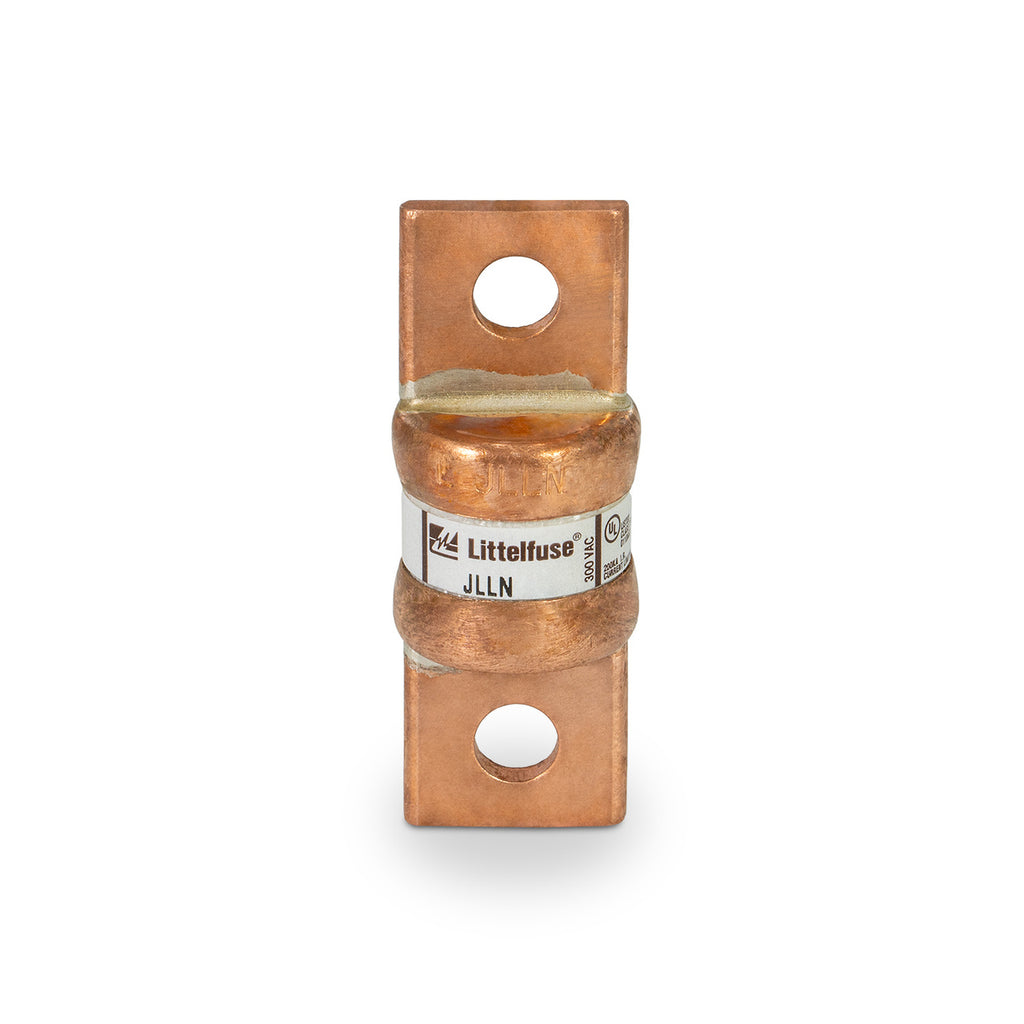

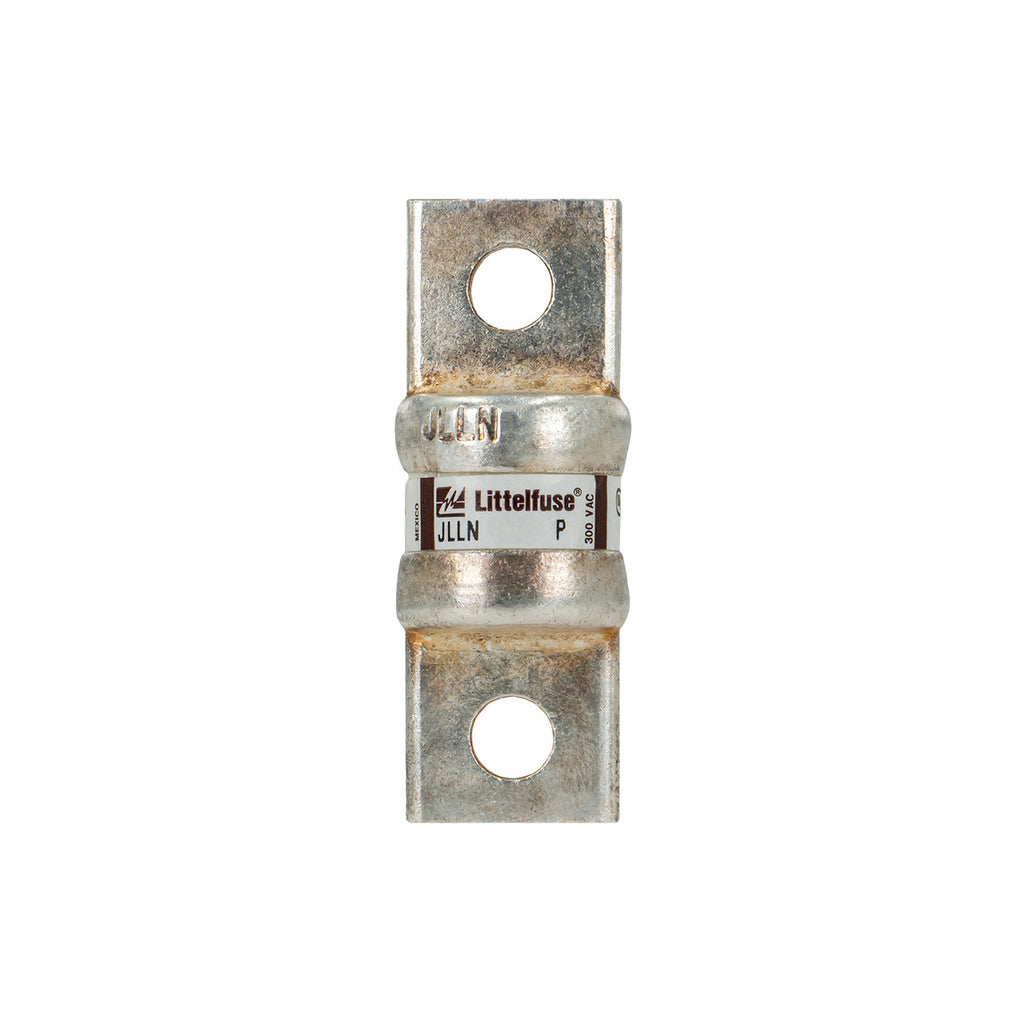

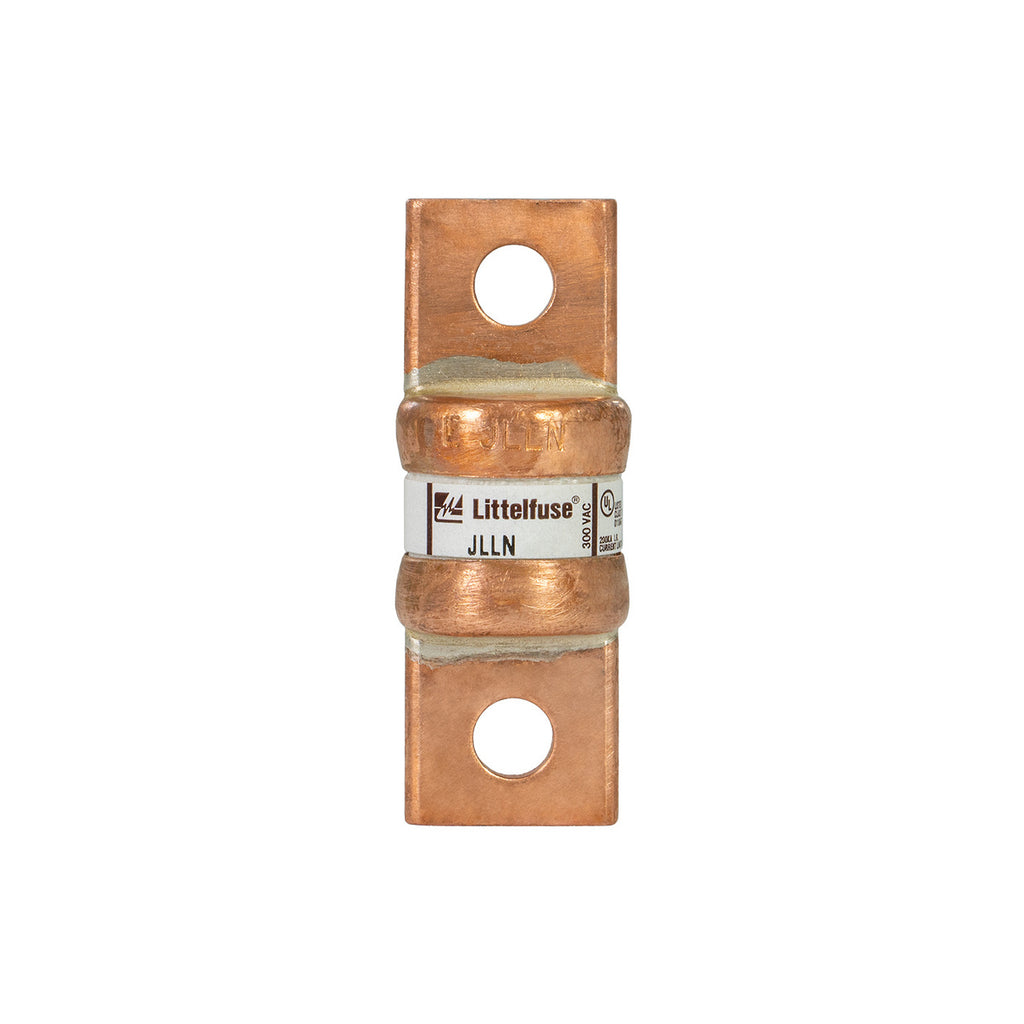

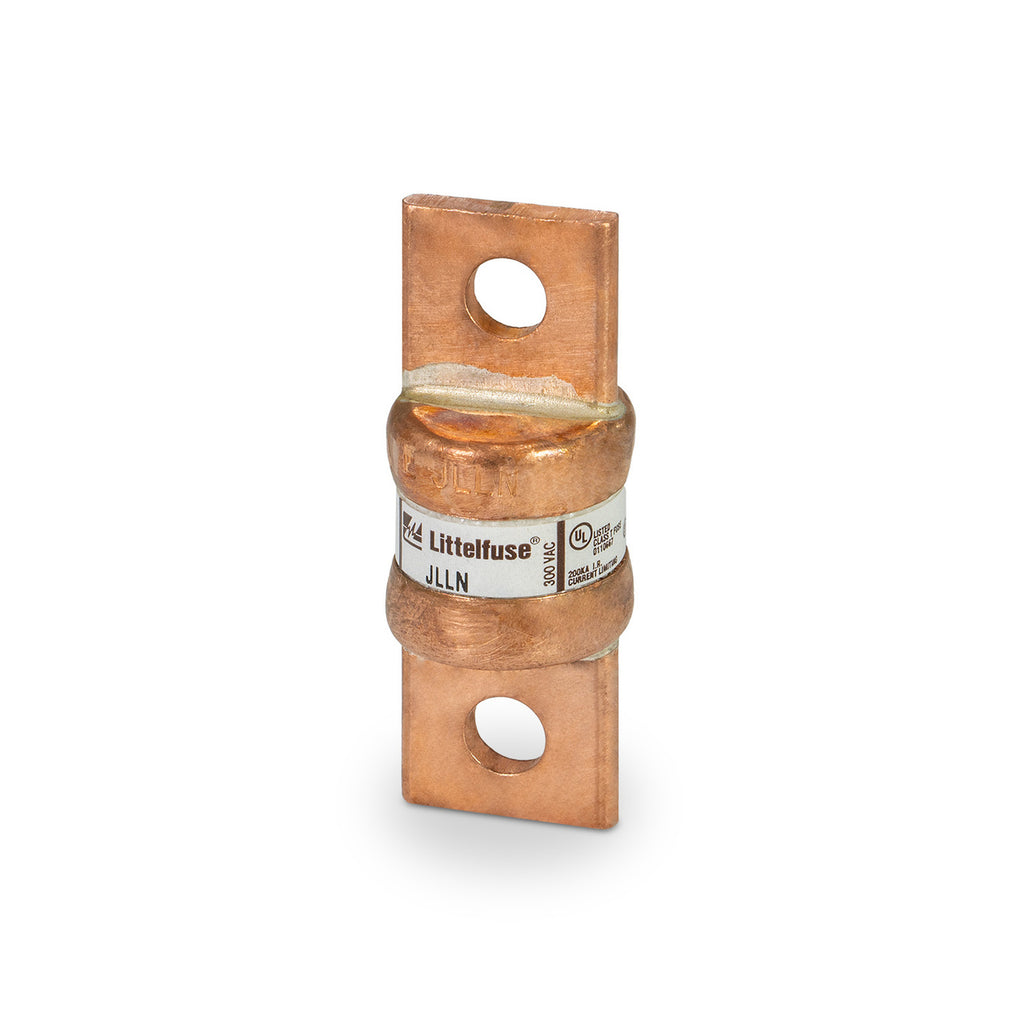

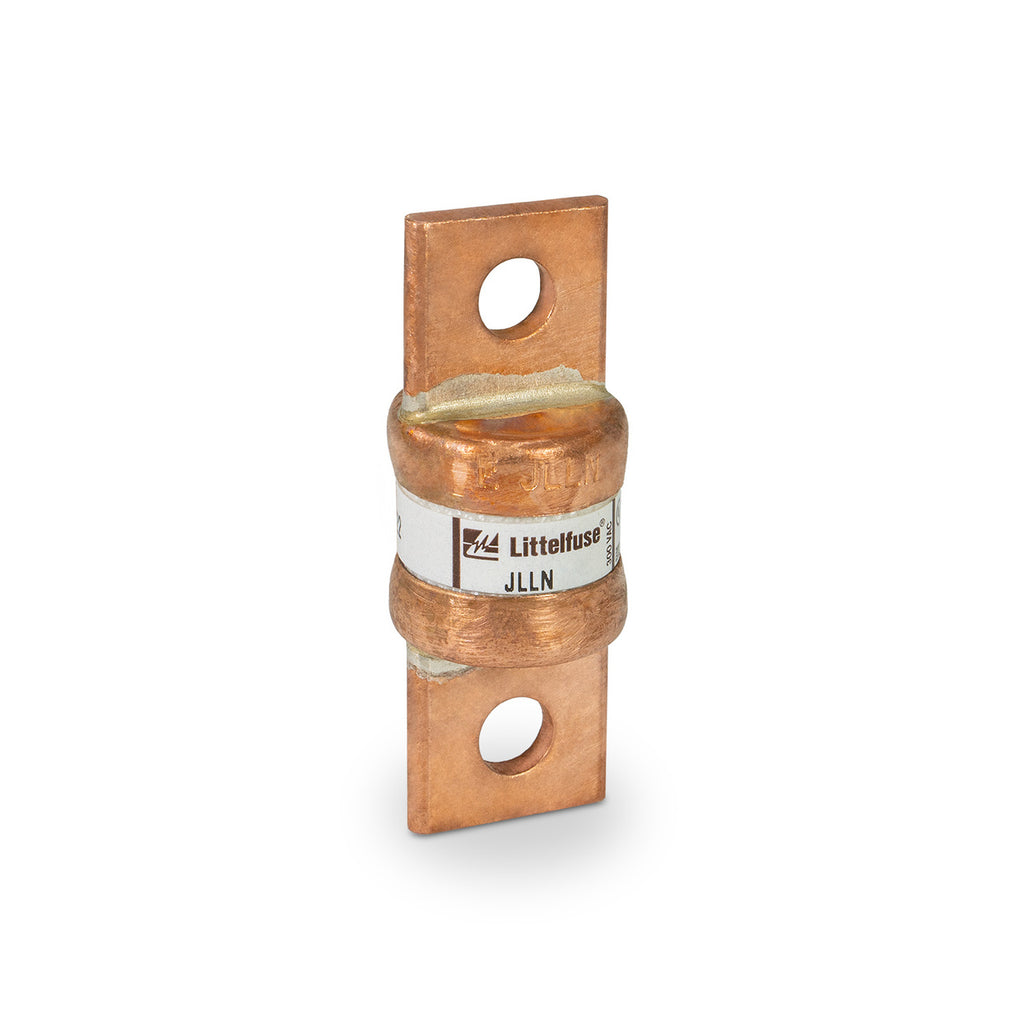

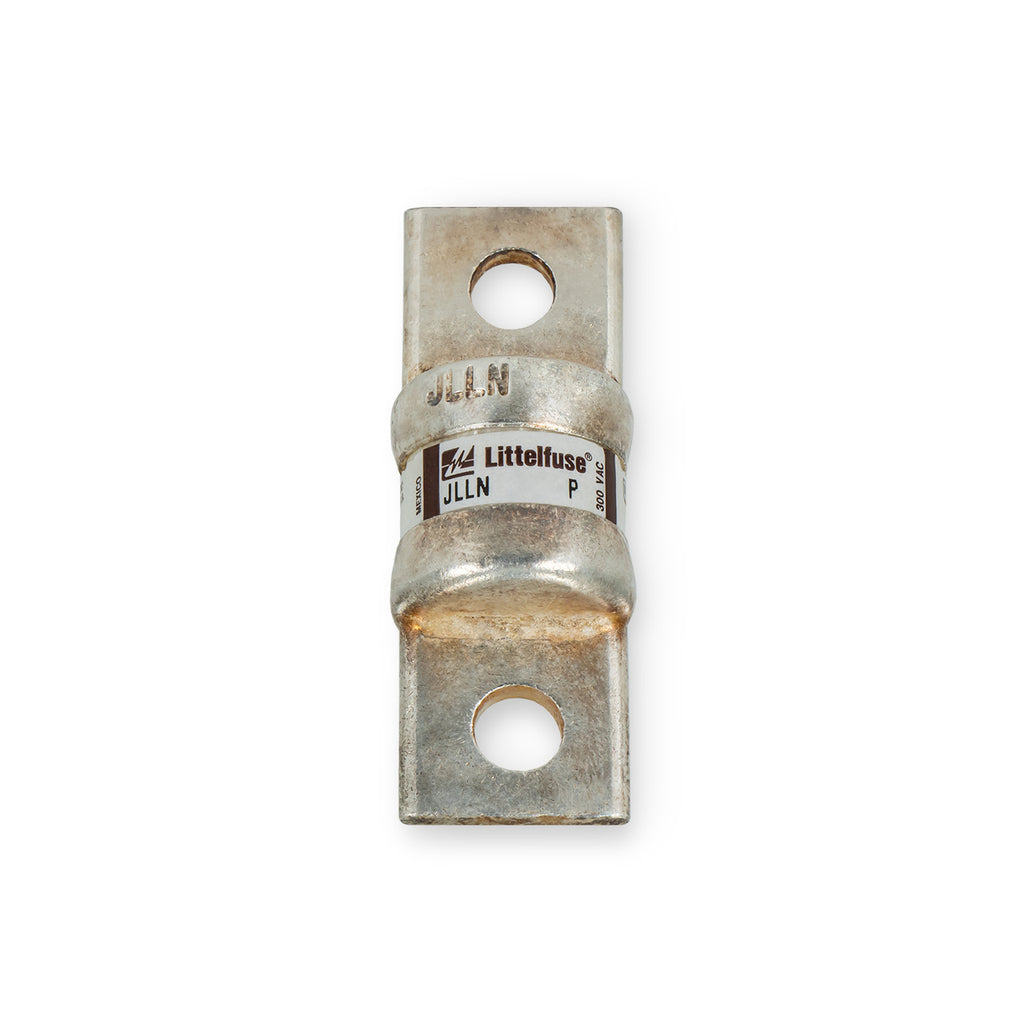

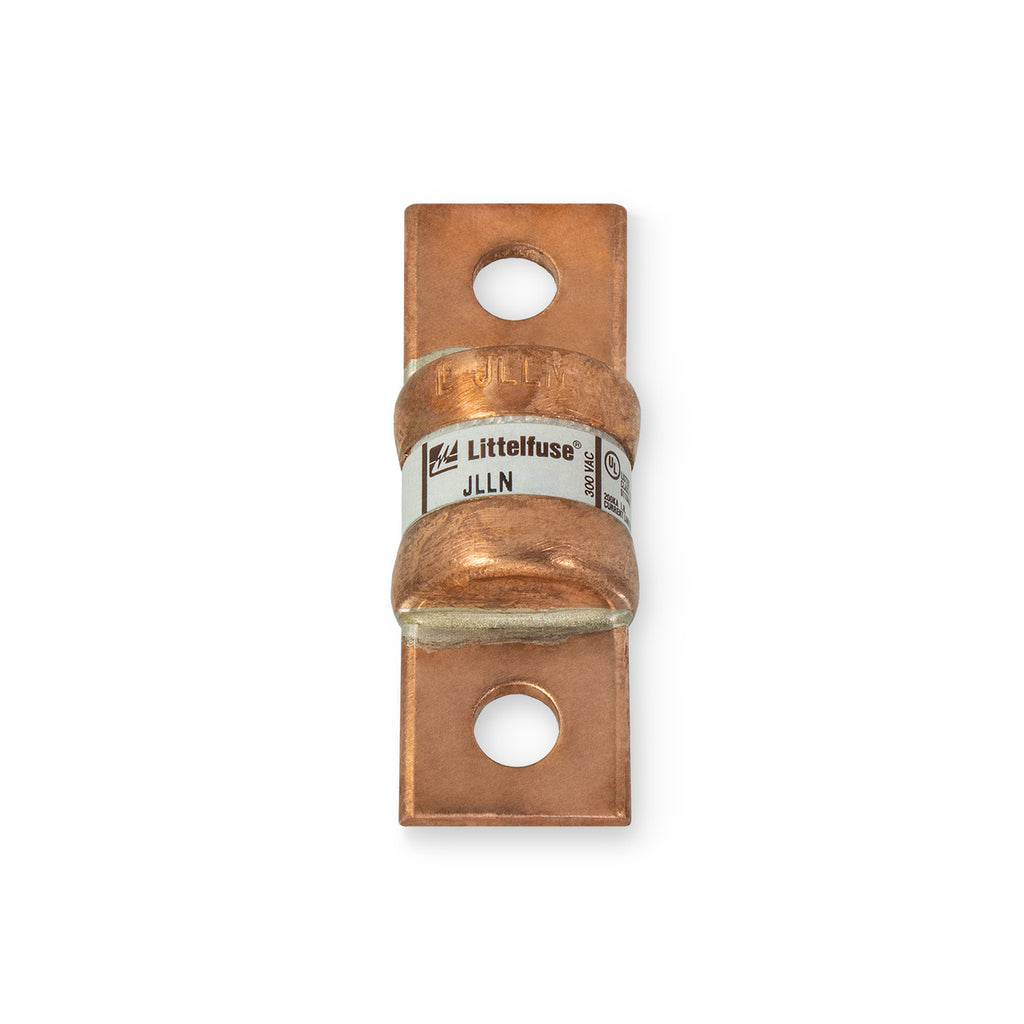

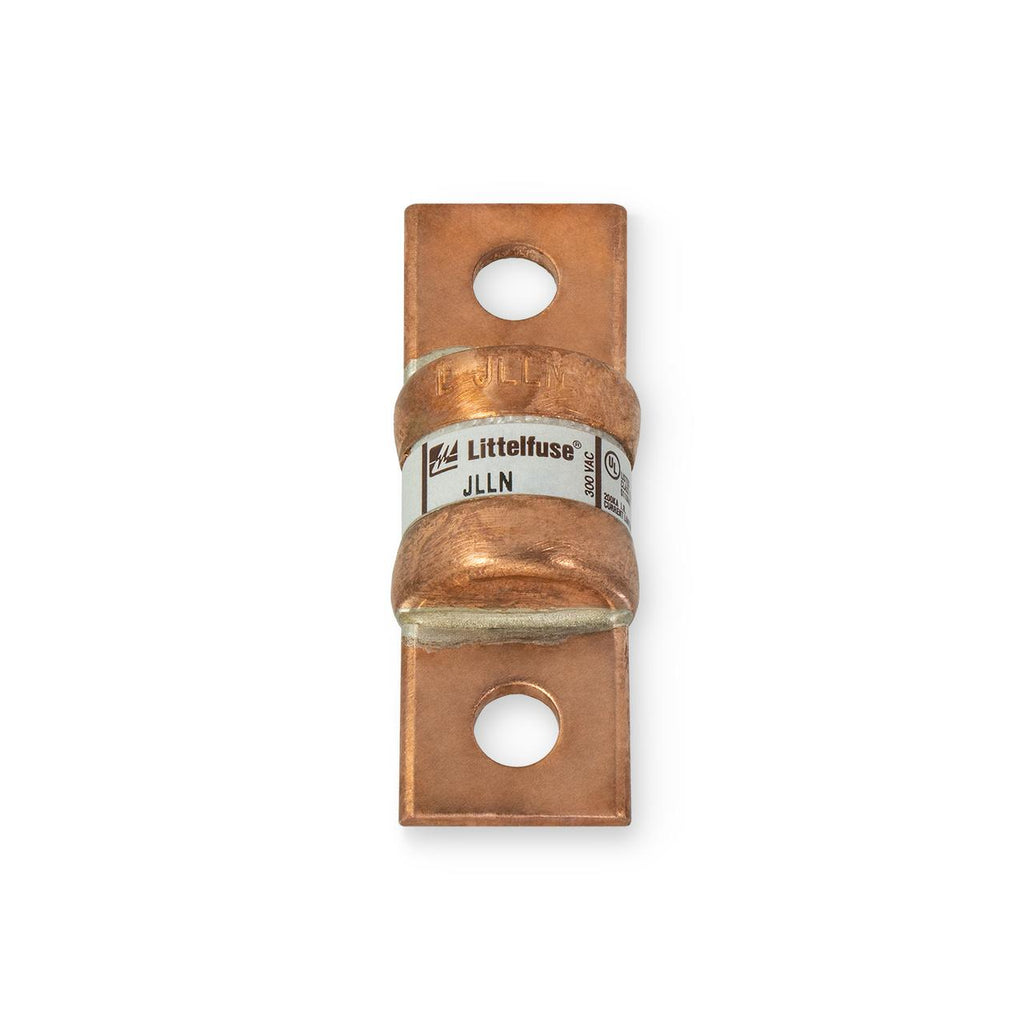

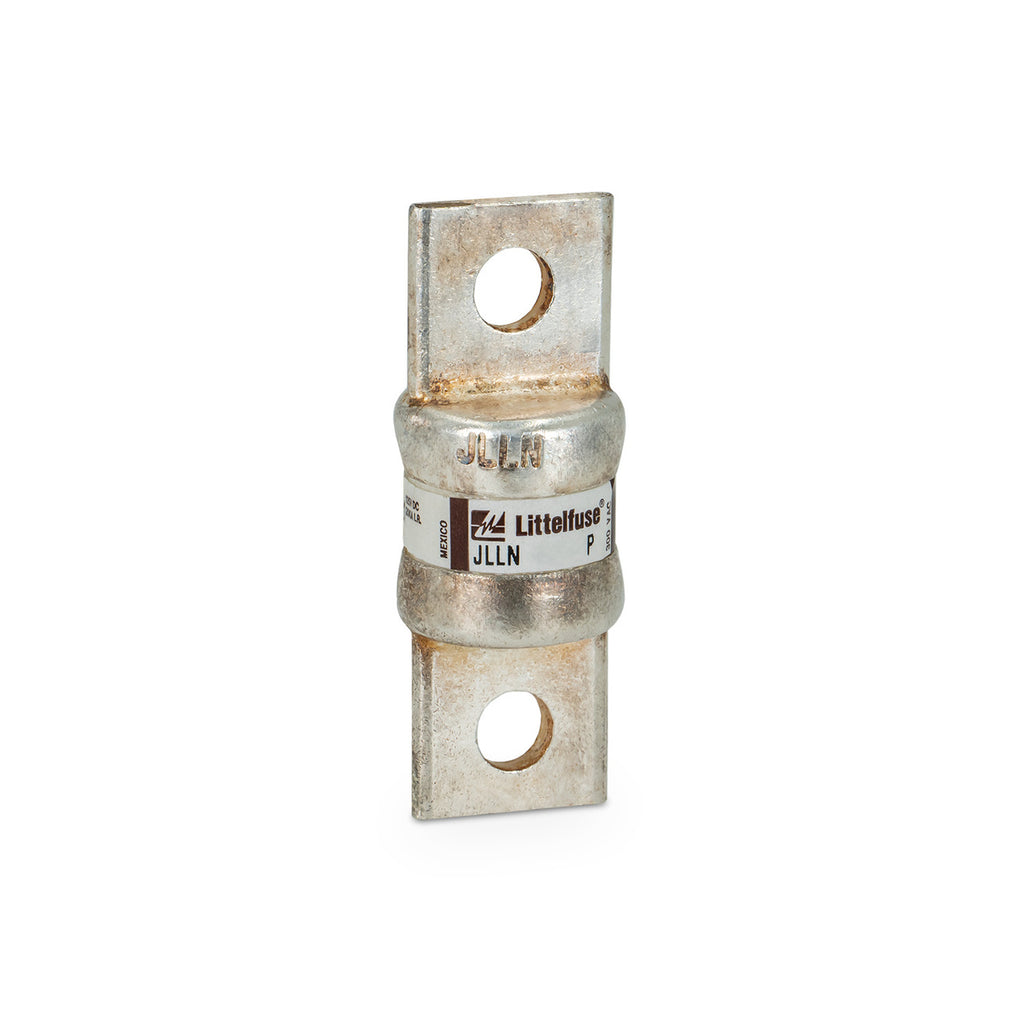

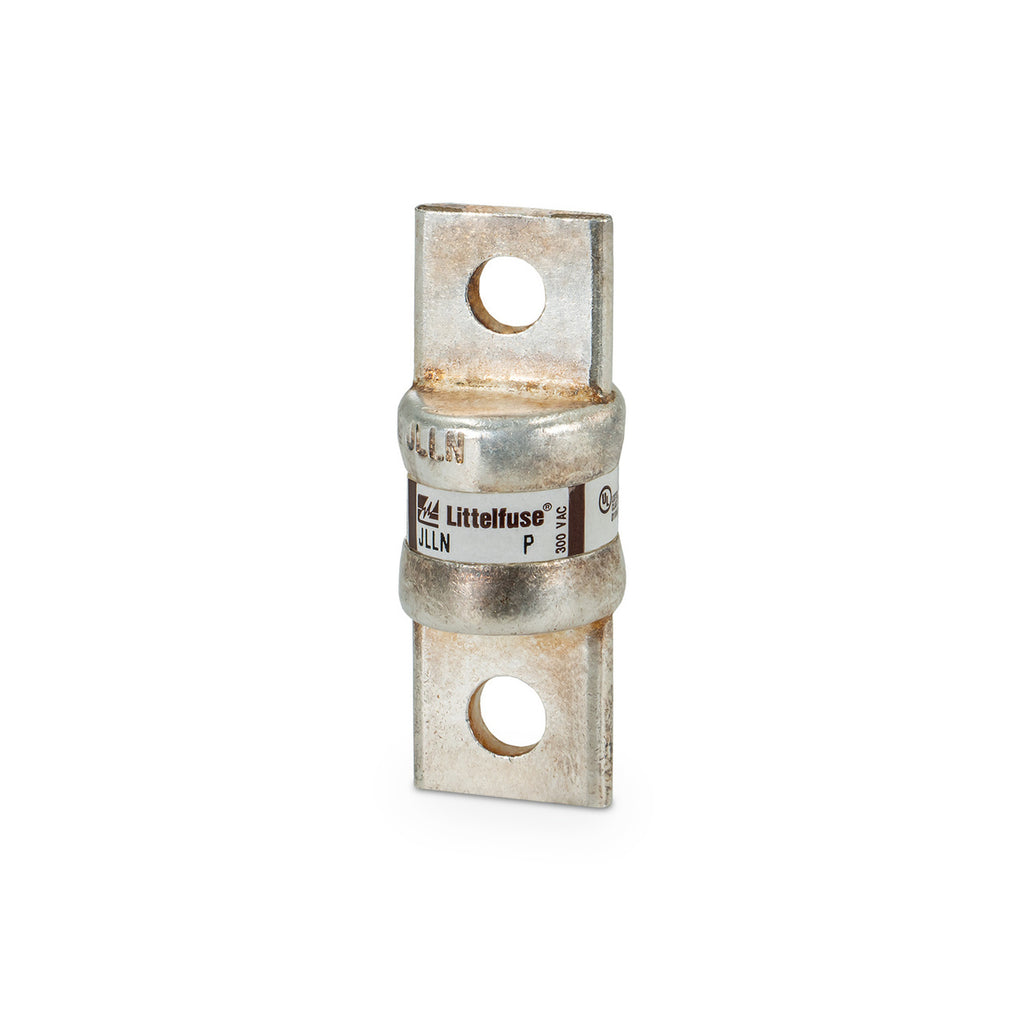

JLLN-090 is a Littelfuse 90 Amp, 300 Volt AC Class T fast acting blade fuse designed for compact low voltage circuit protection.This JLLN series fuse features a melamine body with blade-style construction, a 200kA interrupt rating at 300V AC, and 20kA at 125V DC. It is UL 248-15 Class T listed, CSA certified, CE compliant, and RoHS 2011/65/EU compliant. The fuse measures 2-5/32 inches in length and 3/4 inch in diameter, suitable for nonrejection fuse blocks. It provides very fast acting, current limiting protection for variable speed drives and other industrial applications.
- Key Specifications
- Amperage: 90 A
- Voltage Rating: 300 V AC, 125 V DC
- Interrupt Rating: 200kA at 300V AC, 20kA at 125V DC
- Fuse Class: T
- Speed: Fast Acting
- Body Material: Melamine
- Body Style: Blade
- Length: 2-5/32 in (approx. 54.8 mm)
- Diameter: 3/4 in (approx. 19.1 mm)
- Certifications: UL Listed, CSA Certified, CE Compliant, RoHS Compliant
- Series: JLLN
- Country of Origin: Mexico
Specifications
- Part Number: JLLN-090
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 90
- AIC rating : 200kA@300V
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818081
- GTIN : 00079458180817
- Weight : 5.19
