JLLN-080 - Littelfuse 80 Amp 300V AC Class T Fast-Acting Fuse

JLLN-080

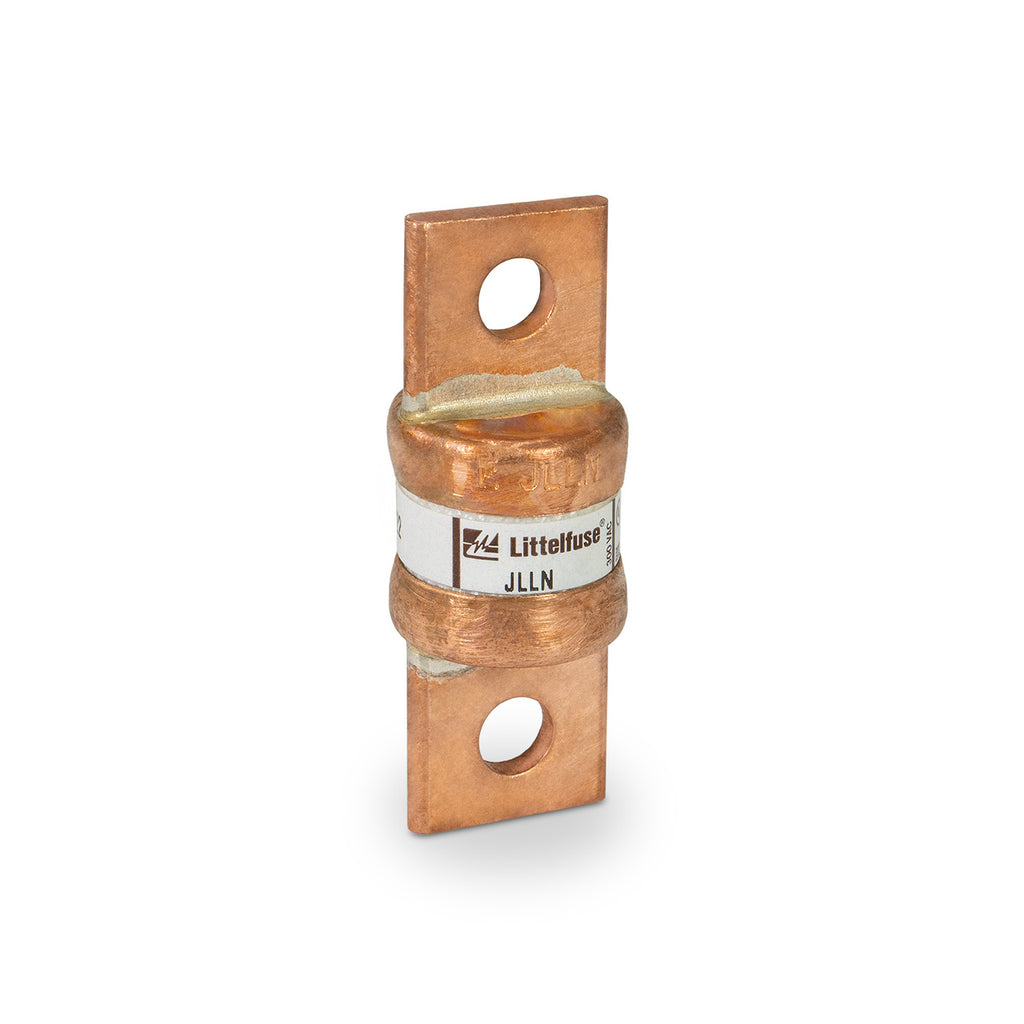

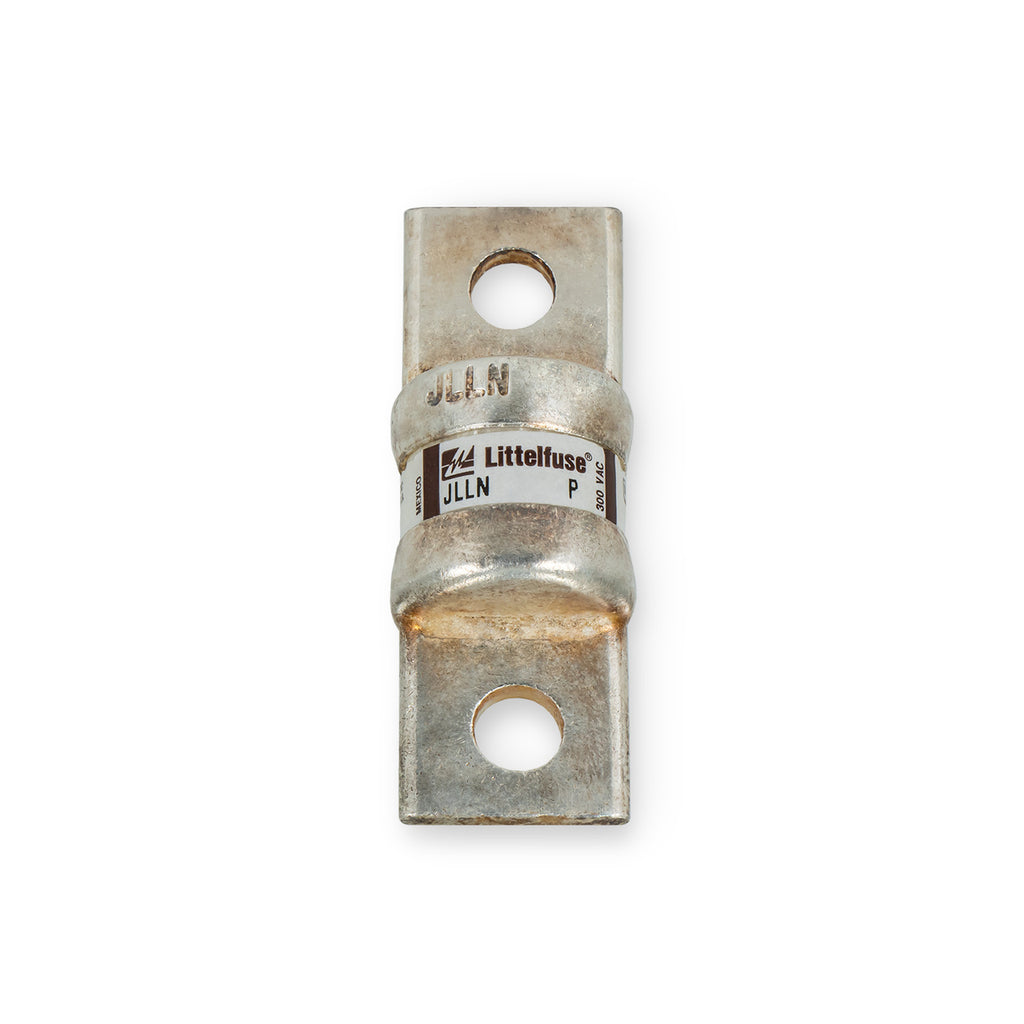

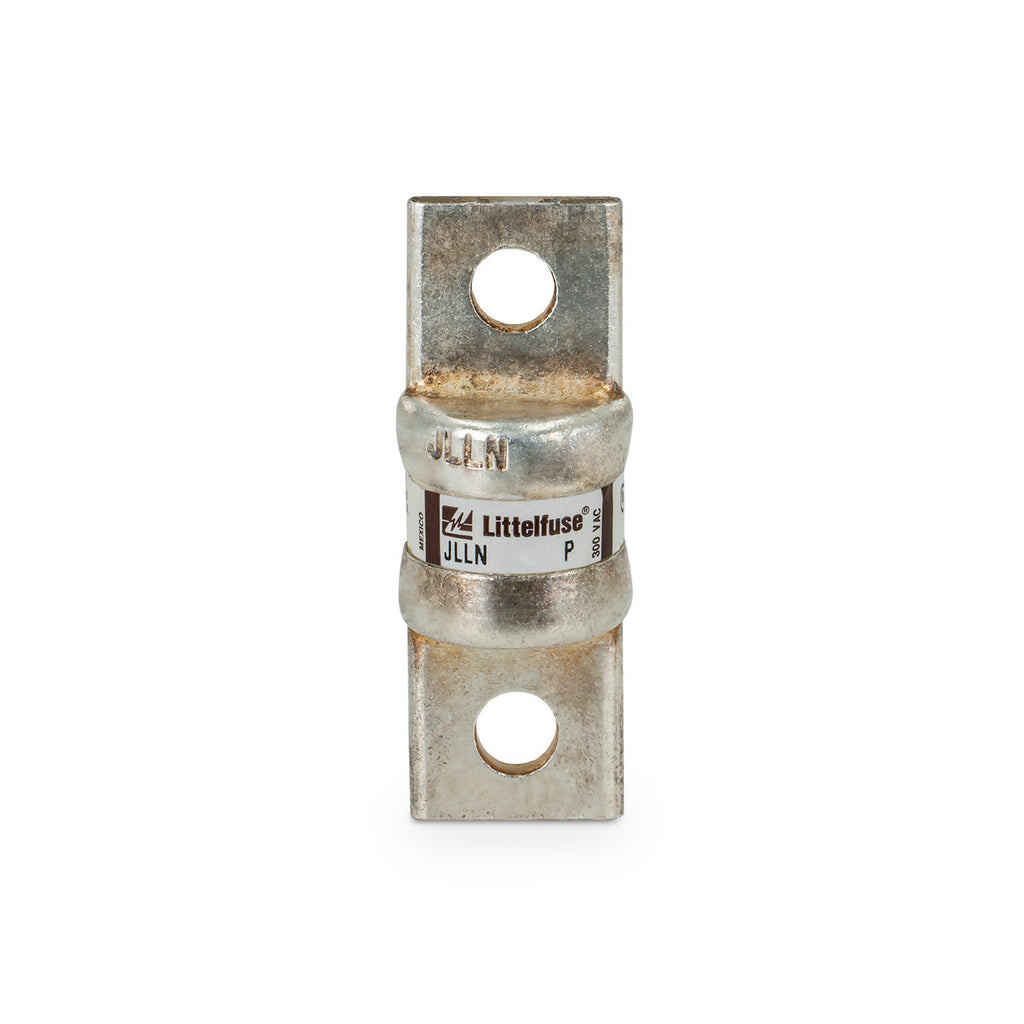

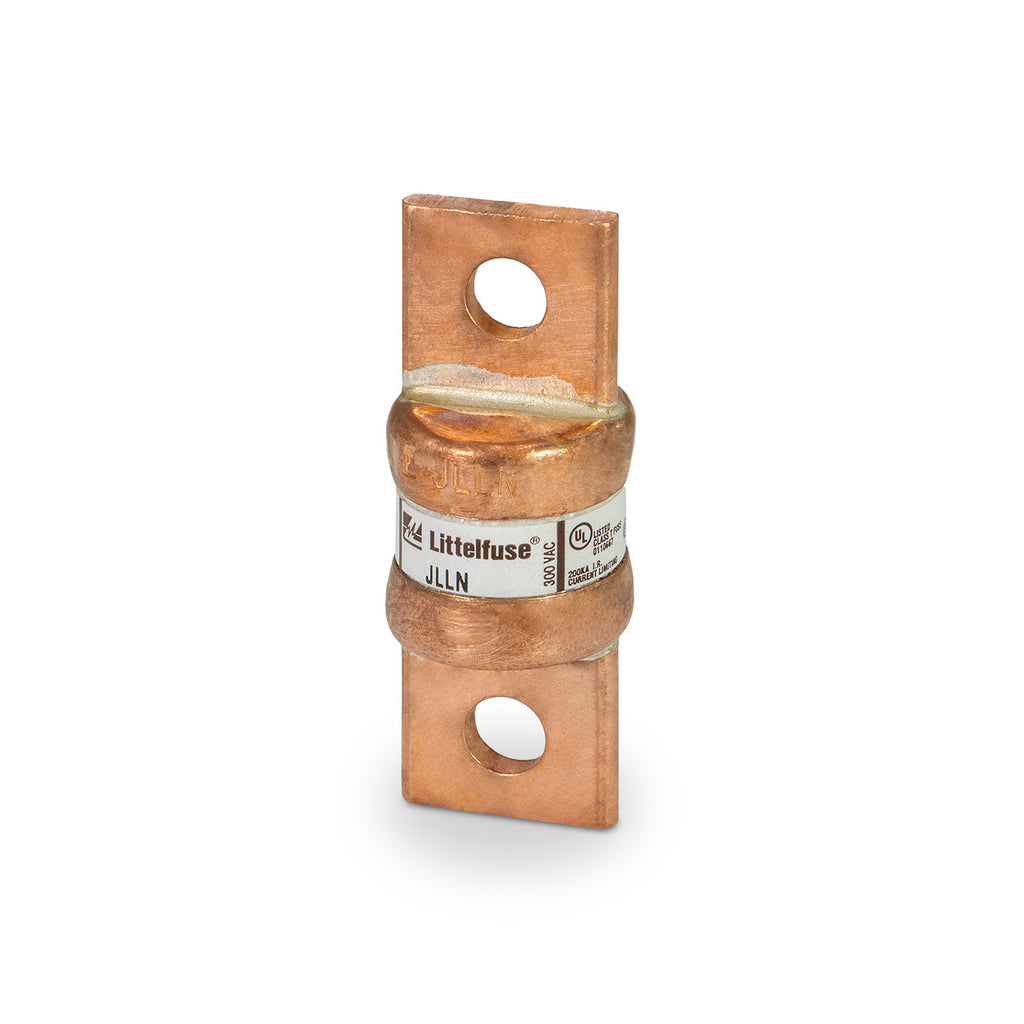

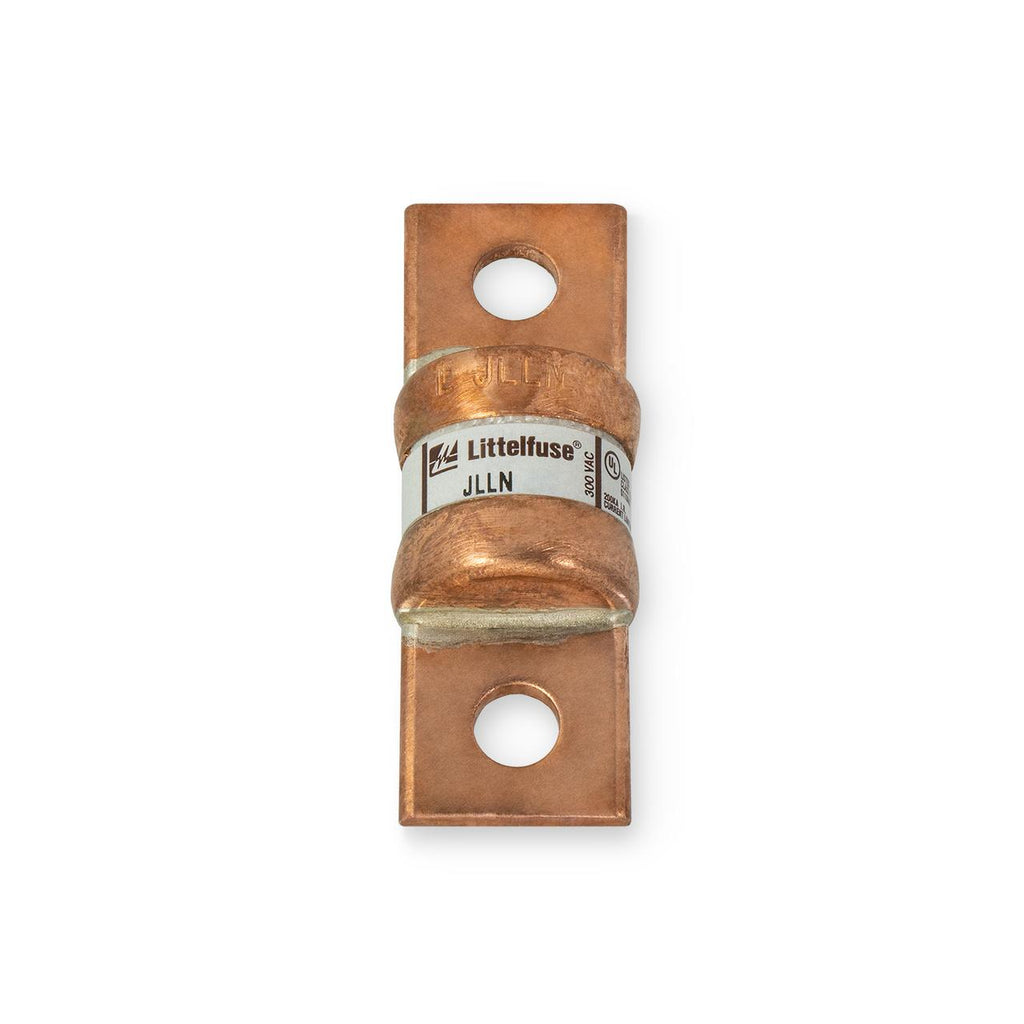

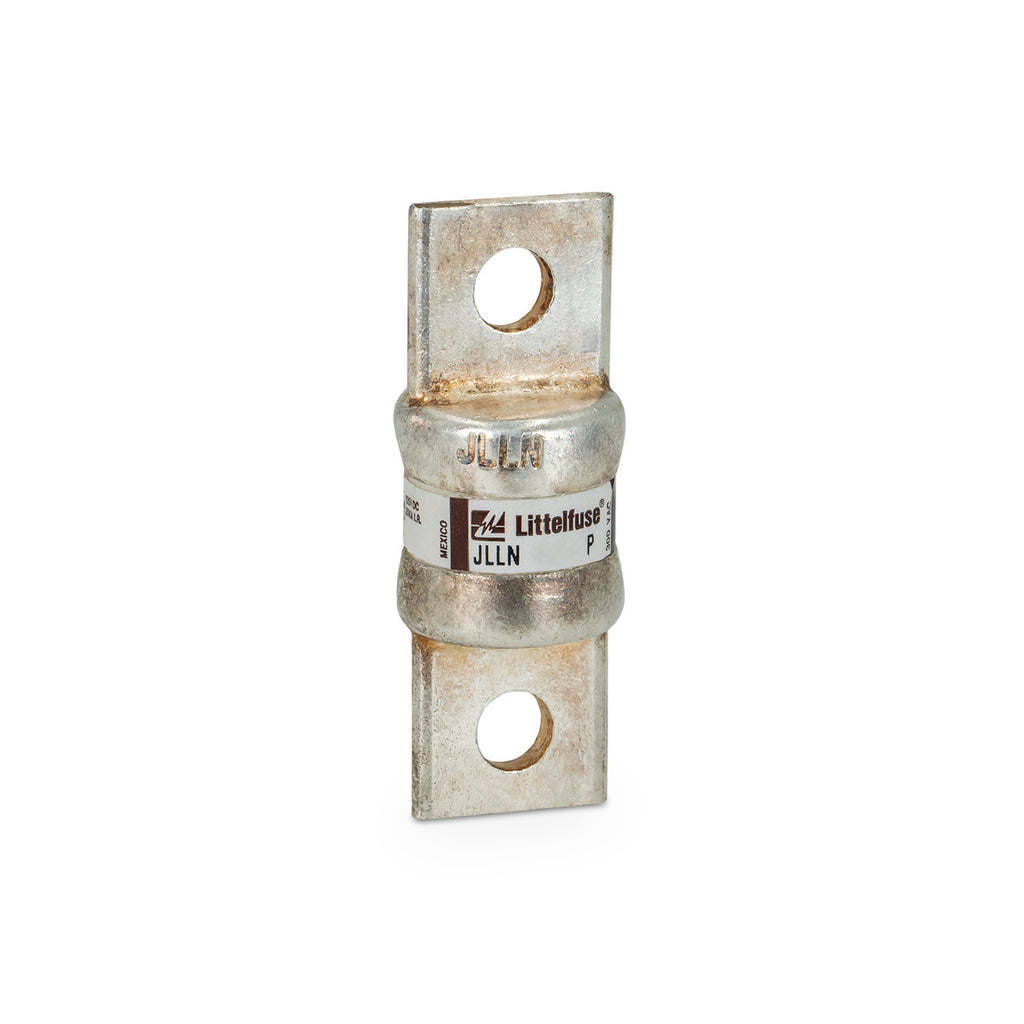

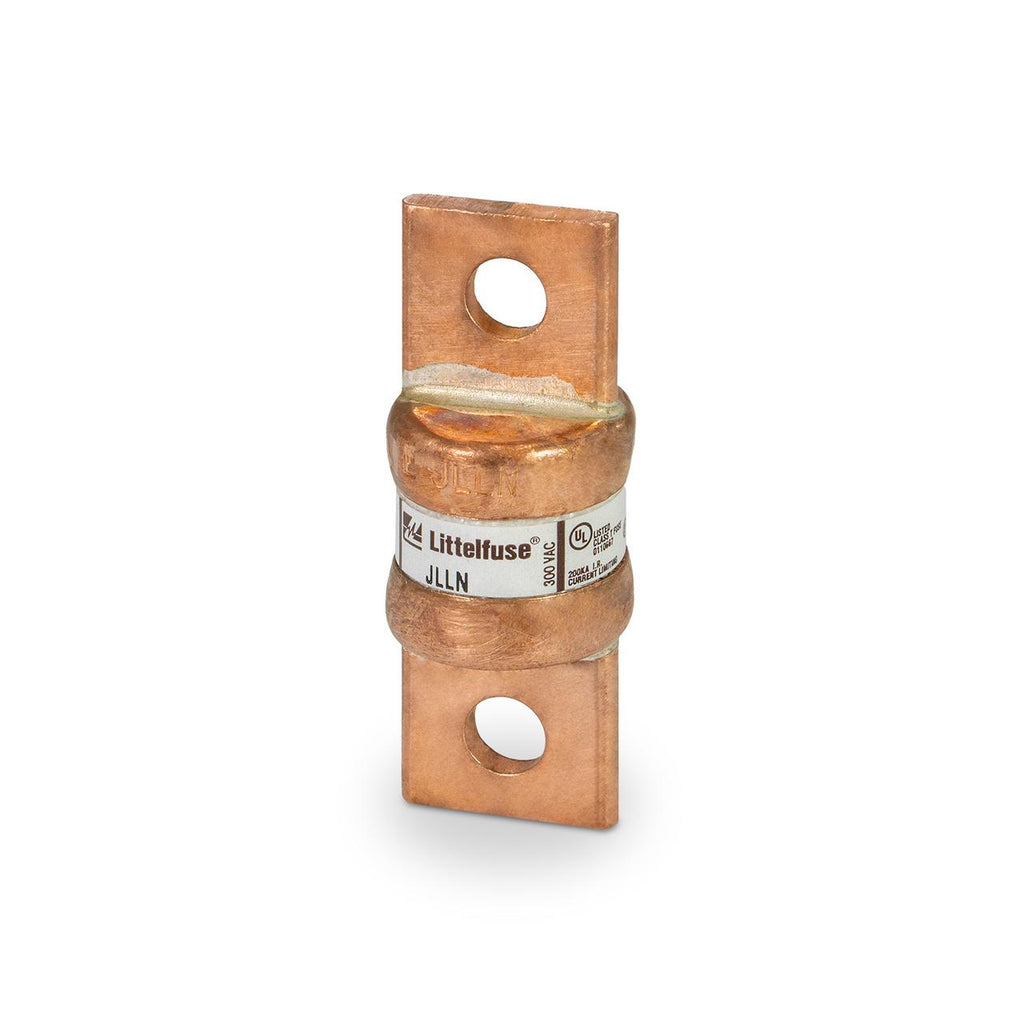

JLLN-080 is an 80 amp, 300 volt AC Class T fast-acting fuse from Littelfuse designed for compact, high interrupting capacity applications.This Littelfuse JLLN series fuse features a very fast-acting, current-limiting design with a maximum interrupt rating of 200 kA at 300 VAC and 20 kA at 125 VDC. It has a compact melamine body with copper end caps, UL 248-15, CSA, and CE certifications, and is RoHS compliant. The fuse is ideal for protecting variable speed drives and other sensitive equipment requiring reliable overcurrent protection.

Key Specifications
• Amperage: 80 A
• Voltage Rating: 300 V AC, 125 V DC
• Fuse Class: Class T
• Speed: Fast-Acting
• Interrupting Rating: 200 kA AC, 20 kA DC
• Body Material: Melamine
• End Caps: Copper
• Dimensions: Approx. 0.812 in diameter x 2.156 in length
• Certifications: UL Listed, CSA Certified, CE Compliant
• RoHS Compliant
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JLLN-080
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLN
• Voltage : 300
• Amperage : 80
• AIC rating : 200kA@300V
• Diameter : 0.81
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 07945818080
• GTIN : 00079458180800
• Weight : 0.3
• Certification : Ul Listed Csa Certified
