Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-070

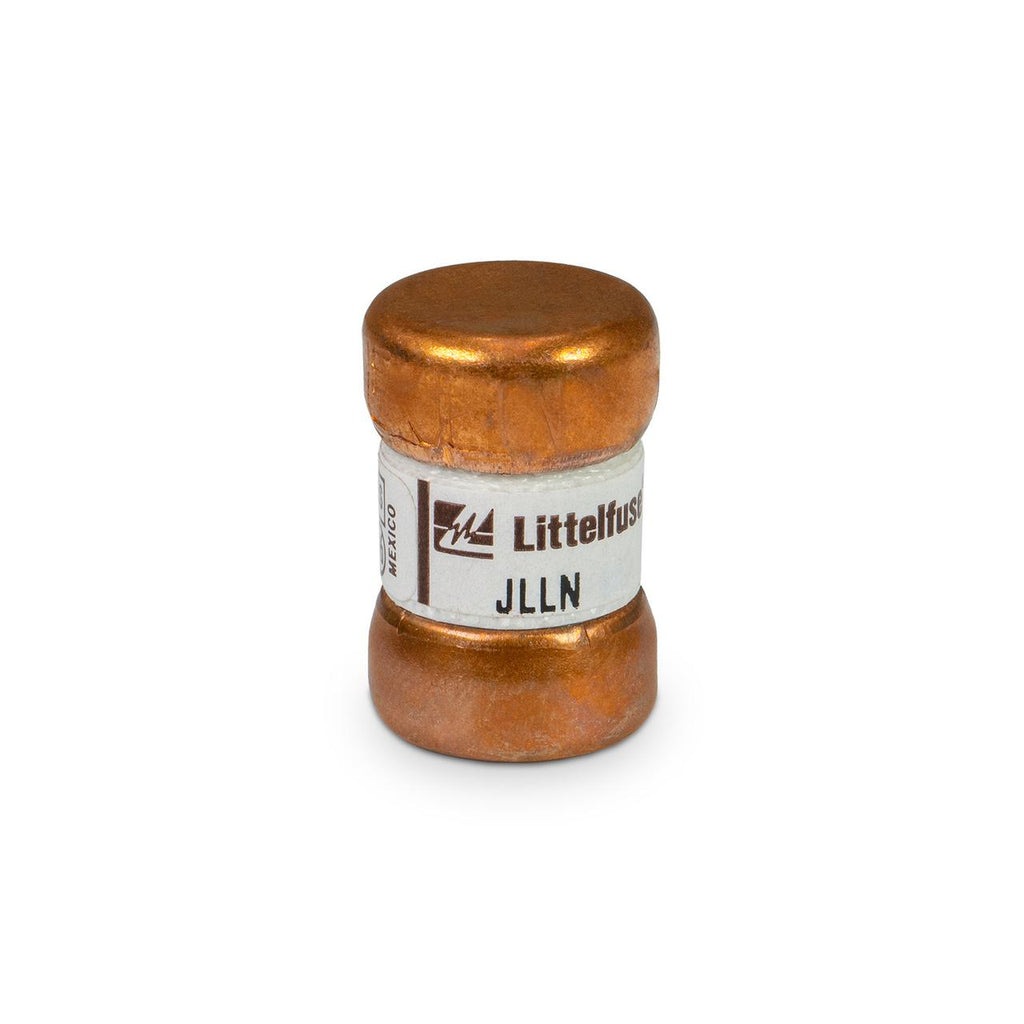

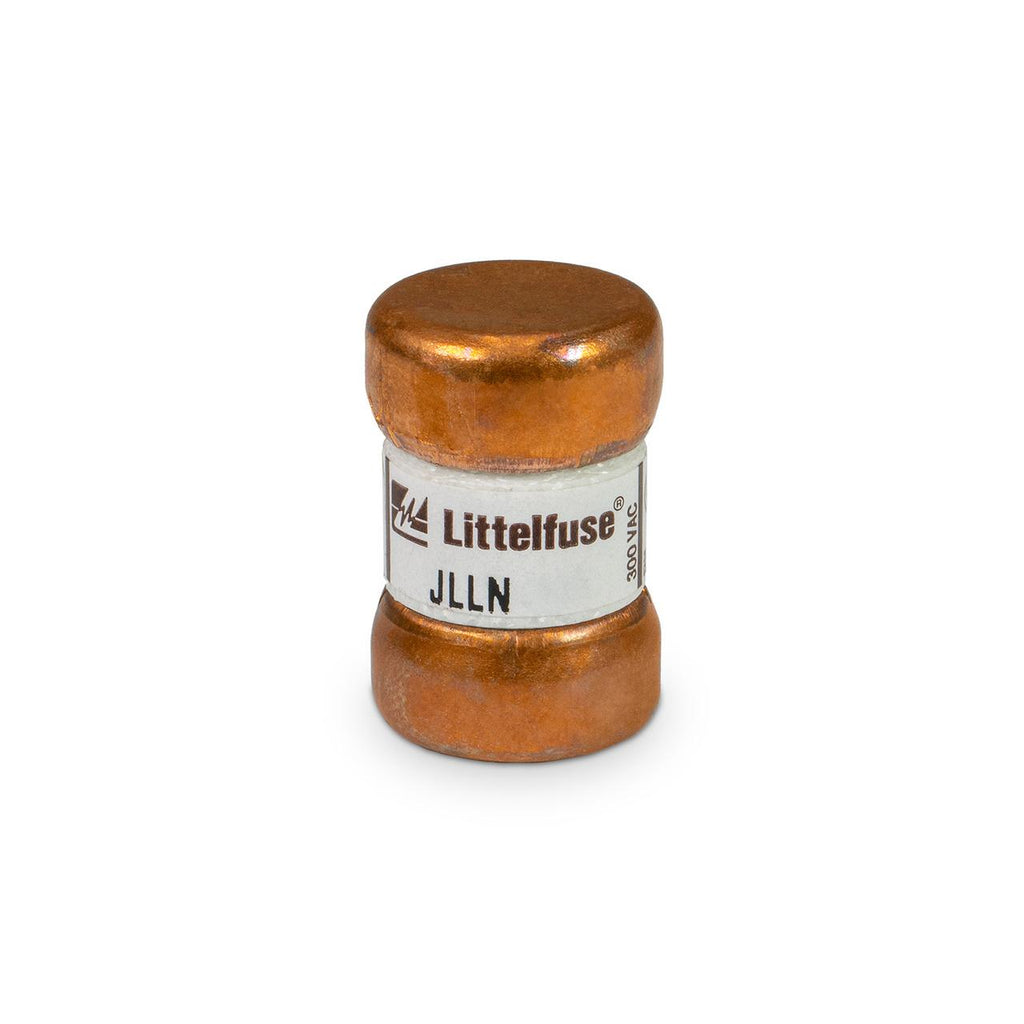

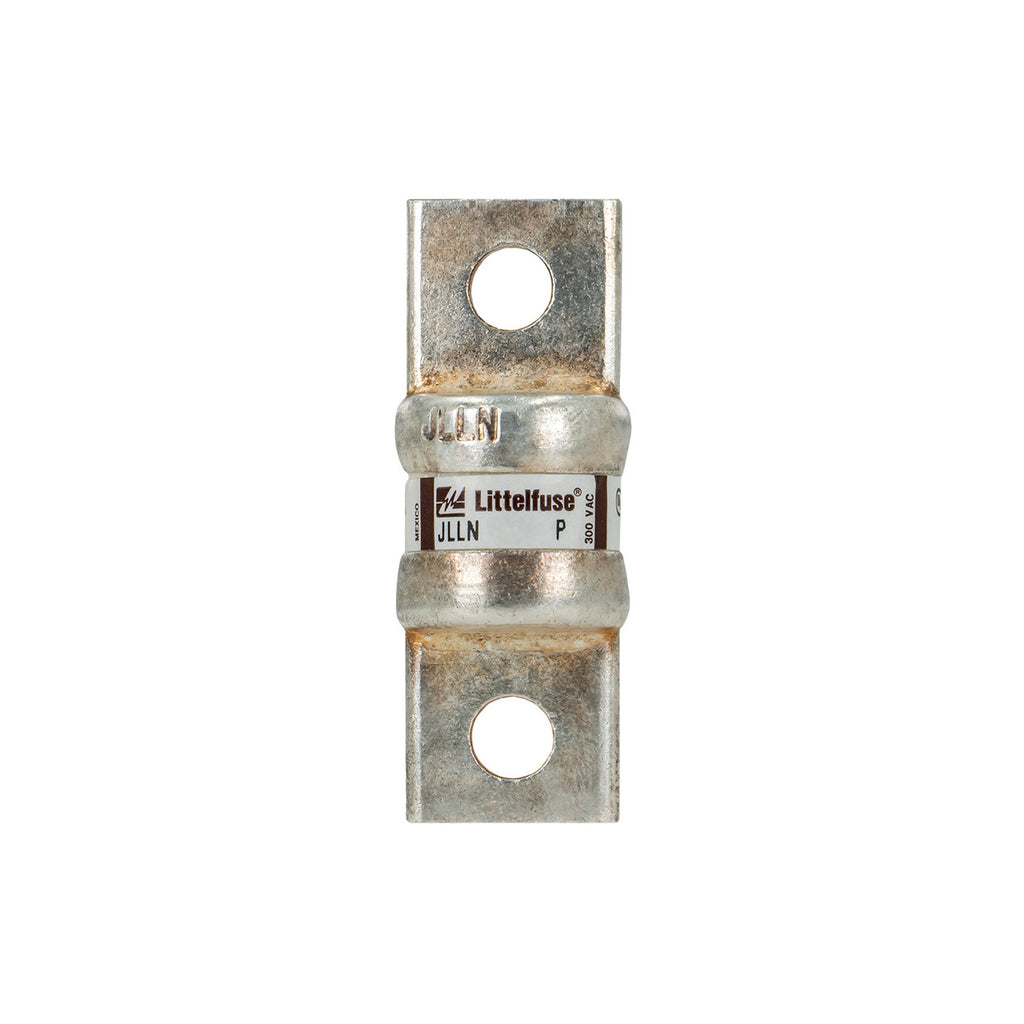

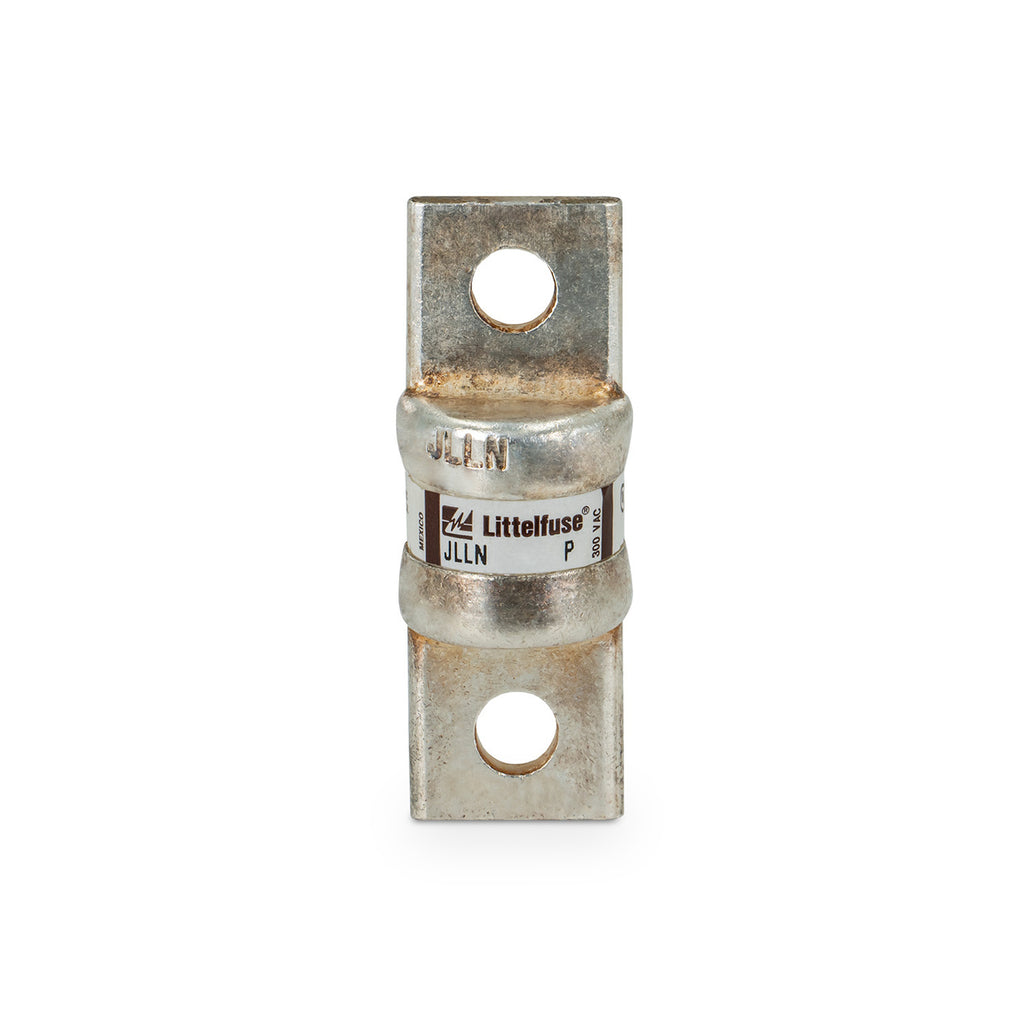

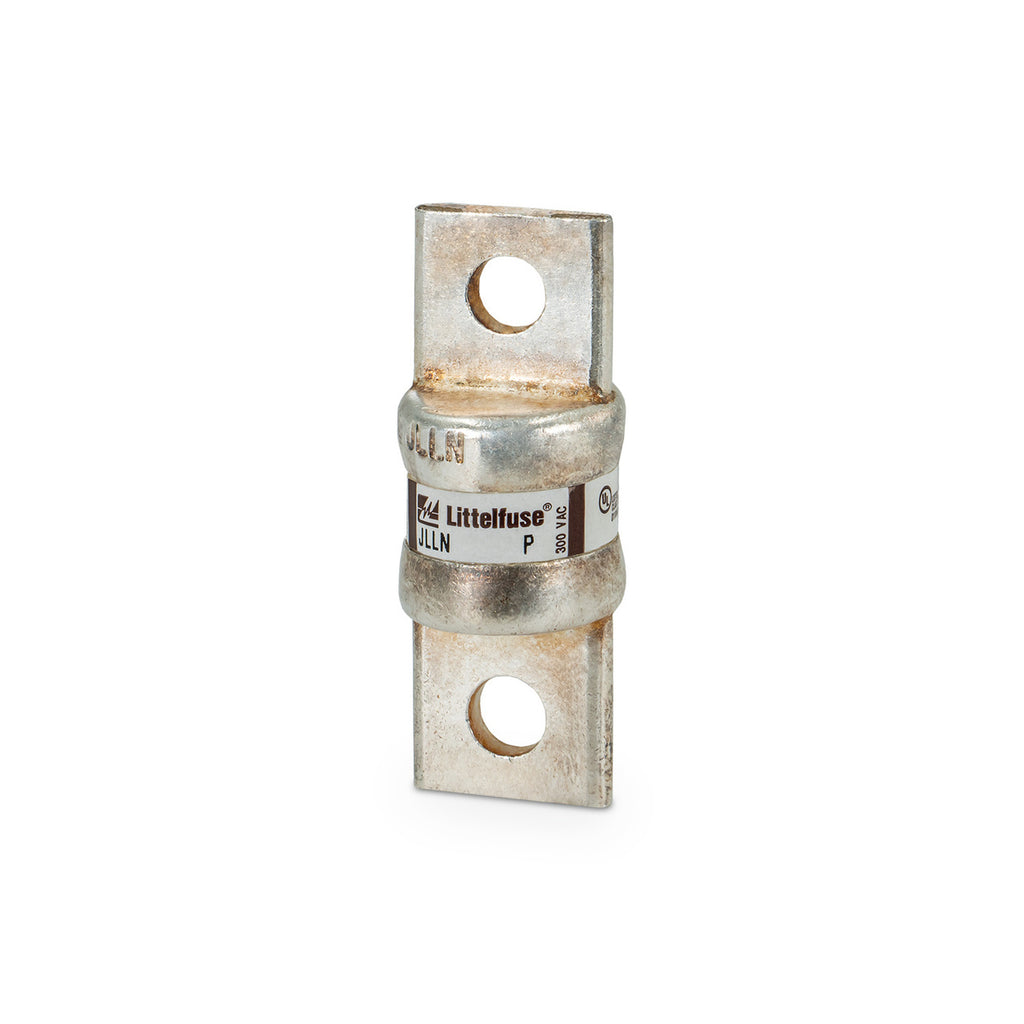

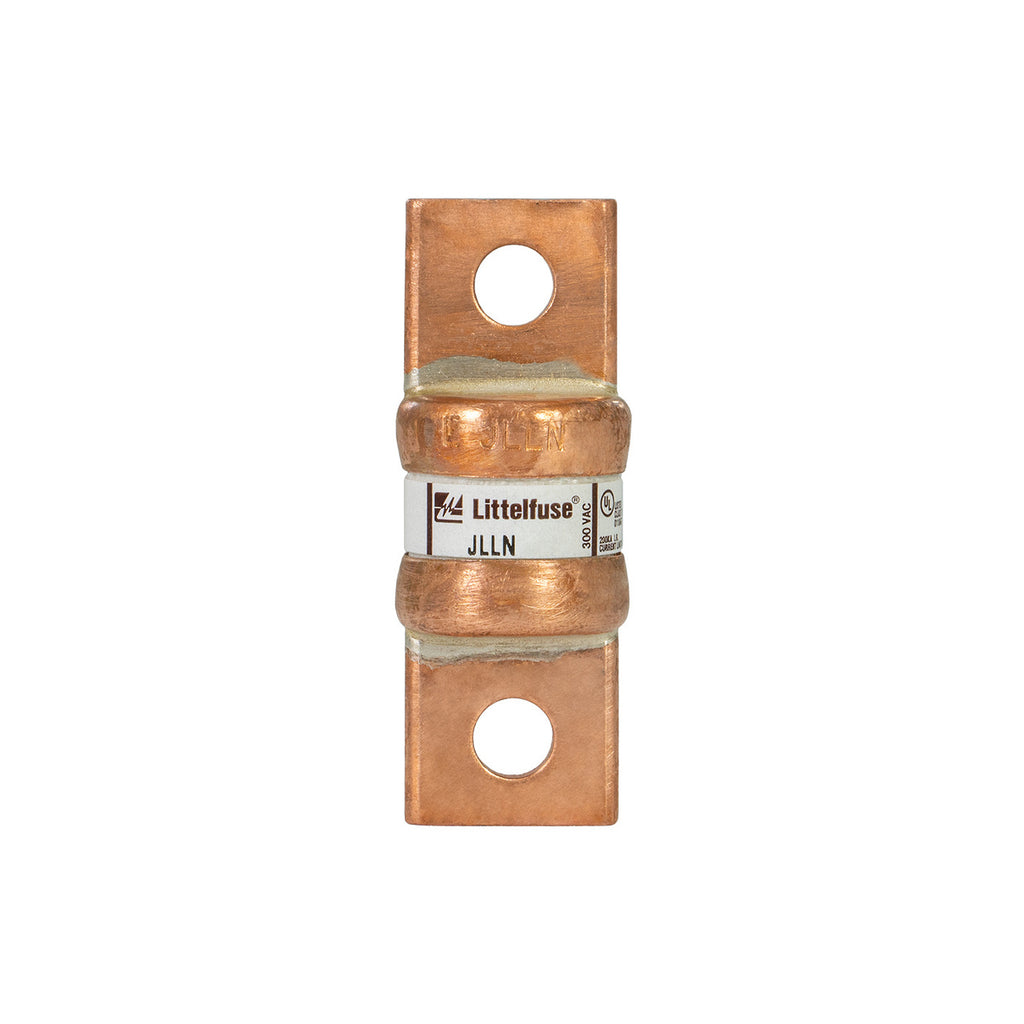

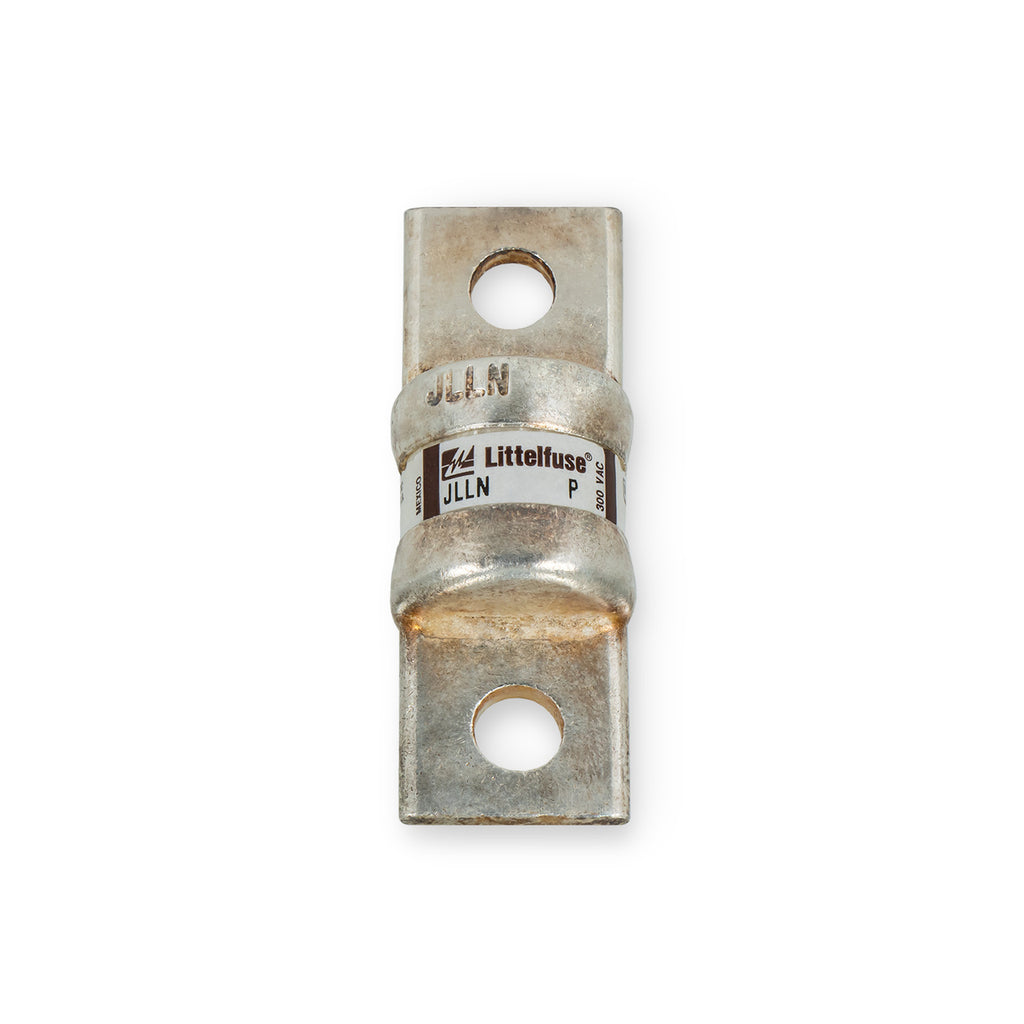

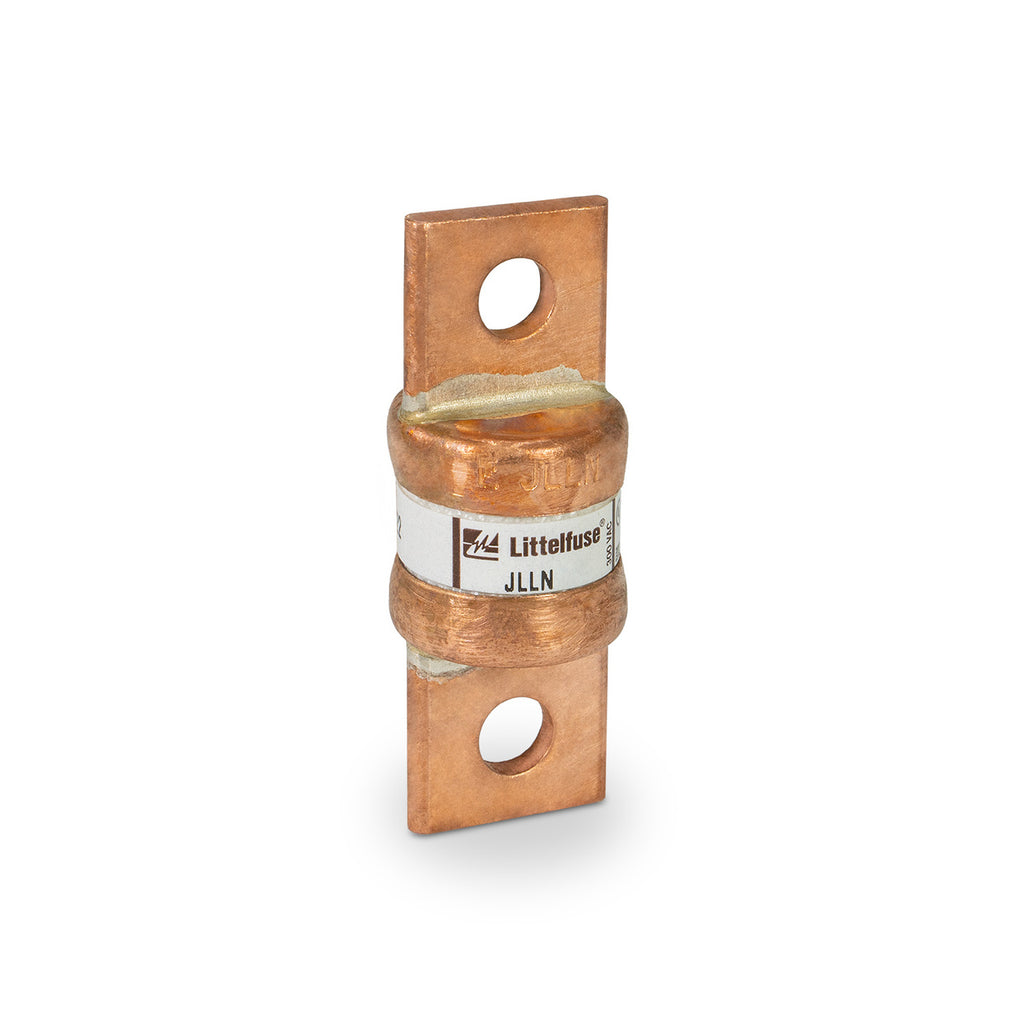

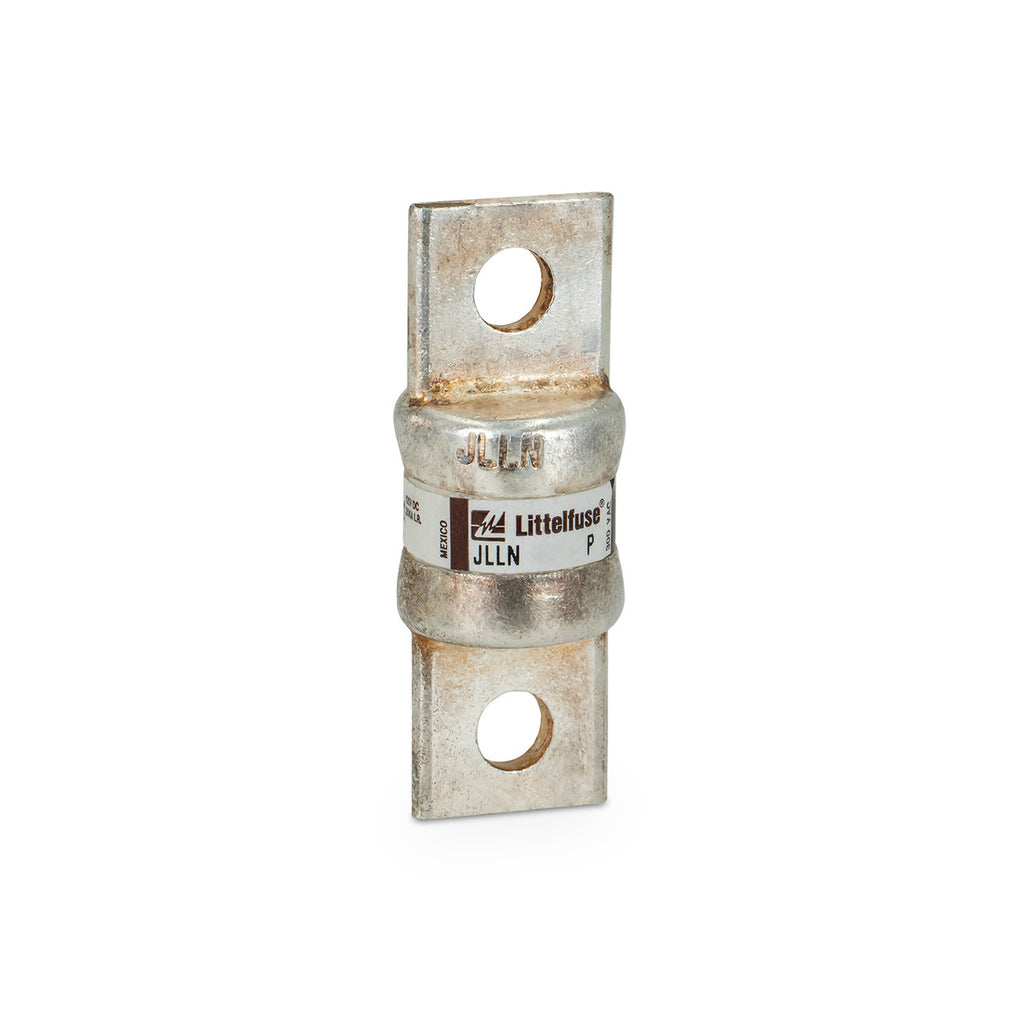

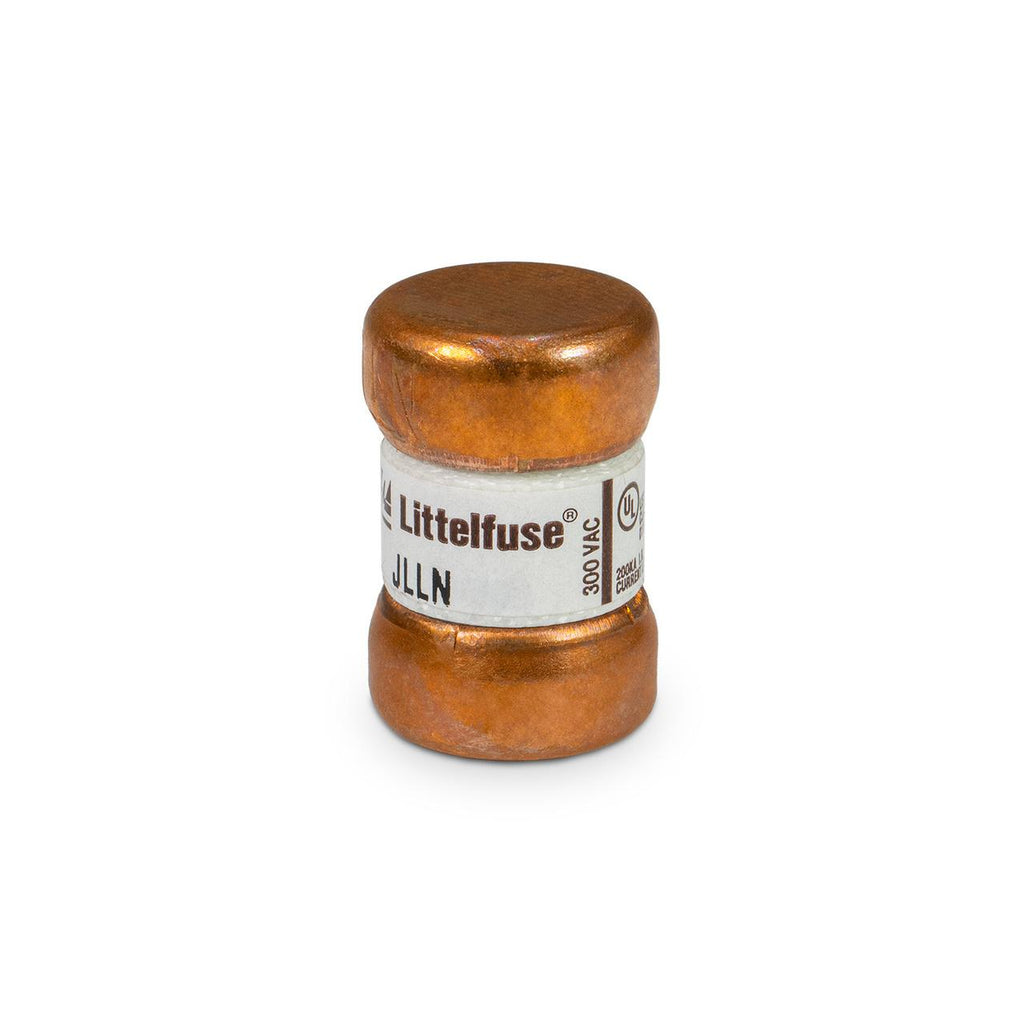

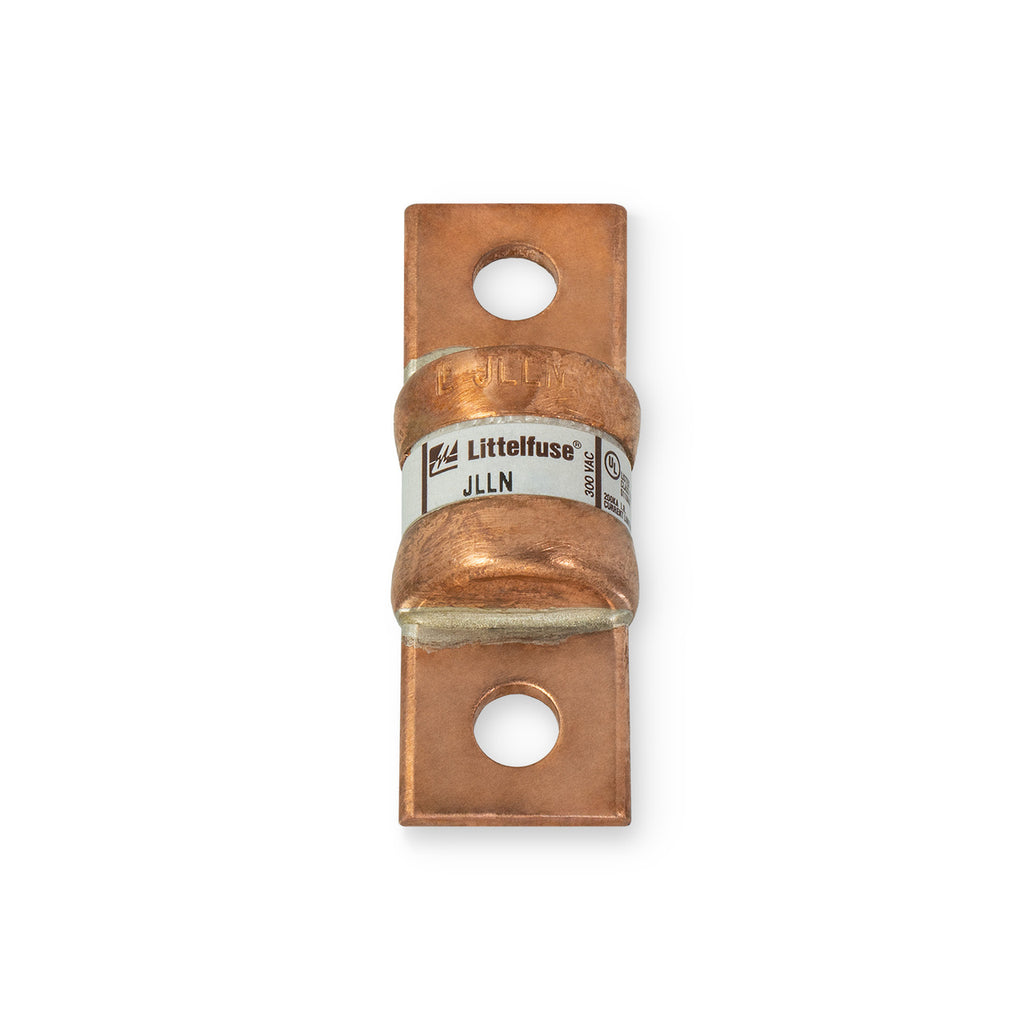

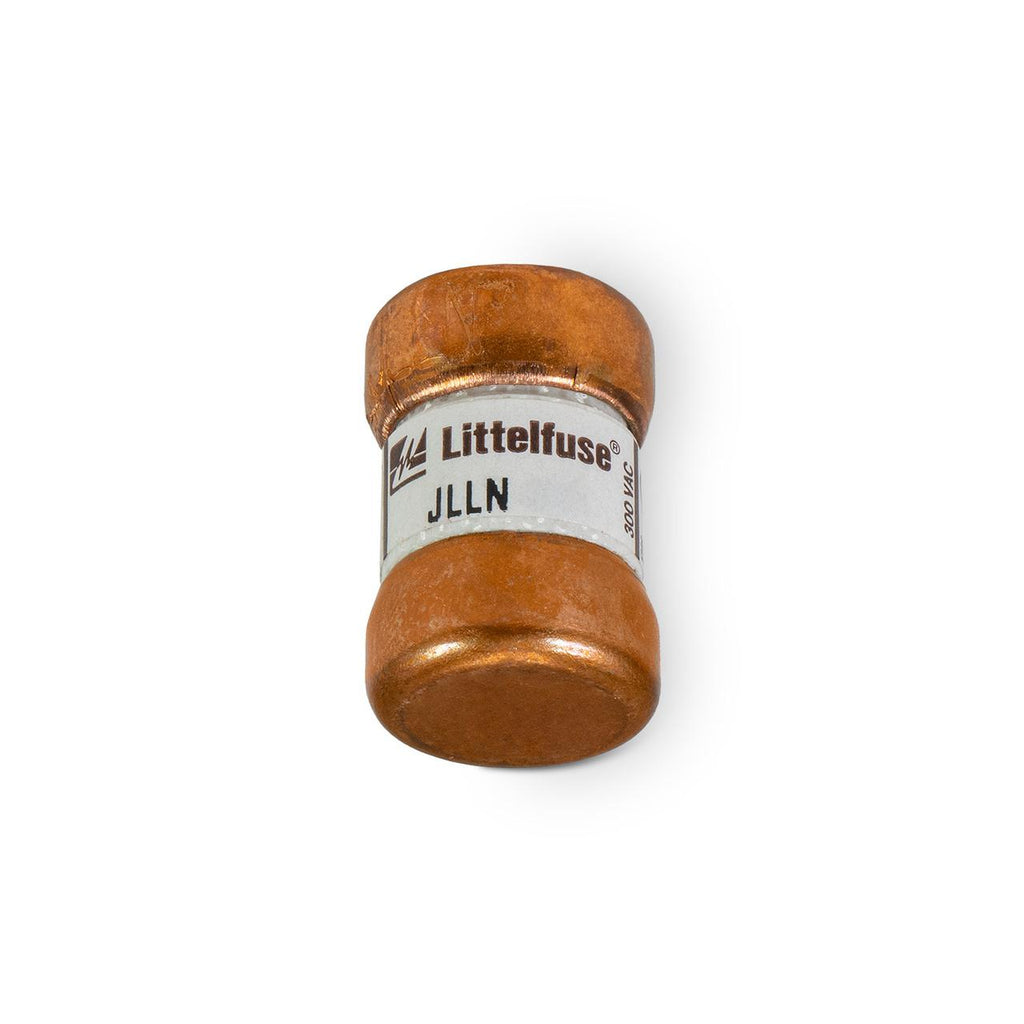

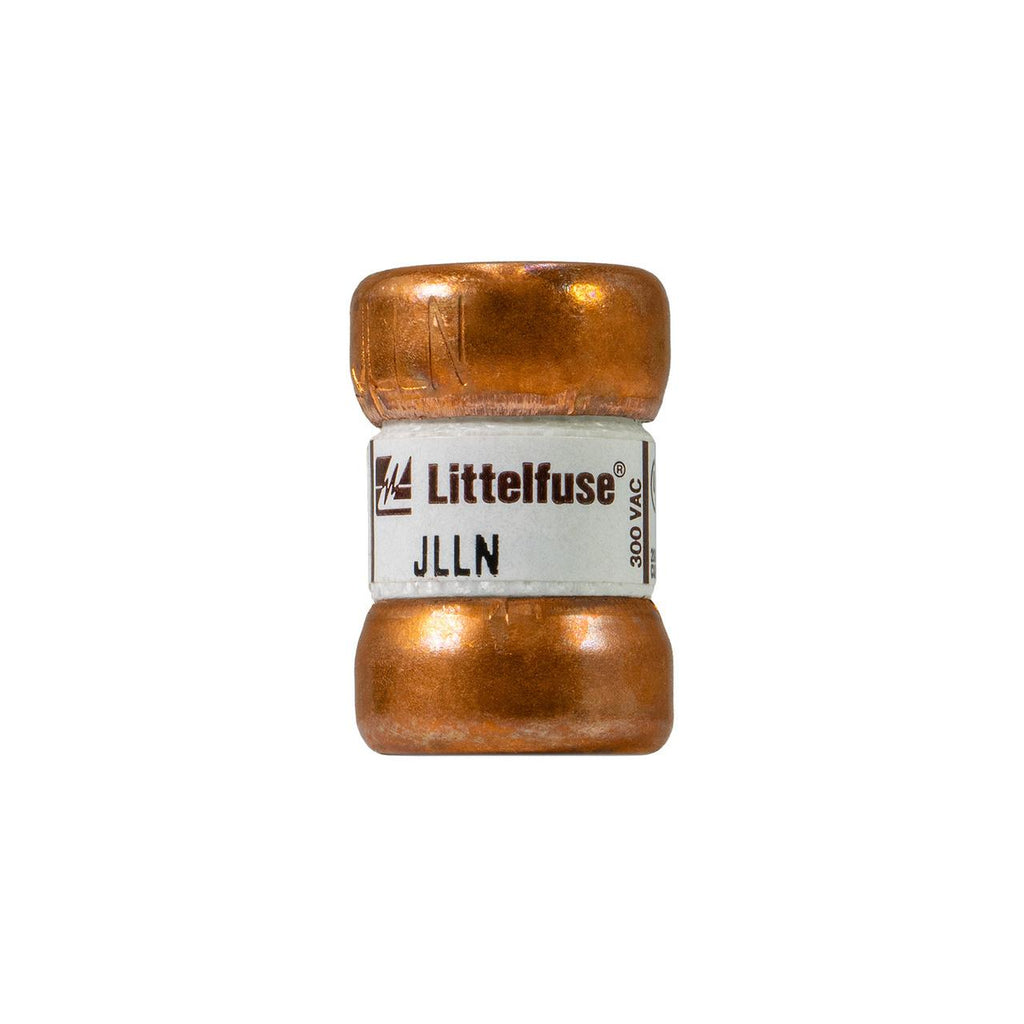

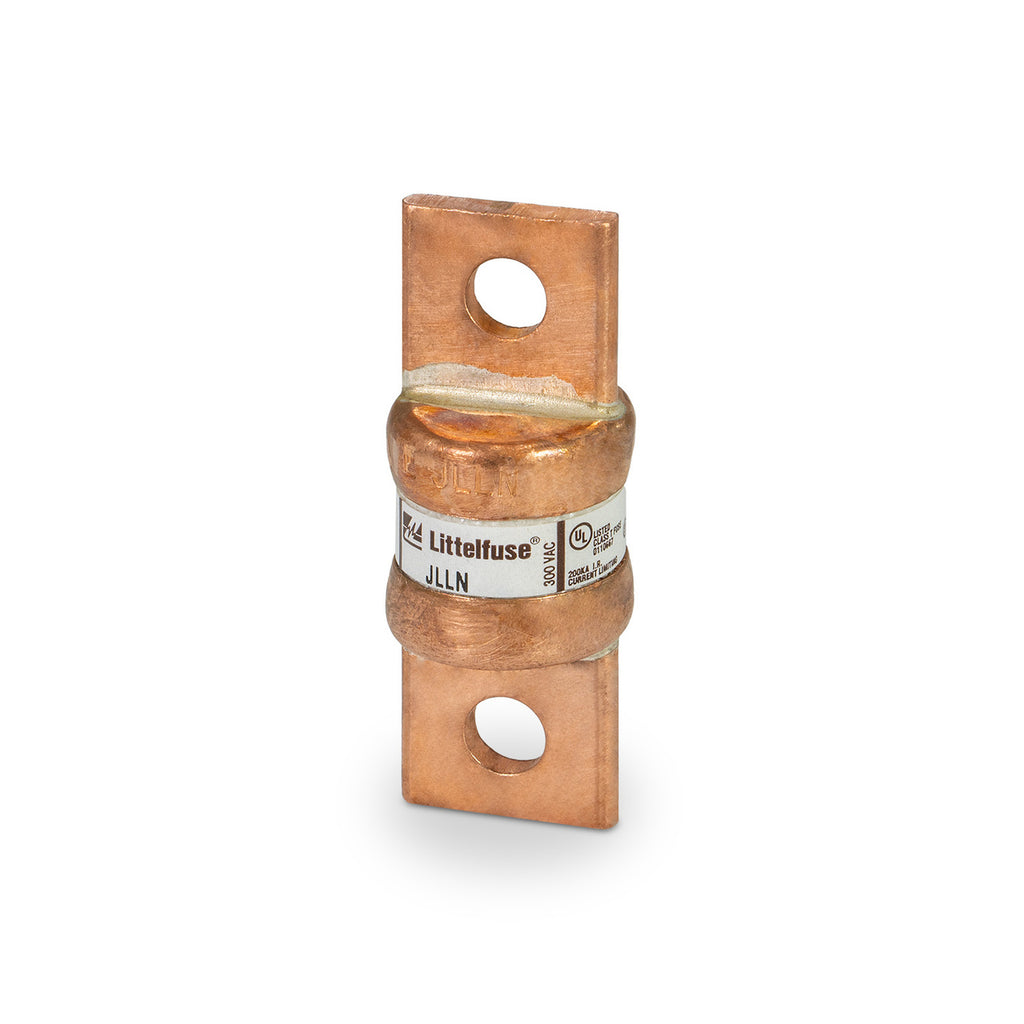

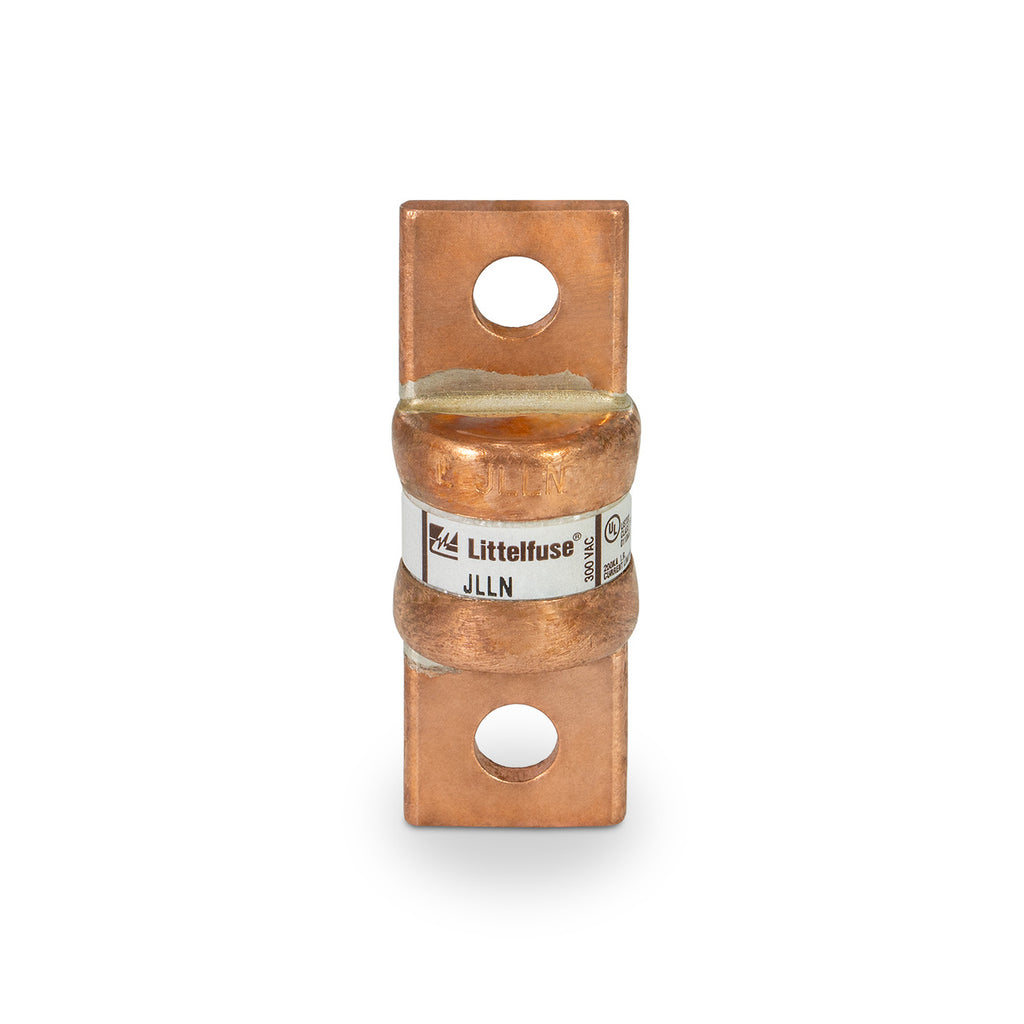

JLLN-070 is a Littelfuse Class T fast acting fuse rated for 70 amps and 300 volts AC, designed for compact and reliable circuit protection.This fuse features a very fast acting, current limiting design ideal for protecting variable speed drives and other sensitive equipment. It has a compact size of 13/16" diameter by 2 5/32" length, with an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 125 VDC. The JLLN-070 is UL Listed, CSA Certified, RoHS compliant, and constructed with a melamine body and copper caps for durability.
- Key Specifications
- Amperage: 70 Amps
- Voltage Rating: 300 Volts AC, 125 Volts DC
- Fuse Type: UL Class T
- Response Time: Very Fast Acting
- Interrupting Rating: 200,000 AIC @ 300 VAC, 20,000 AIC @ 125 VDC
- Dimensions: 13/16" diameter x 2 5/32" length
- Mounting Type: Cartridge Blade
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
- Material: Melamine body, copper caps
- Application: Variable Speed Drive Protection
Specifications
- Part Number: JLLN-070
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 70
- AIC rating : 200kA@300V
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818079
- GTIN : 00079458180794
- Weight : 0.3
