Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-050

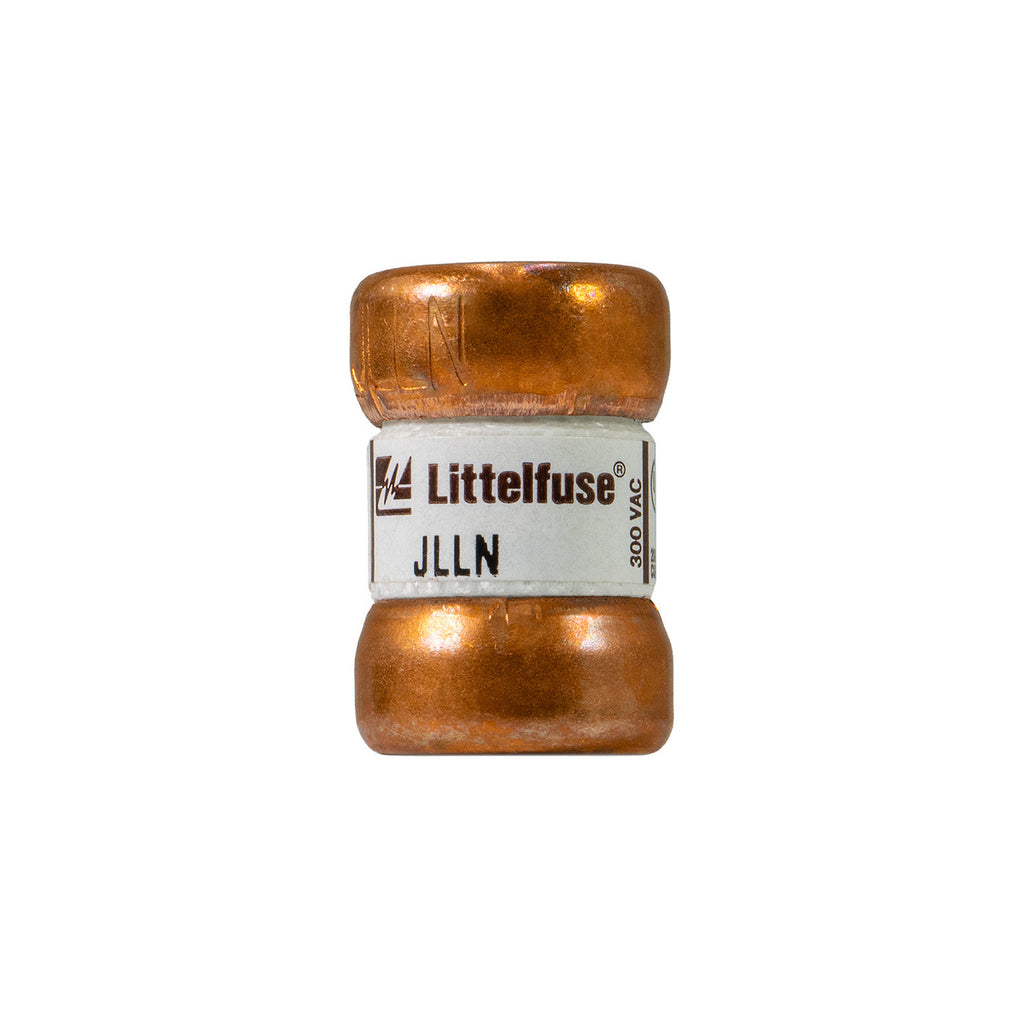

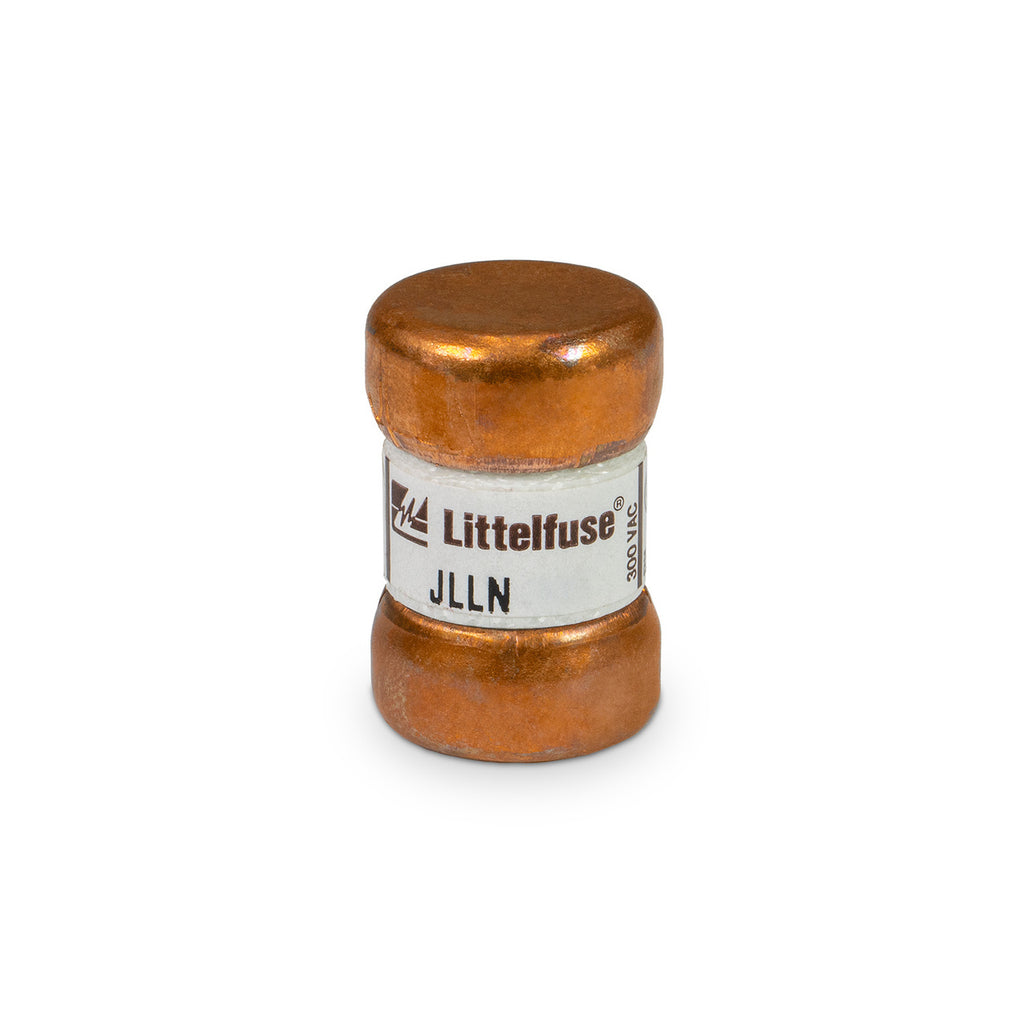

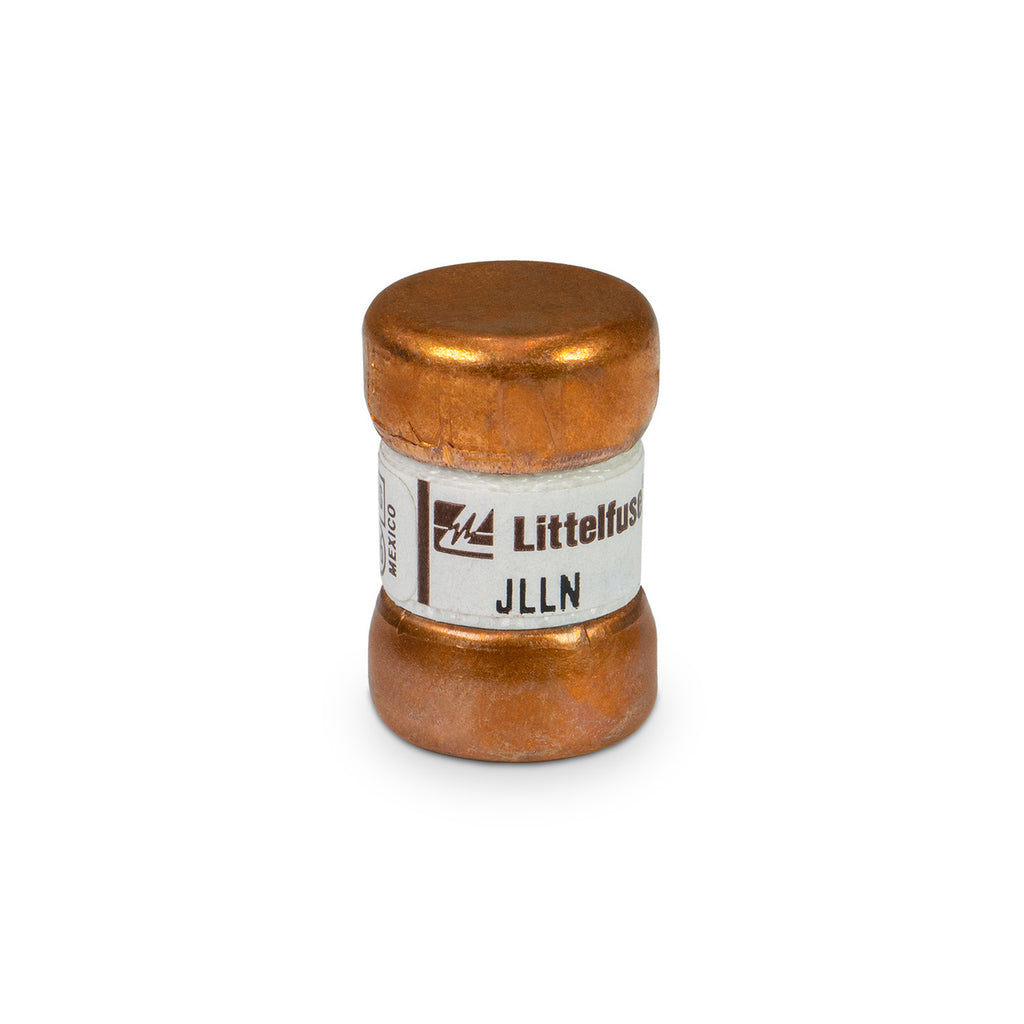

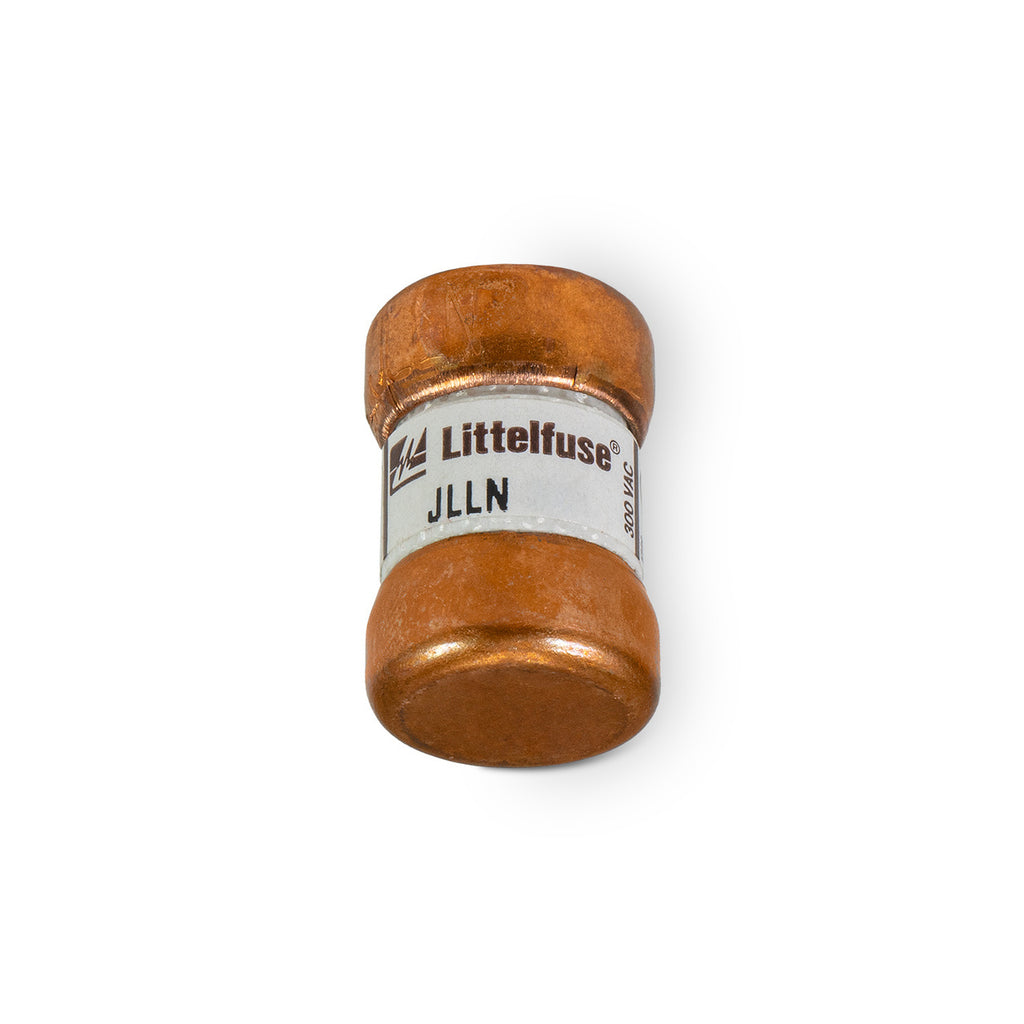

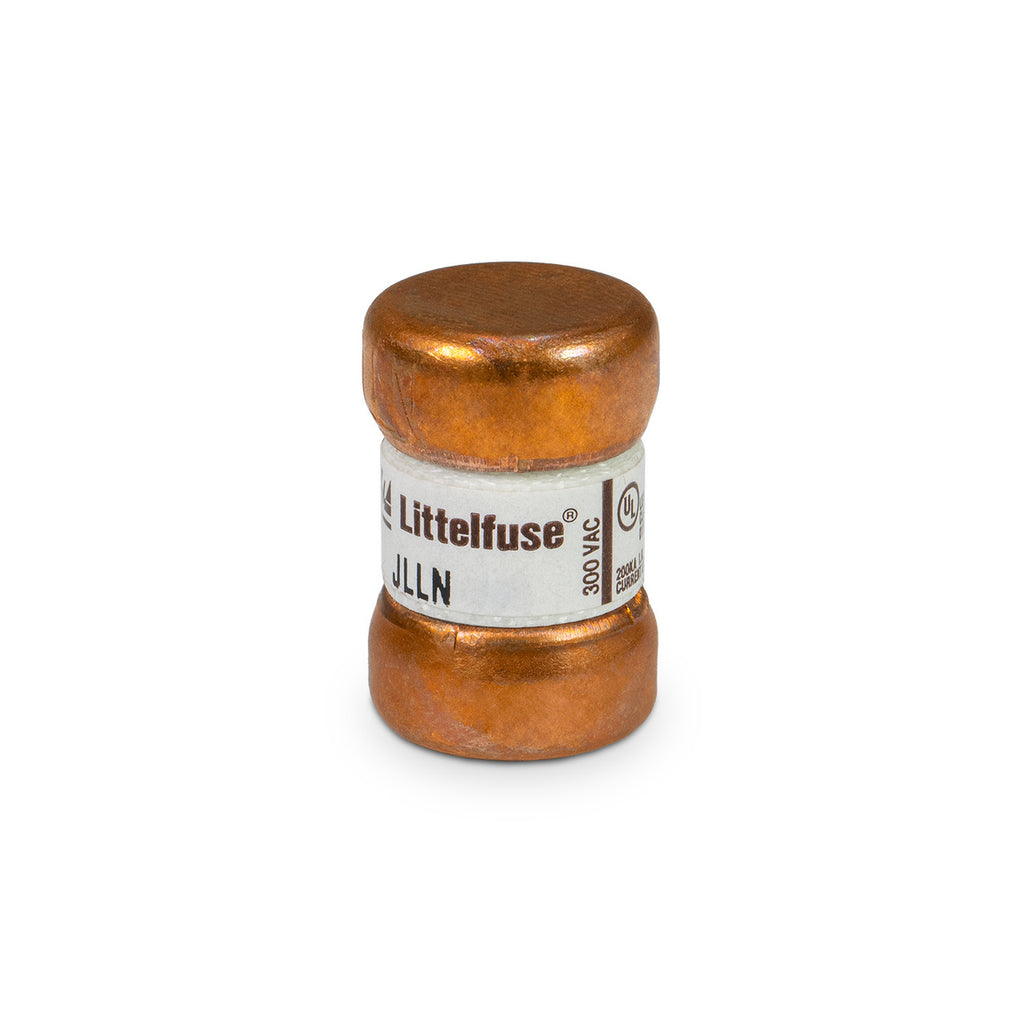

JLLN-050 is a Littelfuse Class T fast-acting fuse rated for 50 amps and 300 volts AC. It provides reliable overcurrent protection in a compact cartridge design.
This fuse features a 50 ampere rating with a maximum AC voltage of 300V and DC voltage rating of 160V. It has a fast-acting trip characteristic and a high interrupting rating of 200kA at 300V AC and 20kA at 160V DC. The cylindrical melamine body is non-indicating and designed for use in non-rejection fuse blocks. It meets UL 248-15 Class T, UL Listed, CSA Certified, CE, and RoHS compliance standards, ensuring safety and environmental compliance.
- Key Specifications
- Amperage: 50A
- Voltage Rating: 300V AC, 160V DC
- Fuse Type: Fast-Acting (Class T)
- Interrupting Rating: 200kA AC, 20kA DC
- Body Style: Cylindrical Melamine
- Series: JLLN
- Visual Indication: Non-Indicating
- Mounting Type: Cartridge, Non-Rejection
- Certifications: UL Listed, CSA Certified, CE, RoHS Compliant
- Equivalent Series: Bussmann JJN, Edison TJN, Mersen A3T
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLLN-050
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 50
- AIC rating : 200kA@300V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818077
- GTIN : 00079458180770
- Weight : 5.19
