Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-040

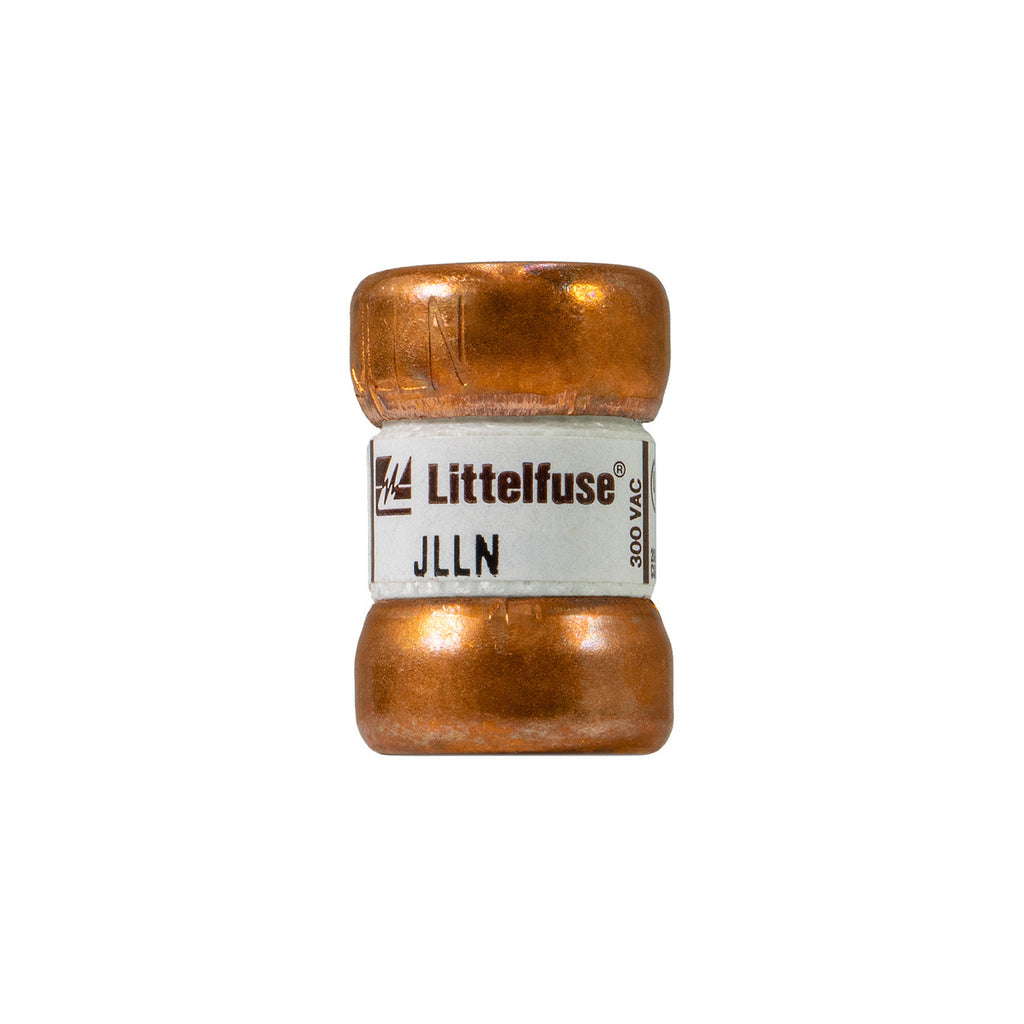

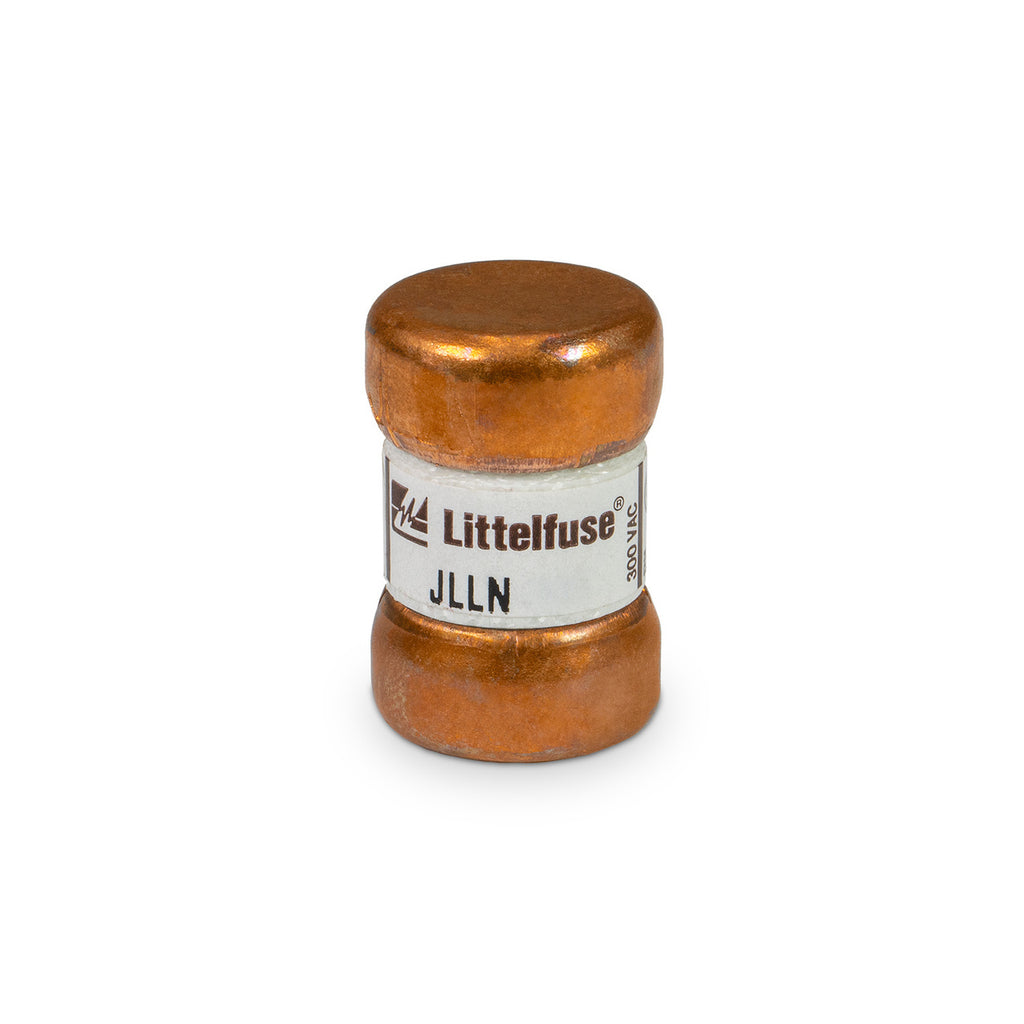

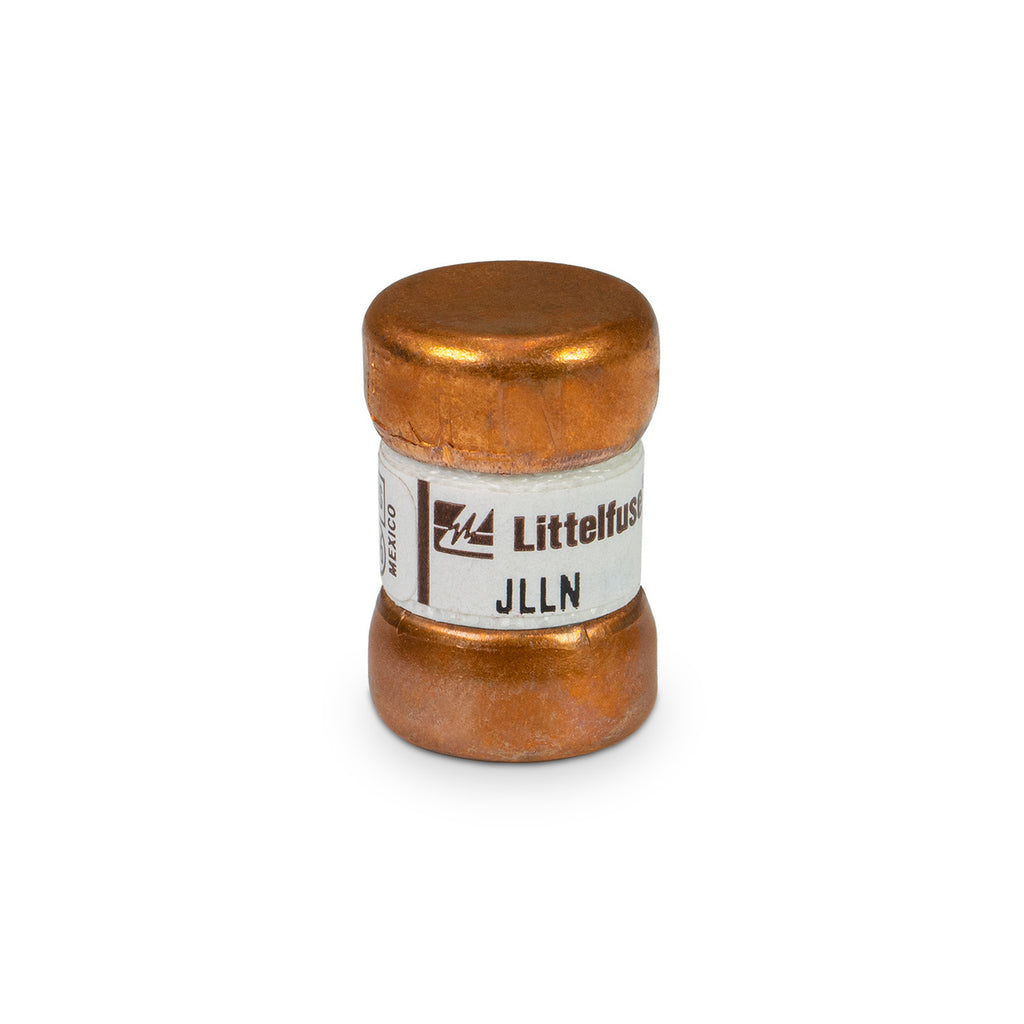

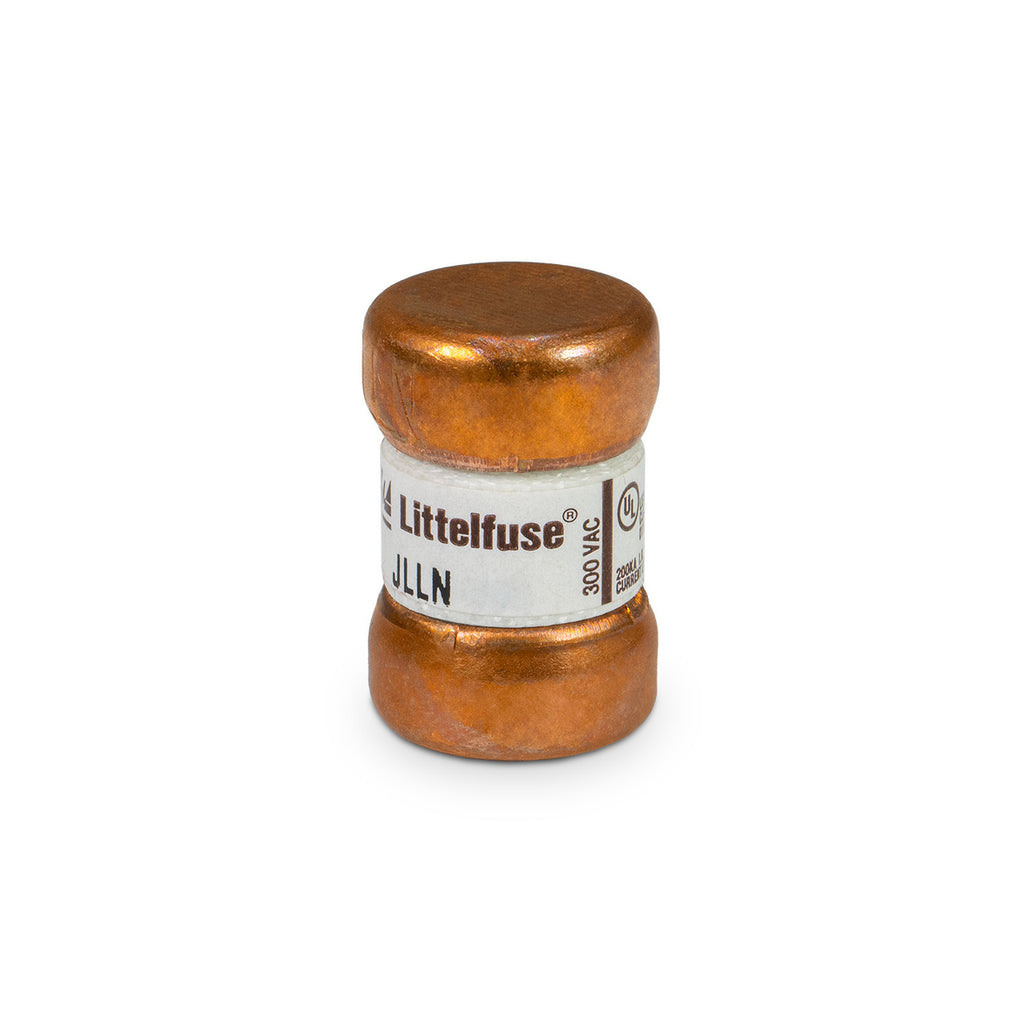

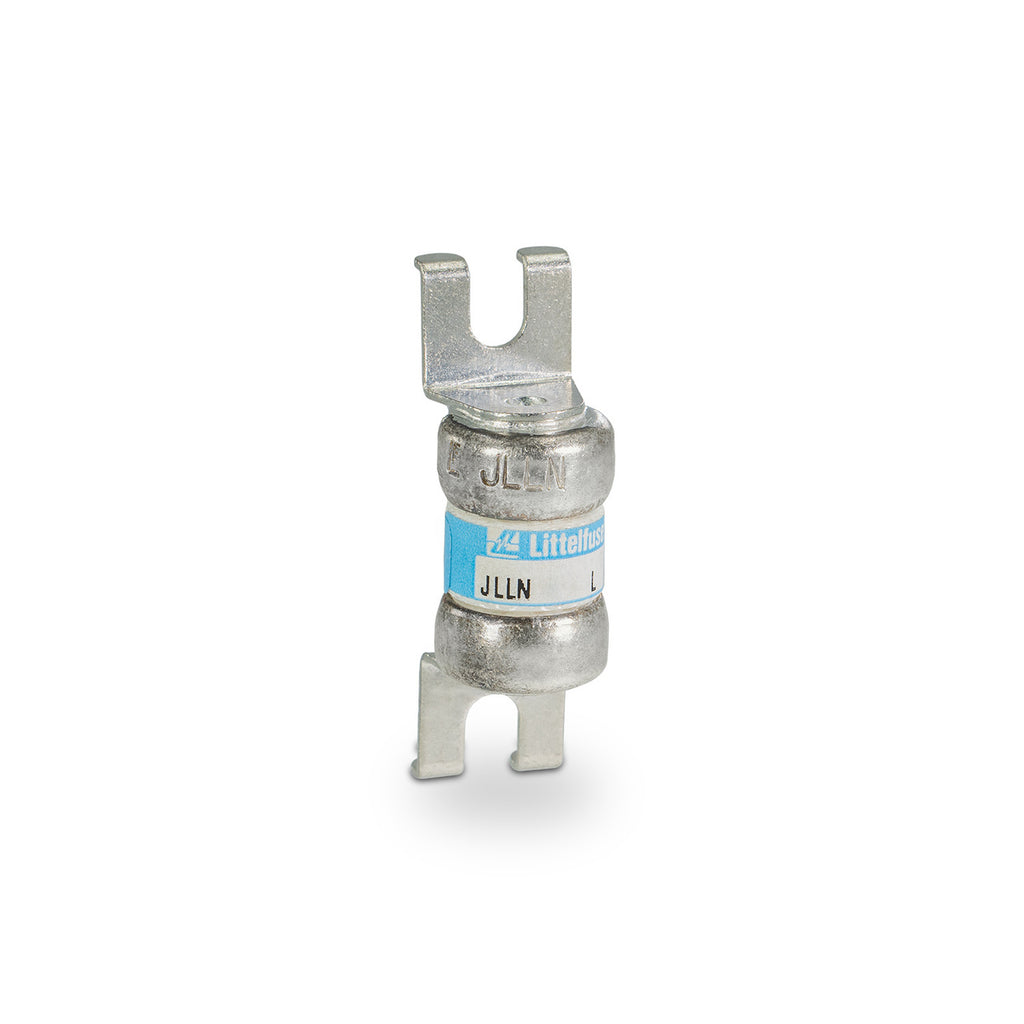

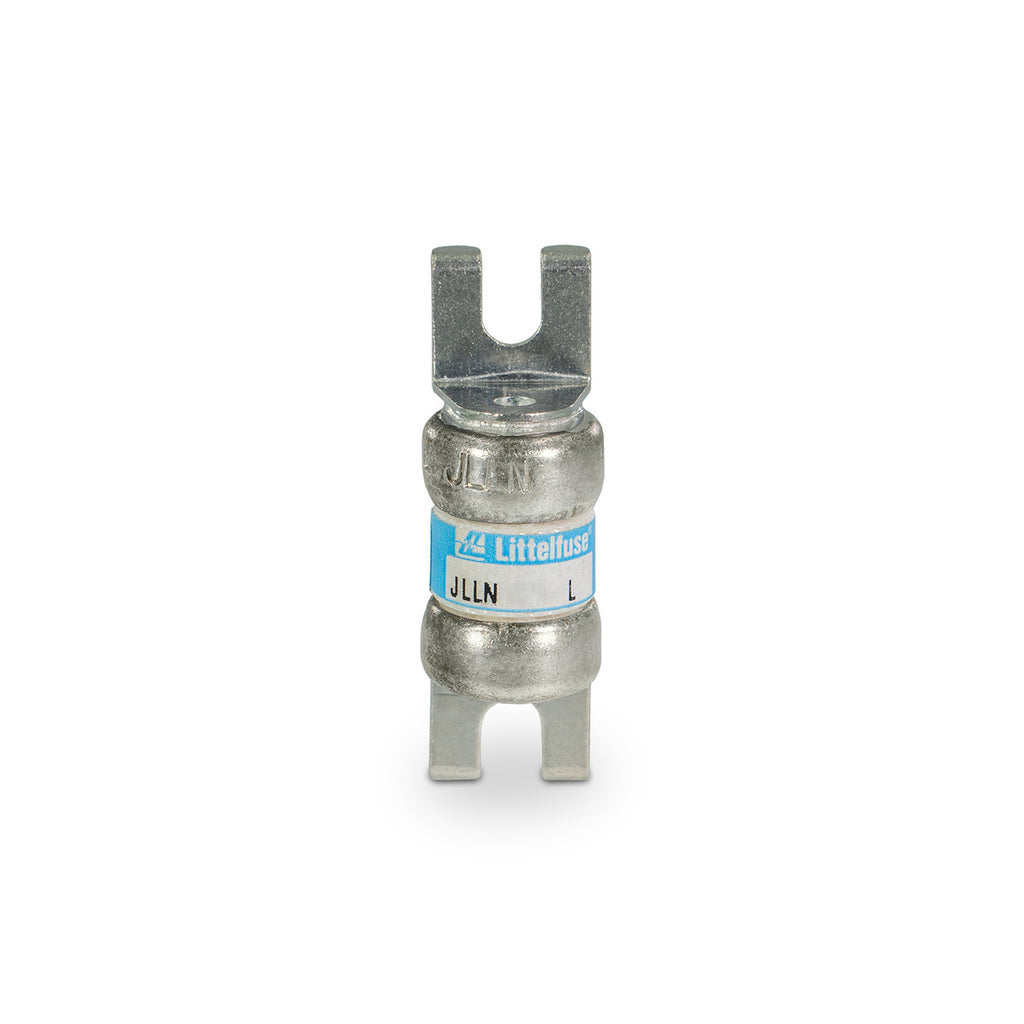

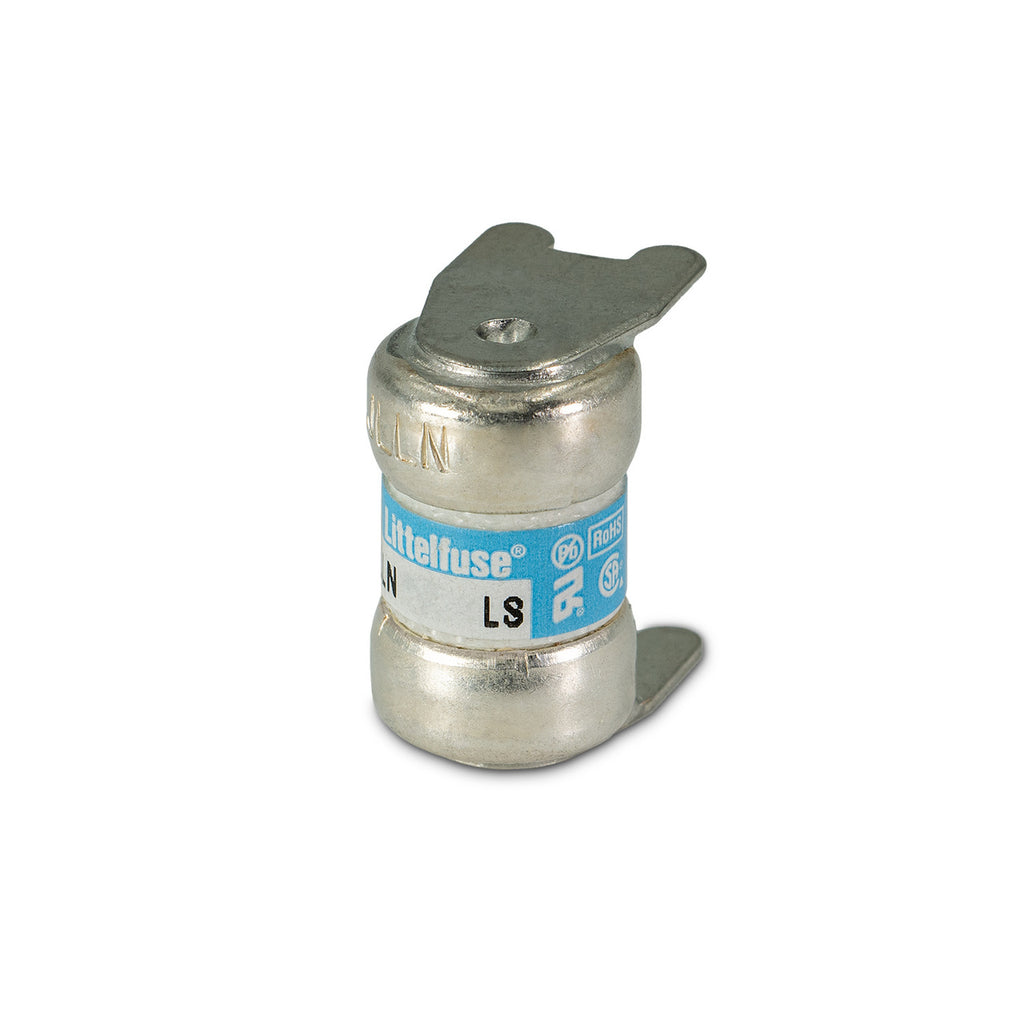

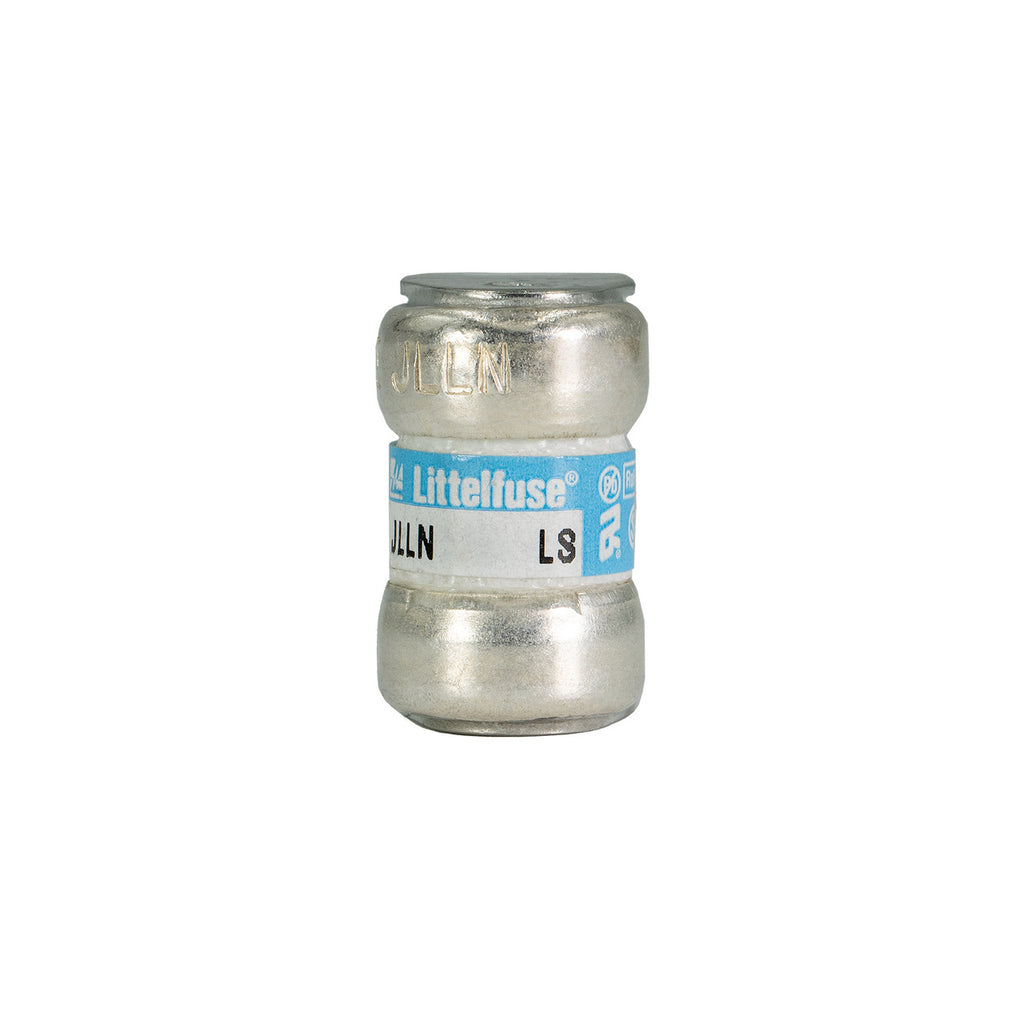

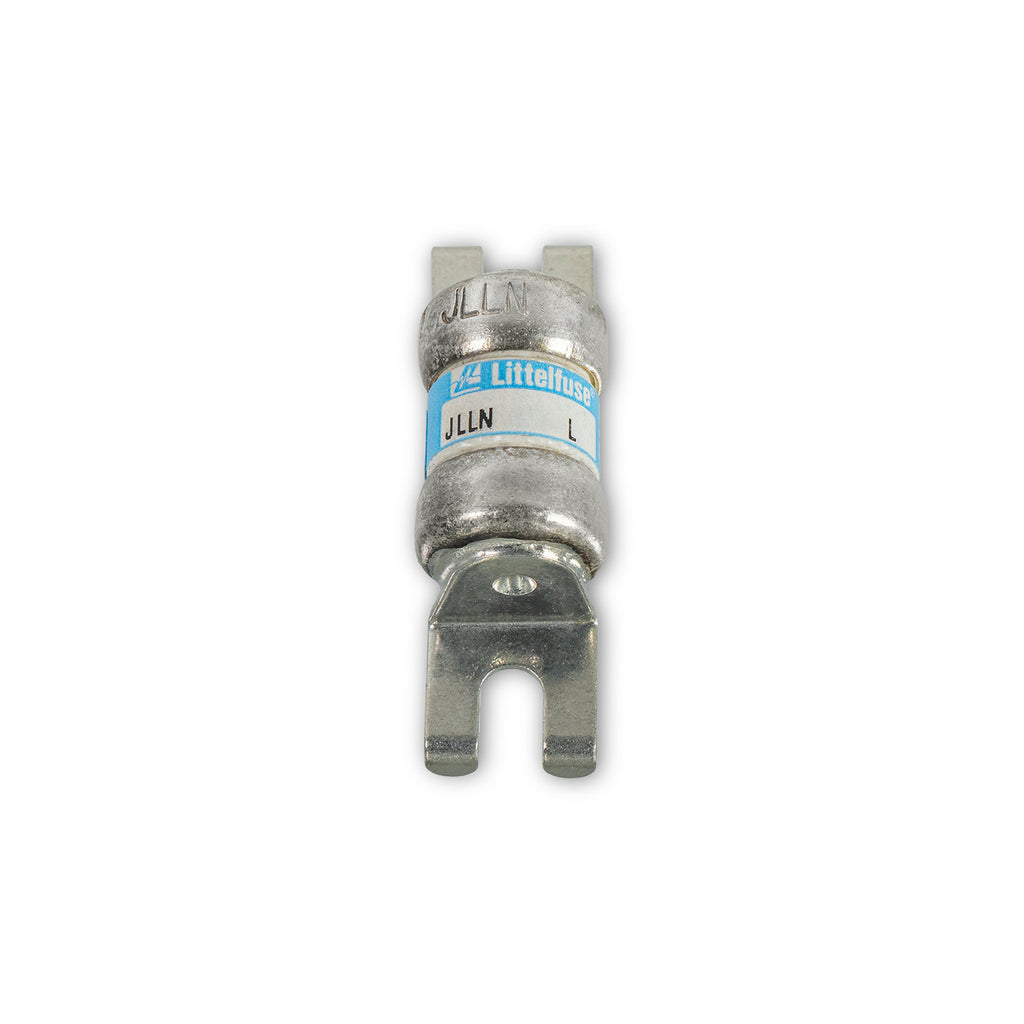

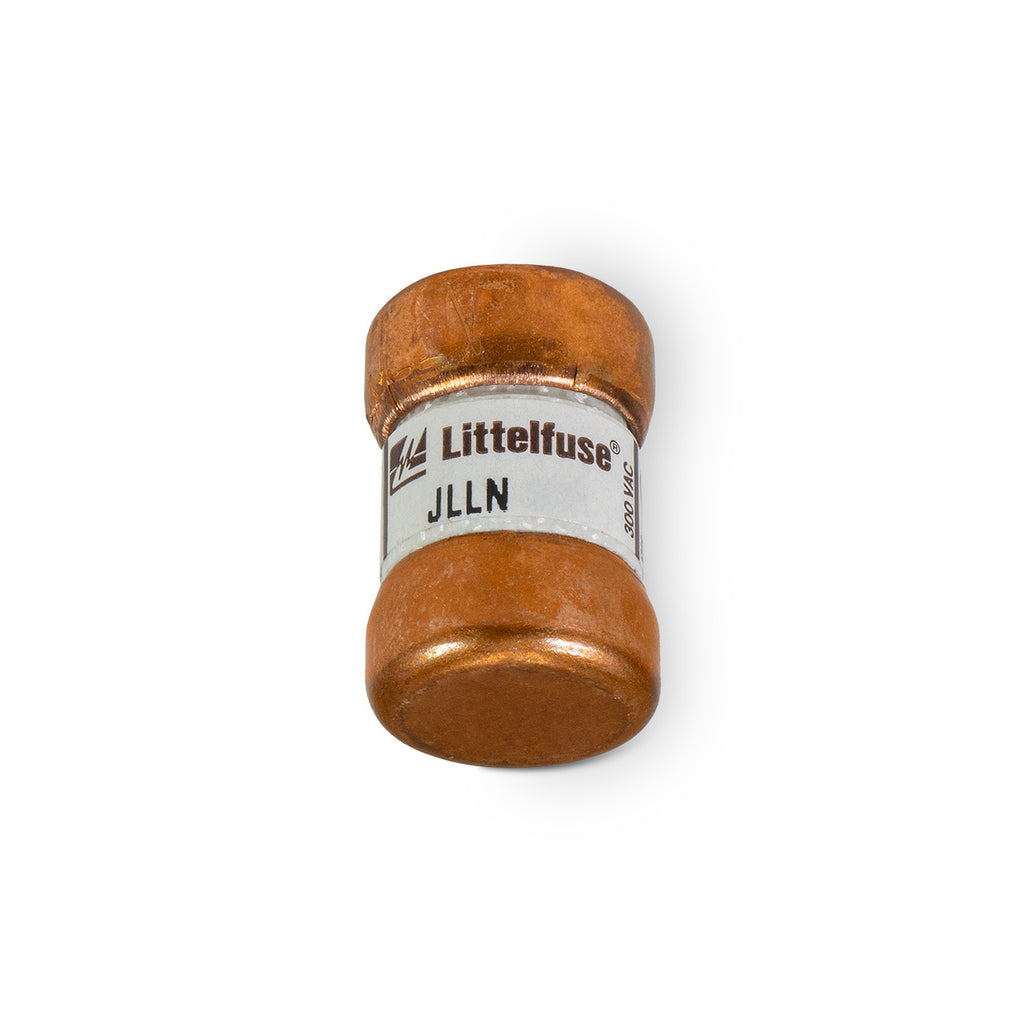

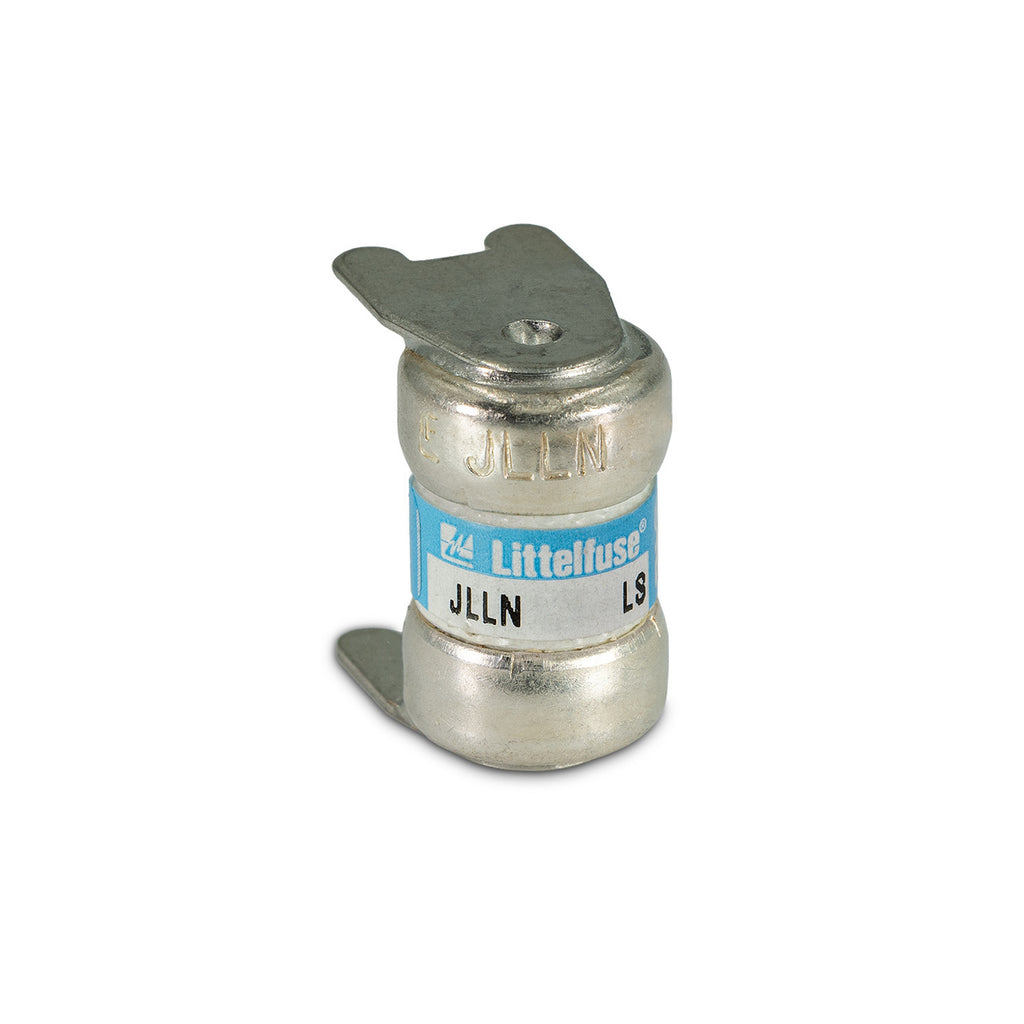

JLLN-040 is a 40 Amp, 300 Volt AC Class T fast-acting fuse from Littelfuse designed for PCB mounting and current limiting protection.This compact fuse features a very fast acting trip unit, suitable for variable speed drive protection and telecommunications applications. It has an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 160 VDC, with a physical size of 9/16" diameter by 7/8" length. The fuse is UL Listed, CSA Certified, RoHS compliant, and meets UL 248-15 standards.
- Key Specifications
- Current Rating: 40 Amps
- Voltage Rating: 300 V AC, 160 V DC
- Fuse Class: Class T
- Trip Unit: Fast Acting
- Interrupting Rating: 200,000 AIC @ 300 VAC, 20,000 AIC @ 160 VDC
- Mounting Type: PCB Mount
- Physical Size: 9/16" diameter x 7/8" length
- Standards: UL Listed (File E81895), CSA Certified (File LR29862)
- RoHS Compliant
Specifications
- Part Number: JLLN-040
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 40
- AIC rating : 200kA@300V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818075
- GTIN : 00079458180756
- Weight : 5.19
