Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-035

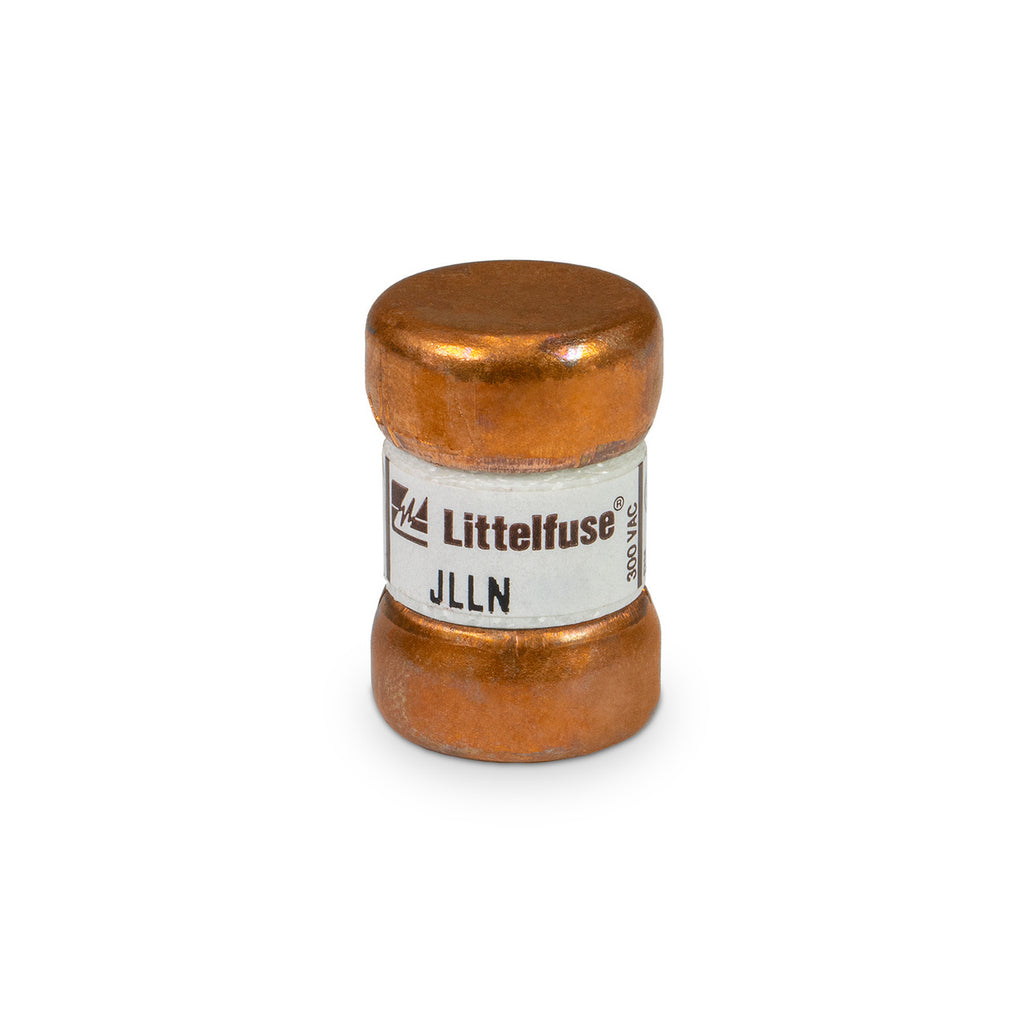

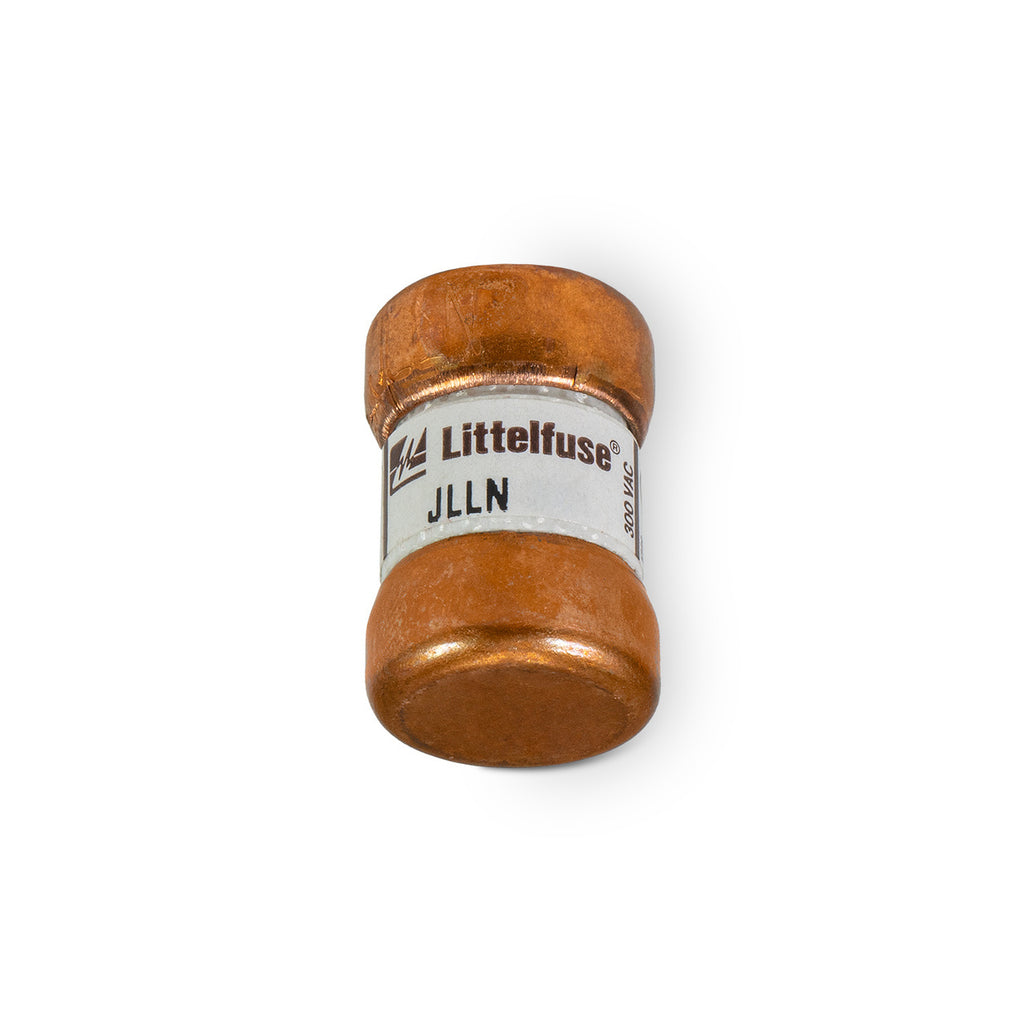

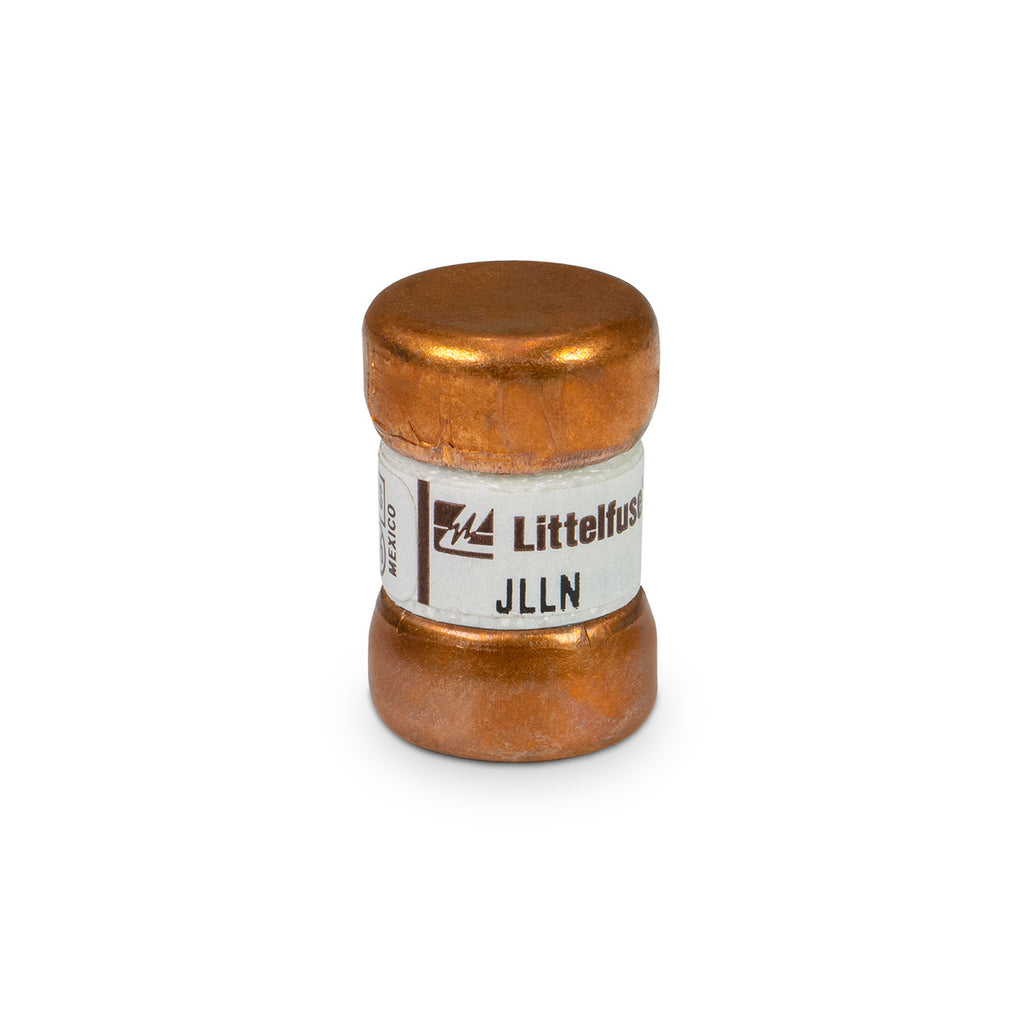

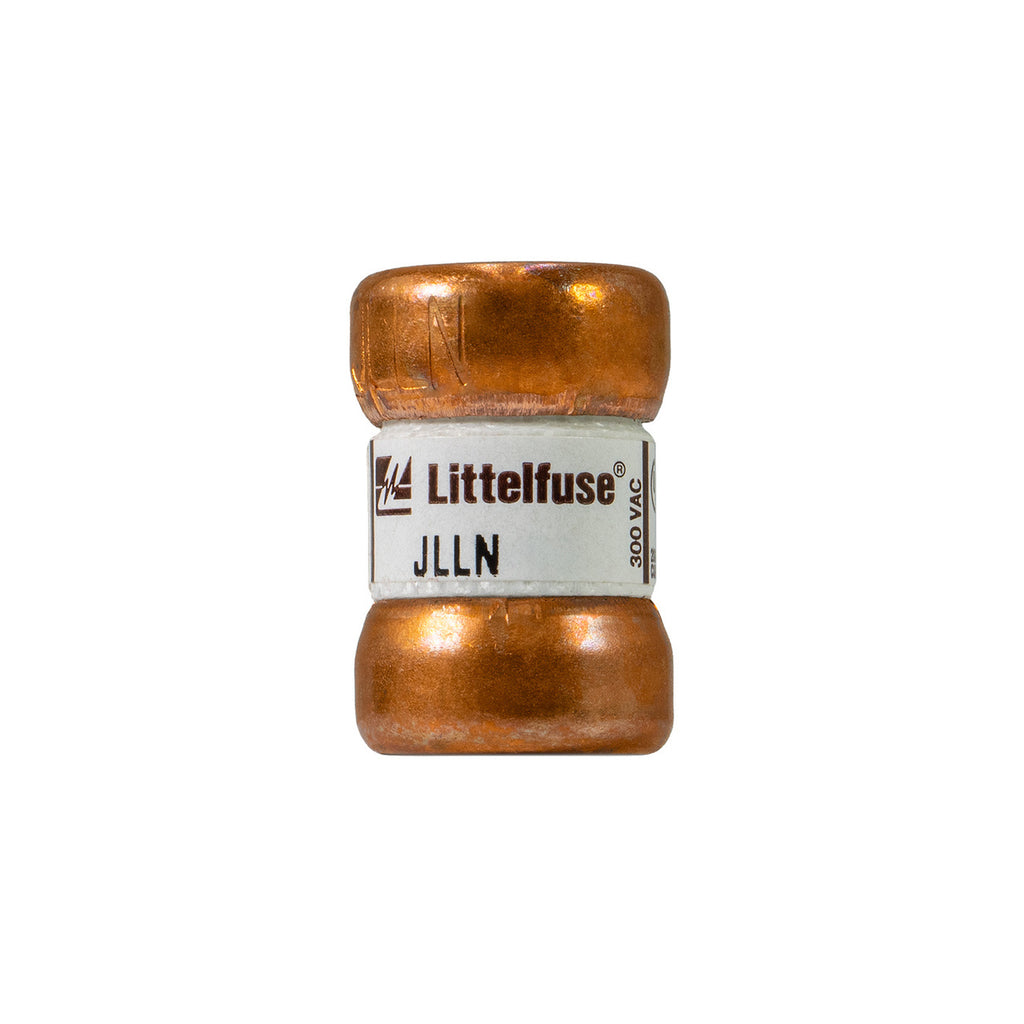

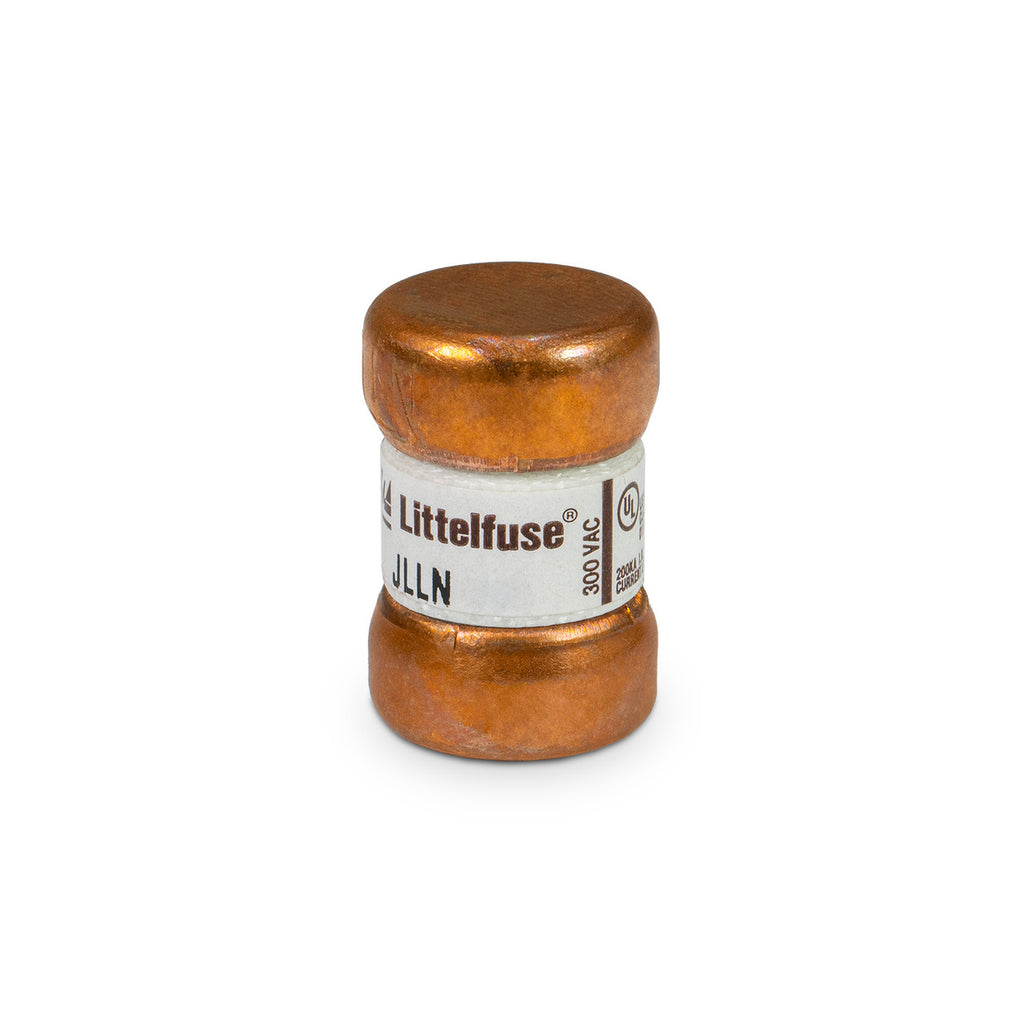

JLLN-035 is a Littelfuse Class T fast-acting fuse rated for 35 amps and 300 volts AC, designed for compact, high-performance circuit protection.This fuse features a melamine body with copper caps, providing a high interrupting rating of 200 kA at 300 VAC and 20 kA at 160 VDC. It is UL Listed and CSA Certified, meeting UL 248-15 standards for Class T fuses. The JLLN series is known for its compact size, less than one-third the size of comparable fuses above 30 amps, making it ideal for space-constrained applications.
- Key Specifications
- Amperage: 35 A
- Voltage Rating: 300 V AC, 160 V DC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Fuse Type: Fast-Acting (F)
- Class: Class T
- Body Material: Melamine with copper caps
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Compact size for space-saving installation
- Country of Origin: Mexico
Specifications
- Part Number: JLLN-035
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 35
- AIC rating : 200kA@300V
- Diameter : 0.56
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818074
- GTIN : 00079458180749
- Weight : 0.15
