Description
JLLN-030

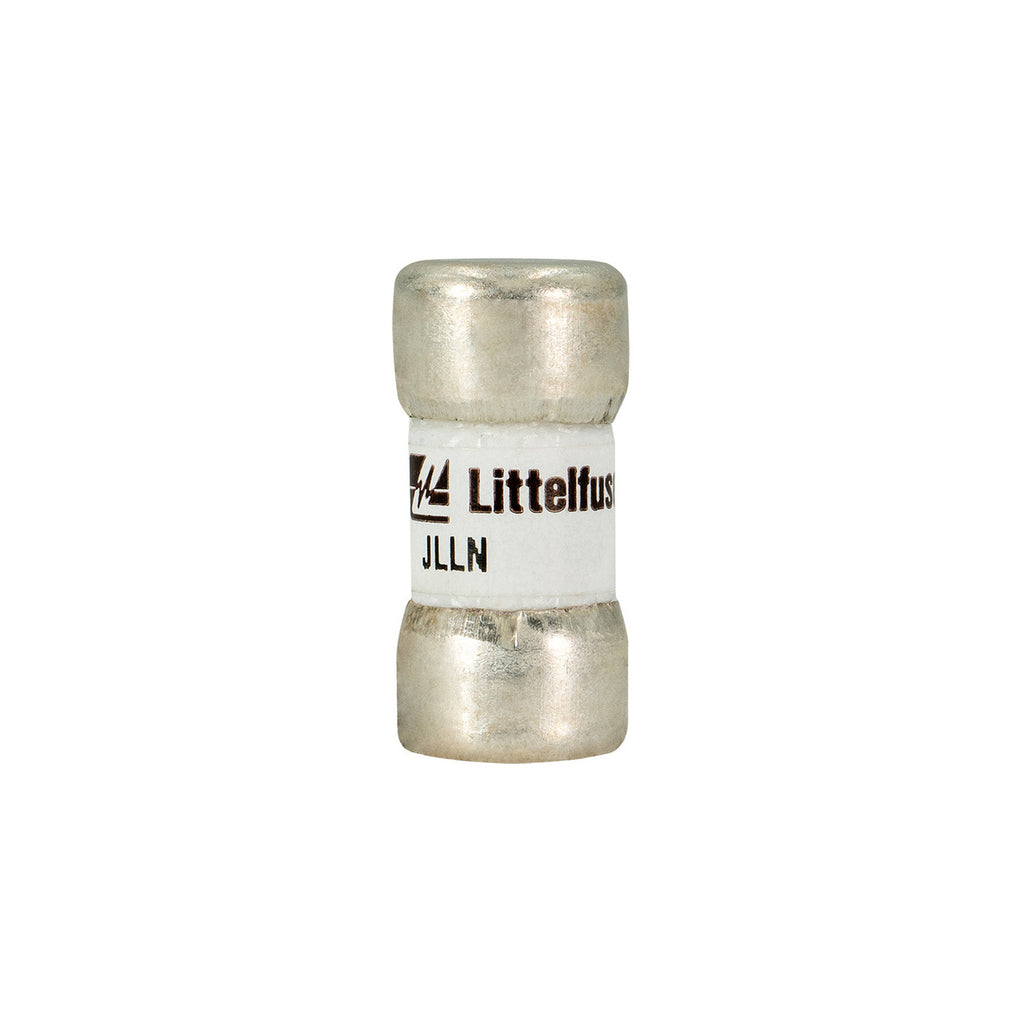

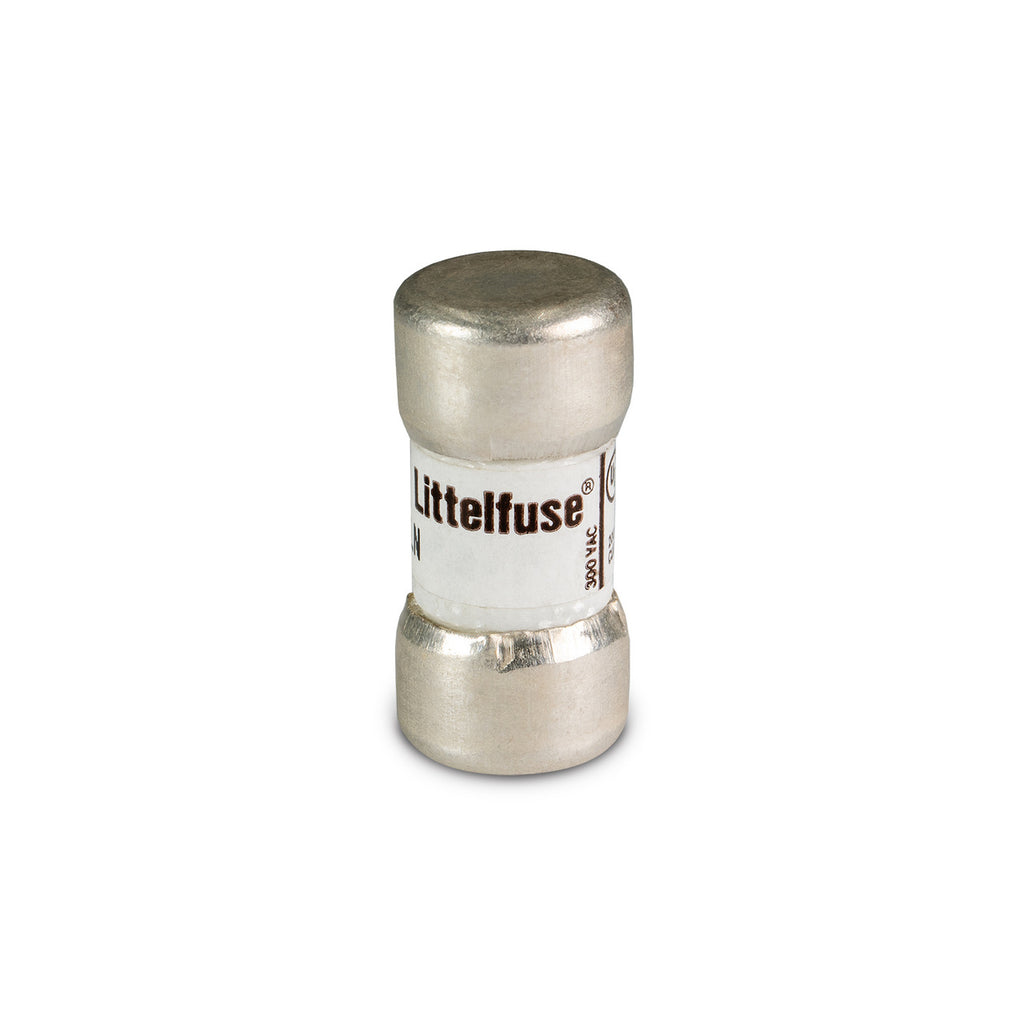

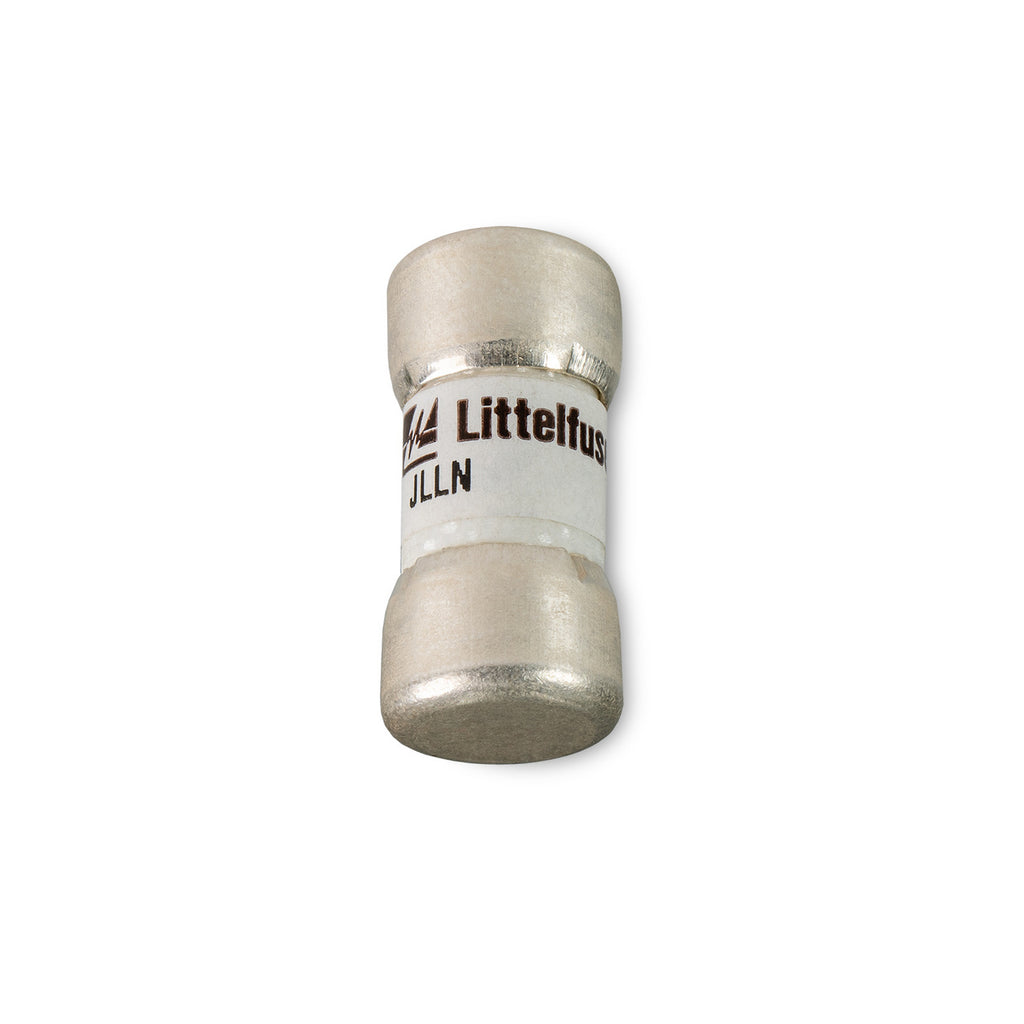

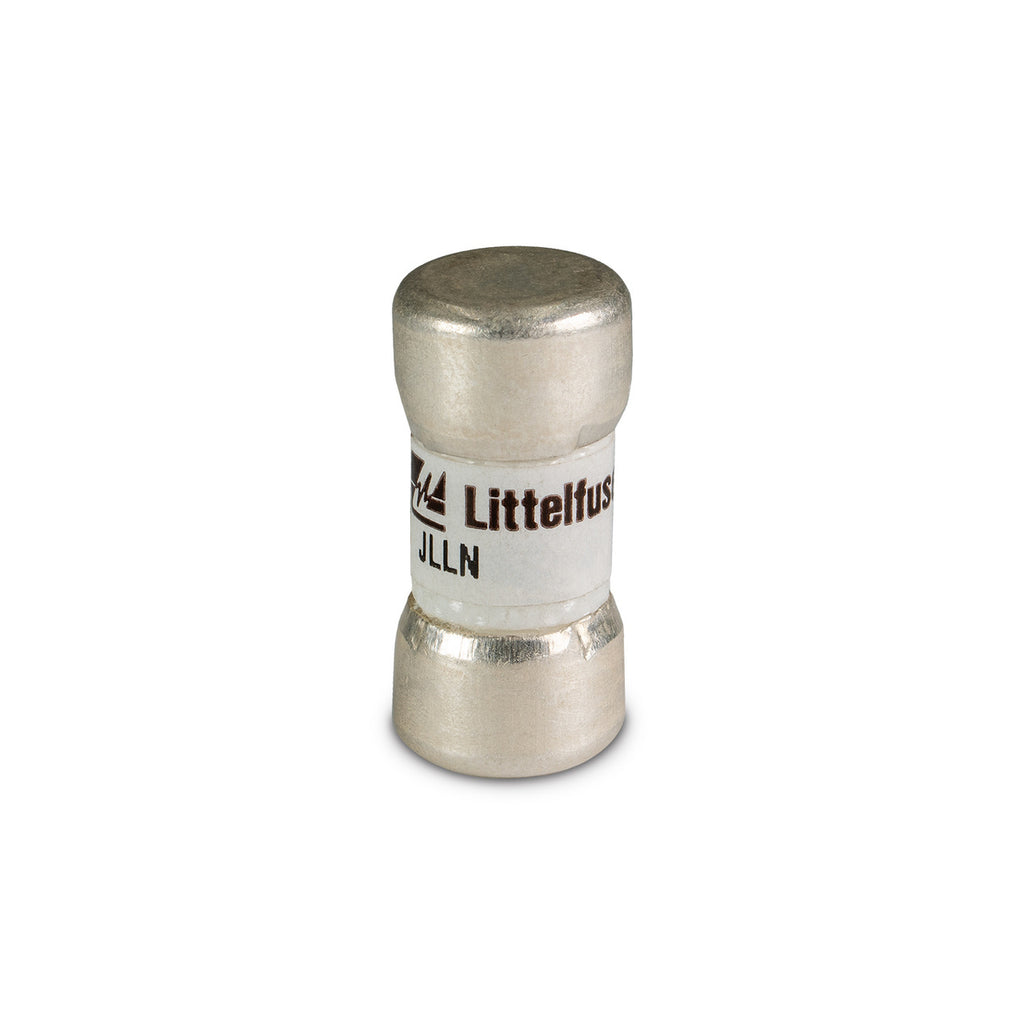

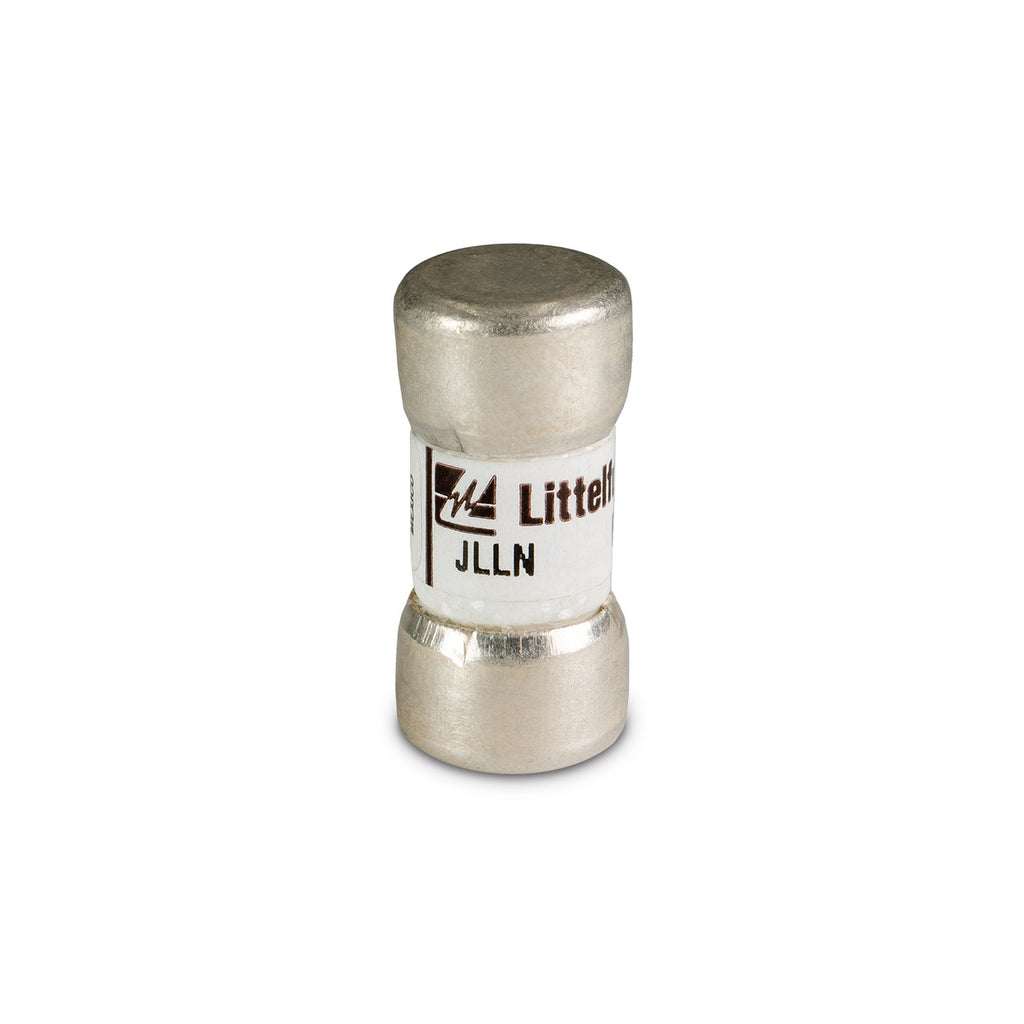

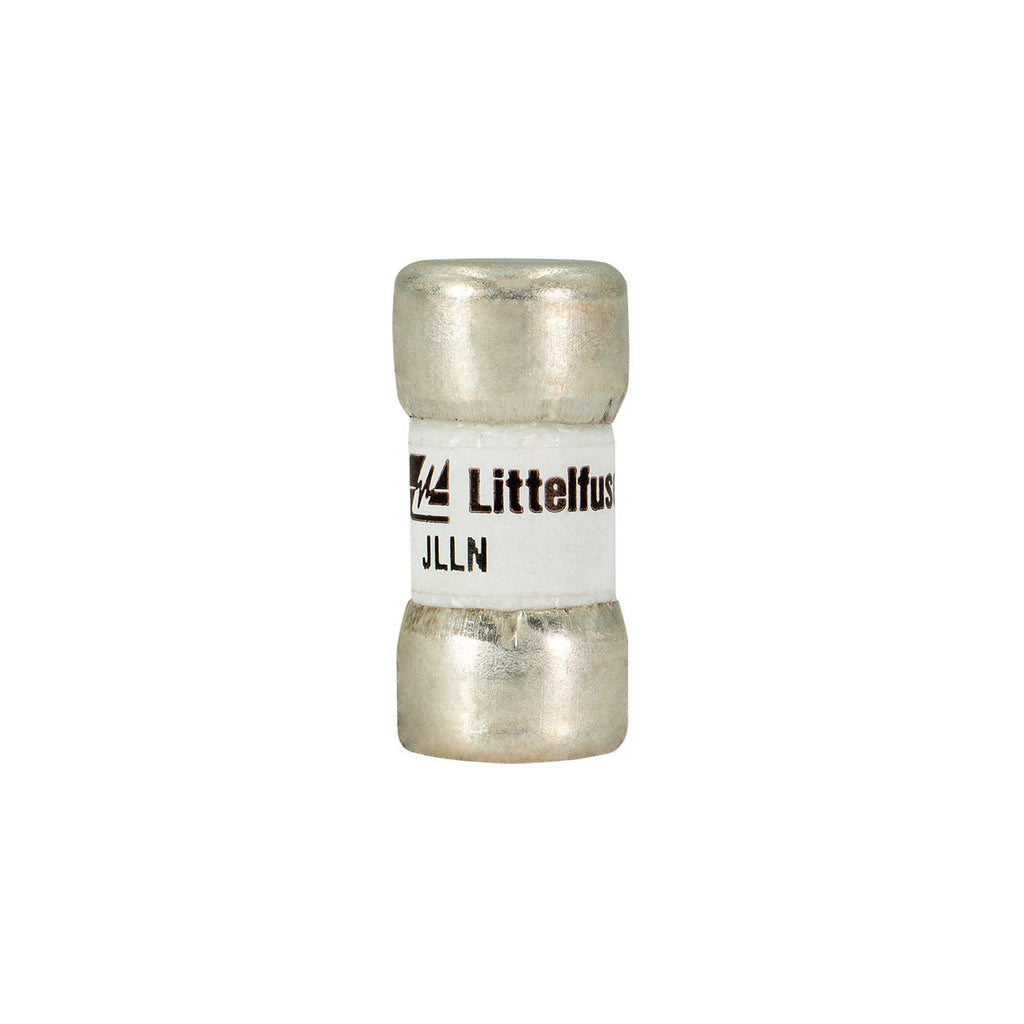

JLLN-030 is a UL Class T, fast-acting, current-limiting fuse designed for robust circuit protection in demanding applications.
This Littelfuse JLLN-030 fuse offers a compact, space-saving design with a 30 Amp current rating, 300V AC and 160V DC voltage ratings, and an extremely high interrupting capacity. It is ideal for protecting variable speed drives and other sensitive equipment where fast response and current limitation are critical. The fuse is RoHS compliant and carries UL, CSA, and CE certifications for global use.
-
Key Specifications
- Part Number: JLLN-030
- Manufacturer: Littelfuse
- Amperage: 30A
- Voltage: 300V AC, 160V DC
- Poles: Not applicable (fuse)
- Mounting Type: Not specified
- Interrupt Rating: 200,000A @ 300V AC, 50,000A @ 160V DC
- Series/Frame: JLLN Series, Class T
- Trip Unit: Not applicable (fuse)
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862), CE, RoHS Compliant
- Speed: Very fast acting
- Physical Size: 13/32" x 7/8"
- Application: Variable speed drive protection, general circuit protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JLLN-030
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 30
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818073
- GTIN : 00079458180732
- Weight : 0.08
