Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JLLN-025

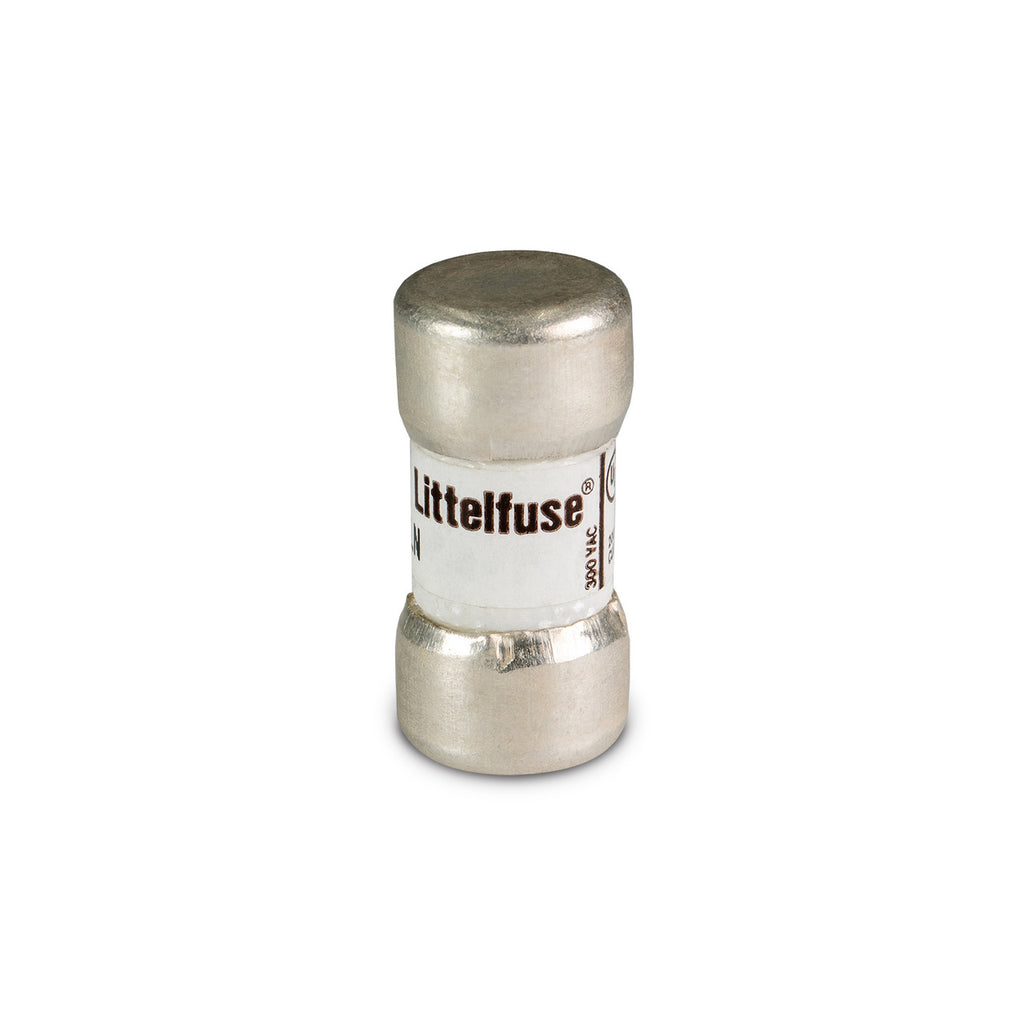

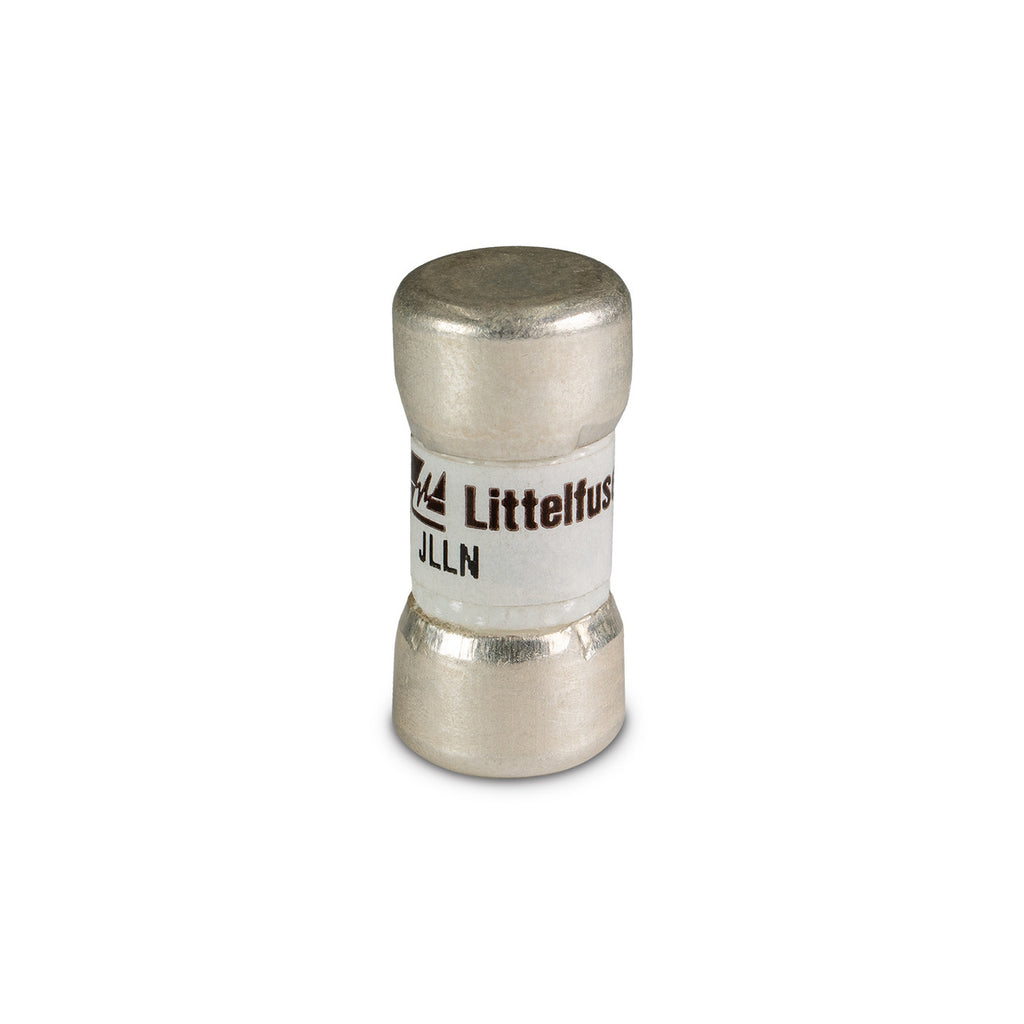

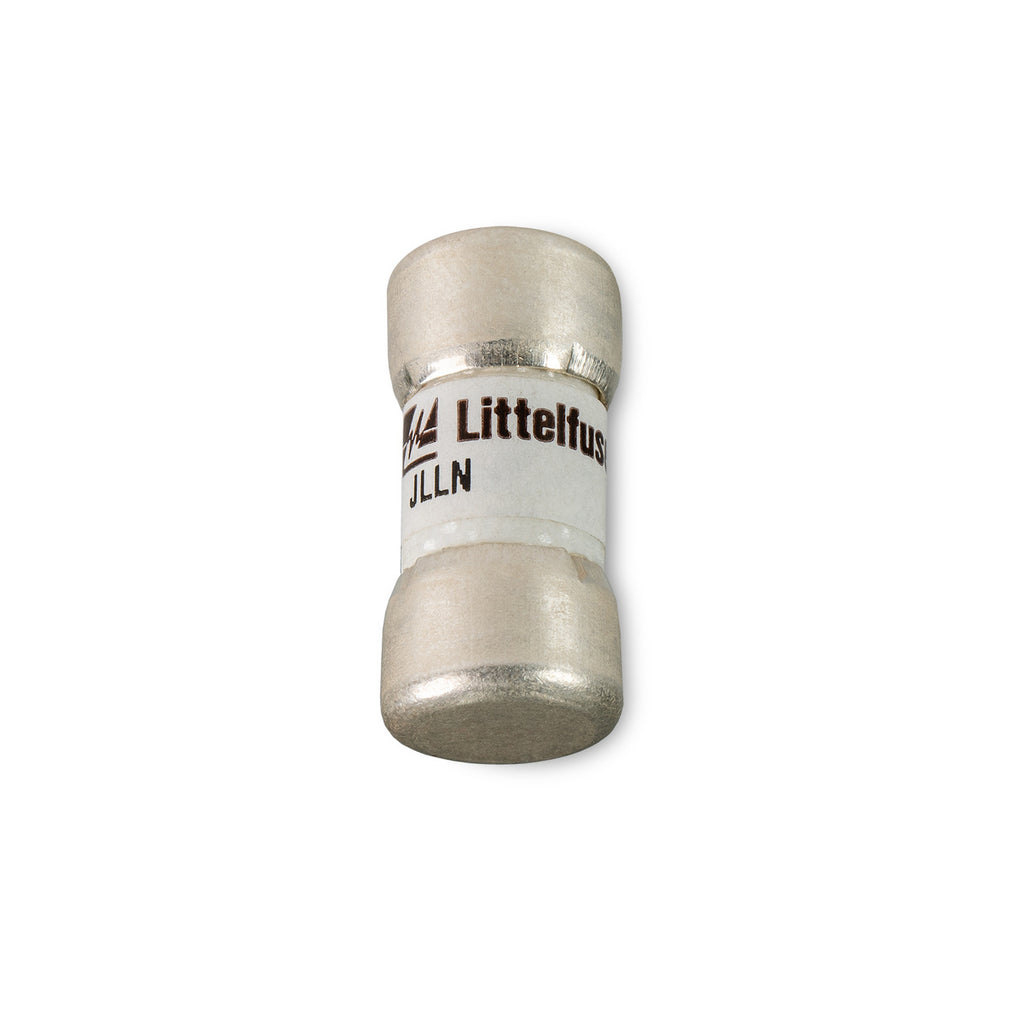

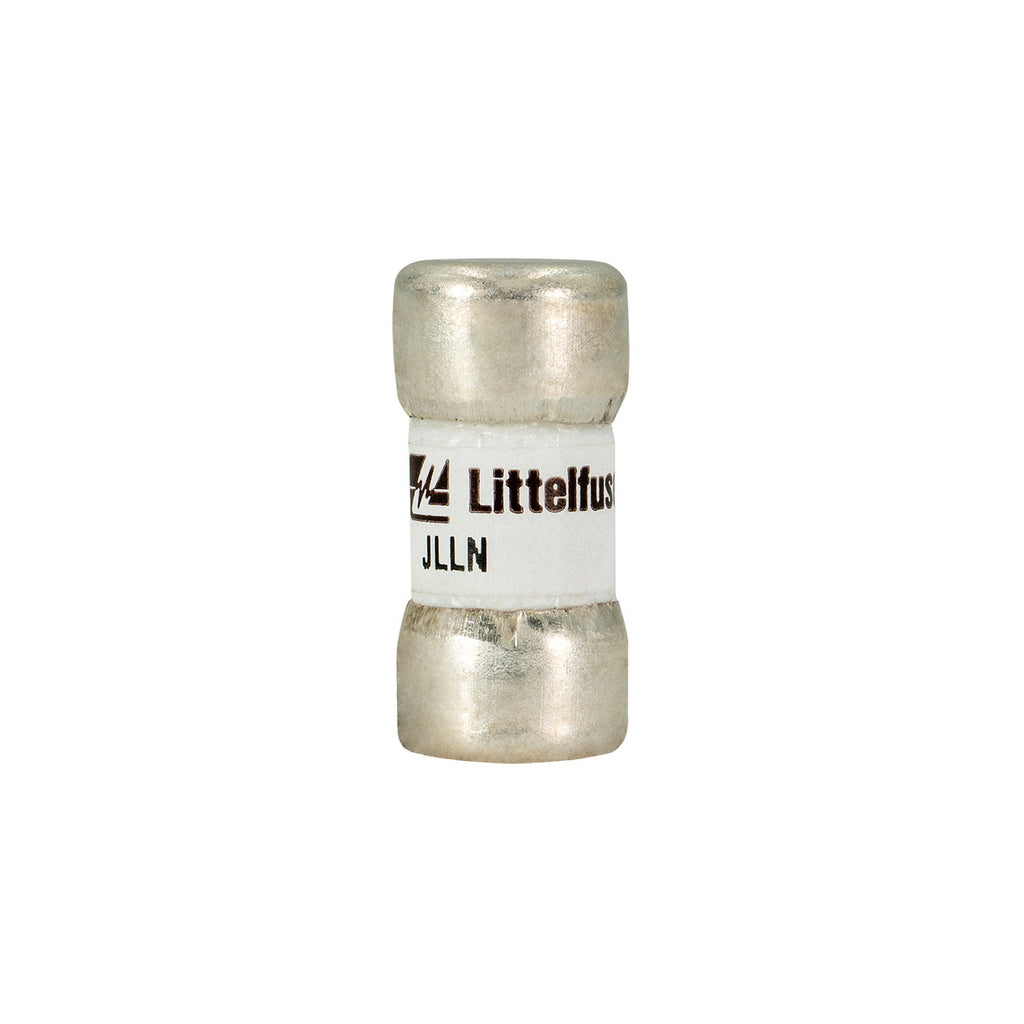

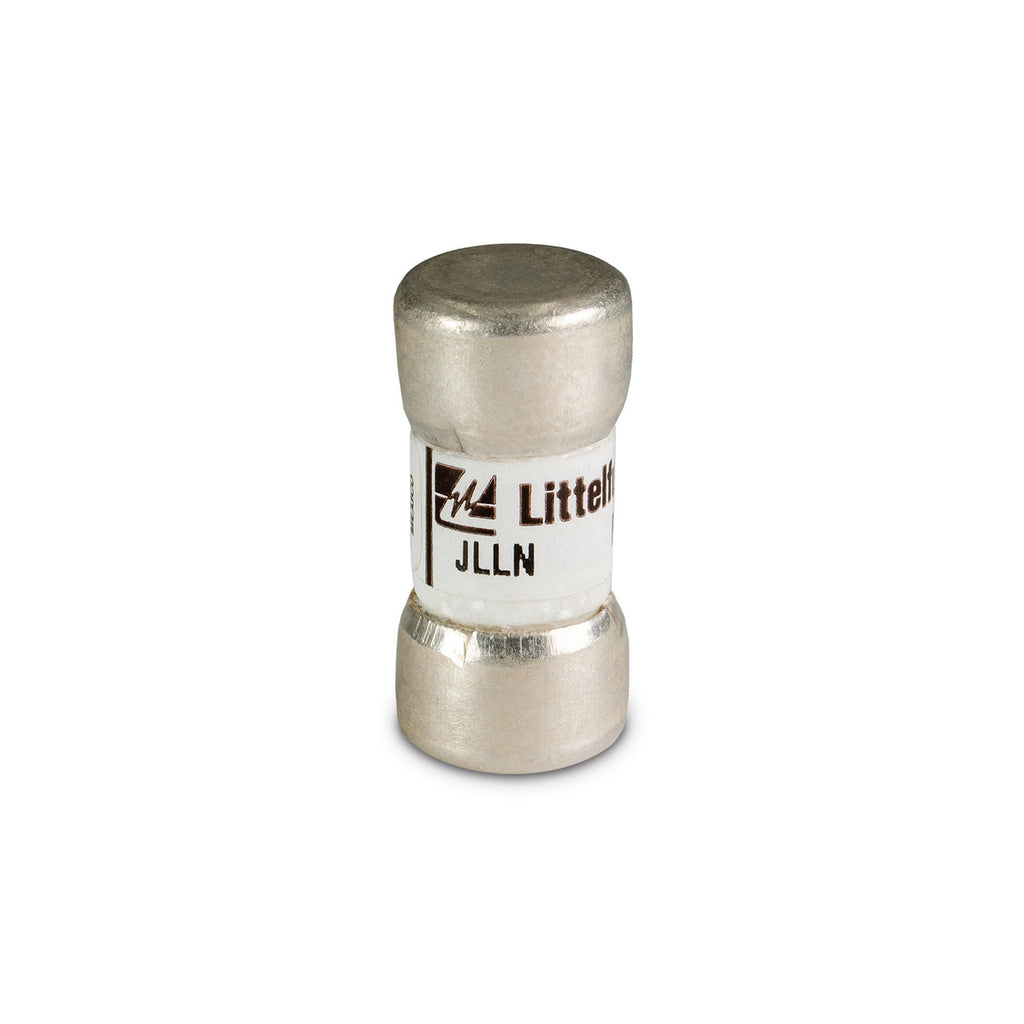

JLLN-025 is a Littelfuse Class T fast-acting fuse rated for 25 amps and designed for compact, high-performance circuit protection.This fuse features a voltage rating of 300 VAC and 160 VDC, with a high interrupting rating of 200,000 amps at 300 VAC and 50,000 amps at 160 VDC. It has a cartridge-style construction with a melamine body and bronze caps for durability. The JLLN series is UL 248-15, CSA, and CE certified, ensuring compliance with industry safety standards.
- Amperage: 25 A
- Voltage Rating: 300 VAC / 160 VDC
- Fuse Type: Class T
- Response Time: Fast-acting
- Interrupting Rating: 200 kA at 300 VAC, 50 kA at 160 VDC
- Body Material: Melamine
- Cap Material: Bronze
- Dimensions: 0.406 inch diameter x 0.875 inch length
- Certifications: UL Listed, CSA Certified, CE Compliant
- Mounting Type: Cartridge
Specifications
- Part Number: JLLN-025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : JLLN
- Voltage : 300
- Amperage : 25
- AIC rating : 200kA@300V
- Diameter : 0.41
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 07945818072
- GTIN : 00079458180725
- Weight : 5.19
