JLLN-020 - Littelfuse 20 Amp 300 Volt Class T Fast Acting Fuse

JLLN-020

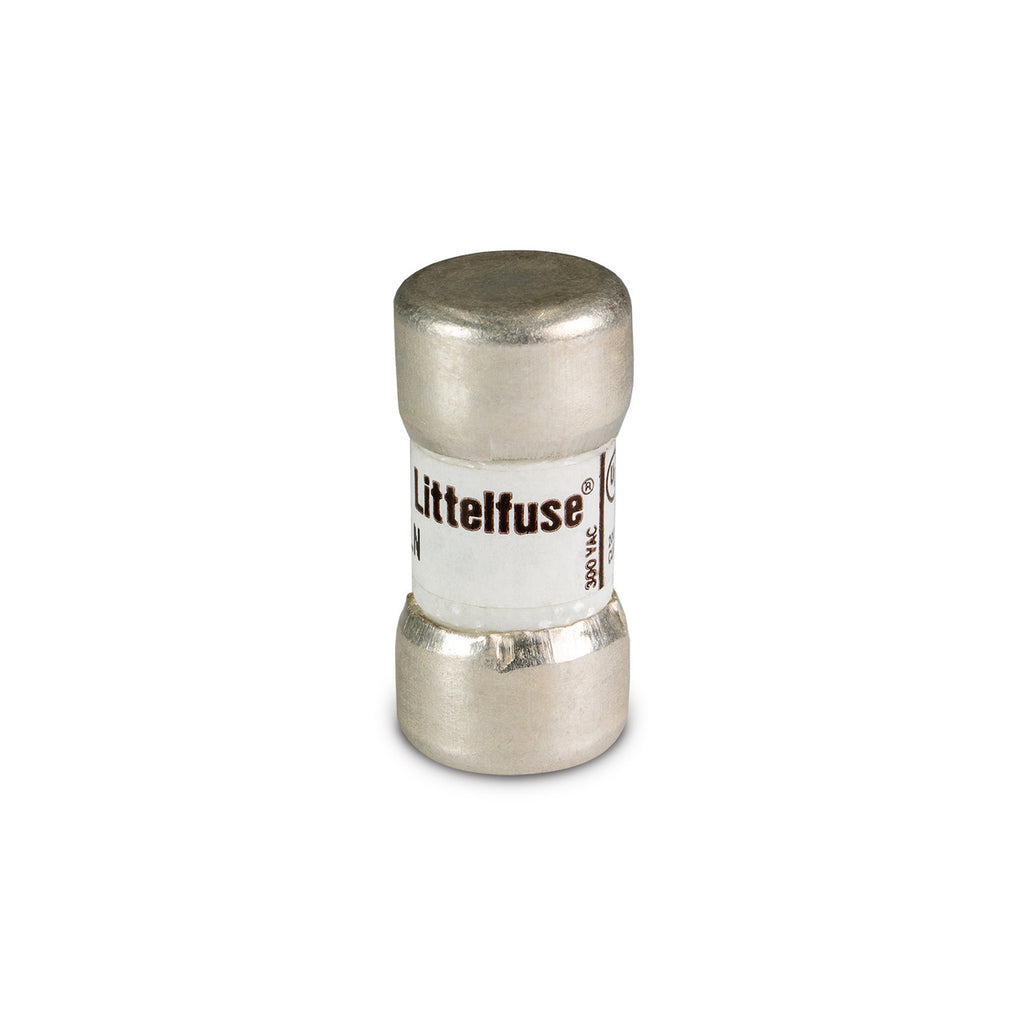

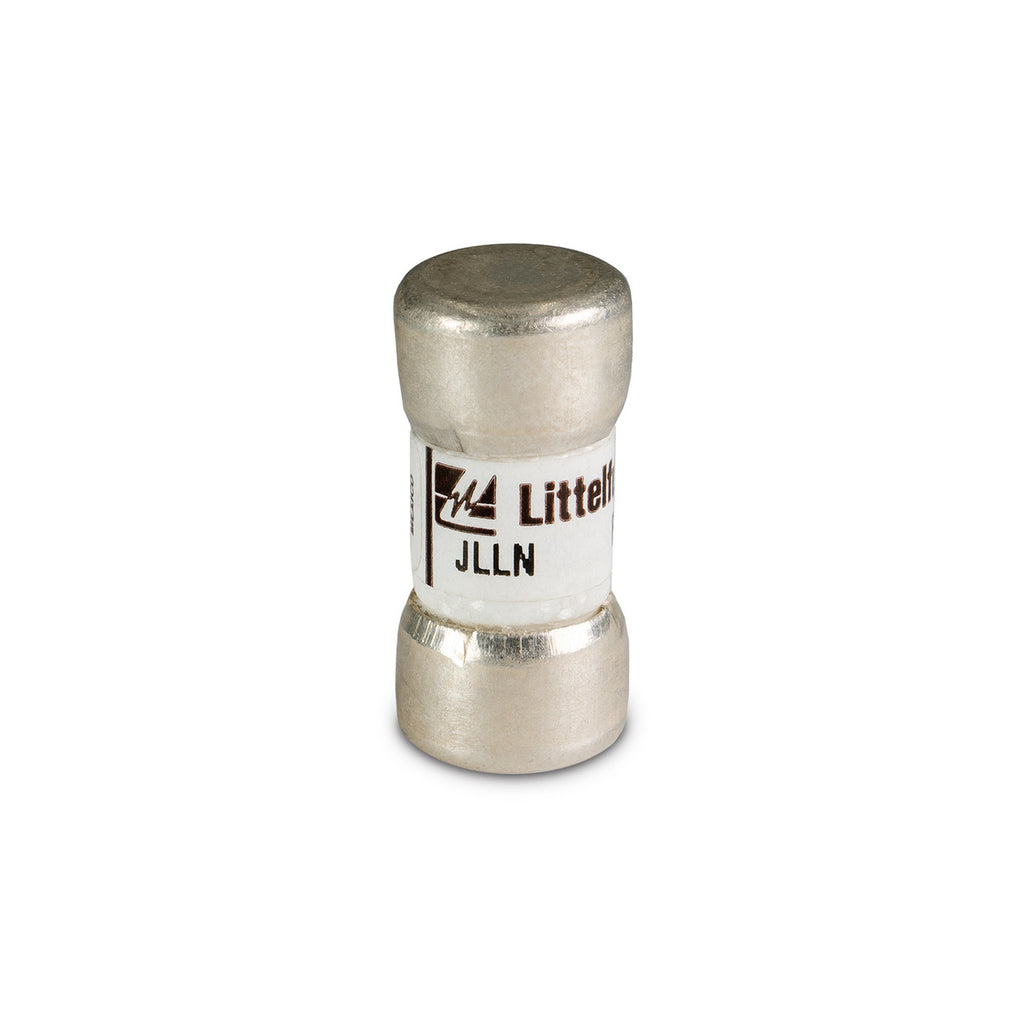

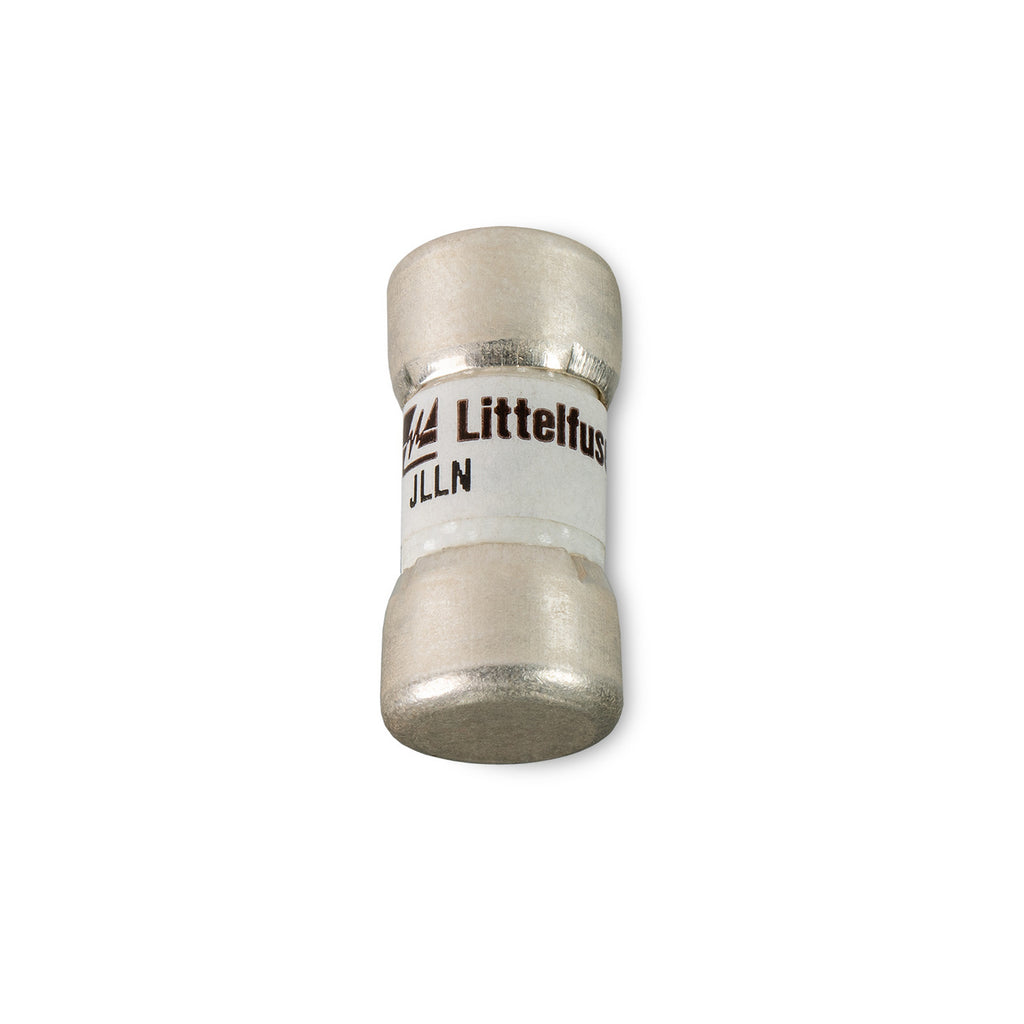

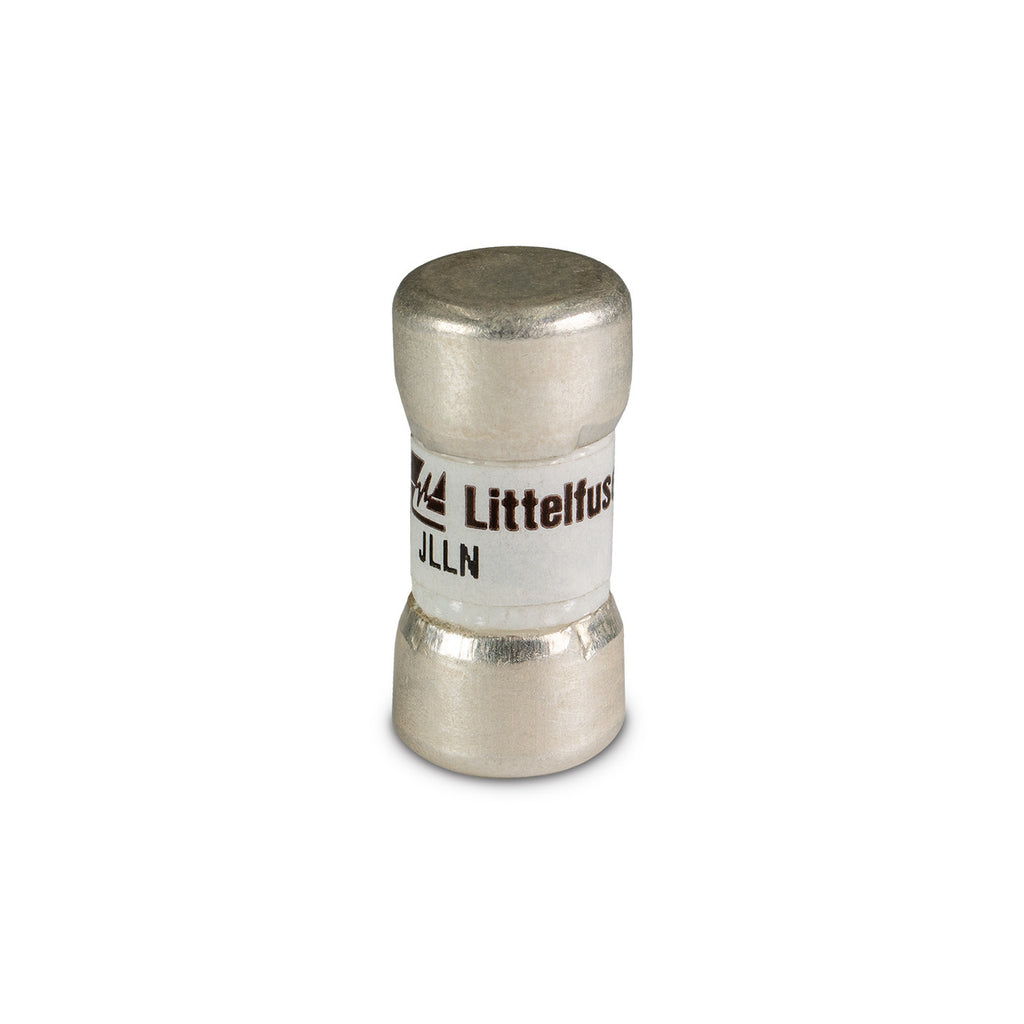

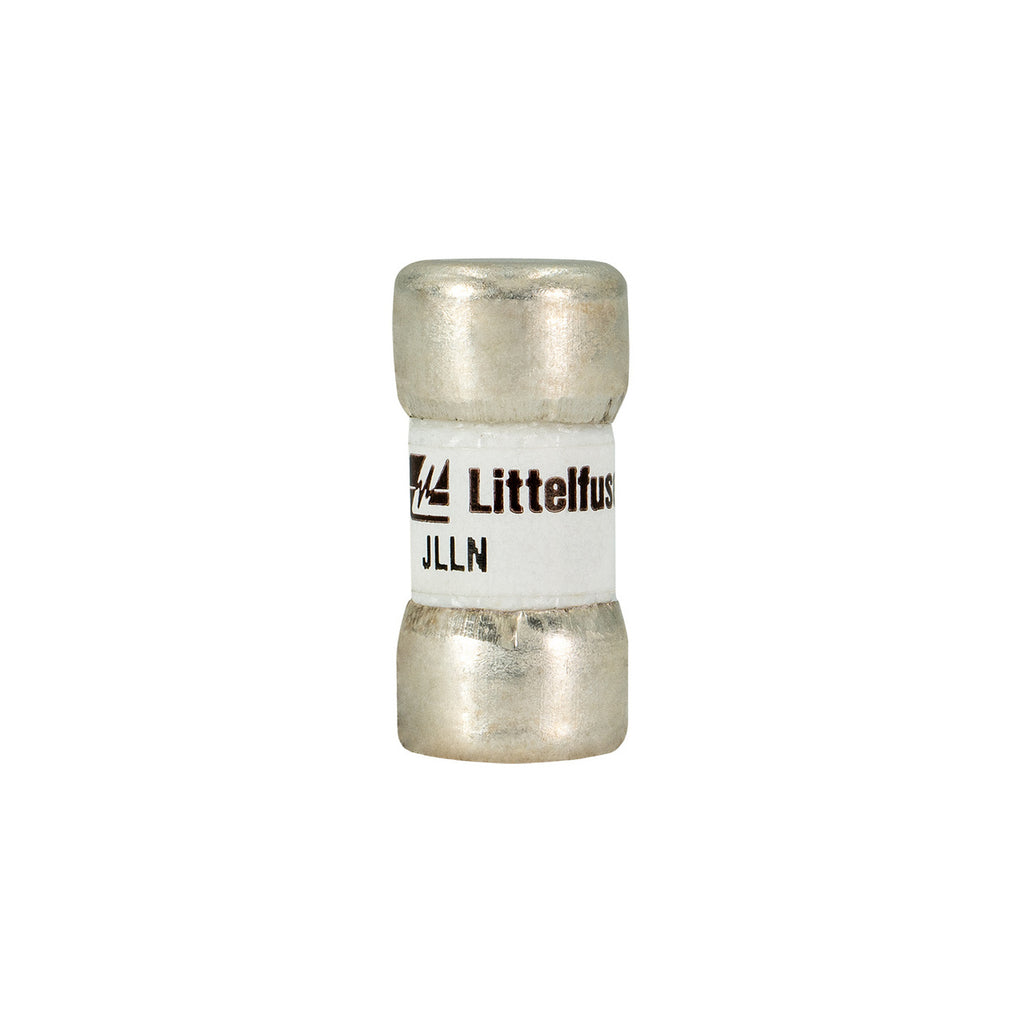

JLLN-020 is a Littelfuse 20 Amp, 300 Volt AC Class T fast acting fuse designed for compact and reliable circuit protection.This fuse features a very fast acting, current limiting design with a compact physical size of 13/32" x 7/8". It is rated for 300 VAC and 160 VDC with an interrupting rating of 200,000 AIC at 300 VAC and 20,000 AIC at 160 VDC. The JLLN-020 is UL Listed, CSA Certified, RoHS compliant, and ideal for variable speed drive protection and other low voltage applications.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 300 VAC, 160 VDC
• Fuse Class: Class T
• Speed: Very Fast Acting
• Interrupting Rating: 200,000 AIC @ 300 VAC, 20,000 AIC @ 160 VDC
• Physical Size: 13/32" x 7/8"
• Mounting Type: Cartridge Style, 1 Barrel
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862), RoHS Compliant
• Application: Variable Speed Drive Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JLLN-020
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : JLLN
• Voltage : 300
• Amperage : 20
• AIC rating : 200kA@300V
• Diameter : 0.41
• Class Rating : T
• Barrels : 1



Product Data

• UPC : 07945818071
• GTIN : 00079458180718
• Weight : 5.19
• Certification : Ul Listed Csa Certified
